HPE0-S60 HP Delta - HPE Compute Solutions Free Practice Exam Questions (2025 Updated)

The HPE Storage Integration Pack for VMware vCenter is designed to provide management capabilities for HPE storage arrays within the VMware vCenter environment. However, it does not support MSA arrays. This means that while you can manage HPE Synergy Gen10 compute modules and HPE ProLiant Gen10 servers, the MSA array will not be manageable through the HPE Storage Integration Pack.

The HPE Superdome Flex 280 is a highly scalable server that supports 2 to 8 sockets in 2-socket increments. This allows for flexible scaling of compute resources based on the needs of the workload, providing a balance between performance and cost.

In HPE Synergy configurations, compute nodes must have a second CPU installed to access the second fabric. This requirement is due to the architecture of the Synergy compute nodes, where the second CPU is necessary to enable the additional PCIe lanes required for connectivity to the second fabric.

When a logical interconnect group (LIG) that is used to configure logical interconnects in multiple logical enclosures is modified, all logical interconnects configured using this LIG will report inconsistency. This is because the configuration of the logical interconnects will no longer match the new settings defined in the modified LIG, and the inconsistencies must be resolved to ensure the configurations are synchronized.

With 15 HPE Synergy 12000 frames, the customer must create multiple logical enclosures to manage the setup efficiently. HPE Synergy typically supports up to five frames per logical enclosure, meaning that at least five logical enclosures would be necessary to manage all 15 frames. This ensures proper organization, management, and scalability of the resources.

To deploy HPE Superdome Flex and configure two nPars, each based on two chassis, you must include the HPE Superdome Flex Grid licenses. These licenses enable connectivity between the chassis, allowing the creation of nPars (nPartitions) that span multiple chassis. This is essential for the system's proper configuration and operation in a multi-chassis nPar setup.

The HPE Superdome Flex 280 is the appropriate hardware platform for a customer requiring up to 24 TB of physical memory. This system is designed for high scalability and performance, supporting large memory configurations suitable for demanding applications and workloads.

A limitation when creating a server profile in HPE OneView is that it is not possible to create shared volumes on demand directly through a server profile. Server profiles in HPE OneView are used to define and manage the configuration of compute nodes, including network connections, BIOS settings, and boot order, but they do not have the capability to dynamically create or manage shared storage volumes.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

When encountering an error while growing a VMware cluster using HPE OneView for VMware vCenter Server, it is crucial to verify that the server profile template is properly imported and registered in HPE OneView. This ensures that the necessary configurations and settings are correctly applied to the new compute nodes being added to the cluster.

The HPE Superdome Flex system is the only HPE compute system that supports up to 16 CPU sockets, making it suitable for customers who require a hardware platform with such high scalability. The Superdome Flex is designed for mission-critical workloads and provides exceptional scalability and performance.

In HPE Synergy, a management ring can indeed contain mixed frame link module (FLM) configurations. This means you can have a mix of 2-port and 4-port FLM modules within the same management ring without needing to replace the existing 2-port modules. This flexibility allows for gradual upgrades and scalability within the management ring.

When a new Ethernet network is created in HPE OneView and is not available in the server profile, it is typically because the network has not been added to the uplink set within the Logical Interconnect Group (LIG). To resolve this issue, the network must be included in the uplink set configuration, and then the logical interconnect configuration must be updated from the LIG to propagate the changes.

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

ArbiterDefinition:Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute nodeDefinition:Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Intelligent Workload OptimizerDefinition:Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Management Virtual ControllerDefinition:Provides centralized management and events end-point for vCenter.

Arbiter:The Arbiter in an HPE SimpliVity environment is responsible for ensuring communication between nodes and resolving any state conflicts, which is crucial for maintaining service continuity.

Compute node:In an HPE SimpliVity environment, a compute node refers to non-hyperconverged servers that provide additional compute capacity while utilizing the storage from hyperconverged nodes.

Intelligent Workload Optimizer:This component integrates with VMware's Distributed Resources Scheduler (DRS) to optimize the placement of virtual machine (VM) compute resources, ensuring they are efficiently distributed across the environment.

Management Virtual Controller:This controller provides centralized management and serves as the events end-point for vCenter, allowing for streamlined management and monitoring of the SimpliVity environment.

When managing HPE Primera arrays using HPE OneView, the management procedures and features are largely the same as those for HPE 3PAR arrays. HPE OneView provides a consistent management experience across both storage platforms, allowing customers to easily transition from HPE 3PAR to HPE Primera without significant changes to their management workflows.

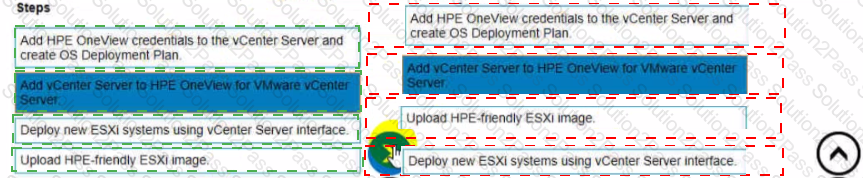

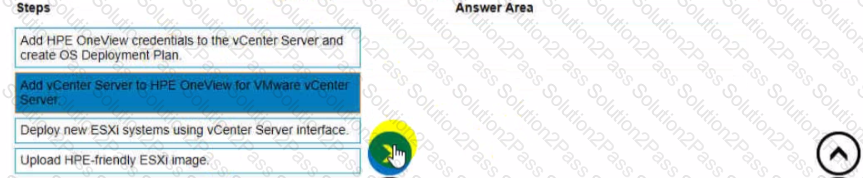

To configure HPE OneView for VMware vCenter Server to deploy ESXi systems, follow these steps in the correct order:

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server.

Upload HPE-friendly ESXi image.

Deploy new ESXi systems using vCenter Server interface.

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan:Integrate HPE OneView with vCenter Server by adding the necessary credentials and setting up the OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server:Ensure that vCenter Server is added to HPE OneView for VMware vCenter Server to enable communication and management.

Upload HPE-friendly ESXi image:Upload an ESXi image that is optimized for HPE hardware to the vCenter Server for use in the deployment process.

Deploy new ESXi systems using vCenter Server interface:Use the vCenter Server interface to deploy new ESXi systems based on the created server profile template and the uploaded ESXi image.

These steps ensure a seamless deployment and management of ESXi systems using HPE OneView integrated with VMware vCenter Server.

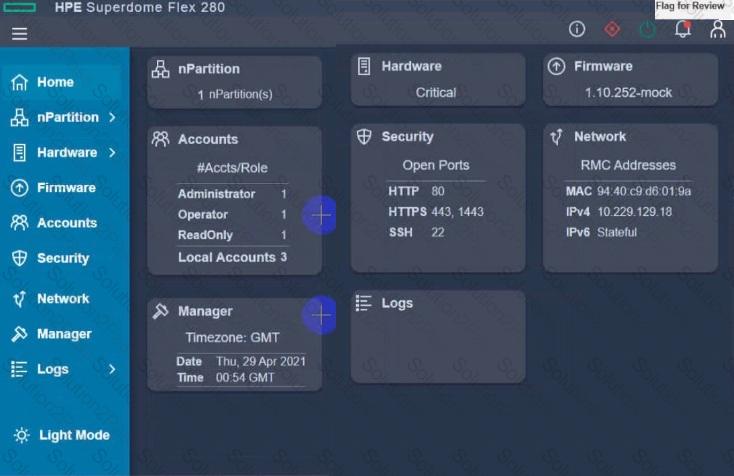

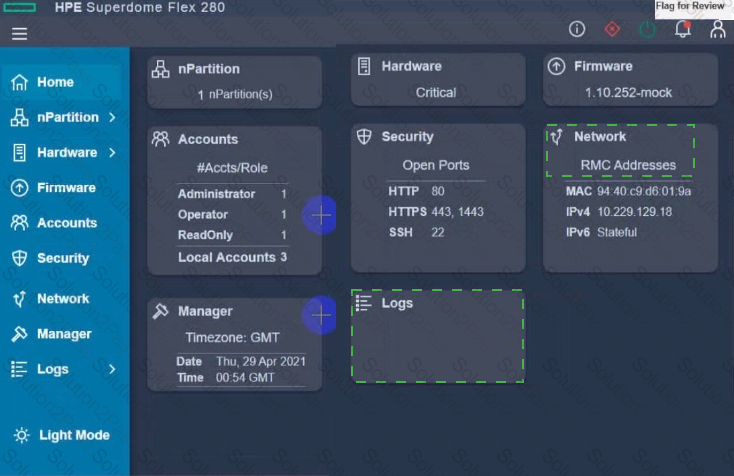

To check the Core Analysis Engine (CAE) Log on the HPE Superdome Flex 280, navigate to theLogssection in the management interface. This section provides access to various logs, including system, security, and diagnostic logs, which encompass the CAE logs necessary for detailed analysis and troubleshooting.

All new HPE SimpliVity models are designed with integrated deduplication, compression, and optimization capabilities. These features are fundamental to the HPE SimpliVity architecture, providing enhanced storage efficiency and performance. Deduplication and compression reduce the amount of data stored and transmitted, which improves the overall efficiency of data management in the hyper-converged infrastructure.

For HPE Virtual Connect Fibre Channel (VC FC) modules, utilization sampling is always enabled by default and cannot be disabled. This feature ensures continuous monitoring of the module's performance and utilization, providing valuable insights for managing the Fibre Channel network.
