HPE6-A73 HP Aruba Certified Switching Professional Exam Free Practice Exam Questions (2025 Updated)

Prepare effectively for your HP HPE6-A73 Aruba Certified Switching Professional Exam certification with our extensive collection of free, high-quality practice questions. Each question is designed to mirror the actual exam format and objectives, complete with comprehensive answers and detailed explanations. Our materials are regularly updated for 2025, ensuring you have the most current resources to build confidence and succeed on your first attempt.

HP HPE6-A73 Premium Access     Download Demo
Page: 1 / 2
Total 127 questions

What is correct regarding rate limiting and egress queue shaping on AOS-CX switches?

A.

Only a traffic rate and burst size can be defined for a queue

B.

Limits can be defined only for broadcast and multicast traffic

C.

Rate limiting and egress queue shaping can be used to restrict inbound traffic

D.

Rate limiting and egress queue shaping can be applied globally

Which protocol does NetEdit use to discover devices in a subnet during the discovery process?

A.

LLDP

B.

ARP

C.

DHCP

D.

ICMP

Examine the AOS-CS switch output:

Based on this output, what is correct?

A.

802.1X authentication was successful, but MAC authentication is yet to start

B.

802.1X authentication occurred and downloadable user roles are deployed

C.

A local user role was deployed using a ClearPass solution

D.

Only 802.1X authentication is configured on the port

An administrator has an aggregation layer of 8325CX switches configured as a VSX pair. The administrator is

concerned that when OSPF network changes occur, the aggregation switches will respond to the changes

slowly, and this will affect network connectivity, especially VoIP calls, in the connected access layer switches.

What should the administrator do on the aggregation layer switches to alleviate this issue?D18912E1457D5D1DDCBD40AB3BF70D5D

A.

Implement route aggregation

B.

Implement bidirectional forwarding detection (BFD)

C.

Reduce the hello and dead interval timers

D.

Implement graceful restart

Which statement is correct regarding ACLs and TCAM usage?

A.

Applying an ACL to a group of ports consumes the same resources as specific ACE entries

B.

Using object groups consumes the same resources as specific ACE entries

C.

Compression is automatically enabled for ASIC TCAMs on AOS-CX switches

D.

Applying an ACL to a group of VLANs consumes the same resources as specific ACE entries

An administrator wants to implement a virtual switching technology that implements a single control-plane solution. Which S-CX switches would meet these criteria?

A.

All AOS-CX switching platforms

B.

AOS-CX 6300 and 6400 switches

C.

AOS-CX 6300, 6400, and 83xx switches

D.

AOS-CX 6300 switches

What is true regarding VSX and keepalives on AOS-CX switches?

A.

A separate VLAN on the ISL link is used.

B.

A VSX LAG for the keepalives is a best practice.

C.

The OOBM port must be used.

D.

A 1GbE or faster port is used.

MAC authentication is enabled on port 1/1/27 of an AOS-CX switch. The following MAC addresses are defined on the AAA server:

* 88:3a:30:97:b6:00

* 00:50:56:b1:fc:9b

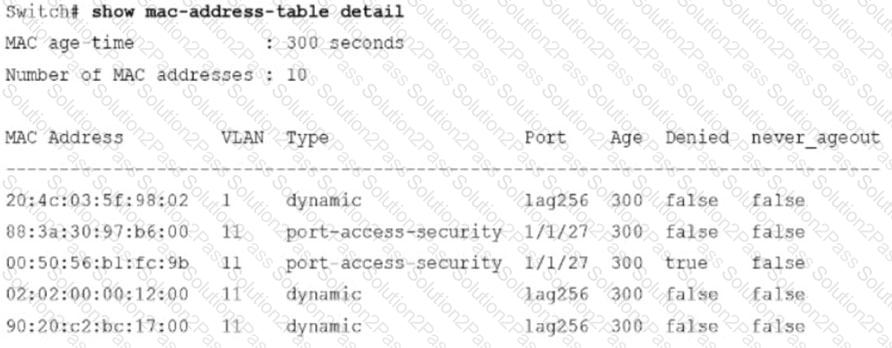

Examine the AOS-CX switch output:

Based on this information, what is true concerning port 1/1/27?

A.

Device-mode is enabled with a client limit of 1.

B.

Device-mode is enabled with a client limit of 2.

C.

Client-mode is enabled with a client limit of 1.

D.

Client-mode is enabled with a client limit of 2.

An administrator wants to leverage always-on PoE on AOS-CX switches. Which statement is correct regarding this feature?

A.

Provides up to 60W of power per port

B.

Supports all AOS-CX switches

C.

Provides surge protection for PoE and non-PoE ports

D.

Requires NetEdit to implement

A customer has twenty AOS-CX switches that will be managed by NetEdit and would like support for NetEdit these switches will exist in the network for at least five years.

Which type of licensing should be used by this customer?

A.

20 Aruba NetEdit permanent licenses

B.

20 Aruba NetEdit single node subscription licenses

C.

25 Aruba NetEdit permanent licenses

D.

1 Aruba NetEdit SMB License

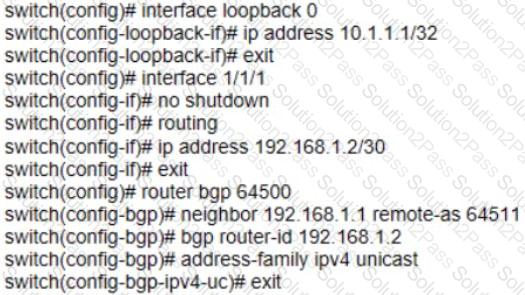

A network administrator is tasked to set up BGP in the company's network. The administrator is defining an eBGP peering between an AOS-CX switch and a directly-connected service provider. The administrator has configured the following on the AOS-CX switch:

However, when using the "show bgp all summary" command, the state does not display "Established" for the eBGP peer. What must the administrator configure to fix this issue?

A.

router bgp 64500 neighbor 192.168.1.1 ebgp-multihop

B.

router bgp 64500 enable

C.

router bgp 64500 address-family ipv4 unicast neighbor 192.168.1.1 activate

D.

router bgp 64500 neighbor 192.168.1.1 update-source loopback0

Examine the attached diagram

Two AOS-CX switches are configured for VSX at the access layer, where servers attached to them. An SVI interface is configured for VLAN 10 and serves as the default gateway for VLAN 10. The ISL link between the switches fails, but the keepalive interface functions. Active gateway has been configured on the switches.

What is correct about access from the servers to the Core?

A.

Server 2 can successfully access the core layer via the keepalive link.

B.

Server 1 and Server 2 can communicate with each other via the core layer.

C.

Server 2 cannot access the core layer.

D.

Server 1 can access the core layer via both uplinks.

What is correct regarding the configuration of ACLs on AOS-CX switches?

A.

Statements with the log keyword are always processed by the switch CPU.

B.

Standard ACLs are used to match on routes when performing route distribution.

C.

Wildcard masks are used to match on a range of IP addresses.

D.

Numbers 100 through 199 and 2000 through 2999 are used when creating extended ACLs.

An administrator is managing a network comprised of AOS-CX switches deployed at the aggregation layer. The switches are paired in a VSX stack and run the OSPF routing protocol. The administrator is concerned about how long it takes for OSPF to converge when one of the VSX switches has to reboot.

What should the administrator to do speed up the OSPF convergence of the switch that is rebooting?

A.

Change the VSXISL link from an OSPF broadcast link point-to-point.

B.

Implement graceful restart on the VSX switches and their neighboring OSPF switches.

C.

Decrease the VSX initial synchronization timer on the two VSX switches.

D.

Define non-backbone areas on the VSX switches as totally stubby areas.

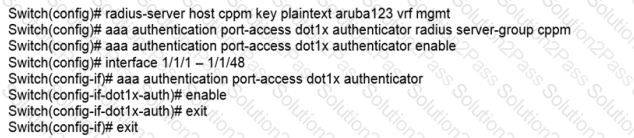

Examine the configuration performed on newly deployed AOS-CX switches:

After performing this configuration, the administrator notices that the switch ports always remain in the EAP start state. What should the administrator do to fix this problem?

A.

Define the server group cppm

B.

Set the ports to client-mode

C.

Create and assign a local user role to the ports

D.

Enable change of authorization (CoA)

What is correct regarding the tunneling of user traffic between AOS-CX switches and Aruba Mobility

Controllers (MCs)?

A.

Uses IPSec to protect the management and data traffic

B.

Uses IPSec to protect the management traffic

C.

Supports only port-based tunneling

D.

Uses the same management protocol as Aruba APs

A network administrator is implementing BGP for a larger network. The network has over 20 exit points across 15 different BGP routers. The administrator does not want to implement a fully-meshed iBGP peering between all BGP routers.

Which feature should the administrator implement to reduce the number of peers the administrator needs to define?

A.

Next-hop-self

B.

BFD

C.

Peer-Groups

D.

Route reflectors

A network administrator is managing a network that deploys a multicast service. The administrator has

multiple streams successfully being routed by PIM-DM in the network. The administrator then adds a new stream with a destination address of 239.0.0.1. However, clients who have not joined the stream are receiving it.

What should the administrator do to fix this problem?

A.

Verify that IGMP is enabled between the switches connecting the multicast source and receivers

B.

Change the destination multicast address to 239.1.1.1

C.

Define the 239.0.0.1 stream on the rendezvous point (RP)

D.

Define the 239.0.0.1 stream on the PIM candidate bootstrap router

An administrator is implementing a downloadable user role solution involving AOS-CX switches. The AAA

solution and the AOS-CX switches can successfully authenticate users; however, the role information fails to

download to the switches. What policy should be added to an intermediate firewall to allow the downloadable

role function to succeed?

A.

Allow TCP 443

B.

Allow UDP 1811

C.

Allow UDP 8211

D.

Allow TCP 22

An administrator is supporting a network with the access layer consisting of AOS-CX 6300 and 6400 switches. The administrator needs to quickly deploy Aruba IAPs and security cameras in the network, ensuring that the correct QoS and VLAN settings are dynamically applied to the switch ports. Currently, switches are not configured to do device authentication, and no authentication server exists in the network.

Which AOS-CX feature should the administrator use to dynamically assign the policy settings to the correct switch ports?

A.

Device profiles

B.

Change of authorization

C.

Dynamic segmentation

D.

Voice VLANs
