This is an Aruba-recommended best practice for hardening that only applies to Aruba CX 6300 series switches with dedicated management ports. A dedicated management port is a physical port that is used exclusively for out-of-band management access to the switch. A dedicated management VRF is a virtual routing and forwarding instance that isolates the management traffic from other traffic on the switch. By creating a dedicated management VRF and assigning the management port to it, the administrator can enhance the security and performance of the management access to the switch. The other options are incorrect because they either do not apply to switches with dedicated management ports or do not follow Aruba-recommended best practices. References: https://www.arubanetworks.com/assets/ds/DS_AOS-CX.pdf https://www.arubanetworks.com/assets/tg/TB_ArubaCX_Switching.pdf

An inbound ACL is applied to traffic entering a port or VLAN. An outbound ACL is applied to traffic leaving a port or VLAN4. To deny ping sourcing from the user VLAN to the IT management VLAN, an inbound ACL on the user VLAN should be used to filter icmp echo traffic toward the IT management VLAN. Icmp echo-reply traffic is not needed to be allowed because it is already permitted by default5. References: 4 https://techhub.hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-9B8F6E8F-9C7A-4F0D-AE7B-9D8E6C5B6A7F.html  5 https://techhub. hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-0C3A9D0F-6E5B-4E1A-AF3C-8D8B2F9C1A7B.html

Active gateway is a first hop redundancy protocol that eliminates a single point of failure. The active gateway feature is used to increase the availability of the default gateway servicing hosts on the same subnet. An active gateway improves the reliability and performance of the host network by enabling a virtual router to act as the default gateway for that network. If you have enabled active gateway, VRRP is not required3. Active gateway is similar to VRRP in that routed traffic from the VSX node is sourced from the switch interface MAC and not the virtual MAC address (VMAC). Each active gateway sends a periodic broadcast hello packet to avoid VMAC aging on the access switches. The switch views the active gateway IP as a self IP address3. Active gateway is preferable over VRRP because with VRRP traffic is still pushed over the ISL link, resulting in latency in the network3. Therefore, VRRP and active gateway are mutually exclusive on a VLAN, and answer A is correct.

Spectrum Monitor is an Aruba AP mode that is sending captured RF data to Aruba Central for waterfall plot. Spectrum Monitor is a mode that allows an AP to scan all channels in both 2.4 GHz and 5 GHz bands and collect information about the RF environment, such as interference sources, noise floor, channel utilization, etc. The AP then sends this data to Aruba Central, which is a cloud-based network management platform that can display the data in various formats, including waterfall plot. Waterfall plot is a graphical representation of the RF spectrum over time, showing the frequency, amplitude, and duration of RF signals. The other options are incorrect because they are either not AP modes or not sending RF data to Aruba Central. References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/spectrum_monitor.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/waterfall_plot.htm https://www.arubanetworks.com/products/network-management-operations/aruba-central/

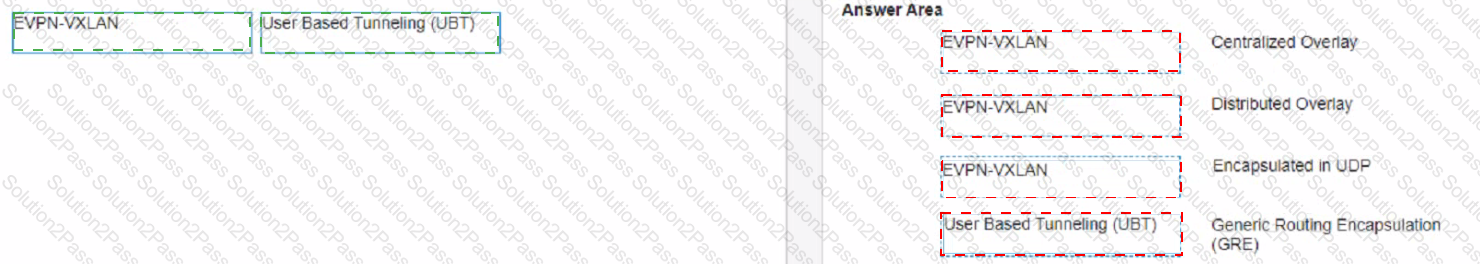

According to the Aruba Documentation Portal1, user-based tunneling (UBT) is a feature that uses GRE to tunnel ingress traffic on a switch interface to a gateway for further processing. UBT enables a switch to provide a centralized security policy, using per-user authentication and access control to ensure consistent access and permissions.

Option A: The switch will put the client on the access VLAN

This is because option A shows how UBT works on an Aruba switch. When a device connects to the network, it is authenticated using either MAC Authentication or 802.1X and triggers an enforcement policy from ClearPass, which contains an enforcement profile with a user role configuration. The user role can be assigned locally on the switch or on ClearPass as part of an enforcement profile. The user role determines the VLAN that the device belongs to and the access policies that apply to it23.

Therefore, option A is correct.

1: https://www.arubanetworks.com/techdocs/central/latest/content/nms/aos-cx/cfg/conf-cx-ubt.htm  2: https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7696/GUID-581D2976-694B-46C7-8497-F6B788AA05B2.html  3: https://community.arubanetworks.com/viewdocument/?DocumentKey=c740df4e-3e26-4cc5-9126-355a18709c44 &CommunityKey=2fd943a6-8898-4dbe-915f-4f09e4d3c317&tab=librarydocuments

A session-based ACL is applied to traffic entering or leaving a port or VLAN based on the direction of the session initiation. To allow ping from any wired station to wireless clients but not vice versa, a session-based ACL should be used to deny icmp echo traffic from any source to any destination, and then permit icmp echo-reply traffic from any source to user destination. The user role represents wireless clients in AOS 10. References: https://techhub.hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-BD3E0A5F-FE4C-4B9B-BE1D-FE7D2B9F8C3A.html https://techhub.hpe.com/eginfolib/networking/docs/arubaos-switch/security/GUID-EA0A5B3C-FE4C-4B9B-BE1D-FE7D2B9F8C3A.html

Aruba CX 6300 switches support various features to control the port access for different types of devices, such as client mode, device mode, and multidomain mode. These features can help limit the number of clients that can connect to a port and prevent unauthorized devices from accessing the network.

This is because option C shows how to configure the client limit and the auth-mode for a specific port using the interface command and the aaa authentication port-access command. The client limit specifies the maximum number of clients that can connect to a port. The auth-mode specifies the authentication mode for the port. In this case, option C sets both parameters to multi-domain mode, which allows only one voice device and one data device to be authenticated on a port

https://www.arubanetworks.com/techdocs/AOS-CX/10.10/HTML/monitoring_6300-6400/Content/Chp_LEDs/fro-pan-led-630.htm  2: https://www.arubanetworks.com/products/switches/6300-series/  3: https://www.arubanetworks.com/techdocs/AOS-CX/10.11/HTML/security_6200-6300-6400/Content/Chp_Port_acc/Port_acc_gen_cmds/aaa-aut-por-acc-aut-mod-fl-109.htm

QoS stands for Quality of Service and is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc3. QoS involves identifying specific traffic for special treatment and applying policies and actions to improve its performance or meet certain service level agreements (SLAs)3. QoS can help network devices to manage congestion, delay, jitter, packet loss, bandwidth allocation, etc., for different types of traffic3. QoS can be implemented at various layers of the network stack and across different network domains. References: 3 https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html

An OSPF transit network is a network that has at least two routers that are connected by a multi-access link and can forward traffic for other networks1. A transit network is different from a stub network, which has only one router connected to it and does not forward traffic for other networks2. A transit network is also different from a virtual link, which is a logical connection between two areas that are not physically adjacent2. A transit network is not necessarily connected to a different routing protocol, although it can be if the router performs redistribution2. Therefore, the correct answer is C. A network on which a router discovers at least one neighbor.

This is the most likely cause of the issue where the access points in a Microbranch group are online in Aruba Central, but no VPN tunnels are forming. A Microbranch group is a group that contains both APs and Gateways and allows them to form VPN tunnels for secure communication. The VPN tunnels use GRE (Generic Routing Encapsulation) as the encapsulation protocol and IPSec as the encryption protocol. If there is a firewall blocking GRE traffic between the AP and the gateway, the VPN tunnels cannot be established. The other options are incorrect because they either do not affect the VPN tunnel formation or do not apply to a Microbranch group. References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/gateways/microbranch.htm https://www.arubanetworks.com/assets/tg/TB_ArubaGateway.pdf

The component that is used by the Aruba Network Analytics Engine (NAE) is D. Current State Database.

The Current State Database is a database that stores the configuration and state information of the switch, such as interfaces, VLANs, routing protocols, statistics, and more. The NAE can access this database through the AOS-CX REST API and monitor the values of any data point using monitors. The NAE can also track the history of the values in a time-series database and correlate them with network events or configuration changes1. The Current State Database provides NAE with direct visibility into the entire current state of the device, which enables intelligent troubleshooting and automation of network tasks1.

The other options are incorrect because:

A. JSON-based scripts: JSON is a data format that is used to exchange information between applications. It is not a scripting language that can be used by NAE. NAE scripts are written in Python, which is a popular and powerful programming language1.

B. Lisp-based agents: Lisp is a family of programming languages that are mainly used for artificial intelligence and functional programming. It is not a language that can be used by NAE. NAE agents are instances of scripts that run on the switch and collect relevant network information and trigger alerts or actions1.

C. Ruby-based scripts: Ruby is a general-purpose programming language that is known for its expressiveness and elegance. It is not a language that can be used by NAE. NAE scripts are written in Python, which is a popular and powerful programming language1.

OFDMA (Orthogonal Frequency Division Multiple Access) is a technology that can minimize client latency in a high-density environment by eliminating contention overhead by dedicating subcarriers to clients. OFDMA allows multiple clients to transmit simultaneously on different subcarriers within the same channel, reducing contention and increasing efficiency. MU-MIMO (Multi-User Multiple Input Multiple Output) is a technology that allows multiple clients to transmit simultaneously on different spatial streams within the same channel, but it does not eliminate contention overhead. QWMM (Quality of Service Wireless Multimedia) is a technology that prioritizes traffic based on four access categories, but it does not eliminate contention overhead. Channel Bonding is a technology that combines two adjacent channels into one wider channel, increasing bandwidth but not eliminating contention overhead. References: https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf https://www.arubanetworks.com/assets/wp/WP_WiFi6.pdf

The correct answer is A. SNMPv3.

SNMPv3 is a protocol that is used to retrieve data stored in a Management Information Base (MIB), which is a database of managed objects in a network. SNMPv3 provides security and access control features that are not available in earlier versions of SNMP. SNMPv3 can also use encryption to protect the data from unauthorized access or modification.

According to the Aruba Certified Professional – Campus Access document1, one of the skills that this certification validates is:

Implement and Analyze the output from common network monitoring tools

Configure Port Mirroring to collect PCAPs

Configure NAE agents 9.4

Configure UXI sensors for internal and external tests

Describe how API scan be used to configure, manage, monitor, and troubleshoot your network

The document also mentions that the candidate should have a distinguished understanding of different protocols across vendors, which implies that they should be familiar with SNMPv3 and how it can be used to access MIB data.

CoS and DSCP are both methods of marking packets for quality of service (QoS) purposes. QoS is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc. CoS stands for Class of Service and is a 3-bit field in the 802.1Q VLAN tag header. CoS can only be used on Ethernet frames that have a VLAN tag, and it can only be preserved within a single VLAN domain. DSCP stands for Differentiated Services Code Point and is a 6-bit field in the IP header. DSCP can be used on any IP packet, regardless of the underlying layer 2 technology, and it can be preserved throughout the IP packet flow, unless it is modified by intermediate devices. References: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html https://www.cisco.com/c/en/us/support/docs/lan-switching/8021q/17056-741-4.html https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-packet-marking/10103-dscpvalues.html

The statements that are true regarding Aruba NAE agents are A and C.

A. A single NAE script can be used by multiple NAE agents. This means that you can create different instances of the same script with different parameters or settings. For example, you can use the same script to monitor different VLANs or interfaces on the switch1.

C. NAE agents will never consume more than 10% of switch processor resources. This is a built-in safeguard that prevents the agents from affecting the switch performance or stability. If an agent exceeds the 10% limit, it will be automatically disabled and an alert will be generated2.

The other options are incorrect because:

B. NAE agents are not active at all times. They can be enabled or disabled by the user, either manually or based on a schedule. They can also be disabled automatically if they encounter an error or exceed the resource limit1.

D. NAE scripts do not need to be reviewed and signed by Aruba before being used. You can create your own custom scripts using Python and upload them to the switch or Aruba Central. You can also use the scripts provided by Aruba or other sources, as long as they are compatible with the switch firmware version1.

E. A single NAE agent cannot be used by multiple NAE scripts. An agent is an instance of a script that runs on the switch. Each agent can only run one script at a time1.

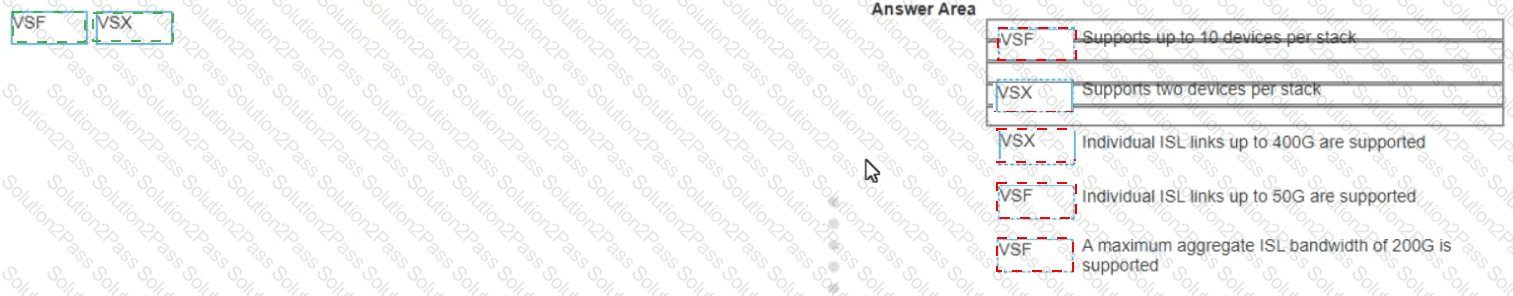

a) Support up to 10 devices per stack -> VSF

b) Support two devices per stack -> VSX

c) Individual ISL links up to 400G are supported -> VSX

d) individual ISL links up to 50G are supported -> VSF

e) A maximum aggregate ISL bandwidth of 200G is supported -> VSF

The Aruba CX 6400 switch is a modular switch that supports high-performance and high-density Ethernet switching for campus and data center networks. One of the features that distinguishes the Aruba CX 6400 switch from most typical campus switches is virtual output queueing (VOQ). VOQ is a technique that implements large ingress packet buffers on each port to prevent head-of-line blocking and packet loss due to congestion2. VOQ allows each port to have multiple queues for different output ports and prioritize packets based on their destination and QoS class2. VOQ enables the Aruba CX 6400 switch to achieve high throughput and low latency for various traffic types and scenarios. References: 2 https://www.arubanetworks.com/assets/ds/DS_CX6400Series.pdf

Multi-Domain Authentication is the feature that should be enabled to support the requirement that the switch must be able to authenticate a single computer connected through a VoIP phone. Multi-Domain Authentication is a feature that allows an Aruba CX switch to apply different authentication methods and policies to different devices connected to the same port. For example, a VoIP phone and a computer can be connected to the same port using a single cable, but they can be authenticated separately using different credentials and assigned to different VLANs. The other options are incorrect because they either do not support multiple devices on the same port or do not provide authentication. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.05/HTML/5200-7540/GUID-7D9E9F6E-5C2A-4F7E-BE6D-A2C3A6C7B9F9.html https://www.arubanetworks.com/assets/tg/TB_ArubaCX_Switching.pdf

The active gateway feature is used to provide active-active layer 3 default gateway for hosts on the same subnet. It allows the switch to convert multicast streams into unicast streams over the wireless link, which improves the quality and reliability of streaming video, while preserving the bandwidth available to the non-video clients. The active gateway feature is unique to VSX configuration because it eliminates the need for VRRP and avoids traffic being pushed over the ISL link, which can cause latency in the network12.

The correct answer to the question is C. Sixteen different VMACs are supported for each IPv4 and IPv6 stack simultaneously. This means that you can have a maximum of eight VMACs for IPv4, and a maximum of eight VMACs for IPv6, on a VSX pair. Only 15 VMACs are supported on 6400 switch series2.

The other options are incorrect because:

A. Sixteen different VMACs are not supported total as shared. They are supported for each IPv4 and IPv6 stack separately.

B. Active gateway can be used without MSTP instances. MSTP is a protocol that allows multiple spanning tree instances to coexist on the same switch, but it does not affect how active gateway works.

D. Active gateway does not copy traffic over the ISL link for an optimized path. It avoids using the ISL link for routed traffic and uses the local switch interface MAC instead of the virtual MAC address (VMAC) for source address1.
