HPE7-A08 HPE Aruba Networking Certified Professional - Switching Free Practice Exam Questions (2026 Updated)

To interpret AOS-CX event logs correctly for the ACP-S exam, you must understand the syntax used by the VSX Daemon (hpe-vsxd) when reporting the status of Multi-Chassis Link Aggregation Groups (MC-LAGs).

Anatomy of the Log Message:

hpe-vsxd: This indicates the message is generated by the VSX synchronization process.

VSX 2: This refers specifically to Virtual Port Channel (or VSX LAG) ID 2. It does not refer to the switch member ID, but the logical LAG ID.

State local down: This means the physical member ports assigned to LAG 2 on the switch you are currently logged into (the " local " switch) are operationally down.

remote up: This indicates that via the Inter-Switch Link (ISL), the switch has learned that its VSX peer (the " remote " switch) still has its physical member ports for LAG 2 in an " up " state.

Operational Impact: In a healthy VSX environment, an MC-LAG should ideally show " local up, remote up. " When a log shows " local down, remote up, " it signifies a partial failure of the multi-chassis aggregation. Traffic destined for the device connected to LAG 2 will now only flow through the peer switch.

Why other options are incorrect:

Option A: If the secondary switch were down entirely, the " remote " status would typically be reported as " down " or " unknown " because the ISL/Keepalive synchronization would be lost.

Option B: If it were down on both, the log would read " local down, remote down. "

Option D: Keepalive failures are reported with different Event IDs (typically involving the " keepalive " keyword) and affect the overall VSX role state (Split-Brain recovery), not a specific LAG ID.

Key Practice Tip: Always look for the keywords local and remote in VSX logs. They provide an immediate health snapshot of the synchronized state between the two core switches.

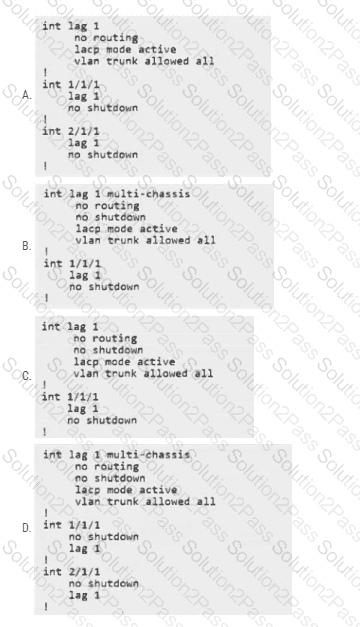

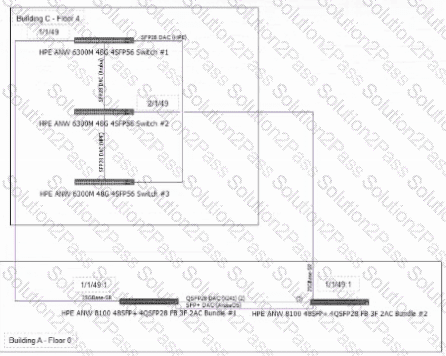

To answer this correctly, it is vital to distinguish between VSF (Virtual Switching Framework) and VSX (Virtual Switching Extension).

VSF (Virtual Switching Framework) Logic: The CX 6200 and 6300 series use VSF to form a " stack. " In a VSF stack, multiple physical switches operate as a single logical device with a single control plane and a single configuration file.

LAG Configuration in VSF: Because a VSF stack is a single logical entity, creating a Link Aggregation Group (LAG) that spans multiple members is handled exactly like a standard LAG on a single switch. You simply create the interface lag X and then assign physical ports from different members (e.g., member 1 and member 2) to that same LAG ID.

The " multi-chassis " Keyword: The keyword multi-chassis (seen in Options B and D) is specific to VSX, which is used on high-end switches like the CX 6400 and 8000 series. VSX involves two separate control planes that synchronize information. In VSX, you must use the multi-chassis command to let the switches know the LAG is split across two different chassis. In VSF, this keyword is not used and would result in a syntax error on a 6200 switch.

Analyzing the Options:

Option A (Correct): It uses standard interface lag 1 syntax. It assigns port 1/1/1 (from member 1) and port 2/1/1 (from member 2) to the same LAG. This perfectly fulfills the requirement for redundant ports from both switches in a VSF stack.

Option B: Incorrect because it uses the multi-chassis keyword (VSX only).

Option C: Incorrect because it only configures a port from one switch (1/1/1), failing the requirement for redundancy across both switches.

Option D: Incorrect because it uses the multi-chassis keyword (VSX only).

Key Takeaway for the ACP-S Exam: * VSF (6200/6300) = Standard LAG configuration across members.

VSX (6400/8000) = Requires multi-chassis keyword under the LAG interface.

Colorless Ports are a foundational element of Aruba’s Dynamic Segmentation strategy. They allow any device to be plugged into any access port without requiring manual VLAN or ACL configuration by the IT staff.

The Role of Authentication: When a device connects, the switch uses 802.1X or MAC Authentication to identify the device and communicate with Aruba ClearPass.

Downloadable User Roles (DUR): Instead of pre-configuring thousands of roles locally on every switch, the switch downloads the specific policy—including VLAN assignment, QoS, and Access Control Lists (ACLs)—directly from ClearPass. This is the Downloadable User Role.

Why this is " Colorless " : Because the policy is defined centrally and " downloaded " to the port only when needed, the physical port has no static identity (no " color " ). This simplifies deployment and ensures that security policies follow the user or device regardless of where they plug in.

To resolve vMotion connectivity issues on an Aruba AOS-CX 8320, we must ensure the network infrastructure supports Jumbo Frames end-to-end.

MTU and vMotion Requirements: VMware vMotion is highly sensitive to the Maximum Transmission Unit (MTU). For optimal performance and reliability, a 9000-byte MTU is standard. If any switch port in the path is left at the default 1500-byte MTU, vMotion operations will typically time out or fail, even if standard small-packet traffic (like a basic ping) works.

AOS-CX Configuration Syntax: In the AOS-CX operating system, Jumbo frame support is enabled by modifying the MTU at the interface level.

The standard command is mtu 9198.

The value 9198 is used because it accounts for the 9000-byte payload plus L2 headers and tagging overhead.

Unlike the older AOS-S (ProCurve) software, AOS-CX does not use the jumbo command; it uses the mtu command under the physical interface context.

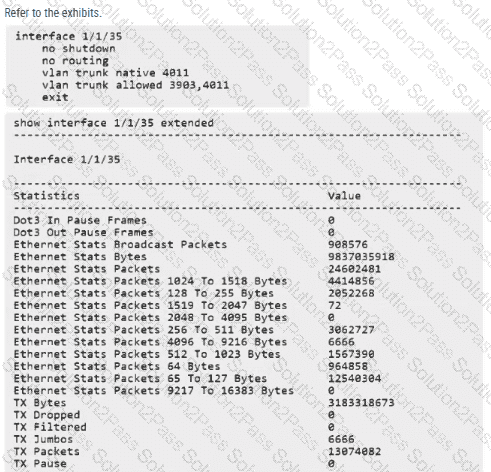

Analyzing the Exhibits:

The Configuration: The exhibit for interface 1/1/35 shows a standard trunk configuration but no MTU command. This confirms the port is operating at the default 1500-byte limit.

The Statistics: The show interface extended output shows TX Jumbos: 6666. This indicates that jumbo packets have been sent, but in a troubleshooting context, this may represent previous stats or the switch counting oversized frames before dropping them or failing to receive them from the server.

Why Option B is the Correct Fix: Even if " large " pings (e.g., 2000 bytes) work due to fragmentation or " baby giant " tolerances, the specific high-throughput requirements of vMotion necessitate that the physical transport layer (interface 1/1/35) be explicitly configured to handle the full 9000-byte frame size using the mtu 9198 command.

Addressing the SVI (Option A): While an SVI (interface vlan 3903) also has an MTU, the physical port is the primary gatekeeper for Layer 2 traffic. If the physical port is set to 1500, no jumbo frame will ever reach the SVI or be switched to another port on that VLAN.

Colorless Ports is a foundational concept in Aruba’s Dynamic Segmentation strategy. It refers to a switch configuration where all access ports are configured identically, and the network identity of the port changes dynamically based on the device that plugs into it.

Role of 802.1X: To achieve a colorless port, the switch must first identify the device or user. 802.1X (Port-based Network Access Control) is the industry-standard method for providing this identification. When a device connects, the switch challenges it for credentials. Based on the response, the RADIUS server tells the switch which " User Role " to apply, which then sets the VLAN, QoS, and ACLs.

Complementary Methods: While 802.1X is the primary answer here, colorless ports also frequently utilize MAC Authentication for devices that do not support 802.1X (like printers).

Evaluating Other Options:

Option A: 802.1Q is the standard for VLAN tagging. While colorless ports use VLANs, 802.1Q is a static trunking/tagging protocol and does not provide the " dynamic " intelligence required for a colorless environment.

Option C: 802.11X is a common " trick " option on exams. 802.11 is the standard for Wireless (Wi-Fi), and there is no specific " 802.11X " protocol used for wired switch port security.

Option D: 802.1AD refers to " QinQ " or double-tagging, used primarily in service provider environments to tunnel customer VLANs. It has no relevance to the colorless port security model.

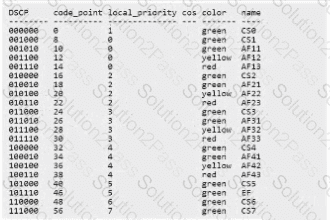

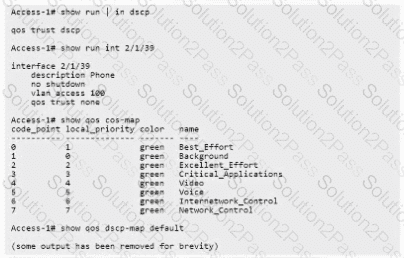

The Local Priority (LP) applied to an incoming packet marked with DSCP 46 and CoS 7 depends on the configured QoS mapping.

DSCP 46 corresponds to Expedited Forwarding (EF), which is typically mapped to the highest priority.

CoS 7 also indicates high priority.

According to the QoS policy shown, the LP assigned is 1, indicating the highest priority level.

The strongest troubleshooting method is spot the difference by comparing the configurations of the two VSX peers . The symptom is highly indicative of asymmetric configuration: a new VLAN was configured on the primary VSX switch , while only some traffic arriving through the access switch ' s LAG is successful.

A VSX pair operates as two independent control planes while presenting a coordinated forwarding architecture. Configuration synchronization can copy selected supported configuration from the primary to the secondary, but synchronization is subject to specific requirements and must be correctly enabled for the relevant configuration context. HPE Aruba states that corresponding objects such as VLAN interfaces or VSX LAGs may need to exist appropriately on the secondary before their additional configuration can synchronize. Aruba Networks

If traffic is load-balanced across a multichassis LAG and one VSX peer lacks the new VLAN or associated configuration, traffic handled by one peer can succeed while traffic handled by the other fails. Comparing the two configurations therefore directly targets the most probable inconsistency. show vsx status config-sync can additionally verify the current VSX configuration synchronization state. Aruba Networks

Rebooting the secondary is unnecessarily disruptive, restoring a checkpoint may remove valid changes, and checking only the path to the primary can miss the asymmetric secondary-peer configuration.

Study Guide References: VSX Configuration Synchronization; VSX Peer Consistency; MC-LAG Troubleshooting; show vsx status config-sync; Structured Troubleshooting—Spot the Difference.

To enable Layer 3 multicast functionality on an AOS-CX switch, it is essential to understand the roles of different protocols and where they are applied in the hierarchy of the switch configuration.

L3 vs. L2 Multicast:

IGMP (Internet Group Management Protocol): This is a Layer 3 protocol used by hosts to report their multicast group memberships to adjacent routers. It is configured on a Layer 3 interface, such as an SVI (Switch Virtual Interface) or a routed port.

IGMP Snooping: This is a Layer 2 optimization feature. It allows a switch to " listen in " on IGMP conversations between hosts and routers to constrain multicast traffic to only those ports that have requested it, preventing the traffic from flooding the entire VLAN.

Enabling L3 Multicast Locally: When the " core switch " acts as the default gateway for multicast receivers, it must be able to process membership reports from those receivers. By enabling IGMP on the SVI (e.g., interface vlan 100), the switch begins listening for IGMP Join/Leave messages from clients on that subnet. This is a prerequisite for the switch to populate its multicast routing table and, when combined with a routing protocol like PIM (Protocol Independent Multicast), forward traffic from a source to those local receivers.

Analysis of Options:

Option A (Correct): IGMP must be enabled on the SVI so the switch can function as a multicast-aware gateway for that specific subnet.

Option B: In AOS-CX syntax, you do not configure " IGMP " under the L2 vlan [ID] context; it is an L3 function.

Option C: Enabling IGMP-snooping on a VLAN only manages the L2 delivery of traffic; it does not enable L3 routing or the processing of multicast packets across different subnets.

Option D: While IGMP-snooping is often used in conjunction with L3 multicast, it is technically a VLAN-level configuration, not a property of the SVI itself.

Key CLI Commands:

To fully enable this, a professional would typically use:

Bash

router multicast

routing

!

interface vlan 100

ip igmp

ip pim-sm

When enabling ARP protection, it is best practice to wait at least a week after enabling DHCP snooping before enabling ARP protection in a live network. This allows the DHCP snooping binding table to stabilize, ensuring ARP protection has accurate IP-MAC bindings, reducing false positives.

Immediate ARP protection may cause legitimate traffic to be dropped.

Lease times and DHCP server utilization are less critical.

This staged approach minimizes disruption.

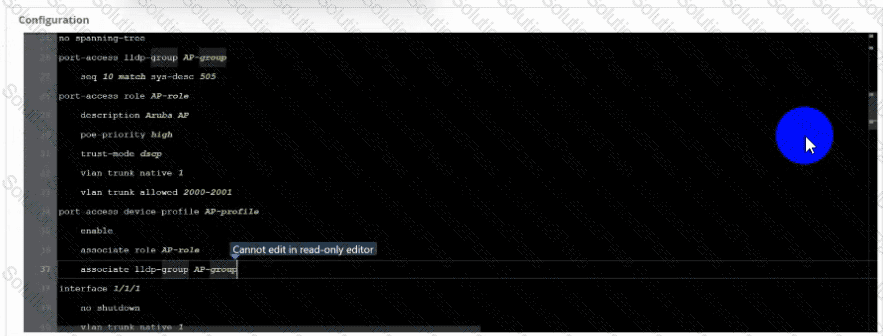

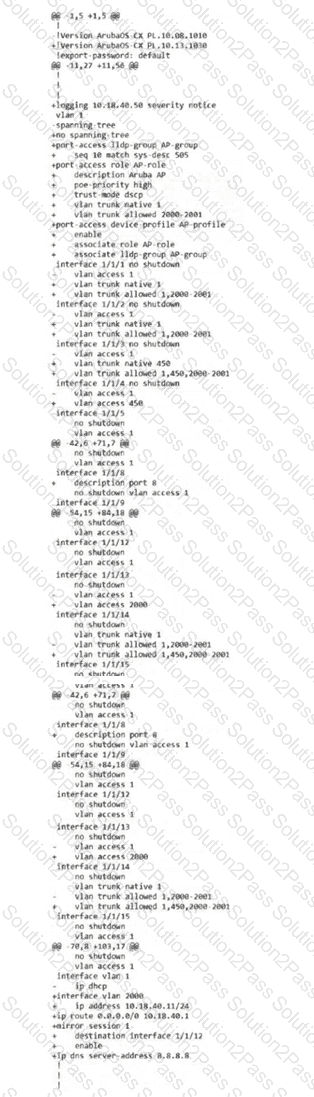

The output shown in the exhibit is a unified diff (indicated by the + and - signs and the @@ headers), which is the standard format AOS-CX uses to display differences between two configuration states.

AOS-CX Checkpoints: ArubaOS-CX switches use " checkpoints " to save snapshots of the configuration. These can be created manually by a user or automatically by the system (e.g., when a configuration change is pushed from Central or NetEdit).

The checkpoint diff Command: The command checkpoint diff < NAME1 > < NAME2 > is used to perform a line-by-line comparison. One of these names can be the running-config.

Lines with a -: These are present in the first configuration (the older checkpoint) but missing in the second (the newer config).

Lines with a +: These are present in the second configuration but were not in the first.

Analyzing the Exhibit: The output shows a comparison between a switch running version 10.08.1010 (the - line) and version 10.13.1030 (the + line), along with several configuration changes like adding an lldp-group, a port-access role, and IP addressing on vlan 2000.

Differentiating Command Syntax: * In the AOS-CX CLI, checkpoint diff is an " action " command used specifically for this analytical comparison.

While many diagnostic commands start with show, the diff utility is executed directly as checkpoint diff.

Terms like " saved-config revisions " are not standard AOS-CX terminology; the system uses " checkpoints " exclusively for this purpose.

This scenario highlights the " Source of Truth " logic within Aruba Central UI Groups.

UI Group Constraints: When a group is managed via the UI (User Interface) mode, Central acts as the absolute master of the configuration. If you add a switch that already has a local configuration (non-factory default) into a group that already has an established configuration, Central perceives a Configuration Conflict.

The Safety Mechanism: To prevent Central from accidentally wiping out a production switch ' s settings the moment it connects, Central will not automatically synchronize (push) the group configuration to a device that is not in a Factory Default state.

The Resolution: For the switch to synchronize with an existing UI group, you must either:

Erase the startup-configuration on the switch and reboot it (Factory Default), allowing it to " pull " the group config cleanly.

Manually resolve the conflict by moving the device into the group and then selecting the option to overwrite the local configuration with the group configuration.

Evaluating Other Options:

Option A: This is false. Central fully supports VSX monitoring and configuration (specifically via Template groups or the VSX orchestration UI).

Option B: If the switch is " added to a group, " it has already passed the initial onboarding/authorization phase.

Option C: If it " cannot establish a connection, " the switch would show as Offline, not as a synchronization failure within a group.

When receiving a ' 404 - Not Found ' HTTP response while attempting to configure a VLAN via REST API, the most common cause is specifying an incorrect URI endpoint. The correct approach is to specify the exact resource path for VLAN configuration, which is /rest/v1/system/vlan. Without the correct URI, the API will return a 404 error indicating the resource is not found.

Sending a POST request to login is necessary but not related to 404 after login.

Syntax errors in payload lead to 400-series errors but usually not 404.

Enabling REST API read/write is important but would result in different errors.

Using the command copy checkpoint 20240722 running-config exemplifies the Replace configuration troubleshooting methodology. This involves replacing the current running configuration with a known good checkpoint to restore proper operation.

Divide and conquer isolates faults by segment.

Top-down/Bottom-up analyzes layer by layer.

Spot the difference compares configurations.

Replacing the config is a straightforward rollback approach.

Bidirectional Forwarding Detection (BFD) is used in conjunction with OSPF to provide sub-second failure detection. However, running standard BFD (Control Mode) for many neighbors can place a significant load on the switch ' s Control Plane CPU, as the CPU must process every BFD control packet.

Control Mode vs. Echo Mode:

Control Mode: Both peers exchange BFD packets that are processed by their respective CPUs. This ensures the BFD state machine is synchronized but is CPU-intensive.

Echo Mode: The switch sends a BFD Echo packet to its neighbor. The neighbor simply " reflects " the packet back in the data plane (ASIC) without sending it to its own CPU. The originating switch then processes the returned packet.

Efficiency of Echo Mode: In the Aruba AOS-CX architecture, BFD Echo Mode is highly efficient because it offloads the " heartbeat " processing from the CPU to the hardware (ASIC) on supported platforms. By enabling echo mode, the frequency of control packets reaching the CPU is reduced, which effectively resolves high CPU utilization issues while maintaining fast failover.

Evaluating Other Options:

Option A: ICMP is not part of the BFD mechanism for OSPF adjacency tracking.

Option B: OSPF does not form adjacencies on passive interfaces, so BFD would not run there and would not contribute to CPU usage.

Option D: ICMP redirects are unrelated to the BFD protocol ' s internal processing logic.

In the Aruba troubleshooting framework, there are several structured approaches to resolving network issues.

Replace Configuration (Option A): This methodology involves reverting the system to a known good state. In AOS-CX, Checkpoints are snapshots of the switch configuration. By running copy checkpoint [name] running-config, the administrator is essentially performing a " rollback. " This is often used when a recent change (like the routing change mentioned) caused a failure, and the fastest way to restore service is to " replace " the current faulty configuration with a verified historical one.

Evaluating Other Methodologies:

Top-down/Bottom-up: These involve working through the OSI layers (either from physical to application or vice-versa).

Spot the difference: This involves comparing a working device/configuration with a non-working one. While you might use checkpoint diff to find the error, the act of copying the checkpoint itself is the " Replace " method.

Divide and conquer: This involves starting in the middle of a stack (e.g., Layer 3) and testing in both directions.

After enabling ARP protection, many users lose network access because ARP protection relies on DHCP snooping to build IP-to-MAC binding tables. Without DHCP snooping enabled and correctly configured, ARP inspection cannot verify ARP packets, causing legitimate traffic to be dropped.

Enabling DHCP snooping allows ARP inspection to validate ARP requests and responses.

Other options like dynamic IP lockdown, IGMP snooping, or DHCP reservations are unrelated or secondary.

To determine which sites would benefit most from upgrading from 6200 to more powerful 6300 switches in Aruba Central, the best report to run is the Switch Capacity Planning report. It analyzes resource utilization and capacity to identify bottlenecks and potential upgrade candidates.

Infra Inventory lists devices but not capacity usage.

Resource Utilization gives raw usage but not in planning context.

Network report focuses on topology and status.

Hence, Switch Capacity Planning is the most relevant report for upgrade planning.

The event message:

perl

Copy

2024-04-04T08:35:38.312254+00:00 ICX-Core-1 hpe-vaxd[2167]: Event[701|LOG_INFO|AMM1/1|VSX2 state local up, remote down]

indicates that the local VSX member is up, but the remote VSX member is down. In a VSX pair, both switches must be operational for full redundancy and synchronization.

This log means the secondary VSX switch (remote) is down or unreachable, causing loss of synchronization and possibly traffic failover issues.

Option B (keepalive detection) is related but the event specifically shows the state of the remote switch being down.

Options C and D refer to LAG or interface state, which are not what this log entry describes.

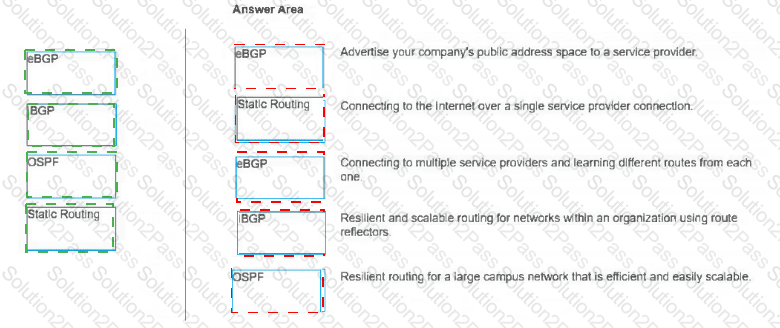

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100.

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1. If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.
