LISL: Directly connects two base switches that are in separate physical chassis together and has a link cost of 510

XISL: Connects two logical switches in two different chassis via the base switch to extend the fabric and maintain the logical partitioning

DISL: ISLs that are configured between an edge fabric E_Port and an FC Router EX_Port

IFL: Used to link fabrics across geographic locations via FCR or FCIP

Brocade Virtual Fabrics (VF) allow a single physical switch to be partitioned into multiple logical switches, each with its own data and control planes. This architectural flexibility requires specialized Inter-Switch Link (ISL) types to maintain logical isolation across physical chassis.

LISL (Logical ISL): These are logical links that directly connect two Base Switches located in separate physical chassis. A defining characteristic of an LISL in Brocade Fabric OS is its default link cost of 510, which ensures it is typically used only for specific inter-fabric control traffic unless manually adjusted.

XISL (Extended ISL): An XISL is a transport link used to connect two logical switches residing in different physical chassis by tunneling through the Base Fabric. This allows the administrator to extend a single logical fabric across multiple physical devices while maintaining strict logical partitioning and reducing the number of physical cables required between chassis.

DISL (Dedicated ISL): These links are specifically configured between an edge fabric E_Port and an FC Router EX_Port. They are used in Fibre Channel Routing (FCR) topologies to provide a dedicated path for inter-fabric traffic between a standard fabric and a meta-fabric router.

IFL (Inter-Fabric Link): IFLs are the foundational links used to connect disparate fabrics across geographic locations. They utilize either Fibre Channel Routing (FCR) or FCIP tunneling to enable communication between devices in different fabrics without merging them into a single logical entity. This is a key component for large-scale disaster recovery and data distribution architectures where fabric stability and distance are primary concerns.

Admin port: 2

Back-end and cluster connectivity (southbound): 4

Front-end connectivity (northbound): 3

iLO Ethernet port: 1

The HPE Alletra MP B10000 architecture is defined by its disaggregated nature, separating the controller nodes from the physical storage capacity. Proper cabling of these nodes is fundamental to ensuring the performance and manageability of the cluster.

The ports on the rear of a controller node are categorized by their function within the disaggregated ecosystem:

iLO Ethernet port (1): This is the dedicated management port for the Integrated Lights-Out (iLO) processor. It provides out-of-band management, allowing administrators to access the hardware's health, power status, and remote console regardless of the operating system state.

Admin port (2): This RJ45 port is used for the management plane of the storage OS. It allows the array to communicate with the HPE GreenLake Data Services Cloud Console (DSCC) or local management software for configuration and provisioning tasks.

Front-end connectivity / Northbound (3): These ports (typically located in PCIe slots 1 and 2) provide the "Northbound" path to the host fabric. They are populated with high-speed Fibre Channel or iSCSI adapters to facilitate data access for servers and applications.

Back-end and cluster connectivity / Southbound (4): In a disaggregated shared-everything (DASE) architecture, "Southbound" connectivity is critical. These ports (often 100GbE RoCEv2) connect the controllers to the storage fabric and the disaggregated NVMe JBOFs. This allows every controller to see every drive in the cluster with ultra-low latency.

Understanding the distinction between Northbound (Host) and Southbound (Storage/Cluster) cabling is vital for a Master ASE. Incorrectly cabling the Southbound ports can lead to a "cluster split" or performance bottlenecks, as the disaggregated architecture relies on high-bandwidth, redundant paths to the underlying flash media to maintain its mission-critical performance profile. Number 5 in the diagram often represents the Serial console port, which is utilized primarily for initial setup or low-level troubleshooting by HPE Support and is typically not included in primary functional matching.

The HPE Quorum Witness (QW) is a critical component for facilitating Automatic Transparent Failover (ATF) in Peer Persistence, Active Peer Persistence, and Active Sync Replication configurations. Its primary architectural purpose is to act as an independent "tie-breaker" during a split-brain scenario—a situation where the storage arrays lose their heartbeat/replication links and both attempt to claim primary ownership of the volumes.

According to HPE documentation, the Quorum Witness must be installed at a third, neutral site that is geographically separate and failure-independent from the sites hosting the primary and secondary arrays. This "Third Site" placement ensures that if either site hosting an array experiences a total power or network failure, the remaining array can still reach the Quorum Witness via the network to obtain a "quorum vote" and safely assume the primary role without manual intervention. If the QW were placed at the same site as one of the arrays, a failure at that site would take down both the storage and the witness, preventing the surviving array at the other site from achieving quorum for an automatic failover.

Connectivity to the Quorum Witness is strictly over IP (Ethernet); it does not require Fibre Channel (FC) connectivity. While Option B suggests a limitation to specific Linux VMs, the QW is a self-contained application that can be installed on either physical or virtual machines running a variety of supported Linux host OS versions listed in the HPE SPOCK matrix (including RHEL, SUSE, and CentOS). Option A is slightly imprecise because the arrays themselves initiate the failover logic after querying the QW, rather than the QW "initiating" it autonomously. Therefore, the recommendation for third-site placement remains the most essential architectural requirement.

The deployment of the HPE CSI (Container Storage Interface) Driver involves several sequential steps to enable dynamic provisioning of storage on HPE Alletra 9000 arrays. Once the Helm repository has been added, the administrator must provide the driver with the necessary authentication and connectivity details for the storage backend.

According to the HPE Storage Container Orchestration Documentation (SCOD), the definitive next step to enable communication between the Kubernetes cluster and the Alletra 9000 is to create a Kubernetes Secret. This Secret contains critical parameters such as the storage array's IP address or FQDN, and the management credentials (username and password). Without this Secret, the CSI driver cannot authenticate against the Alletra 9000 REST API to perform volume creation, mounting, or snapshot operations.

While creating a StorageClass (Option C) is a required step, it follows the creation of the Secret. The StorageClass definition must specifically reference the name of the Secret to identify which storage backend should be used for a particular tier of service. Option A (creating a namespace) is often done as part of the helm install command itself (using the --create-namespace flag) and is a general administrative task rather than a storage-specific configuration step. Option D is incorrect as the Alletra 9000 does not pull credentials from the Kubernetes conductor; rather, the Kubernetes driver pushes requests to the array using the credentials stored in the Kubernetes Secret. Establishing this secure handshake via the Secret is the foundational step for all subsequent persistent volume (PV) and persistent volume claim (PVC) activities.

HPE CloudPhysics is a SaaS-based analytics platform that collects high-resolution metadata (at 20-second intervals) from a customer's virtualized infrastructure to drive data-led procurement and optimization decisions. In the context of performance analysis and sizing, it is critical to understand not just the average utilization, but how different resource demands interact over time.

The Peak Details statistic is unique within the CloudPhysics analytics framework because it provides time-correlated values across different resource dimensions (CPU, RAM, and Disk I/O). While standard "Storage Metrics" or "Hardware Performance" summaries often present aggregated averages or 95th percentile figures that lose their temporal context, Peak Details allows an architect to see exactly when a spike occurred.

This correlation is essential for determining if a storage bottleneck is being driven by a simultaneous compute peak or if a specific "noisy neighbor" VM is impacting the entire datastore during a backup or batch processing window. By aligning disk latency peaks with IOPS and throughput peaks on the same timeline, CloudPhysics enables the architect to validate if the existing third-party array is truly under-provisioned or simply misconfigured. This time-correlated insight ensures that the new HPE storage solution is sized not just for total capacity, but for the actual performance "burstiness" observed in the customer's production cycle. Other metrics, while useful for high-level summaries, do not provide the granular, synchronized timeline required to perform a deep-dive root cause analysis or precision sizing for mission-critical workloads.

The HPE Alletra 4000 series (specifically the Alletra 4110 and 4120) are technically classified as Storage Servers. Unlike traditional "closed" storage arrays like the Alletra 6000 or 9000, the Alletra 4000s are open platforms derived from the HPE Apollo lineage, designed to run Software-Defined Storage (SDS) stacks such as HPE Ezmeral Data Fabric, Scality, or Qumulo.

Because these systems are fundamentally high-density servers, their lifecycle management—including firmware updates (BIOS, iLO, controllers), health monitoring, and remote configuration—is integrated into the HPE GreenLake for Compute Ops Management (COM) service. COM provides a cloud-native console designed specifically for server administrators to manage fleets of ProLiant and Alletra 4000 servers from a single pane of glass.

While the customer is building a storage solution, the Data Ops Manager (DOM) (Option D) is the control plane for HPE’s specialized block and file arrays (managed via DSCC) and is not the tool used for raw storage server hardware management. Similarly, the "File Storage" and "Block Storage" tiles in GreenLake refer to specific Storage-as-a-Service (STaaS) offerings rather than the underlying hardware management for SDS building blocks. For a partner designing an Ezmeral solution on Alletra 4000, Compute Ops Management is the correct tool to ensure the hardware stays compliant with the latest HPE Service Pack for ProLiant (SPP) and firmware baselines required for stable SDS operations.

Sites

The Zerto Virtual Replication Appliance (VRA) is a critical architectural component of the Zerto solution. It is a lightweight Linux-based virtual machine that must be installed on every hypervisor host (ESXi or Hyper-V) in both the production and recovery sites that will host protected virtual machines. The VRA is responsible for intercepting the I/O writes from the VMs and asynchronously replicating them to the recovery site.

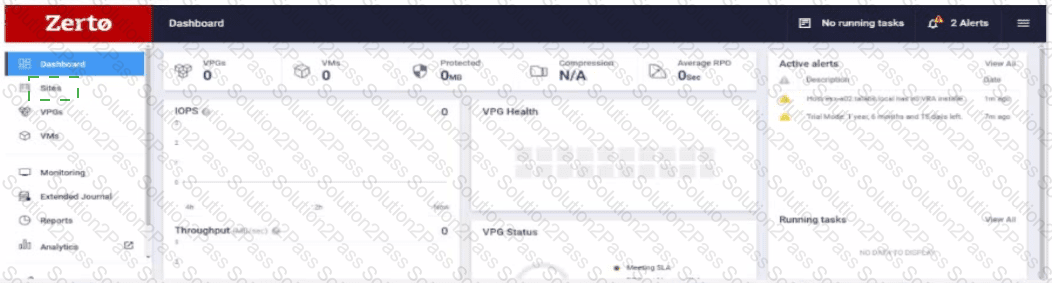

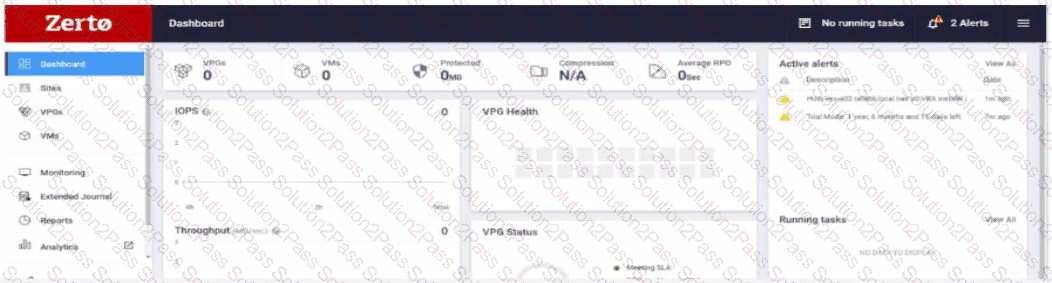

In the Zerto Virtual Manager (ZVM) web interface shown in the exhibit (image_649973.png), the management of site-level infrastructure is centralized within the "Sites" tab. By clicking on this tab, the administrator accesses the view for both local and paired remote sites. Within the Local Site details, there is a sub-tab for "VRAs" or "Hosts" where the administrator can see a list of all hosts managed by the connected vCenter or SCVMM.

To deploy a VRA, the administrator selects the host(s) currently missing the appliance and clicks the "Install" button. The ZVM then automates the deployment, configuring the VRA with the necessary network settings and registering it with the hypervisor. Notably, the "Active alerts" window in the exhibit explicitly provides a hint: it shows an alert stating that "Host esx-e02.telabs.local has no VRA installed". Clicking on the "Sites" tab is the foundational step to resolve this alert and finalize the infrastructure setup required to begin creating Virtual Protection Groups (VPGs).

The HPE Alletra MP X10000, which powers HPE GreenLake for File Storage, utilizes a disaggregated shared-everything (DASE) architecture based on VAST Data software. Unlike traditional RAID, this architecture uses highly advanced locally decodable erasure coding.

While the system is designed to be incredibly resilient—often surviving multiple concurrent drive failures across the cluster—the removal of three drives simultaneously from a single JBOF (Just a Bunch of Flash) chassis can exceed the immediate "vertical" stripe protection thresholds, especially in smaller cluster configurations. In the Alletra MP File architecture, the metadata and data are distributed with specific redundancy parameters. Intentionally pulling three drives at once is treated as a multi-point catastrophic failure rather than a standard drive wear-out event.

When such an event occurs, the system enters a "Fail-Stop" state to protect data integrity and prevent file system corruption. Because the system cannot guarantee the consistency of the data stripes or the underlying V-Trees (metadata structures), it will cease I/O services. Simply reinserting the drives (Option B) will not automatically bring the file system back online because the system likely marked those drives as "failed" or "stale" the moment they were removed. Recovery requires HPE Level 3 Support and Engineering to perform a manual "forced mount" or metadata reconstruction process to verify that no partial writes occurred during the removal. This is a high-touch recovery scenario designed to ensure that when the data becomes available again, it is 100% consistent.

To provide automated orchestration and business continuity for VMware virtual machines in a disaster recovery scenario, the industry-standard solution integrated with HPE storage is VMware Live Site Recovery (formerly known as VMware Site Recovery Manager or SRM).

When a customer utilizes Asynchronous Remote Copy on HPE Alletra 9000 arrays, the storage layer handles the data replication between the production and recovery sites. However, the storage array alone cannot automate the re-registration of virtual machines, the mapping of network port groups, or the specific power-on sequencing required for complex applications at the secondary site. VMware Live Site Recovery serves as the orchestration engine that bridges this gap. It works in conjunction with a Storage Replication Adapter (SRA) provided by HPE. The HPE SRA allows the VMware software to communicate directly with the Alletra 9000 arrays to initiate tasks such as promoting recovery volumes to a read-write state, taking temporary snapshots for DR testing, and automating the "failover" and "failback" workflows.

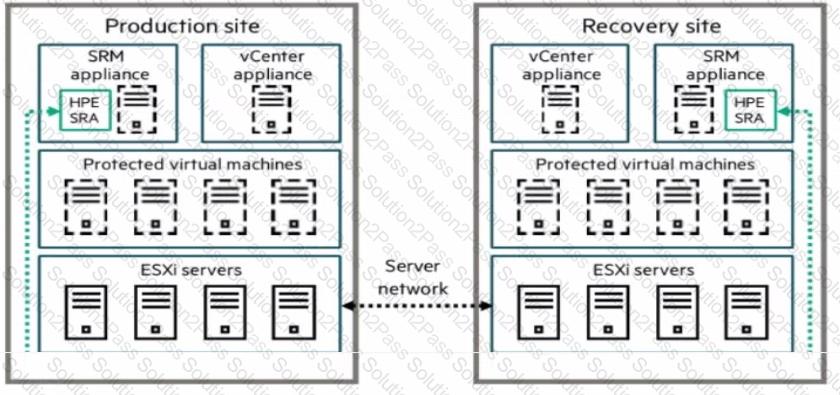

As shown in the exhibit (image_6601ef.jpg), a complete solution requires an SRM appliance and a vCenter appliance at both the production and recovery sites. This architecture ensures that even if the primary site is completely lost, the recovery site has all the necessary metadata and orchestration instructions to bring the business-critical VMs online with minimal manual intervention. Option A (Lifecycle Management) is for patching and updates, Option D (Storage DRS) is for load balancing within a cluster, and Option C refers to operational monitoring rather than disaster recovery orchestration. For a customer already invested in Alletra 9000 Remote Copy, VMware Live Site Recovery is the "Better Together" choice for achieving low Recovery Time Objectives (RTO).

The HPE Alletra MP B10000 (Block) utilizes a disaggregated shared-everything architecture where capacity is distributed across multiple NVMe drives and enclosures. To ensure 100% data availability, the system allows administrators to define the level of resilience required via the High Availability (HA) settings.

Architecturally, there is a direct trade-off between the level of hardware resilience and the achievable space efficiency (usable capacity).

Enclosure Level HA (Option D): This is the most resilient setting. It ensures the system can survive the total failure of an entire drive enclosure (JBOF) without losing data. To achieve this, the system must distribute parity and data stripes across different enclosures. This "vertical" redundancy requires a larger percentage of raw capacity to be reserved for parity, thereby reducing the net space efficiency.

Drive Level HA (Option A): This setting protects against individual drive failures (similar to traditional RAID 6 or RAID-TP) but assumes the enclosure itself remains operational. Because the stripes can be optimized more densely within fewer hardware boundaries, the system requires less "overhead" capacity to maintain the protection state.

By changing the High Availability option to Drive Level, the administrator instructs the Alletra MP software to prioritize usable capacity over enclosure-level fault tolerance. This is a common optimization for customers who have multi-enclosure systems but prefer to maximize their ROI on raw NVMe flash. It is important to note that changing this setting may require a re-striping of existing data and should be done in accordance with the customer’s risk profile and SLA requirements. The sparing algorithms (Options B and C) manage how much space is set aside for automatic rebuilds, but the primary driver of bulk space efficiency in a multi-enclosure MP cluster is the HA policy selection.

The HPE Alletra 9000 (and its predecessor, HPE Primera) supports various Remote Copy (RC) topologies to meet different disaster recovery and data distribution requirements. These include 1-to-1, 1-to-N (fan-out), and N-to-1 (fan-in) configurations.

In an N-to-1 Remote Copy configuration, multiple source storage systems (represented by 'N') replicate their data to a single, centralized target system at a disaster recovery (DR) or secondary site. This architecture is particularly efficient for organizations with multiple regional or branch offices that wish to centralize their backup and DR operations into a single data center to reduce hardware costs and simplify management. In the scenario described, the company has three primary sites ($N = 3$), each with its own storage array. To implement an N-to-1 strategy, the administrator only needs to provide one storage array at the DR site. This single target array must be sized appropriately to handle the combined capacity and performance requirements (IOPS and throughput) of the incoming replication streams from all three source systems.

Architecturally, the Alletra 9000 uses Remote Copy Groups to manage these relationships. Each group on the source systems is mapped to a corresponding group on the single target system. It is important to note that while the hardware requirement is a single array, the administrator must ensure the target array has sufficient Remote Copy ports (RCIP or RCFC) and licensed capacity to accommodate the fan-in ratio. The Alletra 9000 management interface and HPE GreenLake Data Services Cloud Console (DSCC) provide the orchestration necessary to monitor these multiple inbound streams and ensure that the Recovery Point Objectives (RPOs) are met across all sites simultaneously.

Catalyst Stores

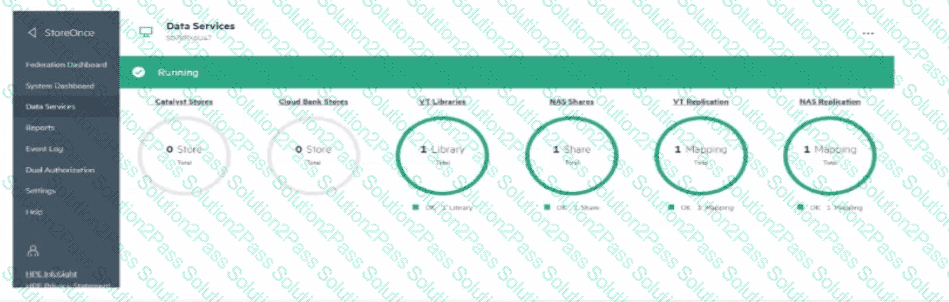

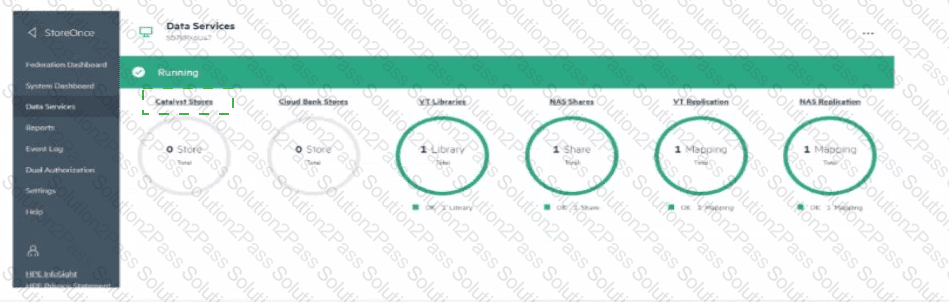

To integrate Oracle RMAN with an HPE StoreOnce appliance, the primary requirement is the creation of a StoreOnce Catalyst Store. Unlike traditional NAS shares or Virtual Tape Libraries (VTL), Catalyst is a proprietary, high-performance protocol designed specifically for deduplication-aware backup workloads.

According to the HPE StoreOnce Catalyst for Oracle RMAN User Guide, the first step in the configuration workflow is to establish a target repository on the appliance. As shown in the exhibit (image_64a41b.png), the administrator has navigated to the Data Services section. To begin the Oracle RMAN integration, they must click on the Catalyst Stores tile (currently showing "0 Store"). Within this menu, they will create a new store and configure the necessary client access permissions, allowing the Oracle database server to communicate with the appliance using the Catalyst protocol.

Once the store is created in the UI, the second phase of the implementation occurs on the Oracle host, where the HPE StoreOnce Catalyst Plug-in for Oracle RMAN must be installed. This plug-in provides the "SBT" (System Backup to Tape) interface that RMAN uses to direct backup streams to the Catalyst Store. By using Catalyst instead of traditional NAS (CIFS/NFS), the customer benefits from source-side deduplication, which significantly reduces network traffic and backup windows by only sending unique data blocks from the database server to the StoreOnce system. Selecting the "NAS Shares" or "VT Libraries" options in the UI would not provide the necessary Catalyst interface required for this optimized Oracle RMAN integration.

HPE Peer Persistence for the Alletra 6000 (and Nimble) provides synchronous replication and automatic transparent failover (ATF) using the Automatic Switchover (ASO) feature. This process is governed by a Quorum Witness that monitors the health of both arrays in a group.

A fundamental design principle of HPE high-availability storage is to prevent "flapping"—a condition where a workload repeatedly bounces between two sites due to an unstable connection. Consequently, the ASO process is designed to be unidirectional and sticky. When a primary site failure occurs and the Quorum Witness authorizes an automatic switchover, the secondary array becomes the "Upstream" (active) array and begins serving I/O. Once the original primary site is restored and the replication link is re-established, the arrays will automatically begin a resynchronization to ensure data consistency. However, even after the data is fully synced, the system will not automatically move the workload back to the original array. The administrator must perform a manual handover to return the volume collection to its preferred primary site.

Regarding the other options:

Option B: If the witness is unreachable, ASO is automatically disabled to prevent a "split-brain" scenario where both arrays might try to become active simultaneously.

Option C: A single controller failure within an Alletra 6000 does not trigger an ASO. Instead, the array performs an internal controller failover (ALUA) which is transparent to the Peer Persistence relationship.

Option D: In a synchronous relationship, if the target becomes unavailable, the source array typically transitions to an "Out of Sync" state but continues to serve host I/O in order to maintain application availability, rather than rejecting it.

HPE Morpheus Enterprise provides extensive native monitoring for provisioned resources, but for deep, full-stack observability into applications, databases, and third-party services via a specialized SaaS-based analytics platform, it integrates with external providers through plugins.

The Datadog Integration Plugin is a primary example of this capability. Datadog is an industry-leading SaaS data analytics platform that monitors performance across every layer of the stack—from infrastructure metrics to application traces and logs. By installing the Datadog plugin in Morpheus, the administrator bridges the gap between the orchestration engine (Morpheus) and the observability platform (Datadog). This plugin adds a contextual "Datadog" tab to instances within the Morpheus UI, pulling real-time performance telemetry directly from the SaaS backend into the Morpheus management pane. This allows the administrator to view workload health and deep-dive analytics without switching consoles.

While HPE OpsRamp (Option C) is part of the broader HPE CloudOps Software suite and provides similar observability features, it is often treated as a separate, complementary software component rather than a specific "SaaS plugin" used within the core Morpheus instance-level analytics in the same context as Datadog's marketplace integration. The Morpheus Agent (Option A) is a local software component used for guest-level automation and basic health checks, not a SaaS analytics platform. By choosing Datadog, the administrator leverages a purpose-built SaaS solution to gain the "monitoring of applications, servers, and databases" required by the prompt through a pre-validated community or enterprise plugin.

HPE Morpheus Enterprise Software is a cloud-agnostic management and orchestration platform designed to enable a unified "cloud operating model" across hybrid and multi-cloud environments. It is specifically engineered to bridge the gap between traditional IT infrastructure and modern DevOps requirements.

The solution meets the customer's requirements as follows:

Self-Service Provisioning: Morpheus provides a central catalog and a powerful self-service engine that allows users to provision VMs, containers, and application stacks into any private or public cloud (including AWS, Azure, GCP, VMware, and Nutanix) on-demand.

Kubernetes Simplification: It offers a CNCF-certified Morpheus Kubernetes Service (MKS) and native integrations to deploy and manage Kubernetes clusters across bare metal, virtualized environments, and public clouds.

Normalized Service Management & Visibility: Morpheus normalizes the management experience across different providers, offering built-in FinOps capabilities for cross-cloud cost tracking, invoice synchronization, and rightsizing recommendations. It provides unified governance with fine-grained role-based access control (RBAC) and consistent insights into workload dependencies and monitoring.

While HPE GreenLake (Option A) is the overarching brand for HPE's as-a-service offerings, Morpheus is the specific software engine that powers the self-service and orchestration layers within the GreenLake private cloud portfolio. HPE OpsRamp (Option B) focuses primarily on full-stack observability and AI-driven monitoring rather than orchestration/provisioning. HPE OneView (Option C) is an infrastructure management tool focused on the hardware lifecycle of servers, storage, and networking (primarily on-premises) rather than multi-cloud service orchestration.

In the context of HPE StoreOnce Catalyst and NAS replication, security is governed by a bi-directional trust or permission-based handshake. When configuring replication between two StoreOnce appliances, the "Target" (Secondary) system acts as the gatekeeper. The error described occurs because the primary system is attempting to push data or create a mapping to a destination that has not authorized it.

According to the HPE StoreOnce documentation regarding Replication Permissions, the secondary appliance must explicitly grant permission to the source appliance before any mapping or data transfer can occur. This is a security measure designed to prevent unauthorized data ingestion or "rogue" replication tasks from consuming storage resources on the target system. To resolve the permission error, the administrator must log into the Secondary StoreOnce appliance (the target) and navigate to the replication settings. There, they must add the Primary StoreOnce appliance as an authorized "source" by specifying its network address (FQDN or IP) and providing the necessary credentials (username and password) that the primary system will use to authenticate.

Unlike simpler protocols where a "Public Access" setting (Option B) might exist, HPE StoreOnce requires a defined relationship for NAS and Catalyst replication to ensure data integrity and multi-tenancy security. Option A refers to token-based authentication, which is more common in modern cloud-native Alletra environments via DSCC, but not the standard for legacy StoreOnce NAS replication. Options D is incorrect because the permission must be granted at the receiving end, not the sending end. Once the secondary system has the primary's details stored in its Replication Permissions list, the primary appliance will be able to successfully "discover" the target libraries and establish the mapping without further permission errors.

When designing an HPE Morpheus environment for an enterprise-scale workload (such as 1,000+ VMs), a standalone "all-in-one" installation is insufficient for high availability (HA) and performance requirements. Instead, a 3-node Distributed Architecture must be implemented to ensure redundancy across all critical service layers.

In a distributed, redundant Morpheus setup, the architecture is broken down into three primary tiers: the Application tier, the Database tier (MySQL/Percona), and the Messaging/Search tier (Elasticsearch and RabbitMQ). To achieve a basic redundant footprint, you require at least two Morpheus application nodes, three database nodes (for quorum), and a messaging cluster. According to the HPE Morpheus Architecture and Sizing Guide, a standard HA deployment starts with a minimum of six VMs to separate these functions. However, for a production environment of this size, it is recommended to have a minimum of 10 VMs. This expanded footprint typically includes 3 App nodes, 3 Database nodes, and a 3-node cluster for Elasticsearch/RabbitMQ, plus a dedicated load balancer or management node, ensuring that the loss of any single host does not impact the management plane's availability.

Option C is incorrect because a distributed installation is significantly more complex than the "all-in-one" appliance approach and requires manual configuration of externalized services. Option B is slightly inaccurate because while RabbitMQ itself is required, a dedicated "RabbitMQ load balancer" is often handled by the primary application load balancer (like an F5 or NetScaler) rather than being a specific required installation component. Option D is incorrect as upgrades in a distributed environment involve a coordinated, multi-step process across all nodes, which typically requires a scheduled maintenance window rather than "minimal" downtime.
