Standard SCSI write operations are inherently sensitive to distance because they require multiple round-trip handshakes before data is actually transmitted. A typical write involves: 1) the Command, 2) a Transfer Ready (XFER_RDY) response from the target, 3) the Data, and 4) the Status. In a long-distance SAN, each of these round trips adds significant "latency wait time," severely degrading performance as distance increases.

To solve this, Brocade (HPE B-series) utilizes a protocol optimization feature known as FastWrite. FastWrite works by creating a Proxy Target (PT) local to the initiator host and a Proxy Initiator (PI) local to the target storage device. When the host issues a SCSI write command, the local Brocade switch (acting as the Proxy Target) immediately sends the XFER_RDY back to the host without waiting for the signal to travel across the long-distance link. This allows the host to send the data segment immediately.

By eliminating the need for every handshake message to traverse the distance multiple times, FastWrite significantly reduces the aggregate latency felt by the application. Architecturally, this enables customers to extend their SAN fabrics over double the distance (and often much further) while maintaining performance comparable to a significantly shorter link. This is critical for asynchronous replication and remote copy applications that issue large I/O blocks. Option C (Write Acceleration) is a generic term often used by other vendors, while FastWrite is the specific, validated Brocade feature name used in HPE Master ASE documentation for this protocol optimization.

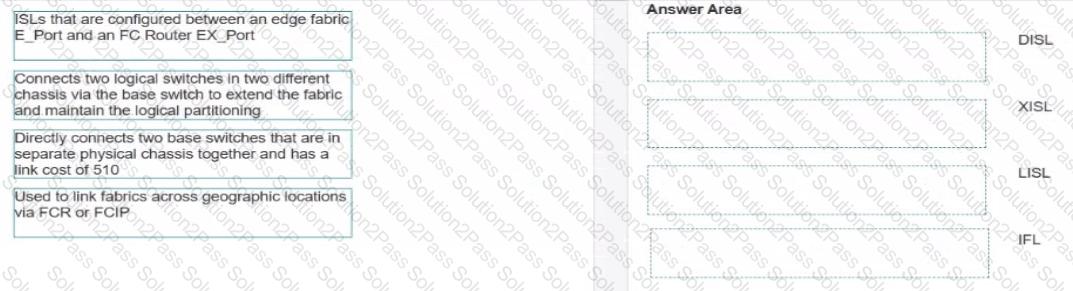

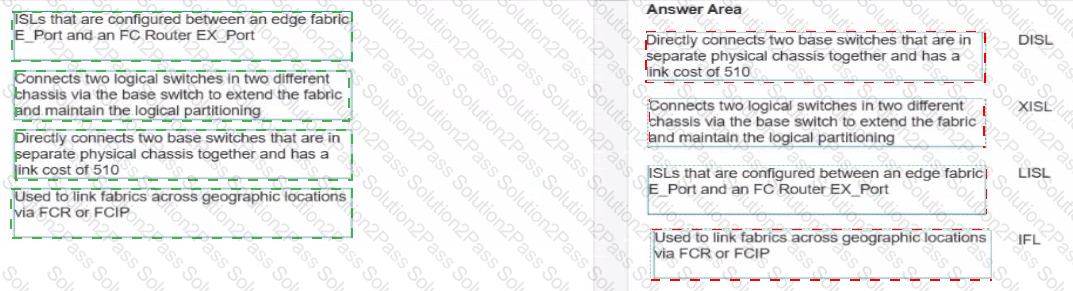

LISL: Directly connects two base switches that are in separate physical chassis together and has a link cost of 510

XISL: Connects two logical switches in two different chassis via the base switch to extend the fabric and maintain the logical partitioning

DISL: ISLs that are configured between an edge fabric E_Port and an FC Router EX_Port

IFL: Used to link fabrics across geographic locations via FCR or FCIP

Brocade Virtual Fabrics (VF) allow a single physical switch to be partitioned into multiple logical switches, each with its own data and control planes. This architectural flexibility requires specialized Inter-Switch Link (ISL) types to maintain logical isolation across physical chassis.

LISL (Logical ISL): These are logical links that directly connect two Base Switches located in separate physical chassis. A defining characteristic of an LISL in Brocade Fabric OS is its default link cost of 510, which ensures it is typically used only for specific inter-fabric control traffic unless manually adjusted.

XISL (Extended ISL): An XISL is a transport link used to connect two logical switches residing in different physical chassis by tunneling through the Base Fabric. This allows the administrator to extend a single logical fabric across multiple physical devices while maintaining strict logical partitioning and reducing the number of physical cables required between chassis.

DISL (Dedicated ISL): These links are specifically configured between an edge fabric E_Port and an FC Router EX_Port. They are used in Fibre Channel Routing (FCR) topologies to provide a dedicated path for inter-fabric traffic between a standard fabric and a meta-fabric router.

IFL (Inter-Fabric Link): IFLs are the foundational links used to connect disparate fabrics across geographic locations. They utilize either Fibre Channel Routing (FCR) or FCIP tunneling to enable communication between devices in different fabrics without merging them into a single logical entity. This is a key component for large-scale disaster recovery and data distribution architectures where fabric stability and distance are primary concerns.

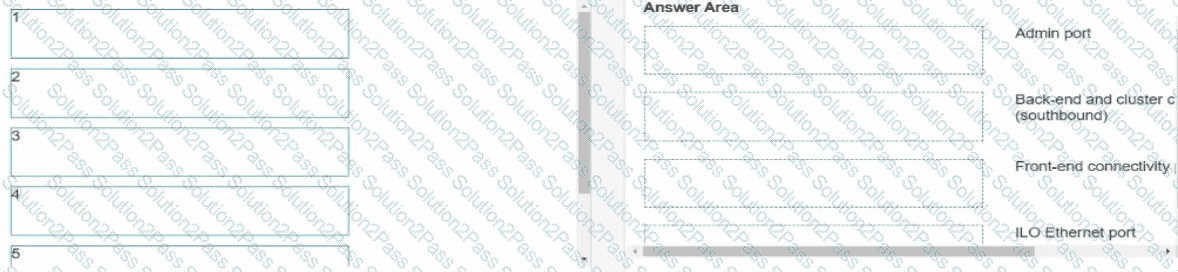

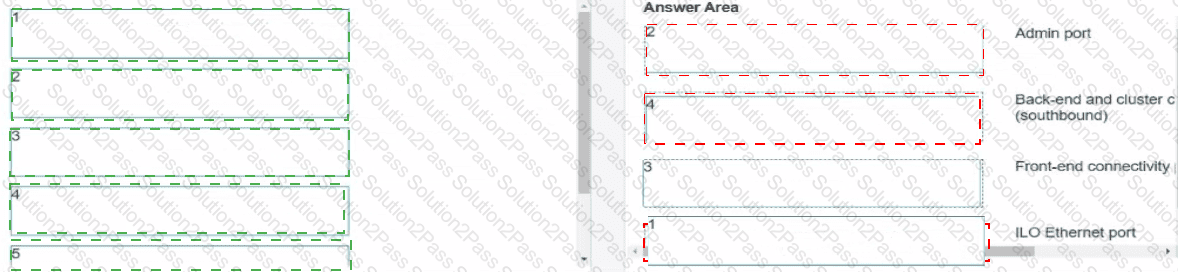

Admin port: 2

Back-end and cluster connectivity (southbound): 4

Front-end connectivity (northbound): 3

iLO Ethernet port: 1

The HPE Alletra MP B10000 architecture is defined by its disaggregated nature, separating the controller nodes from the physical storage capacity. Proper cabling of these nodes is fundamental to ensuring the performance and manageability of the cluster.

The ports on the rear of a controller node are categorized by their function within the disaggregated ecosystem:

iLO Ethernet port (1): This is the dedicated management port for the Integrated Lights-Out (iLO) processor. It provides out-of-band management, allowing administrators to access the hardware's health, power status, and remote console regardless of the operating system state.

Admin port (2): This RJ45 port is used for the management plane of the storage OS. It allows the array to communicate with the HPE GreenLake Data Services Cloud Console (DSCC) or local management software for configuration and provisioning tasks.

Front-end connectivity / Northbound (3): These ports (typically located in PCIe slots 1 and 2) provide the "Northbound" path to the host fabric. They are populated with high-speed Fibre Channel or iSCSI adapters to facilitate data access for servers and applications.

Back-end and cluster connectivity / Southbound (4): In a disaggregated shared-everything (DASE) architecture, "Southbound" connectivity is critical. These ports (often 100GbE RoCEv2) connect the controllers to the storage fabric and the disaggregated NVMe JBOFs. This allows every controller to see every drive in the cluster with ultra-low latency.

Understanding the distinction between Northbound (Host) and Southbound (Storage/Cluster) cabling is vital for a Master ASE. Incorrectly cabling the Southbound ports can lead to a "cluster split" or performance bottlenecks, as the disaggregated architecture relies on high-bandwidth, redundant paths to the underlying flash media to maintain its mission-critical performance profile. Number 5 in the diagram often represents the Serial console port, which is utilized primarily for initial setup or low-level troubleshooting by HPE Support and is typically not included in primary functional matching.

The HPE Quorum Witness (QW) is a critical component for facilitating Automatic Transparent Failover (ATF) in Peer Persistence, Active Peer Persistence, and Active Sync Replication configurations. Its primary architectural purpose is to act as an independent "tie-breaker" during a split-brain scenario—a situation where the storage arrays lose their heartbeat/replication links and both attempt to claim primary ownership of the volumes.

According to HPE documentation, the Quorum Witness must be installed at a third, neutral site that is geographically separate and failure-independent from the sites hosting the primary and secondary arrays. This "Third Site" placement ensures that if either site hosting an array experiences a total power or network failure, the remaining array can still reach the Quorum Witness via the network to obtain a "quorum vote" and safely assume the primary role without manual intervention. If the QW were placed at the same site as one of the arrays, a failure at that site would take down both the storage and the witness, preventing the surviving array at the other site from achieving quorum for an automatic failover.

Connectivity to the Quorum Witness is strictly over IP (Ethernet); it does not require Fibre Channel (FC) connectivity. While Option B suggests a limitation to specific Linux VMs, the QW is a self-contained application that can be installed on either physical or virtual machines running a variety of supported Linux host OS versions listed in the HPE SPOCK matrix (including RHEL, SUSE, and CentOS). Option A is slightly imprecise because the arrays themselves initiate the failover logic after querying the QW, rather than the QW "initiating" it autonomously. Therefore, the recommendation for third-site placement remains the most essential architectural requirement.

The deployment of the HPE CSI (Container Storage Interface) Driver involves several sequential steps to enable dynamic provisioning of storage on HPE Alletra 9000 arrays. Once the Helm repository has been added, the administrator must provide the driver with the necessary authentication and connectivity details for the storage backend.

According to the HPE Storage Container Orchestration Documentation (SCOD), the definitive next step to enable communication between the Kubernetes cluster and the Alletra 9000 is to create a Kubernetes Secret. This Secret contains critical parameters such as the storage array's IP address or FQDN, and the management credentials (username and password). Without this Secret, the CSI driver cannot authenticate against the Alletra 9000 REST API to perform volume creation, mounting, or snapshot operations.

While creating a StorageClass (Option C) is a required step, it follows the creation of the Secret. The StorageClass definition must specifically reference the name of the Secret to identify which storage backend should be used for a particular tier of service. Option A (creating a namespace) is often done as part of the helm install command itself (using the --create-namespace flag) and is a general administrative task rather than a storage-specific configuration step. Option D is incorrect as the Alletra 9000 does not pull credentials from the Kubernetes conductor; rather, the Kubernetes driver pushes requests to the array using the credentials stored in the Kubernetes Secret. Establishing this secure handshake via the Secret is the foundational step for all subsequent persistent volume (PV) and persistent volume claim (PVC) activities.
