HP HPE7-A07 Practice Test Questions Answers

In OSPF, when a router learns about an external network through both E1 and E2 advertisements, and if both have the same path cost, the router will prefer the E1 path. This is because E1 routes consider both the external cost to reach the external network and the internal cost to reach the ASBR, providing a more comprehensive metric. E2 routes only consider the external cost and ignore the internal cost to the ASBR, which could potentially lead to suboptimal routing. Therefore, the router will choose the E1 path due to its more accurate representation of the total path cost.

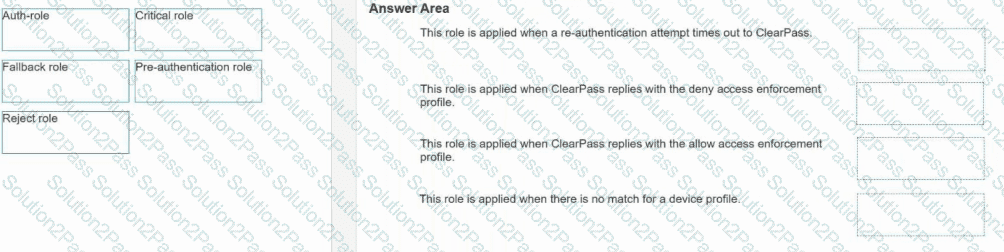

Scenario

Correct Role

This role is applied when a re-authentication attempt times out to ClearPass.

Critical role

This role is applied when ClearPass replies with the deny access enforcement profile.

Reject role

This role is applied when ClearPass replies with the allow access enforcement profile.

Auth-role

This role is applied when there is no match for a device profile.

Fallback role

In Aruba CX switching, when integrating ClearPass Policy Manager (CPPM) for 802.1X, MAC Authentication, or Downloadable Role-based Access, the system assigns specific roles based on AAA enforcement outcomes or network events (timeouts, mismatches, or unknown devices).

These special roles ensure network survivability and consistent zero-trust policy enforcement even if ClearPass or RADIUS communication fails.

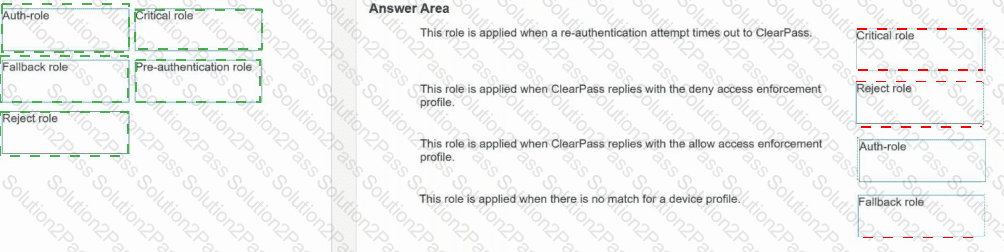

1. Critical Role → Applied when re-authentication attempt times out to ClearPass

“When the switch cannot reach the RADIUS server during re-authentication (for example, a timeout), the switch assigns the critical-role to the authenticated client, ensuring continued network connectivity with a restricted policy.”

“This role is used to maintain limited access when the RADIUS server is unreachable or times out.”

This ensures that devices remain minimally operational while preventing full network access — crucial for survivable network designs.

2. Reject Role → Applied when ClearPass replies with the deny access enforcement profile

“If the RADIUS response includes an Access-Reject, the switch applies the configured reject-role. This typically results in isolation or complete denial of access.”

“The reject-role allows enforcement of a restrictive VLAN or ACL after authentication failure.”

Therefore, when ClearPass denies access, the reject role provides an explicit enforcement action.

3. Auth-Role → Applied when ClearPass replies with the allow access enforcement profile

“When the authentication succeeds and the RADIUS server returns an Access-Accept with an Aruba-User-Role attribute, the switch applies the auth-role.”

“This is the default operational role for authenticated clients.”

This role represents the authorized state, where the user receives full or role-based access according to ClearPass policies.

4. Fallback Role → Applied when there is no match for a device profile

“If the client fails device profiling or no match is found in the endpoint database, the switch applies the fallback-role configured for unknown devices.”

“The fallback-role provides a baseline policy for unrecognized or unclassified endpoints.”

This ensures unknown or new devices can be placed in a limited-access posture pending classification.

References of HPE Aruba Networking Switching Documents or Study Guide:

ArubaOS-CX Access Security Guide (AOS-CX 10.12 and later) – “Role mapping and special roles (auth-role, reject-role, fallback-role, critical-role).”

Aruba ClearPass Policy Manager Deployment Guide – “Integration with Aruba Switch Roles and Enforcement Profile Mapping.”

Aruba Zero Trust Wired Access Design Guide – “Survivability roles for authentication failure or unreachable ClearPass.”

Aruba CX 6300 Configuration Guide – “AAA, Downloadable Roles, and Fallback/Critical Role Configuration.”

Comprehensive and Detailed Explanation From Exact Extract of HPE Aruba Networking Switching:

Accurate and trusted time on gateways is essential for audit logs. Aruba gateways and AOS-CX switches support NTP authentication, where the device and the NTP server share cryptographic keys (key-id with MD5/SHA-1 depending on platform). The device accepts time updates only from servers that successfully authenticate, protecting against spoofed NTP responses and time-shifting attacks.

Exact extract:

“Configure NTP authentication to verify time sources. Define an authentication key, mark it as trusted, and associate it with the NTP server. The device will synchronize time only with authenticated servers.”

“Accurate logging relies on NTP. Enabling authentication helps prevent malicious or accidental tampering with system time.”

Thus, enabling and configuring NTP authentication directly secures the time clock against attacks, making B correct.

Option A would block time synchronization; C (a generic ACL) does not provide cryptographic validation; D changes only display/timezone and does not secure the source of time.

References of HPE Aruba Networking Switching documents or Study Guide:

ArubaOS 10 Gateway Management and Security Guide — “Configuring NTP authentication (keys, trusted key, server association).”

Aruba AOS-CX System Management Guide — “Securing NTP and its impact on event/audit logs.”

Comprehensive and Detailed Explanation From Exact Extract of HPE Aruba Networking Switching:

On Aruba switches (AOS-CX/AOS-S), multiple IPv4 networks can be configured on the same VLAN interface (SVI) by assigning a primary address and one or more secondary addresses. The VLAN remains one Layer-2 broadcast domain; adding more IP subnets does not create subinterfaces and does not split the broadcast domain.

Exact extract:

“A VLAN interface may be configured with a primary IP address and additional secondary IP addresses to host multiple subnets on the same Layer-2 broadcast domain.”

“A VLAN is a single broadcast domain. Broadcast and unknown unicast frames are flooded to all ports belonging to the VLAN.”

“Hosts in different IP subnets on the same VLAN still require Layer-3 routing to communicate; sharing the VLAN only means they share the same L2 broadcast domain.”

Therefore, when a second subnet is added to the same VLAN, broadcasts (ARP, DHCP, etc.) from devices in either subnet will be flooded to all member ports of that VLAN, making option C correct.

Options A (subinterfaces) are not used here; B is incorrect because inter-subnet traffic still needs routing; D is not categorically true—IGMP operates per VLAN with multicast routing configuration and is not inherently disabled by multiple subnets.

References of HPE Aruba Networking Switching documents or Study Guide:

Aruba AOS-CX Interface and VLAN Configuration Guide — “Primary and secondary IP addressing on VLAN interfaces; VLANs as broadcast domains.”

Aruba AOS-CX Layer 2 Fundamentals — “Flooding behavior for broadcast/unknown frames within a VLAN.”

Aruba Campus Wired Design Fundamentals — “Multiple IP subnets on one VLAN and routing implications.”

===========

UL MU-MIMO, or Uplink Multi-User Multiple Input Multiple Output, is a technology that allows multiple clients to transmit data to the access point simultaneously, increasing overall throughput and efficiency, especially for upload-heavy scenarios like video file uploads. This technology enables spatially separated clients to access the channel at the same time, which can improve performance for clients when uploading large files.
