H13-511_V5.5 Huawei HCIA-Cloud Computing V5.5 Exam Free Practice Exam Questions (2026 Updated)

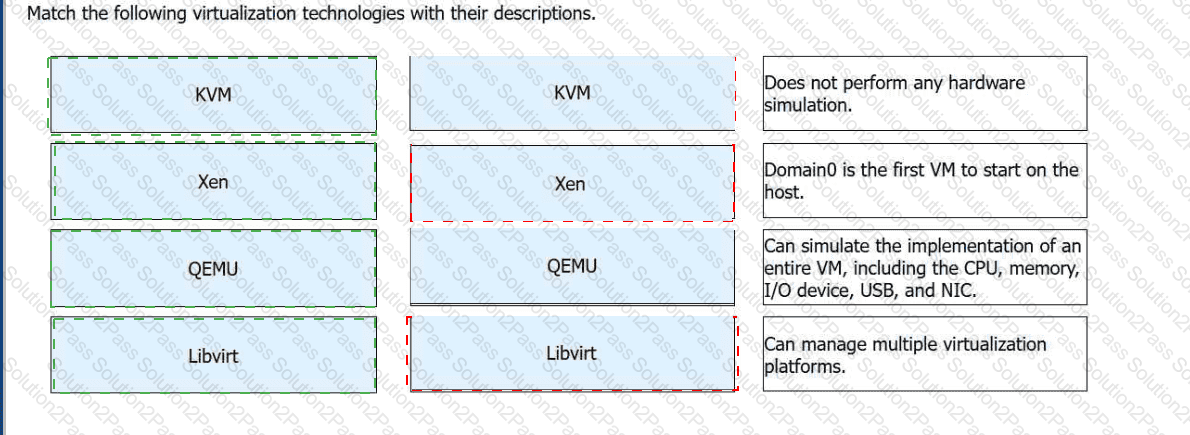

Virtualization Technology

Description

KVM

Does not perform any hardware simulation.

Xen

Domain0 is the first VM to start on the host.

QEMU

Can simulate the implementation of an entire VM, including the CPU, memory, I/O device, USB, and NIC.

Libvirt

Can manage multiple virtualization platforms.

Huawei's technical materials differentiate between these technologies based on their specific roles within the virtualization ecosystem.KVM (Kernel-based Virtual Machine)is an open-source module within the Linux kernel. While it provides the core virtualization capabilities for CPU and memory, it is defined in the HCIA curriculum as a technology thatdoes not perform hardware simulationitself. Instead, it typically relies on hardware-assisted virtualization or integrates with other tools to handle I/O operations.

Xenis a Type-1 hypervisor that operates directly on the hardware. A unique feature of the Xen architecture isDomain0, which is a privileged virtual machine that starts first and provides the management environment and drivers for other guest VMs (DomainU). In contrast,QEMUis a pure software-based emulator. It is powerful because itcan simulate an entire VM, including all peripherals like the CPU, NIC, and USB. However, because it relies on software simulation, its performance is lower than hardware-assisted technologies unless it is used as a backend for KVM.

Finally,Libvirtserves as the universal management layer. It is a set of open-source library functions and APIs that allow administrators tomanage multiple virtualization platforms(including KVM, Xen, and VMware) using a standardized command set. It provides transparency to upper-layer management software by abstracting the complexities of the underlying hypervisor. Understanding how these technologies interact—such as KVM utilizing Libvirt for management and QEMU for I/O—is a critical learning objective for candidates preparing for the Huawei H13-511 exam.

Huawei FusionComputeHigh Availability (HA)is designed to improve service continuity by automatically responding to VM or host failures.

OptionAis true. FusionCompute allows administrators to configuredifferent HA policiesfor virtual machines based on service importance, which aligns with SLA-driven management principles.

OptionCis true. One of the core functions of HA isautomatic VM rebootwhen a virtual machine encounters a failure, ensuring rapid service recovery.

OptionDis true. FusionCompute continuously monitorsCNA host and VM status. If a CNA host fails, HA triggers VM migration or restart on another available host in the same cluster, minimizing downtime.

OptionBis false. Even when usingshared storage, HAdoes not guarantee zero data loss. HA focuses onservice recovery, not data consistency. Data loss may still occur depending on application state and write operations at the time of failure.

Therefore, the false statement isB.

In Huawei FusionAccess, user authentication and authorization for Windows desktops are typically integrated withActive Directory (AD). During VM template creation, the option“Configure user login”is used to specify who is allowed to log in to the virtual desktop.

According to the HCIA–Cloud Computing FusionAccess service provisioning process, this option is selected whenAD group membersare intended to access the VM. FusionAccess then uses AD-based authentication to control desktop login permissions, ensuring centralized identity management and consistent security policies.

Therefore, the correct word shown on the GUI and required to complete the sentence isAD.

In the official Huawei FusionAccess maintenance and troubleshooting documentation, High Availability (HA) between the vAG (Virtual Access Gateway) and vLB (Virtual Load Balancer) is maintained through backend synchronization and heartbeat checks. The correct answer is D because changing the ITA portal login password has no technical impact on the background communication between infrastructure VMs. The ITA portal password is the credential used by an administrator to log into the web management interface (https://ITA_IP:8448); it is an application-layer credential stored in the database, not a system-level credential used for inter-component service discovery or HA heartbeats.

In contrast, options A, B, and C can indeed lead to "HA status abnormal." In the Huawei ecosystem, components often communicate using internal system accounts. Specifically, thegandalfaccount is the default account used for the FusionAccess management plane to log in to and manage these components. If an administrator manually changes the gandalf password on the vAG/vLB VM (Option C) without updating the corresponding credentials in the management system, the ITA will lose its ability to query the status of those nodes, resulting in an abnormal HA state.

Furthermore, while the root password (Options A and B) is generally for administrative access, the FusionAccess components are tightly integrated. Changing system-level passwords without using the official Huawei password management tools or updating the service configurations can break the scripts responsible for status reporting and synchronization. Therefore, for the HCIA exam, it is critical to understand that theITA Portal passwordis purely for the user interface and does not affect the technical "plumbing" or HA heartbeats of the underlying virtual appliances.

====================

As detailed in the Huawei HCIA-Cloud Computing technical documentation, FusionCompute offers a robust suite of resource management functions. Statement A is correct: FusionCompute datastores support multiple file system formats to accommodate different storage backends. VIMS (Virtual Image Management System) is Huawei’s high-performance cluster file system used for SAN storage; NFS is used for Network Attached Storage; and EXT4 is used for local disk virtualization on a single host. This variety allows administrators to build heterogeneous storage pools.

Statement B is also a verified function. FusionCompute supports dynamic resource adjustment. Users can modify memory capacity for both offline VMs (while the VM is stopped) and online VMs (while running). Online memory expansion requires the "Hot Add" feature and Guest OS support, while reduction typically requires the VM to be in a state where the kernel can release the address space. Statement C accurately describes Storage Live Migration. This feature allows a VM's virtual disk files to be moved from one datastore to another (or within the same storage device) while the VM remains running, which is essential for storage maintenance and load balancing.

Statement D is incorrect because of the word "only." While traditional VM live migration (vMotion style) does require shared storage so that both hosts can see the same disk, modern versions of FusionCompute also support Shared-Nothing Live Migration. This technology migrates both the VM's memory state and its disk data simultaneously over the network, allowing a VM to move between hosts that do *not* share a common backend storage. Because D ignores this advanced capability, it is excluded from the list of correct functions in the context of FusionCompute's full feature set.

According to the HCIA–Cloud Computing virtualization domain,KVM (Kernel-based Virtual Machine)andXenare both examples ofhardware-assisted virtualizationtechnologies.

Hardware-assisted virtualization relies on CPU extensions such asIntel VT-xandAMD-Vto improve virtualization performance and isolation. Both KVM and Xen leverage these CPU features.

KVMis implemented as akernel modulewithin the Linux operating system. Once loaded, the Linux kernel itself becomes a hypervisor, managing CPU and memory virtualization with hardware support.

Xenalso relies on hardware virtualization features and interacts closely with the operating system kernel, especially in full virtualization and hardware-assisted modes.

Because the statement correctly describes both thevirtualization typeand theimplementation approach, it aligns with HCIA documentation and isTRUE.

Scenario

Operation

User data is stored in a network directory instead of a local host.

Folder redirection

The client IP address segment is not configured. Users can access VMs from any IP address segment.

Access control policy

A parallel-to-USB cable can be used to connect the parallel port device to the client.

Peripheral policy creation

In FusionAccess, policy management allows for deep customization of the user environment.Folder redirectionis a key feature for maintaining data persistence and centralized backup. It ensures thatuser data is stored in a network directoryrather than locally on the virtual machine's disk. This prevents data loss if a VM is refreshed or deleted, which is common in linked-clone pool environments.

Access control policiesare used to define the security boundaries of the VDI environment. When theclient IP address segment is not configured, it defaults to a permissive state whereusers can access VMs from any IP segment. Administrators typically use this policy to restrict access to known corporate subnets or specific VPN ranges to enhance overall security.Peripheral policy creationprovides support for legacy hardware or specialized equipment. By configuring these policies, aparallel-to-USB cable can be usedto bridge legacy parallel port devices to the modern USB ports of the client terminal, ensuring business continuity for specialized printing or diagnostic hardware.

In the HCIA–Cloud Computing curriculum, Ethernet switches are core components of the data center network and operate mainly at thedata link layer. One of their key functions isMAC address learning. When a switch receives a frame, it records thesource MAC addressand the corresponding incoming port in the MAC address table. This allows the switch to forward subsequent frames intelligently.

More importantly, a switchcan isolate collision domains, which makes the statement false. Each switch port represents anindependent collision domain, meaning that collisions occurring on one port do not affect other ports. This is a major improvement over hubs, which place all connected devices in a single collision domain.

However, switchesdo not isolate broadcast domainsby default. Broadcast traffic is forwarded to all ports within the same VLAN. Broadcast domain isolation requires technologies such asVLANs or routers.

Since the statement claims that a switchcannotisolate collision domains, which contradicts the HCIA definition of switching behavior, the correct answer isFALSE.

In the official Huawei HCIA–Cloud Computing documentation, the core definition of virtualization centers on the abstraction of physical resources. The essence of virtualization technology is precisely the transformation of physical, hardware-based resources—such as CPUs, memory, network interface cards, and storage disks—into virtualized, logical entities. This process is facilitated by a software layer known as the Hypervisor or Virtual Machine Monitor (VMM). By creating this abstraction layer, virtualization effectively achieves the "decoupling" of the software environment (the Operating System and applications) from the underlying physical hardware.

This decoupling is a revolutionary shift from traditional computing architectures where an Operating System was tied to specific hardware drivers and physical configurations. In a virtualized environment, a Virtual Machine (VM) perceives a set of standardized, logical hardware components provided by the Hypervisor. Because the software is no longer bound to the physical machine, it gains significant mobility and flexibility. For example, in Huawei’s FusionCompute platform, this decoupling allows for features such as Live Migration, where a running VM can be moved from one physical host to another without any service interruption. This is possible because the VM's "logical" hardware remains consistent even as the "physical" host changes.

Furthermore, this transformation from physical to logical enables better resource utilization through overcommitment and sharing. Multiple logical servers can run on a single physical server, each isolated from the others. This fundamental shift is what provides the agility, scalability, and efficiency required for Cloud Computing. Without the decoupling provided by virtualization, the rapid provisioning and elastic resource scaling that define cloud services would be impossible to achieve. Therefore, virtualization serves as the indispensable technical foundation upon which all other cloud services and management layers are built within the Huawei ICT ecosystem.

According to the official Huawei FusionAccess component deployment guidelines, the statement is FALSE. In the Huawei HCIA-Cloud Computing V5.5 curriculum, the deployment modes for infrastructure components are highly flexible to accommodate different business scales.

In adistributed deployment(large scale), it is a best practice to keep roles separate for performance and security. However, in astandalone or small-scale deployment, Huawei explicitly supports and even provides a "vAG/vLB/WI" all-in-one template. In this scenario, theWeb Interface (WI),Virtual Access Gateway (vAG), andVirtual Load Balancer (vLB)are all co-deployed on the same Virtual Machine. This reduces the hardware resource footprint and simplifies the management of the desktop cloud for small offices or testing environments.

ThevLB (Virtual Load Balancer)is responsible for distributing traffic among multiple WI servers to ensure high availability. ThevAG (Virtual Access Gateway)handles the secure HDP protocol traffic from the terminal to the desktop VM. TheWIprovides the login portal. Because these three roles interact directly during the user's login and desktop connection phase, they are technically compatible for co-residency on a single Linux-based appliance.

While the statement correctly identifies that vAG and vLB can be co-deployed (a very common practice), it incorrectly claims that vLB and WIcannotbe co-deployed. In the HCIA exam, it is important to remember that Huawei's "Standalone" deployment mode allows for the consolidation of these specific access-layer components into a single VM to maximize resource efficiency. Therefore, the assertion that such a deployment is impossible is technically incorrect.

User data is stored in a network directory instead of a local host

➡Folder redirection

Redirects user folders (such as Desktop, Documents) to network storage

Prevents local data storage on virtual desktops

Enhances data security and centralized management

The client IP address segment is not configured. Users can access VMs from any IP address segment

➡Access control policy

Controls or relaxes access based on client IP segments

If not configured, access is allowed fromany IP address

Used to restrict or permit VM access based on network location

A parallel-to-USB cable can be used to connect the parallel port device to the client

➡Peripheral policy creation

Controls usage of peripherals such as USB, printers, scanners

Enables or disables device redirection

Supports special device scenarios via policy configuration

In HCIA–Cloud Computing (Operating System Basics), Linux network interface configuration is a foundational skill, and openEuler follows the standard Red Hat–style network configuration syntax.

To configure a static IP address, the parameter BOOTPROTO must be set to static. This tells the operating system not to request an IP address from a DHCP server and instead use the manually configured values such as IPADDR and NETMASK.

To ensure that the NIC is automatically activated when the system boots, the parameter ONBOOT must be set to yes. If ONBOOT is set to no, the interface will remain down after boot and must be manually started.

Therefore, the completed and correct configuration is:

BOOTPROTO=static

ONBOOT=yes

BOOTPROTO=static → Uses a fixed IP address

ONBOOT=yes → Enables automatic startup at system boot

This configuration exactly matches HCIA–Cloud Computing requirements for static IP configuration on openEuler.

In the FusionAccess architecture, the successful startup and availability of a virtual desktop depend on a process known as "VM Registration." According to the Huawei HCIA-Cloud Computing curriculum, the component responsible for receiving and processing these registration requests is the HDC (Huawei Desktop Controller).

The process works as follows: Each virtual desktop VM has a resident software agent called theHDA (Huawei Desktop Agent). When the VM boots up and the network is initialized, the HDA sends a registration request over the internal management network. This request contains the VM's status, its IP address, and its unique identifier. TheHDCacts as the central "command and control" center of the desktop cloud. It listens for these requests, verifies the VM's credentials against the system database (GaussDB), and updates the VM's status to "Ready" or "In Use."

The HDC is the core logical component that manages the relationship between users and their virtual desktops. If the HDC does not receive the registration request—perhaps due to a network issue or a failure of the HDA service on the VM—the desktop will appear as "Unregistered" or "Offline" in the management portal, and users will be unable to log in through the Web Interface (WI). While theITA (IT Adapter)is used by administrators totriggerthe provisioning of the VM, it does not handle the real-time registration traffic of individual VMs. Similarly, the HDA is thesenderof the request, not the receiver. Understanding the HDC's role as the registration authority is a fundamental requirement for troubleshooting connection issues and mastering the FusionAccess component interactions taught in the HCIA certification.

CPU virtualization is a fundamental concept in HCIA–Cloud Computing and includes multiple implementation methods.

Option A is correct. CPU virtualization is commonly categorized into full virtualization, paravirtualization, and hardware-assisted virtualization.

Option B is correct. Full virtualization allows guest operating systems to run without modification, which ensures high compatibility and portability across different platforms.

Option C is correct in the HCIA context. Paravirtualization requires modifications to the guest OS kernel, which historically limited support primarily to open-source operating systems.

Option D is false. Hardware-assisted virtualization explicitly requires CPU support, such as Intel VT-x or AMD-V. Without these features, hardware-assisted virtualization cannot function.

Therefore, the false statement is D.

In the "Virtualization Basics" section of the Huawei HCIA-Cloud Computing training material, the taxonomy of virtualization components is strictly defined. Statement C is FALSE because the virtualization software layer is technically called the Hypervisor or Virtual Machine Monitor (VMM), not the "Host OS." While a "Host OS" exists in Type-2 (hosted) virtualization (where the hypervisor runs as an application on top of an existing OS like Windows or Linux), the software layer that actually performs the resource abstraction and logical partitioning is the Hypervisor itself.

The other definitions are central to Huawei's technical documentation. AGuest OS(Statement A) is indeed the operating system—such as Windows Server or Ubuntu—that is installed inside a Virtual Machine. It is "unaware" that it is running on virtual hardware. TheHost Machine(Statement B) refers to the underlying physical server (e.g., a Huawei FusionServer Pro) that provides the actual CPU, RAM, and physical NICs. Finally, aGuest Machine(Statement D) is a synonym for a Virtual Machine (VM), representing the logical container that houses the Guest OS and applications.

In a Type-1 virtualization architecture (like HuaweiFusionCompute), the Hypervisor (CNA) sits directly on the hardware. In this scenario, there is no "Host OS" at all, further proving why statement C is incorrect. The Hypervisor is responsible for trapping "privileged instructions" from the Guest OS and translating them into actions on the physical hardware. Correctly identifying these roles—Host Machine, Hypervisor, and Guest VM—is a prerequisite for understanding more advanced cloud features like Resource Clusters and Distributed Resource Scheduling (DRS).

In the official Huawei ICT Academy curriculum, virtualization is defined as the core enabling technology that transforms physical hardware into logical, manageable resources. This process involves the introduction of a virtualization layer, often referred to as a Hypervisor or Virtual Machine Monitor (VMM), which sits between the physical hardware and the operating systems. The statement is TRUE because it accurately captures the three primary characteristics of virtualization as defined in Huawei’s technical documentation: Simulation, Isolation, and Sharing.

Simulationrefers to the ability of the Hypervisor to present a consistent set of virtual hardware (CPU, Memory, I/O) to the Guest Operating System, regardless of the underlying physical vendor. This allows software to run in an environment it perceives as dedicated physical hardware.Isolationis a critical security and stability feature; it ensures that if one Virtual Machine (VM) crashes or is compromised, it does not affect the operation of other VMs on the same physical host. Each VM operates in its own logical container with dedicated boundaries. Finally,Sharingallows multiple VMs to occupy a single physical server simultaneously, maximizing resource utilization.

Before virtualization, the "one-server-one-application" model led to massive resource wastage (often using only 5%–15% of capacity). By creating alogical representationof physical resources, virtualization enablesCloud Computingto achieve its goal of multi-tenancy and elastic scaling. In Huawei’sFusionComputearchitecture, this is implemented through theCNA (Computing Node Agent), which uses the Galax88 engine to virtualize CPU and memory resources and theVNA (Virtual Node Agent)for management, effectively decoupling the software from the hardware constraints.

In the HCIA–Cloud Computing syllabus, Linux command-line operations are part of theOperating System Basicsdomain. Viewing file contents is one of the most common Linux administration tasks.

Theless (A)command is used to view file contents page by page. It supports forward and backward scrolling and searching, making it suitable for viewing large files. HCIA materials often recommend less as a preferred file-viewing tool.

Themore (B)command is an earlier paging command that displays file contents one screen at a time. Although it has fewer features than less, it is still a valid file-viewing command.

Thecat (D)command is used to display the entire content of a file directly to standard output. It is commonly used for viewing small files or concatenating files.

Thevim (C)command is primarily atext editor, not a file-viewing command. While it can open and display files, its main purpose is editing rather than viewing, which is how HCIA differentiates it.

Therefore, the correct answers areA, B, and D.

According to the Huawei HCIA-Cloud Computing curriculum, specifically the "FusionAccess Planning and Deployment" section, the statement is TRUE. When an enterprise scales its desktop cloud across multiple regions or deploys separate FusionAccess environments (each with its own ITA/HDC/DB set), there is often a requirement to share a single license pool to optimize costs and management.

In a standard small-scale deployment, the License component is typically co-deployed with theITA (IT Adapter). However, if multiple independent FusionAccess systems (different clusters or management sets) need to draw from the same license file, the License component must be "de-coupled" from any specific ITA anddeployed independentlyas a standalone service. This standalone License Server acts as a centralized repository that tracks the total number of permitted desktop users or VMs. Each FusionAccess system is then configured to point to this central server's IP address.

This independent deployment model ensures that license seats are not "trapped" in one specific system. For example, if System A has 500 licenses but only 200 active users, and System B is at its limit, a centralized license server allows System B to utilize the excess capacity. This flexibility is a core architectural principle in Huawei’s large-scale VDI solutions. During deployment planning, administrators must decide whether to use a local license (co-deployed) or a centralized license (independent). For multi-system environments, the independent deployment is the official Huawei recommendation to ensure proper license reconciliation and to prevent "over-use" or "under-use" of purchased ICT assets across the enterprise.

====================

According to the HCIA–Cloud Computing curriculum underServer Basics, the CPU is defined as thecore component responsible for computation and controlwithin a computer system. The CPU executes program instructions and coordinates the operation of all other hardware components.

The CPU is primarily composed of two main functional units:

Arithmetic Logic Unit (ALU):Responsible for performing arithmetic operations (such as addition and subtraction) and logical operations (such as comparisons and logical AND/OR).

Control Unit (Controller):Responsible for fetching instructions from memory, decoding them, and controlling the execution process by issuing control signals to other components.

The CPU operates based on thefetch–decode–execute cycle, which is a fundamental concept emphasized in HCIA learning materials. During this process, the CPU reads instructions and related data from memory, processes them, and produces results according to the instruction set architecture.

Because the statement accurately describes therole, composition, and working principleof the CPU as defined in Huawei’s HCIA–Cloud Computing documentation, it iscorrect.
