JN0-650 Juniper Enterprise Routing and Switching - Professional (JNCIP-ENT) Free Practice Exam Questions (2026 Updated)

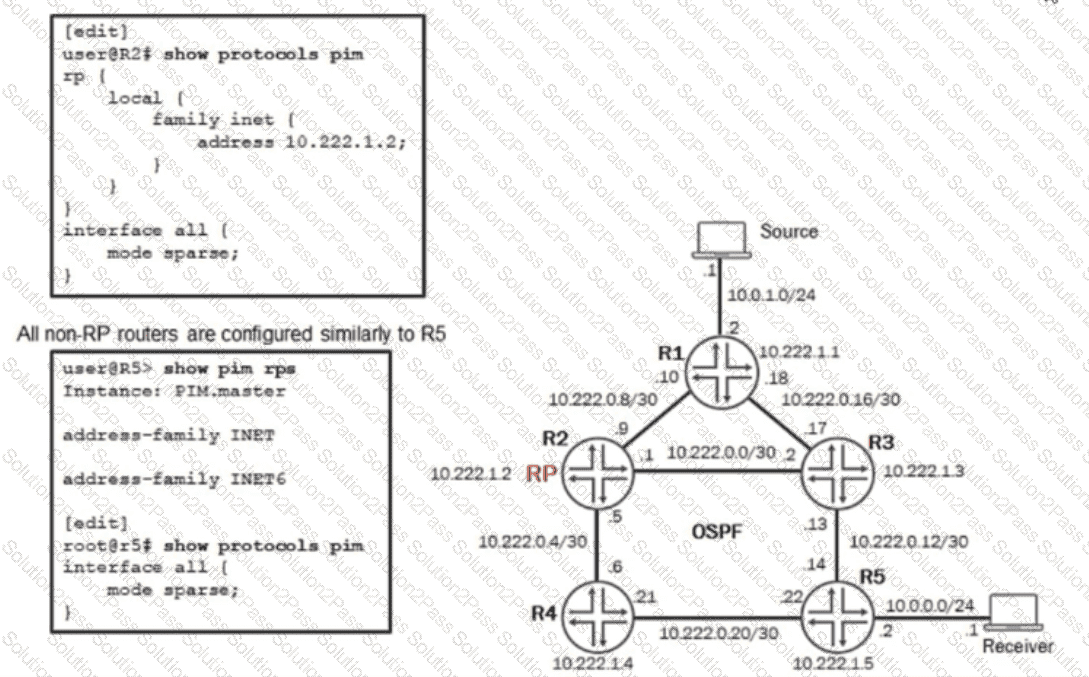

The exhibit shows a multicast network running PIM Sparse Mode where R2 is configured as a local Rendezvous Point (RP). However, the non-RP routers (like R5) show no learned RP in their show pim rps output. To resolve this using standard protocols for dynamic RP discovery, you must implement a mechanism that automates the distribution of RP information across the PIM domain.

Bootstrap Router (BSR) (Option B): BSR is the industry-standard (RFC 5059) mechanism for dynamically electing an RP and distributing that information throughout a PIM-SM domain.

It uses two roles: Candidate-RPs (C-RPs), which announce their desire to be an RP, and Candidate-BSRs (C-BSRs), which collect these announcements and flood them to all other routers in the network via PIM bootstrap messages.

BSR is a " standard protocol " as it is part of the PIMv2 specification. Once configured on R2 (as C-RP) and potentially R1 or R2 (as C-BSR), all other routers will dynamically learn that R2 is the RP for the specified group ranges.

Auto-RP (Option D): While this also provides dynamic RP discovery, it is a proprietary Cisco protocol. Although Junos supports it for interoperability, the question specifically asks for " standard protocols only, " making BSR the preferred choice.

MSDP (Option A): Multicast Source Discovery Protocol (MSDP) is used to share information about active sources between different PIM domains or for Anycast-RP. It does not handle the initial discovery of an RP within a single domain for standard PIM-SM operations.

Anycast RP (Option C): This is a technique used for RP redundancy and load balancing. While it can use BSR or MSDP for synchronization, it is a design architecture rather than a standalone " standard protocol " for the basic dynamic discovery of an RP in the manner requested here.

Configuration Example for BSR in Junos OS 24.4: To enable this, you would add the following to the RP (R2):

set protocols pim rp bootstrap-discovery

set protocols pim rp candidate-rp 10.222.1.2 group-ranges 224.0.0.0/4

set protocols pim rp candidate-bsr 10.222.1.2

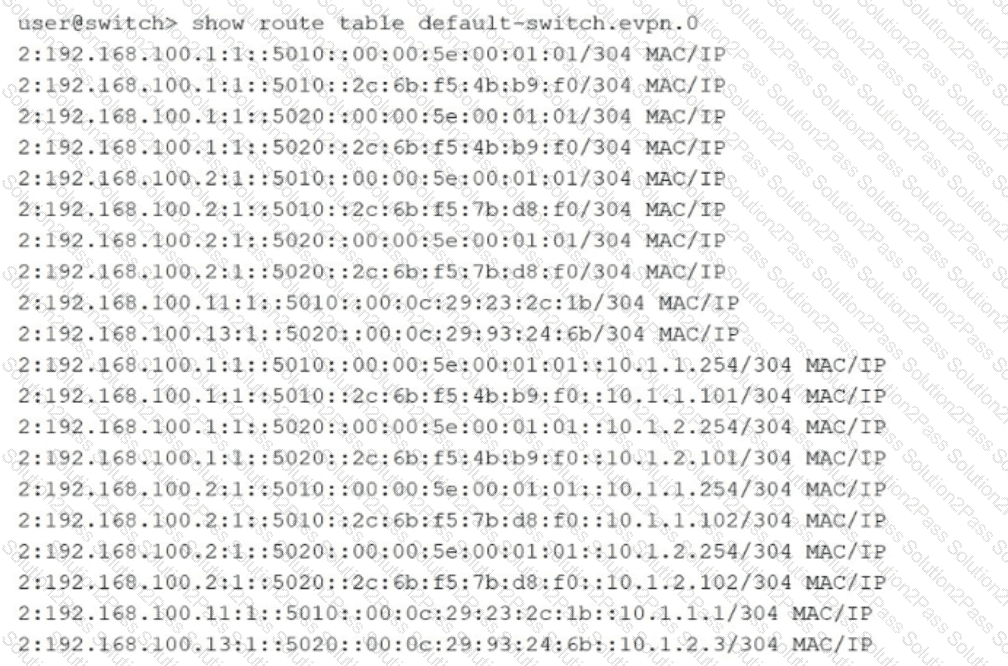

In Junos OS, particularly in BGP-based environments like EVPN-VXLAN or MPLS, the router often needs to perform a recursive lookup to resolve the BGP next-hop of a route.

Next-Hop Resolution (Option C): When an EVPN route (found in default-switch.evpn.0) is received, the protocol next-hop is typically the loopback IP of the remote VTEP. To actually forward traffic, the switch must know how to reach that loopback IP.

The inet.3 table is the default table in Junos used to store egress interface information for BGP next-hops.

While inet.0 handles standard unicast routing, inet.3 is specifically consulted for resolving the path toward BGP peers. In an EVPN context, this ensures that the VXLAN tunnel endpoint is reachable and properly resolved through the underlay.

Other Tables: * inet.2 (Option A) is used for Multicast RPF checks.

default-switch.evpn.0 (Option B) stores the EVPN routes themselves (MAC/IP), but it is the source of the lookup, not the table where the recursive resolution occurs.

vxlan.inet (Option D) is an internal table used to track active VXLAN tunnels but is not the primary table for recursive BGP next-hop validation.

In an EVPN-VXLAN architecture, the network is divided into two distinct planes: the Underlay and the Overlay.

Underlay (IP Fabric): The underlay ' s only job is to provide IP reachability between the loopback addresses of all VTEPs (Virtual Tunnel Endpoints). This is typically achieved using OSPF, IS-IS, or EBGP.

Overlay (EVPN Control Plane): The overlay is responsible for carrying Layer 2 MAC and Layer 3 IP reachability information between switches. EVPN signaling is the standard mechanism for this task.

Protocol Choice (Option D): EVPN uses MP-BGP (Multiprotocol BGP) as its control plane protocol. On Juniper EX Series and QFX Series switches, the most scalable and recommended design for the overlay is EBGP (External BGP).

In a 3-stage or 5-stage Clos architecture, EBGP is used in the overlay to exchange EVPN routes (Route Types 1-5) between Leaf and Spine switches.

EBGP simplifies configuration by avoiding the need for Route Reflectors (required for IBGP) and provides better control over route propagation through BGP community and policy management.

Incorrect Options:

Options A and B refer to the underlay protocols. While they provide the path for the VXLAN tunnels, they do not handle the EVPN signaling itself.

Option C (MPLS) is a different transport technology. While EVPN can run over MPLS (EVPN-MPLS), campus designs on EX series devices specifically use VXLAN as the data plane, making EBGP the standard signaling protocol for the EVPN-VXLAN overlay.

Junos OS uses specific routing tables for handling multicast traffic to ensure loop prevention through Reverse Path Forwarding (RPF) checks:

Multicast RPF (Option C): The inet.0 table is the default unicast routing table. In most standard multicast deployments, Protocol Independent Multicast (PIM) performs its RPF checks against this table to determine the upstream interface toward the multicast source.

Topology Differences (Option A): The inet.2 table is specifically designed for multicast RPF lookups when the multicast forwarding topology differs from the unicast forwarding topology. This is common in environments using Multiprotocol BGP (MBGP) where you might want multicast traffic to follow a different path than standard data traffic.

inet.1 Role (Option B): The inet.1 table is the multicast forwarding cache. It stores (S,G) and (*,G) entries for actual packet forwarding. Routing protocols like MBGP or IS-IS do not place routes directly into inet.1; instead, PIM uses information from inet.0 or inet.2 to populate inet.1.

IS-IS and OSPFv3 (Option D): These protocols place their IPv4/IPv6 unicast routes into inet.0 or inet6.0. They do not place routes into inet.2 " directly " unless specific RIB-group configurations or address families are enabled to share those routes for multicast RPF purposes.

This question focuses on port security and preventing " rogue switches " or multiple devices from accessing a single physical port simultaneously.

Single-Secure Supplicant Mode (Option A): This is the most restrictive 802.1X mode in Junos OS. It allows exactly one MAC address to be authenticated on the port at a time. If a device successfully authenticates, the switch will drop any traffic coming from any other MAC address on that same physical interface. If a user tries to plug in a switch, only the first device that authenticates will have access; all other devices behind that switch will be blocked.

Single Supplicant Mode (Option C): This mode allows the first authenticated user to " open " the port for all other users. This would actually allow a rogue switch to function once the first device is authorized.

Multiple Supplicant Mode (Option B): This allows multiple devices to connect, provided each one authenticates individually. While secure, it does not prevent a user from connecting multiple devices to the port, which violates the requirement to allow only one.

MAC-RADIUS (Option D): This is an authentication method, not a port-access mode that limits the number of supplicants.

Junos OS 24.4 on EX Series switches provides robust support for LLDP (Link Layer Discovery Protocol) and its extension, LLDP-MED (Media Endpoint Discovery).

LLDP-MED Power Negotiation: This feature allows a switch (Power Sourcing Equipment or PSE) and a connected device (Powered Device or PD), such as an IP phone or access point, to negotiate power requirements beyond the standard IEEE 802.3af/at classes. The switch can dynamically allocate the exact amount of power the device needs (in 0.1W increments), which optimizes the power budget of the switch.

LLDP Scope: LLDP is a Link Layer protocol (Layer 2), but it is not restricted to Layer 2 interfaces; it can also operate on Layer 3 interfaces to advertise system identity and capabilities. This makes Option A incorrect.

Link-Local Protocol: LLDP frames use a specific multicast MAC address (01:80:c2:00:00:0e) that is not flooded or forwarded by switches. They are strictly link-local between two directly connected neighbors. This makes Option B incorrect.

Endpoint Focus: LLDP-MED is specifically designed for Media Endpoint Devices (like VoIP phones), providing TLVs for network policy (VLAN/QoS), location identification, and inventory management. Standard LLDP is used for discovering network connectivity devices. This makes Option D incorrect.

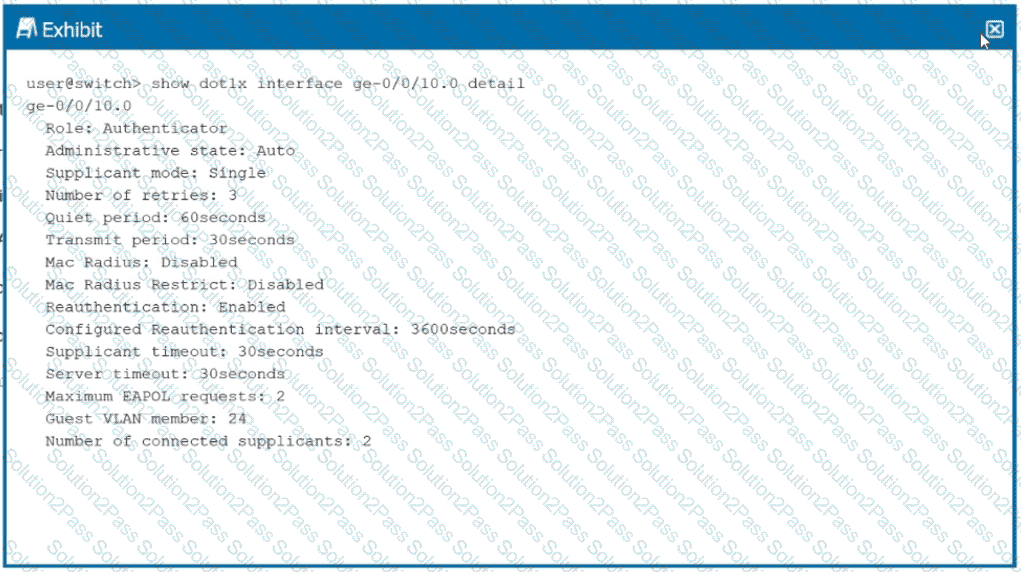

In Junos OS, the supplicant-mode configuration under protocols dot1x determines how the switch handles multiple MAC addresses on a single physical port. According to the exhibit, the current mode is set to Single, and the Number of connected supplicants is 2. This indicates that the port is currently allowing multiple devices, which contradicts the goal of limiting access to only one device at a time.

Here is the breakdown of why Option C is the correct solution based on Juniper’s standard behavior:

Supplicant Mode: Single (Current State): In this mode, the first device to authenticate opens the port for all subsequent devices. As long as the first device remains authenticated, other devices can send traffic through the port without individual authentication. This is why the exhibit shows 2 connected supplicants despite the mode being " Single. "

Supplicant Mode: Single-Secure (The Solution): This mode strictly limits the port to only one MAC address. Once a device successfully authenticates via 802.1X, the switch drops any traffic coming from any other MAC address on that port. If the authenticated device logs off or the session times out, the port becomes available for a new device, but never more than one simultaneously. * Supplicant Mode: Multiple (Option B): This mode allows multiple supplicants to authenticate individually. Each MAC address must go through its own authentication process. This would allow more than one device, which is the opposite of the user ' s requirement.

MAC RADIUS Restrict (Option A): This feature is used to force MAC-based authentication and does not inherently limit the number of devices to one in the same way that changing the supplicant mode does.

Maximum EAPOL requests (Option D): This parameter defines how many times the switch will send an EAP-Request/Identity frame to a supplicant before giving up. Changing this to 1 does not restrict the number of devices allowed on the port; it only changes the retry logic for a single authentication attempt.

Configuration Example for Junos OS 24.4: To implement this change, you would use the following command: set protocols dot1x edit interface ge-0/0/10.0 supplicant-mode single-secure

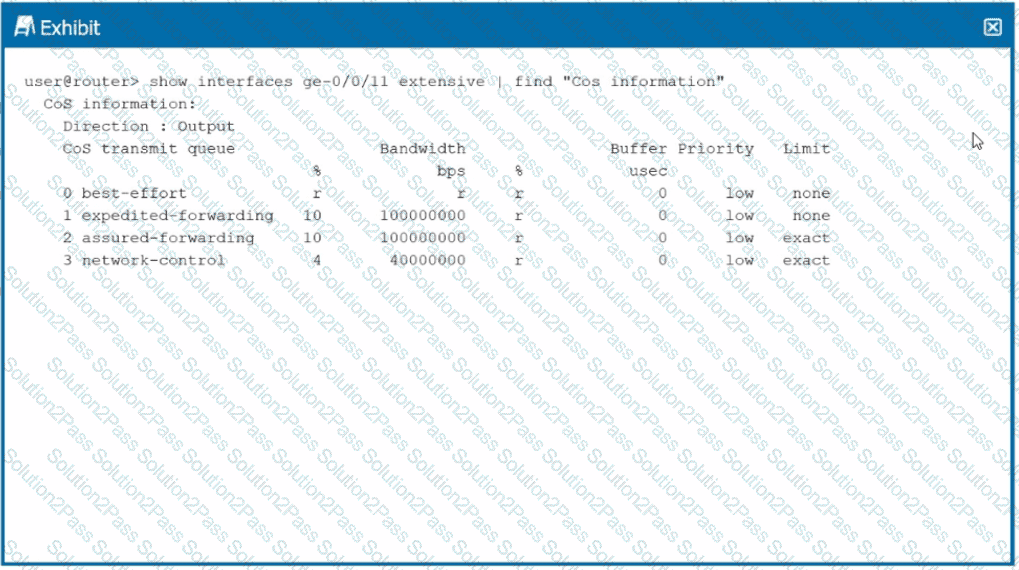

The exhibit shows the Class of Service (CoS) transmit queue information for interface ge-0/0/11. To determine the correct behavior, we must analyze the bandwidth allocations and the queue limit settings:

Bandwidth Calculation (Option A): In Junos OS, when multiple queues are assigned specific percentages of bandwidth, the " remainder " (represented by ' r ' ) is the total interface bandwidth minus the sum of the explicitly configured percentages.

Bandwidth assigned to Queue 1 (EF) = 10%.

Bandwidth assigned to Queue 2 (AF) = 10%.

Bandwidth assigned to Queue 3 (NC) = 4%.

Total explicitly assigned = $10\% + 10\% + 4\% = 24\%$.

Remainder for Queue 0 (Best Effort) = $100\% - 24\% = 76\%$.

" Limit: exact " Behavior (Option B): The exhibit shows that Queue 2 (assured-forwarding) has a Limit set to exact.

By default, a queue in Junos can consume more than its allocated bandwidth if other queues are idle.

However, when the exact keyword is applied to the transmit-rate (transmission rate), the queue is strictly rate-limited to its configured percentage.

This means that traffic in Queue 2 will be capped at 10% of the interface bandwidth regardless of whether the network is congested or not. If the traffic exceeds 10%, the excess will be dropped or buffered to match the exact rate.

Option C is incorrect because 100% of the bandwidth is not reserved for a single queue; it is distributed across four queues.

Option D is less accurate than B because it implies the drop behavior only occurs during congestion. The exact parameter enforces the limit even when the rest of the interface is completely idle.

In OSPF, the election of a Designated Router (DR) and a Backup Designated Router (BDR) is mandatory on broadcast and non-broadcast multi-access (NBMA) network types to manage link-state database synchronization efficiently.

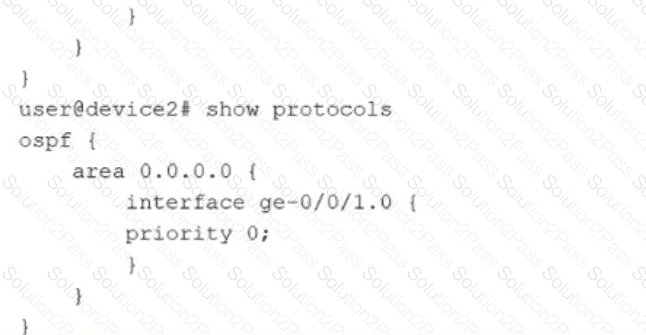

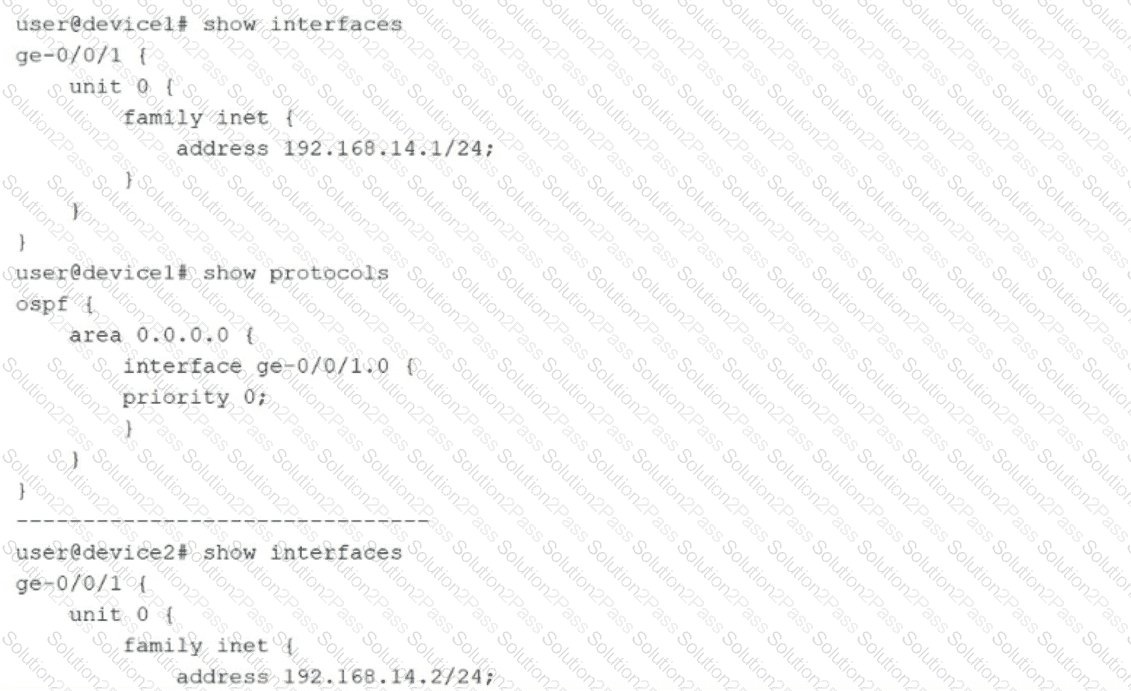

The exhibit shows that both device1 and device2 have their OSPF interface priority explicitly set to 0. According to the Junos OS 24.4 OSPF implementation:

Ineligibility (Priority 0): A router with a priority of 0 is strictly ineligible to be elected as a DR or BDR for that segment.

No Election Possible: When every router on a broadcast segment has a priority of 0, the election process cannot complete because there are no eligible candidates to fill the required roles.

State Behavior (Stuck in 2-Way): In OSPF adjacency formation, the 2-Way state indicates that bidirectional communication has been established (each router has seen itself in the other ' s Hello packets). However, to progress to the Exstart and Exchange states on a multi-access network, routers must first identify a DR and BDR.

Result: Since neither router can become the DR, they both wait indefinitely for a third party (with priority > 0) to take the lead. Consequently, the OSPF adjacency will be stuck in the 2-Way state. Adjacencies only reach the Full state with the DR and BDR; routers in a " DROther " role remain in 2-Way with each other.

Option A and D are incorrect because the router ID (IP address) only acts as a tiebreaker if priorities are equal and greater than 0. Option B is incorrect because routers cannot reach the Exstart state (where they negotiate master/slave for database exchange) without first having a DR/BDR elected.

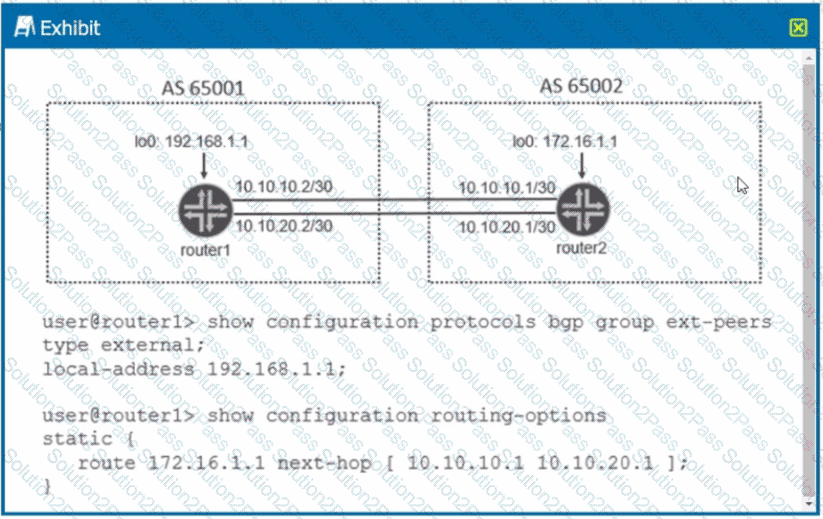

In this scenario, router1 (AS 65001) is attempting to establish an External BGP (EBGP) peering with router2 (AS 65002) using their loopback (lo0) interface addresses (192.168.1.1 and 172.16.1.1).

According to the Junos OS 24.4 documentation on BGP peering sessions:

EBGP TTL Default: By default, EBGP packets are sent with a Time-to-Live (TTL) value of 1. This assumes the peer is directly connected on a shared physical subnet.

Loopback Peering Challenge: When peering between loopback addresses, the destination IP is not on the same subnet as the physical ingress interface. Even if the routers are directly connected physically, the router treats the loopback interface as an additional " hop " . With a TTL of 1, the BGP packet expires before it can be processed by the peer ' s routing engine.

The Multihop Solution (Option D): To allow this session to form, you must configure the multihop statement under the BGP neighbor hierarchy. This tells Junos to increase the TTL (the default becomes 64 when multihop is enabled) and allows the session to establish even though the peer ' s address is not directly connected.

Target Neighbor: The neighbor address specified in the configuration on router1 must be the remote loopback address of router2 (172.16.1.1).

Option A (Multipath) is incorrect because it is used for load balancing across multiple active BGP paths, not for initial session establishment.

Options B and C are incorrect because they reference physical interface addresses (10.10.20.1 or 10.10.10.1) which are not the addresses being used for the loopback-based BGP session.

In Junos OS, a physical or logical interface is typically associated with a single OSPF area. However, there are specific design requirements—such as migrating an interface from one area to another without downtime or creating specific transit topologies—where an interface needs to exist in two areas simultaneously.

Multi-area Adjacency (Option B): The secondary command under the OSPF interface hierarchy allows an interface to be part of a secondary area in addition to its primary area.

Protocol Behavior: When an interface is configured as secondary, the router sends and receives OSPF Hello packets for both the primary and secondary areas on that single link. This allows the router to form adjacencies with neighbors in both areas over the same physical connection.

Use Case: This is frequently used in hub-and-spoke topologies or during network restructuring to ensure reachability is maintained while changing area boundaries. It effectively allows a " logical " split of the interface at the OSPF protocol level.

The IETF standards for EVPN-VXLAN define the scalability and forwarding behavior of the architecture.

VXLAN Scale (Statement B): The Virtual Network Identifier (VNI) is a 24-bit field in the VXLAN header. This allows for up to $2^{24}$ unique identifiers, which translates to approximately 16 million distinct VXLAN broadcast domains (segments) within a single fabric. * Forwarding Behavior (Statement D): VXLAN is a MAC-in-UDP encapsulation technology. When a Layer 2 frame enters the tunnel at a VTEP, the original Layer 2 frame (including the original source and destination MAC addresses) is encapsulated into a UDP/IP packet and transported across the IP underlay. When it reaches the egress VTEP, the header is removed and the Layer 2 frame is forwarded unchanged to the destination host.

Why others are incorrect: Statement A is incorrect because EVPN itself can technically support more than 16 million domains, but the data plane (VXLAN) is the limiting factor in this specific deployment scenario. Statement C is incorrect because VXLAN encapsulates Layer 2 frames, not just " IP packets, " and it treats the entire frame as a payload.

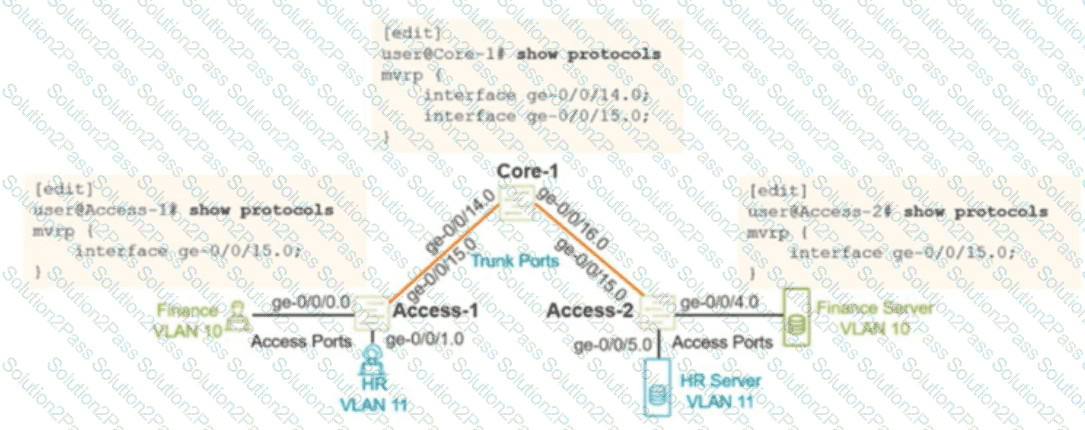

The exhibit shows a network topology where Multiple VLAN Registration Protocol (MVRP) is used to dynamically manage VLANs across switches Core-1, Access-1, and Access-2.

Identifying the Missing Configuration: According to the diagram, the trunk link between Core-1 and Access-2 uses interface ge-0/0/16.0 on the Core-1 side.

Output Analysis: However, the show protocols mvrp output for Core-1 only lists interfaces ge-0/0/14.0 and ge-0/0/15.0.

MVRP Requirements: For MVRP to successfully propagate VLAN information between Access-2 and the rest of the network, the protocol must be enabled on every trunk interface in the path.

Solution: Because ge-0/0/16.0 is missing from the Core-1 MVRP configuration, VLAN registration messages from Access-2 are not being processed by Core-1. Configuring this interface under MVRP on Core-1 will solve the communication problem.

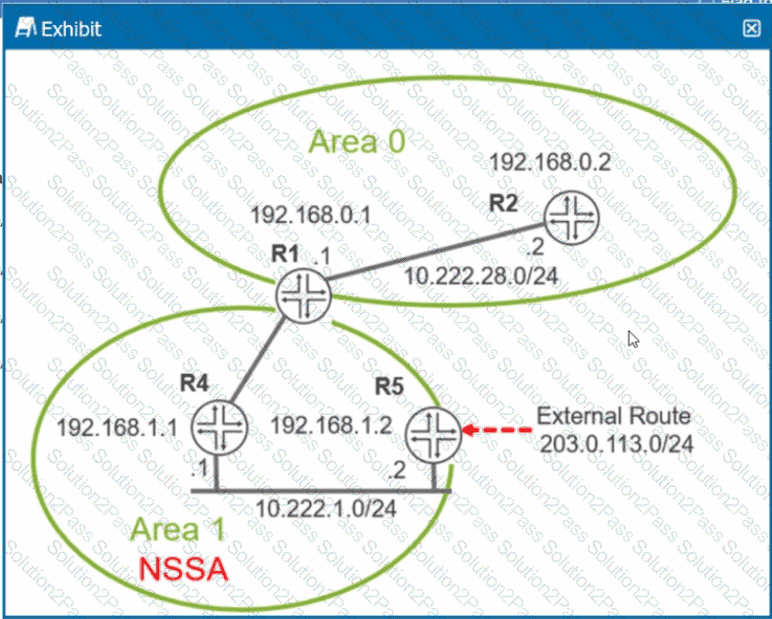

The behavior described is the fundamental operational principle of OSPF ' s hierarchical area structure.

LSA Flooding Scope: In OSPFv2, Type-1 (Router) and Type-2 (Network) Link-State Advertisements (LSAs) are restricted to a local area flooding scope . They contain detailed topology information (such as which routers are connected to which links) that is only relevant for calculating the Shortest Path First (SPF) tree within that specific area.

ABR Functionality: Area Border Routers (ABRs), such as R1 in this scenario, act as the gateway between areas. The ABR does not forward Type-1 or Type-2 LSAs from one area to another. Instead, it extracts the prefix information (the network address and mask) from those LSAs and generates a Type-3 (Summary) LSA .

Interarea Reachability: This Type-3 LSA is then flooded into the backbone (Area 0) and subsequently into other non-backbone areas, such as Area 2. This explains why R2 sees an " interarea route " to R3’s network in its routing table and has the corresponding Type-3 LSA in its database, but cannot see the original Type-1 or Type-2 LSAs from Area 1.

Why other options are incorrect: Option A is incorrect because this is standard protocol behavior, not the result of a manual filter. Option B is incorrect as there is no such " disable " feature; the protocol design inherently prevents these LSAs from crossing boundaries. Option C is incorrect because OSPFv3 still uses Type-1 and Type-2 LSAs (renamed but functionally similar for topology), and the prompt specifically identifies the deployment as OSPFv2 .

In Junos OS 24.4, Captive Portal is used as a web-based authentication method for Layer 2 network access control, often in environments where 802.1X is not feasible for all users.

Fallback Mechanism (Option D): On EX Series switches, Juniper supports a flexible authentication order. By default, the switch attempts authentication in the order of 802.1X, then MAC RADIUS, and finally Captive Portal. If a client fails both 802.1X and MAC RADIUS, the switch can fall back to Captive Portal to redirect the user to a login page.

MAC Allowlist (Option B): Captive Portal relies on intercepting HTTP/HTTPS traffic to redirect users. However, " headless " devices like printers or cameras lack web browsers and cannot interact with the portal. To accommodate these, Junos allows administrators to configure an authentication allowlist (or whitelist), which identifies these devices by their MAC addresses and permits them to bypass the portal entirely.

Precedence (Option A): This is incorrect because Captive Portal is generally the last method in the default sequence, not the first.

Layer 2 Participation (Option C): While Captive Portal requires a Layer 3 interface (RVI/IRB) for the redirection process, it is explicitly used to control Layer 2 access on EX Series switches.

Private VLANs (PVLANs) allow for granular port isolation within a single broadcast domain. When extending a PVLAN across multiple switches (S1 to S2), the secondary VLANs (Community or Isolated) must be preserved across the trunk links.

802.1Q Tagging (Option B): For traffic from a Community VLAN (RND) to reach members on a different switch, the Community VLAN must have its own 802.1Q VLAN tag (VLAN ID) associated with it. When a frame from a community port on S1 traverses the trunk to S2, it is tagged with this specific secondary VLAN ID. S2 receives the tagged frame, identifies it as belonging to the RND community, and forwards it to the appropriate community or promiscuous ports.

Why it fails without a tag: If the RND community is only defined locally on S1 without a global VLAN ID, the trunk port will not know how to distinguish that traffic from the Primary VLAN or other communities.

Incorrect Options: Option A is incorrect because the community VLAN must have a different tag than the parent (Primary) VLAN to maintain the internal PVLAN logic. Option C is incorrect because stripping tags would lead to the traffic being merged into the native VLAN or dropped. Option D is incorrect because RND is a community VLAN; changing it to an isolated VLAN would change its behavior (preventing communication between members of that same group).

In this scenario, the requirement is to authenticate devices based on their MAC addresses using a centralized database.

MAC RADIUS (Option A): This is the standard Juniper method for authenticating " headless " or non-802.1X capable devices based on their hardware (MAC) address. The switch acts as a proxy, sending the device ' s MAC address as the username and password to a centralized RADIUS server (the centralized database). If the MAC address is found in the server ' s database, the device is granted access to the network. This perfectly matches the user ' s requirement for MAC-based authentication and a centralized database.

Captive Portal (Option B): This is a web-based authentication method requiring user interaction (login via a browser), which is not based on MAC address identification for the initial authentication phase.

Supplicant Modes (Options C & D): These define how multiple devices are handled on an 802.1X-enabled port, but they are not authentication methods themselves; they rely on 802.1X (EAP-based) or MAC-RADIUS being already configured.

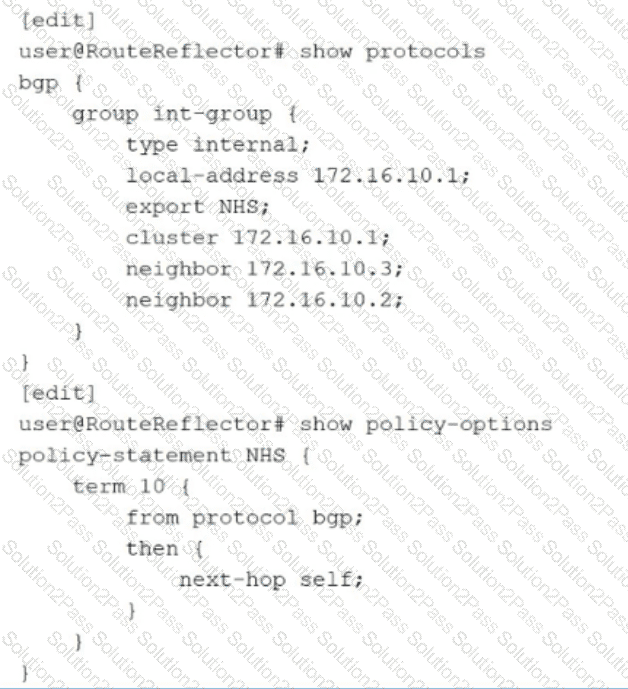

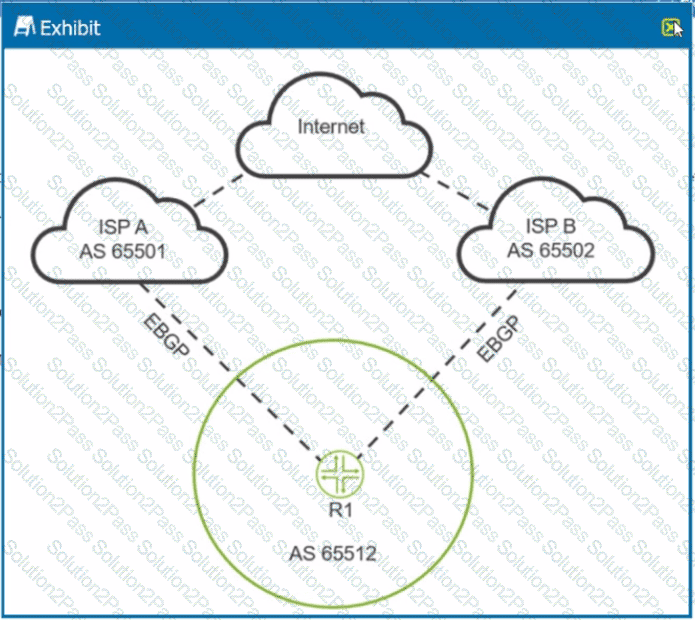

In enterprise networks utilizing Junos OS, IBGP (Internal BGP) route flapping is frequently caused by recursive routing failures within the underlying IGP (Interior Gateway Protocol) , such as OSPF or IS-IS.

Recursive Next-Hop Resolution: Unlike EBGP, where the neighbor is typically directly connected, IBGP neighbors are often several hops away. Consequently, an IBGP route ' s protocol next-hop is usually a loopback IP address that requires a recursive lookup to resolve. The router must consult its unicast routing table (typically inet.0 or inet.3) to find a physical path to that next-hop.

The Flapping Mechanism: A " flap " occurs when a route is repeatedly withdrawn and readvertised. If the IGP path used to resolve the BGP next-hop becomes unstable or if the BGP route itself is inadvertently used to resolve its own next-hop (a recursive loop), the BGP next-hop becomes unreachable.

Impact on Routing Table: When the next-hop cannot be resolved, the BGP route is considered invalid and is withdrawn from the routing table. Once the route is withdrawn, the original IGP path to the next-hop often becomes valid again, causing the BGP route to be readvertised . This cycle of withdrawal and readvertisement creates the instability known as flapping.

Why other options are incorrect: Packet misordering (Option A) and community tagging (Option B) may affect performance or policy but do not cause a route to be withdrawn and readvertised in this cyclical manner. While update intervals (Option C) control how quickly changes are sent, they are not the root cause of the reachability failure that triggers the flap itself.

OSPF stub areas are used to reduce the size of the Link-State Database (LSDB) in routers with limited resources by restricting the flooding of external routes.

Virtual Links (Option C): According to OSPF standards (both v2 and v3), virtual links cannot pass through stub areas. A virtual link must transit a " transit area, " which must be a standard (non-stub) area with a full routing table.

Totally Stubby Areas (Option D): A stub area (which blocks Type 5 External LSAs) can be further restricted into a totally stubby area. In Junos OS, this is done by adding the no-summaries statement to the stub configuration. This blocks both Type 5 and Type 3 (Inter-area) LSAs, replacing them with a single default route.

Incorrect Statements: Option A is incorrect because standard stub areas cannot contain an ASBR; only Not-So-Stubby Areas (NSSA) allow for an ASBR. Option B is incorrect because an area is either a Stub or an NSSA; they are mutually exclusive configurations for the same area.
