AZ-400 Microsoft Azure DevOps Solutions Free Practice Exam Questions (2025 Updated)

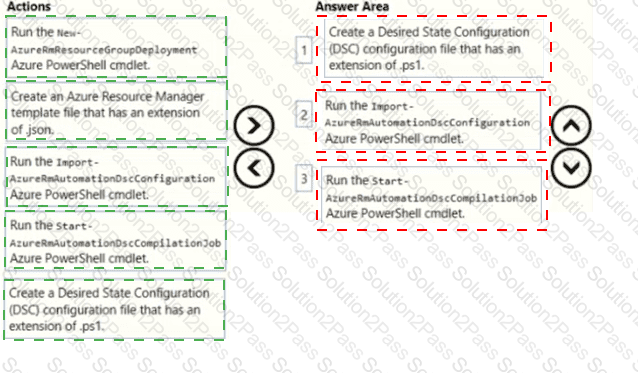

The Register-AzureRmAutomationDscNode cmdlet registers an Azure virtual machine as an APS Desired State Configuration (DSC) node in an Azure Automation account.

Scenario: The Azure DevOps organization includes:

The Docker extension

A deployment pool named Pool7 that contains10 Azure virtual machines that run Windows Server 2016

Step 1: Navigate to Project Settings

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access Project Settings:

In the left-hand menu, scroll down and select Project settings.

Step 2: Configure Retention Policies

Navigate to Pipelines Settings:

Under Pipelines, select Settings.

Set Retention Policies:

In the Retention section, set the number of days to keep artifacts, symbols, and attachments to 60 days.

Ensurethat the retention policy is applied to all relevant pipelines and branches.

Save Changes:

Click on Save to apply the retention policy1.

By following these steps, you will have successfully configured theretention policy to retain artifacts, symbols, and attachments for 60 days in Project1

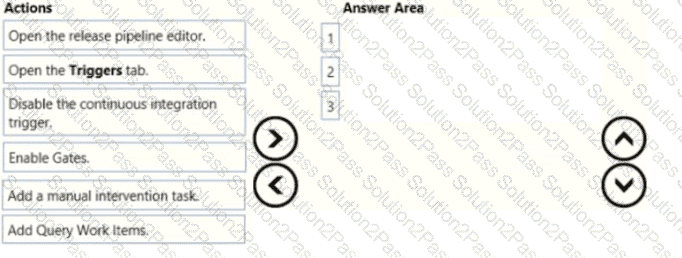

Scenario: Implement Project3, Project5,Project6, and Project7 based on the planned changes

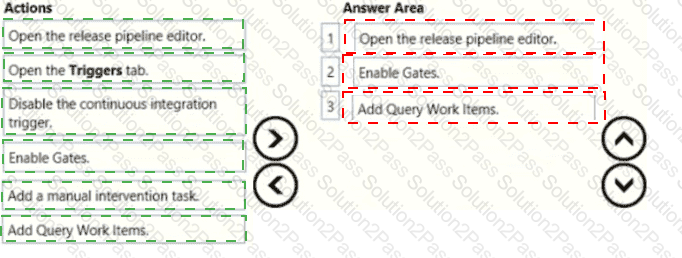

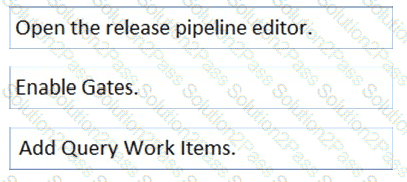

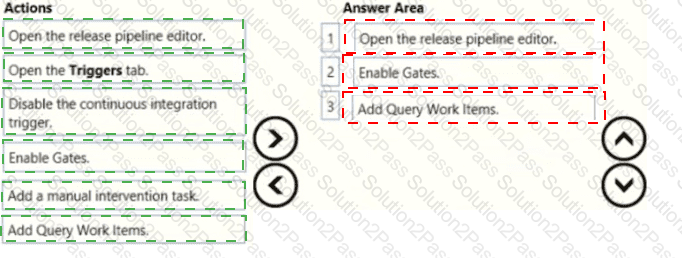

Step 1: Open the release pipeline editor.

In the Releases tab of Azure Pipelines, select your release pipeline and choose Edit to open the pipeline editor.

Step 2: Enable Gates.

Choose thepre-deployment conditions icon for the Production stage to open the conditions panel. Enable gates by using the switch control in the Gates section.

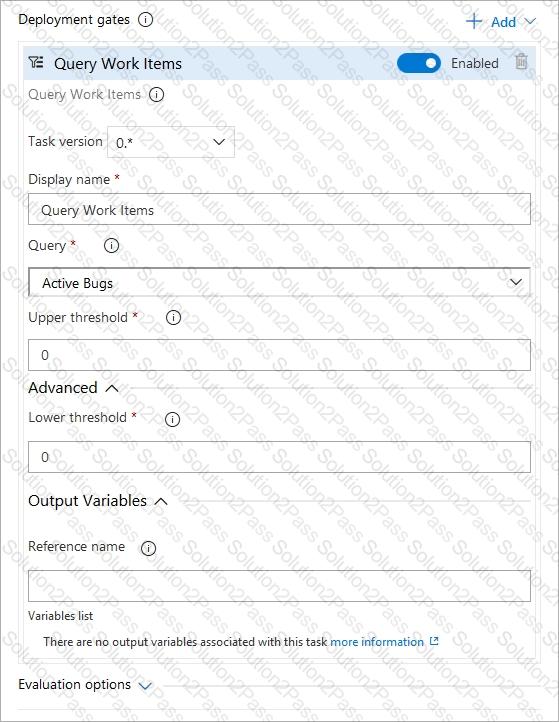

Step 3: Add Query Work items.

Choose + Add and select the Query Work Items gate.

Configure the gate by selecting an existing work item query.

Note: A case for release gate is:

Incident and issues management. Ensure the required status for work items, incidents, and issues. For example, ensure deployment occurs only if no priority zero bugs exist, and validation that there are no active incidents takes place after deployment.

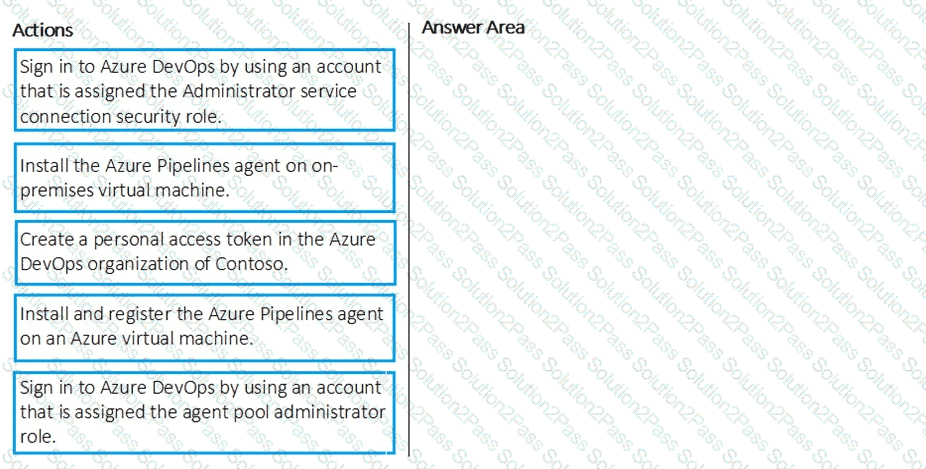

Scenario:

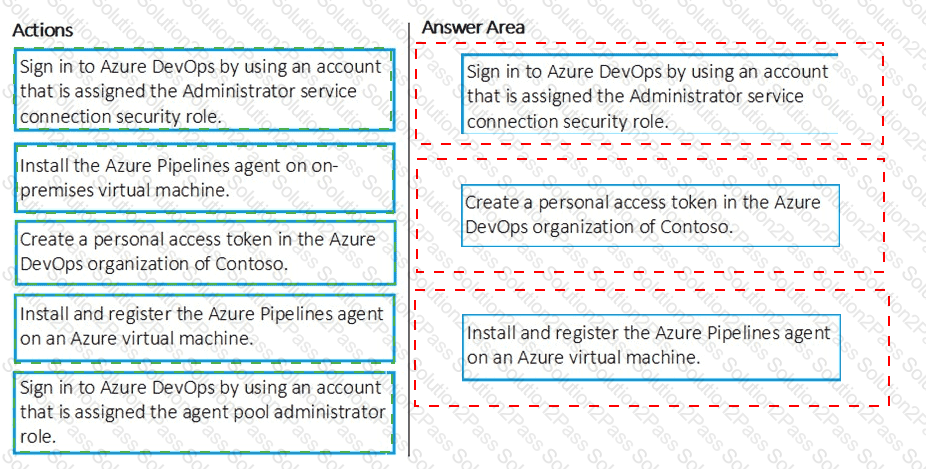

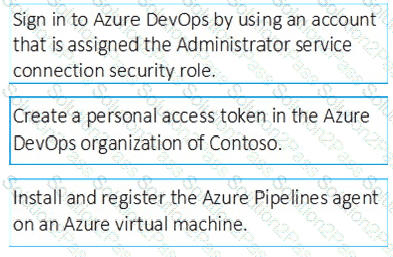

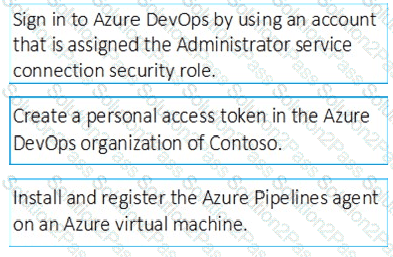

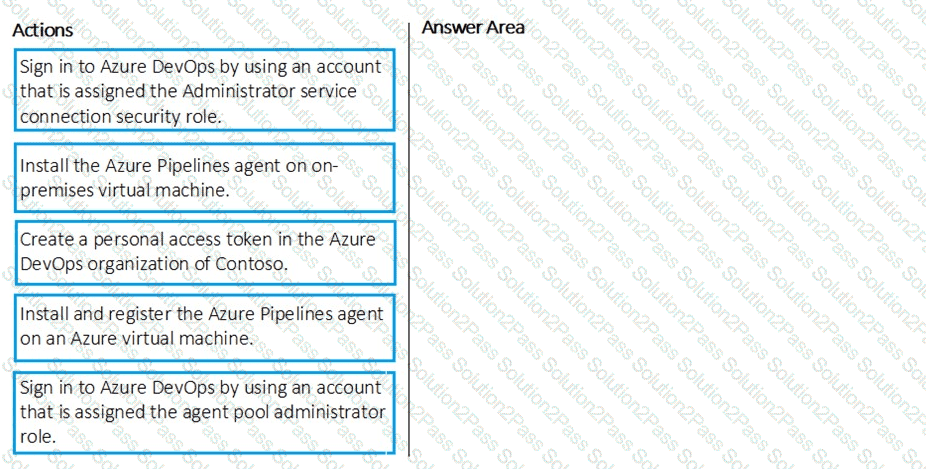

Step 1: Sign in to Azure Develops by using an account that is assigned the Administrator service connection security role.

Note: Under Agent Phase, click Deploy Service Fabric Application. Click Docker Settings and then click Configure Docker settings. In Registry Credentials Source, select Azure Resource Manager Service Connection. Then select your Azure subscription.

Step 2: Create a personal access token..

A personal access token or PAT is required so that a machine can join the pool created with the Agent Pools (read, manage) scope.

Step 3: Install and register the Azure Pipelines agent on an Azure virtual machine.

By running a Azure Pipeline agent in thecluster, we make it possible to test any service, regardless of type.

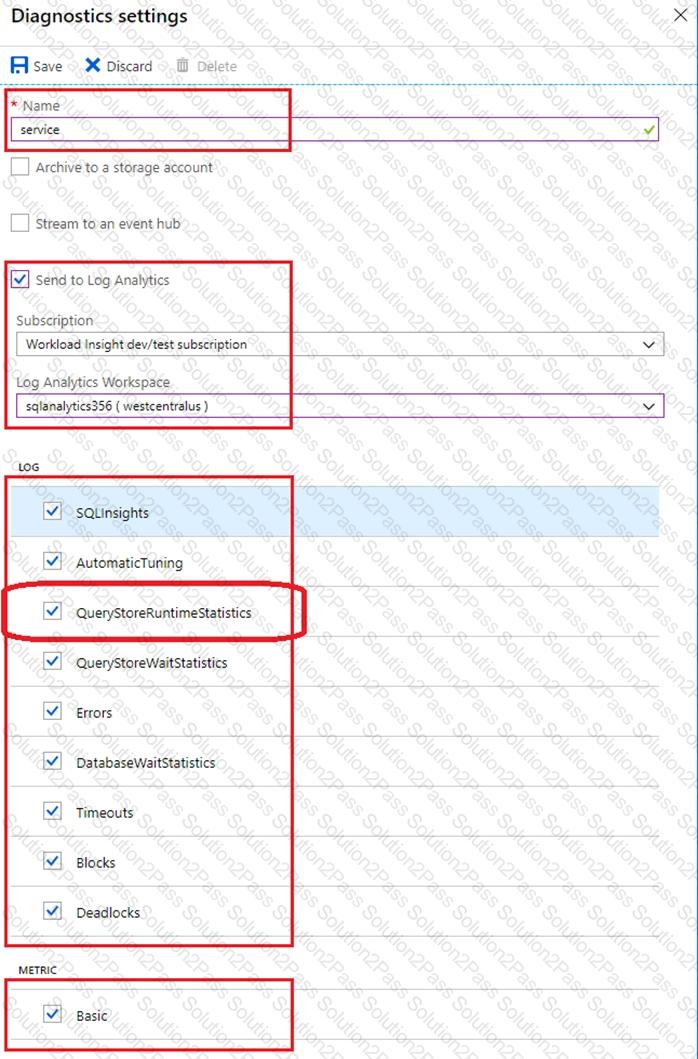

To enable streaming of diagnostic telemetry for a single or a pooled database, follow these steps:

1. Go to Azure SQL database resource.

2. Select Diagnostics settings.

3.Select Turn on diagnostics if no previous settings exist, or select Edit setting to edit a previous setting. You can create up to three parallel connections to stream diagnostic telemetry.

4. Select Add diagnostic setting to configure parallel streaming ofdiagnostics data to multiple resources.

5. Enter a setting name for your own reference.

6. Select a destination resource for the streaming diagnostics data: Archive to storage account, Stream to an event hub, or Send to Log Analytics.

7. For the standard, event-based monitoring experience, select the following check boxes for database diagnostics log telemetry: QueryStoreRuntimeStatistics

8. For an advanced, one-minute-based monitoring experience, select the check box for Basic metrics.

9. SelectSave.

Task 10: Create a Variable Group in Azure DevOps

Step 1: Navigate to Library

In your Azure DevOps Project (Project1), click on the Pipelines section in the left menu.

In the Pipelines submenu, click on Library.

Step 2: Create a New Variable Group

Click on the + Variable group button.

Enter the Name:

nginx

Copy

varGroup1

Step 3: Add Variables

Add the first variable:

Click Add.

In the Name field, enter:

nginx

Copy

username

In the Value field, enter:

Copy

Userl-48901628

Add the second variable:

Click Add again.

In the Name field, enter:

nginx

Copy

password

In the Value field, enter:

Copy

aFpJ2j+6M!

Check the box Keep this value secret.

Step 4: Save the Variable Group

Click Save at the top to save the variable group.

To ensure that your Azure Web App namedaz400-38443478-maincan retrieve secrets from an Azure Key Vault namedaz400-3844J478-kv1using a system managed identity with the principle of least privilege, follow these detailed steps:

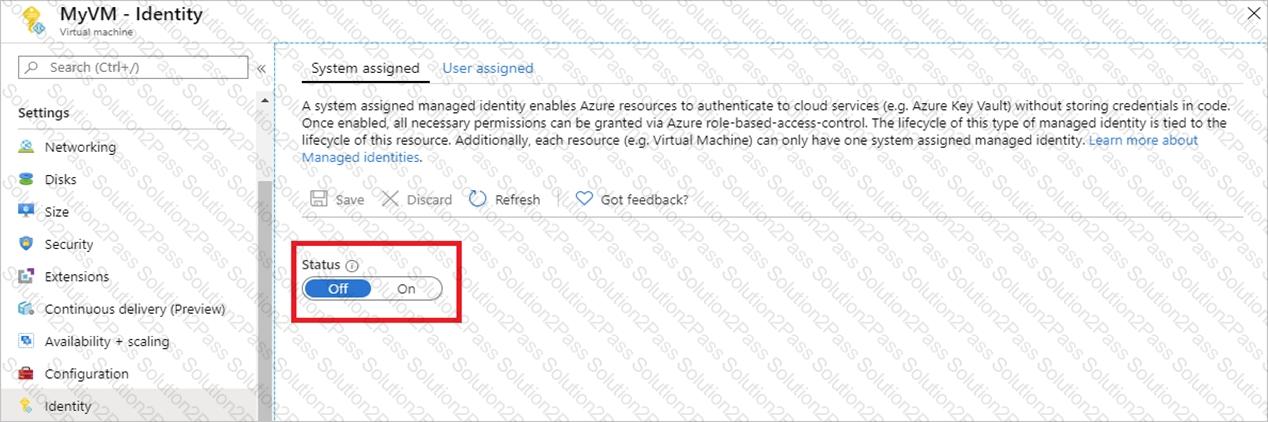

Enable a System Managed Identity for the Azure Web App:

Navigate to the Azure Portal.

Go to the Azure Web Appaz400-38443478-main.

SelectIdentityunder theSettingssection.

In theSystem assignedtab, switch theStatustoOn.

ClickSaveto apply the changes.

Grant the Web App Access to the Key Vault:

Go to the Azure Key Vaultaz400-3844J478-kv1.

SelectAccess policiesunder theSettingssection.

Click onAdd Access Policy.

ChooseSecret permissionsand selectGetandList. This grants the app the ability to read secrets, adhering to the principle of least privilege.

Click onSelect principal, search for your Web App nameaz400-38443478-main, and select it.

ClickAddto add the policy.

Don’t forget to clickSaveto save the access policy changes.

Retrieve Secrets in the Web App Code:

In your Web App’s code, use the Azure SDK to retrieve the secrets.

For example, in a .NET application,you can use theAzure.IdentityandAzure.Security.KeyVault.Secretsnamespaces.

Utilize theDefaultAzureCredentialclass which will automatically use the system managed identity when running on Azure.

using Azure.Identity;

usingAzure.Security.KeyVault.Secrets;

var client = new SecretClient(new Uri("https://az400-3844J478-kv1.vault.azure.net/ "), new DefaultAzureCredential());

KeyVaultSecret secret = await client.GetSecretAsync("my-secret-name");

string secretValue =secret.Value;

Replace"my-secret-name"with the actual name of the secret you want to retrieve.

By following these steps, your Azure Web App will be able to securely retrieve secrets from the Azure Key Vault using a system managed identity, without needingto store credentials in the code, and adhering to the principle of least privilege. Remember to replace the placeholder names with the actual names of your Web App and Key Vault.

To ensure that your Azure Web App namedaz400-38443478-mainsupports rolling upgrades and only 10 percent of users connect to the updated version of the app, you can use deployment slots with the followingsteps:

Create a Deployment Slot:

Navigate to the Azure Portal.

Go to your Web Appaz400-38443478-main.

SelectDeployment slotsin the menu.

Click onAdd Slot.

Name the slot (e.g.,staging) and if needed, clone settings from the production slot.

Configure the Traffic Percentage:

In the Deployment Slots menu, you will see a column forTraffic %.

Set the traffic percentage to10%for thestagingslot1.

This will route only 10% of the traffic to the updated version of the app in thestagingslot.

Deploy the Updated App to the Staging Slot:

Deploy yourupdated application to thestagingslot.

Test the application in thestagingslot to ensure it’s working as expected.

Complete the Rolling Upgrade:

Once you’re satisfied with the performance and stability of the app in thestagingslot, you can graduallyincrease the percentage of traffic until you’re ready to swap with the production slot.

To swap slots, go to theDeployment slotsmenu and click onSwapwith the production slot.

By using deployment slots, you can achieve rolling upgrades with minimal administrative effort, as it allows you to test the new version on a subset of users before fully releasing it. Remember to adjust the traffic percentage and monitor the application’s performance throughout the process.

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create thestorage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

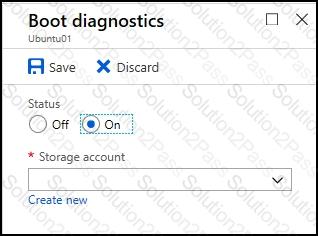

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

Sign in to the Azure portal, and then select the virtual machine VM1.

In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

In Boot diagnostics settings, change the statusto On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

Save the change.

You must restart the virtual machine for the change to take effect.

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

SelectYour Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Go to Repos > Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch1.

Step 2: Install the Microsoft Security DevOps Extension

Navigate to Extensions:

In Azure DevOps, click on the Shopping Bag icon in the top right corner and select Browse Marketplace.

Search for the Extension:

Search for Microsoft Security DevOps.

Install the Extension:

Click on Get it free.

Select your organization (User1-42147509) and click Install.

Follow the prompts to complete the installation2.

Step 3: Create a New Starter Pipeline

Navigate to Pipelines:

Go to Pipelines > New pipeline.

Select the Repository:

Choose Azure Repos Git and select the relevant repository.

Configure the Pipeline:

Select Starter pipeline and replace the default YAML with the following starter code:

trigger:

- starter

pool:

vmImage: 'windows-latest'

steps:

- task: MicrosoftSecurityDevOps@1

inputs:

command: 'run'

policy: 'azuredevops'

publish: true

Save the Pipeline:

Click on Save and enter starter as the branch name.

Click on Save and run to save the pipeline to the new branch named starter3.

By following these steps,you will have successfully initialized the main branch, installed the Microsoft Security DevOps extension, and created a new starter pipeline named starter1 that includes the specified task

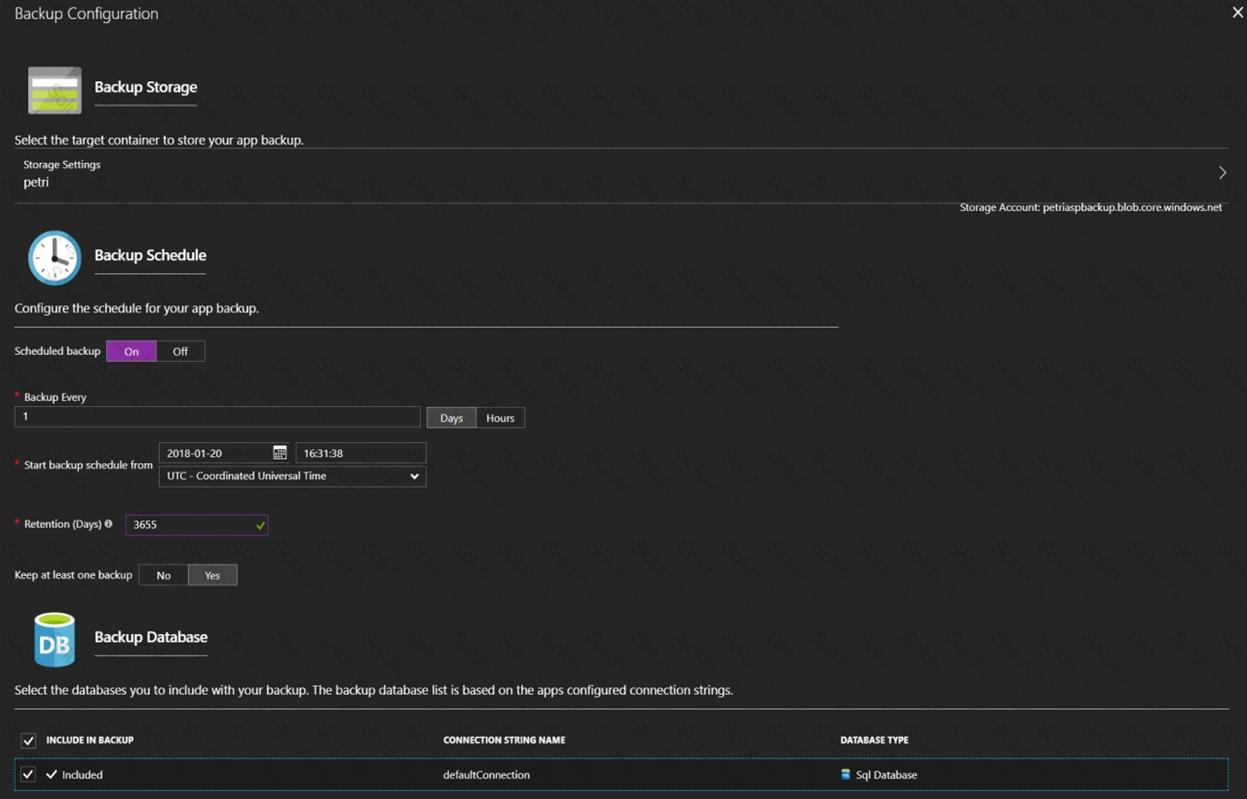

With the storage account ready, you can configure backs up in the web app or App Service.

Open the App Serviceaz400-11566895-main, which you want to protect, in the Azure Portal and browse to Settings > Backups. Click Configure and a Backup Configuration blade should appear.

Select the storage account.

Click + to create a private container. You could name this container after the web app or App Service.

Select the container.

If you want to schedule backups, then set Scheduled Backup to On and configure a schedule: every five hours

Select your retention. Note that 0 means never delete backups.

Decide if at least onebackup should always be retained.

Choose if any connected databases should be included in the web app backup.

Click Save to finalize the backup configuration.

1. Open Microsoft Azure Portal

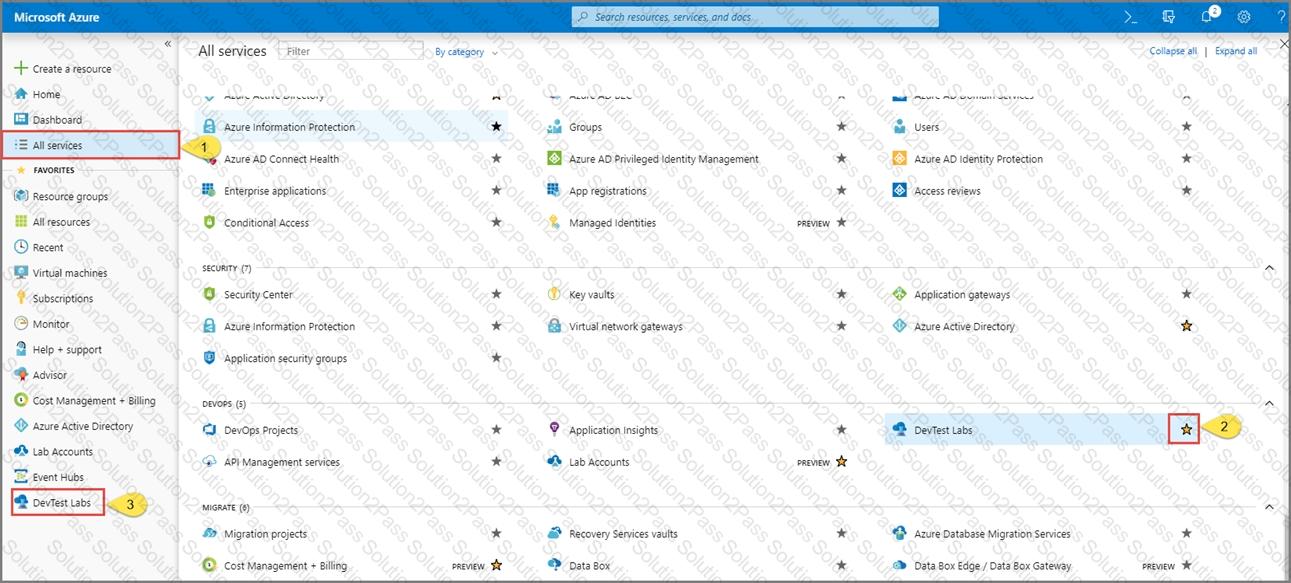

2. Select All Services, and then select DevTest Labs in the DEVOPS section.

3. From the list of labs, select the az400-9940427-dtl1 lab

4. On the home page for your lab, select + Add on the toolbar.

5. Select the Windows Server 2016 Datacenter base image for the VM.

6. Select automation options at the bottom of the page above the Submit button.

7. You see the Azure Resource Manager template for creating thevirtual machine.

8. The JSON segment in the resources section has the definition for the image type you selected earlier.

Task 7: Create a Pipeline to Deploy a Docker Image in a New Branch

Step 1: Create a New Branch

In your Azure DevOps Project (Project1), navigate to Repos.

In the left menu, click on Branches.

Click New branch.

Enter:

Branch name: azure-pipelines

Based on: main (or your default branch)

Click Create.

This creates a new branch named azure-pipelines.

Step 2: Switch to the New Branch

In Repos, click on Files.

In the top-left branch selector, choose azure-pipelines.

Step 3: Use the Predefined Docker Pipeline Template

Azure Pipelines has predefined YAML templates for common tasks, including Docker.

Here’s how to add it:

In the azure-pipelines branch, click New file.

Name the file: azure-pipelines.yml.

Click the Show templates button in the YAML editor (if available).

Search for the Docker template in the list of predefined templates.

Select the Docker template to auto-populate the YAML file.

If the editor doesn’t show the template picker, you can manually add the following basic Docker pipeline template:

yaml

Copy

# Predefined Docker pipeline template

trigger:

- main

resources:

- repo: self

variables:

imageName: 'mydockerimage'

stages:

- stage: Build

displayName: Build and push stage

jobs:

- job: Build

pool:

vmImage: 'ubuntu-latest'

steps:

- task: Docker@2

displayName: Build and push an image to container registry

inputs:

command: buildAndPush

repository: $(imageName)

dockerfile: '**/Dockerfile'

containerRegistry: ''

tags: |

latest

Replace with your actual Azure Container Registry (ACR) or DockerHub service connection name.

Step 4: Commit the Pipeline to the New Branch

In the YAML editor, review and adjust if needed (like setting the correct container registry service connection).

In the bottom commit message box:

Message: e.g., Add Docker deployment pipeline

Ensure the branch is set to azure-pipelines.

Click Commit (not commit to main).

This creates the pipeline YAML file in the new azure-pipelines branch.

Step 5: Create the Pipeline in Azure DevOps

In the left menu, click Pipelines.

Click New pipeline.

Choose:

Azure Repos Git.

Select your repo.

Select Existing Azure Pipelines YAML file.

In the branch selector, choose the azure-pipelines branch.

Select the YAML file path (azure-pipelines.yml).

Click Continue and then Run to validate the pipeline.

Set up Advanced Threat Protection in the Azure portal

1. Sign into the Azure portal.

2.Navigate to the configuration page of the server you want to protect. In the security settings, select Advanced Data Security.

3. On the Advanced Data Security configuration page:

4. Enable Advanced Data Security on the server.

Note: Advanced Threat Protection for Azure SQL Database detects anomalous activities indicating unusual and potentially harmful attempts to access or exploit databases. Advanced Threat Protection can identify Potential SQL injection, Access from unusual location or data center,Access from unfamiliar principal or potentially harmful application, and Brute force SQL credentials

Step 1: Create a Project Wiki

Navigate to Azure DevOps:

Go to Azure DevOps and sign inwith your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Create a Wiki:

In the left-hand menu, select Wiki.

Click on Create project wiki.

Enter the name Wiki1 and click Create.

Step 2: Add Mermaid Syntax to Render a Diagram

Open the Wiki Page:

Navigate to the newly created Wiki1.

Edit the Wiki Page:

Click on Edit to start editing the wiki page.

Insert Mermaid Diagram:

Use the following Mermaid syntax to render a diagram. For example, to render a simple flowchart, you canuse:

```mermaid

graph TD;

A-->B;

A-->C;

B-->D;

C-->D;

Save the Page:

Click on Save to save your changes.

Step 3: Render the TCP Handshake Diagram

Convert TCPHandshake.png to Mermaid Syntax:

Since you have a sample diagram in C:\Resources\TCPHandshake.png, you need to convert this diagram into Mermaid syntax. Here’s an example of how a TCP handshake might look in Mermaid syntax:

```mermaid

sequenceDiagram

participant Client

participant Server

Client->>Server: SYN

Server-->>Client: SYN-ACK

Client->>Server: ACK

Add the Diagram to the Wiki:

Replace the sample Mermaid syntax with the TCP handshake diagram syntax in the wiki page.

Save the Page:

Click on Save to save your changes.

By following these steps, you will have created a project wiki named Wiki1 and used Mermaid syntax to render a diagram

Step 1: Navigate to Personal Access Tokens

Sign in to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Access User Settings:

Click on your profile picture in the top right corner.

Select User settings.

Open Personal Access Tokens:

In the user settings menu, select Personalaccess tokens.

Step 2: Create a New Personal Access Token

Create a New Token:

Click on + New Token.

Configure the Token:

Name: Enter Token1.

Organization: Select the organization where you want to use the token.

Expiration: Set the expiration to 60 days.

Set Scopes:

Code: Select Read, Write, & Manage.

Build: Select Read & Execute.

Release: Select Read.

Create the Token:

Click on Create.

Step 3: Save the Token

Copy the Token:

Once the token is created, copy it immediately as it will not be displayed again.

Store the token in a secure location.

By following these steps, you will have successfully created a personal access token named Token1 with the specified capabilities and a 60-day expiration

Step 1: Understand the Requirements

You want to ensure that audit events (such as user actions, project changes, security settings, etc.) from your Azure DevOps organization are logged and available in a Log Analytics workspace in Azure.

This enables centralized monitoring and security compliance.

Step 2: Prerequisites

Before starting, make sure:

You have an Azure subscription.

You have permission to create or use a Log Analytics workspace in the Azure portal.

You are a Project Collection Administrator or Organization Owner in Azure DevOps.

Step 3: Create or Identify a Log Analytics Workspace

Go to the Azure portal.

In the search bar, type Log Analytics workspaces and click the service.

Click + Create to create a new workspace (or select an existing workspace if you have one).

Provide the following:

Subscription: your Azure subscription.

Resource Group: create a new or use an existing one.

Name: a unique name for the workspace (like DevOpsAuditWorkspace).

Region: choose the same region as your Azure DevOps organization if possible.

Click Review + Create, then Create to deploy the workspace.

Step 4: Configure Azure DevOps to Stream Audit Logs

Azure DevOps can stream audit logs to your Log Analytics workspace using the Azure DevOps Audit Stream feature.

In your browser, go to your Azure DevOps organization:https://dev.azure.com/{YourOrganizationName}

In the bottom-left corner, click on the Organization Settings gear icon.

In the left menu, click on Audit logs.

In the top-right, click on Audit streams.

Click on + Add stream to create a new stream.

In the New audit stream pane, do the following:

Stream type: select Azure Monitor Logs (Log Analytics).

Azure subscription: select the subscription containing your Log Analytics workspace.

Resource group: select the resource group.

Log Analytics workspace: select the workspace created in Step 3.

Click Save.

Step 5: Validate the Audit Stream Connection

Go back to the Audit streams page in Azure DevOps to confirm the stream shows as Connected.

To validate logs:

In the Azure portal, go to your Log Analytics workspace.

In the left menu, click on Logs.

Use the query:

kusto

Copy

AzureDevOpsAuditing

| sort by TimeGenerated desc

You should see audit events from your Azure DevOps organization appear in the results.

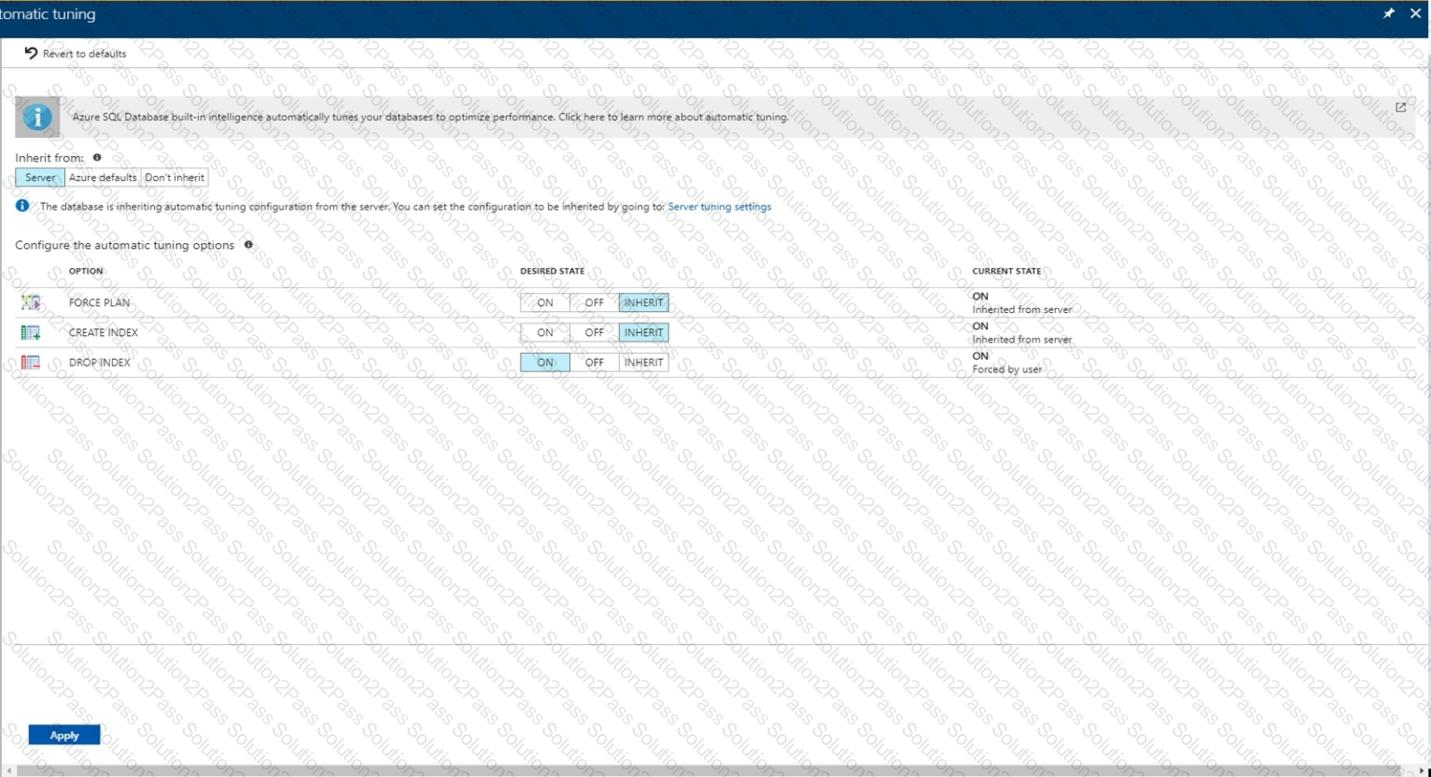

1. To enable automatictuning on a single database, navigate to the database in the Azure portal and select Automatic tuning.

2. Select the automatic tuning options you want to enable and select Apply.

Note: Individual automatic tuning settings can be separately configuredfor each database. You can manually configure an individual automatic tuning option, or specify that an option inherits its settings from the server.

1. Open Microsoft Azure Portal and Log into your Azure account.

2. Select network security group (NSG) named az400-9940427-nsg1

3. Select Settings, Outbound security rules, and click Add

4. Click Advanced

5. Change the following settings:

Destination Port range: 8080

Protocol. TCP

Action: Allow

Note: Bydefault, Azure DevOps Server uses TCP Port 8080.
