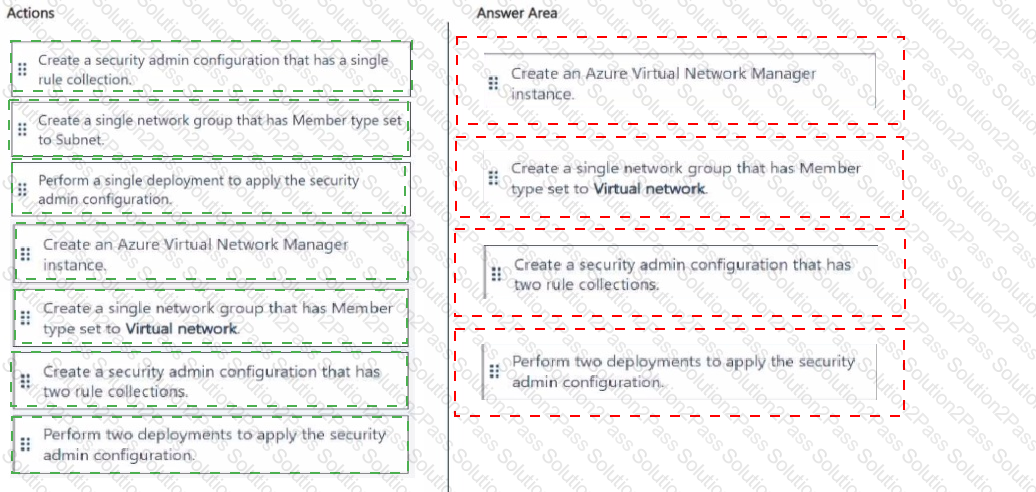

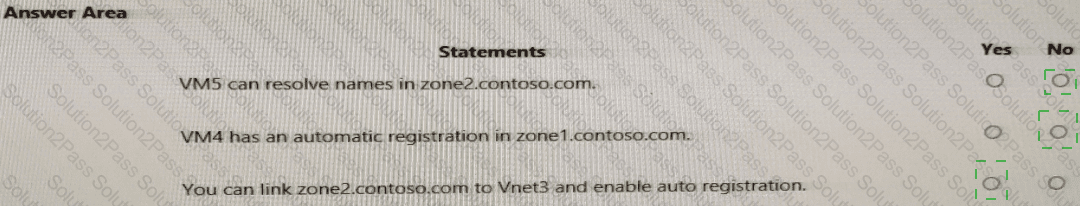

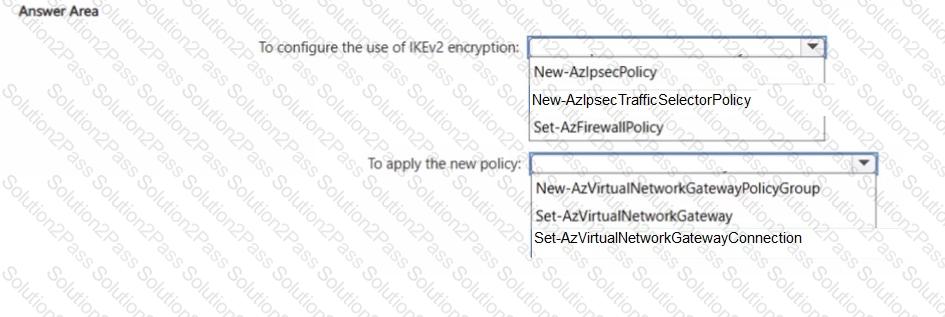

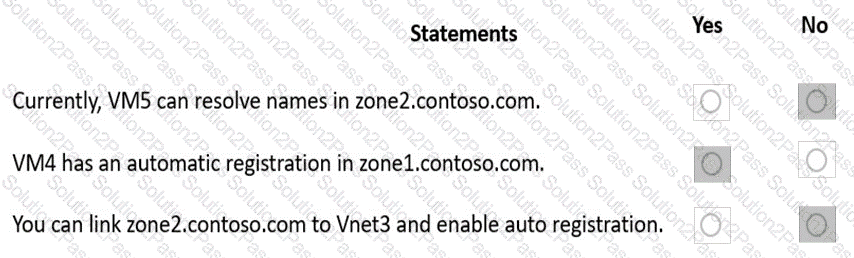

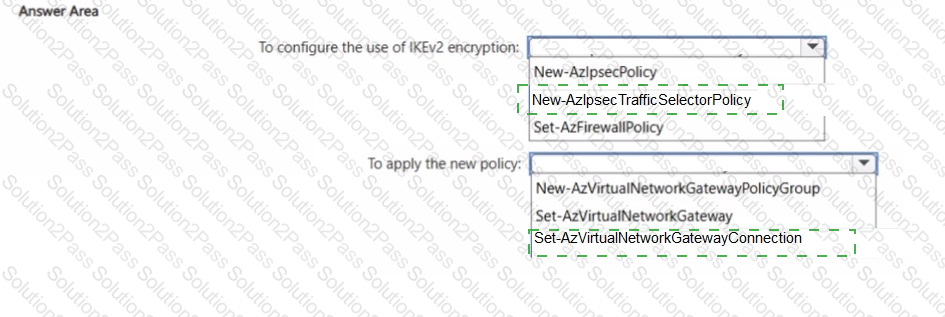

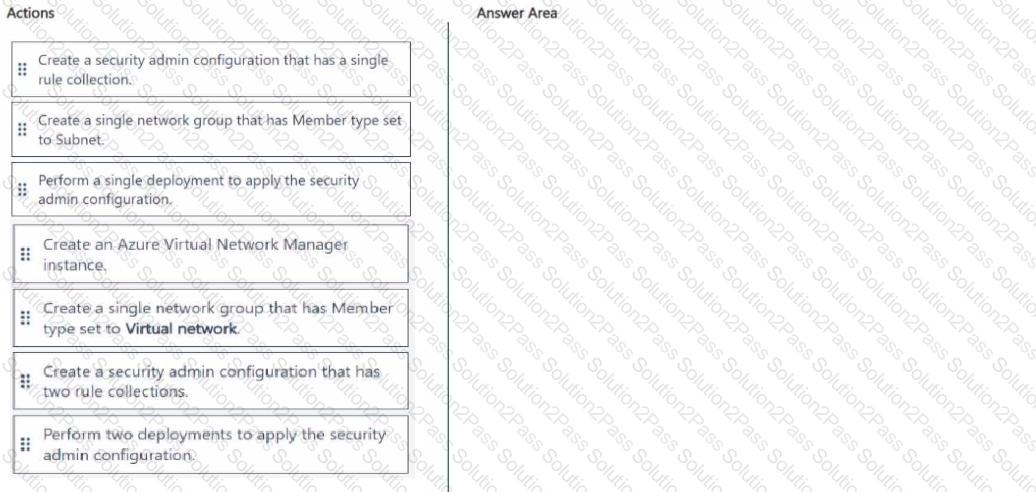

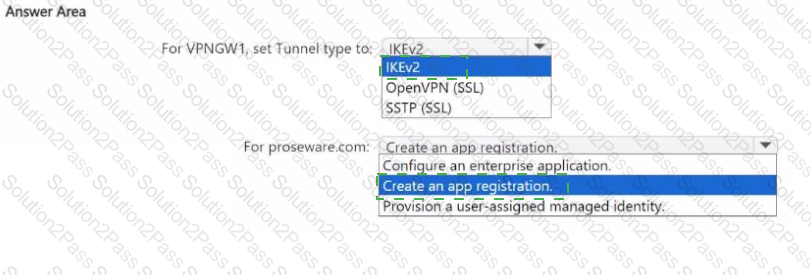

AZ-700 Microsoft Designing and Implementing Microsoft Azure Networking Solutions Free Practice Exam Questions (2025 Updated)

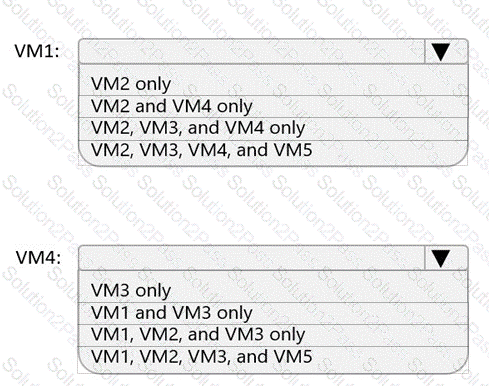

Here are the steps and explanations for ensuring that hosts on VNET2 can access hosts on both VNET1 and VNET3, but hosts on VNET1 and VNET3 cannot communicate through VNET2:

To connect different virtual networks in Azure, you need to use virtual network peering. Virtual network peering allows you to create low-latency, high-bandwidth connections between virtual networks without using gateways or the internet1.

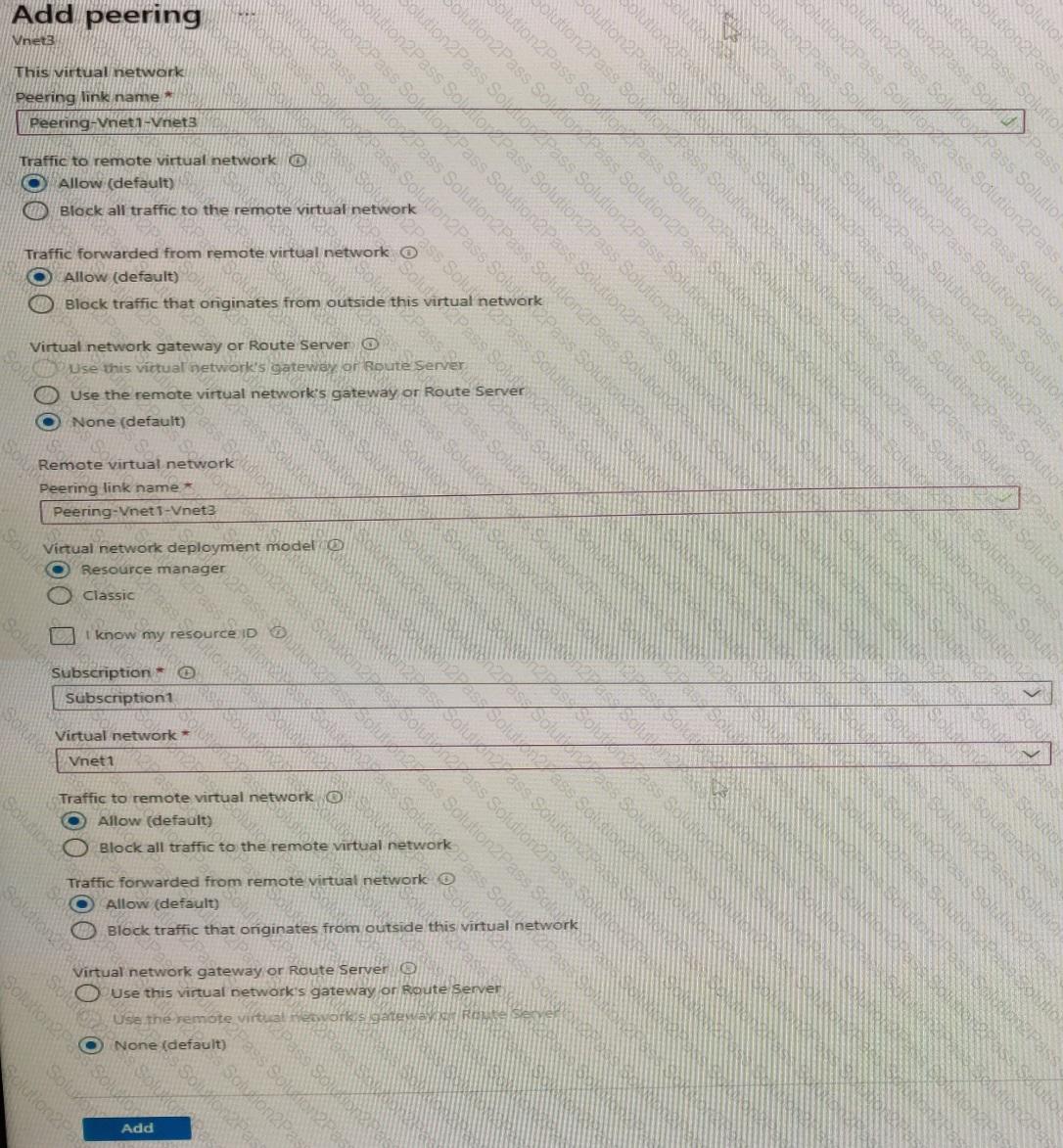

To create a virtual network peering, you need to go to the Azure portal and select your virtual network. Then select Peerings under Settings and select + Add2.

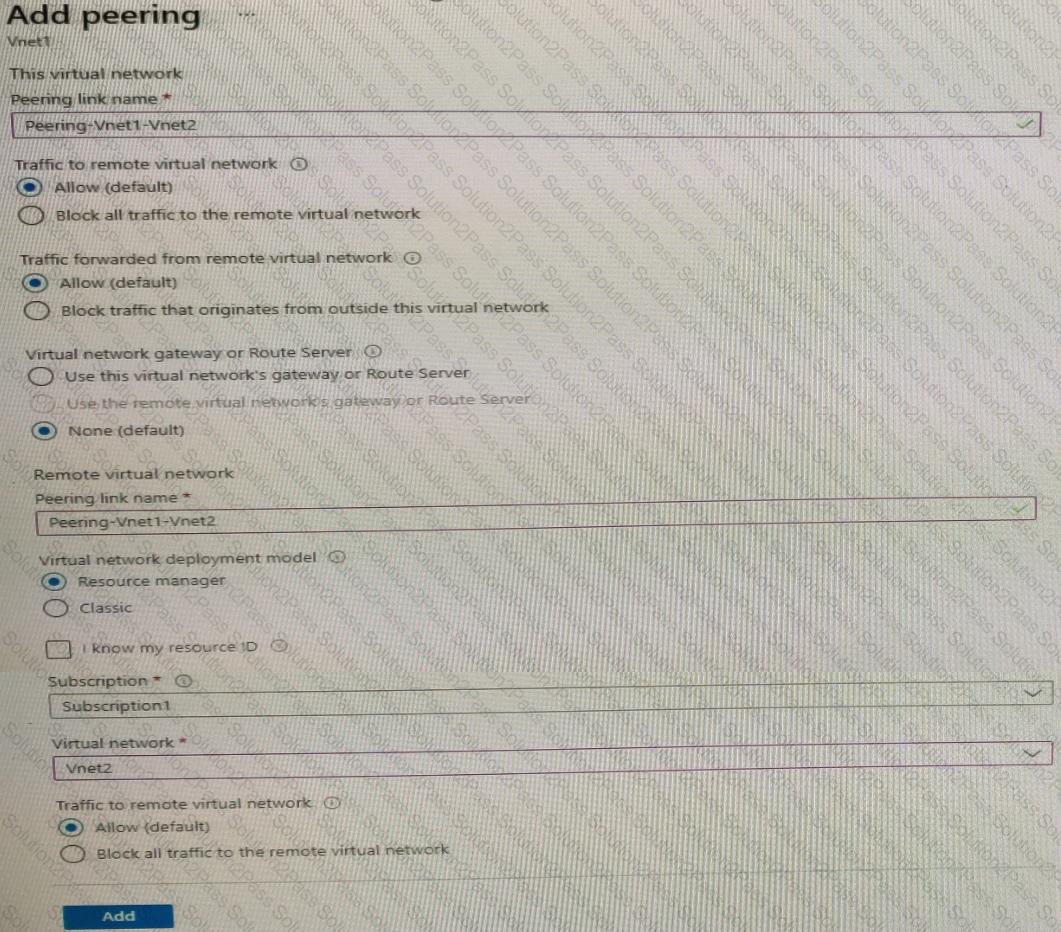

On the Add peering page, enter or select the following information:

Name: Type a unique name for the peering from the source virtual network to the destination virtual network.

Virtual network deployment model: Select Resource manager.

Subscription: Select the subscription that contains the destination virtual network.

Virtual network: Select the destination virtual network from the list or enter its resource ID.

Name of the peering from [destination virtual network] to [source virtual network]: Type a unique name for the peering from the destination virtual network to the source virtual network.

Configure virtual network access settings: Select Enabled to allow resources in both virtual networks to communicate with each other.

Allow forwarded traffic: Select Disabled to prevent traffic that originates from outside either of the peered virtual networks from being forwarded through either of them.

Allow gateway transit: Select Disabled to prevent either of the peered virtual networks from using a gateway in the other virtual network.

Use remote gateways: Select Disabled to prevent either of the peered virtual networks from using a gateway in the other virtual network as a transit point to another network.

Select Add to create the peering2.

Repeat the previous steps to create peerings between VNET2 and VNET1, and between VNET2 and VNET3. This will allow hosts on VNET2 to access hosts on both VNET1 and VNET3.

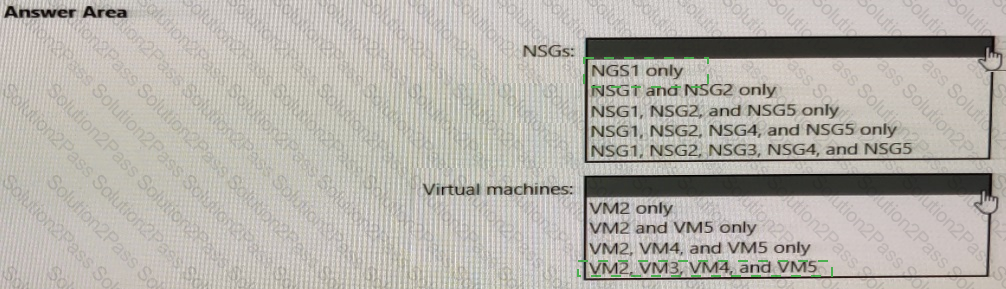

To prevent hosts on VNET1 and VNET3 from communicating through VNET2, you need to use network security groups (NSGs) to filter traffic between subnets. NSGs are rules that allow or deny inbound or outbound traffic based on source or destination IP address, port, or protocol3.

To create an NSG, you need to go to the Azure portal and select Create a resource. Search for network security group and select Network security group. Then select Create4.

On the Create a network security group page, enter or select the following information:

Subscription: Select your subscription name.

Resource group: Select your resource group name.

Name: Type a unique name for your NSG.

Region: Select the same region as your virtual networks.

Select Review + create and then select Create to create your NSG4.

To add rules to your NSG, you need to go to the Network security groups service in the Azure portal and select your NSG. Then select Inbound security rules or Outbound security rules under Settings and select + Add4.

On the Add inbound security rule page or Add outbound security rule page, enter or select the following information:

Source or Destination: Select CIDR block.

Source CIDR blocks or Destination CIDR blocks: Enter the IP address range of the source or destination subnet that you want to filter. For example, 10.0.1.0/24 for VNET1 subnet 1, 10.0.2.0/24 for VNET2 subnet 1, and 10.0.3.0/24 for VNET3 subnet 1.

Protocol: Select Any to apply the rule to any protocol.

Action: Select Deny to block traffic from or to the source or destination subnet.

Priority: Enter a number between 100 and 4096 that indicates the order of evaluation for this rule. Lower numbers have higher priority than higher numbers.

Name: Type a unique name for your rule.

Select Add to create your rule4.

Repeat the previous steps to create inbound and outbound rules for your NSG that deny traffic between VNET1 and VNET3 subnets. For example, you can create an inbound rule that denies traffic from 10.0.1.0/24 (VNET1 subnet 1) to 10.0.3.0/24 (VNET3 subnet 1), and an outbound rule that denies traffic from 10.0.3.0/24 (VNET3 subnet 1) to 10.0.1.0/24 (VNET1 subnet 1).

To associate your NSG with a subnet, you need to go to the Virtual networks service in the Azure portal and select your virtual network. Then select Subnets under Settings and select the subnet that you want to associate with your NSG5.

On the Edit subnet page, under Network security group, select your NSG from the drop-down list. Then select Save5.

Repeat the previous steps to associate your NSG with the subnets in VNET1 and VNET3 that you want to isolate from each other.

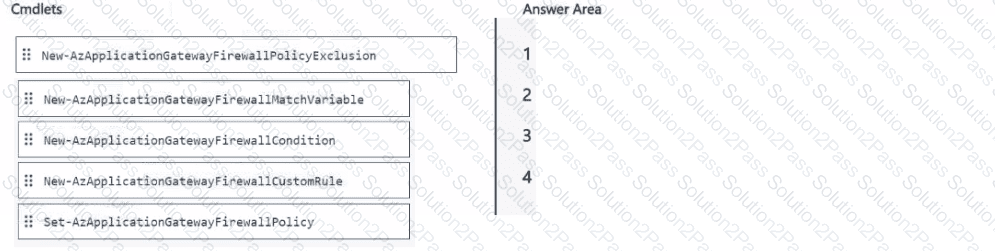

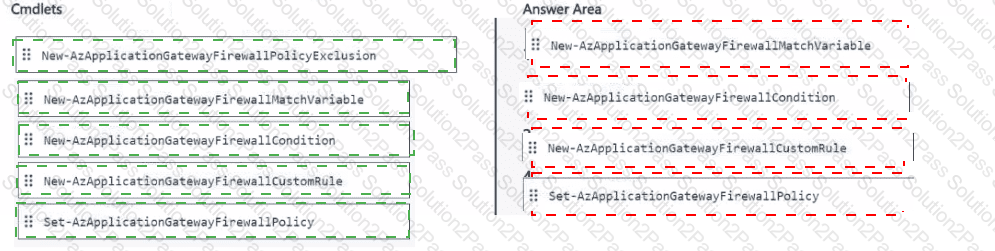

To configure a policy in Azure API Management that can be used by an Azure Application Gateway to protect against known web attack vectors and only allow requests from IP addresses in Canada, follow these steps:

Step-by-Step Solution

Step 1: Create or Access Your API Management Instance

Navigate to the Azure Portal.

Search for “API Management services” and select your API Management instance.

Step 2: Configure the Policy

In the API Management instance, go to the “APIs” section.

Select the API you want to apply the policy to.

Go to the “Design” tab.

Select “All operations” if you want to apply the policy to all operations, or select a specific operation.

Step 3: Add the Inbound Policy

In the Inbound processing section, click on “+ Add policy”.

Select “IP filter” from the list of policies.

Add the IP address ranges for Canada. You can find the IP ranges for Canada from a reliable source or use a service that provides this information.

Here is an example of the XML configuration for the policy:

Save the policy to apply the changes.

Explanation

IP Filter Policy: This policy allows you to filter incoming requests based on their IP addresses. By specifying the IP ranges for Canada, you ensure that only requests originating from these IPs are allowed.

Inbound Processing: Applying the policy in the inbound section ensures that the requests are filtered before they reach your API.

By following these steps, you can configure a policy in Azure API Management that restricts access to your API to only those requests originating from IP addresses in Canada, thereby enhancing security and compliance

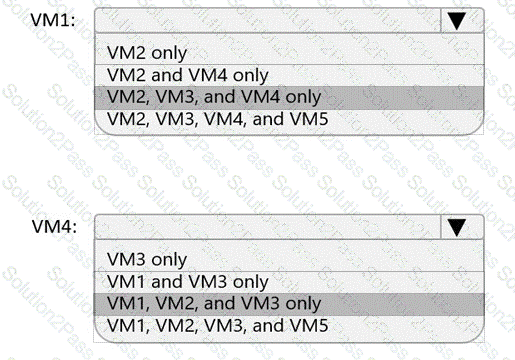

To ensure that hosts on VNET1 and VNET2 can communicate with minimal latency, you can use Virtual Network Peering. This method connects the two virtual networks directly through the Microsoft backbone network, ensuring low-latency and high-bandwidth communication.

Step-by-Step Solution

Step 1: Set Up Virtual Network Peering

Navigate to the Azure Portal.

Search for “Virtual networks” and select VNET1.

In the left-hand menu, select “Peerings” under the “Settings” section.

Click on “Add” to create a new peering.

Enter the following details:

Name: Enter a name for the peering (e.g., VNET1-to-VNET2).

Peer virtual network: Select VNET2.

Allow virtual network access: Ensure this is enabled.

Allow forwarded traffic: Enable if needed.

Allow gateway transit: Enable if needed.

Click on “Add”.

Step 2: Configure Peering on VNET2

Navigate to VNET2 in the Azure Portal.

In the left-hand menu, select “Peerings” under the “Settings” section.

Click on “Add” to create a new peering.

Enter the following details:

Name: Enter a name for the peering (e.g., VNET2-to-VNET1).

Peer virtual network: Select VNET1.

Allow virtual network access: Ensure this is enabled.

Allow forwarded traffic: Enable if needed.

Allow gateway transit: Enable if needed.

Click on “Add”.

Explanation

Virtual Network Peering: This feature connects two virtual networks in the same or different regions, allowing resources in both networks to communicate with each other as if they were part of the same network. The traffic between peered virtual networks uses the Microsoft backbone infrastructure, ensuring low latency and high bandwidth12.

Allow Virtual Network Access: This setting ensures that the virtual networks can communicate with each other.

Allow Forwarded Traffic: This setting allows traffic forwarded from a network security appliance in the peered virtual network.

Allow Gateway Transit: This setting allows the peered virtual network to use the gateway in the local virtual network.

By following these steps, you can ensure that hosts on VNET1 and VNET2 can communicate with minimal latency, leveraging the high-speed Microsoft backbone network.

Here are the steps and explanations for ensuring that connections to the storage34280945 storage account can be made by using an IP address in the 10.1.1.0/24 range and the name stor-age34280945.pnvatelinlcblob.core.windows.net:

To allow access from a specific IP address range, you need to configure the Azure Storage firewall and virtual network settings for your storage account. You can do this in the Azure portal by selecting your storage account and then selecting Networking under Settings1.

On the Networking page, select Firewalls and virtual networks, and then select Selected networks under Allow access from1. This will block all access to your storage account except from the networks or resources that you specify.

Under Firewall, select Add rule, and then enter 10.1.1.0/24 as the IP address or range. You can also enter an optional rule name and description1. This will allow access from any IP address in the 10.1.1.0/24 range.

Select Save to apply your changes1.

To map a custom domain name to your storage account, you need to create a CNAME record with your domain provider that points to your storage account endpoint2. A CNAME record is a type of DNS record that maps a source domain name to a destination domain name.

Sign in to your domain registrar’s website, and then go to the page for managing DNS settings2.

Create a CNAME record with the following information2:

Source domain name: stor-age34280945.pnvatelinlcblob.core.windows.net

Destination domain name: stor-age34280945.pnvatelinlcblob.core.windows.net

Save your changes and wait for the DNS propagation to take effect2.

To register the custom domain name with Azure, you need to go back to the Azure portal and select your storage account. Then select Custom domain under Blob service2.

On the Custom domain page, enter stor-age34280945.pnvatelinlcblob.core.windows.net as the custom domain name and select Save2.

To ensure that only hosts on VNET1 can access the slcnage42150372 storage account and that access occurs over the Azure backbone network, you can use Azure Private Endpoints. This method secures the connection by assigning a private IP address from your virtual network to the storage account, ensuring that traffic does not traverse the public internet.

Step-by-Step Solution

Step 1: Create a Private Endpoint for the Storage Account

Navigate to the Azure Portal.

Search for “Storage accounts” and select the slcnage42150372 storage account.

In the storage account blade, select “Networking” under the “Security + networking” section.

Under “Private endpoint connections”, click on “Add private endpoint”.

Enter the following details:

Name: Enter a name for the private endpoint (e.g., PrivateEndpoint-VNET1).

Region: Select the same region as your virtual network (VNET1).

Click on “Next: Resource”.

Step 2: Configure the Resource

Select “Target sub-resource”: Choose the storage service you want to connect to (e.g., blob, file, queue, table).

Click on “Next: Virtual network”.

Step 3: Select the Virtual Network and Subnet

Select the virtual network: Choose VNET1.

Select the subnet: Choose the appropriate subnet within VNET1.

Click on “Next: Configuration”.

Step 4: Configure DNS Integration (Optional)

Configure DNS settings if needed to ensure proper name resolution within your virtual network.

Click on “Next: Tags”, add any tags if necessary, and then click on “Review + create”.

Review your settings and click on “Create”.

Step 5: Restrict Public Network Access

Navigate back to the storage account.

Select “Networking” under the “Security + networking” section.

Under “Firewalls and virtual networks”, select “Selected networks”.

Ensure that only VNET1 is listed under the virtual networks section.

Click on “Save”.

Explanation

Private Endpoints: These provide secure connectivity to Azure services by assigning a private IP address from your VNet to the service, ensuring that traffic stays within the Azure backbone network12.

Firewall and Virtual Networks: Configuring the storage account to allow access only from selected networks (VNET1) ensures that no other network can access the storage account3.

By following these steps, you can ensure that only hosts on VNET1 can access the slcnage42150372 storage account, and that all access occurs over the secure Azure backbone network.

To ensure that the owner of VNET3 receives an alert whenever an administrative operation is performed on the virtual network, you can set up an Activity Log Alert in Azure Monitor. Here’s how you can do it:

Step-by-Step Solution

Step 1: Create an Activity Log Alert

Navigate to the Azure Portal.

Search for “Monitor” and select it.

In the Monitor blade, select “Alerts” from the left-hand menu.

Click on “New alert rule”.

Step 2: Configure the Alert Rule

Select the Scope:

Click on “Select resource”.

Choose “Virtual Network” as the resource type.

Select VNET3 from the list of virtual networks.

Define the Condition:

Click on “Add condition”.

In the “Signal type” dropdown, select “Activity Log”.

Choose “Administrative” as the category.

Select the specific operations you want to monitor (e.g., Microsoft.Network/virtualNetworks/write for any write operations on the virtual network).

Set the Alert Details:

Enter a name for the alert rule (e.g., VNET3 Admin Operations Alert).

Provide a description if needed.

Configure the Action Group:

Click on “Add action group”.

Enter a name for the action group.

Select the action type (e.g., Email/SMS/Push/Voice).

Enter the details of the recipient (e.g., the email address of the owner of VNET3).

Review and Create:

Review the alert rule settings.

Click on “Create alert rule”.

Explanation

Activity Log Alerts: These alerts notify you when specific operations are performed on your Azure resources. By setting up an alert for administrative operations, you ensure that any changes to VNET3 are promptly reported.

Action Groups: These define the actions to take when an alert is triggered. You can configure notifications via email, SMS, or other methods to ensure the owner of VNET3 is informed immediately.

Administrative Operations: Monitoring these operations helps in tracking changes and maintaining the security and integrity of your virtual network.

By following these steps, you can ensure that the owner of VNET3 receives timely alerts for any administrative operations performed on the virtual network, helping to maintain oversight and security.

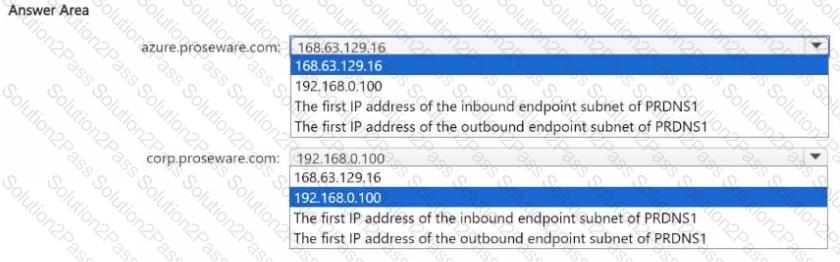

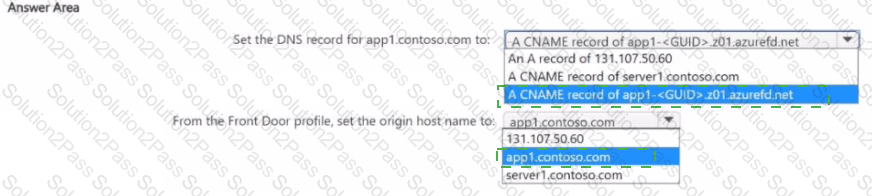

Here are the steps and explanations for ensuring that requests for wwwjelecloud.com from any of your Azure virtual networks resolve to frontdoor1.azurefd.net:

To use a custom domain with your Azure Front Door, you need to create a CNAME record with your domain provider that points to the Front Door default frontend host. A CNAME record is a type of DNS record that maps a source domain name to a destination domain name1.

To create a CNAME record, you need to sign in to your domain registrar’s website and go to the page for managing DNS settings1.

Create a CNAME record with the following information1:

Source domain name: wwwjelecloud.com

Destination domain name: frontdoor1.azurefd.net

Save your changes and wait for the DNS propagation to take effect1.

To verify the custom domain, you need to go to the Azure portal and select your Front Door profile. Then select Domains under Settings and select Add2.

On the Add a domain page, select Non-Azure validated domain as the Domain type and enter wwwjelecloud.com as the Domain name. Then select Add2.

On the Domains page, select wwwjelecloud.com and select Verify. This will check if the CNAME record is correctly configured2.

Once the domain is verified, you can associate it with your Front Door endpoint. On the Domains page, select wwwjelecloud.com and select Associate endpoint. Then select your Front Door endpoint from the drop-down list and select Associate2.

To archive all the metrics of VNET1 to an existing storage account, you can use Azure Monitor’s diagnostic settings. Here’s how you can do it:

Step-by-Step Solution

Step 1: Navigate to VNET1 in the Azure Portal

Open the Azure Portal.

Search for “Virtual networks” and select VNET1 from the list.

Step 2: Configure Diagnostic Settings

In the VNET1 blade, select “Diagnostic settings” under the “Monitoring” section.

Click on “Add diagnostic setting”.

Step 3: Set Up the Diagnostic Setting

Enter a name for the diagnostic setting (e.g., VNET1-Metrics-Archive).

Select the metrics you want to archive. You can choose from various metrics like TotalBytesReceived, TotalBytesSent, etc.

Under “Destination details”, select “Archive to a storage account”.

Choose the existing storage account where you want to archive the metrics.

Configure the retention period if needed.

Step 4: Save the Configuration

Review your settings to ensure everything is correct.

Click on “Save” to apply the diagnostic setting.

Explanation

Diagnostic Settings: These allow you to collect and route metrics and logs from your Azure resources to various destinations, including storage accounts, Log Analytics workspaces, and Event Hubs.

Metrics: Metrics provide numerical data about the performance and health of your resources. Archiving these metrics helps in long-term analysis and compliance.

Storage Account: Using an existing storage account ensures that the metrics are stored securely and can be accessed for future analysis.

By following these steps, you can ensure that all the metrics of VNET1 are archived to your existing storage account, enabling you to monitor and analyze the performance and health of your virtual network over time.

Here are the steps and explanations for ensuring that all hosts deployed to subnet3-2 connect to the internet by using the same static public IP address:

To use the same static public IP address for multiple hosts, you need to create a NAT gateway and associate it with subnet3-2. A NAT gateway is a resource that performs network address translation (NAT) for outbound traffic from a subnet1. It allows you to use a single public IP address for multiple private IP addresses2.

To create a NAT gateway, you need to go to the Azure portal and select Create a resource. Search for NAT gateway, select NAT gateway, then select Create3.

On the Create a NAT gateway page, enter or select the following information and accept the defaults for the remaining settings:

Subscription: Select your subscription name

Resource group: Select your resource group

Name: Type a unique name for your NAT gateway

Region: Select the same region as your virtual network

Public IP address: Select Create new and type a name for your public IP address. Select Standard as the SKU and Static as the assignment method4.

Select Review + create and then select Create to create your NAT gateway3.

To associate the NAT gateway with subnet3-2, you need to go to the Virtual networks service in the Azure portal and select your virtual network.

On the Virtual network page, select Subnets under Settings, and then select subnet3-2 from the list.

On the Edit subnet page, under NAT gateway, select your NAT gateway from the drop-down list. Then select Save.

To ensure that all traffic to the internet from subnet3-1 is forwarded to the appliance in subnet3-2 for packet inspection, you can use User-Defined Routes (UDRs) to direct the traffic. Here’s how you can do it:

Navigate to the Azure Portal.

Search for “Route tables” and select it.

Click on “Create”.

Enter the following details:

Subscription: Select your subscription.

Resource Group: Select an existing resource group or create a new one.

Name: Enter a name for the route table (e.g., RouteTable-Subnet3-1).

Region: Select the region where your virtual network is located.

Click on “Review + create” and then “Create”.

Navigate to the newly created route table.

Select “Routes” from the left-hand menu.

Click on “Add” to create a new route.

Enter the following details:

Route name: Enter a name for the route (e.g., RouteToAppliance).

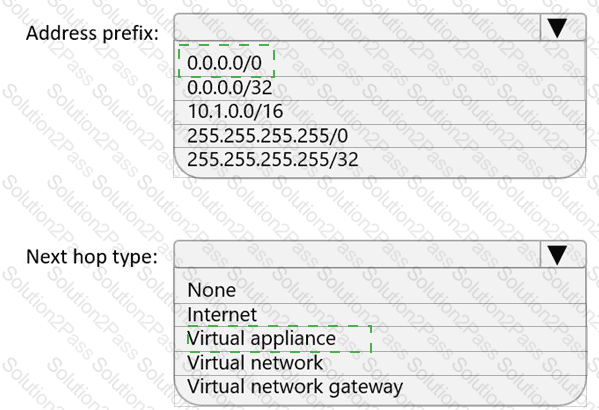

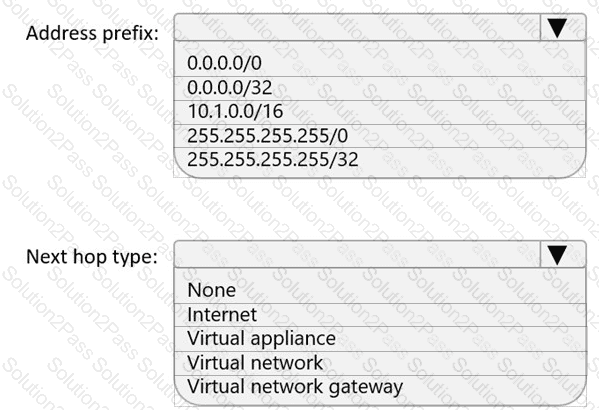

Address prefix: Enter 0.0.0.0/0 to route all internet traffic.

Next hop type: Select Virtual appliance.

Next hop address: Enter the IP address of the appliance (10.3.2.100).

Click on “OK” to add the route.

Navigate to the route table.

Select “Subnets” from the left-hand menu.

Click on “Associate”.

Select the virtual network that contains subnet3-1.

Select subnet3-1 from the list of subnets.

Click on “OK”.

User-Defined Routes (UDRs): These allow you to control the routing of traffic within your virtual network. By defining a route that directs all internet-bound traffic to the appliance, you ensure that the traffic is inspected before it reaches the internet1.

Virtual Appliance: This is a network appliance that performs specific functions, such as packet inspection, and is treated as a next hop in the routing table2.

Route Table Association: Associating the route table with subnet3-1 ensures that all traffic from this subnet follows the defined routes.

Step-by-Step SolutionStep 1: Create a Route TableStep 2: Add a Route to the Route TableStep 3: Associate the Route Table with Subnet3-1ExplanationBy following these steps, you can ensure that all internet-bound traffic from subnet3-1 is forwarded to the appliance in subnet3-2 for inspection, thereby enhancing your network security.

To deploy a firewall to subnetl-2, you need to create a network virtual appliance (NVA) in the same virtual network as subnetl-2. An NVA is a virtual machine that performs network functions, such as firewall, routing, or load balancing1.

To create an NVA, you need to create a virtual machine in the Azure portal and select an image that has the firewall software installed. You can choose from the Azure Marketplace or upload your own image2.

To assign the IP address of 10.1.2.4 to the NVA, you need to create a static private IP address for the network interface of the virtual machine. You can do this in the IP configurations settings of the network interface3.

To ensure that traffic from subnetl-1 to the IP address range of 192.168.10.0/24 is routed through the NVA, you need to create a user-defined route (UDR) table and associate it with subnetl-1. A UDR table allows you to override the default routing behavior of Azure and specify custom routes for your subnets4.

To create a UDR table, you need to go to the Route tables service in the Azure portal and select + Create. You can give a name and a resource group for the route table5.

To create a custom route, you need to select Routes in the route table and select + Add. You can enter the following information for the route5:

Destination: 192.168.10.0/24

Next hop type: Virtual appliance

Next hop address: 10.1.2.4

To associate the route table with subnetl-1, you need to select Subnets in the route table and select + Associate. You can select the virtual network and subnet that you want to associate with the route table5.

To create an Azure Firewall instance, you need to go to the Azure portal and select Create a resource. Type firewall in the search box and press Enter. Select Firewall and then select Create1.

To assign an IP address from the address range of 10.1.255.0/24 to the firewall, you need to select a public IP address that belongs to that range. You can either create a new public IP address or use an existing one1.

To use a new Premium firewall policy named FW-policy1, you need to select Premium as the Firewall tier and create a new policy with the name FW-policy12. A Premium firewall policy allows you to configure advanced features such as TLS Inspection, IDPS, URL Filtering, and Web Categories3.

To route traffic directly to the internet, you need to enable SNAT (Source Network Address Translation) for the firewall. SNAT allows the firewall to use its public IP address as the source address for outbound traffic4.

To minimize the risk of SNAT port exhaustion for your 100 virtual machines in subnet4-1, while ensuring minimal administrative effort, you can use an Azure NAT Gateway. This service provides scalable and resilient outbound connectivity for virtual networks, dynamically allocating SNAT ports to avoid exhaustion.

Navigate to the Azure Portal.

Search for “NAT gateways” and select it.

Click on “Create”.

Enter the following details:

Subscription: Select your subscription.

Resource Group: Select an existing resource group or create a new one.

Name: Enter a name for the NAT gateway (e.g., NATGateway-Subnet4-1).

Region: Select the region where your virtual network is located.

Click on “Next: Outbound IP”.

Choose whether to use existing public IP addresses or create new ones.

If creating new ones, click on “Add new” and configure the new public IP addresses.

Click on “Next: Subnet”.

Click on “Associate subnet”.

Select the virtual network that contains subnet4-1.

Select subnet4-1 from the list of subnets.

Click on “OK”.

Review your settings to ensure everything is correct.

Click on “Review + create” and then “Create”.

Azure NAT Gateway: This service provides outbound connectivity for virtual networks, dynamically allocating SNAT ports across all VM instances within a subnet. This dynamic allocation helps prevent SNAT port exhaustion, especially in scenarios with high outbound connection volumes12.

Dynamic SNAT Port Allocation: Unlike static allocation methods, NAT Gateway dynamically allocates SNAT ports based on demand, ensuring efficient use of available ports and reducing the risk of exhaustion2.

Step-by-Step SolutionStep 1: Create a NAT GatewayStep 2: Configure Outbound IP AddressesStep 3: Associate the NAT Gateway with Subnet4-1Step 4: Review and CreateExplanationBy following these steps, you can ensure that your 100 virtual machines in subnet4-1 can make the necessary API calls without running into SNAT port exhaustion, all while minimizing administrative effort.

To provide a single host name that routes traffic based on the origin, you can use Azure Traffic Manager. This service allows you to route traffic to different endpoints based on various routing methods, including geographic routing.

Navigate to the Azure Portal.

Search for “Traffic Manager profiles” and select it.

Click on “Create”.

Enter the following details:

Name: Enter a name for the Traffic Manager profile (e.g., ContosoTrafficManager).

Routing method: Select Geographic.

Subscription: Select your subscription.

Resource group: Select an existing resource group or create a new one.

Resource group location: Choose a location (this does not affect the routing).

Click on “Create”.

Navigate to the newly created Traffic Manager profile.

Select “Endpoints” from the left-hand menu.

Click on “Add” to add a new endpoint.

Enter the following details:

Type: Select External endpoint.

Name: Enter a name for the endpoint (e.g., NewYorkEndpoint).

FQDN: Enter ny.contoso.com.

Geographic region: Select “World” (this will be adjusted later).

Click on “Add” to save the endpoint.

Repeat the process to add the second endpoint:

Type: Select External endpoint.

Name: Enter a name for the endpoint (e.g., GermanyEndpoint).

FQDN: Enter de.contoso.com.

Geographic region: Select Europe.

Navigate to the Traffic Manager profile.

Select “Configuration” from the left-hand menu.

Under “Geographic routing”, adjust the regions:

For the GermanyEndpoint, ensure that the geographic region is set to Europe.

For the NewYorkEndpoint, ensure that the geographic region is set to World (excluding Europe).

Use a DNS query tool to test the routing.

From a location in Germany, query the Traffic Manager profile’s DNS name and ensure it resolves to de.contoso.com.

From a location outside Europe, query the Traffic Manager profile’s DNS name and ensure it resolves to ny.contoso.com.

Azure Traffic Manager: This service uses DNS to direct client requests to the most appropriate endpoint based on the routing method you choose. Geographic routing ensures that traffic is directed based on the origin of the request.

Geographic Routing: This method allows you to route traffic based on the geographic location of the DNS query origin, ensuring that users are directed to the nearest or most appropriate endpoint.

Step-by-Step SolutionStep 1: Create a Traffic Manager ProfileStep 2: Configure EndpointsStep 3: Adjust Geographic RoutingStep 4: Test the ConfigurationExplanationBy following these steps, you can provide a single host name that routes traffic to de.contoso.com for users in Germany and to ny.contoso.com for users from other locations, ensuring efficient and appropriate traffic management.

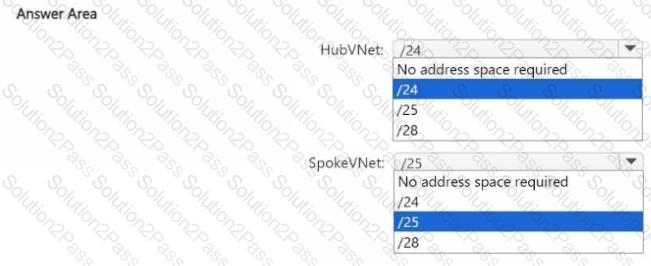

Here are the steps and explanations for ensuring that subnet4-3 can accommodate 507 hosts:

To determine the subnet size that can accommodate 507 hosts, you need to use the formula: number of hosts = 2^(32 - n) - 2, where n is the number of bits in the subnet mask1. You need to find the value of n that satisfies this equation for 507 hosts.

To solve this equation, you can use trial and error or a binary search method. For example, you can start with n = 24, which is the default subnet mask for Class C networks. Then, plug in the value of n into the formula and see if it is too big or too small for 507 hosts.

If you try n = 24, you get number of hosts = 2^(32 - 24) - 2 = 254, which is too small. You need to increase the value of n to get a larger number of hosts.

If you try n = 25, you get number of hosts = 2^(32 - 25) - 2 = 510, which is just enough to accommodate 507 hosts. You can stop here or try a smaller value of n to see if it still works.

If you try n = 26, you get number of hosts = 2^(32 - 26) - 2 = 254, which is too small again. You need to decrease the value of n to get a larger number of hosts.

Therefore, the smallest value of n that can accommodate 507 hosts is n = 25. This means that the subnet mask for subnet4-3 should be /25 or 255.255.255.128 in dot-decimal notation1.

To change the subnet mask for subnet4-3, you need to go to the Azure portal and select your virtual network. Then select Subnets under Settings and select subnet4-3 from the list2.

On the Edit subnet page, under Address range (CIDR block), change the value from /24 to /25. Then select Save2.

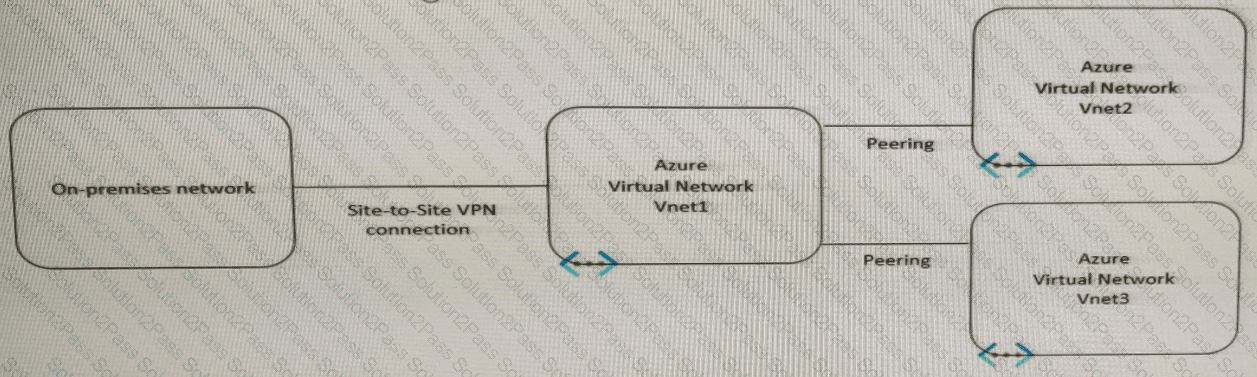

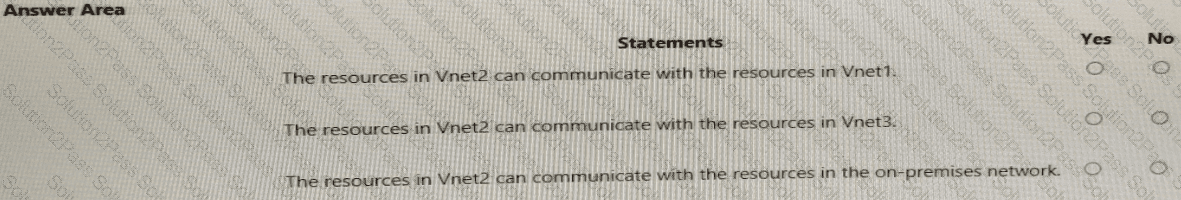

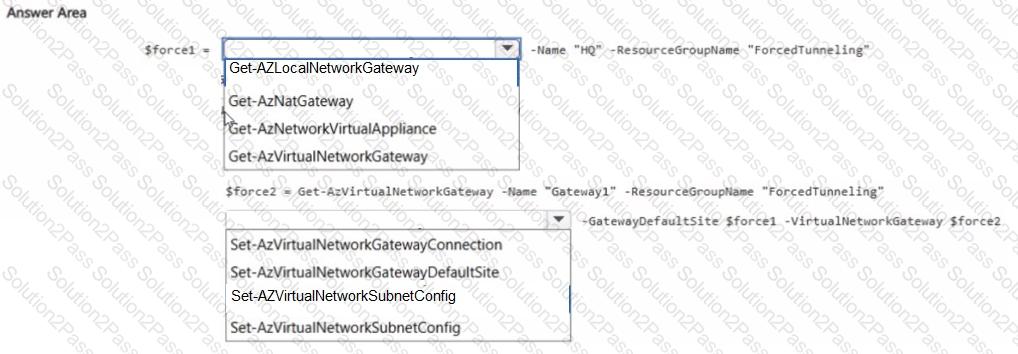

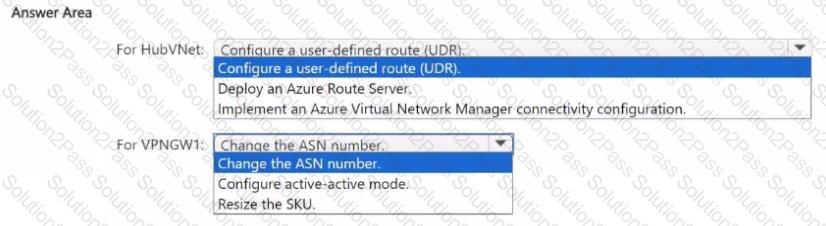

VNet 1 will get the default from BGP and propagate it to VNET 2 and 3
