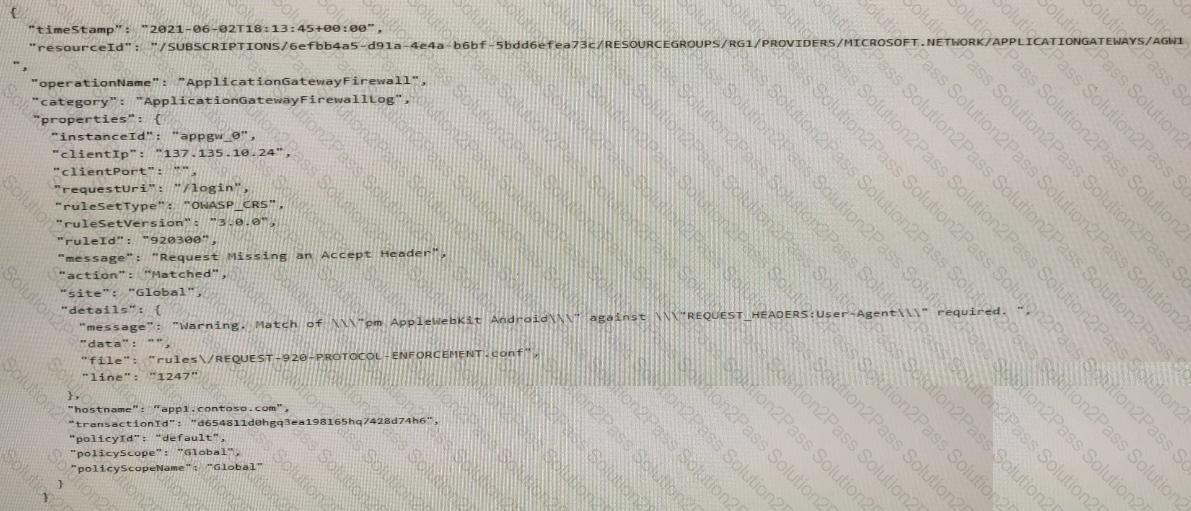

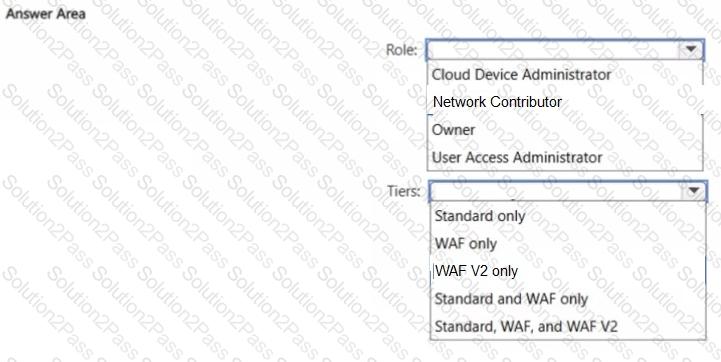

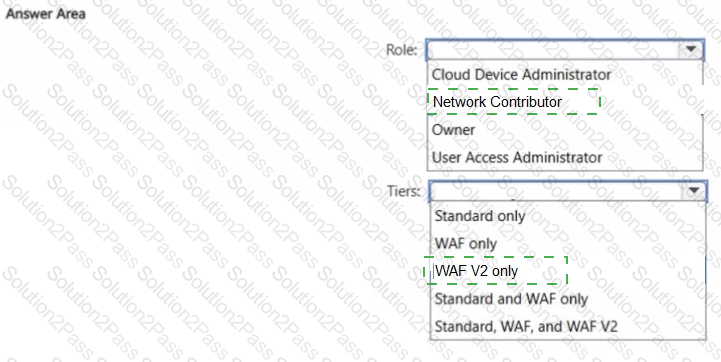

Here are the steps and explanations for creating a policy that can be linked to the planned application gateway and block connections from IP addresses in the 131.107.150.0/24 range:

To create a policy, you need to go to the Azure portal and select Create a resource. Search for WAF, select Web Application Firewall, then select Create1.

On the Create a WAF policy page, Basics tab, enter or select the following information and accept the defaults for the remaining settings:

Policy for: Regional WAF (Application Gateway)

Subscription: Select your subscription name

Resource group: Select your resource group

Policy name: Type a unique name for your WAF policy

On the Custom rules tab, select Add a rule to create a custom rule that blocks connections from IP addresses in the 131.107.150.0/24 range2. Enter or select the following information for the custom rule:

Rule name: Type a unique name for your custom rule

Priority: Type a number that indicates the order of evaluation for this rule

Rule type: Select Match rule

Match variable: Select RemoteAddr

Operator: Select IPMatch

Match values: Type 131.107.150.0/24

Action: Select Block

On the Review + create tab, review your settings and select Create to create your WAF policy1.

To link your policy to the planned application gateway, you need to go to the Application Gateway service in the Azure portal and select your application gateway3.

On the Web application firewall tab, select your WAF policy from the drop-down list and select Save

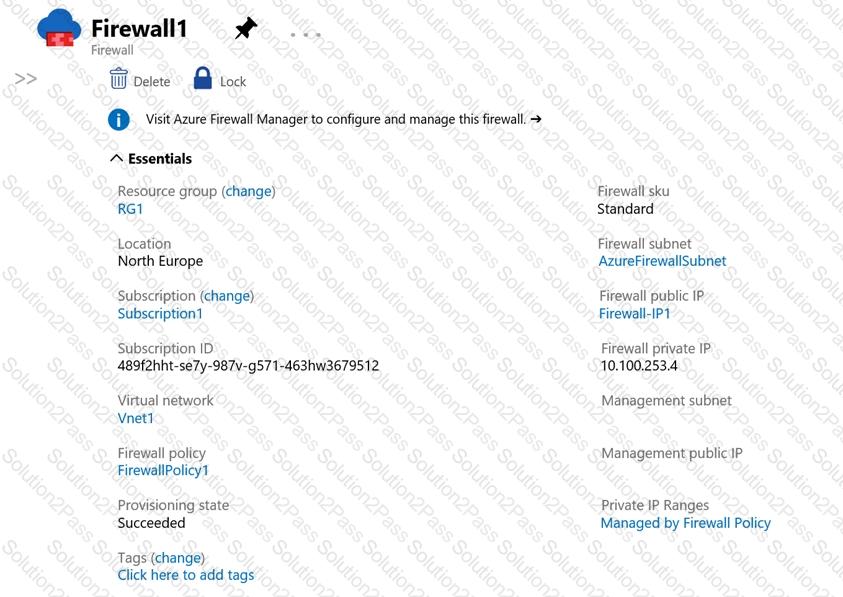

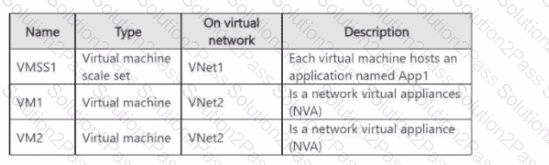

To deploy a firewall to subnetl-2, you need to create a network virtual appliance (NVA) in the same virtual network as subnetl-2. An NVA is a virtual machine that performs network functions, such as firewall, routing, or load balancing1.

To create an NVA, you need to create a virtual machine in the Azure portal and select an image that has the firewall software installed. You can choose from the Azure Marketplace or upload your own image2.

To assign the IP address of 10.1.2.4 to the NVA, you need to create a static private IP address for the network interface of the virtual machine. You can do this in the IP configurations settings of the network interface3.

To ensure that traffic from subnetl-1 to the IP address range of 192.168.10.0/24 is routed through the NVA, you need to create a user-defined route (UDR) table and associate it with subnetl-1. A UDR table allows you to override the default routing behavior of Azure and specify custom routes for your subnets4.

To create a UDR table, you need to go to the Route tables service in the Azure portal and select + Create. You can give a name and a resource group for the route table5.

To create a custom route, you need to select Routes in the route table and select + Add. You can enter the following information for the route5:

Destination: 192.168.10.0/24

Next hop type: Virtual appliance

Next hop address: 10.1.2.4

To associate the route table with subnetl-1, you need to select Subnets in the route table and select + Associate. You can select the virtual network and subnet that you want to associate with the route table5.

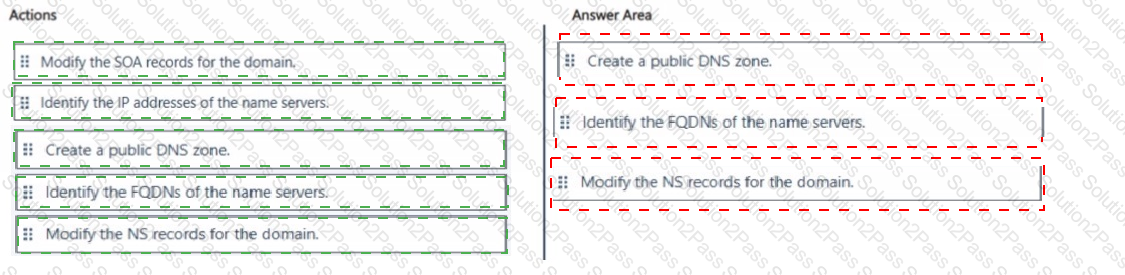

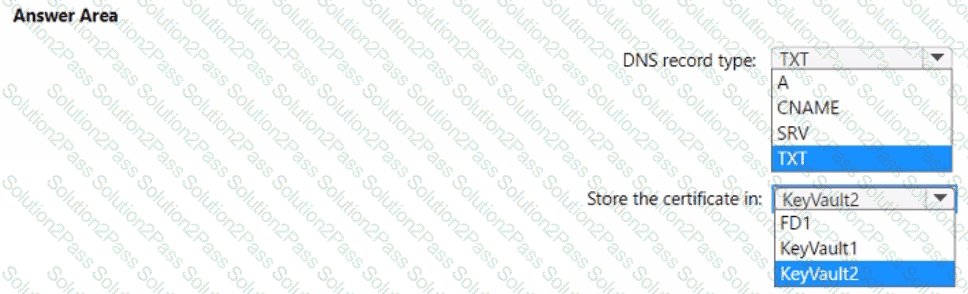

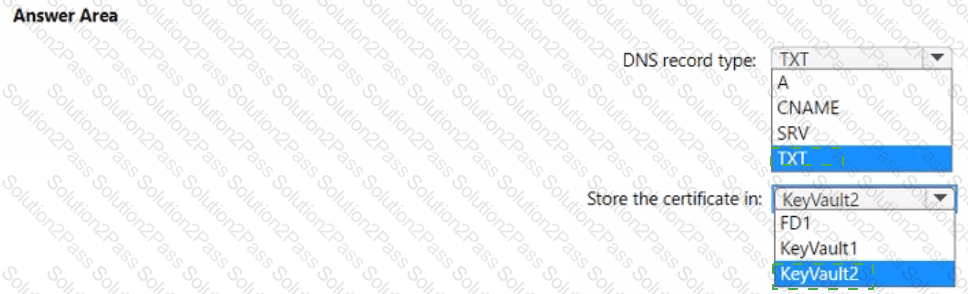

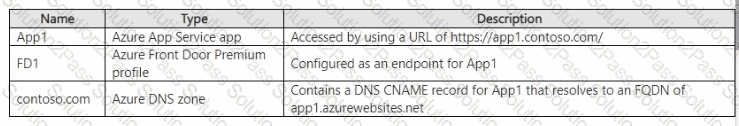

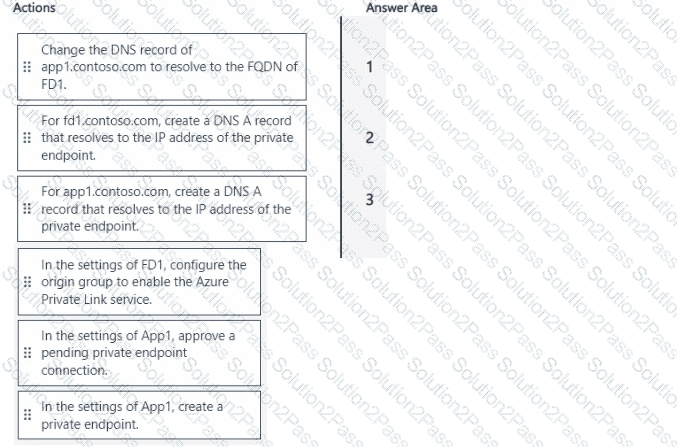

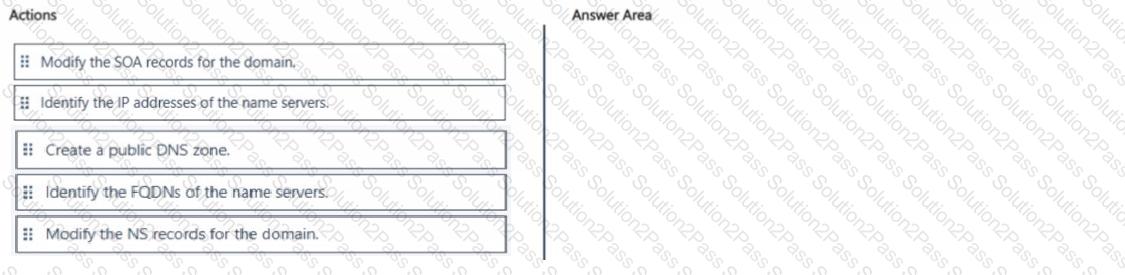

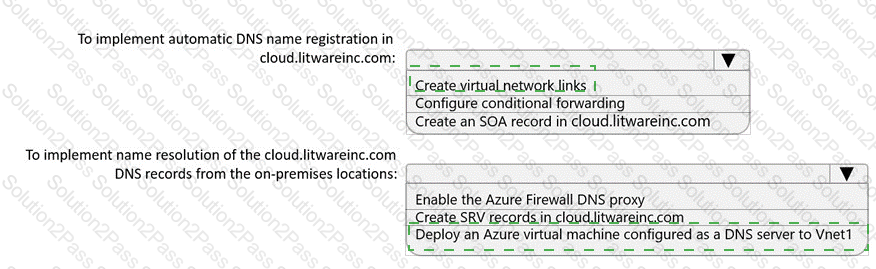

Here are the steps and explanations for ensuring that requests for wwwjelecloud.com from any of your Azure virtual networks resolve to frontdoor1.azurefd.net:

To use a custom domain with your Azure Front Door, you need to create a CNAME record with your domain provider that points to the Front Door default frontend host. A CNAME record is a type of DNS record that maps a source domain name to a destination domain name1.

To create a CNAME record, you need to sign in to your domain registrar’s website and go to the page for managing DNS settings1.

Create a CNAME record with the following information1:

Source domain name: wwwjelecloud.com

Destination domain name: frontdoor1.azurefd.net

Save your changes and wait for the DNS propagation to take effect1.

To verify the custom domain, you need to go to the Azure portal and select your Front Door profile. Then select Domains under Settings and select Add2.

On the Add a domain page, select Non-Azure validated domain as the Domain type and enter wwwjelecloud.com as the Domain name. Then select Add2.

On the Domains page, select wwwjelecloud.com and select Verify. This will check if the CNAME record is correctly configured2.

Once the domain is verified, you can associate it with your Front Door endpoint. On the Domains page, select wwwjelecloud.com and select Associate endpoint. Then select your Front Door endpoint from the drop-down list and select Associate2.

To archive all the metrics of VNET1 to an existing storage account, you can use Azure Monitor’s diagnostic settings. Here’s how you can do it:

Step-by-Step Solution

Step 1: Navigate to VNET1 in the Azure Portal

Open the Azure Portal.

Search for “Virtual networks” and select VNET1 from the list.

Step 2: Configure Diagnostic Settings

In the VNET1 blade, select “Diagnostic settings” under the “Monitoring” section.

Click on “Add diagnostic setting”.

Step 3: Set Up the Diagnostic Setting

Enter a name for the diagnostic setting (e.g., VNET1-Metrics-Archive).

Select the metrics you want to archive. You can choose from various metrics like TotalBytesReceived, TotalBytesSent, etc.

Under “Destination details”, select “Archive to a storage account”.

Choose the existing storage account where you want to archive the metrics.

Configure the retention period if needed.

Step 4: Save the Configuration

Review your settings to ensure everything is correct.

Click on “Save” to apply the diagnostic setting.

Explanation

Diagnostic Settings: These allow you to collect and route metrics and logs from your Azure resources to various destinations, including storage accounts, Log Analytics workspaces, and Event Hubs.

Metrics: Metrics provide numerical data about the performance and health of your resources. Archiving these metrics helps in long-term analysis and compliance.

Storage Account: Using an existing storage account ensures that the metrics are stored securely and can be accessed for future analysis.

By following these steps, you can ensure that all the metrics of VNET1 are archived to your existing storage account, enabling you to monitor and analyze the performance and health of your virtual network over time.

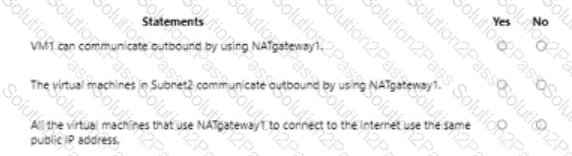

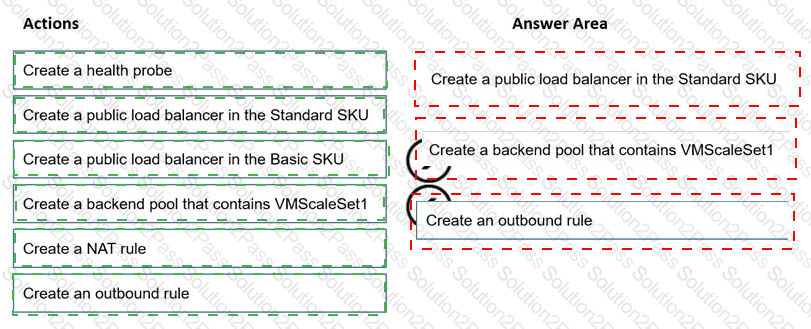

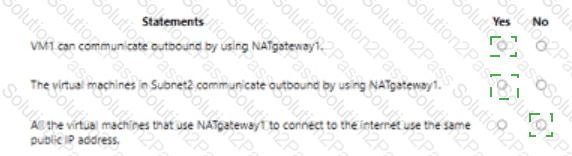

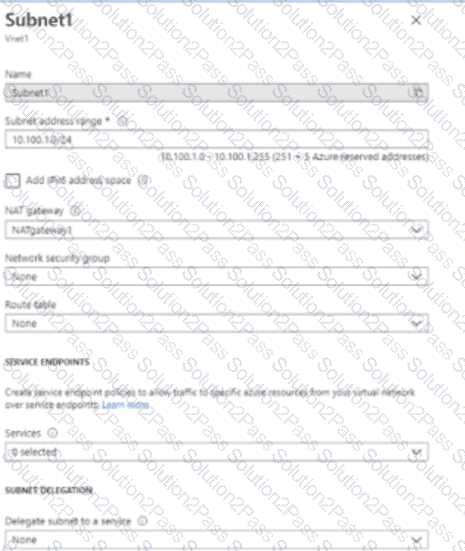

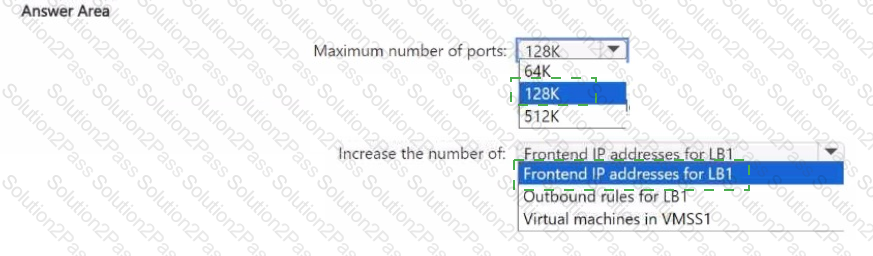

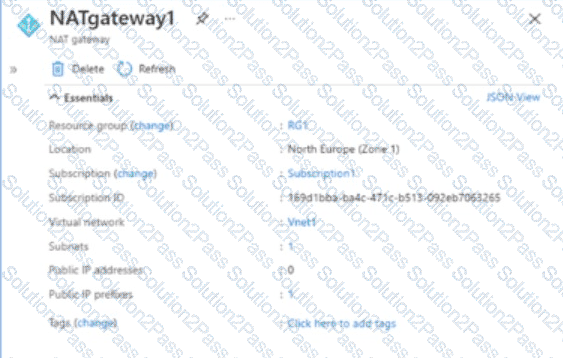

To minimize the risk of SNAT port exhaustion for your 100 virtual machines in subnet4-1, while ensuring minimal administrative effort, you can use an Azure NAT Gateway. This service provides scalable and resilient outbound connectivity for virtual networks, dynamically allocating SNAT ports to avoid exhaustion.

Navigate to the Azure Portal.

Search for “NAT gateways” and select it.

Click on “Create”.

Enter the following details:

Subscription: Select your subscription.

Resource Group: Select an existing resource group or create a new one.

Name: Enter a name for the NAT gateway (e.g., NATGateway-Subnet4-1).

Region: Select the region where your virtual network is located.

Click on “Next: Outbound IP”.

Choose whether to use existing public IP addresses or create new ones.

If creating new ones, click on “Add new” and configure the new public IP addresses.

Click on “Next: Subnet”.

Click on “Associate subnet”.

Select the virtual network that contains subnet4-1.

Select subnet4-1 from the list of subnets.

Click on “OK”.

Review your settings to ensure everything is correct.

Click on “Review + create” and then “Create”.

Azure NAT Gateway: This service provides outbound connectivity for virtual networks, dynamically allocating SNAT ports across all VM instances within a subnet. This dynamic allocation helps prevent SNAT port exhaustion, especially in scenarios with high outbound connection volumes12.

Dynamic SNAT Port Allocation: Unlike static allocation methods, NAT Gateway dynamically allocates SNAT ports based on demand, ensuring efficient use of available ports and reducing the risk of exhaustion2.

Step-by-Step SolutionStep 1: Create a NAT GatewayStep 2: Configure Outbound IP AddressesStep 3: Associate the NAT Gateway with Subnet4-1Step 4: Review and CreateExplanationBy following these steps, you can ensure that your 100 virtual machines in subnet4-1 can make the necessary API calls without running into SNAT port exhaustion, all while minimizing administrative effort.

Here are the steps and explanations for ensuring that connections to the storage34280945 storage account can be made by using an IP address in the 10.1.1.0/24 range and the name stor-age34280945.pnvatelinlcblob.core.windows.net:

To allow access from a specific IP address range, you need to configure the Azure Storage firewall and virtual network settings for your storage account. You can do this in the Azure portal by selecting your storage account and then selecting Networking under Settings1.

On the Networking page, select Firewalls and virtual networks, and then select Selected networks under Allow access from1. This will block all access to your storage account except from the networks or resources that you specify.

Under Firewall, select Add rule, and then enter 10.1.1.0/24 as the IP address or range. You can also enter an optional rule name and description1. This will allow access from any IP address in the 10.1.1.0/24 range.

Select Save to apply your changes1.

To map a custom domain name to your storage account, you need to create a CNAME record with your domain provider that points to your storage account endpoint2. A CNAME record is a type of DNS record that maps a source domain name to a destination domain name.

Sign in to your domain registrar’s website, and then go to the page for managing DNS settings2.

Create a CNAME record with the following information2:

Source domain name: stor-age34280945.pnvatelinlcblob.core.windows.net

Destination domain name: stor-age34280945.pnvatelinlcblob.core.windows.net

Save your changes and wait for the DNS propagation to take effect2.

To register the custom domain name with Azure, you need to go back to the Azure portal and select your storage account. Then select Custom domain under Blob service2.

On the Custom domain page, enter stor-age34280945.pnvatelinlcblob.core.windows.net as the custom domain name and select Save2.

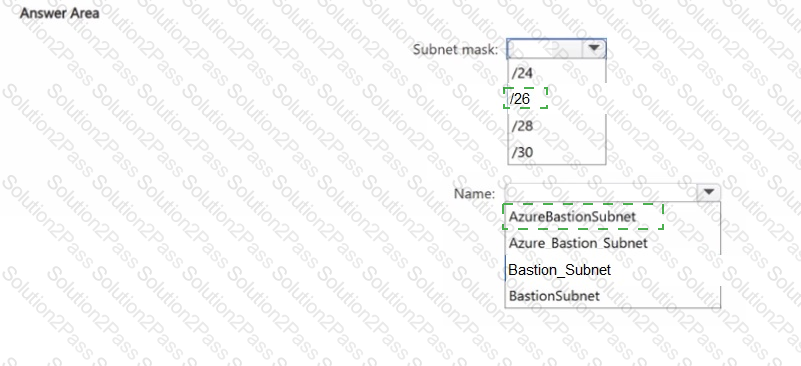

Here are the steps and explanations for ensuring that subnet4-3 can accommodate 507 hosts:

To determine the subnet size that can accommodate 507 hosts, you need to use the formula: number of hosts = 2^(32 - n) - 2, where n is the number of bits in the subnet mask1. You need to find the value of n that satisfies this equation for 507 hosts.

To solve this equation, you can use trial and error or a binary search method. For example, you can start with n = 24, which is the default subnet mask for Class C networks. Then, plug in the value of n into the formula and see if it is too big or too small for 507 hosts.

If you try n = 24, you get number of hosts = 2^(32 - 24) - 2 = 254, which is too small. You need to increase the value of n to get a larger number of hosts.

If you try n = 25, you get number of hosts = 2^(32 - 25) - 2 = 510, which is just enough to accommodate 507 hosts. You can stop here or try a smaller value of n to see if it still works.

If you try n = 26, you get number of hosts = 2^(32 - 26) - 2 = 254, which is too small again. You need to decrease the value of n to get a larger number of hosts.

Therefore, the smallest value of n that can accommodate 507 hosts is n = 25. This means that the subnet mask for subnet4-3 should be /25 or 255.255.255.128 in dot-decimal notation1.

To change the subnet mask for subnet4-3, you need to go to the Azure portal and select your virtual network. Then select Subnets under Settings and select subnet4-3 from the list2.

On the Edit subnet page, under Address range (CIDR block), change the value from /24 to /25. Then select Save2.

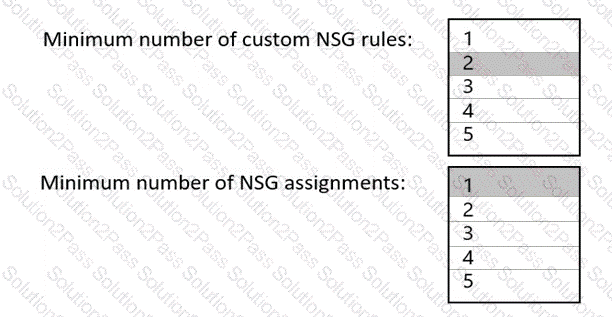

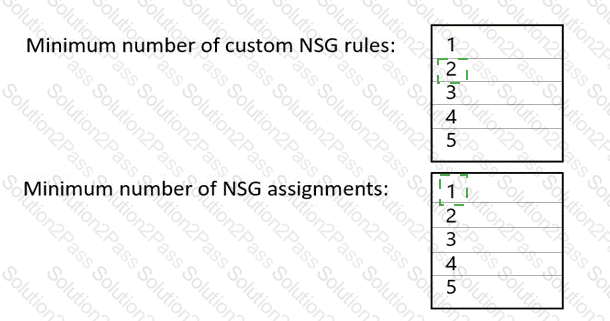

To prevent all Azure hosts outside of subnet1-2 from connecting to TCP port 5585 on hosts within subnet1-2, you can use a Network Security Group (NSG). This solution is straightforward and minimizes administrative effort.

Step-by-Step Solution

Step 1: Create a Network Security Group (NSG)

Navigate to the Azure Portal.

Search for “Network security groups” and select it.

Click on “Create”.

Enter the following details:

Subscription: Select your subscription.

Resource Group: Select an existing resource group or create a new one.

Name: Enter a name for the NSG (e.g., NSG-Subnet1-2).

Region: Select the region where your virtual network is located.

Click on “Review + create” and then “Create”.

Step 2: Create an Inbound Security Rule

Navigate to the newly created NSG.

Select “Inbound security rules” from the left-hand menu.

Click on “Add” to create a new rule.

Enter the following details:

Source: Select Service Tag.

Source Service Tag: Select VirtualNetwork.

Source port ranges: Leave as *.

Destination: Select IP Addresses.

Destination IP addresses/CIDR ranges: Enter the IP range of subnet1-2 (e.g., 10.1.2.0/24).

Destination port ranges: Enter 5585.

Protocol: Select TCP.

Action: Select Deny.

Priority: Enter a priority value (e.g., 100).

Name: Enter a name for the rule (e.g., Deny-TCP-5585).

Click on “Add” to create the rule.

Step 3: Associate the NSG with Subnet1-2

Navigate to the virtual network that contains subnet1-2.

Select “Subnets” from the left-hand menu.

Select subnet1-2 from the list of subnets.

Click on “Network security group”.

Select the NSG you created (NSG-Subnet1-2).

Click on “Save”.

Explanation

Network Security Group (NSG): NSGs are used to filter network traffic to and from Azure resources in an Azure virtual network. They contain security rules that allow or deny inbound and outbound traffic based on source and destination IP addresses, port, and protocol1.

Inbound Security Rule: By creating a rule that denies traffic on TCP port 5585 from any source outside of subnet1-2, you ensure that only hosts within subnet1-2 can connect to this port.

Association with Subnet: Associating the NSG with subnet1-2 ensures that the security rules are applied to all resources within this subnet.

By following these steps, you can effectively prevent all Azure hosts outside of subnet1-2 from connecting to TCP port 5585 on hosts within subnet1-2, while minimizing administrative effort.

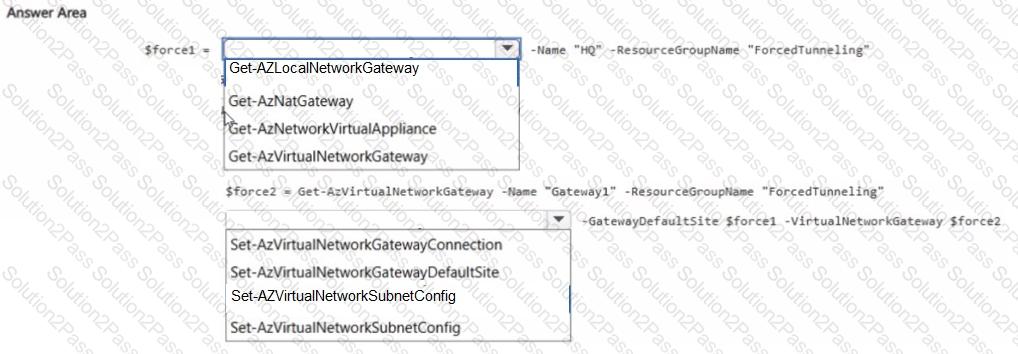

To ensure that all traffic to the internet from subnet3-1 is forwarded to the appliance in subnet3-2 for packet inspection, you can use User-Defined Routes (UDRs) to direct the traffic. Here’s how you can do it:

Navigate to the Azure Portal.

Search for “Route tables” and select it.

Click on “Create”.

Enter the following details:

Subscription: Select your subscription.

Resource Group: Select an existing resource group or create a new one.

Name: Enter a name for the route table (e.g., RouteTable-Subnet3-1).

Region: Select the region where your virtual network is located.

Click on “Review + create” and then “Create”.

Navigate to the newly created route table.

Select “Routes” from the left-hand menu.

Click on “Add” to create a new route.

Enter the following details:

Route name: Enter a name for the route (e.g., RouteToAppliance).

Address prefix: Enter 0.0.0.0/0 to route all internet traffic.

Next hop type: Select Virtual appliance.

Next hop address: Enter the IP address of the appliance (10.3.2.100).

Click on “OK” to add the route.

Navigate to the route table.

Select “Subnets” from the left-hand menu.

Click on “Associate”.

Select the virtual network that contains subnet3-1.

Select subnet3-1 from the list of subnets.

Click on “OK”.

User-Defined Routes (UDRs): These allow you to control the routing of traffic within your virtual network. By defining a route that directs all internet-bound traffic to the appliance, you ensure that the traffic is inspected before it reaches the internet1.

Virtual Appliance: This is a network appliance that performs specific functions, such as packet inspection, and is treated as a next hop in the routing table2.

Route Table Association: Associating the route table with subnet3-1 ensures that all traffic from this subnet follows the defined routes.

Step-by-Step SolutionStep 1: Create a Route TableStep 2: Add a Route to the Route TableStep 3: Associate the Route Table with Subnet3-1ExplanationBy following these steps, you can ensure that all internet-bound traffic from subnet3-1 is forwarded to the appliance in subnet3-2 for inspection, thereby enhancing your network security.
