MCIA-Level-1-Maintenance MuleSoft Certified Integration Architect - Level 1 MAINTENANCE Free Practice Exam Questions (2025 Updated)

Explanation

Key to this question lies in the fact that Process API are not meant to be accessed directly by clients. Lets analyze options one by one. Client ID enforcement : This is applied at process API level generally to ensure that identity of API clients is always known and available for API-based analytics Rate Limiting : This policy is applied on Process Level API to secure API's against degradation of service that can happen in case load received is more than it can handle Custom circuit breaker : This is also quite useful feature on process level API's as it saves the API client the wasted time and effort of invoking a failing API. JSON threat protection : This policy is not required at Process API and rather implemented as Experience API's. This policy is used to safeguard application from malicious attacks by injecting malicious code in JSON object. As ideally Process API's are never called from external world , this policy is never used on Process API's Hence correct answer is JSON threat protection MuleSoft Documentation Reference : https://docs.mulesoft.com/api-manager/2.x/policy-mule3-json-threat

Explanation

Correct answer is Only MuleSoft provided certificates can be used for server side certificate

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* You would need to use dedicated load balancer which can enable you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

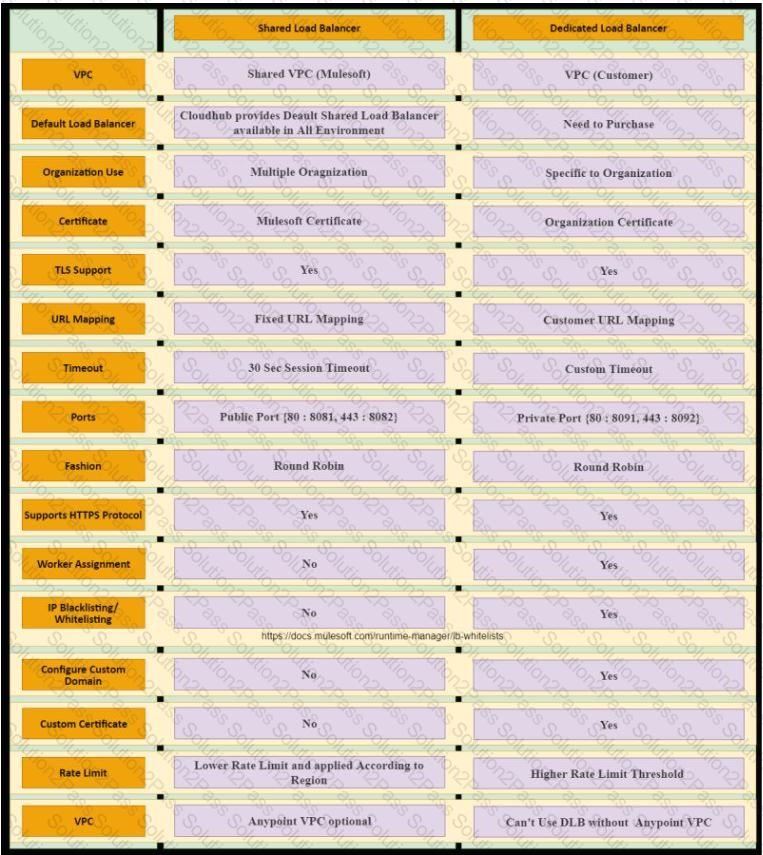

Additional Info on SLB Vs DLB:

Table Description automatically generated

Explanation

Connected Apps

The Connected Apps feature provides a framework that enables an external application to integrate with Anypoint Platform using APIs through OAuth 2.0 and OpenID Connect. Connected apps help users delegate their access without sharing sensitive credentials or giving full control of their accounts to third parties. Actions taken by connected apps are audited, and users can also revoke access at any time. Note that some products do not currently include client IDs in this release of the Connected Apps feature. The Connected Apps feature enables you to use secure authentication protocols and control an app’s access to user data. Additionally, end users can authorize the app to access their Anypoint Platform data.

Mule Ref Doc : https://docs.mulesoft.com/access-management/connected-apps-overview

Explanation

As the question says that data needs to be sent across multiple sftp serves , we cannot use non-repeatable streams. The non-repeatable strategy disables repeatable streams, which enables you to read an input stream only once.

You cant use in memory storage because with 0.2 vcore you will get only 1 GB of heap memory. Hence application will error out for file more than 1 GB.

Hence the correct option is file base repeatable stream

Explanation

As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO).

Configure identity management using one of the following single sign-on standards:

1) OpenID Connect: End user identity verification by an authorization server including SSO

2) SAML 2.0: Web-based authorization including cross-domain SSO

Explanation

We need to note few things about the scenario which will help us in reaching the correct solution.

Point 1 : The APIs are all publicly available and are associated with several mobile applications and web applications. This means Apply an IP blacklist policy is not viable option. as blacklisting IPs is limited to partial web traffic. It can't be useful for traffic from mobile application

Point 2 : The organization does NOT want to use any authentication or compliance policies for these APIs. This means we can not apply HTTPS mutual authentication scheme.

Header injection or removal will not help the purpose.

By its nature, JSON is vulnerable to JavaScript injection. When you parse the JSON object, the malicious code inflicts its damages. An inordinate increase in the size and depth of the JSON payload can indicate injection. Applying the JSON threat protection policy can limit the size of your JSON payload and thwart recursive additions to the JSON hierarchy.

Hence correct answer is Apply a JSON threat protection policy to all APIs to detect potential threat vectors

Explanation

Correct answer is Mule correlation ID By design, Correlation Ids cannot be changed within a flow in Mule 4 applications and can be set only at source. This ID is part of the Event Context and is generated as soon as the message is received by the application. When a HTTP Request is received, the request is inspected for "X-Correlation-Id" header. If "X-Correlation-Id" header is present, HTTP connector uses this as the Correlation Id. If "X-Correlation-Id" header is NOT present, a Correlation Id is randomly generated. For Incoming HTTP Requests: In order to set a custom Correlation Id, the client invoking the HTTP request must set "X-Correlation-Id" header. This will ensure that the Mule Flow uses this Correlation Id. For Outgoing HTTP Requests: You can also propagate the existing Correlation Id to downstream APIs. By default, all outgoing HTTP Requests send "X-Correlation-Id" header. However, you can choose to set a different value to "X-Correlation-Id" header or set "Send Correlation Id" to NEVER.

Explanation

High availability is about up-time of your application

A) High availability can be achieved only in CloudHub isn't correct statement. It can be achieved in customer hosted runtime planes as well

B) An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. It can be used for disaster recovery but not for High Availability. Using object store can't guarantee that all instances won't go down at once. So not an appropriate choice.

Explanation

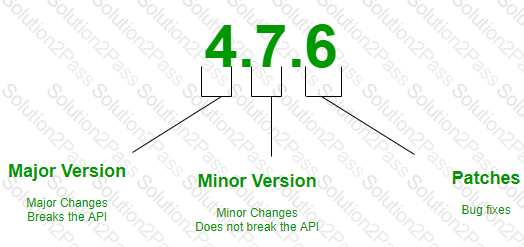

* Semantic Versioning is a 3-component number in the format of X.Y.Z, where :

X stands for a major version.

Y stands for a minor version:

Z stands for a patch.

So, SemVer is of the form Major.Minor.Patch Coming to our question , minor version of the API has been changed which is backward compatible. Hence there is no change required on API client end. If they want to make use of new featured that have been added as a part of minor version change they may need to change code at their end. Hence correct answer is The API client code ONLY needs to be changed if it needs to take advantage of new features.

Diagram Description automatically generated

Explanation

Types of logging:

A) Synchronous: The execution of thread that is processing messages is interrupted to wait for the log message to be fully handled before it can continue.

● The execution of the thread that is processing your message is interrupted to wait for the log message to be fully output before it can continue

● Performance degrades because of synchronous logging

● Used when the log is used as an audit trail or when logging ERROR/CRITICAL messages

● If the logger fails to write to disk, the exception would raise on the same thread that's currently processing the Mule event. If logging is critical for you, then you can rollback the transaction.

Chart, diagram Description automatically generated

Chart, diagram, box and whisker chart Description automatically generated

B) Asynchronous:

● The logging operation occurs in a separate thread, so the actual processing of your message won’t be delayed to wait for the logging to complete

● Substantial improvement in throughput and latency of message processing

● Mule runtime engine (Mule) 4 uses Log4j 2 asynchronous logging by default

● The disadvantage of asynchronous logging is error handling.

● If the logger fails to write to disk, the thread doing the processing won't be aware of any issues writing to the disk, so you won't be able to rollback anything. Because the actual writing of the log gets differed, there's a chance that log messages might never make it to disk and get lost, if Mule were to crash before the buffers are flushed.

------------------------------------------------------------------------------------------------------------------

So Correct answer is: Asynchronous logging can improve Mule event processing throughput while also reducing the processing time for each Mule event
