MCIA-Level-1 MuleSoft Certified Integration Architect - Level 1 Free Practice Exam Questions (2025 Updated)

MUnit and Test Recorder:

MUnit is MuleSoft's testing framework designed to create automated tests for Mule applications.

Test Recorder in Anypoint Studio allows capturing live processing flows and events to automatically generate test cases.

Core Consideration:

While using Test Recorder, it is essential to consider how errors within the flows are handled.

If Mule errors are raised within the flows, Test Recorder will not be able to create tests for these flows, even if the errors are managed by On-Error Continue error handlers.

This limitation requires careful design and error handling strategies to ensure test cases can be recorded and executed effectively.

Error Handling in MUnit:

MUnit allows simulating error scenarios using mocks and spies.

Proper error handling within the application flow ensures robustness and reliable test creation.

However, the inability to create tests when errors are raised during recording indicates a need for alternative approaches to manage errors during test case generation.

References:

MuleSoft Documentation on MUnit: MUnit Documentation

MuleSoft Blog on MUnit Test Recorder: MUnit Test Recorder

Explanation

Correct answer is IBM: CICS CRM: SOAP

* Within Anypoint Exchange, MuleSoft offers the IBM CICS connector. Anypoint Connector for IBM CICS Transaction Gateway (IBM CTG Connector) provides integration with back-end CICS apps using the CICS Transaction Gateway.

* Anypoint Connector for Salesforce Marketing Cloud (Marketing Cloud Connector) enables you to connect to the Marketing Cloud API web services (now known as the Marketing Cloud API), which is also known as the Salesforce Marketing Cloud. This connector exposes convenient operations via SOAP for exploiting the capabilities of Salesforce Marketing Cloud.

Explanation

* "Relocation of the database systems to a DMZ in the on-premises network, with Mule applications deployed to the CloudHub Shared Worker Cloud connecting only to the DMZ" is not a feasible option

* "Static IP addresses for the Mule applications deployed to the CloudHub Shared Worker Cloud, plus matching firewall rules and IP whitelisting in the on-premises network" - It is risk for sensitive data. - Even if you whitelist the database IP on your app, your app wont be able to connect to the database so this is also not a feasible option

* "An Anypoint VPC with one Dedicated Load Balancer fronting each on-premises database system, plus matching IP whitelisting in the load balancer and firewall rules in the VPC and on-premises network" Adding one VPC with a DLB for each backend system also makes no sense, is way too much work. Why would you add a LB for one system.

* Correct answer: "An Anypoint VPC connected to the on-premises network using an IPsec tunnel or AWS DirectConnect, plus matching firewall rules in the VPC and on-premises network"

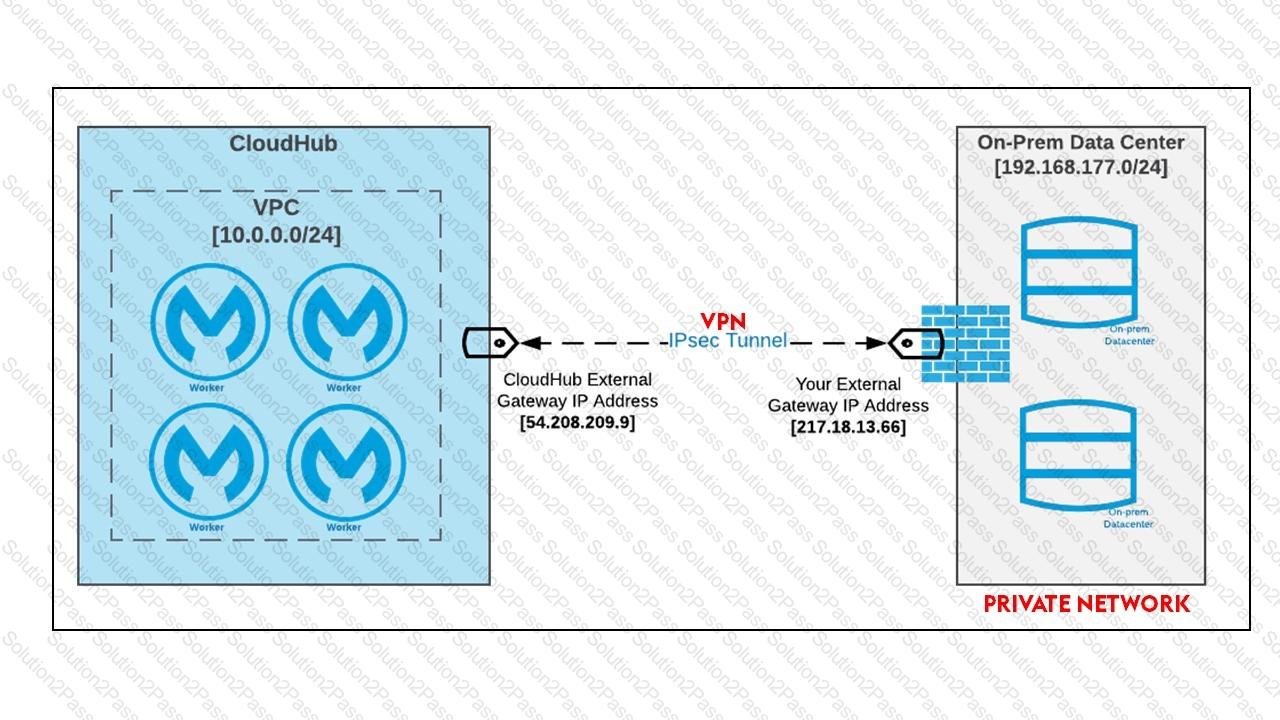

IPsec Tunnel You can use an IPsec tunnel with network-to-network configuration to connect your on-premises data centers to your Anypoint VPC. An IPsec VPN tunnel is generally the recommended solution for VPC to on-premises connectivity, as it provides a standardized, secure way to connect. This method also integrates well with existing IT infrastructure such as routers and appliances. Reference: https://docs.mulesoft.com/runtime-manager/vpc-connectivity-methods-concept

Diagram Description automatically generated

Explanation

Below Anypoint Connectors support transactions ● JMS – Publish – Consume ● VM – Publish – Consume ● Database – All operations

Explanation

Correct answer is It is not possible to store logs for 2 years in CloudHub deployment. External log management system is required. CloudHub has a specific log retention policy, as described in the documentation: the platform stores logs of up to 100 MB per app & per worker or for up to 30 days, whichever limit is hit first. Once this limit has been reached, the oldest log information is deleted in chunks and is irretrievably lost. The recommended approach is to persist your logs to a external logging system of your choice (such as Splunk, for instance) using a log appender. Please note that this solution results in the logs no longer being stored on our platform, so any support cases you lodge will require for you to provide the appropriate logs for review and case resolution

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

..cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp. .cloudhub.io redirects to

http://mule-worker-myApp. .cloudhub.io:8081

HTTPS traffic to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8082

Explanation

* "The existence of a public Anypoint Exchange portal to which the asset has been published" - question does not mention anything about the public portal. Beside the public portal is open to the internet, to anyone. * If you cannot find an asset in the current business group scopes, search in other scopes. In the left navigation bar click All assets (assets provided by MuleSoft and your own master organization), Provided by MuleSoft, or a business group scope. User belonging to one Business Group can see assets related to his group only Reference: https://docs.mulesoft.com/exchange/to-find-info https://docs.mulesoft.com/exchange/asset-details Correct answer is The business groups to which the user belongs

In a hybrid, load-balanced, single cluster production environment running Mule applications in an active-active multi-node configuration, several considerations are critical for ensuring performance and reliability. The key consideration is the use of an external load balancer:

Active-Active Multi-Node Cluster Configuration:

An active-active cluster means that all nodes are actively handling traffic, providing high availability and better resource utilization.

External Load Balancer Requirement:

Distribution of Requests: An external load balancer is essential to evenly distribute incoming requests across all active nodes in the cluster. This prevents any single node from becoming a bottleneck and ensures balanced load distribution.

Scalability and Failover: The load balancer provides scalability by allowing more nodes to be added seamlessly. It also handles failover, rerouting traffic to healthy nodes if one node goes down.

Load Balancer Configuration:

Setup: Configure the load balancer to include all the nodes of the Mule cluster.

Health Checks: Implement health checks to monitor the status of each node and ensure traffic is only directed to healthy nodes.

Session Persistence: If required, enable session persistence (sticky sessions) to ensure that user sessions remain consistent across requests.

Mule Application Isolation:

Each Mule application instance runs in isolation but shares the same configuration and state. This isolation ensures that the failure of one node does not impact others.

Handling Requests:

In an active-active configuration, all nodes handle incoming requests simultaneously. The load balancer's role is to manage the distribution of these requests efficiently.

Benefits:

High Availability: Ensures that the system remains available even if some nodes fail.

Improved Performance: Balances the load, preventing any single node from being overwhelmed.

Scalability: Makes it easy to scale horizontally by adding more nodes.

References:

MuleSoft Documentation on Mule Clustering

Best Practices for Load Balancing

In a distributed application architecture, a service mesh typically manages communication between services within the application. A service mesh provides a dedicated infrastructure layer that handles service-to-service communication, including service discovery, load balancing, failure recovery, metrics, and monitoring. This allows developers to offload these operational concerns from individual services, ensuring consistent and reliable inter-service communication.

References:

Understanding Service Mesh

Service Mesh for Microservices

Explanation

* When you create an Anypoint VPC, the range of IP addresses for the network must be specified in the form of a Classless Inter-Domain Routing (CIDR) block, using CIDR notation.

* This address space is reserved for Mule workers, so it cannot overlap with any address space used in your data center if you want to peer it with your VPC.

* To calculate the proper sizing for your Anypoint VPC, you first need to understand that the number of dedicated IP addresses is not the same as the number of workers you have deployed.

* For each worker deployed to CloudHub, the following IP assignation takes place: For better fault tolerance, the VPC subnet may be divided into up to four Availability Zones.

* A few IP addresses are reserved for infrastructure. At least two IP addresses per worker to perform at zero-downtime.

* Hence in this scenario 2048 IP's are required to support the requirement.

A defining characteristic of an Integration-Platform-as-a-Service (iPaaS) is that it is cloud-based. iPaaS provides a cloud-based platform to enable integration of applications and data across various environments. This approach leverages the scalability, flexibility, and accessibility of the cloud to facilitate seamless integrations, reduce on-premises infrastructure requirements, and improve the speed of deployment and maintenance of integration solutions.

References:

What is iPaaS?

Benefits of iPaaS

Explanation

* On Error Propagate halts execution and sends error to the client. In this scenario it's mentioned that "processing of other rows must not be affected" so Option B and C are ruled out.

* Scatter gather is used to club multiple responses together before processing. In this scenario, we need sequential processing. So option A is out of choice.

* Correct answer is For Each scope & On Error Continue scope Below requirement can be fulfilled in the below way

1) Using For Each scope , which will send each row from csv file sequentially. each row needs to be sent sequentially as requirement is to send the message in exactly the same way as it is mentioned in the csv file

2) Also other part of requirement is if any processing step for a row fails then it should log an error but should not affect other record processing . This can be achieved using On error Continue scope on these set of activities. so that error will not halt the processing. Also logger needs to be added in error handling section so that it can be logged.

* Attaching diagram for reference. Here it's try scope, but similar would be the case with For Each loop.

Diagram Description automatically generated

The described approach of gathering all requirements upfront and proceeding through sequential, non-repeating phases is characteristic of the Waterfall methodology. Waterfall is a linear project management approach where each phase must be completed before the next one begins, and there is typically no going back to a previous phase once it is completed. This methodology is well-suited for projects with well-defined requirements and deliverables, but it can be inflexible if changes or new requirements arise during the project.

References:

Waterfall Model

Waterfall vs. Agile: Which is the Right Development Methodology for Your Project?

Explanation

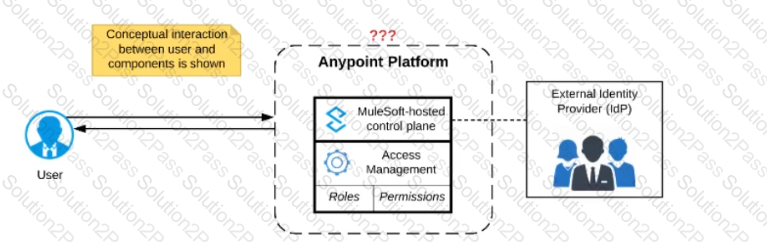

* By default, Anypoint Platform performs its own user management

– For user management, one external IdP can be integrated with the Anypoint Platform organization (note: not at business group level)

– Permissions and access control are still enforced inside Anypoint Platform and CANNOT be controlled via the external Identity Provider * As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * You can map users in a federated organization’s group to a role which also gives the flexibility of controlling the business group within Anypoint Platform to which the user belongs to. Also user can nbe removed from external identity management system when they no longer work for the organization. So they wont be able to authenticate using SSO to login to Anypoint Platform. * Using external identity we can no change permissions of a particular role in Mulesoft Anypoint platform.

* So Correct answer is Assigning Anypoint Platform permissions to a role

According to MuleSoft, a significant business benefit associated with an API-led connectivity approach using Anypoint Platform is increased developer productivity through self-service of API assets. API-led connectivity promotes the creation of reusable APIs that can be easily discovered and consumed by developers across the organization. This self-service model reduces dependencies, accelerates development, and fosters innovation by enabling teams to quickly build and integrate applications using existing APIs without waiting for central IT to provide access.

References:

API-led Connectivity: The Key to Unlocking IT Agility

Benefits of API-led Connectivity

To meet the requirements of enriching logging with more context and improving throughput while reducing latency, the customer should use an asynchronous logging approach. Here's why option B is correct:

Async Logger: Asynchronous logging helps in improving the performance by decoupling the logging from the main thread of execution. This reduces the latency of message processing since logging operations are offloaded to a separate thread.

Logging Level Greater than INFO: Logging at levels such as WARN, ERROR, or FATAL ensures that only essential logs are written asynchronously, further enhancing performance. Avoiding DEBUG or TRACE levels unless necessary reduces the overhead of logging.

Pattern Layout with [%MDC]: Using the pattern layout with [%MDC] in the log4j2.xml configuration file allows the inclusion of mapped diagnostic context in the logs. MDC is a feature that provides context-specific information, such as transaction IDs or user IDs, which helps in tracing and debugging.

Example configuration in log4j2.xml:

This configuration ensures that the logs are enriched with context information provided by MDC and processed asynchronously to maintain high throughput and low latency.

References

Log4j2 Asynchronous Logging

Mapped Diagnostic Context (MDC) in Log4j2

Explanation

* An X.509 certificate is a vital safeguard against malicious network impersonators. Without x.509 server authentication, man-in-the-middle attacks can be initiated by malicious access points, compromised routers, etc.

* X.509 is most used for SSL/TLS connections to ensure that the client (e.g., a web browser) is not fooled by a malicious impersonator pretending to be a known, trustworthy website.

* Coming to the question , we can not use SLB here as SLB does not allow to define vanity domain names. * Hence we need to use DLB and add certificate in there

---------------------------------------------------------------------------------------------------------------------

Hence correct answer is Add the X 509 certificate to the cloudhub Dedicated Load Balancer (DLB), not the Mule application. Create the CNAME for api.acme.com pointing to the DLB’s record

Explanation

Correct answer is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU Explanation : Using Anypoint MQ, you can create two types of queues: Standard queue These queues don’t guarantee a specific message order. Standard queues are the best fit for applications in which messages must be delivered quickly. FIFO (first in, first out) queue These queues ensure that your messages arrive in order. FIFO queues are the best fit for applications requiring strict message ordering and exactly-once delivery, but in which message delivery speed is of less importance Use of FIFO queue is no where in the option and also it decreased throughput. Similarly persistent object store is not the preferred solution approach when you maximizing message throughput. This rules out one of the options. Scatter Gather does not support ObjectStore. This rules out one of the options. Standard Anypoint MQ queues don’t guarantee a specific message order hence using another for each block to collect response wont work as requirement here is to ensure the order. Hence considering all the above factors the feasible approach is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU
