Based on the architecture of FortiAnalyzer within the Security Fabric and its automation capabilities:

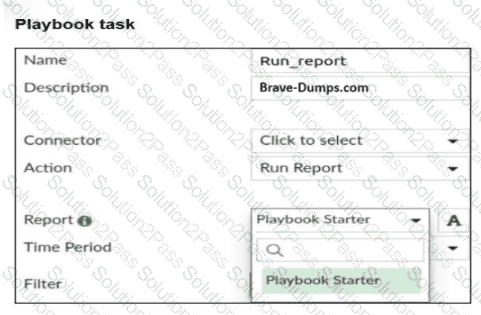

Automation Stitch and Reports : Within the Security Fabric environment, FortiAnalyzer serves as a key element in creating automation stitches and playbooks. For a report to be selectable within a Playbook task (such as the Run_report task shown in the exhibit), it must meet specific technical prerequisites in the report configuration.

Auto-cache Requirement (Answer C) : For a report to be used for automated generation, it must be " ready " to be processed by the engine without manual intervention. Auto-cache must be enabled in the report settings to ensure the report can be generated dynamically and efficiently when triggered by the playbook.

Extended Log Filtering (Answer B) : Playbooks often pass specific variables from the trigger (such as a specific device IP or a time range) into the report. For the report to accept these dynamic parameters and be visible as an " automation-compatible " report in the Playbook interface, Extended Log Filtering must be enabled.

Workflow Constraints : Without these two settings enabled on the report itself, the Playbook engine cannot guarantee the report ' s successful generation or parameter injection, and thus filters it out of the available selection list in the Run_report task.

Based on the OT Security 7.6 Architect study guide regarding the Asset Identity Center and Asset Management :

Vulnerability Visibility : The Asset Identity List tab displays key metadata for IT and OT devices, including detected addresses, users, and a specific column for Vulnerabilities .

Virtual Patching Feature : In the OT Security 7.6 architecture, the " Vulnerabilities " column is populated through the OT Security Service license, which includes " OT vulnerability correlation definitions & virtual patching signatures " .

Correlation Mechanism : FortiGate extracts metadata from OT traffic and uses these signatures to identify known vulnerabilities on the assets. For these vulnerabilities to be identified and correlated in the Asset Identity Center as shown in the exhibit (displaying a count of 8 vulnerabilities), the Virtual Patching feature must be active.

Architectural Implementation : Virtual patching is a critical component of the " Protection " layer in OT networks, allowing administrators to secure legacy or unpatchable PLCs and RTUs by blocking exploit attempts at the network level using IPS-based virtual patching signatures.

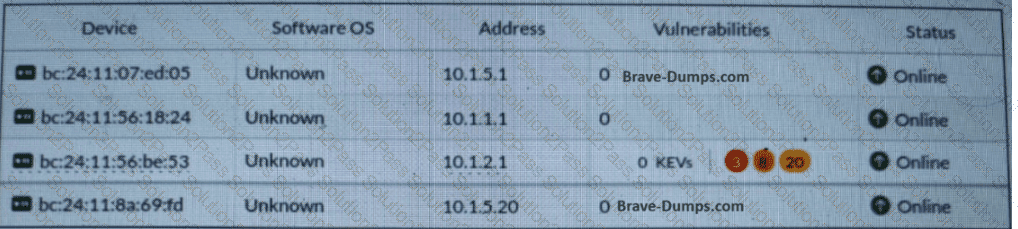

Exhibit Analysis : The presence of identified vulnerabilities (the number " 8 " in the red shield) in the Asset Identity List confirms that the FortiGate is actively performing vulnerability correlation, which is the operational result of having a Virtual Patching security profile applied to the relevant firewall policy.

The correct answers are C and D .

Option D is correct because the Playbook Monitor clearly shows the starter as On_Demand and the trigger as user(admin) . The study guide states that “ON_DEMAND: The playbook runs when an administrator manually starts it” and also notes that to run it manually, you select the playbook and click Run . This exactly matches the exhibit, so the playbook was manually triggered.

Option C is also correct. The study guide explains that “tasks run one after another” and that “if needed, the output of one task can be used by the tasks that follow it.” It also gives an example where workflow logic matters, such as creating an incident and then attaching details to it. In the exhibit, the sequence shown is Attach_report , then Run_report , then Create_Incident , while the incident analysis shows no report attached . Since the report must exist and the incident must already be available before it can be attached properly, the task order is wrong and must be reordered.

Option B is incorrect because the monitor shows multiple tasks completed successfully, not only Create_Incident . Option A is not the best answer because the main problem demonstrated by the exhibits is not simply waiting time, but the incorrect workflow order. The playbook completed successfully, yet the report is still not attached, which indicates a design issue in the task sequence rather than just a delay.

The correct answer is A. Fortinet Single-Sign On (FSSO) . The study guide states under Active and Passive Authentication that for passive authentication, “User does not receive a login prompt from FortiGate” , “Credentials are determined automatically” , and specifically “FSSO, RSSO, and NTLM can be used.” It then explains that passive authentication occurs with the single sign-on method and explicitly identifies Fortinet SSO (FSSO) as one of those methods.

The guide also says: “For passive authentication, you can implement FSSO. FSSO allows users who have already authenticated on the network through another system to be transparently identified. After initial login to any system on the network, users can access allowed resources without being prompted for credentials.” That is exactly what the question asks for: improving access control in a large OT network using passive authentication .

The other options do not match passive authentication. Local users are part of local authentication, two-factor authentication adds an extra security factor but still uses active authentication, and FortiAuthenticator as a remote server supports centralized authentication for mid-to-large networks, but by itself it is not the specific passive-authentication method being asked here. The study guide is explicit that the FortiGate configuration for passive authentication is FSSO .

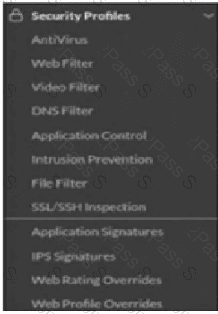

The correct answers are B and C . The study guide states that “You can use application control signatures to detect OT protocols” and that “Application control detects the protocols used in applications like Modbus, IEC 104, and the contents of the telecontrol messages” . It also shows that a Modbus application control profile can be enabled on a firewall policy “for OT protocol visibility in the monitor status.” This directly supports B , because application control is the feature used to identify and monitor OT protocols on FortiGate.

The guide also explains under IPS that “By default, OT signatures are excluded from the signatures lists on the GUI until you enable them on the CLI” using config ips global and set exclude-signatures none . Once enabled, FortiGate can use those OT signatures for OT-aware inspection and protection. That supports C as the second required configuration. A is related to device discovery, not protocol identification, and D is focused on exploit and vulnerability detection rather than the first-step goal of identifying OT protocols.
