NSE6_OTS_AR-7.6 Fortinet NSE 6 - OT Security 7.6 Architect Free Practice Exam Questions (2026 Updated)

The correct answer is C. EtherCAT .

The study guide states that for industrial Ethernet protocols, “such as Ethernet/IP and Modbus/TCP, you can use VLANs to segment your physical LAN into multiple logical LANs.” This directly confirms that Ethernet/IP and Modbus/TCP support VLAN-based segmentation in the OT context.

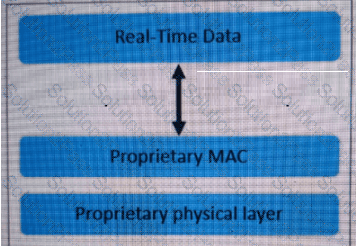

By contrast, the guide explains that “EtherCAT skips layers 3 to 6 to deliver real-time communication” and describes it as an “Open-Software Modified-Ethernet” approach. Because it does not operate like the standard Ethernet/IP model used for normal VLAN-based segmentation, EtherCAT is the protocol identified here as not supporting VLANs in the way Ethernet/IP and Modbus/TCP do.

So, based on the study guide comparison, the verified answer is EtherCAT .

The correct answer is A. You must enable Virtual Patching in the Feature Visibility section .

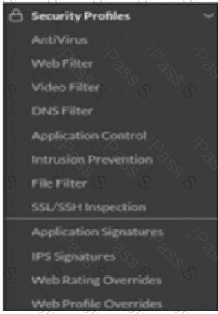

The study guide states clearly that “By default, virtual patching profiles are hidden on the GUI, and you must enable them through System > Feature Visibility.” That exactly matches the situation in the exhibit, where Virtual Patching does not appear under Security Profiles . So the issue is not that the feature is unsupported, but that it is simply hidden in the GUI until it is enabled.

The other options do not answer the question being asked. A valid OT security service license is required for virtual patching signatures and protection workflow, and OT signatures are relevant to IPS-based OT protection, but those do not explain why the menu item itself is missing from the Security Profiles section . The guide specifically identifies Feature Visibility as the reason the Virtual Patching profile is not shown in the GUI. Therefore, the required action is to enable Virtual Patching in System > Feature Visibility .

The correct answers are B. Real-time control and D. Determinism . The study guide defines industrial Ethernet as the “use of Ethernet and TCP/IP as transport mechanisms for industrial protocols” and states that it provides “real-time control,” “low latency,” and “determinism (meaning reliable and predictable data delivery)” in harsh environments. It further explains that industrial Ethernet “provides deterministic communication between machine controllers, actuators, sensors, and other units.” These statements directly confirm that the two key advantages are real-time control and determinism.

The other options are not supported by the study guide as core advantages of industrial Ethernet. Encryption is not listed as one of the benefits in this section, and remote access is discussed elsewhere in the OT architecture but not as a defining advantage of industrial Ethernet itself. The guide is explicit that the main benefits here are predictable delivery and real-time communication, which are essential in industrial control environments where timing and reliability matter.

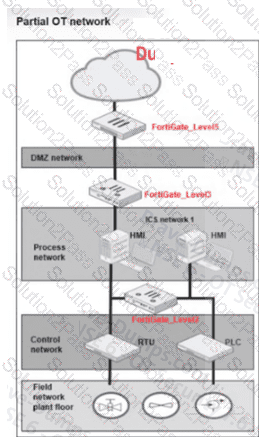

The correct answer is C. You can implement parallel redundancy protocol . The study guide explains that media redundancy involves creating a backup path that can be used when part of the network fails and specifically states that “Parallel Redundancy Protocol (PRP) can be used for a star topology.” Since the problem described is many disconnections in the links , the issue is link availability, which is a media redundancy problem rather than a firewall virtualization or policy separation problem. PRP is designed to provide a backup communication path with low recovery time when links fail.

The other options do not fit this scenario as well. HA clusters are described in the guide as a solution for network node redundancy , where a backup firewall or switch takes over when the primary device fails. SD-WAN is recommended for remote site access across multiple WAN links, not for the local floor links shown in this topology. VDOMs provide logical segmentation, not link redundancy or higher link availability. Because the question is specifically about repeated link disconnections , the best action is to implement PRP .

The correct answers are A and B .

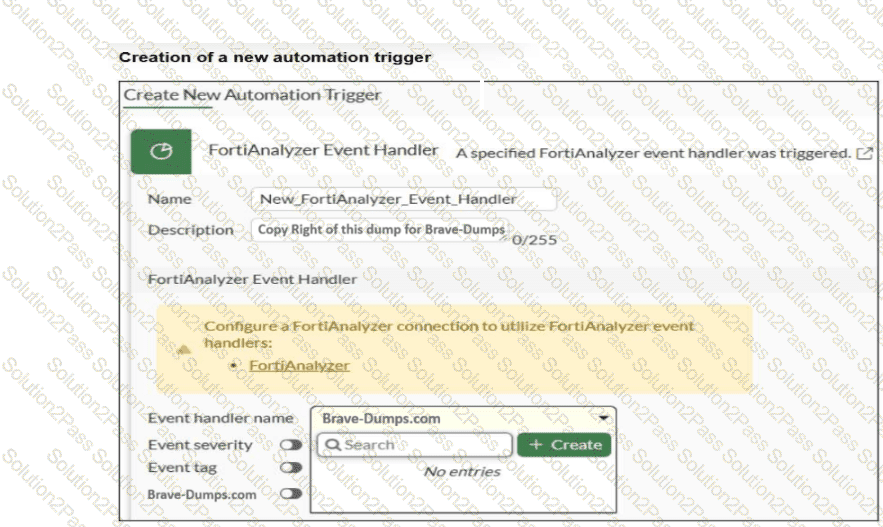

Option B is correct because the study guide states that “When a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” to FortiGate. If Automation Stitch is not enabled in the FortiAnalyzer event handler, that handler will not be usable for the FortiGate automation-stitch workflow. The guide also explains that the configuration of each event handler can include “Automation stitches” and “Rules,” showing that this is a required part of the FortiAnalyzer-to-FortiGate automation path.

Option A is also correct. The study guide explains the automation flow in the Security Fabric: “FortiAnalyzer parses the logs and notifies the root FortiGate” and then “The root FortiGate triggers the action.” That means FortiGate must have the FortiAnalyzer connection configured through the Security Fabric side before it can consume FortiAnalyzer event handlers. The warning in the exhibit about configuring a FortiAnalyzer connection also points directly to that requirement.

Option C is incorrect because + Create is not the reason the existing event handler is missing; it is only an interface control. Option D is not the best answer for this item because the question is about why the event handler name list on FortiGate is empty for FortiAnalyzer-triggered automation. The study guide’s verified requirements for that workflow are the FortiAnalyzer-to-FortiGate Fabric connection and enabling Automation Stitch on the FortiAnalyzer event handler.

Based on the architecture of FortiAnalyzer within the Security Fabric and its automation capabilities:

Automation Stitch and Reports : Within the Security Fabric environment, FortiAnalyzer serves as a key element in creating automation stitches and playbooks. For a report to be selectable within a Playbook task (such as the Run_report task shown in the exhibit), it must meet specific technical prerequisites in the report configuration.

Auto-cache Requirement (Answer C) : For a report to be used for automated generation, it must be "ready" to be processed by the engine without manual intervention. Auto-cache must be enabled in the report settings to ensure the report can be generated dynamically and efficiently when triggered by the playbook.

Extended Log Filtering (Answer B) : Playbooks often pass specific variables from the trigger (such as a specific device IP or a time range) into the report. For the report to accept these dynamic parameters and be visible as an "automation-compatible" report in the Playbook interface, Extended Log Filtering must be enabled.

Workflow Constraints : Without these two settings enabled on the report itself, the Playbook engine cannot guarantee the report's successful generation or parameter injection, and thus filters it out of the available selection list in the Run_report task.

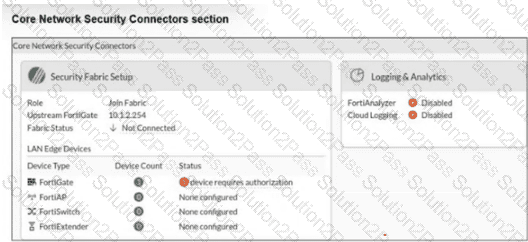

Based on the provided exhibit and the OT Security 7.6 Architect curriculum regarding the Fortinet Security Fabric :

Fabric Role : The exhibit clearly shows that FortiGate-2 has the role set to Join Fabric . This confirms it is a downstream device and not the Fabric Root (eliminating Option A).

Upstream Connection : The device is configured to point to an Upstream FortiGate at IP address 10.1.2.254 .

Fabric Status : The status is currently displayed as Not Connected . In a standard Fortinet Security Fabric deployment, once a downstream device is configured to join the fabric, it sends a request to the upstream root device. The root FortiGate must then explicitly authorize the downstream unit before the connection is established and the status changes to "Connected."

Authorization Requirement : The "Not Connected" status, while having the upstream IP correctly configured, is the classic indicator that the authorization step is pending on the root FortiGate. Furthermore, under the LAN Edge Devices section, it shows another downstream FortiGate requiring authorization on this specific unit, highlighting that authorization is a manual security requirement for all stages of the Fabric hierarchy.

FortiAnalyzer Status : While the Logging & Analytics section shows FortiAnalyzer is Disabled , this is a configuration choice and does not prevent the Security Fabric from connecting; therefore, configuring it is not the solution to the connectivity status shown (eliminating Option C).

In summary, FortiGate-2 cannot join the fabric until an administrator logs into the Root FortiGate (10.1.2.254) and authorizes the join request from FortiGate-2.

The correct answer is C. Industrial Control System (ICS) . The study guide states that “ICS is a main component of OT” and “consists of systems used for monitoring and controlling industrial processes.” It also explains that ICS includes various devices, systems, controls, and networks that manage industrial processes, and that the most common types are SCADA and distributed control systems (DCS) . This makes ICS the primary OT component for monitoring and controlling industrial processes.

The other options are related OT components, but they are not the best answer to this wording. SCADA collects real-time data and helps visualize and control the OT environment, but it is described as a system within the broader ICS structure. PLC devices collect and transmit real-time data and connect sensors and RTUs to SCADA, while IIoT refers to sensors, actuators, and other connected field devices. Therefore, the overarching main OT component for monitoring and controlling industrial processes is ICS .

The correct answer is C. The output of the CLI command get rule otvp status . In the Virtual Patching section, the study guide shows the workflow where FortiGate queries FortiGuard for device-specific vulnerabilities, receives OT virtual patching signatures, maps them to the device MAC address, and then explicitly displays the CLI verification command get rule otvp status together with fields such as Rule-name , Vuln_type , and Cve . This is the direct confirmation mechanism shown in the guide for checking whether OT devices have virtual patching rules associated with them.

The other options are less accurate for confirmation. The OT View page is for Purdue-level visualization, and the Asset Identity List page shows device and asset information, but neither is presented in the guide as the command or control used to verify virtual patching status. The study guide specifically uses get rule otvp status as the status check tied to virtual patching behavior.
