MuleSoft-Platform-Architect-I Salesforce Certified MuleSoft Platform Architect (Mule-Arch-201) Free Practice Exam Questions (2026 Updated)

Security Guidelines Overview:

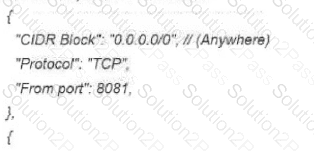

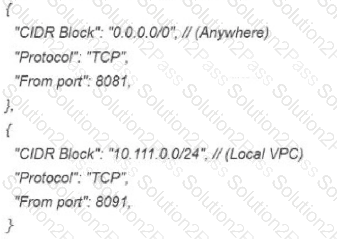

The production environment is hosted on a dedicated Virtual Private Cloud (VPC) on CloudHub 1.0, with a specific requirement from the security team that no traffic should occur over HTTP. This implies that only secure HTTPS traffic should be permitted, and HTTP access (port 8081, the default HTTP port in Mule applications) should be disabled.

Evaluating the Options:

Option A (Correct Answer): Configuring the HTTPS protocol in the HTTP listener in the Mule application ensures that all traffic is encrypted and occurs over HTTPS (port 8092 by default for HTTPS on Mule applications). This directly aligns with the security guideline to prevent unencrypted HTTP traffic.

Option B: Creating a custom policy for incoming and outgoing HTTP requests could provide some control over access, but it does not enforce the use of HTTPS exclusively. This option does not disable HTTP traffic and, therefore, does not meet the guideline effectively.

Option C (Correct Answer): Removing the entry for HTTP (port 8081) in the VPC firewall rule ensures that HTTP traffic is completely blocked at the firewall level. This prevents any HTTP requests from reaching the application, adding a layer of security that complies with the guidelines.

Option D: The IP Blocklist policy controls access based on IP addresses but does not enforce the use of HTTPS. This policy does not address the specific requirement of preventing HTTP traffic.

Option E: Adding a firewall rule entry for HTTP (port 8081) would enable HTTP traffic, which directly contradicts the security guidelines. Therefore, this option should be avoided.

Conclusion:

Option A and Option C are the correct choices. Configuring the HTTPS protocol in the Mule application’s HTTP listener ensures that only HTTPS traffic is allowed, and removing the firewall rule for HTTP (port 8081) blocks any HTTP traffic from reaching the application. Together, these options enforce secure traffic as required by the security guidelines.

Refer to MuleSoft documentation on configuring HTTP listeners and managing VPC firewall rules for further details on implementing these security controls.

Explanation

Correct Answer: Build several Bounded Context Data Models that align with coherent parts of the business processes and the definitions of associated business entities.

*****************************************

>> The options w.r.t building API data models using XML schema/ Agile API-centric practices are irrelevant to the scenario given in the question. So these two are INVALID.

>> Building EDM (Enterprise Data Model) is not feasible or right fit for this scenario as the teams and LOBs work in silo and they all have different initiatives, budget etc.. Building EDM needs intensive coordination among all the team which evidently seems not possible in this scenario.

So, the right fit for this scenario is to build several Bounded Context Data Models that align with coherent parts of the business processes and the definitions of associated business entities.

When using the Client ID Enforcement policy with default settings, MuleSoft expects the client_id and client_secret to be provided in the URI parameters of each request. This policy is typically used to control and monitor access by validating that each request has valid credentials. Here’s how to avoid a 401 Unauthorized error:

URI Parameters Requirement:

The default configuration for the Client ID Enforcement policy requires the client_id and client_secret to be included in each request’s URI parameters. This is a straightforward way to authenticate API requests without additional configurations.

Why Option C is Correct:

Providing client_id and client_secret in the URI parameters meets the policy’s requirements for each request, ensuring authorized access and avoiding the 401 error.

Explanation of Incorrect Options:

Option A (sending a token in the header) would be applicable for token-based authentication (like OAuth 2.0), not Client ID Enforcement.

Option B (request body) and Option D (header) are not valid locations for client_id and client_secret under the default configuration of Client ID Enforcement, which expects them in the URI.

ReferencesFor more details, consult MuleSoft’s documentation on Client ID Enforcement policies and expected request configurations

Explanation

Correct Answer: API Consumer

*****************************************

>> API clients are piece of code or programs that use the client credentials of API consumer but does not directly interact with Anypoint Exchange to get the access

>> API consumer is the one who should get registered and request access to API and then API client needs to use those client credentials to hit the APIs

So, API consumer is the one who needs to request access on the API from Anypoint Exchange

Explanation

Correct Answer: Create separate Anypoint VPCs for non-production and production environments, then configure connections to the backend systems in the corresponding customer-hosted environments.

*****************************************

>> Creating different Business Groups does NOT make any difference w.r.t accessing the non-prod and prod customer-hosted environments. Still they will be accessing from both Business Groups unless process network restrictions are put in place.

>> We need to modify or couple the Mule Application Implementations with the environment. In fact, we should never implements application coupled with environments by binding them in the properties. Only basic things like endpoint URL etc should be bundled in properties but not environment level access restrictions.

>> IP addresses on CloudHub are dynamic until unless a special static addresses are assigned. So it is not possible to setup firewall rules in customer-hosted infrastrcture. More over, even if static IP addresses are assigned, there could be 100s of applications running on cloudhub and setting up rules for all of them would be a hectic task, non-maintainable and definitely got a good practice.

>> The best practice recommended by Mulesoft (In fact any cloud provider), is to have your Anypoint VPCs seperated for Prod and Non-Prod and perform the VPC peering or VPN tunneling for these Anypoint VPCs to respective Prod and Non-Prod customer-hosted environment networks.

 https://docs.mulesoft.com/runtime-manager/virtual-private-cloud

Bottom of Form

Top of Form

In the API-led connectivity approach, APIs are categorized into Experience, Process, and System layers:

Enterprise Data Model Scope:

The Enterprise Data Model (EDM) generally supports System APIs and some Process APIs by defining standard data structures used across the organization. Experience APIs, however, are tailored to specific applications or interfaces and are less likely to be served directly by the EDM, as they may require customized data representations to meet the unique needs of each user interface.

Why Option C is Correct:

The Mobile Account Management EAPI serves mobile-specific needs and often requires data formatted differently from the standardized data models. Thus, it would be outside the direct scope of the EDM and might employ custom mappings to fit mobile application requirements.

Explanation of Incorrect Options:

Option A (Customer SAPI), Option B (Customer Lookup PAPI), and Option D (Service SAPI) would typically align with the EDM as they are closer to the core data and services the EDM supports.

ReferencesFor additional guidance, review MuleSoft's best practices on API-led connectivity and data modeling​.

In MuleSoft’s ecosystem, when a Process API needs to consume a System API (published to Exchange and protected by OAuth 2.0), the recommended approach is to utilize the REST Connect Connector. Here’s how it aligns with best practices:

Automated Connector Generation:

When a RAML or OAS specification is published in Exchange, MuleSoft automatically generates a REST Connect Connector for that API. This connector simplifies integration as it abstracts the complexity of making HTTP requests and handling OAuth authentication.

Streamlined Integration:

The Process API can import this generated connector from Exchange and configure OAuth credentials, streamlining secure access to the System API without manual HTTP setup.

Why Option C is Correct:

Using the REST Connect Connector directly leverages MuleSoft’s automated tooling, minimizing manual configurations and ensuring a more maintainable integration.

Explanation of Incorrect Options:

Option A (importing an OAuth module) is unnecessary; OAuth is handled within the connector’s configuration.

Option B (property YAML files with HTTP requests) involves manual setup, which is more error-prone and not recommended.

Option D (manually updating POM file) does not directly aid in invoking an API through Exchange.

ReferencesFor more information on using REST Connect Connectors and OAuth integration in MuleSoft, refer to the MuleSoft documentation on API Management and Connectors​​.

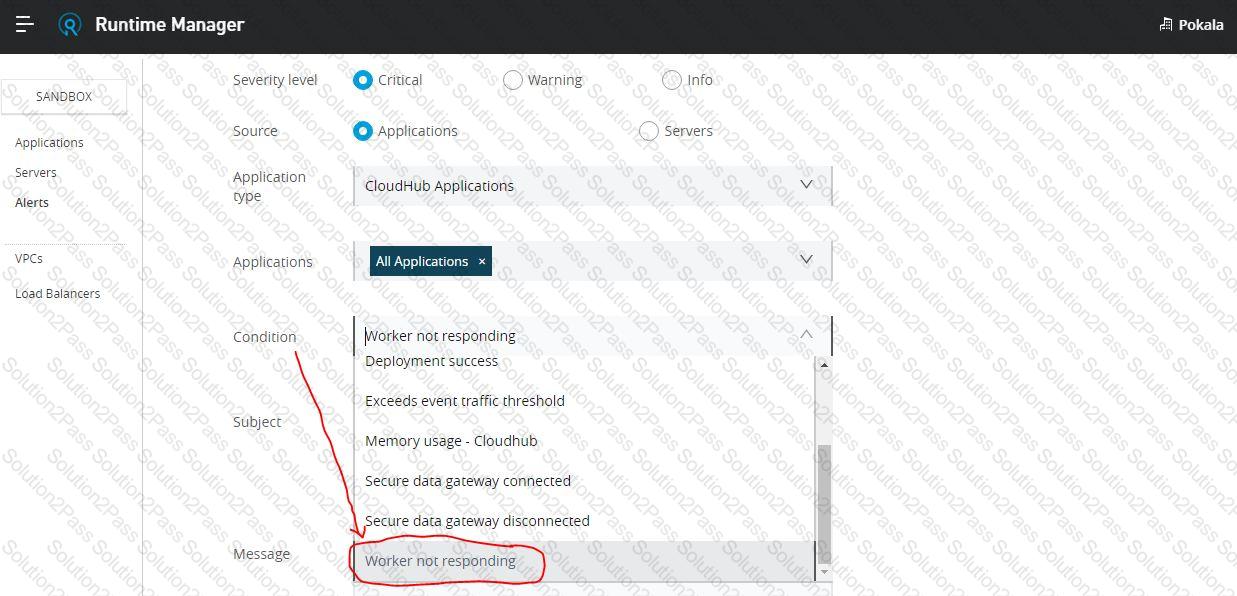

When an API implementation is deployed on CloudHub without configuring automatic restarts in case of worker non-responsiveness, MuleSoft’s monitoring and alerting behavior is as follows:

API Invocation Alerts:

If no clients are invoking the API, there will be no invocation alerts triggered, as alerts related to invocations depend on actual client requests.

Implementation-Level Alerts:

Even without invocation, CloudHub can still monitor the state of the API implementation. If the worker becomes unresponsive, an alert related to the API implementation's health or availability could still be raised.

Why Option C is Correct:

This option correctly identifies that no invocation-related alerts would be triggered in the absence of client requests, while implementation-level alerts could still be generated based on the worker's state.

ReferencesFor additional information, check MuleSoft documentation on CloudHub monitoring and alert configurations to understand worker status alerts versus invocation alerts​.

Explanation

Correct Answer: When server-side load-balanced TLS mutual authentication is required between API implementations and API clients

*****************************************

Fact/ Memory Tip: Although there are many benefits of CloudHub Dedicated Load balancer, TWO important things that should come to ones mind for considering it are:

>> Having URL endpoints with Custom DNS names on CloudHub deployed apps

>> Configuring custom certificates for both HTTPS and Two-way (Mutual) authentication.

Coming to the options provided for this question:

>> We CANNOT use DLB to perform cross-region load balancing between separate deployments of the same Mule application.

>> We can have mapping rules to have more than one DLB URL pointing to same Mule app. But vicevera (More than one Mule app having same DLB URL) is NOT POSSIBLE

>> It is true that DLB helps to setup custom DNS names for Cloudhub deployed Mule apps but NOT true for apps deployed to Customer-hosted Mule Runtimes.

>> It is true to that we can load balance API invocations across multiple CloudHub workers using DLB but it is NOT A MUST. We can achieve the same (load balancing) using SLB (Shared Load Balancer) too. We DO NOT necessarily require DLB for achieve it.

So the only right option that fits the scenario and requires us to use DLB is when TLS mutual authentication is required between API implementations and API clients.

Explanation

Correct Answer: The credentials provided by the IdP for identity management

*****************************************

Explanation

Correct Answer: The SSL certificates used by the API implementation to expose HTTPS endpoints

*****************************************

>> The assignment of each HTTP request to a particular CloudHub worker is taken care by Anypoint Platform itself. We need not manage it explicitly in the API implementation and in fact we CANNOT manage it in the API implementation.

>> The logging configuration that enables log entries to be visible in Runtime Manager is ALWAYS managed in the API implementation and NOT just for SLB. So this is not something we do EXCLUSIVELY when using SLB.

>> We DO NOT manage the number of DNS entries allocated to the API implementation inside the code. Anypoint Platform takes care of this.

It is the SSL certificates used by the API implementation to expose HTTPS endpoints that is to be managed EXCLUSIVELY by the API implementation. Anypoint Platform does NOT do this when using SLBs.

Explanation

Correct Answer: Implement different system APIs named createCustomer, amendCustomer, retrieveCustomer and suspendCustomer as they are modular and has seperation of concerns

*****************************************

>> It is quite normal to have a single API and different Verb + Resource combinations. However, this fits well for an Experience API or a Process API but not a best architecture style for System APIs. So, option with just one customerManagement API is not the best choice here.

>> The option with APIs in createCustomerInCRMZ format is next close choice w.r.t modularization and less maintenance but the naming of APIs is directly coupled with the legacy system. A better foreseen approach would be to name your APIs by abstracting the backend system names as it allows seamless replacement/migration of any backend system anytime. So, this is not the correct choice too.

>> createCustomer, amendCustomer, retrieveCustomer and suspendCustomer is the right approach and is the best fit compared to other options as they are both modular and same time got the names decoupled from backend system and it has covered all requirements a System API needs.

Explanation

Correct Answer: The number of API specifications in RAML or OAS format published to Anypoint Exchange

*****************************************

>> The success of C4E always depends on their contribution to the number of reusable assets that they have helped to build and publish to Anypoint Exchange.

>> It is NOT due to any factors w.r.t # of outages, Manual vs CI/CD deployments or Publicly accessible HTTP endpoints

>> Anypoint Platform APIs helps us to quickly run and get the number of published RAML/OAS assets to Anypoint Exchange. This clearly depicts how successful a C4E team is based on number of returned assets in the response.

Default Alert Capabilities in Anypoint Platform:

Anypoint Platform provides out-of-the-box alerting capabilities for monitoring API invocation conditions, including setting thresholds for the number of invocations.

Alerts can be configured for conditions such as high or low traffic (invocations exceeding or falling below a defined threshold).

Evaluating the Options:

Option A: Anypoint Platform does not provide direct alerting based on DNS records.

Option B: Anypoint Platform does not provide default alerts based on whether invocations use TLS/SSL; this would require custom configuration.

Option C: Geolocation-based alerting is not natively supported in Anypoint Platform.

Option D (Correct Answer): Alerts based on API invocation thresholds (e.g., invocations falling below a set threshold) are supported and can be configured as part of the default Anypoint alerting functionality.

Conclusion:

Option D is correct, as Anypoint Platform allows configuring alerts based on the number of API invocations falling below or exceeding a threshold.

Refer to MuleSoft's documentation on Anypoint Monitoring and alert configurations for more details.

Explanation

Correct Answer: Increase the size of the CloudHub worker(s)

*****************************************

The key details that we can take out from the given scenario are:

>> API implementation uses a database bulk insert command to submit all the purchase data to a database

>> JDBC driver processes the data into a set of several temporary disk files on the CloudHub worker

>> Sometimes a request fails and the logs show a message indicating an out-of-file-space message

Based on above details:

>> Both auto-scaling options does NOT help because we cannot set auto-scaling rules based on error messages. Auto-scaling rules are kicked-off based on CPU/Memory usages and not due to some given error or disk space issues.

>> Increasing the number of CloudHub workers also does NOT help here because the reason for the failure is not due to performance aspects w.r.t CPU or Memory. It is due to disk-space.

>> Moreover, the API is doing bulk insert to submit the received batch data. Which means, all data is handled by ONE worker only at a time. So, the disk space issue should be tackled on "per worker" basis. Having multiple workers does not help as the batch may still fail on any worker when disk is out of space on that particular worker.

Therefore, the right way to deal this issue and resolve this is to increase the vCore size of the worker so that a new worker with more disk space will be provisioned.

Explanation

Correct Answer: Implement required changes to the Process API implementation so that, whenever possible, the Process API’s RAML definition remains unchanged.

*****************************************

Key requirement in the question is:

>> Approach that minimizes the impact of this change on API clients

Based on above:

>> Updating the RAML definition would possibly impact the API clients if the changes require any thing mandatory from client side. So, one should try to avoid doing that until really necessary.

>> Implementing the changes as a completely different API and then redirectly the clients with 3xx status code is really upsetting design and heavily impacts the API clients.

>> Organisations and IT cannot simply postpone the changes required until all API consumers acknowledge they are ready to migrate to a new Process API or API version. This is unrealistic and not possible.

The best way to handle the changes always is to implement required changes to the API implementations so that, whenever possible, the API’s RAML definition remains unchanged.

For applications deployed on CloudHub in a foreign region (e.g., Singapore), MuleSoft handles log and monitoring data in the region where the control plane resides. This data storage policy is standard for CloudHub deployments to maintain centralized log and monitoring data.

Data Location:

For a U.S.-based control plane, all logs and monitoring data are stored in the United States, regardless of the deployment region.

Although the application itself runs in Singapore, data related to application performance and logs is not localized to the deployment region.

Explanation of Correct Answer (B):

Since the control plane is based in the United States, all operational data like logs and monitoring will also be stored there, ensuring compliance with MuleSoft’s data handling policies.

Explanation of Incorrect Options:

Option A and D are incorrect because MuleSoft does not store logs or monitoring data in the application deployment region when the control plane is located in the United States.

Option C suggests mixed storage, which does not align with MuleSoft’s data policy structure.

ReferencesFor details on data residency in CloudHub deployments, refer to MuleSoft’s documentation on CloudHub control planes and data handling policies​.

Explanation

Correct Answer: By refining the response definitions by adding the x-ratelimit-* response headers with description, type, and example

*****************************************
