UiPath-ADPv1 UiPath (ADPv1) Automation Developer Professional Exam(2023.10) Free Practice Exam Questions (2025 Updated)

Orchestrator alerts are real-time notifications related to robots, queue items, triggers, and more. Alerts can have one of the following severity levels, which indicate the importance and impact of the events1:

Info - notifies you about low importance events, that do not interrupt the process execution, such as robots becoming available, users being assigned as reviewers, etc.

Success - notifies you about a successful status, such as a job being completed, a queue item being processed, etc.

Warn - notifies you about possible risky events that may interrupt your process execution, but any interruption can be recovered, such as queue items failing with business exceptions, triggers not being able to create new jobs, etc.

Error - notifies you about imminent risky events that prevent the process from executing successfully, such as jobs failing, robots not responding, queue items failing with application exceptions, etc.

Fatal - notifies you about events that force-stop the process execution, such as robots going offline or being disconnected, etc.

Option A is the correct answer, as it lists the five severity levels of Orchestrator alerts as defined in the documentation1. Option B is incorrect, because there is no Critical severity level, but rather Fatal. Option C is incorrect, because there are no Information, Complete, or Failure severity levels, but ratherInfo, Success, and Fatal. Option D is incorrect, because there are no Completed or Fatal severity levels, but rather Success and Fatal.

The Monitoring feature in UiPath Orchestrator is a solution that provides real-time metrics to help you keep an eye on the health and state of your system1. It enables you to check the status and performance of your Robots, Machines, Queues, and Jobs in either the last hour or last day1. You can also use the Monitoring feature to filter, sort, and search for specific resources, view detailed information and charts for each resource, and access the Error Feed widget to see the errors that occurred during execution1.

The other options are incorrect because:

Option A describes the purpose of the Source Control feature in UiPath Studio, which allows you to manage your automation projects using Git or TFS2.

Option C describes the purpose of the Processes feature in UiPath Orchestrator, which allows you to deploy, configure, and run automation workflows on Robots3.

Option D describes the purpose of the Logs feature in UiPath Orchestrator, which allows you to view and download event logs and records related to executed tasks and runtime anomalies.

To print the elements of a string array separated by a specific string, the String.Join method is used in C#. This method takes two parameters: the first is the separator string and the second is the array to join into a single string.

Given the options and the requirement to separate array elements with a comma and a space (", "), the correct expression to use in a Log Message activity would be:

C. String.Join(", ", UserNames)

This will produce a single string with each element of the UserNames array separated by ", " (a comma followed by a space).

The Test Explorer panel in UiPath Studio shows information relevant to test automation, such as test cases, test results, and activity coverage1. You can use the Test Explorer toolbar to filter test results based on result state, and to run or debug test cases using various options1. According to the UiPath documentation12, the available actions in Test Explorer are:

Refresh: Refresh the information shown in the Test Results panel.

Clear execution results: Clear all execution results shown in the Test Explorer Panel.

Run All in View: Run tests that are currently in view through all filters.

Run All: Run all test cases and workflows.

Run Selected: Run only selected test cases and workflows.

Run Failed Test Cases: Run only failed test cases.

Debug Selected: Debug only selected test cases and workflows.

Debug Failed Test Cases: Debug only failed test cases.

Repeat Last Test Run: Run the latest test.

Passed Test Cases: Show only test cases that have passed.

Failed Test Cases: Show only test cases that have failed.

Not Executed Test Cases: Show only test cases that have not been executed.

Filter by Covered/Uncovered Activities: Choose whether to show in the Designer panel the activities that have been covered during the execution.

Filter by Test Cases/Workflows: Choose what to show in the Test Explorer panel.

Search Tests: Use the search function to look for test case names.

As you can see, there is no action called Run Passed Test Cases in Test Explorer, so this is the correct answer to the question.

Custom log fields are additional fields that can be added to the Robot Execution Logs using the Add Log Fields activity1. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type2. The REFramework leverages the custom log fields feature to include more information about each transaction in the log messages, such as the transaction number, the transaction item, the business process name, etc. This helps to improve the reporting and troubleshooting capabilities of the automation project, as the custom log fields can be easily viewed and filtered in the Output panel, the Orchestrator Logs page, or any external logging tool3.

Option A is incorrect, because custom log fields are not used to automatically retry failed transactions, but rather to provide more details about them. The REFramework uses the Retry Scope activity and the Set Transaction Status activity to handle the retry mechanism for failed transactions4. Option B is incorrect, because custom log fields are not used to store sensitive information, but rather to enhance the log messages. Storing sensitive information like credentials and personal data of users in the logfields is not recommended, as it may pose a security risk. Option C is incorrect, because custom log fields are not used to define the variable types for transactions, but rather to add more data about them. The REFramework uses the TransactionItem argument to store the transaction data, which can be of any type, such as QueueItem, DataRow, String, etc.

The Object Repository in UiPath organizes elements in a hierarchical structure that reflects the logical arrangement of user interfaces and elements as they are captured and used in automation projects.

The correct hierarchy for elements in the Object Repository tree structure is:

A. Version, Application, Screen, UI Element.

This hierarchy starts with the 'Version', which could refer to the specific version of the application you are automating. Under each version, there could be multiple 'Applications' that you have elements for. Within each application, you might have captured various 'Screens' or dialogs, and within each screen, there are individual 'UI Elements' like buttons, text fields, dropdown menus, etc., that the automation interacts with.

However, it's important to note that in practice, when you are working with UiPath Studio and its Object Repository, the hierarchy usually starts with the 'Application', then under it, you have different 'Screens' of the application, and under each screen, you have the 'UI Elements'. The 'Version' is typically managed separately and is not a level in the hierarchy tree but rather a property or attribute of the application or element. Therefore, the most practical answer reflecting the usage in UiPath Studio would be:

C. Application, Screen, UI Element, Version.

The 'Version' here would be understood not as a layer in the hierarchy but rather as an attribute that can be associated with the 'Application' or 'UI Element'.

For a workflow that requires covering all possible cases and transitions, especially those not easily captured by loops and If statements, a State Machine layout is most suitable. It offers a flexible structure for complex workflows with numerous states.

The correct option about a State Machine layout is that it can have only one initial state and multiple final states. A State Machine is a type of workflow that consists of a set of states, transitions, and triggers. A state represents a stage of the process, a transition represents a change from one state to another, and a trigger represents a condition or an event that activates a transition. A State Machine can have only one initial state, which is the starting point of the workflow, and one or more final states,which are the end points of the workflow. A State Machine can also have intermediate states, which are the states between the initial and the final states. A State Machine can have multiple paths and branches, depending on the logic and the triggers of the workflow.

LINQ (Language Integrated Query) in UiPath is used for efficient data manipulation. The LINQ query 'listOfintegers.Sum(Function(x) x)' correctly demonstrates how to sum integers in a list, making use of LINQ's straightforward and readable syntax.

The best practice for creating a repetitive process in the REFramework and defending against potential robot crashes such as “out of memory” is to mark all “Invoke Workflow File” activities from the Main.xaml file with the Isolated option. The Isolated option enables the workflow to run in a separate process, which reduces the memory consumption and the risk of memory leaks. It also improves the stability and the performance of the robot, as it isolates the errors and the exceptions that might occur in the invoked workflow. The Isolated option can be found in the Properties panel of the “Invoke Workflow File” activity, under the Options category. By marking all the invoked workflows as Isolated, the developer can ensure that the robot can handle a large number of transactions without crashing or slowing down

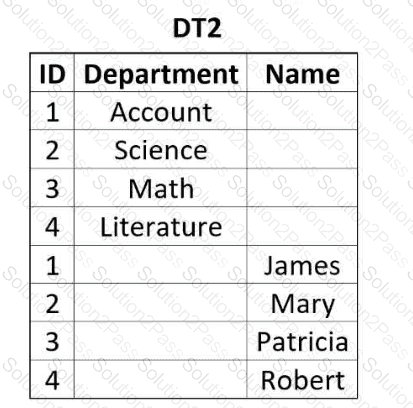

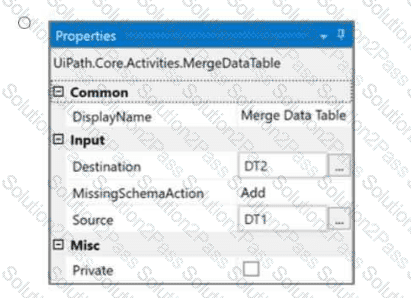

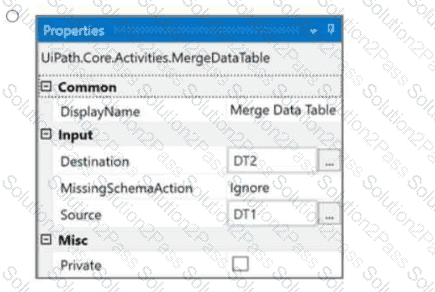

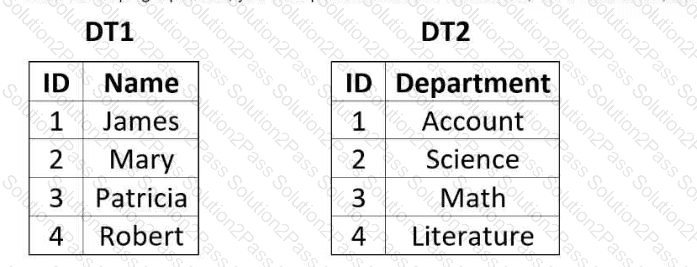

Given the two data tables DT1 and DT2, to achieve the desired result where DT2 contains both the department and the names, the Merge Data Table activity should be configured to merge DT1 into DT2. This configuration requires specifying DT1 as the source table and DT2 as the destination table. The MissingSchemaAction should be set to AddWithKey which ensures that if the source table (DT1) contains columns that are not found in the destination table (DT2), they will be added to the destination table with the primary key information preserved.

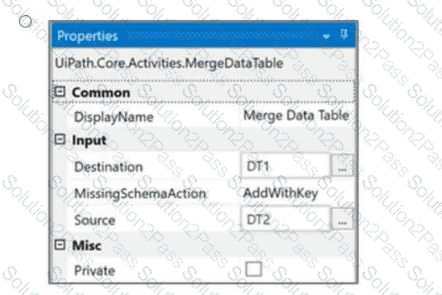

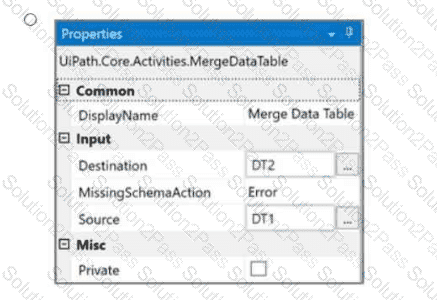

Option A shows the correct configuration for the Merge Data Table activity to achieve this result:

Destination: DT1

Source: DT2

MissingSchemaAction: AddWithKey

This setup correctly adds the "Name" column from DT1 to DT2 based on the shared "ID" column, which acts as the key. Since both tables have an "ID" column with matching values, the names will be added to the corresponding IDs in DT2, resulting in a merged table with ID, Department, and Name columns.

Test Explorer is a panel that shows information relevant to test automation in UiPath Studio. You can use Test Explorer and its sub-panels to perform various actions, such as1:

Export test results: You can export the test results shown in the Test Results panel to a JSON or HTML file, which can be used for further analysis or reporting.

Group tests together: You can group tests together based on different criteria, such as test type, test status, test suite, etc. This helps you organize and filter the tests in the Test Explorer panel.

Analyze activity coverage: You can analyze the activity coverage of your test cases by using the Activity Coverage panel, which shows the percentage of activities that have been executed during the test run. You can also filter the activities by covered or uncovered in the Designer panel.

The other options are not actions that can be done in Test Explorer, because they either involve features that are not part of Test Explorer, or they are not related to test automation. For example:

Option A is incorrect, because Test Explorer does not have a feature to export test data, but only test results. Test data can be generated or managed by using other activities, such as Generate Test Data or Test Data Queue.

Option B is incorrect, because Test Explorer does not have a feature to perform debugging, but only to run or retry tests. Debugging can be done by using the Debug tab in Studio, which allows you to set breakpoints, inspect variables, and step through the workflow.

Option D is incorrect, because Test Explorer does not have a feature to export test data, but only test results. Test data can be generated or managed by using other activities, such as Generate Test Data or Test Data Queue.

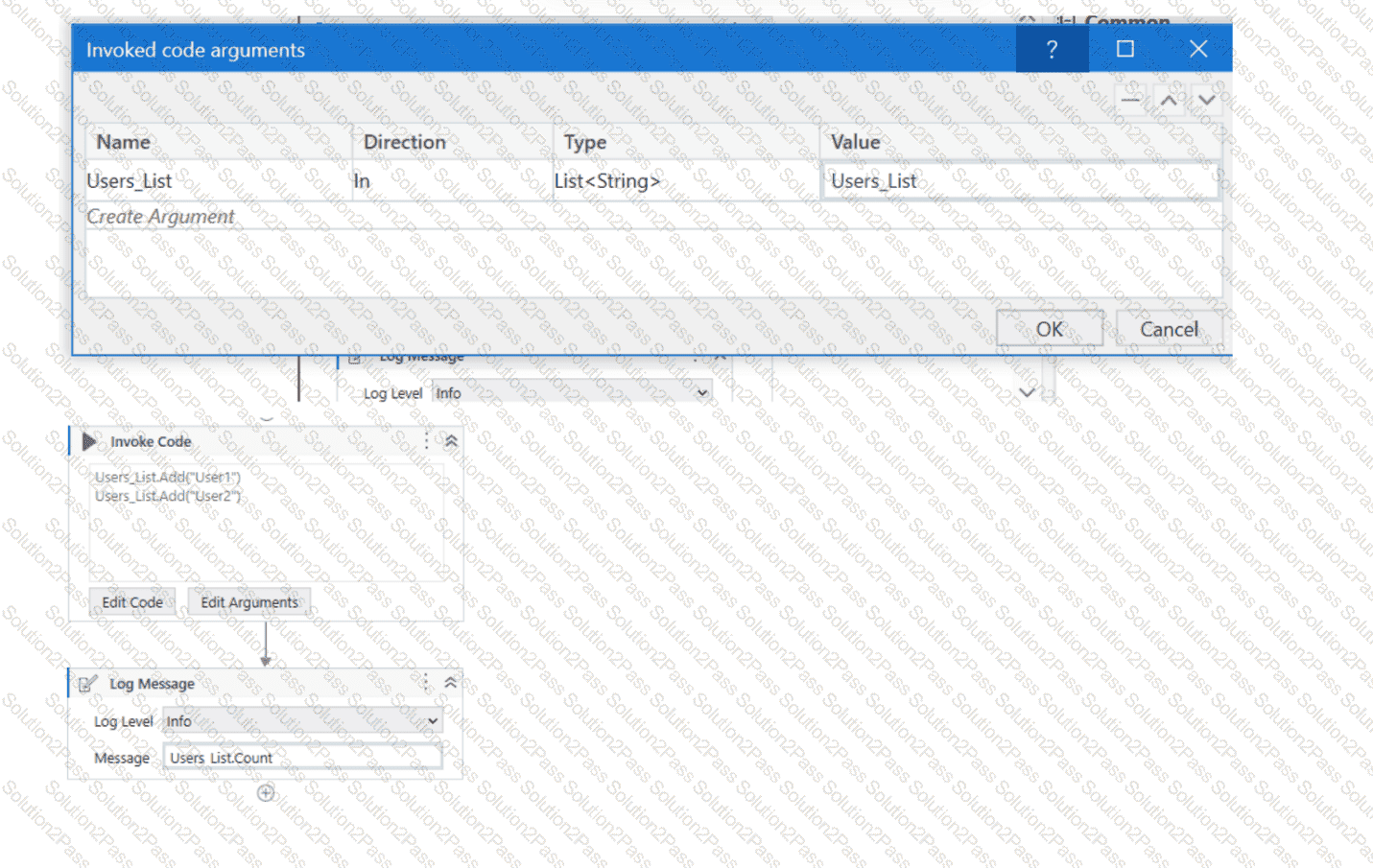

The screenshot shows an "Invoke Code" activity in UiPath with the following VB.NET code:

Users_List.Add("User1")

Users_List.Add("User2")

According to the given information, the "Users_List" variable is a List of Strings that has been initialized with an empty list before the Invoke Code activity is run. The code within the Invoke Code activity is adding two strings: "User1" and "User2" to the "Users_List".

The Log Message activity following the Invoke Code is attempting to log the count of items in "Users_List", which would be the number of elements contained in the list at that time.

Given the steps that have been described, after the Invoke Code activity has run, the "Users_List" will contain two elements ("User1" and "User2"). Therefore, the log message will print the count of items in the list, which is:

B. 2

So the correct answer is B, as the "Users_List" will have two elements and Users_List.Count will return the number 2.

The Invoke Code activity is used to execute VB.NET or C# code within a UiPath workflow1. The activity has the following properties:

Code: The code that is to be executed. This field supports only strings and String variables1.

Language: The language that the code is written in. The available options are VBNet and CSharp1.

Arguments: The parameters that can be passed to and from the code1.

In this question, the developer has created a variable of type List of Strings named “Users_List”, and initialized it with an empty list: “Users_List = new List(Of String)”. Then, the developer has used the Invoke Code activity to execute the following code:

Users_List.Add(“User1”) Users_List.Add(“User2”)

This code adds two items (“User1” and “User2”) to the “Users_List” variable. After the Invoke Code activity, the developer has used the Log Message activity to print the count of items in the “Users_List” variable, using the expression “Users_List.Count.ToString”. This expression returns the number of items in the list as a string2. Therefore, the log message will print “2”, as there are two items in the list

The UiPath Remote Runtime component is a component that enables the automation of remote applications or desktops, such as Citrix Virtual Apps, Windows Remote Desktop, or VMware Horizon, by using native selectors. Native selectors are expressions that identify UI elements reliably and accurately, without relying on OCR or image recognition activities1. The UiPath Remote Runtime component works as follows:

It is installed on the remote server where the applications or desktops are hosted.

It communicates with the dedicated UiPath extension that is installed on the client machine where Studio or Robot is installed.

It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension.

It allows the extension to generate native selectors for the remote UI elements in UIExplorer, a tool that helps you create and edit selectors2.

The UiPath Remote Runtime component is required for automating in virtual environments, as it provides a bridge between the remote server and the client machine, and enables the use of native selectors, which are more reliable and efficient than OCR or image recognition activities3.

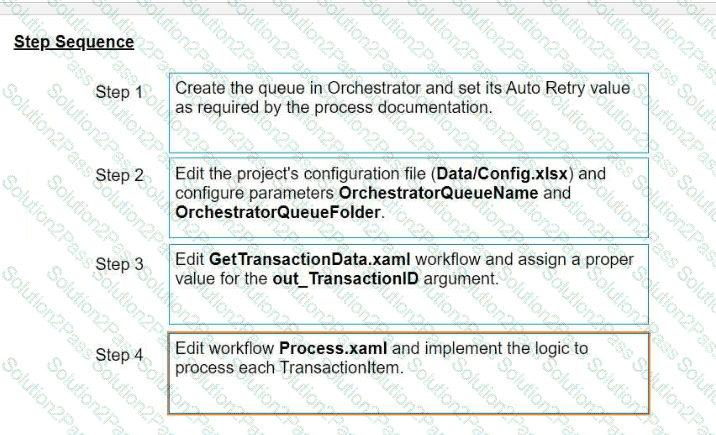

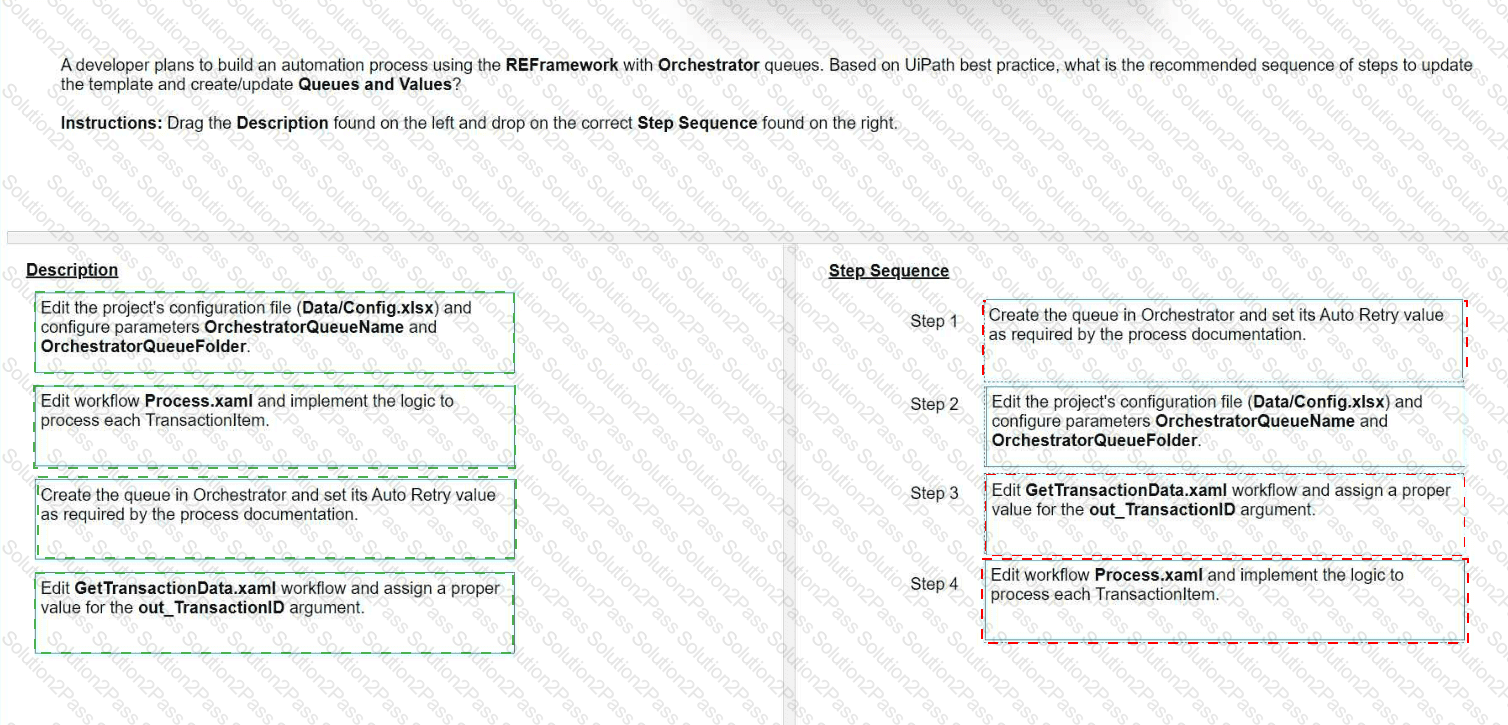

The REFramework (Robotic Enterprise Framework) is a template that provides a standard structure and best practices for building automation projects using UiPath Studio1. It uses the State Machine workflow type to handle different scenarios and exceptions in a robust and scalable way2. One of the states in the REFramework is the Get Transaction Data state, which is responsible for fetching the next transaction item from the Orchestrator queue and assigning it to a variable3. The Orchestrator queue is a data structure that stores multiple items that need to be processed by the robots4. The queue can be organized into folders, which are logical containers that help group and manage the queues and other Orchestrator entities5.

If a developer implemented a process using the REFramework and an Orchestrator queue, they need to specify the name of the queue and the folder where it is located in the Config.xlsx file, which is an Excel workbook that stores the configuration settings and constants for the project6. The name of the queue should be entered in the Settings sheet, under the OrchestratorQueueName key, and the name ofthe folder should be entered in the Constants sheet, under the OrchestratorQueueFolder key6. These values are then read by the InitAllSettings workflow, which is invoked in the Init state of the REFramework, and assigned to the in_Config argument, which is a dictionary that holds all the configuration data7.

At runtime, the Get Transaction Data state invokes the GetTransactionData workflow, which takes the in_Config argument as an input and uses it to get the queue item from the Orchestrator queue8. The workflow uses the Get Queue Items activity, which requires the QueueName and FolderPath properties to be specified9. The QueueName property is set to in_Config(“OrchestratorQueueName”).ToString, and the FolderPath property is set to in_Config(“OrchestratorQueueFolder”).ToString8. If the folder specified in the Config.xlsx file does not exist in Orchestrator, the Get Queue Items activity will throw an exception with the message “Folder does not exist” and the process will be stopped10. Therefore, the correct answer is B. The process throws an exception in the “Get Transaction Data” state because the queue folder is not found, and then the process is stopped.

The other options are incorrect because:

Option A is incorrect because the process will not continue if the queue folder is missing. The Get Queue Items activity will fail and the exception will be caught by the Try Catch block in the GetTransactionData workflow, which will set the out_TransactionItem argument to Nothing and the out_TransactionID argument to "No more data"8. This will cause the transition condition from the Get Transaction Data state to the Process Transaction state to evaluate to False, and the transition condition from the Get Transaction Data state to the End Process state to evaluate to True3. The End Process state will invoke the SetTransactionStatus workflow, which will log the exception message and the process will be stopped11.

Option C is incorrect because an exception will be thrown and a message will be logged if the queue folder is missing. The exception will be thrown by the Get Queue Items activity, as explained above, and the message will be logged by the SetTransactionStatus workflow, which uses the Log Message activity to write the exception message to the Output panel and the Orchestrator logs11.

Option D is incorrect because the process will not reach the Process Transaction state if the queue folder is missing. The Process Transaction state is responsible for executing the business logic for each transaction item and invoking the SetTransactionStatus workflow to update the status of the item in the Orchestrator queue12. However, if the queue folder is missing, the Get Queue Items activity will throw an exception and the out_TransactionItem argument will be set to Nothing, which will prevent the transition from the Get Transaction Data state to the Process Transaction state83.

In a UiPath REFramework project, the primary purpose of using Custom Log Fields is to add specific contextual information to log messages that are relevant to the automation process. Custom Log Fields are created using the Add Log Fields activity, which adds custom log fields to the Robot Execution Logs. The new log fields created via this activity are added for every Log Message execution throughout the entire workflow, unless a Remove Log Fields activity is used. Custom Log Fields can help you to maintain contextual insights within log messages, such as the business process name, the transaction data, the transaction status, or any other information that can help you to monitor, analyze, or debug the automation process. Custom Log Fields can also enhance the readability and consistency of log messages, as well as facilitate log filtering and reporting.

The command in the UiPath installation folder that configures the UIPath.RemoteDebugging.Agent utility on a Windows robot to accept remote debugging requests from Studio is UiPath-RemoteDebugging.Agent.exe enable -port -password -verbose. This command enables the remote debugging agent on the robot machine and sets the port number and the password that are required for the connection. The verbose option enables the logging of the agent activity to the console. The remote debugging agent is a utility that allows you to debug workflows on a remote robot from Studio, byusing the Remote Debugging feature. This feature enables you to connect to a remote robot, run the workflow, and inspect the variables and arguments in real time. To use this feature, you need to install the remote debugging agent on the robot machine and configure it with the same port number and password that you use in Studio. References: [Remote Debugging], [Remote Debugging Agent]
