The Extract PDF Page Range activity is used to extract a specific set of pages from a PDF file and save them as a new PDF file1. The activity has the following properties:

•Common

oDisplayName: The display name of the activity1.

•File

oFileName: The path of the PDF file you want to extract a range of pages from. This field supports only strings and String variables1.

oOutputFileName: The name you want to use for the file that is generated from the extracted range of pages. This field supports only strings and String variables1.

oPassword: The password of the PDF file, if necessary. This field supports only strings and String variables1.

•Input

oRange: The range of pages that you want to retrieve. You can specify a single page (e.g. “7”), a range of pages (e.g. “7-12”), or a complex range, (e.g. “2-5, 7, 15-End” or “All”). Only string variables and strings are supported. By default, this field is cleared1.

•Misc

oPrivate: If selected, the values of variables and arguments are no longer logged at Verbose level1.

The statement that correctly describes this activity is B. Range argument accepts complex range values or “All”. This statement is true because the Range property allows you to specify the pages that you want to extract from the PDF file using different formats, such as single pages, ranges, or complex ranges1. You can also use the keyword “All” to extract all the pages from the PDF file1.

The other statements are incorrect because:

•A. Password-protected PDF files cannot be processed with this activity. This statement is false because the activity has a Password property that allows you to enter the password of the PDF file, if necessary1. This enables the activity to process password-protected PDF files1.

•C. OutputFileName argument is optional. This statement is false because the OutputFileName property is required for the activity to work1. This property specifies the name of the file that is generated from the extracted range of pages1. If this property is not provided, the activity will throw an exception1.

•D. PageCount argument outputs the number of extracted pages. This statement is false because the activity does not have a PageCount argument1. The activity does not output the number of extracted pages, but only the new PDF file that contains the extracted pages1.

The GetTransactionData step should be mocked from the end-to-end test case in order to retrieve test data. Mocking is a technique of substituting a part of the system with a fake counterpart, usually for testing purposes1. The GetTransactionData step is responsible for fetching the next transaction item from the queue and assigning it to the TransactionItem argument2. By mocking this step, the developer can avoid interacting with the actual queue and provide a predefined transaction item for testing. This can make the test more predictable, focused, and isolated from external dependencies.

Option A is incorrect, because the SetTransactionStatus step should not be mocked, as it is used to update the status of the current transaction item in the queue, which is an important part of the end-to-end test case2. Option C is incorrect, because the Process step should not be mocked, as it contains the core business logic of the automation, such as navigating to the Reservations section, adding the reservation data, and closing the current reservation2. Option D is incorrect, because the InitAllApplications step should not be mocked, as it is used to log in to the company’s desktop application, which is a necessary precondition for the end-to-end test case2.

The Object Repository is a feature of UiPath Studio that allows you to store and manage UI elements that are used in your automation projects. You can create and edit UI descriptors for the UI elements, and reuse them across multiple workflows and projects. The Object Repository supports both the default UI framework and the Computer Vision framework for identifying UI elements.

The Computer Vision framework is a technology that uses artificial intelligence and machine learning to analyze the UI of any application and provide reliable selectors for the UI elements. The Computer Vision framework can handle complex and dynamic UIs that are not supported by the default UI framework, such as Citrix, SAP, or PDF applications.

The Capture All Elements feature in Object Repository is a feature that allows you to capture all the available elements of an application using the Computer Vision technology. You can use this feature to quickly and easily create UI descriptors for all the UI elements on the screen, without having to indicate each element individually. You can access this feature by clicking the Capture All Elements button on the Object Repository ribbon tab, or by using the Capture All Elements activity in the workflow.

The Capture All Elements feature has the following benefits:

It saves time and effort by capturing all the UI elements in one go, instead of indicating each element separately.

It ensures consistency and accuracy by using the same Computer Vision technology and selector logic for all the UI elements.

It allows you to edit, rename, or delete the UI descriptors after capturing them, and customize them according to your needs.

It enables you to reuse the UI descriptors across multiple workflows and projects, and share them with other developers.

The correct answer is C. To capture all the available elements of an application using the Computer Vision technology. This statement accurately describes the purpose of the Capture All Elements feature in Object Repository.

The other options are not correct statements. Option A is incorrect, because the Capture All Elements feature does not capture the selected elements of an application, but all the available elements. It also does not capture the elements from multiple screens simultaneously, but only from the current screen. Option B is incorrect, because the Capture All Elements feature does not capture the selected elements of an application, but all the available elements. Option D is incorrect, because the Capture All Elements feature does not capture the elements from multiple screens simultaneously, but only from the current screen.

In UiPath Testing Activities, the " Verify Expression " activity is designed to evaluate expressions and can include other activities within its body. This feature is particularly useful in test cases where you need to assert the outcome of a specific expression or condition. By embedding other activities within the " Verify Expression " activity, users can execute additional actions or checks as part of the verification process, enhancing the flexibility and depth of testing scenarios within UiPath projects.References:

UiPath Documentation: Testing Activities Guide

The default URL of the OCR server that runs the Computer Vision service is https://cv.uipath.com/. The Computer Vision service is a cloud-based service that provides OCR and AI capabilities for UiPath automation projects. The service can be accessed by using the Computer Vision activities in UiPath Studio, such as CV Screen Scope, CV Click, CV Type Into, and more. The service requires an API key and a URL to connect to the OCR server. The default URL is https://cv.uipath.com/, but it can be changed to a custom URL if the developer has a self-hosted OCR server. The API key can be obtained from the UiPath Automation Cloud portal or from the UiPath Marketplace. References: [About Computer Vision], [Computer Vision Activities]

The Get Text activity in UiPath Studio is used to extract and copy the text from a UI element. It has a property called Scraping method, which allows you to choose the method of scraping text from the target element. The available methods are Default, Text attribute, Full text, and Native.

The Default method tries all the other methods and chooses the best one automatically. The Text attribute method uses the text value of the target element as the output. The Native method uses the native method of the application to scrape the text, and allows formatting and screen coordinates to be retrieved. The Full text method uses an OCR engine to scrape the text, and offers the option to Ignore hidden text, which can be activated by selecting its respective check box.

To capture hidden text from an application, the Full text method with the Ignore hidden text option enabled should be used. This way, the Get Text activity can retrieve the text that is not visible on the screen, but is present in the UI element. For example, this method can be used to get the text from a combo box that has more items than the ones displayed, or from a terminal window that has more editable text than the ones shown.

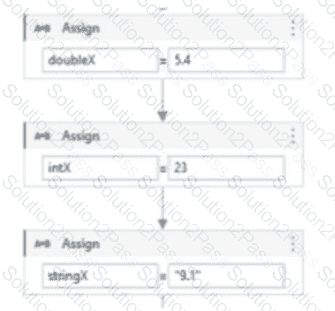

The conditional statement attempts to convert all variables to Double and then adds them up to compare against 38.30. However, the string " 9.1 " cannot be directly converted to a Double with CDbl because it is not in a correct format that can be recognized as a number (it might be due to the fact that it ' s a string with a comma instead of a period for a decimal point, depending on the culture settings of the system). This will cause a runtime error during the execution of the conditional statement.References:

Microsoft Visual Basic Guide: Type Conversion Functions

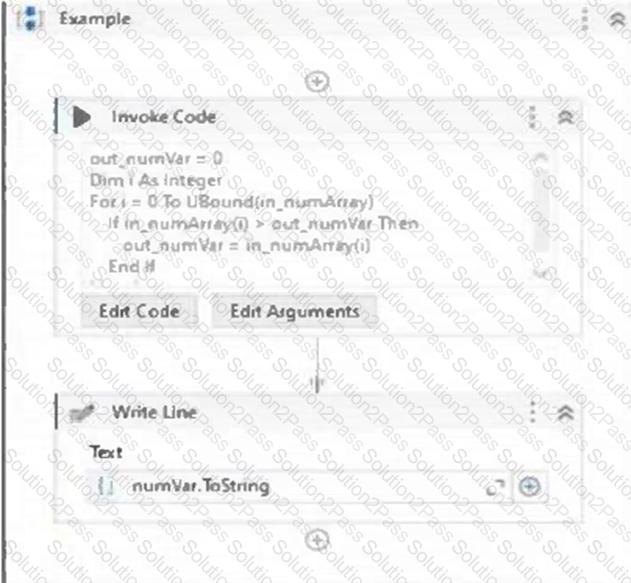

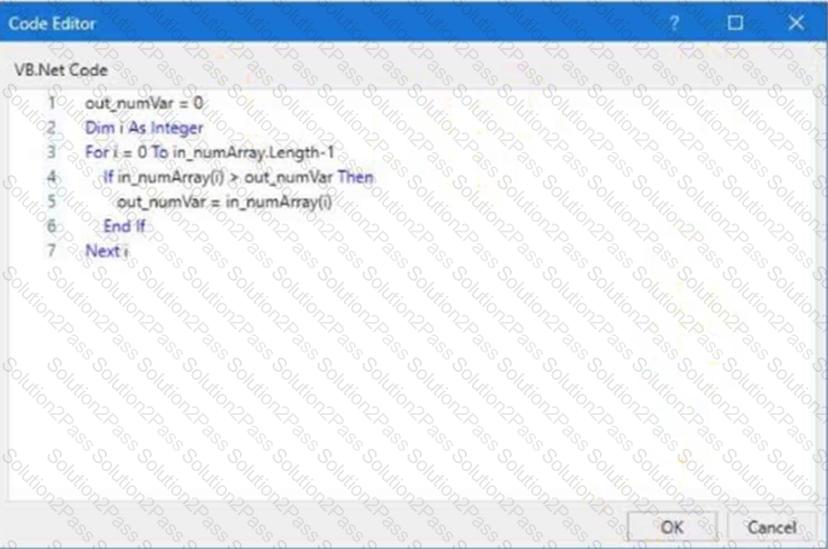

The value that will be displayed in the Output Panel at the end of the sequence is 9. This is because the code in the Invoke Code activity is looping through the array in_numArray and setting the variable out_numVar to the highest value in the array. The array in_numArray has the values {1, 2, 7, 9, 4} as shown in the list of arguments. The variable out_numVar is initialized to 0. The For loop iterates from 0 to the upper bound of the array, which is 4. In each iteration, the If condition checks if the currentelement of the array is greater than the current value of out_numVar. If it is, then out_numVar is assigned to the current element of the array. Otherwise, out_numVar remains unchanged. Therefore, after the first iteration, out_numVar becomes 1. After the second iteration, out_numVar becomes 2. After the third iteration, out_numVar becomes 7. After the fourth iteration, out_numVar becomes 9. After the fifth iteration, out_numVar remains 9, since 4 is not greater than 9. The Write Line activity outputs the value of out_numVar to the console, which is 9. References: Invoke Code

Intrigger-based attended automation, triggers can respond toapplication events, keyboard shortcuts, or UI interactions, and theycan execute workflows in parallel, eitheronce, sequentially, or simultaneously. This capability allows multiple automations to be triggered and run concurrently, which is ideal for departments like sales handling multiple requests in real-time.

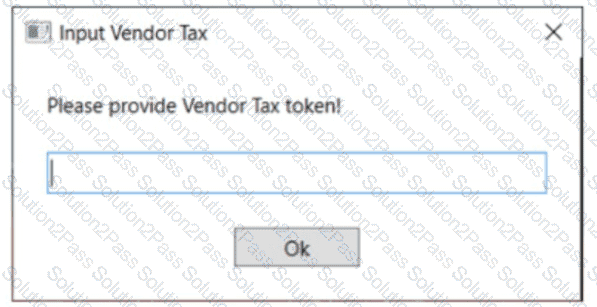

Mock Testing is a concept that allows you to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Mock Testing enables you to create a mock file of your workflow by selecting Mock workflow under test in the Create Test Case window. This creates a copy of your workflow with the name workflowName_mock and stores it in Project > Mocks. This folder mirrors the source workflow file tree structure. In the mock file, you can use the Surround with mock option to insert a mock activity that replaces the original input activity. For example, instead of asking the user to input a specific token, you can use a mock activity that assigns a predefined token value to a variable. This way, you can test the specific function of the process without having to enter the token manually every time. Mock Testing is useful for tests that have permanent effects in production or require special resources1.

The other options are incorrect because:

Option A is incorrect because Application Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Application Testing is a type of testing that focuses on verifying the functionality, usability, performance, and security of an application2.

Option B is incorrect because Data-Driven Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Data-Driven Testing is a type of testing that uses external data sources, such as Excel files or databases, to provide input values and expected results for the test cases3.

Option D is incorrect because RPA Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. RPA Testing is a type of testing that involves using robots to automate the testing of other robots or applications.

The statement that is true about the existing UiPath Studio installation packages is that the Attended Robot installation package installs only the UiPath Robot. The UiPath Robot is the component that executes the automation workflows designed in UiPath Studio. The Attended Robot installation package is intended for scenarios where the Robot works on the same machine as a human user and requires human input or supervision. The Attended Robot installation package does not include UiPath Studio or UiPath Assistant. UiPath Studio is the component that allows the developer to design and debug the automation workflows. UiPath Assistant is the component that allows the user to manage and run the automation workflows on their machine. The Unattended Robot installation package and the Automation Developer installation package both include UiPath Studio, UiPath Assistant, and UiPath Robot, but they are intended for different scenarios. The Unattended Robot installation package is for scenarios where the Robot works on a dedicated machine and does not require human input or supervision. The Automation Developer installation package is for scenarios where the developer needs to create and test the automation workflows on their machine. References: [UiPath Installation Guide], [UiPath Robot] , [UiPath Studio], [UiPath Assistant]

" Process A " :

The process is scheduled to run at 2:00 PM, but due to busy robots, it starts at 2:05 PM.

The Schedule ending of Job execution feature is configured to stop the job after 20 minutes.

Therefore, " Process A " will be stopped 20 minutes after it started, which is at 2:25 PM.

The output type returned when using a Get Test Data Queue Item activity is QueueItem. The Get Test Data Queue Item activity is an activity that allows the developer to retrieve a test data queue item from a test data queue in Orchestrator. A test data queue is a special type of queue that is used to store and manage test data for automation testing purposes. A test data queue item is a data object that contains the test data and the expected results for a test case. The Get Test Data Queue Item activity has an output property called TestDataQueueItem, which returns the test data queue item as a QueueItem type. The QueueItem type is a class that represents a queue item in Orchestrator. The QueueItem type has various properties and methods that allow the developer to access and manipulate the data and the status of the queue item. References: [Get Test Data Queue Item], [QueueItem Class]

A sequential process is a type of process design that executes actions in a straightforward progression without iteration or branching. A sequential process is composed of a series of activities that are executed one after another, from top to bottom, in a linear fashion. A sequential process is best suited for simple scenarios when activities follow each other and there is no need for complex logic or decision making12.

The other options are not appropriate for an automation task that executes actions in a straightforward progression without iteration or branching, because they involve different types of process design that require more complex structures and logic. For example:

A transactional process is a type of process design that executes actions on a set of data items, one at a time, in a loop. A transactional process is composed of a dispatcher that adds data items to a queue, and a performer that processes each data item from the queue and updates its status. A transactional process is best suited for scenarios when activities need to be repeated for each data item and there is a need for reliability and scalability34.

An iterative process is a type of process design that executes actions repeatedly until a certain condition is met or a certain number of iterations is reached. An iterative process is composed of a loop that contains a set of activities and a condition that controls the exit of the loop. An iterative process is best suited for scenarios when activities need to be performed multiple times and there is a need for dynamic control of the execution flow56.

A linear process is not a type of process design, but a term that refers to a process that has a clear start and end point, and a well-defined sequence of steps that lead to a specific outcome. A linear process can be implemented using different types of process design, depending on the complexity and logic of the steps involved7.

The Get File/Folder activity from the Microsoft 365 package should be used to retrieve the Driveitem ID for a Sharepoint URL. This activity allows you to get information about a specific file or folder from OneDrive or SharePoint, such as the name, size, ID, URL, etc. You can specify the file or folder to be retrieved by browsing, entering the ID, or entering the URL1.

To get the Driveitem ID for a Sharepoint URL, you need to do the following steps:

Use the Get File/Folder activity and select the Enter Url option in the File or folder to get property.

Enter the Sharepoint URL of the file or folder in the File or folder Url property. For example, 5.

Create a variable of type Microsoft.Graph.DriveItem in the Output property. For example, driveItem.

Use an Assign activity to get the Driveitem ID from the output variable. For example, driveItemId = driveItem.Id.

The other options are not activities that can be used to retrieve the Driveitem ID for a Sharepoint URL, because they either do not have an output property that returns the Driveitem ID, or they do not have an input property that accepts the Sharepoint URL. For example:

The Get Group activity gets information about a specific group from Microsoft 365, such as the name, ID, description, etc. It does not have an output property that returns the Driveitem ID, nor an input property that accepts the Sharepoint URL2.

The Share File/Folder activity shares a file or folder with the specified recipients. It does not have an output property that returns the Driveitem ID, but only the sharing link and the expiration date3.

The Download File activity downloads a file from OneDrive or SharePoint to a local folder. It does not have an output property that returns the Driveitem ID, but only the local path of the downloaded file4.

In UiPath Orchestrator, when a queue item fails and a recording is available (if enabled and the job was executed with recording turned on), you can access the recording directly from thecontextual menu of the failed transaction. This is done by selecting " Open recording " , which provides insight into what occurred during the automation at runtime. This feature is valuable for debugging and exception analysis.

LINQ (Language Integrated Query) is a feature of .NET that allows you to write queries to manipulate data from various sources, such as arrays, collections, databases, or XML files. LINQ provides a set of methods that can be used to perform different operations on the data, such as filtering, sorting, grouping, aggregating, or transforming.

The LINQ method that is used to filter data in a List or DataTable based on a condition is Where. The Where method returns a new collection that contains only the elements that satisfy the specified condition. The condition is usually a lambda expression or a delegate that takes an element as a parameter and returns a Boolean value. For example, if you have a List of integers called numbers, you can write:

var evenNumbers = numbers.Where (x = > x % 2 == 0);

This expression returns a new List that contains only the even numbers from the original List. Similarly, if you have a DataTable called employees, you can write:

var highSalary = employees.AsEnumerable ().Where (row = > row.Field < decimal > (\ " Salary\ " ) > 100000);

This expression returns a new DataTable that contains only the rows where the Salary column is greater than 100000. The AsEnumerable () method is used to convert the DataTable into an IEnumerable < DataRow > , which is required for using LINQ methods.

The other options are not LINQ methods that are used to filter data in a List or DataTable based on a condition. Option A, Select, is a LINQ method that is used to project or transform data from one form to another. It returns a new collection that contains the result of applying a function to each element of the source collection. Option B, GroupBy, is a LINQ method that is used to group data by a common key or attribute. It returns a new collection that contains groups of elements that share the same key value. Option C, OrderBy, is a LINQ method that is used to sort data in ascending order by a specified criterion. It returns a new collection that contains the elements of the source collection in sorted order.
