2V0-13.24 VMware Cloud Foundation 5.2 Architect Exam Free Practice Exam Questions (2025 Updated)

The architect’s design decisions for the VMware Cloud Foundation (VCF) solution must align with the hardware specifications, the latency-sensitive nature of the applications, and VMware best practices for performance optimization. To justify the decisions limiting VMs to 10 vCPUs and 256 GB RAM, we need to analyze the ESXi host configuration and the implications of NUMA (Non-Uniform Memory Access) architecture, which is critical for latency-sensitive workloads.

ESXi Host Configuration:

CPU:2 sockets, each with 10 cores (20 cores total, or 40 vCPUs with hyper-threading, assuming it’s enabled).

RAM:512 GB total, divided evenly between sockets (256 GB per socket).

Each socket represents a NUMA node, with its own local memory (256 GB) and 10 cores. NUMA nodes are critical because accessing local memory is faster than accessing remote memory across nodes, which introduces latency.

Design Decisions:

Maximum 10 vCPUs per VM:Matches the number of physical cores in one socket (NUMA node).

Maximum 256 GB RAM per VM:Matches the memory capacity of one socket (NUMA node).

Latency-sensitive applications:These workloads (e.g., research applications) require minimal latency, making NUMA optimization a priority.

NUMA Overview (VMware Context):In vSphere (a core component of VCF), each physical CPU socket and its associated memory form a NUMA node. When a VM’s vCPUs and memory fit within a single NUMA node, all memory access is local, reducing latency. If a VM exceeds a NUMA node’s resources (e.g., more vCPUs or memory than one socket provides), it spans multiple nodes, requiring remote memory access, which increases latency—a concern for latency-sensitive applications. VMware’s vSphere NUMA scheduler optimizes VM placement, but the architect can enforce performance by sizing VMs appropriately.

Option Analysis:

A. The maximum resource configuration will ensure efficient use of RAM by sharing memory pages between virtual machines:This refers to Transparent Page Sharing (TPS), a vSphere feature that allows VMs to share identical memory pages, reducing RAM usage. While TPS improves efficiency, it is not directly tied to the decision to cap VMs at 10 vCPUs and 256 GB RAM. Moreover, TPS has minimal impact on latency-sensitive workloads, as it’s a memory-saving mechanism, not a performance optimization for latency. The VMware Cloud Foundation Design Guide and vSphere documentation note that TPS is disabled by default in newer versions (post-vSphere 6.7) due to security concerns, unless explicitly enabled. This justification does not align with the latency focus or the specific resource limits, making it incorrect.

B. The maximum resource configuration will ensure the virtual machines will cross NUMA node boundaries:If VMs were designed to cross NUMA node boundaries (e.g., more than 10 vCPUs or 256 GB RAM), their vCPUs and memory would span both sockets. For example, a VM with 12 vCPUs would use cores from both sockets, and a VM with 300 GB RAM would require memory from both NUMA nodes. This introduces remote memory access, increasing latency due to inter-socket communication over the CPU interconnect (e.g., Intel QPI or AMD Infinity Fabric). For latency-sensitive applications, crossing NUMA boundaries is undesirable, as noted in the VMware vSphere Resource Management Guide. This option contradicts the goal and is incorrect.

C. The maximum resource configuration will ensure the virtual machines will adhere to a single NUMA node boundary:By limiting VMs to 10 vCPUs and 256 GB RAM, the architect ensures each VM fits within one NUMA node (10 cores and 256 GB per socket). This means all vCPUs and memory for a VM are allocated from the same socket, ensuring local memory access and minimizing latency. This is a critical optimization for latency-sensitive workloads, as remote memory access is avoided. The vSphere NUMA scheduler will place each VM on a single node, and since the VM’s resource demands do not exceed the node’s capacity, no NUMA spanning occurs. The VMware Cloud Foundation 5.2 Design Guide and vSphere best practices recommend sizing VMs to fit within a NUMA node for performance-critical applications, making this the correct justification.

D. The maximum resource configuration will ensure each virtual machine will exclusively consume a whole CPU socket:While 10 vCPUs and 256 GB RAM match the resources of one socket, this option implies exclusive consumption, meaning no other VM could use that socket. In vSphere, multiple VMs can share a NUMA node as long as resources are available (e.g., two VMs with 5 vCPUs and 128 GB RAM each could coexist on one socket). The architect’s decision does not mandate exclusivity but rather ensures VMs fit within a node’s boundaries. Exclusivity would limit scalability (e.g., only two VMs per host), which isn’t implied by the design or required by the scenario. This option overstates the intent and is incorrect.

Conclusion:The architect should record thatthe maximum resource configuration will ensure the virtual machines will adhere to a single NUMA node boundary (C). This justification aligns with the hardware specs, optimizes for latency-sensitive workloads by avoiding remote memory access, and leverages VMware’s NUMA-aware scheduling for performance.

References:

VMware Cloud Foundation 5.2 Design Guide (Section: Workload Domain Design)

VMware vSphere 8.0 Update 3 Resource Management Guide (Section: NUMA Optimization)

VMware Cloud Foundation 5.2 Planning and Preparation Workbook (Section: Host Sizing)

VMware Best Practices for Performance Tuning Latency-Sensitive Workloads (White Paper)

In VMware Cloud Foundation (VCF) 5.2, Cloud Automation (e.g., Aria Automation) and Operations (e.g., Aria Operations) products rely on identity management for authentication. The customer’s requirements—corporate directory authentication, Active/Standby across two sites, disaster recovery (DR), network zoning, slow firewall processes, and a 3-month deployment timeline—shape the design decisions. The architect must ensure authentication works efficiently across sites while meeting the timeline and DR needs. Let’s evaluate:

Key Constraints and Context:

Authentication: All users/administrators use the corporate directory (e.g., Active Directory in the corporate zone).

Deployment: Active/Standby across two sites, with management apps in a separate tooling zone behind firewalls.

DR: Management apps must recover to the standby site.

Firewall Delays: 8-week minimum per rule, but deployment must occur within 12 weeks (3 months).

Identity Broker: In VCF, VMware Workspace ONE Access (or similar) acts as an identity broker, bridging VCF components with external directories (e.g., AD via LDAP/S).

Evaluation of Options:

Option A: The Cloud Automation and Operations products will be reconfigured to integrate with the Identity Broker solution instance at the standby site in case of a Disaster Recovery incident

This implies a single Identity Broker at the primary site, with reconfiguration to a standby instance post-DR. Reconfiguring products (e.g., updating SSO endpoints) during DR adds complexity and downtime, contradicting the Active/Standby goal of seamless failover. It’s feasible but not optimal given the need for continuous operation and the 3-month timeline.

Option B: The Identity Broker solution will be deployed at both the primary and standby site

This is correct. Deploying Workspace ONE Access (or equivalent) at both sites supports Active/Standby by ensuring authentication availability at the primary site and immediate usability at the standby site post-DR. It aligns with VCF’s multi-site HA capabilities and avoids reconfiguration delays, addressing the DR requirement efficiently within the timeline.

Option C: The Identity Broker solution will be connected with the corporate directory service for user authentication

This is correct. The requirement states all users/administrators authenticate via the corporate directory (in the corporate zone). An Identity Broker (e.g., Workspace ONE Access) connects to AD via LDAP/S, acting as a proxy between the management tooling zone and corporate zone. This satisfies the authentication need and simplifies firewall rules (one broker-to-AD connection vs. multiple app connections), critical given the 8-week delay.

Option D: The Identity Broker solution will be deployed at the primary site and failed over to the standby site in case of a disaster

This suggests a single Identity Broker with DR failover. While possible (e.g., via vSphere Replication), it risks authentication downtime during failover, conflicting with Active/Standby continuity. The 8-week firewall rule delay for the standby site’s broker connection post-DR also jeopardizes the 3-month timeline and DR readiness, making this less viable than dual-site deployment (B).

Option E: The Cloud Automation and Operations products will be integrated with a single instance of an Identity Broker solution at the primary site

This is correct. Integrating Aria products with one Identity Broker instance at the primary site during initial deployment simplifies setup and meets the 3-month timeline. It leverages the broker deployed at the primary site (part of B) for authentication, minimizing firewall rules (one broker vs. multiple apps). Pairing this with a standby instance (B) ensures DR readiness without immediate complexity.

Option F: The Cloud Automation and Operations products will be integrated directly with the corporate directory service

This is incorrect. Direct integration requires each product (e.g., Aria Automation, Operations) to connect to AD across the firewall, necessitating multiple rule requests. With an 8-week minimum per rule and several products, this exceeds the 3-month timeline. It also complicates DR, as each app would need re-pointing to a standby AD, violating efficiency and zoning policies.

Conclusion:

The three design decisions are:

B: Identity Broker at both sites ensures Active/Standby and DR readiness.

C: Connecting the broker to the corporate directory fulfills the authentication requirement and simplifies firewall rules.

E: Integrating products with a primary-site broker meets the 3-month deployment goal while leveraging B and C for DR.This trio balances timeline, security, and DR needs in VCF 5.2.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Identity and Access Management)

VMware Aria Automation 8.10 Documentation (integrated in VCF 5.2): Authentication Design

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Multi-Site and DR Considerations)

The requirements specify centralized management components and a 99.99% availability SLA (allowing ~52 minutes of downtime per year) in a VMware Cloud Foundation (VCF) 5.2 multi-AZ design. In VCF, management components (e.g., SDDC Manager, vCenter, NSX Manager) are typically deployed in a Management Domain, and multi-AZ designs leverage availability zones for resilience. Let’s evaluate each option:

Option A: Implement a stretched L2 VLAN for the infrastructure management components between the AZsA stretched L2 VLAN extends network segments across AZs, potentially supporting centralized management. However, it doesn’t inherently ensure 99.99% availability without additional HA mechanisms (e.g., vSphere HA, NSX clustering). TheVCF 5.2 Architectural Guidenotes that L2 stretching alone lacks failover orchestration and may introduce latency or single points of failure if not paired with a stretched cluster, making it insufficient here.

Option B: Select two distant AZs and configure separate management workload domainsSeparate management workload domains in distant AZs decentralize management components (e.g., separate SDDC Managers, vCenters), violating the requirement for centralization. TheVCF 5.2 Administration Guidestates that multiple management domains increase complexity and don’t inherently meet high availability SLAs without cross-site replication, ruling this out.

Option C: Implement VMware Live Recovery between the selected AZsVMware Live Recovery (part of VMware’s DR portfolio, integrating Site Recovery Manager and vSphere Replication) provides disaster recovery across AZs. It ensures centralized management components (in one AZ) can fail over to a secondary AZ, maintaining an RTO/RPO that supports 99.99% availability when properly configured (e.g., <5-minute failover with replication). TheVCF 5.2 Architectural Guiderecommends Live Recovery for multi-AZ resilience while keeping management centralized, making it a strong fit.

Option D: Implement separate VLANs for the infrastructure management components within each AZSeparate VLANs per AZ enhance network isolation but imply distributed management components across AZs, contradicting the centralized requirement. Even if management is centralized in one AZ, separate VLANs don’t directly improve availability to 99.99% without HA or DR mechanisms, per theVCF 5.2 Networking Guide.

Option E: Select two close proximity AZs and configure a stretched management workload domainA stretched management workload domain spans two close AZs (e.g., <10ms latency) using vSphere HA, vSAN stretched clusters, and NSX federation. This keeps management components centralized (single SDDC Manager, vCenter) while achieving 99.99% availability through synchronous replication and automatic failover. TheVCF 5.2 Architectural Guidehighlights stretched clusters as a best practice for multi-AZ designs, ensuring minimal downtime (e.g., seconds during host/AZ failure), meeting the SLA.

Conclusion:

C: VMware Live Recovery enables centralized management with DR failover, supporting 99.99% availability.

E: A stretched management domain in close AZs ensures centralized, highly available management with near-zero downtime.These decisions align with VCF 5.2 multi-AZ best practices.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Multi-AZ Design and Stretched Clusters.

VMware Cloud Foundation 5.2 Administration Guide(docs.vmware.com): Management Domain Resilience.

VMware Live Recovery Documentation(docs.vmware.com): DR for VCF Environments.

In VMware’s design methodology (aligned with VCF 5.2), requirements are classified asfunctional(what the system must do) ornon-functional(how the system must perform or constraints it must meet). Functional requirements describe specific capabilities or behaviors, while non-functional requirements cover quality attributes, constraints, or compliance. Let’s categorize each:

Option A: The design must satisfy PCI-DSS compliancePCI-DSS (Payment Card Industry Data Security Standard) compliance is a non-functional requirement. It defines security and operational standards (e.g., encryption, access control) rather than a specific system function. TheVCF 5.2 Architectural Guidetreats compliance as a constraint or quality attribute, not a functional capability.

Option B: The database server must support a minimum of 15,000 transactions per secondThis is a functional requirement. It specifies a measurable capability—the database server’s ability to process 15,000 transactions per second—directly tied to workload performance. TheVCF 5.2 Design Guideclassifies such performance metrics as functional, as they dictate what the system must achieve.

Option C: The storage network must have a minimum latency of 10 milliseconds prior to path failoverThis is a non-functional requirement. It defines a quality attribute (latency) and a performance threshold for the storage network, not a specific function. VMware documentation categorizes latency and failover characteristics as non-functional, focusing on “how” the system operates.

Option D: The Production environment must be deployed into the primary data centerThis is a non-functional requirement or constraint. It specifies a location or deployment condition rather than a system capability. TheVCF 5.2 Architectural Guidetreats deployment location as a design constraint, not a functional behavior.

Option E: The platform must be capable of running 1500 virtual machines across both data centersThis is a functional requirement. It defines a specific capability—the platform’s capacity to support 1500 VMs across two data centers—quantifying what the system must do. VMware’s design methodology includes such capacity requirements as functional, per theVCF 5.2 Design Guide.

Conclusion:

B: A functional requirement specifying database transaction capacity.

E: A functional requirement defining VM hosting capability.These two focus on “what” the system must deliver, distinguishing them from non-functional constraints or qualities.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Section on Requirements Classification.

VMware Cloud Foundation 5.2 Design Guide(docs.vmware.com): Functional vs. Non-Functional Requirements.

When migrating 5000 virtual machines (VMs) from an existing vSphere environment to a new VMware Cloud Foundation (VCF) 5.2 infrastructure, the primary goals are to minimize downtime and automate the process as much as possible. VMware Cloud Foundation 5.2 is a full-stack hyper-converged infrastructure (HCI) solution that integrates vSphere, vSAN, NSX, and Aria Suite for a unified private cloud experience. Given the scale of the migration (5000 VMs) and the requirement to transition from an existing vSphere environment to a new VCF infrastructure, the architect must select a tool that supports large-scale migrations, minimizes downtime, and provides automation capabilities across potentially different environments or data centers.

Let’s evaluate each option in detail:

A. VMware HCX:VMware HCX (Hybrid Cloud Extension) is an application mobility platform designed specifically for large-scale workload migrations between vSphere environments, including migrations to VMware Cloud Foundation. HCX is included in VCF Enterprise Edition and provides advanced features such as zero-downtime live migration, bulk migration, and network extension. It automates the creation of hybrid interconnects between source and destination environments, enabling seamless VM mobility without requiring IP address changes (via Layer 2 network extension). HCX supports migrations from older vSphere versions (as early as vSphere 5.1) to the latest versions included in VCF 5.2, making it ideal for brownfield-to-greenfield transitions. For a migration of 5000 VMs, HCX’s ability to perform bulk migrations (hundreds of VMs simultaneously) and its high-availability features (e.g., redundant appliances) ensure minimal disruption and efficient automation. HCX also integrates with VCF’s SDDC Manager, aligning with the centralized management paradigm of VCF 5.2.

B. vSphere vMotion:vSphere vMotion enables live migration of running VMs from one ESXi host to another within the same vCenter Server instance with zero downtime. While this is an excellent tool for migrations within a single data center or vCenter environment, it is limited to hosts managed by the same vCenter Server. Migrating VMs to a new VCF infrastructure typically involves a separate vCenter instance (e.g., a new management domain in VCF), which vMotion alone cannot handle. For 5000 VMs, vMotion would require manual intervention for each VM and would not scale efficiently across different environments or data centers, making it unsuitable as the primary tool for this scenario.

C. VMware Converter:VMware Converter is a tool designed to convert physical machines or other virtual formats (e.g., Hyper-V) into VMware VMs. It is primarily used for physical-to-virtual (P2V) or virtual-to-virtual (V2V) conversions rather than migrating existing VMware VMs between vSphere environments. Converter involves downtime, as it requires powering off the source VM, cloning it, and then powering it on in the destination environment. For 5000 VMs, this process would be extremely time-consuming, lack automation for large-scale migrations, and fail to meet the requirement of minimizing downtime, rendering it an impractical choice.

D. Cross vCenter vMotion:Cross vCenter vMotion extends vMotion’s capabilities to migrate VMs between different vCenter Server instances, even across data centers, with zero downtime. While this feature is powerful and could theoretically be used to move VMs to a new VCF environment, it requires both environments to be linked within the same Enhanced Linked Mode configuration and assumes compatible vSphere versions. For 5000 VMs, Cross vCenter vMotion lacks the bulk migration and automation capabilities offered by HCX, requiring significant manual effort to orchestrate the migration. Additionally, it does not provide network extension or the same level of integration with VCF’s architecture as HCX.

Why VMware HCX is the Best Choice:VMware HCX stands out as the recommended solution for this scenario due to its ability to handle large-scale migrations (up to hundreds of VMs concurrently), minimize downtime via live migration, and automate the process through features like network extension and migration scheduling. HCX is explicitly highlighted in VCF 5.2 documentation as a key tool for workload migration, especially for importing existing vSphere environments into VCF (e.g., via the VCF Import Tool, which complements HCX). Its support for both live and scheduled migrations ensures flexibility, while its integration with VCF 5.2’s SDDC Manager streamlines management. For a migration of 5000 VMs, HCX’s scalability, automation, and minimal downtime capabilities make it the superior choice over the other options.

References:

VMware Cloud Foundation 5.2 Release Notes (techdocs.broadcom.com)

VMware Cloud Foundation Deployment Guide (docs.vmware.com)

"Enabling Workload Migrations with VMware Cloud Foundation and VMware HCX" (blogs.vmware.com, May 3, 2022)

The test case must validate all three requirements: maintaining 1,000 TPS during business hours (REQ001), using automatic DRS and HA (REQ002), and ensuring maintenance occurs outside business hours (REQ003, implying minimal disruption during business hours). Let’s assess each:

Option A: Trigger a vSphere High Availability (HA) failover activityHA failover (e.g., host failure) tests automatic VM restarts (REQ002) and ensures TPS (REQ001) remains at 1,000 during business hours under failure conditions (excluding DR, as this is intra-site). TheVCF 5.2 Administration Guiderecommends HA testing to validate availability, making this valid.

Option B: Trigger a vSAN disk group cache drive failureA cache drive failure in vSAN tests data resilience and HA’s ability to restart VMs if needed (REQ002), while monitoring TPS (REQ001) during business hours. ThevSAN Administration Guidesupports this as a standard test for vSAN performance and recovery, aligning with the requirements.

Option C: Trigger fully automatic DRS vMotion activityFully automatic DRS triggers vMotion to balance loads (REQ002), testing TPS (REQ001) during business hours without disruption. While not maintenance, it validates DRS automation’s impact on performance, per thevSphere Resource Management Guide, making it a valid test.

Option D: Trigger a vCenter upgrade workflowA vCenter upgrade is a planned maintenance activity (REQ003) that should occur outside business hours. Performing it during business hours to monitor TPS contradicts REQ003 and isn’t a typical test for DRS/HA (REQ002) or application performance (REQ001), as it affects management, not workloads directly. TheVCF 5.2 Administration Guidetreats upgrades as separate from runtime validation.

Conclusion:Option D is not a valid test case, as it violates REQ003 and doesn’t directly validate REQ001 or REQ002 in a runtime context.References:

VMware Cloud Foundation 5.2 Administration Guide(docs.vmware.com): HA and vSAN Testing.

vSphere Resource Management Guide(docs.vmware.com): DRS Automation Testing.

vSAN Administration Guide(docs.vmware.com): Disk Failure Scenarios.

VMware Cloud Foundation (VCF) 5.2 offers various architecture models (Consolidated, Standard) and topologies (Single/Multiple Instance, Single/Multiple Availability Zones) to meet different requirements. The client’s needs—high security, isolation, six vSAN-ready nodes, and no additional budget—guide the architect’s choice. Let’s evaluate each option:

Option A: Single Instance - Multiple Availability Zone Standard architecture model

This model uses a single VCF instance with separate Management and VI Workload Domains across multiple availability zones (AZs) for resilience. It requires at least four nodes per AZ (minimum for vSAN HA), meaning six nodes are insufficient for two AZs (eight nodes minimum). It also increases complexity and doesn’t inherently enhance isolation from other infrastructures. This option is impractical given the node constraint.

Option B: Single Instance Consolidated architecture model

The Consolidated model runs management and workload components on a single cluster (minimum four nodes, up to eight typically). With six nodes, this is feasible and capacity-efficient, but it compromises isolation because management and user workloads share the same infrastructure. For a “highly secure” and “isolated” project, mixing workloads increases the attack surface and risks compliance, making this less suitable despite fitting the node count.

Option C: Single Instance - Single Availability Zone Standard architecture model

This is the correct answer. The Standard model separates management (minimum four nodes) and VI Workload Domains (minimum three nodes, but often four for HA) within a single VCF instance and AZ. With six nodes, the architect can allocate four to the Management Domain and two to a VI Workload Domain (or adjust based on capacity). A single AZ fits the budget constraint (no extra nodes), and isolation is achieved by dedicating the VCF instance to this project, separate from other infrastructures. The high-density vSAN nodes support both domains, and security is enhanced by logical separation of management and workloads, aligning with VCF 5.2 best practices for secure deployments.

Option D: Multiple Instance - Single Availability Zone Standard architecture model

Multiple VCF instances (e.g., one for management, one for workloads) in a single AZ require separate node pools, each with a minimum of four nodes for vSAN. Six nodes cannot support two instances (eight nodes minimum), making this option unfeasible given the budget and hardware constraints.

Conclusion:TheSingle Instance - Single Availability Zone Standard architecture model(Option C) is the best fit. It uses six nodes efficiently (e.g., four for Management, two for Workload), ensures isolation by dedicating the instance to the project, and meets security needs through logical separation, all within the budget limitation.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Architecture Models and Topologies)

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Sizing and Isolation Considerations)

In VMware Cloud Foundation (VCF) 5.2, assumptions are statements taken as true for design purposes, but they introduce risks if unverified. The architect must identify risks—potential issues that could impact the solution’s success—stemming from these assumptions and include them in the design document. Let’s evaluate each option against the assumptions:

Option A: The physical network infrastructure may not provide sufficient bandwidth to support the user workloadsThis is correct. The assumption states that the physical network infrastructure “will not exceed the maximum latency requirements,” but it doesn’t address bandwidth. In VCF, user workloads (e.g., in VI Workload Domains) rely on network bandwidth for performance (e.g., vSAN traffic, VM communication). Insufficient bandwidth could degrade workload performance or scalability, despite meeting latency requirements. This is a direct risk tied to an unaddressed aspect of the network assumption, making it a necessary inclusion.

Option B: The customer may not have sufficient data center power, cooling, and physical rack space availableThis is incorrect as a mandatory risk in this context. The assumption explicitly states that “the data center offers sufficient power, cooling, and rack space” for the required hosts. While it’s possible this could be untrue, the risk is already implicitly covered by questioning the assumption’s validity. Including this risk would be redundant unless specific evidence (e.g., unverified data center specs) suggests doubt, which isn’t provided. Other risks (A, C) are more immediate and distinct.

Option C: The customer may not have licensing that covers all of the physical cores the design requiresThis is correct. The assumption states that “the customer will provide sufficient licensing for the scale of the new solution.” In VCF 5.2, licensing (e.g., vSphere, vSAN, NSX) is core-based, and misjudging the number of physical cores (e.g., due to host specs or scale) could lead to insufficient licenses. This riskdirectly challenges the assumption’s accuracy—if the customer’s licensing doesn’t match the design’s core count, deployment could stall or incur unplanned costs. It’s a critical risk to document.

Option D: The assumptions may not be approved by a majority of the customer stakeholders before the solution is deployedThis is incorrect. While stakeholder approval is important, this is a process-related risk, not a technical or operational risk tied to the assumptions’ content. The VMware design methodology focuses risks on solution impact (e.g., performance, capacity), not procedural uncertainties like consensus. This risk is too vague and outside the scope of the assumptions’ direct implications.

Conclusion:The two risks the architect must include are:

A: Insufficient network bandwidth (not covered by the latency assumption).

C: Inadequate licensing for physical cores (directly tied to the licensing assumption).These align with VCF 5.2 design principles, ensuring potential gaps in network performance and licensing are flagged for validation or mitigation.

References:

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Risk Identification)

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Network and Licensing Considerations)

VMware Aria Operations Continuous Availability (CA) is a feature in VMware Aria Operations (integrated with VMware Cloud Foundation 5.2) that provides high availability by splitting analytics nodes across two fault domains (datacenters) with a Witness Node in a third location to arbitrate in case of a split-brain scenario. The Witness Node has specific network requirements for latency and bandwidth to ensure reliable communication with the primary and replica nodes. These requirements are outlined in the VMware Aria Operations documentation, which aligns with VCF 5.2 integration.

VMware Aria Operations CA Witness Node Network Requirements:

Network Latency:

The Witness Node requires a round-trip latency ofless than 100msbetween itself and both fault domains under normal conditions.

Peak latency spikes are acceptable if they are temporary and do not exceed operational thresholds, but sustained latency above 100ms can disrupt Witness functionality.

Network Bandwidth:

The minimum bandwidth requirement for the Witness Node is10Mbits/sec(10 Mbps) to support heartbeat traffic, state synchronization, and arbitration duties. Lower bandwidth risks communication delays or failures.

Network Stability:

Temporary latency spikes (e.g., during 20-second intervals) are tolerable as long as the baseline latency remains within limits and bandwidth supports consistent communication.

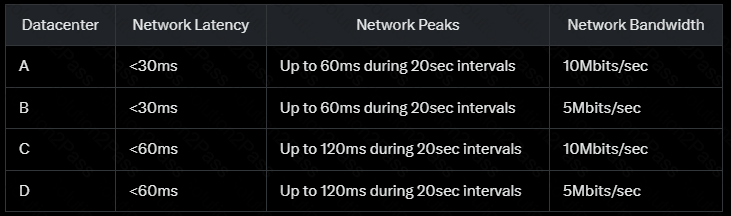

Evaluation of Each Datacenter:

Datacenter A: <30ms latency, peaks up to 60ms during 20sec intervals, 10Mbits/sec bandwidth

Latency: Baseline latency is <30ms, well below the 100ms threshold. Peak latency of 60ms during 20-second intervals is still under 100ms and temporary, posing no issue.

Bandwidth: 10Mbits/sec meets the minimum requirement.

Conclusion: Datacenter A fully satisfies the Witness Node requirements.

Datacenter B: <30ms latency, peaks up to 60ms during 20sec intervals, 5Mbits/sec bandwidth

Latency: Baseline <30ms and peaks up to 60ms are acceptable, similar to Datacenter A.

Bandwidth: 5Mbits/sec falls below the required 10Mbits/sec, risking insufficient capacity for Witness Node traffic.

Conclusion: Datacenter B does not meet the bandwidth requirement.

Datacenter C: <60ms latency, peaks up to 120ms during 20sec intervals, 10Mbits/sec bandwidth

Latency: Baseline <60ms is within the 100ms limit, but peaks of 120ms exceed the threshold. While temporary (20-second intervals), such spikes could disrupt Witness Node arbitration if they occur during critical operations.

Bandwidth: 10Mbits/sec meets the requirement.

Conclusion: Datacenter C fails due to excessive latency peaks.

Datacenter D: <60ms latency, peaks up to 120ms during 20sec intervals, 5Mbits/sec bandwidth

Latency: Baseline <60ms is acceptable, but peaks of 120ms exceed 100ms, similar to Datacenter C, posing a risk.

Bandwidth: 5Mbits/sec is below the required 10Mbits/sec.

Conclusion: Datacenter D fails on both latency peaks and bandwidth.

Conclusion:

OnlyDatacenter Ameets the minimum network requirements for the Witness Node in Aria Operations Continuous Availability. Its baseline latency (<30ms) and peak latency (60ms) are within the 100ms threshold, and its bandwidth (10Mbits/sec) satisfies the minimum requirement. Datacenter B lackssufficient bandwidth, while Datacenters C and D exceed acceptable latency during peaks (and D also lacks bandwidth). In a VCF 5.2 design, the architect would recommend Datacenter A for the Witness Node to ensure reliable CA operation.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Aria Operations Integration)

VMware Aria Operations 8.10 Documentation (integrated in VCF 5.2): Continuous Availability Planning

VMware Aria Operations 8.10 Installation and Configuration Guide (Section: Network Requirements for Witness Node)

In VMware Cloud Foundation (VCF) 5.2, Aria Operations (formerly vRealize Operations) is deployed via SDDC Manager to monitor the environment. SDDC Manager automates the deployment of Aria components, including networking configuration, using Application Virtual Networks (AVNs). AVNs provide isolated network segments for management components. The question asks for valid AVNs for Aria Operations, which operates within the Management Domain. Let’s evaluate:

VCF Networking Context:

Region-Specific (Region-A): Refers to a single VCF instance or region, typically the Management Domain’s scope.

Cross-Region (X-Region): Spans multiple regions or instances, used for components needing broader connectivity.

VLAN-backed: Traditional Layer 2 VLANs on physical switches, common for management traffic.

Overlay-backed: NSX-T virtual segments using Geneve encapsulation, used for flexibility and isolation.

Aria Operations Deployment:

Deployed in the Management Domain by SDDC Manager onto a single cluster.

Requires connectivity to vCenter, NSX, and ESXi hosts for monitoring, typically using management network segments.

SDDC Manager assigns Aria Operations to an AVN during deployment, favoring VLAN-backed segments for simplicity and compatibility with management traffic.

Evaluation:

Option A: Region-A - Overlay backed segment

Overlay segments (NSX-T) are supported in VCF for workload traffic or advanced isolation, but Aria Operations, as a management component, typically uses VLAN-backed segments for direct connectivity to other management services (e.g., vCenter, SDDC Manager). While technically possible, SDDC Manager defaults to VLANs for Aria deployments unless explicitly overridden, making this less standard and not a primary valid choice.

Option B: Region-A - VLAN backed segment

This is correct. A VLAN-backed segment in Region-A aligns with the Management Domain’s networking, where Aria Operations resides. SDDC Manager uses VLANs (e.g., Management VLAN) for management components to ensure straightforward deployment and connectivity to vSphere/NSX. This is a valid and common AVN for Aria Operations in VCF 5.2.

Option C: X-Region - VLAN backed segment

This is correct. An X-Region VLAN-backed segment supports cross-region management traffic, which is valid if Aria Operations monitors multiple VCF instances or domains (e.g., Management and VI Workload Domains across regions). SDDC Manager supports this for broader visibility, making it a valid AVN, especially in multi-site designs.

Option D: X-Region - Overlay backed segment

Similar to Option A, overlay segments are feasible with NSX-T but less common for Aria Operations. X-Region overlay could theoretically work for multi-site monitoring, but SDDC Manager prioritizes VLANs for management simplicity and compatibility. This is not a default or primary valid choice.

Conclusion:The two valid Application Virtual Networks for Aria Operations deployment using SDDC Manager areRegion-A - VLAN backed segment (B)andX-Region - VLAN backed segment (C). These reflect VCF 5.2’s standard use of VLANs for management components, supporting both local and cross-region monitoring scenarios.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Aria Operations Deployment)

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Networking for Management Components)

VMware Aria Operations 8.10 Documentation (integrated in VCF 5.2): Network Configuration

The VCF 5.2 design uses a Single Instance - Multiple Availability Zones topology (e.g., stretched cluster), requiring centralized management across two AZs, hosts in one rack per AZ, and workload mobility across AZs. The logical design focuses on high-level networking architecture, not physical details. Let’s evaluate:

Option A: A physical network fabric in a leaf-spine configuration with dual Cisco switches within each availability zoneA leaf-spine fabric enhances physical network scalability and redundancy, aligning with rack-based deployments. However, it’s a physical design detail (switch topology), not a logical networking decision, per theVCF 5.2 Design Guide.

Option B: A highly available gateway that supports the failure of an entire availability zoneA gateway (e.g., NSX Edge Tier-0) with AZ failover supports North-South traffic resilience. While valuable, it doesn’t directly enable workload mobility across AZs (East-West traffic), which is the core requirement. TheVCF 5.2 Networking Guidetreats gateways as supplementary, not foundational for stretched clusters.

Option C: A 25-GbE port on each Top of Rack (ToR) switch connected to the ESXi host uplinksSpecifying 25-GbE ports is a physical network detail (bandwidth, cabling), not a logical design element. TheVCF 5.2 Design Guiderelegates port speeds to physical implementation, not logical architecture.

Option D: A single NSX Overlay Transport Zone for all clusters to carry the traffic between the ESXi hostsIn a stretched cluster topology, a single NSX Overlay Transport Zone enables VM mobility across AZs via overlay networks (e.g., Geneve). It ensures workloads can run on hosts in either AZ by providing a unified L2/L3 connectivity layer, managed by NSX. TheVCF 5.2 Architectural Guidemandates a single Overlay TZ for stretched deployments to support vMotion and workload distribution, directly meeting the requirement.

Conclusion:Option D is the logical design decision, enabling workload mobility across AZs in a stretched VCF topology via NSX overlay networking.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Multi-AZ Topology and NSX Overlay.

VMware Cloud Foundation 5.2 Networking Guide(docs.vmware.com): Transport Zones in Stretched Clusters.

VMware Cloud Foundation 5.2 Design Guide(docs.vmware.com): Logical vs. Physical Design.

In VCF 5.2, the logical design focuses on high-level architectural decisions that define the system’s structure and behavior, as opposed to physical or operational details. Networking decisions in the logical design emphasize scalability, security policies, and connectivity frameworks, per theVCF 5.2 Architectural Guide. Let’s evaluate each:

Option A: Use of 2x 64-port Cisco Nexus 9300 for top-of-rack ESXi host switchesThis specifies physical hardware, a detail typically documented in the physical design (e.g., BOM, rack layout). TheVCF 5.2 Design Guidedistinguishes hardware choices as physical, not logical, unless they dictate architecture (e.g., spine-leaf), which isn’t implied here.

Option B: NSX Distributed Firewall (DFW) rule to block all traffic by defaultThis is a security policy configuration within NSX, defining how traffic is controlled. While critical, it’s an operational or detailed design decision (e.g., rule set), not a high-level logical design element. TheVCF 5.2 Networking Guideplaces DFW rules in implementation details, not the logical overview.

Option C: Implement overlay network technology to scale across data centersOverlay networking (e.g., NSX VXLAN or Geneve) is a foundational architectural decision in VCF, enabling scalability, multi-site connectivity, and logical separation of networks. TheVCF 5.2 Architectural Guidehighlights overlays as a core logical design component, directly impacting how the solution scales across data centers, making it a prime candidate for the logical design.

Option D: Configure Cisco Discovery Protocol (CDP) - Listen mode on all Distributed Virtual Switches (DVS)CDP in Listen mode aids network discovery and troubleshooting on DVS. This is a configuration setting, not a logical design decision. TheVCF 5.2 Networking Guidetreats such protocol settings as operational details, not architectural choices.

Conclusion:Option C belongs in the logical design, as it defines a scalable networking architecture critical to VCF 5.2’s multi-data center capabilities.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Logical Design and Overlay Networking.

VMware Cloud Foundation 5.2 Networking Guide(docs.vmware.com): NSX and DVS Configuration.

VMware Cloud Foundation 5.2 Design Guide(docs.vmware.com): Logical vs. Physical Design.
