External HTTP(S) Load Balancing is a proxy-based Layer 7 load balancer that enables you to run and scale your services behind a single external IP address.

The Supervisor Cluster provides the management layer on which Tanzu Kubernetes clusters are built. The Tanzu Kubernetes Grid Service is a custom controller manager with a set of controllers that is part of the Supervisor Cluster. The purpose of the Tanzu Kubernetes Grid Service is to provision Tanzu Kubernetes clusters.

While there is a one-to-one relationship between the Supervisor Cluster and the vSphere cluster, there is a one-to-many relationship between the Supervisor Cluster and Tanzu Kubernetes clusters. You can provision multiple Tanzu Kubernetes clusters within a single Supervisor Cluster. The workload management functionality provided by the Supervisor Cluster gives you control over the cluster configuration and lifecycle, while allowing you to maintain concurrency with upstream Kubernetes.

Authenticating Using kubectl

In vSphere with Tanzu, authentication is performed using vCenter Single Sign-On. You run the command kubectl vsphere login to authenticate a user through vCenter Single Sign-On to Kubernetes clusters.

kubectl vsphere login --server -u

The --insecure-skip-tls-verify flag is required if the certificate presented by the vSphere with Tanzu control plane is not trusted by the client machine. The control plane is signed by the vCenter Server VMware CA by default. You can replace the control plane certificate with a trusted certificate if needed. Alternatively, install the vCenter Server VMware CA root certificate into your client machine to remove the need for the --insecure-skip-tls-verify flag.

• VM storage policies are translated into Kubernetes storage classes.

• Developers can access all assigned VM storage policies in the form of storage classes. •

Developers cannot manage storage classes.

The Network Service has been extended to support the vSphere Distributed Switch (vDS). Start by configuring the switch with appropriate portgroups. Management will carry traffic between vCenter and the Kubernetes Control Plane (Supervisor Cluster control plane). As we will see in a moment, not having the built in Load Balancing capability of NSX means you will need to deploy your own load balancer externally from the cluster. We will give you a choice of integrated load balancers. The first one we support is HAProxy.

The Management network will also carry traffic between the supervisor cluster nodes and HAProxy. The Frontend network will carry traffic to the Load Balancer virtual interfaces. It must be routable from any device that will be a client for your cluster. Developers will use this to issue kubectl commands to the Supervisor cluster or their TKG clusters. You can have one or more Workload networks.

The primary Workload network will connect the cluster interfaces of the Supervisor cluster. Namespaces can be defined with their own Workload network allowing for isolation between development teams assigned different Namespaces. The Namespace assigned Workload Networks will connect the TKG cluster nodes in that Namespace.

Scale a Cluster Horizontally With the Tanzu CLI

To horizontally scale a Tanzu Kubernetes cluster, use the tanzu cluster scale command. You change the number of control plane nodes by specifying the --controlplane-machine-count option. You change the number of worker nodes by specifying the --worker-machine-count option.

You can deploy an application on a namespace on a Supervisor Cluster. Once the application is deployed, the respective number of vSphere Pods are created on the Supervisor Cluster within the namespace.

Common kubectl commands include the apply, get, describe, and delete commands:

• The kubectl apply command applies the contents of a YAML file. Typically, this command is used to create a pod or deployment: —

kubectl apply -f /path/to/my.yaml

• The kubectl get command returns basic information about an object: — kubectl get pod

VMware Harbor Registry

VMware Harbor Registry is an enterprise-class registry server that stores and distributes container images. Harbor allows you to store and manage images for use with VMware Tanzu Kubernetes Grid Integrated Edition (TKGI).

Overview

Harbor extends the open source Docker Distribution by adding the functionalities usually required by an enterprise, such as security, identity, and management. As an enterprise private registry, Harbor offers enhanced performance and security. Deploying a registry alongside the TKGI environment improves image management efficiency.

This is the textbook answer, I know kubectl does give you some information.

A virtual machine class is a request for resource reservations for processing power on the virtual machine (VM), including CPU and memory (RAM). For example, the VM class type named "guaranteed-large" reserves 4 CPU and 16 GB RAM. See Default Virtual Machine Classes for a list of default VM classes and their corresponding CPU and RAM reservations.

The VM disk size is set by the OVA template, not the VM class definition. For Tanzu Kubernetes releases, the disk size is 16GB. See About Tanzu Kubernetes release Distributions.

There are two reservation types for VM classes: guaranteed and best effort. The guaranteed class fully reserves its configured resources. This means that for a given cluster the spec.policies.resources.requests matches the spec.hardware settings. The best effort class allows resources to be overcommitted. For production workloads it is recommended that you use the guaranteed VM class type.

The container network interfaces (CNIs) supported with Tanzu Kubernetes clusters created by the Tanzu Kubernetes Grid Service are NSX-T and Antrea. NSX-T is a multi-cloud networking and security platform from VMware that provides built-in container networking and security capabilities. Antrea is an open-source CNI project created by the GitHub team that provides network policy enforcement for Kubernetes clusters. Both of these CNIs provide support for multi-tenancy and advanced network policy enforcement.

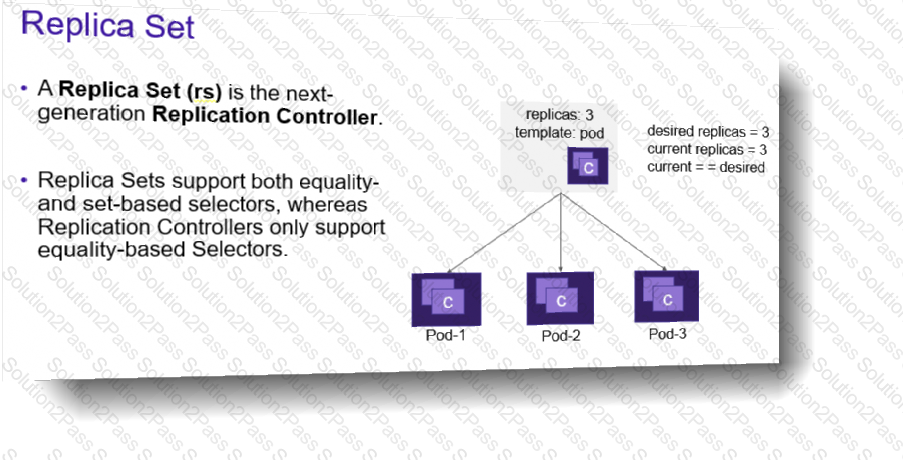

A ReplicaSet declares how the functionality of a pod is made scalable and resilient through redundancy. The ReplicaSet ensures that a specified number of pods is kept running. Example: Deploy a ReplicaSet. • The ReplicaSet name is nginx-replica-demo. • Two replicas are expected to be running. • The ReplicaSet applies to pods with label nginx.

For more information about Kubernetes replica sets, see https://kubernetes.io/docs/concepts/workloads/controllers/replicaset/

Graphical user interface, Teams Description automatically generated

A vSphere Pod is a VM with a small footprint that runs one or more Linux containers. With vSphere Pods, workloads have the following capabilities:

• Strong isolation from a Linux kernel based on Photon OS

• Resource management using DRS

• Same level of resource isolation as VMs

• Open Container Initiative (OCI) compatible

• Equivalent to a Kubernetes Container Host

vSphere Pods are not compatible with vSphere vMotion. When an ESXi host is placed into maintenance mode, running vSphere Pods are drained and redeployed on another ESXi host, but only if the vSphere Pod is part of a ReplicaSet.
