VMware 3V0-23.25 Practice Test Questions Answers

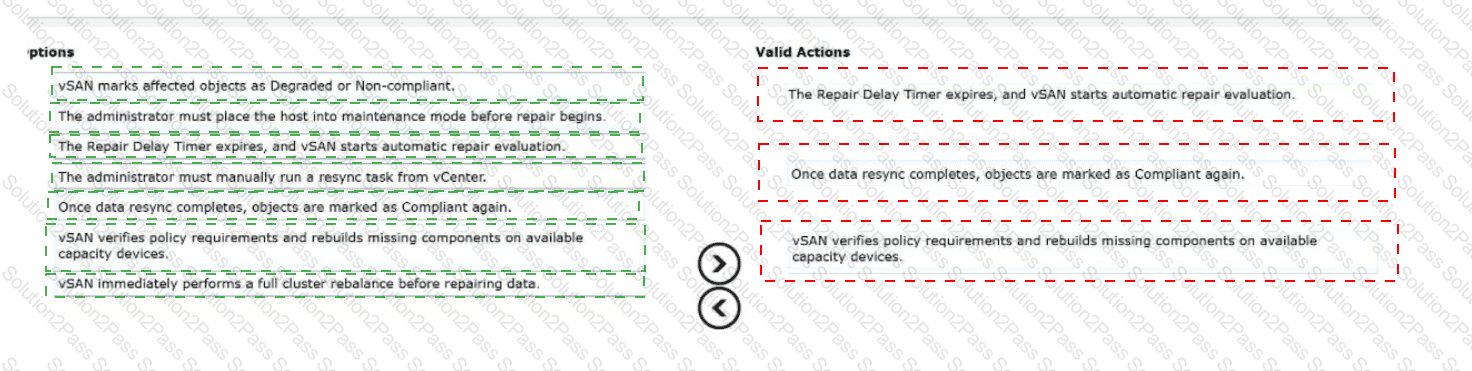

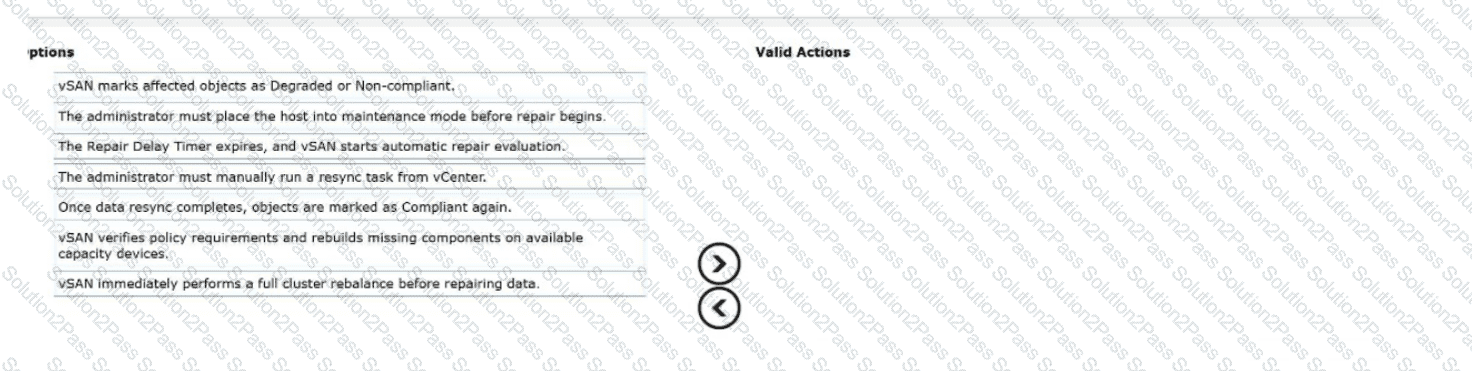

The Repair Delay Timer expires, and vSAN starts automatic repair evaluation.

Once data resync completes, objects are marked as Compliant again.

vSAN verifies policy requirements and rebuilds missing components on available capacity devices.

When a host goes offline unexpectedly, vSAN treats the missing components as absent and waits for the configured repair delay timer before initiating rebuild operations. This prevents unnecessary resynchronization when a host or device returns quickly. In this scenario, the host is offline for more than an hour, so the repair delay timer expires and vSAN begins automatic repair evaluation. vSAN then checks the assigned storage policies, available capacity, and fault-domain placement requirements to determine whether missing components can be rebuilt safely on available capacity devices. If sufficient capacity and fault domains exist, vSAN creates replacement components and starts resynchronization. When the resync process finishes and the affected objects again satisfy their assigned policies, the objects are marked Compliant. The administrator does not need to manually run a resync task from vCenter, and the host does not need to be placed into maintenance mode for automatic repair. A full cluster rebalance is a separate capacity-balancing operation and is not required before object repair. Reference topics: vSAN Repair Delay Timer, Object Compliance, Resynchronization, ESA Object Repair.

VMware vSAN is the correct principal storage for both the Management Domain and the Workload Domain because it is integrated, policy-based, scalable, and managed directly through VCF and vSphere. The Management Domain requirement explicitly calls for a highly scalable integrated storage solution that does not require additional storage management software or hardware, which aligns with vSAN. The Workload Domain also requires a highly scalable, policy-based storage solution for critical application workloads, which again maps directly to vSAN storage policies and vSAN datastore services. The second workload tier requires file-based storage that can scale independently of the cluster for workloads with large data requirements. NFS v3 is supported as supplemental storage and is appropriate for adding file-based capacity without changing the principal vSAN datastore. iSCSI is supplemental only and does not meet the Management Domain principal storage requirement. NFS v4.1 is not the correct principal storage selection for the Management Domain. Reference topics: VCF Storage Models, Principal Storage, Supplemental Storage, vSAN Storage Model, NFS Storage Model.

The administrator must validate that the vSphere Native Key Provider has been backed up. When a Native Key Provider is created, vCenter pushes the key provider configuration to clustered ESX hosts, but the provider is not usable for encryption tasks until it has been backed up. The documentation states that after adding a Native Key Provider, it appears as not backed up, and that it must be backed up before use. The backup process changes the provider status from Not Backed Up, to Warning while vCenter propagates information to hosts, and then to Active when the information has been pushed to all hosts. A TPM 2.0 device is not required when using Native Key Provider with default settings, although TPM can provide enhanced security and can optionally be enforced. Crypto Safe Mode and disabling Secure Boot are not prerequisites for enabling vSAN Data-at-Rest Encryption with NKP. Therefore, the validation step is to confirm that the NKP backup has been created and the provider is active on the hosts. Reference topics: vSphere Native Key Provider, Back Up Native Key Provider, vSAN Data-at-Rest Encryption, Key Provider Availability.

Seven hosts per availability zone is required for this design. In a vSAN ESA stretched cluster, data components are distributed across two data sites, while a witness site provides quorum. The first requirement is a secondary level of resilience of FTT=2 using RAID-6 erasure coding. RAID-6 requires enough fault domains to place data and parity components while tolerating two failures. The second requirement is more restrictive: vSAN must be able to regain its prescribed level of resilience after a sustained host outage. This means the site must have enough remaining placement capacity to rebuild components and return objects to policy compliance after a host is lost. A six-host site can satisfy the RAID-6 placement minimum, but it does not provide the additional host needed to rebuild cleanly after a sustained host outage. Therefore, the design requires seven hosts in each availability zone. This produces fourteen data hosts across the stretched cluster, plus the witness. Reference topics: vSAN ESA Stretched Cluster Design, Secondary Level of Resilience, RAID-6 Erasure Coding, Availability Zone Host Count.

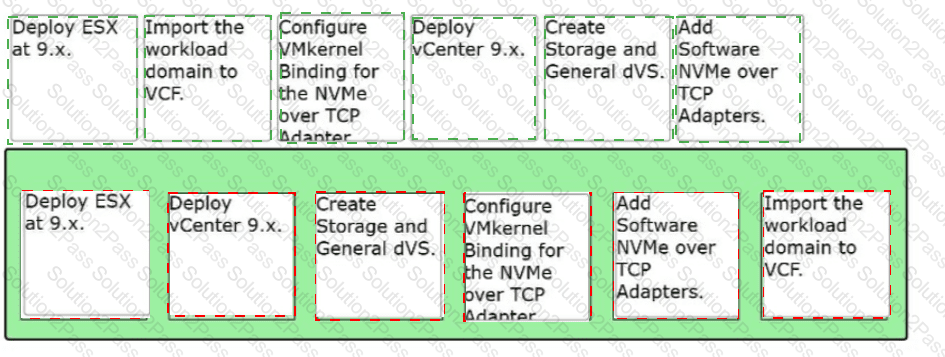

Deploy ESX at 9.x

Deploy vCenter 9.x

Create Storage and General dvS

Configure VMkernel Binding for the NVMe over TCP Adapter

Add Software NVMe over TCP Adapters

Import the workload domain to VCF

The correct sequence starts by preparing the vSphere environment that will later be imported into VMware Cloud Foundation. ESX 9.x must be deployed first on the six blade hosts because the hosts provide the compute foundation for the workload domain. After the hosts are available, vCenter 9.x is deployed to manage the cluster and provide the required vSphere inventory. The two distributed switches are then created: one for storage isolation and one for general host and workload traffic. Because the external array supports NVMe/TCP only and multipathing is required, VMkernel binding must be configured for the NVMe over TCP adapter before the software NVMe over TCP adapters are added. This ensures the NVMe/TCP storage paths are correctly associated with the intended storage network. After the software NVMe over TCP adapters are created and the hosts can access the external storage, the prepared workload domain can be imported into the existing VCF environment. Reference topics: NVMe over TCP Configuration, VMkernel Binding, Software NVMe/TCP Adapters, Existing vCenter Import, VCF Workload Domain Import.
