In percutaneous procedures such as biopsies or drainages, maintaining a sterile field is critical to avoid introducing infection. While the transducer is covered by a sterile cover, the gel placed inside this cover (between the probe and the cover) must also be sterile, as it contacts the sterile field. The transducer itself and machine controls are not sterile but are handled appropriately to avoid field contamination.

According to the AIUM Guidelines:

"Sterile coupling gel must be used inside the sterile probe cover during all invasive or percutaneous procedures." (AIUM Guidelines for Cleaning and Preparing Ultrasound Transducers, 2021).

The ultrasound image demonstrates diffuse increased echogenicity of the liver parenchyma with posterior beam attenuation (acoustic shadowing), findings that are consistent with hepatic steatosis (fatty liver disease). The liver appears brighter than normal, and the vascular markings, particularly of the portal veins, are obscured due to the increased parenchymal echogenicity.

Hepatic steatosis refers to the abnormal accumulation of fat within hepatocytes and is commonly associated with obesity, diabetes, alcohol use, and metabolic syndrome.

Classic sonographic features of hepatic steatosis include:

Diffuse hyperechogenicity (“bright liver”)

Poor visualization of intrahepatic vessels and diaphragm

Posterior acoustic attenuation

Increased hepatic echogenicity relative to the renal cortex

Differentiation from other options:

A. Acute hepatitis: Usually presents with normal or slightly decreased echogenicity, "starry sky" appearance due to prominent portal triads and periportal edema.

C. Medullary sponge kidney: A renal condition with echogenic medullary pyramids, not hepatic.

D. Acute medical renal disease: Affects the kidneys, often with bilateral renal enlargement and increased cortical echogenicity—again not related to liver imaging.

Angiomyolipomas are benign renal tumors composed of fat, smooth muscle, and blood vessels. They are strongly associated with tuberous sclerosis and may be multiple and bilateral in these patients. While RCC may occur, angiomyolipomas are much more characteristic.

According to Rumack’s Diagnostic Ultrasound:

“Angiomyolipomas are frequently multiple and bilateral in patients with tuberous sclerosis.”

The image demonstrates a characteristic "central dot sign" — a hallmark finding of Caroli disease. This is best appreciated on ultrasound as a cystic dilation of the intrahepatic bile ducts with a central echogenic dot or linear structure (which corresponds to the portal vein and fibrous tissue within the dilated duct). The arrow in the image points to one such dilated duct.

Caroli disease is a rare congenital disorder characterized by segmental, saccular dilation of intrahepatic bile ducts. It is often associated with congenital hepatic fibrosis and may predispose to cholangitis, stone formation, and even cholangiocarcinoma.

Key ultrasound features of Caroli disease:

Cystic or saccular dilations of the intrahepatic bile ducts

The "central dot sign" — echogenic focus in the center of the dilated ducts (representing portal vein radicle or fibrous tissue)

May show associated hepatosplenomegaly or signs of portal hypertension

Differentiation from other options:

A. Sclerosing cholangitis: Typically causes diffuse or segmental biliary ductal wall thickening and stricturing; does not present with cystic dilations.

B. Alagille syndrome: A multisystem disorder often characterized by a paucity of intrahepatic bile ducts, not dilation.

D. Biliary atresia: Presents in infancy with obliteration of extrahepatic bile ducts, echogenic "triangular cord" sign, and absence of a visible gallbladder. It does not cause ductal dilation.

Von Hippel-Lindau (VHL) syndrome is a genetic disorder associated with multiple pancreatic cysts, pancreatic neuroendocrine tumors, and other systemic neoplasms. While cystic fibrosis can produce thickened pancreatic secretions, it rarely causes true pancreatic cysts.

According to Rumack’s Diagnostic Ultrasound:

“Multiple pancreatic cysts are strongly associated with Von Hippel Lindau syndrome.”

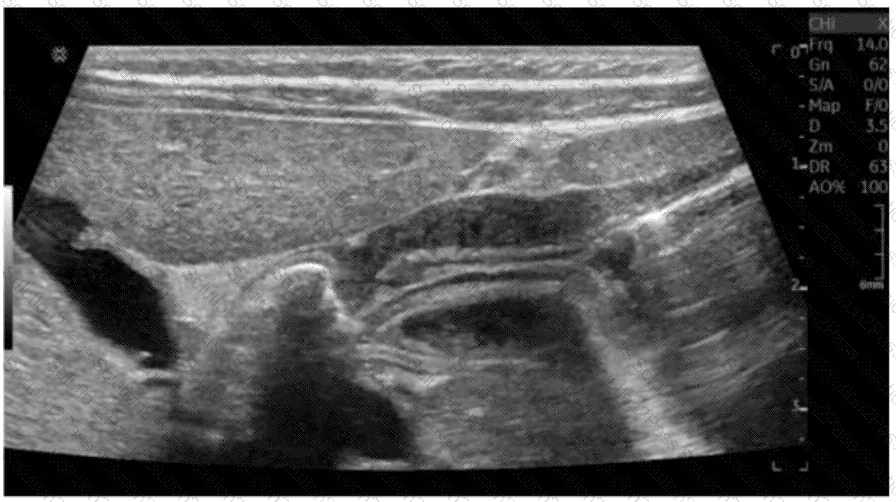

The ultrasound image shows a classic longitudinal view of a markedly thickened pyloric muscle with an elongated pyloric channel. This finding is consistent with hypertrophic pyloric stenosis (HPS), a condition most commonly seen in male infants between 2 and 8 weeks of age.

The most characteristic clinical finding associated with HPS is an “olive-shaped” palpable mass in the right upper quadrant or epigastric region, which represents the hypertrophied pylorus.

Clinical presentation of HPS includes:

Non-bilious projectile vomiting (due to gastric outlet obstruction)

Dehydration and weight loss

A palpable “olive” mass on physical exam

Visible peristalsis may be noted on the abdominal wall

Sonographic diagnostic criteria for HPS:

Pyloric muscle thickness ≥ 3 mm

Pyloric channel length ≥ 15–17 mm

“Cervix sign” or “target sign” (transverse view)

Failure of gastric contents to pass through the pylorus on real-time imaging

Differentiation from other options:

B. Fever of unknown origin: Not characteristic of HPS.

C. Red currant jelly stools: Classic for intussusception.

D. Bilious vomiting: Seen in distal duodenal or jejunal obstruction, not in pyloric stenosis (vomiting is non-bilious in HPS).

Hepatic adenomas are benign liver tumors strongly associated with long-term use of oral contraceptives and are most frequently found in women under 40. Hepatoblastoma is seen in children; hepatoma (HCC) is a malignant tumor typically found in cirrhotic livers. Cavernous hemangioma is unrelated to oral contraceptives.

According to Rumack’s Diagnostic Ultrasound:

“Hepatic adenomas occur predominantly in young women with a history of oral contraceptive use.”

Acute tubular necrosis (ATN) is the most common cause of early graft dysfunction following renal transplantation. It results from ischemia-reperfusion injury during the transplantation process. Ultrasound findings may be nonspecific but Doppler may show elevated resistive indices.

Ureterocele (A) is a congenital anomaly.

Transplant artery stenosis (C) is a late complication.

Transitional cell carcinoma (D) is rare and not typically an early complication.

Reference Extracts:

Middleton WD, Kurtz AB, Hertzberg BS. Ultrasound: The Requisites. 3rd ed. Elsevier, 2015.

Rumack CM, Wilson SR, Charboneau JW, Levine D. Diagnostic Ultrasound. 5th ed. Elsevier, 2017.

—

The ultrasound image shows disruption of the normal fibrillar echotexture of a muscle or tendon, consistent with a soft tissue injury such as a muscle or tendon tear. There is likely hypoechoic fluid consistent with a hematoma or edema, which commonly results from blunt or direct trauma.

This image is typical of a traumatic injury (e.g., partial or complete tendon rupture or muscle strain/tear). These findings are frequently encountered in athletic injuries or blunt force trauma and correlate strongly with the clinical history of trauma.

Key sonographic features suggestive of trauma:

Discontinuity or heterogeneity of normal striated muscle or tendon pattern

Hypoechoic or anechoic area representing hematoma or fluid collection

Retraction of muscle or tendon ends (in full-thickness tears)

Surrounding soft tissue edema

Differentiation from other options:

B. Focal pain: While pain may be a symptom, trauma is the more definitive and primary clinical indication for the findings shown.

C. Palpable abnormality: May suggest a mass or cystic lesion (e.g., lipoma, abscess), not typically the appearance shown here.

D. Decreased range of motion: May be present secondarily, but not the most consistent or primary clinical indication in this case.

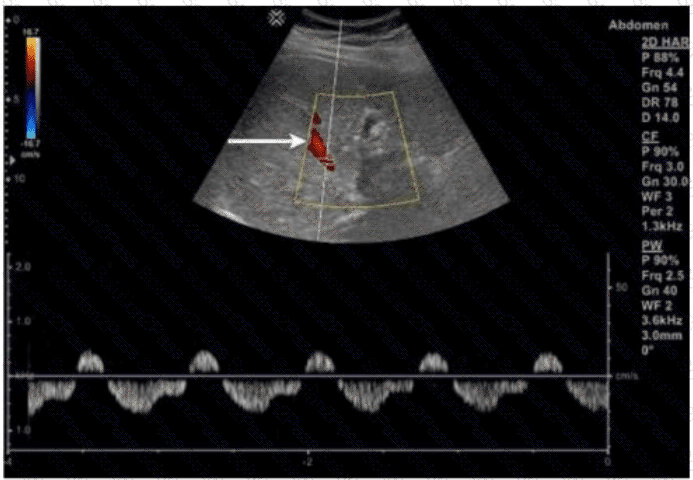

The structure indicated by the arrow is the middle hepatic vein. This is confirmed by both its anatomical location within the liver and its Doppler waveform characteristics.

Key ultrasound and Doppler features:

The middle hepatic vein runs between the right and left hepatic lobes and drains into the inferior vena cava (IVC). On grayscale imaging, it appears as a tubular anechoic structure extending toward the IVC.

On spectral Doppler, hepatic veins (including the middle hepatic vein) demonstrate a characteristic triphasic waveform due to pressure changes in the right atrium. This triphasic pattern is clearly visible in the Doppler tracing below the image.

This differs significantly from the monophasic low-resistance flow of the hepatic artery or the continuous hepatopetal flow of the portal vein.

Differentiation from other options:

A. Left portal vein: Would show continuous, hepatopetal flow (toward the liver) and lies more anterior and medial within the liver.

C. Proper hepatic artery: Small-caliber vessel with low-resistance pulsatile waveform (not triphasic).

D. Inferior vena cava: Lies posterior to the liver and demonstrates phasic flow with respiration, but this vessel is more centrally located and not shown in this field of view.

Lipase is the most sensitive and specific laboratory marker for diagnosing acute pancreatitis. It rises earlier, remains elevated longer (up to 14 days), and is more pancreas-specific than amylase. Amylase may normalize within 48-72 hours and may also be elevated in non-pancreatic conditions.

According to ACG (American College of Gastroenterology) Guidelines:

“Serum lipase is preferred over amylase due to its higher sensitivity, specificity, and prolonged elevation in pancreatitis.”

Color Doppler imaging can detect ureteral jets, which represent urine entering the bladder from the ureters. The presence of bilateral ureteral jets confirms ureteral patency. Gray scale may show hydronephrosis but does not directly assess flow.

According to Rumack’s Diagnostic Ultrasound:

“Color Doppler demonstrates ureteral jets within the bladder, confirming ureteral patency.”

Tissue harmonic imaging significantly reduces reverberation and side-lobe artifacts by utilizing nonlinear propagation of ultrasound waves. This produces clearer images of fluid-filled structures like the gallbladder, improving visualization of wall thickness and intraluminal contents.

According to Zwiebel’s Introduction to Vascular Ultrasound:

“Harmonic imaging effectively reduces reverberation artifact, improving image quality in gallbladder and cystic structure evaluation.”

Wooden foreign bodies are often difficult to detect on CT because of their low radiodensity, but they are highly echogenic with posterior shadowing or reverberation on ultrasound, making ultrasound superior for detecting retained wooden objects. Glass, metal, and stones are better visualized with CT due to their high radiodensity.

According to AIUM and musculoskeletal ultrasound literature:

“Wood is poorly visualized on CT but demonstrates high reflectivity and acoustic shadowing on ultrasound.”

An abdominal aortic aneurysm (AAA) measuring ≥5.5 cm represents a significantly increased risk of rupture and often requires surgical evaluation. The sonographer must report this critical finding immediately to the interpreting physician. The sonographer should never disclose a diagnosis directly to the patient.

According to AIUM and SRU Guidelines:

“An aortic diameter of 5.5 cm or greater should be promptly reported to the interpreting physician due to the high risk of rupture.”

Addison disease (primary adrenal insufficiency) results in insufficient production of cortisol and aldosterone. The hallmark laboratory findings include:

Hyponatremia (low sodium)

Hyperkalemia (high potassium)

Elevated liver enzymes (due to nonspecific hepatic involvement)

Fatigue, weight loss, and hypotension are common clinical features.

Conn syndrome (B) causes hyperaldosteronism, leading to hypokalemia (not hyperkalemia).

Acute pancreatitis (C) would typically show elevated amylase/lipase.

Hepatocellular carcinoma (D) may present with elevated liver enzymes but not the electrolyte pattern described.

Reference Extracts:

Nieman LK. "Diagnosis and Treatment of Primary Adrenal Insufficiency." J Clin Endocrinol Metab. 2011;96(7):1957-1966.

Rumack CM, Wilson SR, Charboneau JW, Levine D. Diagnostic Ultrasound. 5th ed. Elsevier, 2017.

—

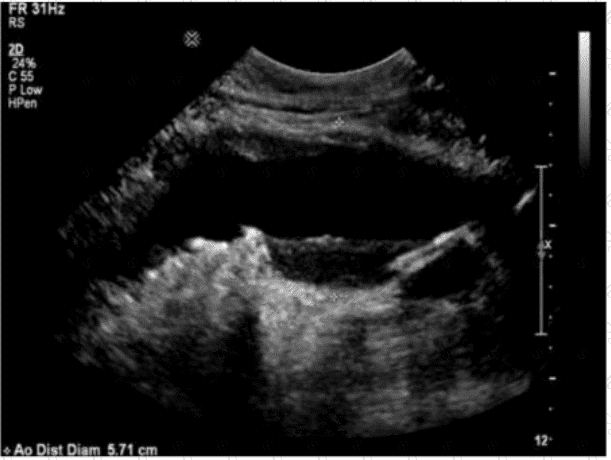

The ultrasound image provided shows a transverse view of the abdominal aorta, with a clearly measured aortic diameter of 5.71 cm. A normal adult abdominal aorta should measure less than 3.0 cm in anterior-posterior diameter. Any measurement exceeding this threshold is defined as an abdominal aortic aneurysm (AAA).

In this case, the dilation is well beyond the 3.0 cm threshold, confirming the presence of an aneurysm. The rounded, anechoic/heterogeneous central lumen surrounded by echogenic arterial wall layers further supports this diagnosis.

Comparison of answer choices:

A. Stenosis: Would show a narrowed lumen with turbulent, aliasing flow on Doppler, not a dilated aorta.

B. Dissection: Typically shows an echogenic intimal flap separating true and false lumens; no flap is visible here.

C. Aneurysm: Correct. The aorta’s transverse diameter (5.71 cm) confirms the presence of an aneurysm.

D. Occlusion: Would appear as a lack of flow with thrombus or echogenic content filling the lumen, not dilation.

Malignant lymph nodes are often round in shape (short axis/long axis ratio approaches 1), while benign lymph nodes are typically oval (short axis/long axis ratio < 0.5). Rounded shape in post-thyroidectomy patients raises suspicion for metastatic disease.

According to AIUM and ACR Thyroid Imaging Guidelines:

“A rounded lymph node shape is suspicious for malignancy, especially in patients with thyroid cancer.”

A complex pleural effusion often contains internal septations or fibrin strands, distinguishing it from simple anechoic effusion. These septations suggest exudative processes such as infection, malignancy, or hemothorax.

According to Rumack’s Diagnostic Ultrasound:

“Complex pleural effusions demonstrate internal septations or loculations, often related to infection or malignancy.”
