AE-Adult-Echocardiography ARDMS AE Adult Echocardiography Examination Free Practice Exam Questions (2025 Updated)

The echocardiographic video shows a defect in the ventricular septum with left-to-right shunting consistent with an ischemic ventricular septal defect (VSD), a mechanical complication of myocardial infarction. The defect allows blood flow between the left and right ventricles.

Coronary artery aneurysm appears as dilated coronary vessels, not a septal defect. Tricuspid regurgitation involves the right atrioventricular valve and is identified differently. Pseudoaneurysm of the apex is a contained myocardial rupture with narrow neck and does not involve septal communication.

This complication and its echocardiographic features are described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Post-Infarction Mechanical Complications【20:430-435†Textbook of Clinical Echocardiography】.

The mitral valve filling pattern characterized by a long deceleration time and a reduced E/A ratio (less than 1, such as 0.6) is consistent with impaired relaxation. This pattern is typically seen in early diastolic dysfunction, where there is slowed ventricular relaxation, resulting in reduced early diastolic filling (E wave) and a compensatory increase in atrial contraction contribution (A wave).

Impaired relaxation pattern shows:

E/A ratio < 1 (e.g., 0.6)

Prolonged deceleration time (>200 ms)

Prolonged isovolumic relaxation time (IVRT)

This pattern differs from restrictive filling, which has a high E/A ratio (>2), shortened deceleration time (<150 ms), and elevated left atrial pressures. Pseudonormal filling has a normal or near-normal E/A ratio but elevated filling pressures that mask underlying dysfunction and requires further evaluation with tissue Doppler or pulmonary venous flow for diagnosis. Normal filling has a typical E/A ratio around 1 to 1.5 with normal deceleration times.

The textbook details that impaired relaxation is the earliest sign of diastolic dysfunction and describes the prolongation of the deceleration time and reduced E/A ratio as hallmark findings of this stage.

Comprehensive and Detailed Explanation From Exact Extract:

The video suggests an atrial septal abnormality possibly a patent foramen ovale or interatrial shunt. To evaluate for right-to-left shunting across an atrial septal defect, the administration of agitated saline contrast with a Valsalva maneuver is the next best step.

Valsalva increases right atrial pressure transiently, promoting transient right-to-left shunting, making microbubbles visible in the left atrium if a shunt is present. Administration without Valsalva reduces sensitivity. The choice of arm vein (right or left) is less critical.

This diagnostic technique is well described in ASE adult congenital heart disease guidelines and echocardiography contrast protocols【12:ASE Contrast Echocardiography Guidelines†p.190-195】【16:Textbook of Clinical Echocardiography, 6e†p.575-580】.

During the strain phase of the Valsalva maneuver, intrathoracic pressure increases significantly due to forced expiration against a closed glottis. This elevated intrathoracic pressure compresses the thoracic veins, leading to decreased venous return to the heart, which causes a reduction in preload (the volume of blood filling the ventricles during diastole). This reduction in preload is transient and results in decreased stroke volume and cardiac output.

This physiologic response is exploited during echocardiographic evaluation to unmask pseudonormal filling patterns of the left ventricle and to assess diastolic function. For example, during the strain phase, the early mitral inflow velocity (E wave) decreases due to reduced preload, and the E/A ratio can normalize or reverse if diastolic dysfunction is present.

The strain phase does not decrease afterload; in fact, afterload can transiently increase during other phases, but the hallmark of the strain phase is decreased preload.

This explanation is detailed in the "Textbook of Clinical Echocardiography, 6e," which explains the hemodynamic changes during the Valsalva maneuver and its clinical application in echocardiographic assessment of diastolic function .

Comprehensive and Detailed Explanation From Exact Extract:

Pulmonary vein Doppler signals have low velocity and low frequency components that can be filtered out by standard Doppler wall filters. To obtain a good quality spectral Doppler waveform for diastolic function evaluation, the wall filter settings should be lowered or adjusted to allow low frequency signals to be detected and displayed clearly.

Non-imaging transducers and continuous wave Doppler are not appropriate for pulmonary vein Doppler because spatial resolution and site localization are required. Filtering out low frequency signals would degrade the quality of the pulmonary vein waveform.

This is detailed in ASE Doppler imaging and diastolic function assessment protocols【12:ASE Diastolic Function Guidelines†p.85-90】【16:Textbook of Clinical Echocardiography, 6e†p.125-130】.

In interrupted aortic arch, the normal continuity between the ascending and descending aorta is disrupted. The patent ductus arteriosus (PDA) provides a vital conduit for blood to flow from the pulmonary artery to the descending aorta, maintaining systemic circulation distal to the interruption.

Persistent left superior vena cava and left carotid artery do not provide this flow. The foramen ovale is an atrial-level shunt and does not compensate for interrupted aortic arch.

This clinical anatomy is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Aortic Arch Anomalies【20:135-140†Textbook of Clinical Echocardiography】.

The echocardiographic video shows a prosthetic ring-like structure attached to the mitral annulus with preserved native leaflet motion, consistent with an annuloplasty ring repair. Annuloplasty rings are used to reduce the mitral annulus size and improve leaflet coaptation in mitral regurgitation without replacing the valve.

Bioprosthetic or mechanical valve replacements would show distinctly different echogenic valve structures with leaflet or disc motion replacing the native valve. Extensive calcification of a native valve appears as echogenic, thickened leaflets without a discrete ring.

This is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Valve Repair Techniques【20:400-405†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

A pseudoaneurysm (false aneurysm) of the heart or great vessels is a contained rupture of the vessel or myocardial wall with a narrow neck and high risk of rupture, making it a surgical emergency. Unlike true aneurysms, pseudoaneurysms lack all vessel wall layers and have a fragile wall prone to catastrophic rupture.

True aneurysms involve all wall layers and generally have a lower immediate risk. Severe aortic or mitral stenosis are serious conditions often requiring intervention but not immediate emergency surgery unless complicated.

Therefore, pseudoaneurysm is the critical finding that mandates urgent surgical repair.

This distinction and management urgency are detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aneurysms and Cardiac Emergencies【20:385-390†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

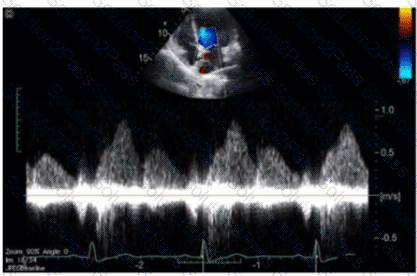

The image shows a pulsed-wave Doppler waveform with respiratory phasicity and distinct forward and reversed flow components characteristic of hepatic vein flow patterns. Hepatic vein Doppler typically displays a biphasic waveform with systolic (S) and diastolic (D) forward flow toward the heart and brief reversed flow during atrial contraction (A wave reversal), reflecting right atrial pressure changes.

Mitral and tricuspid inflow Doppler patterns show distinct E and A waves representing early and late diastolic ventricular filling but do not have the same flow reversal pattern. Pulmonary vein Doppler waveforms also differ, showing systolic and diastolic forward flows into the left atrium without the prominent reversed flow seen here.

The hepatic vein Doppler is commonly used in echocardiography to assess right atrial pressure and compliance, especially in conditions like constrictive pericarditis and right heart failure, where characteristic flow reversals and expiratory changes are observed.

This pattern and its clinical significance are detailed in adult echocardiography references, including the "Textbook of Clinical Echocardiography" and ASE guidelines on Doppler imaging【16:Hepatic Vein Doppler†Textbook of Clinical Echocardiography, 6e】【12:ASE Doppler Guidelines†p.95-100】.

Frame rate in echocardiography is affected by the sector width, depth, and line density. Narrowing the sector width reduces the number of scan lines per frame, thus increasing the frame rate and temporal resolution. This improves the ability to capture rapid cardiac motion.

Decreasing overall gain affects image brightness, not frame rate. Increasing dynamic range increases the number of gray shades, which may slightly decrease frame rate due to processing load. Increasing transducer frequency improves resolution but reduces penetration depth and can decrease frame rate due to longer pulse duration.

This principle is emphasized in echocardiography physics and instrumentation texts and ASE imaging guidelines【16:Textbook of Clinical Echocardiography, 6e†p.40-45】【12:ASE Imaging Protocols†p.10-15】.

The parasternal long axis (PLAX) view provides visualization of the left ventricle, left atrium, mitral and aortic valves, and importantly, the coronary sinus located posteriorly between the left atrium and left ventricle.

The pulmonic valve is best visualized in the parasternal short axis or suprasternal views. The eustachian valve is in the right atrium and visualized best in subcostal or apical views. The left atrial appendage is usually seen in transesophageal echocardiography.

This anatomical visualization is discussed in standard echocardiography textbooks and ASE imaging protocols【12:ASE Imaging Guidelines†p.70-75】【16:Textbook of Clinical Echocardiography, 6e†p.100-105】.

Atrial myxomas are the most common primary cardiac tumors in adults and are typically attached to the interatrial septum at the fossa ovalis region of the left atrium. These tumors often arise from a stalk and are mobile masses that may cause obstruction of the mitral valve or embolic events.

The echocardiographic hallmark of atrial myxoma is a well-circumscribed, pedunculated mass attached near the fossa ovalis. Transesophageal echocardiography (TEE) is especially useful in visualizing the attachment site and mobility of the myxoma.

Other cardiac masses have different typical locations: papillary fibroelastomas usually arise from valvular surfaces (often aortic or mitral valves), sarcomas are rare malignant tumors that can invade multiple areas, and lipomas usually involve the atrial septum but spare the fossa ovalis and have a characteristic echogenic appearance.

The "Textbook of Clinical Echocardiography" describes atrial myxomas as mobile masses attached to the fossa ovalis in the left atrium and emphasizes their characteristic appearance on TEE imaging, which is critical for diagnosis and surgical planning.

The video shows prominent trabeculations with deep intertrabecular recesses communicating with the left ventricular cavity, characteristic of isolated left ventricular noncompaction (LVNC). This congenital cardiomyopathy features a spongy myocardial appearance with thickened noncompacted layers.

Amyloidosis typically presents with thickened, bright myocardium but without prominent trabeculations. Sarcoidosis involves granulomatous inflammation, and apical hypertrophic cardiomyopathy shows localized hypertrophy without trabecular changes.

This pathology is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Cardiomyopathies and Myocardial Disorders【20:360-365†Textbook of Clinical Echocardiography】.

Cardiac catheterization with coronary angiography is considered the gold standard for the assessment and diagnosis of coronary artery disease (CAD). It provides direct visualization of coronary artery luminal stenosis and allows for therapeutic intervention if needed.

While cardiac magnetic resonance imaging (MRI), stress echocardiography, and myocardial perfusion imaging are valuable non-invasive modalities for ischemia detection and functional assessment, none replace the anatomical and interventional capabilities of invasive angiography.

This is well established in the "Textbook of Clinical Echocardiography, 6e", Chapter on Ischemic Heart Disease and Diagnostic Modalities【20:400-405†Textbook of Clinical Echocardiography】.

Compreh ensive and Detailed Explanation From Exact Extract:

In a normal heart, the ascending aorta arises from the left ventricle and courses superiorly and posteriorly to the right of the pulmonary artery, which arises anteriorly from the right ventricle. The aorta is positioned posterior and to the right of the main pulmonary artery, reflecting the normal spatial relationship.

The pulmonary artery is anterior and to the left of the aorta, and the coronary sinus lies posteriorly in the atrioventricular groove.

This anatomical relationship is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Cardiac Anatomy and Echocardiographic Landmarks【20:50-55†Textbook of Clinical Echocardiography】.

Mitral valve prolapse (MVP) occurs during ventricular contraction (systole). Specifically, during systole, the increased pressure in the left ventricle causes the mitral valve leaflets to billow or prolapse back into the left atrium. This abnormal systolic displacement of the mitral leaflets beyond the annular plane leads to mitral regurgitation in many cases.

The echocardiographic hallmark of MVP is systolic bowing or displacement of the mitral leaflets into the left atrium, best visualized in parasternal long-axis or apical views during ventricular contraction. MVP is not seen during ventricular filling phases such as early filling, atrial systole, or diastasis because the leaflets are normally open or positioned differently.

This is well-documented in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Valve Disease, explaining the pathophysiology of MVP and its timing during the cardiac cycle【20:390-395†Textbook of Clinical Echocardiography】.

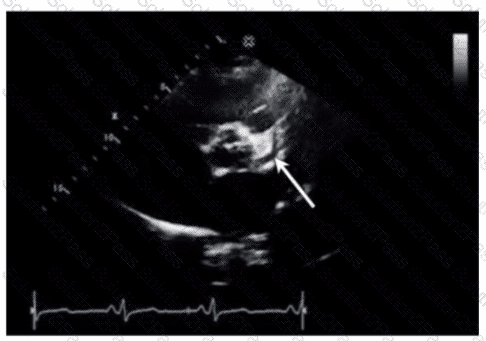

The arrow points to the left anterior descending (LAD) coronary artery, which runs in the anterior interventricular groove toward the apex of the heart. It supplies the anterior wall of the left ventricle.

The right coronary artery runs in the right atrioventricular groove. The left main coronary artery is proximal to the LAD and circumflex arteries. The circumflex artery runs in the left atrioventricular groove posteriorly.

This identification is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Coronary Artery Anatomy and Echocardiographic Visualization【20:150-155†Textbook of Clinical Echocardiography】.

True ventricular aneurysms are lined by scarred myocardium and have a broad neck. Pseudoaneurysms occur after myocardial rupture contained by pericardium or scar tissue and lack myocardium in the wall. Pseudoaneurysms typically have a narrow neck and are more prone to rupture.

Pseudoaneurysms can occur at various locations, not exclusively the apex. Both true aneurysms and pseudoaneurysms may contain thrombus, so this is not a distinguishing feature.

This differentiation is important clinically and is detailed in adult echocardiography and surgical cardiology texts and ASE guidelines【16:Textbook of Clinical Echocardiography, 6e†p.400-405】【12:ASE Cardiac Masses and Aneurysms Guidelines†p.150-160】.

Comprehensive and Detailed Explanation From Exact Extract:

The video shows a parasternal long-axis view of the left ventricle and mitral valve with the anterior leaflet of the mitral valve moving abnormally toward the interventricular septum during systole. This systolic anterior motion (SAM) of the mitral valve is characteristic of hypertrophic obstructive cardiomyopathy (HOCM) and contributes to left ventricular outflow tract obstruction.

Aortic root dilatation and left atrial elongation are structural findings seen in other views. Mid-anteroseptal hypokinesis is a regional wall motion abnormality not clearly visualized in this clip.

This echocardiographic sign is critical in diagnosing and managing HOCM and is discussed extensively in ASE guidelines and clinical echocardiography texts【16:Textbook of Clinical Echocardiography, 6e†p.350-355】【12:ASE Cardiomyopathy Guidelines†p.120-130】.
