SPI ARDMS Sonography Principles and Instrumentation Free Practice Exam Questions (2025 Updated)

Comprehensive and Detailed Explanation From Exact Extract:

Axial resolution improves with shorter spatial pulse length, which is directly related to higher frequency. At shallow depths (such as 2 cm), higher frequency can be used effectively since attenuation is minimal.

Principles and Instrumentation state:

"Axial resolution improves with increasing frequency due to shorter wavelength and pulse length."

Turning off spatial compounding (A) affects speckle reduction.

Harmonics (B) help with resolution but primarily lateral contrast.

Gain (C) affects brightness, not resolution directly.

Therefore, the correct answer is D: Increase frequency.

Comprehensive and Detailed Explanation From Exact Extract:

Elevational resolution (slice thickness resolution) refers to the ability to resolve structures perpendicular to the imaging plane and is directly determined by the beam’s thickness in that plane.

Principles and Instrumentation state:

"Elevational resolution is governed by the slice thickness, which depends on the transducer's beam profile and focusing in the elevational dimension."

Beam depth (A) affects penetration.

Beam uniformity ratio (C) is not related.

Beam width (D) affects lateral resolution.

Therefore, the correct answer is B: Beam thickness.

—

Comprehensive and Detailed Explanation From Exact Extract:

Spectral Doppler aliasing occurs when the Doppler frequency shift exceeds the Nyquist limit. The Doppler shift is proportional to the cosine of the Doppler angle. Increasing the Doppler angle (moving closer to 90 degrees) reduces the cosine value, thus reducing the Doppler shift frequency and helping to avoid aliasing.

According to sonography instrumentation reference:

“Increasing the Doppler angle reduces the Doppler shift frequency, thus decreasing the likelihood of aliasing in spectral Doppler.”

Therefore, the correct answer is A: Increase Doppler angle.

—

Color aliasing in Doppler ultrasound occurs when the velocity of blood flow exceeds the Nyquist limit, causing the color display to wrap around and display high velocities incorrectly as the opposite direction. This phenomenon is characterized by a mix of colors that indicate flow in both directions at the same location. In the provided image, there is a clear presence of color aliasing, as evidenced by the abrupt color change across the vessel, which is not consistent with normal flow patterns.

Comprehensive and Detailed Explanation From Exact Extract:

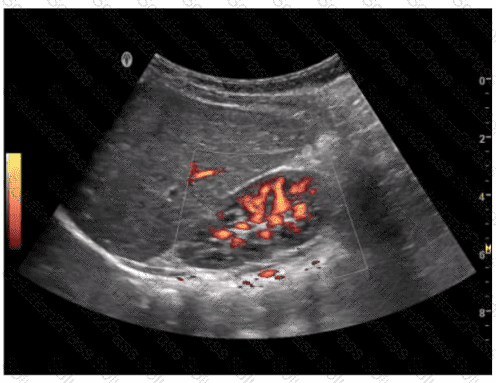

When color Doppler gain is set too high, the system amplifies noise signals, leading to random color speckles appearing within anechoic or hypoechoic areas where no true flow exists. This artifact is known as "color bleeding" or "color noise."

According to sonography instrumentation reference:

“Excessive color Doppler gain can cause noise to overwrite areas without flow, resulting in false color signals within fluid-filled or hypoechoic structures.”

Therefore, the correct answer is D: Color gain set too high.

62

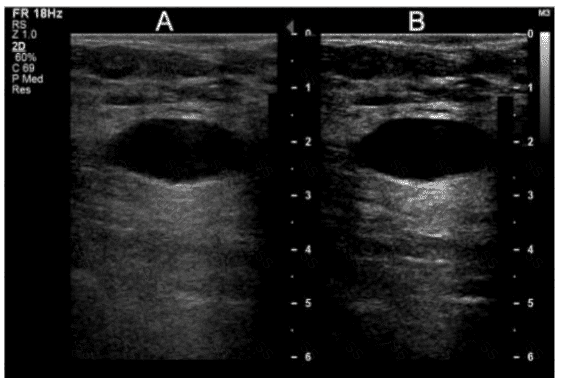

Which adjustment was made to change image A to produce image B?

A close-up of an ultrasound Description automatically generated

A. Increased overall gain

B. Decreased overall gain

C. Increased dynamic range

D. Decreased dynamic range

Answer: D

Comprehensive and Detailed Explanation From Exact Extract:

In Image B, compared to Image A, you can observe a higher contrast image with darker darks and brighter brights, indicating that dynamic range has been reduced. Decreasing dynamic range results in less grey scale, creating a more black-and-white appearance and emphasizing contrast differences.

According to sonography instrumentation reference:

“Reducing dynamic range increases image contrast by narrowing the range of displayed echo intensities, making the image appear more black and white.”

Therefore, the correct answer is D: Decreased dynamic range.

—

The frame rate in color flow imaging is influenced by several factors, one of the most significant being line density. Line density refers to the number of ultrasound lines used to create an image. Increasing line density improves spatial resolution but requires more time to acquire each frame, thereby reducing the frame rate. Other factors such as filter selection, dynamic range, and variance map selection can affect the quality of the color flow image, but they do not have as direct an impact on frame rate as line density does.

Comprehensive and Detailed Explanation From Exact Extract:

Temporal resolution reflects how quickly frames are updated (frame rate). Reducing the number of scan lines per frame (low line density) decreases acquisition time, thus increasing frame rate and improving temporal resolution.

According to sonography instrumentation reference:

“Lower line density allows for faster frame rates, improving temporal resolution at the expense of spatial resolution.”

Therefore, the correct answer is D: Low line density.

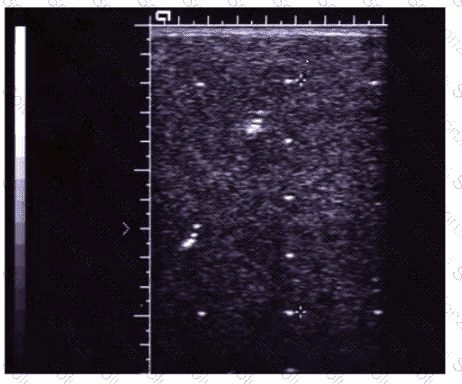

The calipers shown in the image are used to measure the depth of structures within the ultrasound image. This performance characteristic, known as depth measurement accuracy, assesses how accurately the ultrasound system can measure the distance from the transducer to a specific point within the body. Accurate depth measurements are crucial for diagnostic purposes, ensuring that anatomical and pathological structures are correctly identified and evaluated.

American Registry for Diagnostic Medical Sonography (ARDMS) Sonography Principles and Instrumentation study materials.

Textbook of Diagnostic Sonography by Hagen-Ansert, S. L. (latest edition).

Damping in a pulsed-wave transducer primarily affects the pulse duration. Damping refers to the process of reducing the vibration of the transducer crystal after the initial excitation. When damping is applied, it shortens the length of the ultrasound pulse by quickly reducing the vibration. This results in a shorter pulse duration, which is important for improving axial resolution. Damping does not directly affect the pulse repetition frequency, beam focus, or beam penetration, although it can have indirect effects on image quality and resolution.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Heat and Transient: Heat and transient are not classifications of cavitation.

Thermal and Mechanical: These terms refer to different bioeffects of ultrasound but are not types of cavitation.

Stable and Transient: These are the two types of cavitation observed in tissues during ultrasound. Stable cavitation involves the oscillation of gas bubbles without collapse, while transient cavitation involves the violent collapse of gas bubbles, which can generate high temperatures and shock waves.

Thermal and Stable: Thermal effects are a different concept related to tissue heating, not a type of cavitation.

Frame rate in color flow Doppler is influenced by several factors, including the imaging depth. Decreasing the depth reduces the time it takes for sound waves to travel to the imaging area and back to the transducer. This allows for more frames to be captured per second, thereby increasing the frame rate. Higher frame rates improve temporal resolution, making it easier to visualize moving structures.

The wall filter, also known as the high-pass filter, is used in Doppler ultrasound to remove low-frequency signals, which are typically associated with clutter artifacts. Clutter artifacts can be caused by tissue motion or vessel wall movement, and they appear as low-frequency signals that can obscure the desired blood flow signals. By increasing the wall filter setting, these low-frequency signals are filtered out, thus reducing the clutter artifact and providing a clearer depiction of the blood flow.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Enhancement is an artifact that results from decreased attenuation. When an ultrasound wave travels through a medium with lower attenuation compared to surrounding tissues, it loses less energy. Consequently, the structures located deeper than the low-attenuation medium appear brighter on the ultrasound image. This artifact is commonly observed behind fluid-filled structures, such as cysts or the urinary bladder, where the sound waves encounter minimal resistance and thus less attenuation.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

High-Frequency Transducer: These provide better resolution but do not directly cause posterior enhancement.

Low-Frequency Transducer: These provide better penetration but are not the cause of posterior enhancement.

Strongly Attenuating Structure: This would cause acoustic shadowing rather than enhancement.

Weakly Attenuating Structure: Structures that attenuate the ultrasound beam less than the surrounding tissues allow more sound waves to pass through, resulting in increased brightness or "enhancement" behind the structure.

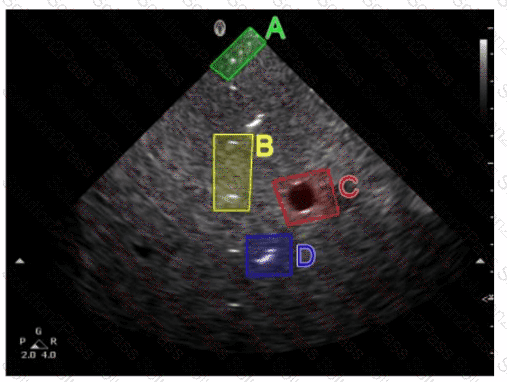

In the given image of a tissue-mimicking phantom, Option B (yellow box) is used to evaluate axial resolution. Axial resolution refers to the ability of the ultrasound system to distinguish between two structures that are close to each other along the path of the ultrasound beam (i.e., parallel to the beam). The targets in Option B are typically aligned in such a way to test the system's capacity to differentiate between structures that are situated closely together along the beam’s axis.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Sonography: Principles and Instruments" by Joan P. Baker and Marveen Craig

The wall filter is used in color Doppler and spectral Doppler imaging to eliminate low-frequency Doppler shifts caused by tissue motion or vessel wall movement. Adjusting the wall filter removes these low-frequency signals without affecting higher-frequency Doppler shifts that represent blood flow. Other settings like gain, scale, and persistence do not selectively filter out low-frequency shifts in the same manner.

Ensemble length, also known as packet size or Doppler packet, refers to the number of pulses used to calculate each Doppler measurement. Increasing the number of pulses in an ensemble length improves the accuracy of velocity measurements by providing more data points for the Doppler shift analysis. This leads to better estimation of mean velocities and reduces the variability of the measurements, although it may slightly decrease temporal resolution due to the longer time required to acquire the data.

ARDMS Sonography Principles and Instrumentation guidelines

Edelman, S. K. (2017). Understanding Ultrasound Physics.

Comprehensive and Detailed Explanation From Exact Extract:

Acoustic impedance (Z) is determined by the product of tissue density (ρ) and propagation speed (c), expressed as:

Z = ρ × c

According to Principles and Instrumentation:

"Acoustic impedance is a property of the tissue, determined by its density and the speed of sound through it."

Penetration depth (A) does not affect impedance directly.

Attenuation coefficient (B) affects signal loss, not impedance.

Transducer frequency (D) is independent of tissue impedance.

Therefore, the correct answer is C: Tissue density.

—

Comprehensive and Detailed Explanation From Exact Extract:

Lateral resolution is determined by the beam width perpendicular to the ultrasound beam’s axis. As depth increases, the beam width changes due to beam divergence after the focal point. Narrower beams (better focusing) provide improved lateral resolution at specific depths.

According to sonography instrumentation reference:

“Lateral resolution depends on the width of the ultrasound beam. The narrower the beam at a particular depth, the better the lateral resolution.”

Therefore, the correct answer is A: Beam width.

—
