Check the Active Space:

The Annotation Scale tool is only visible when the user is in model space.

Ensure that you are currently working in model space by checking the status bar or the workspace tab.

Switch to Model Space:

If you are in paper space (layout view), switch to model space by double-clicking inside a viewport or selecting the 'Model' tab at the bottom of the drawing area.

Verify the Annotation Scale Tool:

The Annotation Scale tool should now be visible in the status bar.

If it is still not visible, right-click on the status bar, go to 'Customization,' and ensure 'Annotation Scale' is checked.

References:

AutoCAD Documentation on Annotation Scale: Annotation Scale

Thank you for your engagement! Join our VIP AI Discord community at SmartPrompt for AI news and custom prompts for passive income opportunities with business automation.

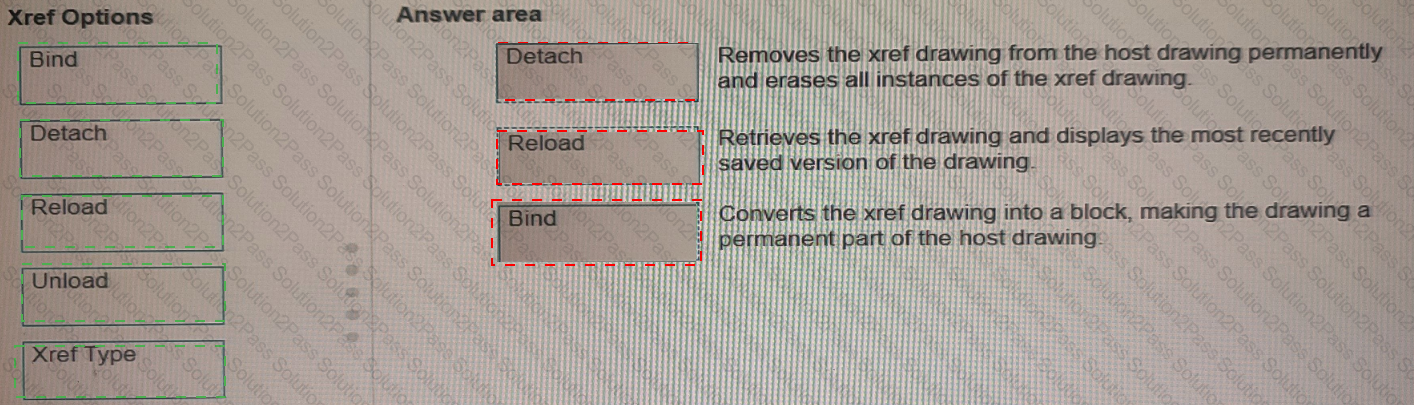

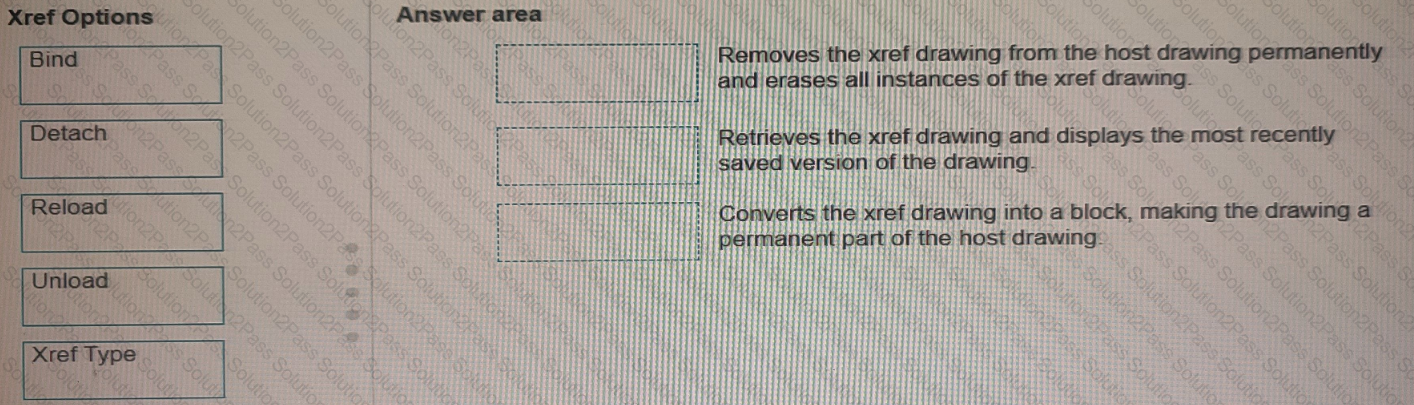

Removes the xref drawing from the host drawing permanently and erases all instances of the xref drawing. = Detach

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-70599862-DF52-4291-B64B-8A4C45599F39-htm.html

Retrieves the xref drawing and displays the most recently saved version of the drawing. = Reload

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-70599862-DF52-4291-B64B-8A4C45599F39-htm.html

Converts the xref drawing into a block, making the drawing a permanent part of the host drawing. = Bind

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-70599862-DF52-4291-B64B-8A4C45599F39-htm.html

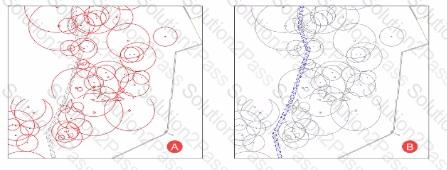

To achieve the desired appearance where the trail system is blue and all other content is gray in Viewport B, the designer needs to utilize the viewport layer properties.

Open the Layer Properties Manager:

Type LAYER in the command line and press Enter.

Modify VP Layer Colors:

In the Layer Properties Manager, find the layers that need to be changed (the trail system and other content layers).

Select the specific viewport (Viewport B) from the "Viewport Overrides" column.

Change the Colors for Viewport B:

For the trail system layer, set the color to blue.

For all other layers, set the color to gray.

This can be done by double-clicking the color cell in the "VP Color" column and selecting the desired color.

Apply Changes:

Close the Layer Properties Manager after making the necessary changes. The viewport overrides will apply, showing the trail system in blue and other content in gray in Viewport B.

To assign the 22x34_PDF page setup to a layout, follow these steps in the Page Setup Manager:

Open the Page Setup Manager:

Type PAGESETUP in the command line and press Enter.

Locate the 22x34_PDF Page Setup:

In the Page Setup Manager, locate the 22x34_PDF page setup in the list of available setups.

Set as Current:

Right-click (Control-click on Mac) on the 22x34_PDF page setup.

Select Set Current from the context menu. This action will assign the selected page setup to the current layout.

Verify the Changes:

The current layout will now use the 22x34_PDF page setup. You can verify this by checking the plot settings in the layout tab.

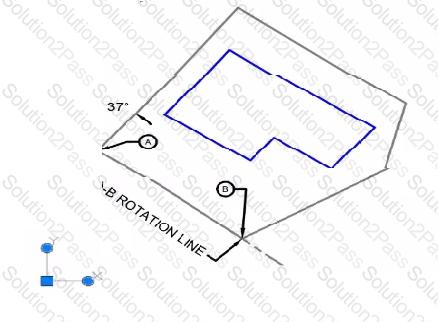

Set DVIEW Twist Angle:

Type DVIEW in the command line and press Enter.

Select the object (or type TW for Twist).

Enter 37 for the twist angle.

Set SNAPANG Value:

Type SNAPANG in the command line and press Enter.

Enter 37 for the snap angle.

Verify UCS Alignment:

Ensure the UCS icon is aligned parallel to the A-B rotation line.

Draw the building relative to the aligned UCS.

References:

AutoCAD Documentation on DVIEW and SNAPANG

Autodesk Knowledge Network: Setting Up the UCS in AutoCAD

 Open ETRANSMIT Command: Type ETRANSMIT in the command line and press Enter to open the Create Transmittal dialog box.

 Open Transmittal Setup: Click on the Transmittal Setup button to modify the settings.

 Modify Transmittal Setup: In the Transmittal Setup dialog box, make sure to select the option Include fonts to ensure SHX files (fonts) are included in the transmittal package.

 Save Changes: Click OK to save the settings and then create the transmittal package. This will ensure that all necessary SHX files are included with the drawings sent to the client.

References:

AutoCAD Help Documentation on ETRANSMIT Command

 Access the Xref Manager: Type XREF in the command line and press Enter.

 Select the Xref: Choose the Xref you want to modify from the list.

 Modify the Path: Click on the Path Type and select Make Relative. This ensures that the references will correctly point to the ALT-1_Xrefs folder relative to the current drawing location.

References:

AutoCAD Help Documentation on Attach and Overlay External References

Box 1 = ignore island detection

Box 2 = Outer island detection

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD-Core/files/GUID-981679AC-7097-4724-A30D-33F1CAFDD81D-htm.html

Understanding Online Collaboration:

AutoCAD offers several tools for online collaboration, allowing users to share drawings with others who may not have AutoCAD.

SHARE Command:

The SHARE command in AutoCAD generates a link to the drawing file that can be shared via email or other means.

Recipients can view the drawing in a web browser, and those with permissions can edit and save a copy.

Steps to Share Drawing:

Save the drawing.

Use the SHARE command.

Configure sharing settings, including permissions for viewing or editing.

Generate and share the link with recipients.

Conclusion:

For online collaboration, use the SHARE command to generate a shareable link for viewing and editing the drawing file.

References:

AutoCAD User Guide on Sharing Drawings Online.

AutoCAD Help Documentation on SHARE Command.

BOX 1 = WIPEOUT command with the Polyline option2.BOX2 = DRAWORDER command23

https://forums.autodesk.com/t5/autocad-forum/polyline-plan-view-boundary-of-point-cloud/td-p/6251860

 Open the PURGE Command: Type PURGE in the command line and press Enter.

 Select Regapps: Choose the Regapps option to remove all registered applications that are no longer needed.

 Confirm Purge: Confirm the purge operation to clean up the drawing file.

References:

AutoCAD Help Documentation on PURGE Command

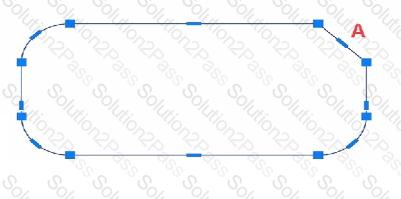

polyline is a connected sequence of line segments created as a single object that can contain a width. You can change the width of a polyline by using the PEDIT command.

Based on 3 and 4, LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only. PLINEWID is a system variable that sets a default polyline width for new polylines. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices.

https://www.roadlesstraveledstore.com/how-do-i-change-the-width-of-a-polyline-in-autocad/

https://knowledgeburrow.com/how-do-i-change-the-width-of-a-polyline-in-autocad/

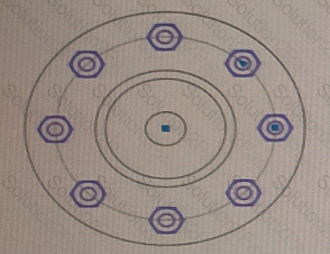

array items are contained in a single array object, similar to a block. You can change the number of these items and their spacing in an associative array.

Based on 2, you can move an item in an associative array by pressing and holding the Ctrl key, and then selecting the items you want to move.

since explode is the command that separates objects into individual objects. Disassociate, ungroup and break are not valid commands for associative arrays.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-27321B8F-C67E-4EF9-9A25-C5444330E5F2-htm.html

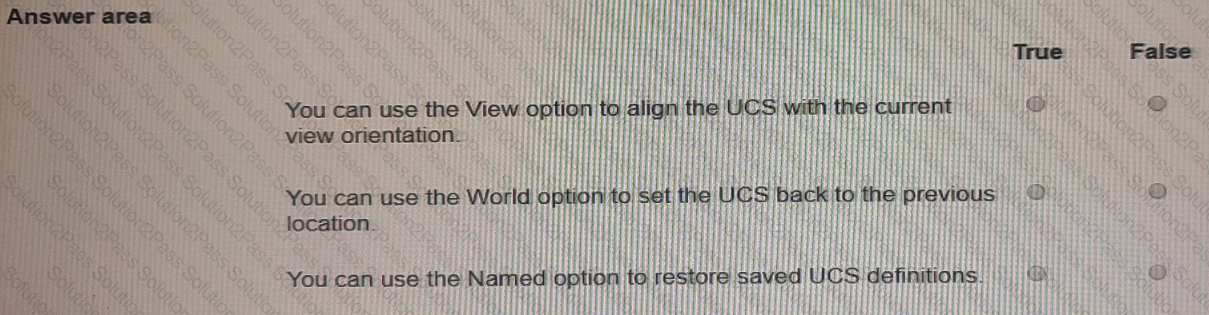

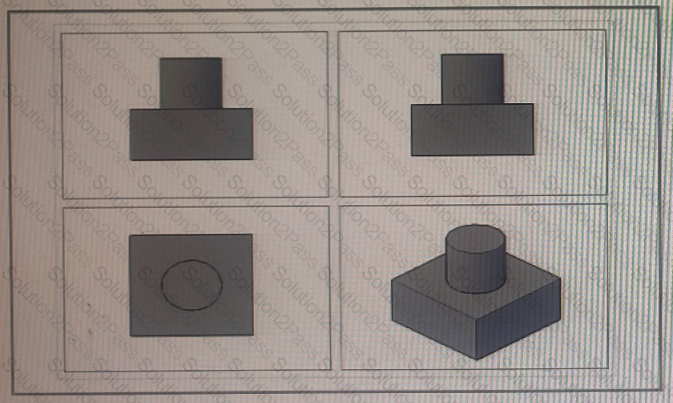

TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the View option to align the UCS with the current view orientation. This option rotates the UCS so that it matches your current view of a 3D model. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

Falseccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the World option to set the UCS back to its default orientation. This option resets the UCS so that it matches the WCS (world coordinate system).

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the Named option to save or restore named UCS definitions. This option allows you to create custom UCSs and switch between them easily.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

The function that needs to be enabled to display the dimension input box while drawing a line is "Dynamic Input." This feature provides a command interface near the cursor, allowing you to input dimensions and commands directly where you are drawing.

Dynamic Input:

Effect: Displays input boxes for dimensions and commands near the cursor.

Usage: Facilitates real-time input of lengths, angles, and other parameters directly while drawing.

How to Enable:

Command: DYNMODE

Toggle: You can toggle Dynamic Input on or off using the F12 key or by typing DYNMODE and setting it to 1.

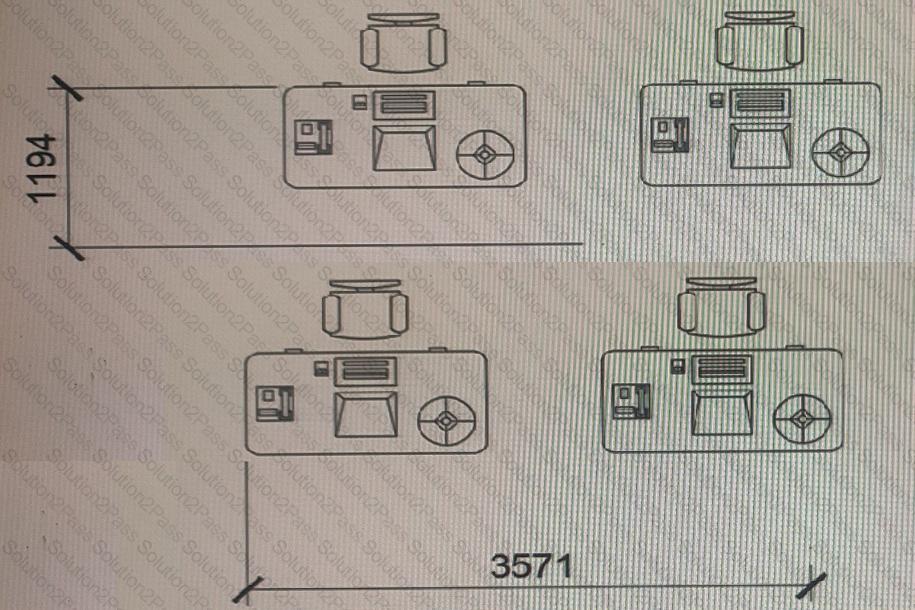

According to the AutoCAD for Design and Drafting documents1, the command that should be used to ensure that the dimension objects are placed accurately is Reassociate (DIMREASSOCIATE)2. This command associates or reassociates selected dimensions to objects or points on objects3. You can also control whether new dimensions are associative by checking the option Make New Dimensions Associative in the User Preferences tab4.

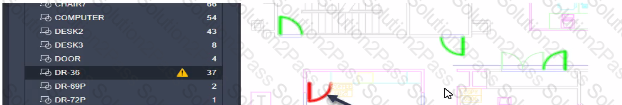

Understanding the Count Tool Alert:

In AutoCAD, the Count tool is used to quantify the number of block instances within a drawing.

A yellow error alert triangle next to the block count indicates an inconsistency or issue with the blocks in the drawing.

Common Reasons for Alert:

The block is on the wrong layer.

The block is exploded.

The block does not have its color assigned to BYLAYER.

The block has a different scale factor.

Identifying the Issue:

Option A: The block being on the wrong layer does not typically trigger a count alert.

Option C: The color assignment to BYLAYER does not affect the block count.

Option D: Different scale factors usually do not trigger a count alert unless the block definition is altered.

Option B: Exploded blocks result in losing the block definition, causing AutoCAD to alert the user of incomplete blocks, which matches the scenario depicted in the exhibit.

Conclusion:

The alert is due to the block being exploded, resulting in a mismatch between the expected block count and the actual block instances recognized by AutoCAD.

References:

AutoCAD Help Documentation on Block Counting and Alerts.

User manuals and community forums discussing common issues with block counts.

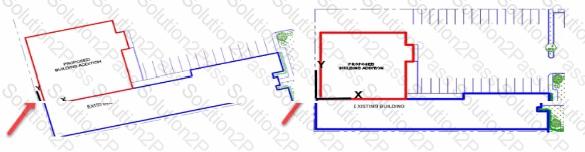

Identify the Current UCS:

Before changing the view, ensure that the UCS (User Coordinate System) is correctly oriented with the angled geometry.

If necessary, use the UCS command to align the UCS with the angled building addition.

Use the PLAN Command:

Type PLAN in the command line and press Enter.

When prompted, choose the Current UCS option. This option adjusts the view so that it becomes orthogonal (aligned) to the current UCS.

Result:

The drawing will now be oriented orthogonally on the screen, as shown in the exhibit on the right, without rotating any actual geometry.

References:

AutoCAD Documentation on the PLAN command: PLAN Command
