300-110 Cisco Designing Cisco Wireless Networks (300-110 WLSD) v1.2 Free Practice Exam Questions (2026 Updated)

The command ' debug mobility handoff enable ' is used to validate the mobility control packets between Wireless LAN Controllers (WLCs). This command enables debugging of the handoff process, which is critical for ensuring seamless client roaming between controllers. When WLCs are separated by firewalls, it is essential to confirm that mobility control packets can traverse these firewalls without being dropped or rejected. The ' debug mobility handoff enable ' command allows network administrators to monitor the handoff process in real time and identify whether mobility PDUs are being exchanged successfully. If mobility control packets are being blocked by the firewall, this debug output will show failures in the handoff sequence. This command directly validates bidirectional mobility traffic flow, making it the correct troubleshooting tool for the scenario described. Options A and D are not valid Cisco WLC commands. Option C enables configuration-level mobility debugging but does not specifically validate handoff packet flow. Reference: WLSD Study Guide — Mobility Troubleshooting, Debug Commands, Inter-Controller Roaming Validation.

Cisco Spectrum Expert is a dedicated spectrum analysis tool designed to identify and analyze non-Wi-Fi interference sources at Layer 1. During a post-deployment site survey, it can detect interference from various devices such as cordless phones, Bluetooth devices, microwave ovens, video cameras, and other unlicensed RF emitters. The tool provides a visual representation of the RF environment across the frequency spectrum, allowing engineers to pinpoint the exact source of interference and characterize it by duty cycle, frequency, and interference pattern. A network analysis module (Option A) operates at Layer 2 and above, unable to detect non-802.11 RF emissions. Wireless intrusion prevention (Option B) detects rogue APs and 802.11 attacks but not Layer 1 RF noise. Wireshark (Option C) is a packet capture tool for Layer 2-7 analysis and cannot detect non-Wi-Fi RF energy. Reference: WLSD Study Guide — Layer 1 Spectrum Analysis, Post-Deployment Survey, Non-Wi-Fi Interference Identification.

Layer 1 interference analysis is foundational to the Cisco site survey methodology. When a spectrum analyzer reveals periodic noise floor spikes across multiple channels with no clear line-of-sight obstruction, the root cause is almost certainly a non-802.11 device — candidates include cordless phones, video cameras, microwave equipment, or radar systems triggering DFS events. The correct engineering response is systematic documentation: capture the time of occurrence, the specific frequency or frequency range, and the geographic location of the interference signature. This triangulation data enables correlation with physical devices present in the facility. Simply increasing transmit power (Option A) raises the noise floor for neighboring cells and worsens co-channel interference. Using WLC monitoring tools (Option B) is insufficient because the WLC cannot detect non-802.11 energy at Layer 1. Adjusting the channel plan (Option C) without fully characterizing the interferer is premature. Only Option D follows the correct Cisco survey methodology for Layer 1 analysis, leading to actionable AP placement adjustments. Reference: WLSD Study Guide — Wireless Site Survey Methodology, Layer 1 Spectrum Analysis, Interference Identification and Mitigation.

In a Layer 1 passive wireless site survey using a channel analyzer tool (such as Metageek Chanalyzer or Cisco Spectrum Expert) in the 2.4 GHz spectrum, the chart that indicates the ratio of interference present during the capture duration is the Duty Cycle chart. The duty cycle chart displays the percentage of time that detected energy — including both Wi-Fi and non-Wi-Fi signals — is present on each channel. A high duty cycle on a channel indicates that the channel is occupied by transmissions for a significant portion of time, reducing available airtime for Wi-Fi clients. This chart directly communicates the ratio of interference because it shows what fraction of the observation period had detectable RF energy above the noise floor. Signal strength charts show amplitude (how strong), while duty cycle charts show temporal occupancy (how often) — the latter is the correct metric for quantifying interference ratio. Reference: WLSD Study Guide — Layer 1 Spectrum Analysis, Duty Cycle Chart Interpretation, Spectrum Analyzer Methodology.

For APs to be able to fail over between a primary SSO pair in one data center and a standalone WLC in a remote data center connected via WAN with firewalls, two design requirements must be met. First, a mobility tunnel must be created between the wireless controllers (Option A). The mobility tunnel enables the controllers to exchange mobility control messages, peer information, and eventually AP context when failover occurs. Without the mobility tunnel, the remote WLC is not recognized as a valid failover target by the APs through the mobility domain. Second, UDP ports 16666 and 16667 must be open through the firewalls between the controllers (Option D). UDP port 16666 is used for mobility control traffic and UDP port 16667 is used for mobility data traffic — both must be permitted through the firewalls at both data centers for the mobility tunnel to establish and function. HTTPS port 443 (Option B) is used for web management and API communication, not for mobility tunneling. A static RF group leader (Option C) is a RRM configuration unrelated to AP failover capability. Creating a mobility group with the same names (Option E) is a component of the configuration but alone is insufficient without the mobility tunnel and open firewall ports. Reference: WLSD Study Guide — Inter-Site WLC Failover Design, Mobility Tunnel Requirements, Firewall Port Planning for WAN-Separated Controllers.

VLAN Select is a feature that allows for the dynamic assignment of clients to different VLANs from a pool based on various criteria, such as load balancing or location. In a centralized wireless deployment with N+1 high availability, if clients are receiving IP addresses from a different subnet after failover despite the WLANs being configured with the same dynamic interfaces, the issue is that the second controller ' s WLAN interface mapping resolves to a different VLAN or DHCP scope. VLAN Select ensures that client VLAN assignment is consistent regardless of which controller the client connects to, preventing the subnet change behavior observed during failover. Without VLAN Select, even identically named dynamic interfaces on two WLCs may map to different VLANs if the underlying switch configuration differs. RF Protocol (Option A) controls radio parameters. AP Groups (Option B) control SSID and VLAN assignments per AP cluster. AAA Override (Option D) allows RADIUS servers to assign per-user VLANs, which requires authentication — but these SSIDs use open authentication. Reference: WLSD Study Guide — N+1 High Availability Design, VLAN Select Feature, Consistent Client VLAN Assignment Across Controllers.

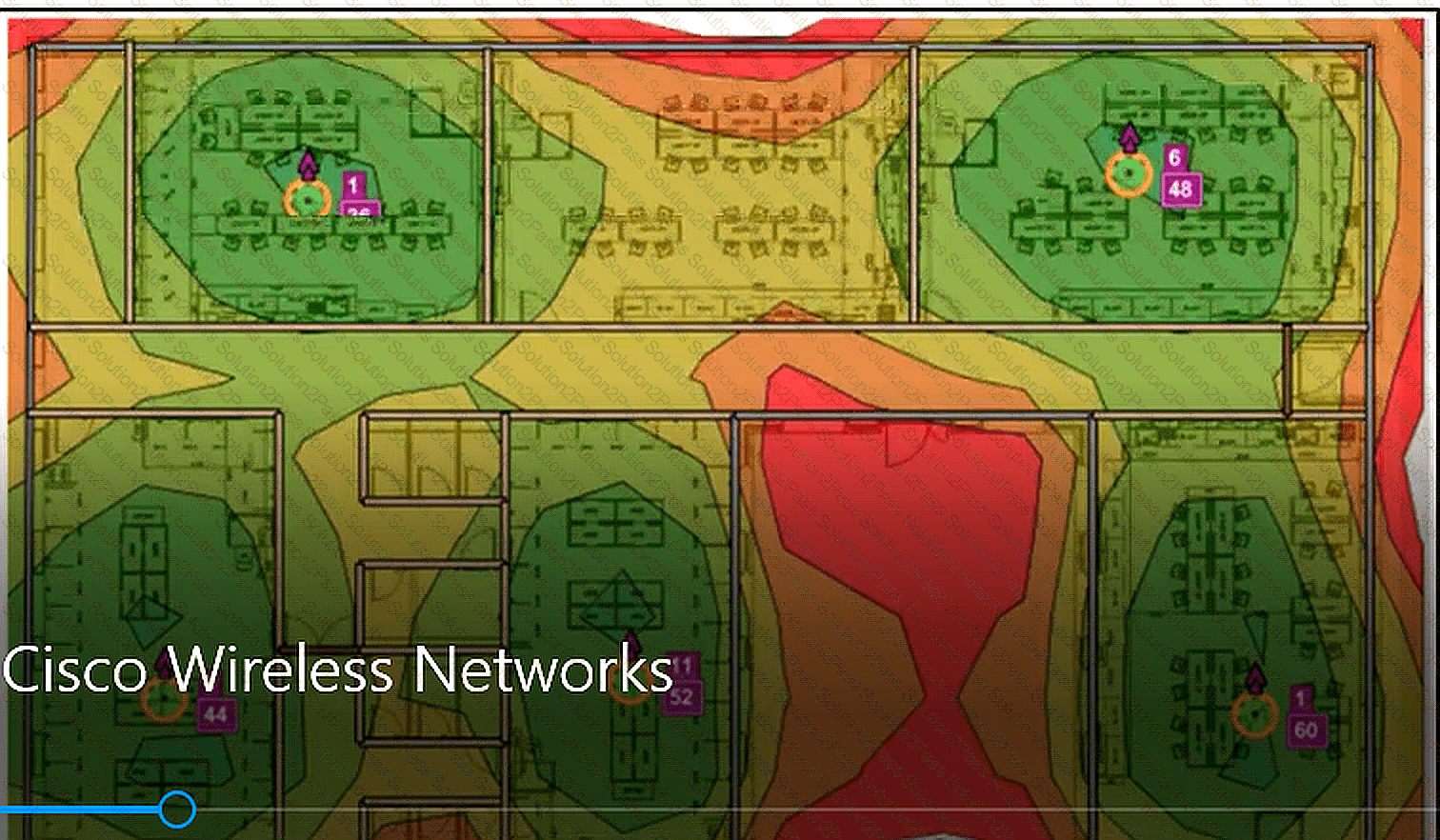

Voice over WLAN (VoWLAN) deployments require a minimum SNR threshold to maintain acceptable Mean Opinion Score (MOS) values for call quality. Cisco ' s 300-110 WLSD curriculum specifies that VoWLAN requires a minimum SNR of 25 dB throughout the coverage area. In an Ekahau post-deployment survey SNR heatmap, when the heatmap displays a consistent color indicating SNR at or above this threshold across the entire surveyed area — including all rooms, corridors, and common areas such as the lobby — the conclusion is that voice service is supported in all locations. The color coding in Ekahau ' s SNR heatmap uses green tones to indicate adequate SNR (typically ≥25 dB) and shifts toward yellow and red for degraded conditions. When the exhibit heatmap shows uniform adequate coverage across all surveyed areas without yellow or red zones, it confirms the SNR requirement for VoWLAN is universally met. Options A, B, and C suggest partial or no coverage, which would be indicated by mixed or poor SNR values — conditions not present in this scenario. The post-deployment survey with Ekahau is the validation step confirming that the predictive design was accurately realized in the physical environment. Reference: WLSD Study Guide — VoWLAN Design Requirements, SNR Thresholds, Post-Deployment Survey Validation with Ekahau.
