The ―logging console‖ is a default and hidden command.

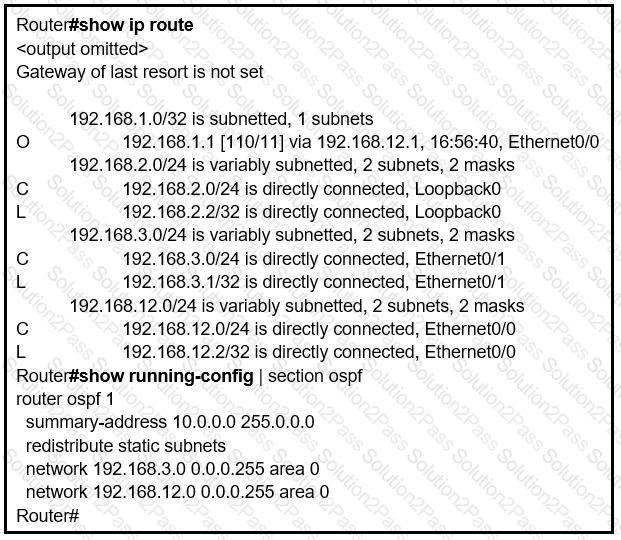

The ―summary-address‖ is only used to create aggregate addresses for OSPF at an autonomous system boundary. It means this command should only be used on the ASBR when you are trying to summarize externally redistributed routes from another protocol domain or you have a NSSA area. But a requirement to create a summarized route is:

―The ASBR compares the summary route’s range of addresses with all routes redistributed into OSPF on that ASBR to find any subordinate subnets (subnets that sit inside the summary route range). If at least one subordinate subnet exists, the ASBR advertises the summary route.‖

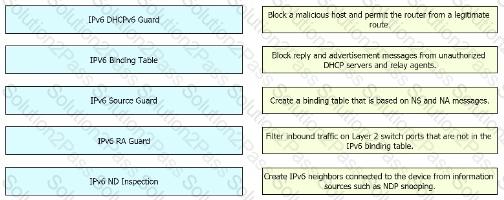

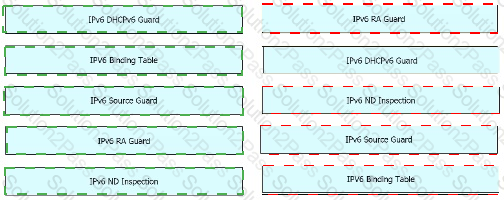

Restrictions for IPv6 RA Guard

The IPv6 RA Guard feature does not offer protection in environments where IPv6 traffic is tunneled.

This feature is supported only in hardware when the ternary content addressable memory (TCAM) is programmed.

This feature can be configured on a switch port interface in the ingress direction.

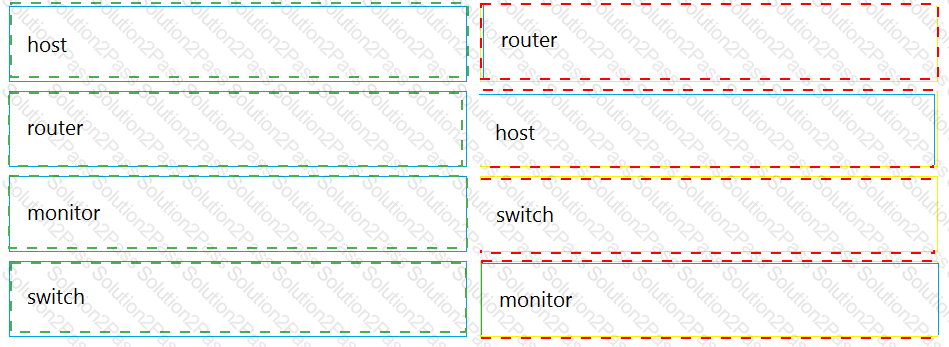

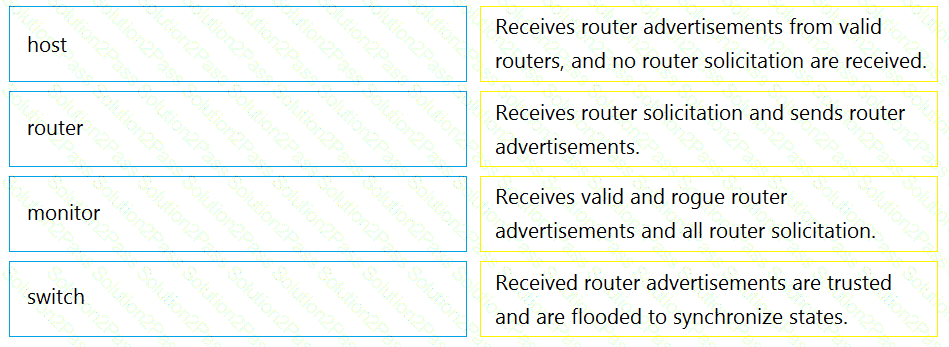

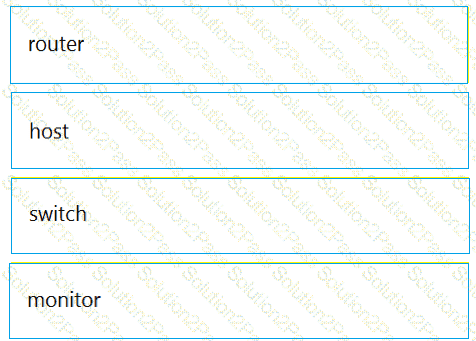

This feature supports host mode and router mode.

This feature is supported only in the ingress direction; it is not supported in the egress direction.

This feature is not supported on EtherChannel and EtherChannel port members.

This feature is not supported on trunk ports with merge mode.

This feature is supported on auxiliary VLANs and private VLANs (PVLANs). In the case of PVLANs, primary VLAN features are inherited and merged with port features.

Packets dropped by the IPv6 RA Guard feature can be spanned.

A label edge router (LER, also known as edge LSR) is a router that operates at the edge of an MPLS network and acts as the entry and exit points for the network. LERs push an MPLS label onto an incoming packet and pop it off an outgoing packet.

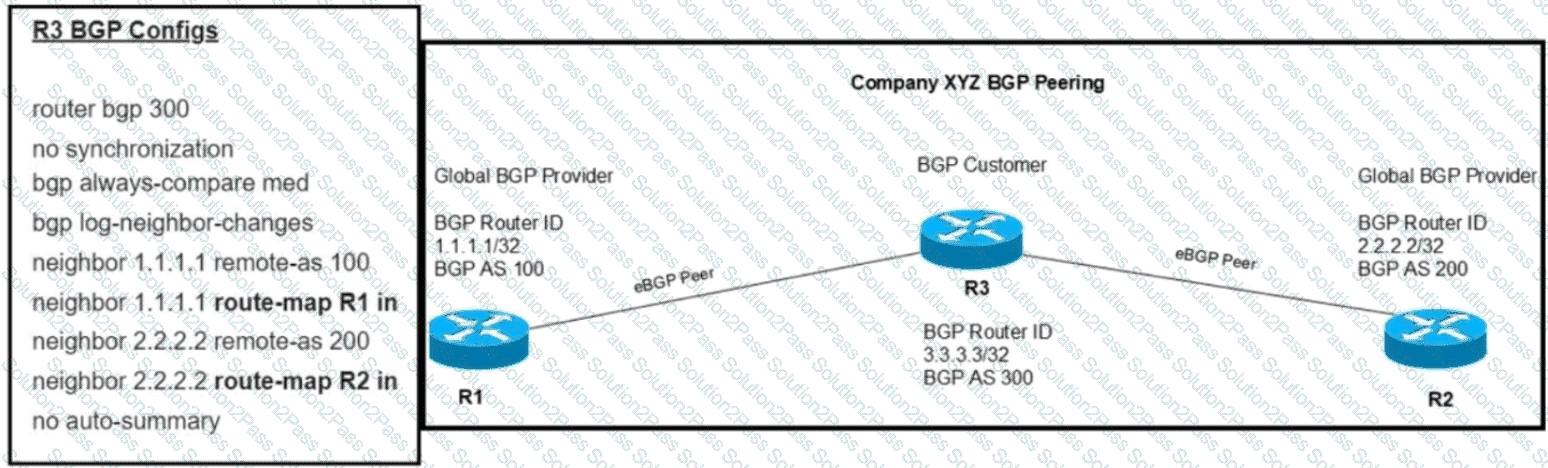

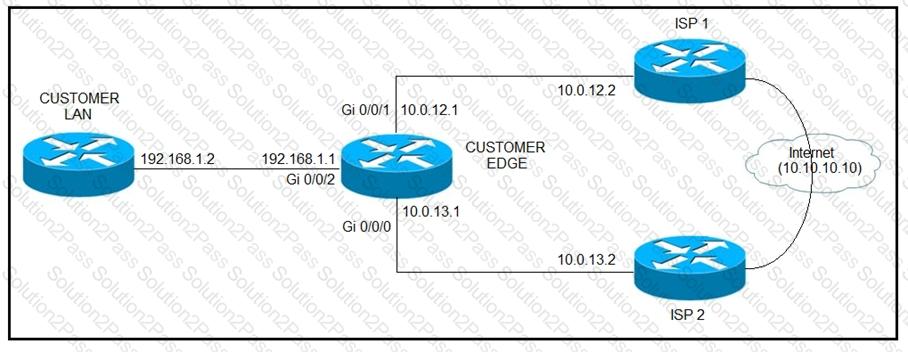

By default BGP advertises all prefixes to external BGP neighbors. This means that if you are

multi-homed (connected to two or more ISPs) then you might become a transit AS. For example,

ISP 2 in AS 200 can send traffic to your router in AS 100 to reach ISP 3 in AS 300 because you

advertised prefixes in ISP 3 to ISP 2.

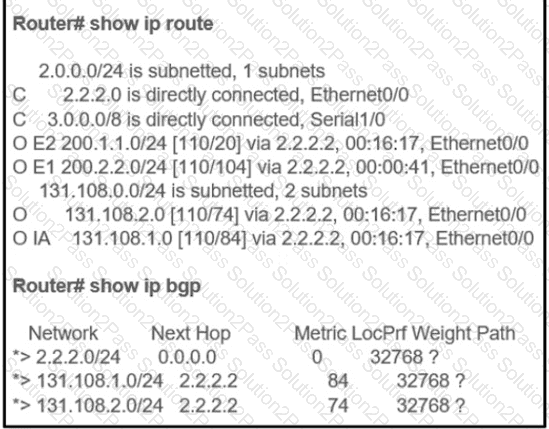

This is what will be seen in the BGP routing table of ISP1:

By default, Catalyst switches add a simple uptime timestamp to logging messages. This is a cumulative counter that shows the hours, minutes, and seconds since the switch has been booted up

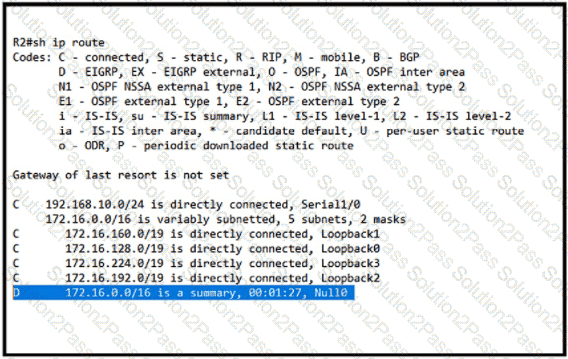

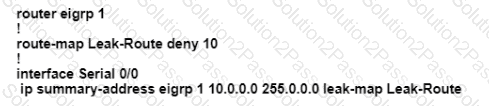

When you configure an EIGRP summary route, all networks that fall within the range of your

summary are suppressed and no longer advertised on the interface. Only the summary route is

advertised. But if we want to advertise a network that has been suppressed along with the

summary route then we can use leak-map feature. The below commands will fix the

configuration in this question:

R1(config)#access-list 1 permit 10.1.1.0 0.0.0.3

R1(config)#route-map Leak-Route permit 10 // this command will also remove the “route_map

Leak-Route deny 10” command.

R1(config-route-map)#match ip address 1

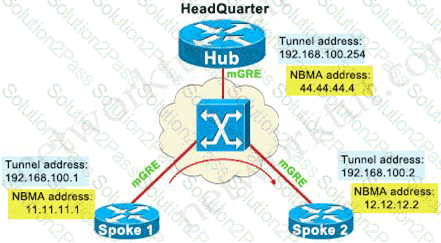

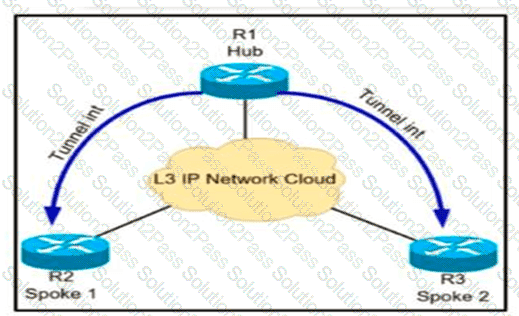

From the output we can see there are 2 NHRP Peers. The first one with the NBMA Address of

172.18.16.2 and the “Attribute” (Attrb) of Static (S) so we can deduce it is the Hub device.

Therefore the second one must be the remaining Spoke device with the attribute of Dynamic

(D).

--> S - Static, D - Dynamic, I - Incomplete

N - NATed, L - Local, X - No Socket

# Ent --> Number of NHRP entries with same NBMA peer

NHS Status: E --> Expecting Replies, R --> Responding, W --> Waiting

UpDn Time --> Up or Down Time for a Tunnel

========================================================================

==

Interface: Tunnel1, IPv4 NHRP Details

Type:Spoke, NHRP Peers:2,

# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb

----- --------------- --------------- ----- -------- -----

1 44.44.44.4 192.168.100.254 UP 00:03:40 S

1 12.12.12.2 192.168.100.2 UP 00:03:20 D

The ―summary-address‖ is only used to create aggregate addresses for OSPF at an autonomous system boundary. It means this command should only be used on the ASBR when you are trying to summarize externally redistributed routes from another protocol domain or you have a NSSA area. But a requirement to create a summarized route is:

―The ASBR compares the summary route’s range of addresses with all routes redistributed into OSPF on that ASBR to find any subordinate subnets (subnets that sit inside the summary route range). If at least one subordinate subnet exists, the ASBR advertises the summary route.‖

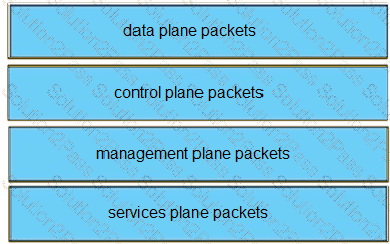

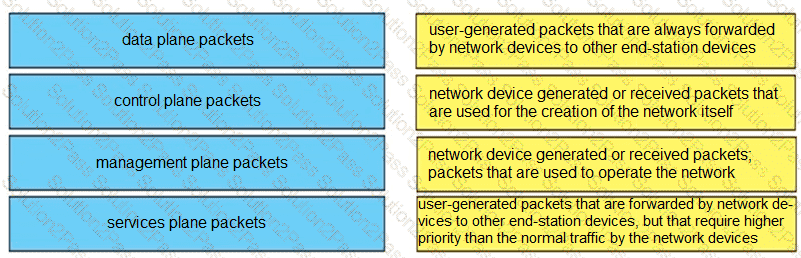

Unlike legacy network technologies such as ISDN, Frame Relay, and ATM that defined separate data and control channels, IP carries all packets within a single pipe. Thus, IP network devices such as routers and switches must be able to distinguish between data plane, control plane, and management plane packets to treat each packet appropriately.From an IP traffic plane perspective, packets may be divided into four distinct, logical groups:1. Data plane packets – End-station, user-generated packets that are always forwarded by network devices to other end-station devices. From the perspective of the network device, data plane packets always have a transit destination IP address and can be handled by normal, destination IP address-based forwarding processes.2. Control plane packets – Network device generated or received packets that are used for the creation and operation of the network itself. From the perspective of the network device, control plane packets always have a receive destination IP address and are handled by the CPU in the network device route processor. Examples include protocols such as ARP, BGP, OSPF, and other protocols that glue the network together.3. Management plane packets – Network device generated or received packets, or management station generated or received packets that are used to manage the network. From the perspective of the network device, management plane packets always have a receive destination IP address and are handled by the CPU in the network device route processor. Examples include protocols such as Telnet,Secure Shell (SSH), TFTP, SNMP, FTP, NTP, and other protocols used to manage the device and/or network.4. Services plane packets – A special case of data plane packets, services plane packets are also user-generated packets that are also forwarded by network devices to other end-station devices, but that require high-touch handling by the network device (above and beyond normal, destination IP address-based forwarding) to forward the packet. Examples of high-touch handling include such functions as GRE encapsulation, QoS, MPLS VPNs, and SSL/IPsec encryption/decryption, etc. From the perspective of the network device, services plane packets may have a transit destination IP address, or may have a receive destination IP address (for example, in the case of a VPN tunnel endpoint).

Graphical user interface, chart Description automatically generated

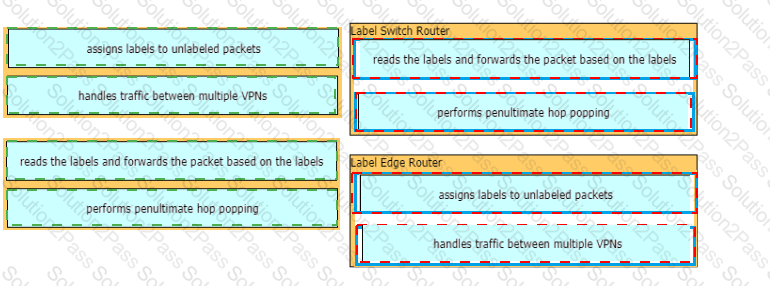

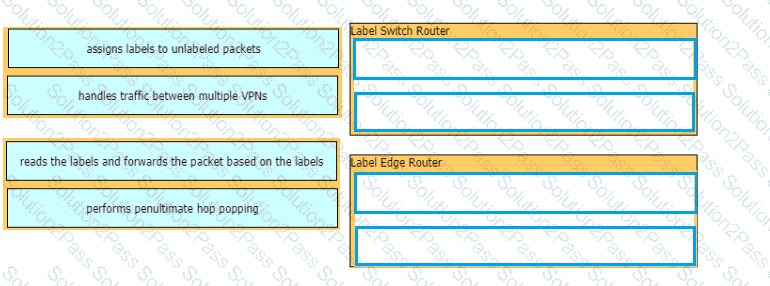

Label Switch Router 1. Reads labels and forwards the packet based on the based on the label.

2. Performs PHP

Label Edge Router: 1 Assigns labels and unlabeled packets.

2. Handles traffic between multiple VPNs

When you configure an EIGRP summary route, all networks that fall within the range of your

summary are suppressed and no longer advertised on the interface. Only the summary route is

advertised. But if we want to advertise a network that has been suppressed along with the

summary route then we can use leak-map feature. The below commands will fix the

configuration in this question:

R1(config)#access-list 1 permit 10.1.1.0 0.0.0.3

R1(config)#route-map Leak-Route permit 10 // this command will also remove the “route_map

Leak-Route deny 10” command.

R1(config-route-map)#match ip address 1
