A TLOC extension facilitates WAN Edge router redundancy within a site. In Cisco SD-WAN, a Transport Location identifies a WAN transport attachment using attributes such as system IP, color, and encapsulation. A TLOC extension allows one WAN Edge router to use a transport circuit physically connected to another WAN Edge router at the same site. This is valuable when a branch has two edge routers and two transports, but each transport is cabled to only one router. With TLOC extension, each router can still gain logical access to both transports, improving redundancy and allowing better path diversity without adding more service-provider circuits or handoffs. The feature does not simply identify the physical interface; that is part of TLOC definition. It does not increase the number of colors or create a port-channel-style aggregate. A sound design also accounts for failure domains, service-side routing, and whether the inter-router link has enough bandwidth for extended transport traffic. Reference topics: Cisco SD-WAN TLOC, TLOC extension, WAN Edge redundancy, transport color, branch resiliency.

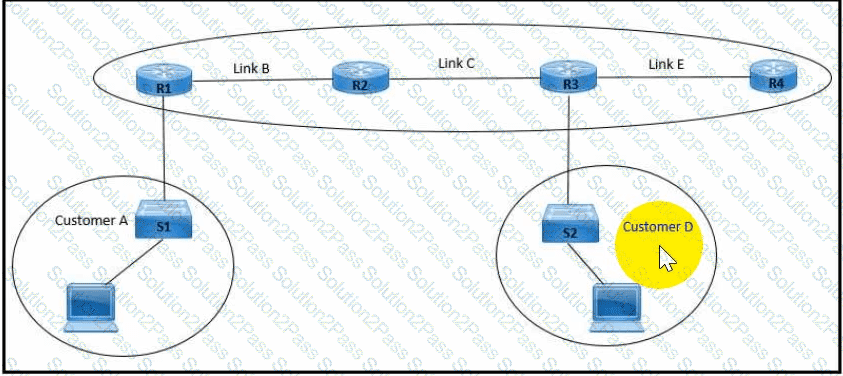

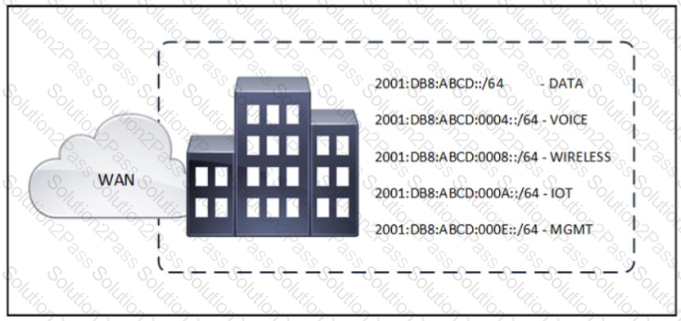

The selected configuration sets are correct because the addressing plan must use VLSM to maximize subnets and minimize wasted addresses. Customer A requires 125 hosts, so it needs a /25 subnet, which provides 126 usable host addresses. Customer D requires 62 hosts, so it needs a /26 subnet, which provides 62 usable addresses exactly. Point-to-point or small WAN links B, C, and E should use the smallest appropriate link subnets shown in the exhibit, typically /30 for IPv4 point-to-point links when two usable addresses are required. A correct plan must allocate the largest blocks first, align every subnet on the proper boundary, avoid overlap, and avoid assigning a larger-than-needed subnet to any customer or link. Options A and C are the two valid combinations that satisfy those rules in the exhibit. Any option that places a /25 or /26 on the wrong boundary, overlaps with another block, or wastes larger subnets on links would fail the design objective. Reference topics: IPv4 VLSM, subnet boundary alignment, host capacity planning, point-to-point addressing, route summarization readiness.

Both WAN routers should run OSPFv2. The requirement explicitly says that the routing protocol must be open standard, provide high availability, and offer fast convergence. OSPF is an open-standard link-state routing protocol and is broadly supported across vendors. It builds a link-state database, calculates best paths with SPF, supports equal-cost multipath, and can be tuned with BFD, SPF throttling, LSA throttling, and hierarchical areas for resilient enterprise WAN designs. EIGRP is fast and operationally efficient in Cisco-only environments, but it is not the best answer when the requirement emphasizes an open-standard routing protocol. Running OSPFv2 on one router and OSPFv3 on another is invalid for a single IPv4 routing design because they would not form the intended common routing domain. Mixing IS-IS and OSPFv3 also fails the requirement for a unified design between the redundant routers. Therefore, both routers should run OSPFv2. Reference topics: OSPFv2, open-standard routing, WAN routing high availability, link-state convergence, ECMP and BFD integration.

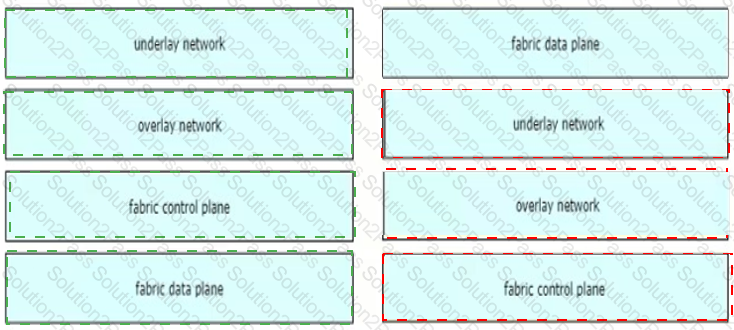

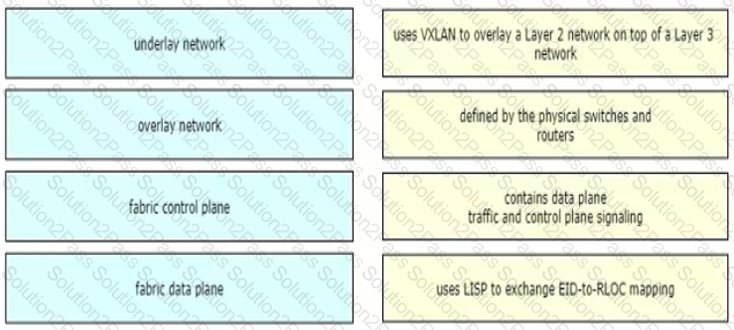

The Cisco SD-Access underlay provides the physical and IP transport foundation that allows fabric nodes to reach each other. In plain terms, it is the routed connectivity built from the switches, routers, links, and loopback reachability that the overlay depends on. Cisco SD-Access then uses the overlay to provide virtualization, segmentation, policy, and endpoint mobility on top of that transport. This is why the underlay is best described as establishing the connectivity between the switches and routers that form the fabric. Option A describes the abstraction performed by the overlay, not the underlay. Option B is closer to a Layer 2 tunneling description and is not the main purpose of the SD-Access underlay. Option D describes encapsulated overlay behavior, especially VXLAN-based data-plane transport, not the physical/routed foundation itself. A good SD-Access design validates underlay reachability, routing adjacencies, MTU, loopback advertisement, and redundancy before onboarding the overlay services. Without a stable underlay, LISP control-plane mappings and VXLAN data-plane forwarding cannot operate predictably. Reference topics: SD-Access underlay, routed campus foundation, fabric node reachability, overlay dependency.

The Cisco SD-Access edge node is equivalent to the access-layer switch in a traditional three-tier campus design. Edge nodes are the fabric devices to which wired endpoints, access points, and other user-facing connections attach. They provide the anycast Layer 3 gateway for connected subnets, classify endpoints into virtual networks, apply policy information, and register endpoint reachability with the SD-Access control-plane node. In traditional campus terminology, this is the role normally performed by access switches at the edge of the network. Border nodes connect the SD-Access fabric to external networks, such as the WAN, data center, internet edge, or shared services. Intermediate nodes provide underlay transport between fabric nodes but do not attach endpoints to the fabric overlay. Control-plane nodes maintain mapping information rather than serving as access-layer attachment points. Understanding the edge-node role is fundamental because SD-Access policy and host mobility begin where the endpoint enters the fabric. Reference topics: SD-Access edge node, access layer, anycast gateway, endpoint registration, fabric roles.

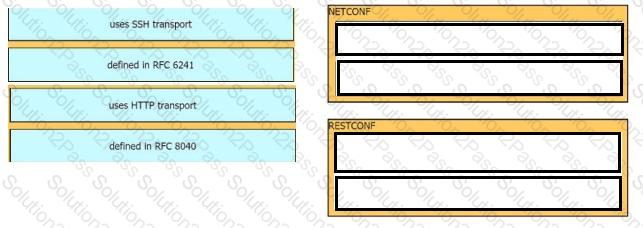

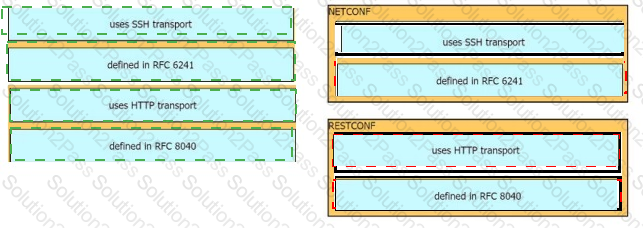

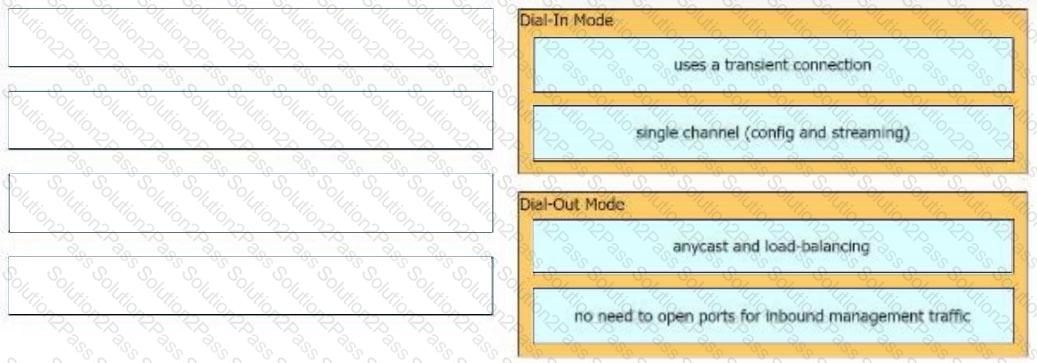

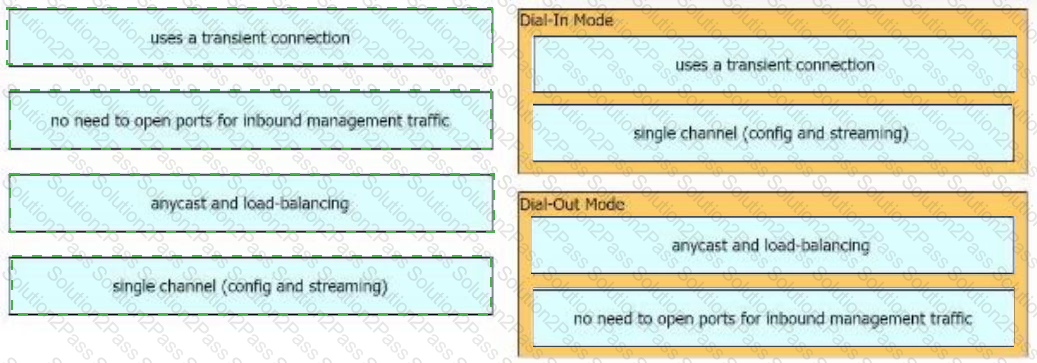

The configuration-protocol mapping distinguishes NETCONF and RESTCONF behavior in model-driven programmability. NETCONF is an XML-based network configuration protocol that runs over a secure transport such as SSH and supports structured operations such as get-config, edit-config, lock, unlock, commit, and datastore manipulation. It is well suited to transactional configuration workflows where candidate and running datastores are supported. RESTCONF exposes YANG-modeled data through a REST-style interface over HTTP or HTTPS, using familiar methods such as GET, POST, PUT, PATCH, and DELETE. It can encode data in XML or JSON depending on headers and implementation. Both protocols use YANG models to define the structure and semantics of configuration and operational data, but they differ in transport style, operation model, and tooling. The selected mapping therefore places NETCONF characteristics with the protocol that provides RPC-style operations and datastore handling, while RESTCONF receives HTTP method and URI-based characteristics. In design, the choice depends on controller support, device operating system, required transaction semantics, security policy, and developer tooling. Reference topics: NETCONF, RESTCONF, YANG, datastores, XML and JSON encoding.

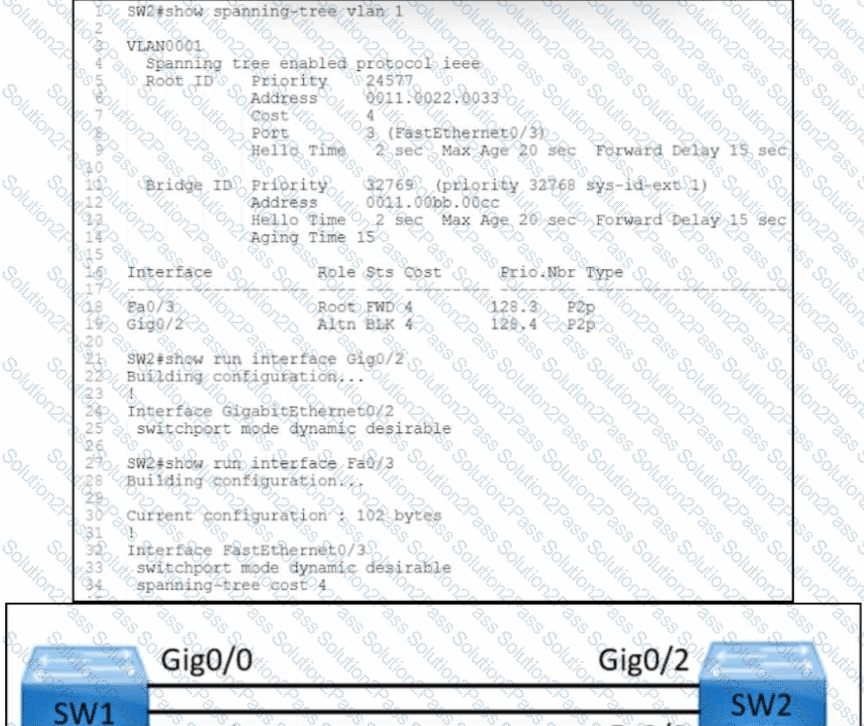

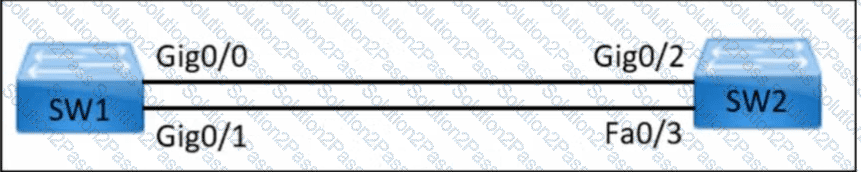

The selected command pair is appropriate because the issue is that GigabitEthernet0/2 on SW2 is not becoming the root port as expected. In spanning-tree design, the root port is selected based on the lowest root path cost, then upstream bridge ID, then port ID when necessary. If the wrong port is selected, the engineer must adjust the local spanning-tree parameters on SW2 so that the intended interface has the best path toward the root bridge. Typical corrective commands lower the spanning-tree cost or set the port priority on the desired interface or VLAN instance. The correct answer pair is therefore the combination that changes the STP decision variables for Gig0/2 rather than changing unrelated features such as PortFast, BPDU Guard, or VLAN trunking. PortFast is unsafe on switch-to-switch links, and protection features do not make an interface more attractive as a root port. The fix must influence STP path selection while keeping the topology loop-free. Reference topics: STP root port election, path cost, port priority, root bridge path selection, Catalyst Layer 2 troubleshooting.

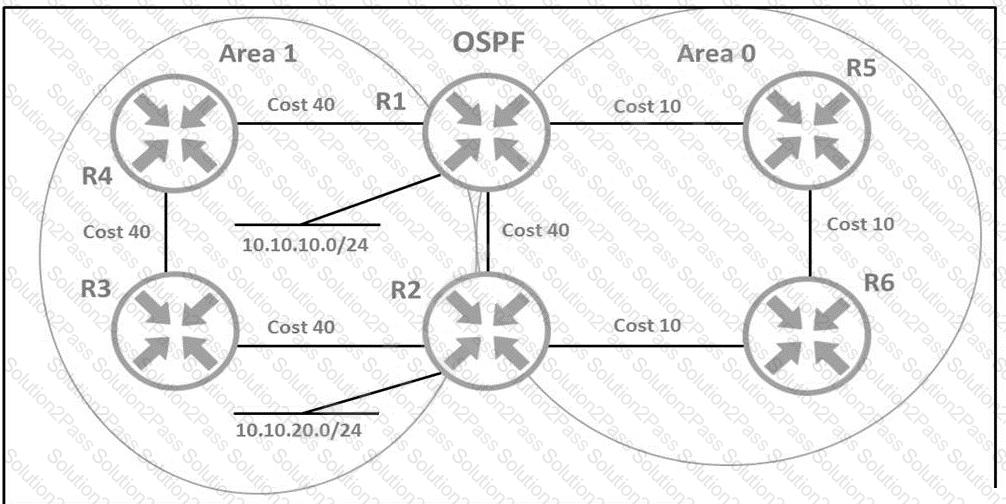

Lowering the OSPF cost on the direct R1-to-R2 link is the cleanest way to force traffic for 10.10.20.0/24 to prefer that link. OSPF calculates the shortest path using cumulative interface cost, and Cisco designs normally tune OSPF path selection by changing interface cost rather than administrative distance. Administrative distance determines preference between different routing protocols, not between OSPF paths inside the same OSPF process. Moving the link into another area or creating a multiarea adjacency adds design complexity and does not directly solve the requirement unless the resulting cost still becomes lower. The exhibit states that the architect must use the direct link for traffic from 10.10.10.0/24 toward 10.10.20.0/24. Therefore, the direct link must have a lower total OSPF metric than the alternate path. Configuring the link cost to a value below 30 makes OSPF choose it as the preferred intra-area route. This is deterministic, easy to validate with the OSPF database and routing table, and consistent with Cisco hierarchical IGP design practice. Reference topics: OSPF cost, SPF path selection, metric tuning, intra-area routing.

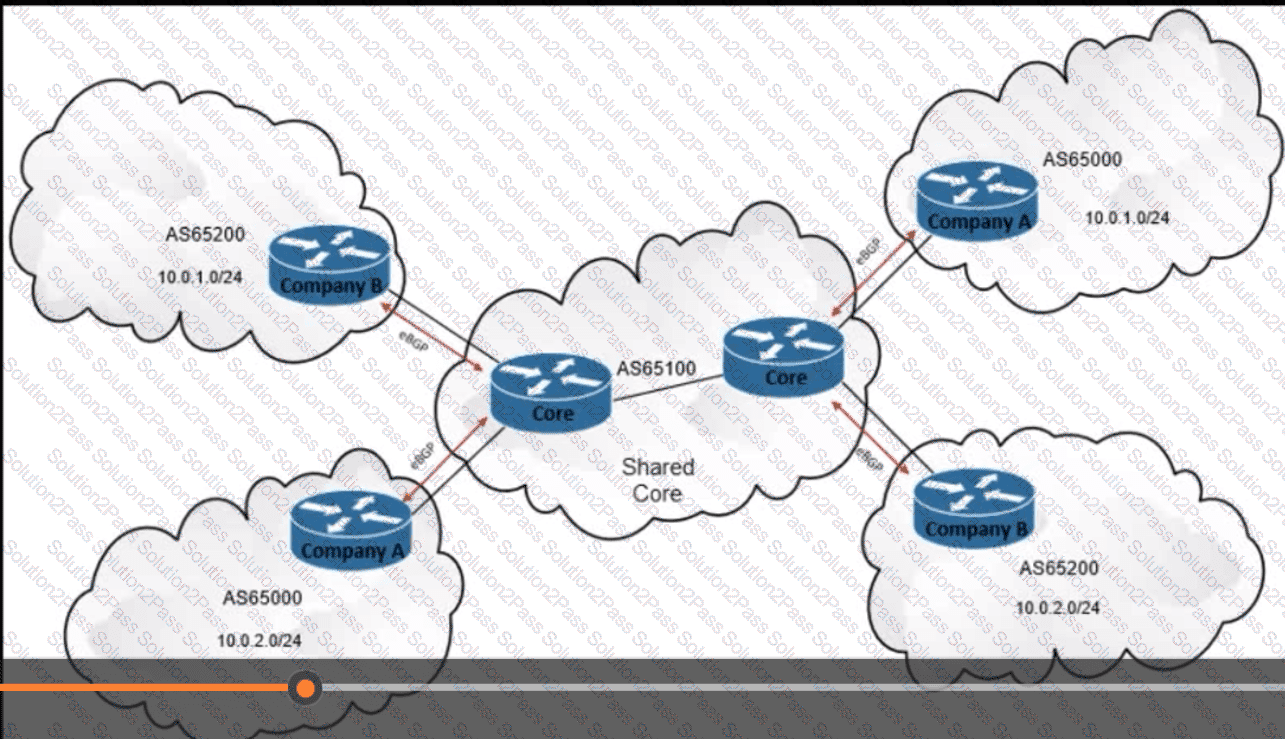

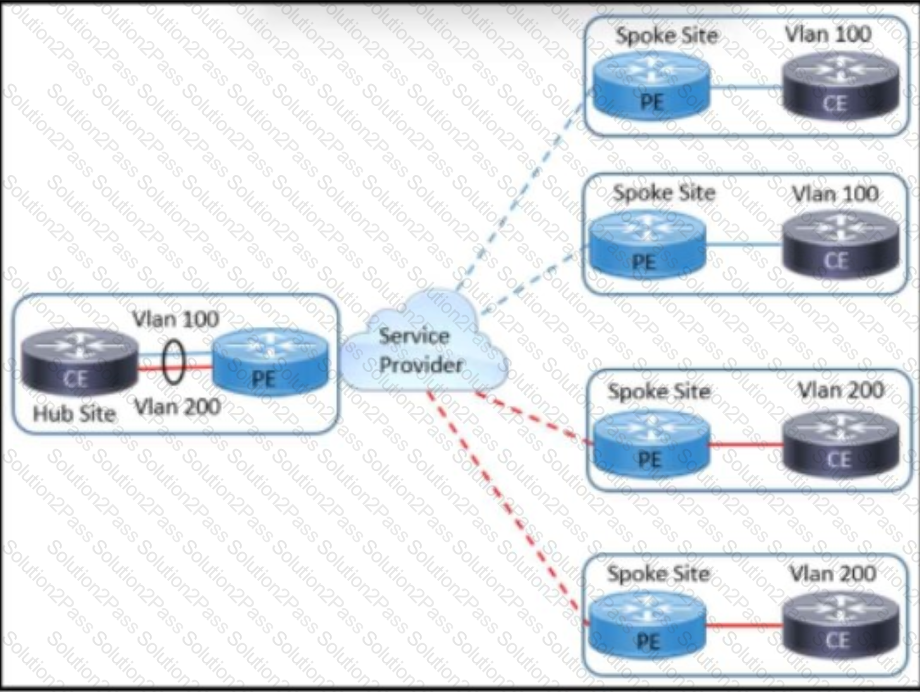

The correct design uses IPv4 unicast for Company A and Company B and VPNv4 in the shared core. In an MPLS Layer 3 VPN architecture, customer edge routing toward the provider edge commonly uses the ordinary IPv4 unicast address family. The PE router then places the learned customer routes into the appropriate VRF. Across the shared provider core, MP-BGP carries those customer routes as VPNv4 prefixes by adding route distinguishers, which keep identical or overlapping customer prefixes unique. Route targets then control which VRFs import or export each route. Cisco describes this VRF and VPNv4 model as the mechanism that prevents one VPN customer from learning another customer’s prefixes while sharing the same provider backbone. VPNv4 is not normally used directly between the customer networks and their CE-facing sessions. Therefore, the customer sides use IPv4 unicast, and the shared core uses VPNv4 to preserve separation. Reference topics: MPLS Layer 3 VPN, MP-BGP VPNv4, VRF, route distinguisher, route targets, customer route isolation.

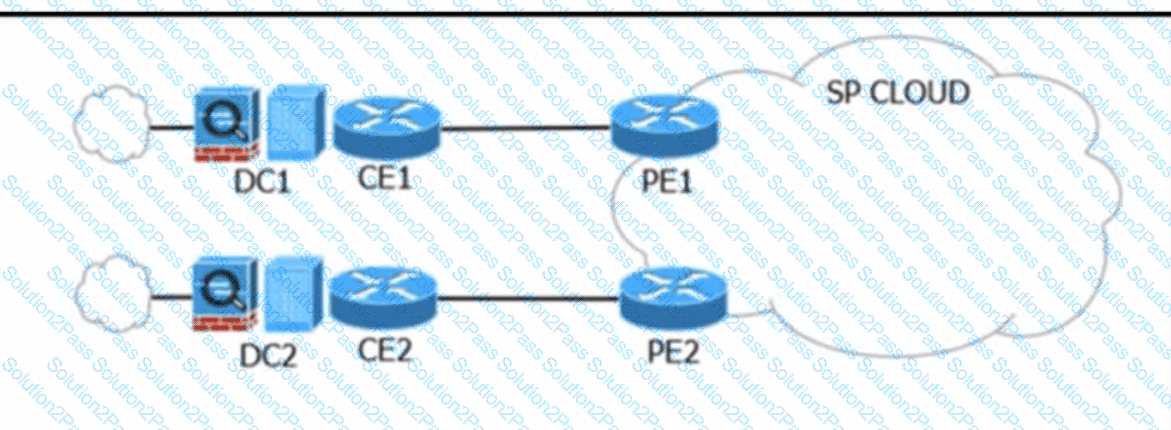

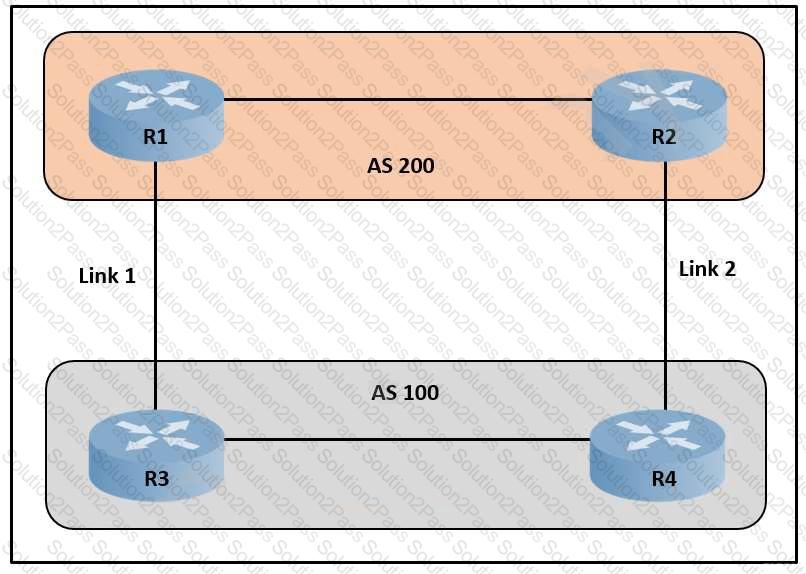

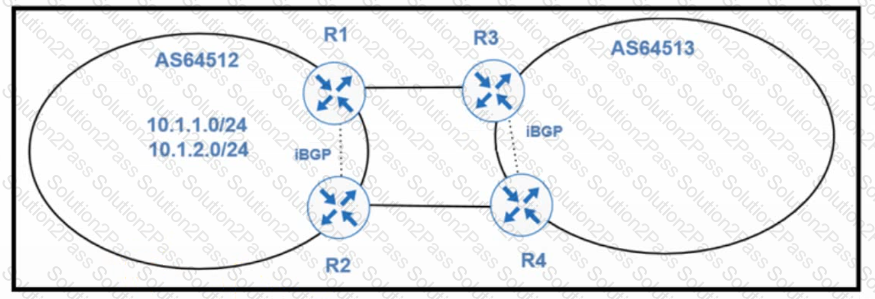

The correct design is to deploy the application in both data centers, advertise the application prefix from DC1 as a /32, and advertise a broader /24 from DC2. This uses longest-prefix-match behavior to create deterministic primary and backup routing. Cisco routing logic prefers the most specific matching route in the routing table, regardless of administrative distance or metric comparisons among less specific covering routes. As long as the DC1 /32 is present, traffic for that exact application address follows DC1. If DC1, its edge path, or the /32 advertisement fails, the /32 is withdrawn and the remaining /24 covering route from DC2 provides backup reachability. Advertising the same prefix from both locations may result in load sharing or provider-dependent selection, which does not guarantee DC1 primary behavior. IP SLA could be used in some route-tracking designs, but the clean routing solution tested here is prefix specificity. Reference topics: longest-prefix match, BGP advertisement, active/standby data center routing, covering routes, route failover.

An SD-Access intermediate node routes and transports IP traffic between fabric nodes. It is part of the underlay transport path, comparable to a routed distribution or core device that provides IP reachability between edge, border, and control-plane nodes. Intermediate nodes do not perform endpoint registration, VXLAN encapsulation for attached users, virtual-network mapping, or anycast gateway services. Those functions belong primarily to fabric edge nodes. They also do not act as LISP proxy tunnel routers, which is a border-node function used for communication between the fabric and external networks. The intermediate node’s role is deliberately simple: maintain underlay routing, provide resilient transport, and forward encapsulated traffic across the fabric infrastructure. This separation of roles is what lets Cisco SD-Access scale by keeping endpoint intelligence at the edge and mapping intelligence in the control plane while the intermediate layer remains a stable IP transport network. Reference topics: SD-Access intermediate node, routed underlay, IP transport, fabric roles, edge and border node separation.

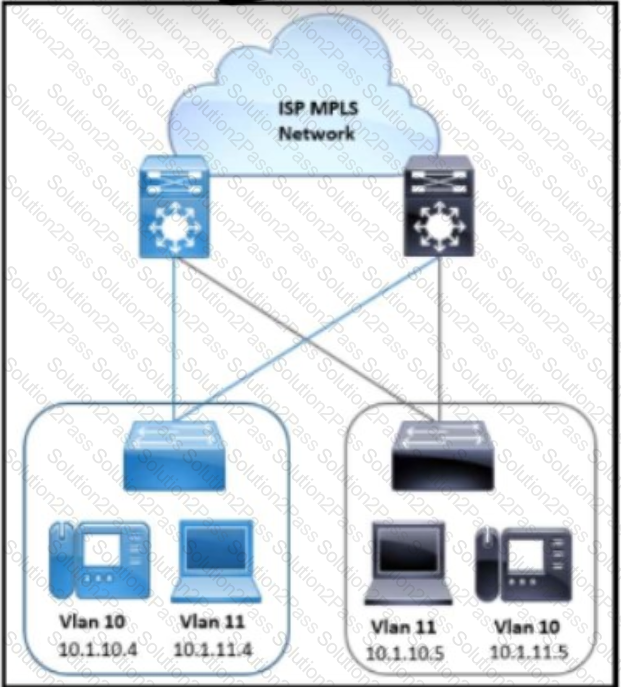

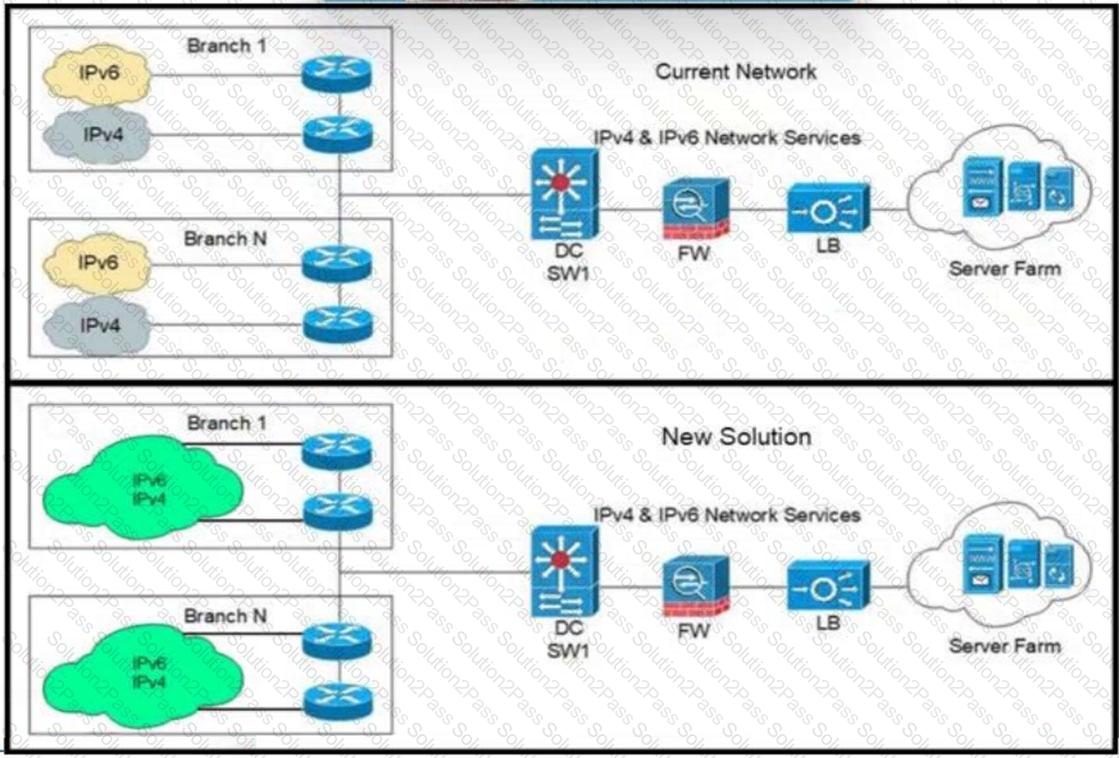

VRRPv3 improves protocol applicability by supporting both IPv4 and IPv6 address families. VRRPv2 is associated with IPv4 virtual router redundancy, while VRRPv3 extends the protocol so the same first-hop redundancy concept can be used for IPv6 default gateways as well. In campus and branch designs, this matters because IPv6 deployments should not require a separate redundancy design from IPv4 when a standards-based FHRP is preferred. Preemption is not a unique VRRPv3 advantage because VRRP has long supported priority-based master election and preemption behavior. Authentication is also not the correct differentiator in this comparison; VRRPv3 removed the simple protocol authentication field from the base protocol and expects security to be provided by the underlying network or IPsec where required. Stateful switchover is a platform high-availability capability, not a VRRPv3 protocol feature. Therefore, the key benefit of VRRPv3 over VRRPv2 for enterprise design is IPv4 and IPv6 support under the same redundancy protocol model.

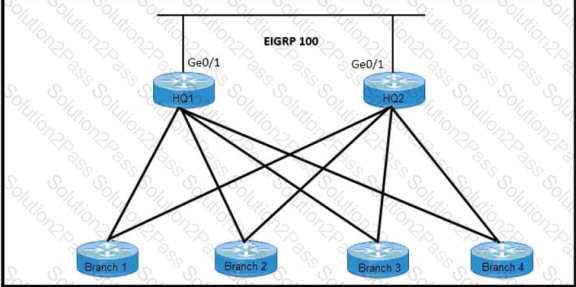

Dual DMVPN with EIGRP routing is the correct solution because the requirements call for secure public-internet connectivity, redundant paths, automatic path selection, multicast support, and minimal remote-site configuration. DMVPN builds dynamic multipoint GRE tunnels protected by IPsec, allowing spoke sites to communicate securely through the public internet while supporting routing protocols and multicast over GRE. A dual DMVPN design provides redundancy through separate hubs, transports, or tunnel clouds, so a spoke can continue operating if one path fails. EIGRP can calculate alternate paths and react to metric changes, supporting automatic path selection based on failure and quality when engineered correctly. MPLS with BGP does not meet the public-internet and encryption requirements by itself. A full mesh of IPsec tunnels with OSPF or IS-IS would increase configuration complexity at every remote site and does not scale as well. DMVPN is specifically built to simplify deployment of secure, scalable, multipoint branch VPNs. Reference topics: DMVPN, IPsec, mGRE, EIGRP over DMVPN, WAN redundancy, multicast over GRE.

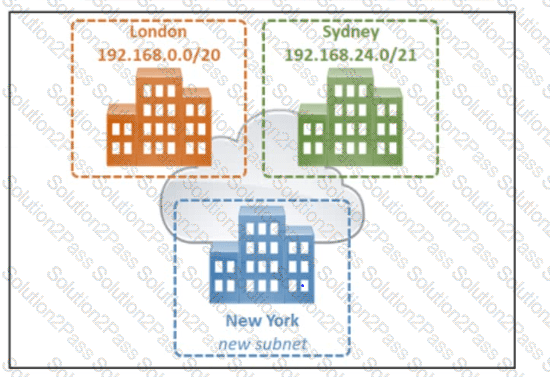

A /22 subnet is the smallest IPv4 block in the answer set that closely fits a branch expected not to exceed roughly one thousand users while avoiding unnecessary address waste. A /22 contains 1024 total addresses and 1022 usable host addresses after the network and broadcast addresses are reserved. That aligns with the requirement to provide the maximum number of host addresses without selecting a larger block than necessary. A /21 provides 2048 total addresses and 2046 usable hosts, which is materially larger than the stated requirement and wastes address space. The specific 192.168.8.0/22 block also aligns on a valid /22 boundary because /22 networks increment by four in the third octet. A 192.168.16.0/22 is also mathematically valid, but the exhibit determines the available address range; the selected option uses the appropriate block from the displayed plan. Reference topics: IPv4 subnet sizing, CIDR, usable host calculation, branch address planning, VLSM.

DMVPN is the correct overlay VPN solution for dynamic, secure, scalable branch-to-branch communication. Cisco Dynamic Multipoint VPN uses multipoint GRE, NHRP, and IPsec to support dynamic tunnel creation without manually defining a static tunnel between every branch pair. That design is well suited to a global organization where branches communicate frequently and more branches will be added later. DMVPN allows spokes to register with hubs and, depending on the phase design, establish dynamic spoke-to-spoke tunnels for direct traffic while maintaining encrypted protection with IPsec. EasyVPN is more oriented to remote-access or simplified client/server VPN deployments and is not the scalable branch mesh solution described. GETVPN is strong for private WAN encryption but does not build dynamic IPsec tunnels over an overlay in the same manner and assumes a trusted private routing core. L2TP is not the correct enterprise dynamic branch overlay. The architect should choose DMVPN and select the appropriate phase, routing protocol, summarization strategy, and IPsec profile based on branch scale and resource limits. Reference topics: DMVPN, NHRP, mGRE, IPsec protection, spoke-to-spoke dynamic tunnels.

Before troubleshooting IPsec in a DMVPN deployment, the administrator should verify the GRE tunnel operation. DMVPN is built from multipoint GRE, NHRP, routing, and usually IPsec encryption. IPsec protects the tunnel traffic, but the logical tunnel and overlay reachability must be valid first. If the tunnel interface is down, incorrectly addressed, or unable to carry GRE traffic, troubleshooting crypto maps or ISAKMP will waste time because encryption cannot fix a broken overlay. After the GRE tunnel state is validated, the administrator can confirm NHRP registration and resolution, routing adjacencies, and then IPsec security associations. ISAKMP and crypto map troubleshooting are relevant only after basic tunnel operation is known to be correct. NHRP is also critical in DMVPN, but the question asks what to do before troubleshooting IPsec configuration; the first prerequisite is to verify that the GRE tunnel itself is functioning. This layered troubleshooting order follows Cisco operational practice: confirm transport reachability, then tunnel interface behavior, then NHRP and routing, and finally cryptographic protection.

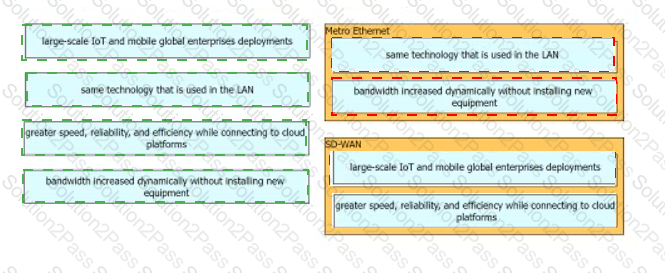

Improved application experience and optimized cloud connectivity are two principal advantages of Cisco SD-WAN technology. Cisco SD-WAN separates the control plane from the data plane and applies centralized policy to choose the best available transport path for business applications. Features such as application-aware routing, performance measurement, path quality monitoring, forward error correction, packet duplication for selected traffic, and QoS integration help improve user experience for voice, video, SaaS, and other critical applications. SD-WAN also improves cloud connectivity by allowing branches to access trusted SaaS and IaaS resources directly instead of backhauling all traffic through a central data center. Cloud OnRamp functions further simplify connectivity to cloud-hosted workloads and SaaS applications. Easier deployment and proactive management may be operational benefits in some designs, but the strongest technology advantages in this answer set are application experience and optimized cloud access. Consistent connectivity is too generic and does not identify a specific SD-WAN design value. Reference topics: Cisco SD-WAN benefits, application-aware routing, direct internet access, Cloud OnRamp, SaaS optimization.

The main purpose of the Cisco SD-Access underlay is to provide a stable routed transport that carries the overlay efficiently between fabric nodes. Among the available choices, optimizing network traffic routing and load-balancing is closest to that function. The underlay is not the security segmentation layer; segmentation is created in the overlay through virtual networks, SGTs, and policy enforcement. The underlay also is not primarily responsible for firewall or IPS services. While LAN automation can help build the underlay, automation is a deployment method rather than the underlay design purpose. A good underlay provides IP reachability, fast convergence, consistent MTU, and resilient routing so that VXLAN-encapsulated overlay traffic can move between edge, border, intermediate, and control-plane nodes. If the underlay is unstable, the overlay will inherit packet loss, convergence problems, and poor application performance. Reference topics: Cisco SD-Access underlay, routed access, IP reachability, fabric transport, underlay resilience, overlay support. This preserves stable fabric forwarding.

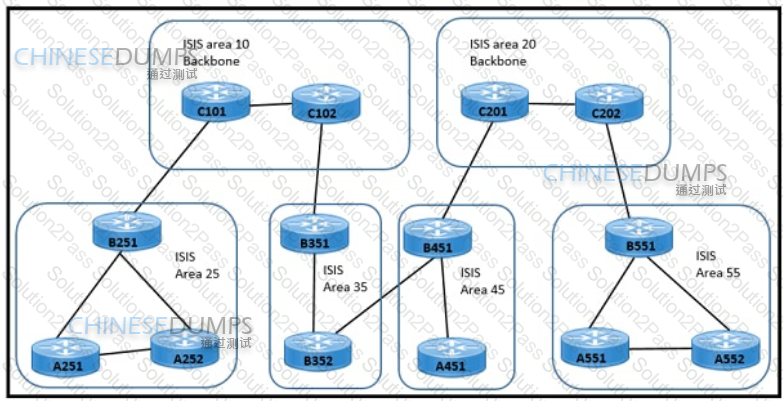

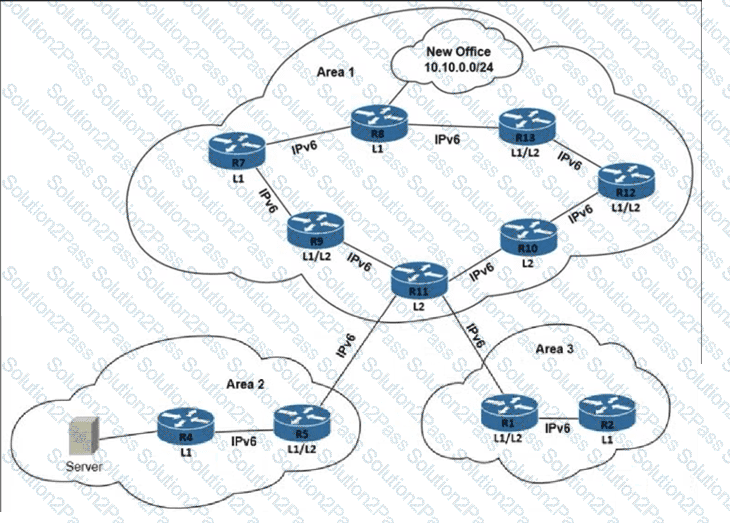

Route leaking on R13 and R9 is required so the Level 1 area can make a better exit decision toward the server. In an IS-IS hierarchy, Level 1 routers know detailed topology only inside their own area. For destinations outside the area, they normally follow the closest attached Level 1/Level 2 router, which can produce suboptimal latency when another exit has a better end-to-end path. Route leaking selectively injects more specific Level 2 reachability information into Level 1, allowing routers in the New Office area to evaluate a better path instead of blindly following the nearest attached-bit exit. Changing metric style on R8 alone does not import the external-area route information needed for better path selection. A static route could force a path but would not be a scalable dynamic IS-IS design. Making R8 Level 1/Level 2 does not solve the need to expose the relevant route through the correct area boundary. Reference topics: IS-IS Level 1 and Level 2, attached bit, route leaking, interarea optimization, latency-aware routing.
