PIM Source-Specific Multicast is the correct multicast protocol when receivers can subscribe to traffic from known sources and the design must avoid rendezvous points. SSM uses the (S,G) model, where receivers explicitly join a multicast group from a specific source. Because the source is known at join time, the network does not need a shared tree or RP discovery process. This makes SSM attractive for broadcast-style streaming applications, such as video channels, where each stream source is known and receivers subscribe to specific channels. PIM Sparse Mode and Any-Source Multicast use an RP to allow receivers to discover active sources, so they do not meet the requirement of no rendezvous point. BIDIR-PIM also relies on an RP-rooted shared tree and is optimized for many-to-many applications rather than source-specific broadcast channels. For a large cable TV provider streaming multiple video channels from defined sources, SSM simplifies the multicast control plane, eliminates RP dependency, and scales efficiently by creating only the source-specific state required by active receivers.

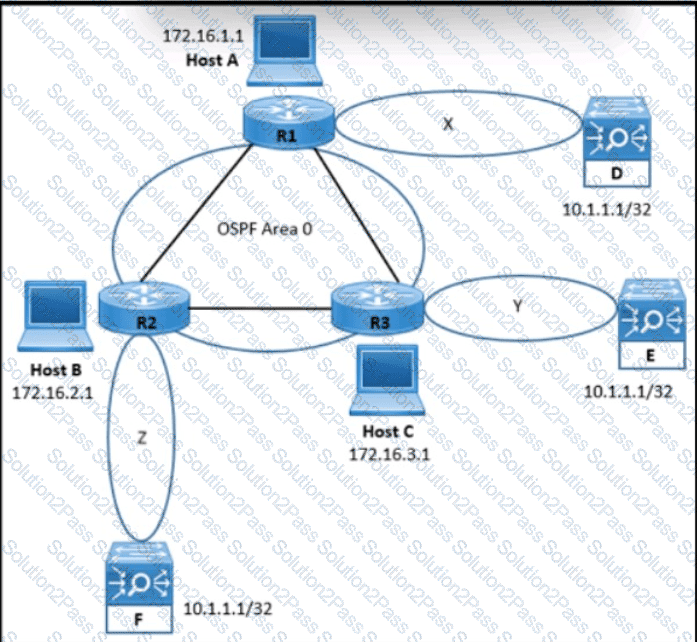

The load balancers should be co-located in area 0 because the design is using the same /32 application address from multiple OSPF-enabled devices. This is an anycast-style design: several load balancers advertise the same host route, and the routing protocol sends clients to the topologically best available instance. In OSPF, route preference is strongly affected by route type. Intra-area routes are preferred over interarea routes, and interarea summarization can also hide useful path details. If identical anycast host routes are originated from different nonbackbone areas, hosts may not always select the closest or most resilient load balancer, and failure behavior can become inconsistent. Placing the load-balancer anycast advertisements in area 0 keeps the routing decision consistent and avoids unnecessary interarea preference complications. Configuring X, Y, and Z as different areas would make the problem worse, and placing only one load balancer in area 0 does not provide uniform resilience. Reference topics: OSPF area design, anycast host routes, intra-area preference, backbone area, application load-balancer resilience.

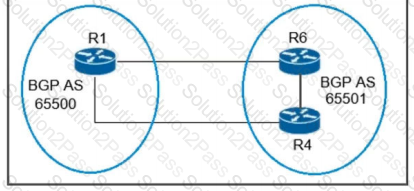

BGP Multipath Load Sharing is the feature used when a single router has two parallel BGP paths to the same ISP and the design goal is to install more than one eligible BGP path in the routing table. By default, BGP selects a single best path after evaluating path attributes such as weight, local preference, AS path, origin, MED, eBGP over iBGP, IGP metric to next hop, and tie breakers. When the competing paths are sufficiently equivalent and BGP multipath is enabled, Cisco IOS can install multiple BGP next hops for the same prefix and allow the forwarding plane to load share across both links. Multihop is used to establish BGP sessions to non-directly connected neighbors, not to load balance. Next-Hop Address Tracking improves convergence by tracking next-hop reachability, but it does not itself create load sharing. AS-path prepending intentionally makes a path less preferred for inbound traffic engineering. Therefore, the correct BGP feature for balancing outbound traffic across two links to the same ISP is Multipath Load Sharing.

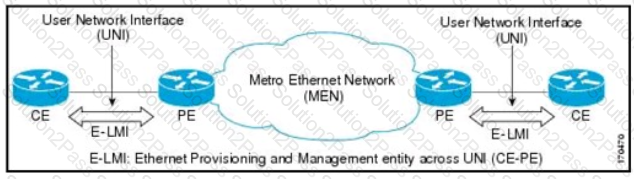

L2VPN is the correct technology because the requirement is for two remote offices to share a common broadcast domain across a private WAN with minimal overhead. A Layer 2 VPN service extends Ethernet or VLAN connectivity between customer sites while keeping the customer routing design independent of the provider core. From the customer perspective, the two sites can appear to be on the same Layer 2 segment, which satisfies the shared broadcast-domain requirement. GET VPN, IPsec, and GRE are Layer 3-oriented technologies. They can connect sites securely or provide tunneling, but they do not natively create a common Layer 2 broadcast domain between the offices. GRE also adds additional encapsulation overhead, and IPsec alone generally provides encrypted routed connectivity rather than an Ethernet service. For a simple direct logical path over a private WAN, an L2VPN service such as VPWS or VPLS is the appropriate design family. Reference topics: L2VPN, VPWS, VPLS, Ethernet WAN services, broadcast-domain extension, private WAN connectivity.

The RPF check verifies that multicast traffic arrives on the interface the router would use to reach the source or RP, and it prevents forwarding when traffic arrives from the wrong direction. Cisco multicast forwarding is intentionally different from unicast forwarding because a multicast packet may need to be replicated toward many receivers. Without Reverse Path Forwarding, multicast loops and duplicate packets could occur. Option A captures the forwarding condition: the packet is accepted when it arrives on the interface used to route back toward the source address. Option D is the closest available drop condition in the answer set, expressing that packets not aligned with the correct reverse path are discarded rather than forwarded. Option B incorrectly checks the route toward the destination group, because multicast groups are not reached through ordinary unicast destination routing. Option C would flood traffic and create loops. Option E reverses the correct logic by dropping packets that arrive on the proper reverse-path interface. Reference topics: multicast RPF, loop prevention, source-tree forwarding, shared-tree forwarding, PIM.

4G/5G connectivity is the best fit among the choices for edge-computing use cases because it can place network access close to users and endpoints while providing high bandwidth and low latency relative to many traditional WAN options. Edge computing is valuable when application processing, storage, or content delivery is moved closer to the point of consumption. Mobile broadband and 5G designs can support rapid deployment, local breakout, and low-latency access for distributed sites, sensors, and mobile users. MPLS Layer 3 VPN services provide predictable private WAN separation and mature QoS, but they are generally tied to provider POPs and data center-oriented connectivity rather than the closest edge location. DWDM is high-bandwidth optical transport but is primarily a metro or data center interconnect technology, not a flexible edge access service. Metro Ethernet can be strong in metropolitan areas but does not offer the broad mobile edge characteristics of 4G/5G. Reference topics: edge computing, 4G/5G WAN, low-latency access, distributed applications, WAN technology selection.

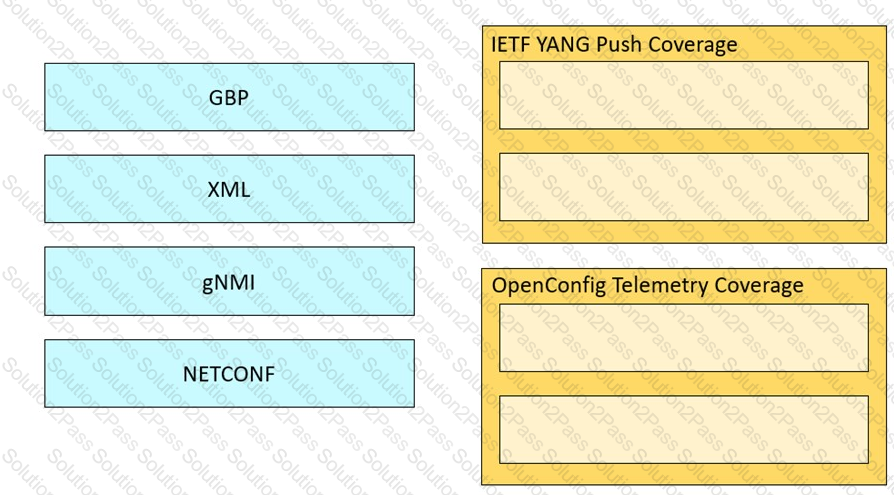

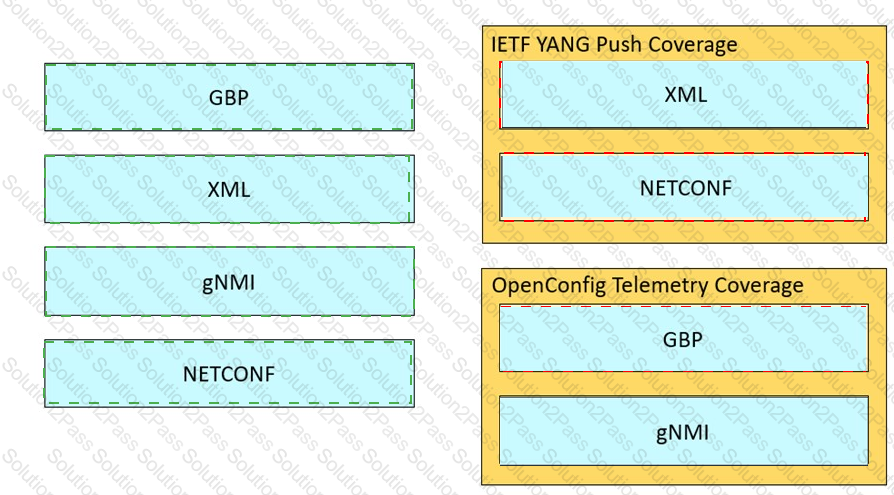

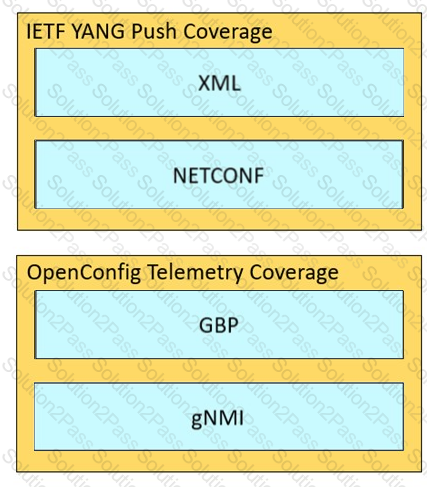

The dial-out model-driven telemetry approach is initiated by the network device, not by the collector. Cisco IOS XE telemetry documentation describes configured subscriptions as dial-out because the publisher, meaning the router or switch, initiates the connection to the configured receiver. After the session is established, the device streams the subscribed YANG-modeled data at the configured cadence or when the configured on-change condition occurs. This model is useful when the telemetry collector is a fixed destination and the network operator wants the device to maintain the outbound session automatically. Option B describes dial-in telemetry, where the collector or subscriber connects to the device and requests the subscription. Option C is also dial-in oriented because the collector initiates the session. Option D is close in wording, but the key design point is that the session is based on an already configured subscription rather than a negotiation process. Reference topics: model-driven telemetry, configured subscriptions, dial-out telemetry, YANG-push, telemetry collectors.

The correct model is a 4-class QoS strategy with DiffServ. The traffic classes listed in the question are explicitly DiffServ per-hop behaviors: Expedited Forwarding for conversational traffic, Assured Forwarding class 2 for streaming, and Assured Forwarding class 3 for web or interactive traffic. Cisco QoS guidance uses DiffServ to classify and mark traffic with DSCP values, then apply per-hop behavior at each node along the path. This gives scalable end-to-end treatment across a provider backbone without maintaining per-flow reservations. The four service treatments implied are conversational, streaming, interactive/web, and background or best effort, which matches the stated service categories without unnecessary class expansion. IntServ is not appropriate for an ISP backbone because it uses RSVP-style per-flow signaling and state, which scales poorly compared with DiffServ PHB handling. The 8-class and 12-class options add complexity beyond the stated mappings. Reference topics: DiffServ, DSCP, EF, AF2, AF3, per-hop behavior, provider QoS design.

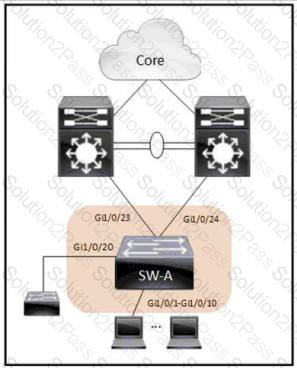

StackWise Virtual is the correct technology for Cisco Catalyst 9500 aggregation switches when the design requires nonblocking Layer 2 multichassis EtherChannel from aggregation to access. The question specifically describes Catalyst 9500 switches located on different floors for availability, with access switches dual-homed through a Layer 2 MEC design. Traditional VSS was used on older Catalyst platforms such as Catalyst 4500 and 6500 families. For Catalyst 9000 platforms, Cisco uses StackWise Virtual to virtualize two physical switches into a single logical switching system. This enables multichassis EtherChannel, removes the need for STP to block one uplink, improves convergence, and provides device-level redundancy. vPC is a Nexus data-center technology, not a Catalyst campus aggregation technology. StackWise-180 refers to physical stack bandwidth behavior on specific access platforms and does not provide the same distributed campus aggregation function. Therefore, the design should use StackWise Virtual on the Catalyst 9500 aggregation pair. Reference topics: Catalyst 9500, StackWise Virtual, multichassis EtherChannel, campus aggregation, Layer 2 resiliency.

The primary advantage of an out-of-band management network is that devices remain reachable for administration even when the production data network is impaired or unavailable. In an out-of-band design, management access uses a separate physical or logical path, often through dedicated management interfaces, console servers, terminal servers, or isolated management switches. This separation is valuable during routing failures, control-plane problems, misconfigurations, or security incidents affecting the production network. It also improves security because access control, authentication, logging, and monitoring can be concentrated on a management plane that is not directly exposed to ordinary user traffic. The statement that there is no separation from production traffic describes in-band management, not out-of-band management. An out-of-band network should not be treated as a general backup data path for production applications because that would defeat the isolation goal. It is also not necessarily less expensive; dedicated circuits, management switches, console servers, and operational processes can increase cost. Therefore, the correct benefit is continued manageability during a production network outage.

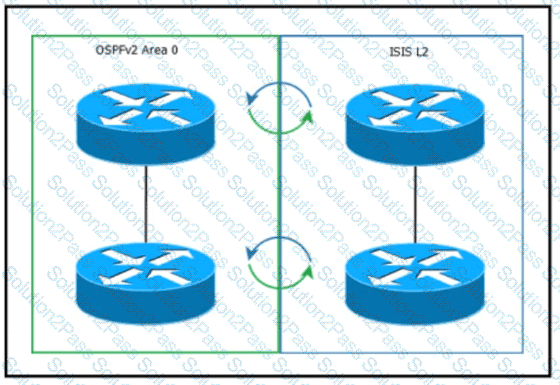

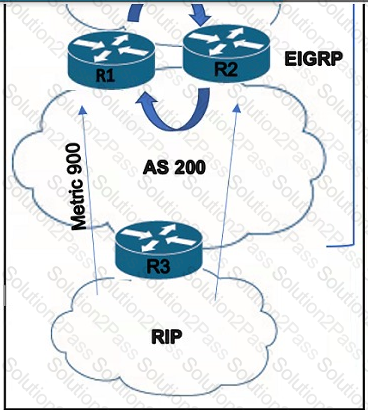

Route tagging with a route map is the correct redistribution loop-prevention method. In a design with mutual redistribution between OSPF and IS-IS, a route learned from one domain can be redistributed into the other domain and then fed back into the original domain at another redistribution point. This creates route feedback, suboptimal routing, or loops. Cisco routing design commonly prevents this by tagging routes at the point of redistribution and then filtering or denying routes with that tag when they are seen again at another redistribution boundary. A route map can set the tag during redistribution and match the tag on the reverse redistribution direction. Changing administrative distance may influence local route selection, but it does not reliably prevent feedback throughout the network. Stub areas reduce external LSA scope in OSPF, but they do not solve a multipoint redistribution loop between OSPF and IS-IS. Prefix filtering can work, but tagging scales better and preserves route identity across redistribution points. Reference topics: route redistribution, route tagging, route maps, OSPF, IS-IS, loop prevention.

An inbound IP prefix list is the correct tool because the routers must decide which prefixes to accept from the service provider based only on prefix length. Prefix lists are designed to match network prefixes and mask-length ranges using operators such as le and ge. Applying the prefix list inbound to the BGP neighbors prevents routes with masks longer than /24 from entering the local BGP table, regardless of what the service provider advertises. This conserves memory and ensures the customer routing policy is enforced locally. An access list is a poor fit because it does not natively express prefix-length logic as cleanly as a prefix list. Applying the policy outbound would filter routes the customer sends to the provider, which is the wrong direction; the requirement is about routes the customer learns. A route map could reference a prefix list, but the simplest and most exact answer is to use an IP prefix list inbound. Therefore, the design should apply an inbound prefix list to both BGP peers to block prefixes greater than /24. Reference topics: BGP route filtering, prefix lists, inbound policy, maximum accepted prefix length.

The standards-based mechanism for dynamic rendezvous point distribution in a large PIM domain is Bootstrap Router. BSR allows candidate RPs and candidate BSRs to participate in a standards-based election and advertisement process so PIM routers can learn the RP set dynamically. This avoids configuring every router manually with static RP information and avoids depending on a Cisco-proprietary mechanism. Auto-RP can also distribute RP information dynamically, but Auto-RP is Cisco proprietary and therefore does not meet the nonproprietary requirement. Embedded RP is associated with IPv6 multicast group addressing and is not the general-purpose answer for automating RP discovery in a large IPv4 PIM domain. Static RP configuration is simple and deterministic, but it does not automate RP distribution and becomes operationally fragile as the multicast domain grows. In Cisco multicast design, BSR is the correct choice when the network requires dynamic RP discovery, vendor-neutral behavior, and scalable PIM-SM operation across a large domain.

Incremental SPF is the correct solution because the problem specifically states that Type 1 or Type 2 LSAs force the OSPF process to recompute the entire shortest path tree. Cisco OSPF documentation states that when changes to a Type 1 or Type 2 LSA occur, the entire SPT is normally recomputed, and that incremental SPF allows the system to recompute only the affected part of the tree. This improves convergence and reduces CPU use because the router does not have to run a full Dijkstra calculation for every topology change. BFD detects failures quickly, but it does not change how OSPF recalculates the SPT after the LSA arrives. Standard SPF is the default full calculation behavior and therefore does not solve the optimization requirement. PRC is associated with partial route calculation behavior in some link-state contexts, but for this OSPF question the Cisco feature name is iSPF. Reference topics: OSPF incremental SPF, Type 1 LSA, Type 2 LSA, SPF optimization, campus OSPF scaling.

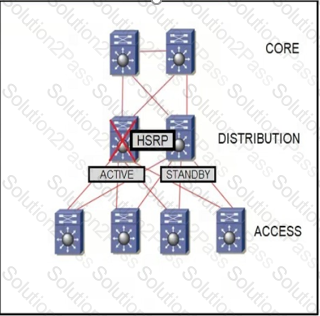

BFD for EIGRP is the strongest design option for improving convergence after access-layer switch or uplink failure on Layer 3 links. EIGRP hello and hold timers can detect failures, but aggressive timer reduction increases control-plane chatter and still may not provide consistent subsecond detection across platforms. Cisco BFD is specifically designed to provide rapid forwarding-path failure detection for routing protocols, including EIGRP, independent of the routing protocol hello mechanism. On point-to-point Layer 3 uplinks, BFD can notify EIGRP quickly when a neighbor path fails, allowing DUAL to react without waiting for the EIGRP hold timer. Summarization from access to aggregation is useful for query scoping and stability, but it does not directly detect an access switch failure faster. Summarization from core to aggregation has even less relevance to access uplink failure detection. Therefore, the design should enable BFD for EIGRP on the access-layer uplinks, with timer values chosen carefully according to platform capability and operational stability. Reference topics: EIGRP convergence, BFD, routed access, failure detection, DUAL.

When Cisco SD-WAN edge router redundancy is designed, VRRP is the supported first-hop redundancy protocol in the SD-WAN edge context. VRRP provides a virtual default gateway for LAN-side devices, allowing one WAN Edge router to act as the active gateway while another can take over if the active router or tracked condition fails. Cisco SD-WAN designs use VRRP with tracking and policy alignment so branch LAN traffic can fail over to the appropriate edge router while the SD-WAN overlay handles transport and tunnel selection. HSRP and GLBP are traditional campus first-hop redundancy protocols, but they are not the supported FHRP answer for vEdge router redundancy in this design context. OMP is the SD-WAN control-plane routing protocol used between WAN Edge routers and vSmart controllers; it is not a first-hop redundancy protocol for LAN hosts. Therefore, the correct FHRP for vEdge router redundancy is VRRP. The design should also ensure that VRRP priorities, tracking, and SD-WAN routing preferences align so traffic exits the intended edge during normal and failure conditions.

Multiple Spanning Tree is the correct technology for a large Layer 2 domain with hundreds of switches and VLANs when the goals are efficient link use, loop prevention, and low CPU and memory impact. MST maps multiple VLANs into a smaller number of spanning-tree instances, allowing the designer to load-balance groups of VLANs across alternate paths without running a separate STP instance for every VLAN. Cisco Rapid PVST+ improves convergence compared with classic STP, but it maintains a separate instance per VLAN, which becomes costly at scale. PVST+ has similar per-VLAN scaling concerns and slower convergence behavior than rapid variants. Plain RSTP improves convergence but does not provide the same VLAN-to-instance mapping flexibility for hundreds of VLANs. MST is standards-based and particularly useful in multivendor environments where VLAN grouping and predictable root placement are required. The design should define MST regions consistently, map VLANs deliberately to instances, place roots near the Layer 3 gateway, and keep the number of instances small enough to protect supervisor CPU and memory. Reference topics: MST, RSTP, Rapid PVST+, VLAN-to-instance mapping, Layer 2 scalability.

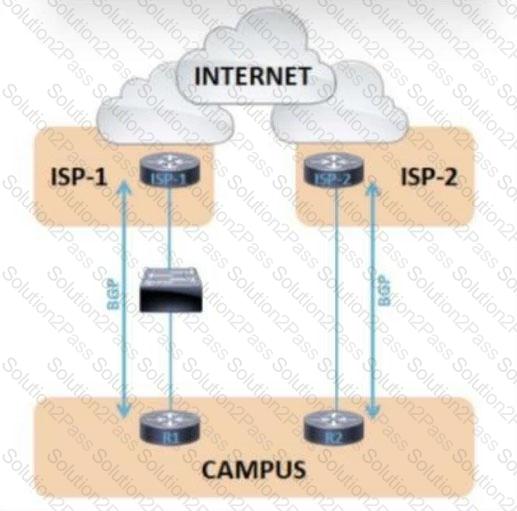

BFD with default BGP timers is the best design choice because it improves failure detection without forcing BGP itself to run aggressive keepalive processing. Cisco documentation describes BFD as providing fast forwarding-path failure detection and notes that BFD can be less CPU-intensive than reduced EIGRP, BGP, and OSPF timers because parts of BFD can be distributed to the data plane. Lowering BGP keepalive and hold timers makes the BGP process detect failure sooner, but it increases control-plane activity and can create instability at scale. Tuning the BFD multiplier to an extreme value such as 50 is also counterproductive because it lengthens detection rather than improving it, depending on the interval used. The correct approach is to leave normal BGP timers in place and bind BGP neighbor fall-over to BFD. When the forwarding path fails, BFD notifies BGP quickly, allowing the route to be withdrawn and an alternate provider path to be selected faster without unnecessary BGP timer churn.

Affinity is the Cisco SD-WAN feature used to minimize TLOC and control connections and reduce strain on vSmart controllers. Cisco documentation explains that establishing affinity between controllers and edge devices allows the operator to control overlay scaling by limiting which controllers an edge device can establish control connections with. In large deployments, unrestricted connections between every WAN Edge and every controller can create unnecessary state and operational load. Affinity lets the design distribute edge connections across controllers and data centers while still preserving redundancy through primary and backup controller relationships. Color identifies the transport type or behavior associated with a TLOC, but it does not reduce controller connection scale by itself. Control-direction and control-connections are not the feature names that provide the scaling function described in the question. A well-designed SD-WAN control plane uses affinity, controller groups, and redundancy planning to keep the overlay scalable and predictable. Reference topics: Cisco SD-WAN affinity, vSmart controller scale, TLOC connections, control-plane redundancy, overlay scaling.
