300-420 Cisco Designing Cisco Enterprise Networks (ENSLD) v1.1 Free Practice Exam Questions (2026 Updated)

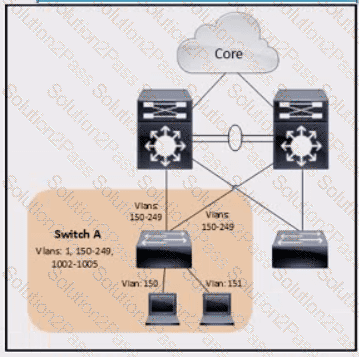

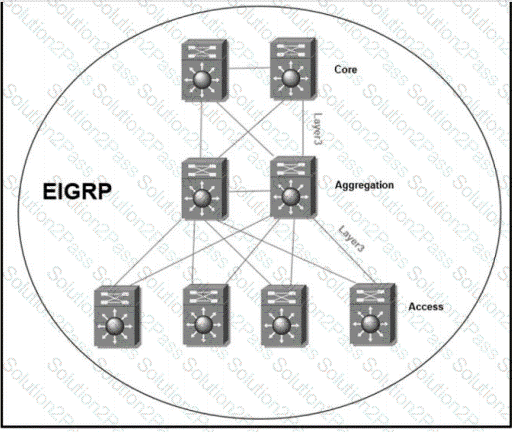

The correct EIGRP design consideration is to prevent unnecessary neighborships from forming across switch virtual interfaces. In a data center or campus switching environment, many SVIs may exist for VLAN default gateways, but those VLANs do not necessarily need EIGRP adjacencies with attached hosts, firewalls, load balancers, or peer switches. Cisco EIGRP design commonly uses passive-interface behavior to advertise connected networks while suppressing EIGRP hello packets on interfaces where neighbor relationships are not required. This reduces control-plane noise, minimizes accidental adjacencies, and limits the failure domain. Manual summarization is useful at hierarchy boundaries, but performing summarization on all Layer 3 interfaces can create black holes or hide topology detail where it is still needed. Lowering hello and hold timers to minimum values can increase CPU load and is not the primary design recommendation. Multiple EIGRP autonomous systems may be used for specific segmentation designs, but they add redistribution and operational complexity. Therefore, preventing unnecessary EIGRP neighborships across SVIs is the best design practice from the choices.

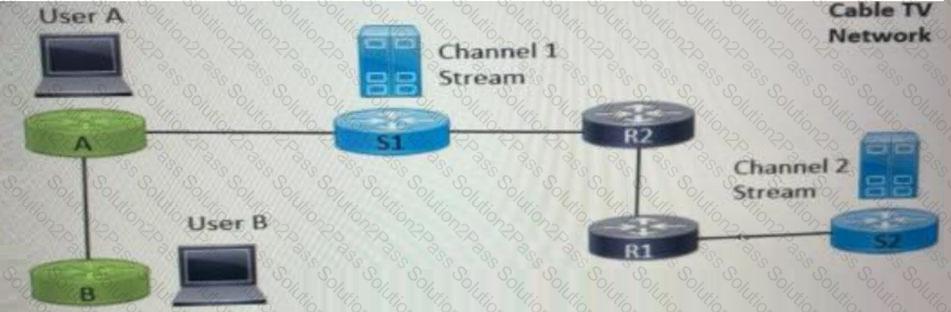

BIDIR-PIM is the correct multicast deployment model when redundant paths and active links may create RPF challenges for many-to-many multicast traffic. Bidirectional PIM builds a shared tree rooted at the rendezvous point and avoids maintaining separate source-specific shortest-path trees for every sender. This is valuable when sources and receivers are spread across a redundant branch design and traffic can enter the multicast domain from multiple directions. Because BIDIR-PIM uses the Designated Forwarder mechanism on each link, it helps control which router forwards traffic toward the RP and reduces duplicate forwarding in topologies where normal RPF behavior could be problematic. PIM-SM is widely used, but it normally moves to source trees for active sources unless specifically controlled. PIM-SSM requires receivers to know the source and is not designed for arbitrary many-to-many communication. PIM-BSR is a mechanism for dynamic RP discovery, not a multicast forwarding model. Reference topics: BIDIR-PIM, multicast RPF, many-to-many multicast, Designated Forwarder, branch multicast design.

Implementing direct Internet access at every Cisco SD-WAN site improves application experience and reduces unnecessary backhaul. Many modern business applications are hosted in SaaS or public cloud environments. If branch Internet traffic must hairpin through a central data center before reaching those applications, latency increases and central WAN or security stacks can become bottlenecks. SD-WAN DIA allows selected cloud and Internet-bound traffic to exit locally while still applying policy, segmentation, and security controls. This decreases latency to applications hosted by public cloud providers and improves user experience. It also alleviates traffic on MPLS circuits because Internet and cloud traffic no longer needs to consume private WAN bandwidth back to a centralized egress point. DIA does not inherently reduce the physical latency of an Internet circuit, and it does not increase the provisioned circuit bandwidth. Zero-touch provisioning may accelerate site deployment, but that is a separate SD-WAN onboarding benefit rather than a specific benefit of deploying DIA at every site. Therefore, the two correct benefits are reduced latency to public cloud applications and reduced load on MPLS circuits.

Dual-stack is the correct IPv6 migration strategy for this corporation. The requirements state that users need access to both IPv4 and IPv6 resources, content providers will migrate over the next two years, and users will move in phases. Dual-stack supports exactly that model because hosts, routers, and services can run IPv4 and IPv6 simultaneously. Applications can select IPv6 or IPv4 based on DNS responses and protocol availability, while the organization gradually enables IPv6 without breaking existing IPv4 connectivity. NAT64 is useful for IPv6-only clients reaching IPv4-only services, but it introduces translation state and does not provide native dual protocol operation. NAT46 is a specialized translation direction and not the broad migration strategy here. Tunneling can connect IPv6 islands across IPv4 infrastructure, but the customer already has IPv4 peering and needs a phased endpoint and application migration, not only island interconnection. Dual-stack is straightforward operationally and gives the longest coexistence window while providers and applications transition. Reference topics: IPv6 migration, dual-stack deployment, DNS-based protocol selection, IPv4 and IPv6 coexistence, phased migration.

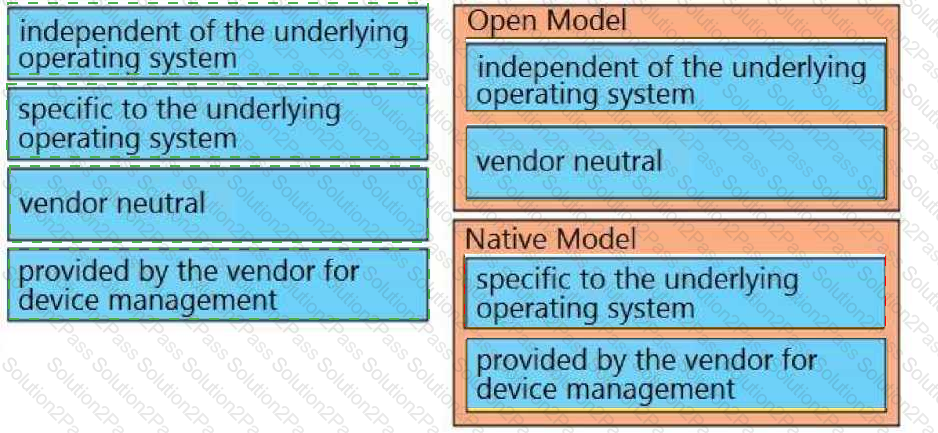

The drag-and-drop mapping is based on how Cisco differentiates YANG model families used for model-driven programmability. IETF models are standards-based and are intended for broad interoperability across vendors. They are the usual choice when the design priority is a consistent baseline for multivendor configuration or operational state. OpenConfig models are also vendor-neutral, but they are developed by the OpenConfig community and often provide an operationally consistent structure for telemetry and configuration across platforms. Cisco native models are vendor-specific models that expose detailed Cisco IOS XE, IOS XR, or NX-OS features, including capabilities that may not be represented in IETF or OpenConfig models. The design choice is therefore not simply “one model is always best.” It depends on whether the requirement prioritizes portability, abstraction, or complete Cisco feature coverage. For a standards-driven multivendor design, use IETF or OpenConfig where sufficient. For Cisco-specific device features, use Cisco native models. Reference topics: YANG models, IETF models, OpenConfig, Cisco native models, NETCONF/RESTCONF programmability.

Wireless endpoints in Cisco SD-Access are registered through the fabric wireless integration process, and the fabric WLC is the component that updates endpoint information as clients join the wireless network. The Host Tracking Database stores endpoint identifier and location information used by the SD-Access control plane. For wired endpoints, the fabric edge detects the endpoint and registers the binding. For wireless endpoints, the fabric WLC is integrated with the fabric and has the client session context, so it provides the endpoint information needed for HTDB updates. Border nodes do not first register ordinary wireless endpoints; their role is to connect the fabric to external networks and other domains. Fabric APs also do not own the complete EID-to-RLOC registration function in the way the controller does. The design implication is that fabric wireless requires correct WLC integration with Cisco Catalyst Center, fabric site configuration, control-plane reachability, and policy integration through Cisco ISE. Client registration, mobility, and policy enforcement depend on this controller-to-fabric relationship being stable. Reference topics: SD-Access wireless, fabric WLC, Host Tracking Database, endpoint registration, LISP control plane.

Integrated Services is the QoS model that allows an application to signal its traffic requirements to the network and request specific service treatment. Cisco QoS guidance distinguishes IntServ from DiffServ by explaining that IntServ follows a signaled-QoS model, while DiffServ uses provisioned per-hop behavior based on markings. IntServ uses RSVP to reserve resources along the end-to-end path. That reservation process allows the network to admit or deny the flow based on available bandwidth and policy, which is why IntServ aligns with applications that require consistent and dedicated bandwidth. DiffServ is much more scalable and widely deployed in enterprise networks, but it does not provide per-flow resource reservation by itself. LLQ is a queuing mechanism commonly used inside a DiffServ design for delay-sensitive traffic such as voice. WRED is a congestion-avoidance technique, not an end-to-end reservation architecture. Because the question explicitly says that the application informs the network of its traffic profile and requests a service level, the correct QoS architecture is IntServ.

VSS is the best choice because it provides distribution-layer redundancy with a simplified operational model and fast failover. Cisco Virtual Switching System combines two physical Catalyst switches into one logical switch from the perspective of neighboring devices. This allows the access layer to use Multichassis EtherChannel toward the distribution pair, creating a loop-free Layer 2 topology without relying on STP blocking for normal forwarding. Cisco also describes VSS as using Stateful Switchover and Nonstop Forwarding so the standby chassis can preserve forwarding during supervisor or chassis events. That meets the requirement for very fast convergence while simplifying deployment for a small IT team. GLBP, VRRP, and HSRP are first-hop redundancy protocols. They provide default-gateway resiliency, but they do not merge the distribution layer into a single logical control plane or simplify dual-uplink forwarding the way VSS with MEC does. Reference topics: VSS, Multichassis EtherChannel, distribution-layer redundancy, SSO, NSF, campus high availability.

The SD-Access control-plane node maintains the endpoint database and resolves mappings between endpoints and the fabric edge nodes where those endpoints are located. Cisco SD-Access uses LISP in the fabric control plane. Edge nodes register endpoint identifiers with the control-plane node, and other fabric nodes query the control plane when they need to locate a destination endpoint. This control-plane function is commonly described through LISP Map-Server and Map-Resolver behavior. Option B is not correct because endpoint detection occurs at the edge node, not at the control-plane node. The edge is the device connected to users, access points, or endpoint-facing networks, so it learns local endpoint presence and registers that information. Option C refers to authentication and identity, which is integrated with Cisco ISE. Option D describes the border-node role, because border nodes connect the fabric to external networks. The corrected answer is therefore A. A stable SD-Access design must provide redundant control-plane reachability and scale the control-plane role according to fabric size, mobility, and endpoint churn. Reference topics: SD-Access control plane, LISP Map-Server, LISP Map-Resolver, endpoint-to-location mapping.

Running BFD between EIGRP neighbors is the appropriate design when the problem is traffic loss during link failure and the requirement is to reduce the impact of the failure. EIGRP can detect neighbor loss through its hello and hold timers, but those timers may not be fast enough for applications sensitive to packet loss. Bidirectional Forwarding Detection provides rapid failure detection independent of the routing protocol’s normal timer expiration. When BFD detects a failed forwarding path, it notifies EIGRP so the routing process can converge without waiting for the EIGRP hold timer. Summarization is still a valuable scaling technique, but it primarily reduces route table size and query scope; it does not directly accelerate failure detection on an individual inter-router link. Reducing EIGRP hello and hold timers can improve detection, but it increases control-plane load and is less efficient than BFD. The question emphasizes data loss when any one link fails, so fast failure detection is the best corrective design. Reference topics: EIGRP convergence, BFD, failure detection, hello and hold timers, routed-link resiliency.

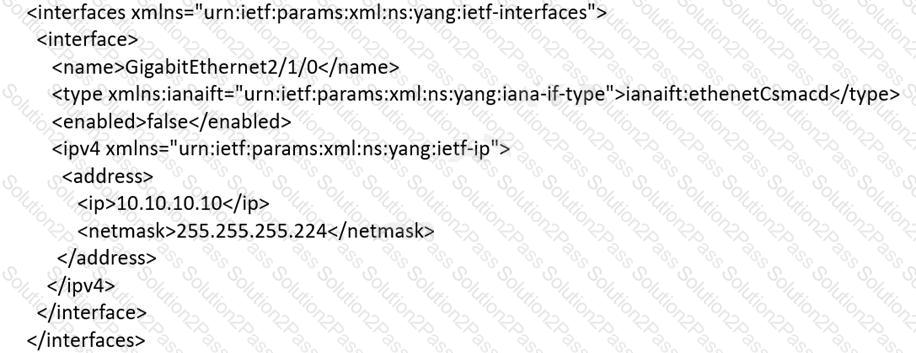

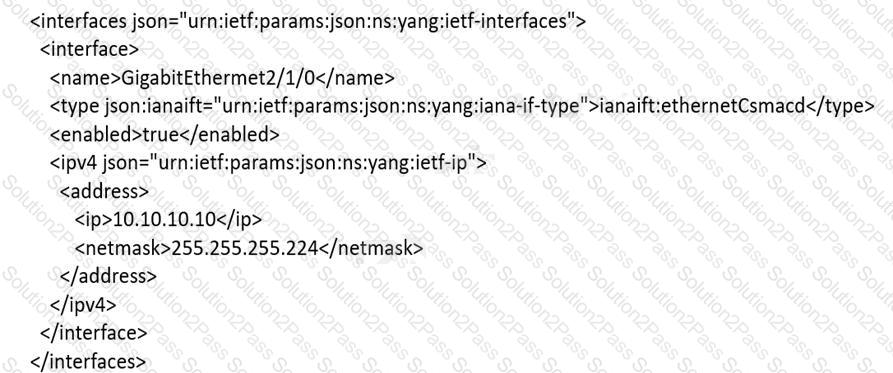

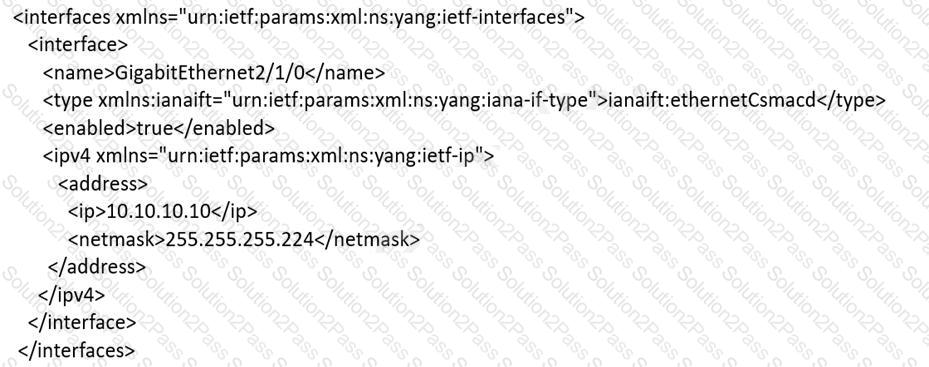

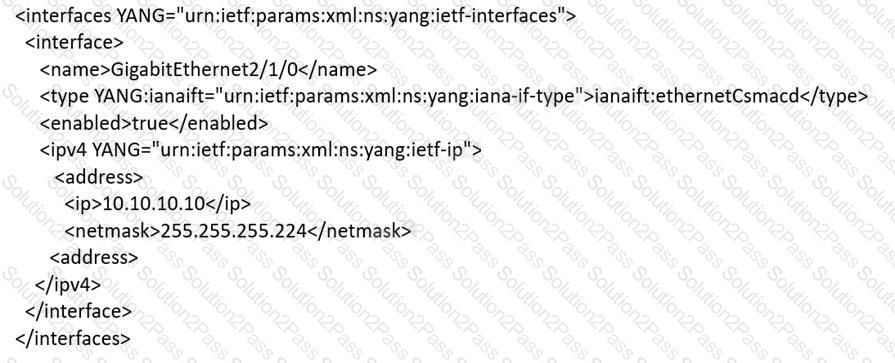

The correct XML/YANG data model set is the option that accurately represents the IOS XE interface hierarchy, assigns the IPv4 address to GigabitEthernet2/1/0, and uses the correct prefix length of 27. In model-driven programmability, the payload must match both the selected YANG model schema and the target platform’s interface naming conventions. For IOS XE native models, interface configuration is structured under the Cisco native namespace, with interface type and name represented in the schema before IPv4 address elements are applied. The address 10.10.10.10/27 must also support a directly connected host at 10.10.10.1/27, which places both addresses in the same 10.10.10.0/27 subnet. Options that place the address under the wrong interface type, use the wrong namespace, incorrectly represent the mask, or configure the host route rather than the interface are invalid. Option D is the only answer aligned to the IOS XE YANG structure and the requested addressing. Reference topics: IOS XE native YANG, NETCONF XML payloads, interface configuration, IPv4 prefix length, model-driven programmability.

HSRP version 2 with MD5 authentication is the correct resilient gateway choice because the design requires IPv6 support and protection against false hello packets. HSRPv2 supports both IPv4 and IPv6 gateway redundancy and improves group scaling compared with the original version. MD5 authentication protects the HSRP control exchange by ensuring that only authorized routers participate in the redundancy group, reducing the risk of a rogue or misconfigured device sending false hello messages and influencing active gateway selection. GLBP provides load balancing but does not satisfy the same IPv6 and authenticated hello requirement in this option set. VRRP version 2 is IPv4-focused and therefore does not meet the IPv6 requirement; VRRPv3 would be the relevant standards-based IPv6-capable version, but it is not offered. Object tracking helps adjust gateway priority after link failure, but it does not protect against false hello packets by itself. Reference topics: HSRPv2, first-hop redundancy, IPv6 gateway redundancy, MD5 authentication, campus high availability.

Graceful restart and nonstop forwarding designs depend on preserving forwarding continuity during a control-plane processor switchover. Cisco Stateful Switchover provides the mechanism for a standby route processor or supervisor to maintain synchronized state so it can assume control when the active processor fails. When SSO is combined with NSF or graceful restart capabilities in routing protocols, neighboring devices can continue forwarding traffic while the restarting device preserves or rebuilds control-plane adjacencies. Cisco Express Forwarding is required for fast data-plane forwarding, but CEF alone does not provide route processor state synchronization after processor failure. Virtual Switch System is a chassis or switching architecture that can provide high availability in certain campus designs, but it is not the required feature named by graceful restart recovery. Bidirectional Forwarding Detection is a failure-detection protocol used to detect path or neighbor failures quickly; it does not recover a failed processor. Therefore, the feature that must be incorporated for graceful restart recovery from processor failure is Stateful Switchover. In a resilient enterprise design, SSO, NSF, and protocol graceful restart are coordinated to reduce outage impact.

GET VPN is the correct private WAN encryption technology when traffic must always be encrypted, multicast must be supported, forwarding overhead must be reduced, and security management must be centralized. Cisco Group Encrypted Transport VPN protects traffic over a private WAN without building traditional point-to-point or multipoint tunnel overlays. Because it preserves the original IP header, the provider or enterprise routing core can still make normal forwarding decisions, and multicast, QoS, and routing behavior are easier to preserve than with heavy tunnel overlays. GET VPN uses a key server model to centralize group policy and distribute encryption keys to group members. This reduces the operational burden of maintaining many permanent tunnels. DMVPN supports multicast through GRE and provides dynamic tunnels, but it adds tunnel encapsulation overhead and does not meet the reduced-overhead private WAN requirement as cleanly. Plain mGRE lacks the full centralized group encryption model. Reference topics: GET VPN, group encryption, private WAN security, multicast support, key server, tunnel-less IPsec.

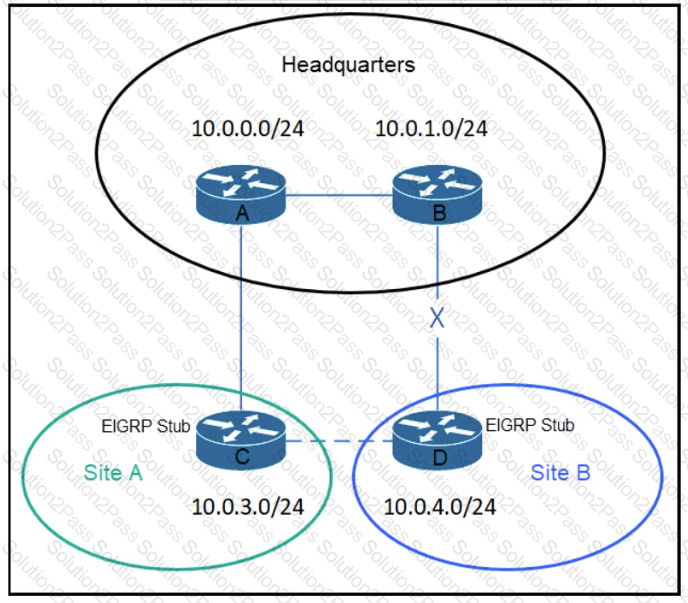

The action is to configure the EIGRP stub router in receive-only mode. Cisco EIGRP stub routing limits which routes a router advertises to neighbors, reducing query scope and improving stability in hub-and-spoke or WAN designs. The receive-only keyword is the most restrictive stub option: the router receives routes from neighbors but does not advertise any routes to them. That directly satisfies the requirement that WAN routes must not be advertised to the routers in the data center. Advertising only a default route still advertises routing information, so it does not meet the wording. Summarizing local subnets reduces the number of routes, but it still advertises reachability. The “distributed mode” option is not the correct EIGRP stub behavior for this requirement; redistributed stub mode would allow redistributed routes to be advertised. Receive-only is therefore the precise design control for stopping route advertisement from the stub router. Reference topics: EIGRP stub routing, receive-only mode, query scoping, route advertisement control, WAN-to-data-center design.

The design should use a scavenger queue for excessive or suspicious traffic and apply queuing on the access-to-distribution uplinks where congestion can occur. Cisco QoS campus design commonly uses a less-than-best-effort scavenger class to constrain traffic associated with worms, peer-to-peer applications, bulk background flows, or other nonbusiness traffic. Placing this traffic in a scavenger queue minimizes the bandwidth it can consume during congestion without harming real-time applications. Real-time voice or video traffic should be placed in a strict-priority queue so it receives low delay and low jitter treatment when links are congested. Applying queuing on access-to-distribution links is important because those uplinks are common campus congestion points, especially during bursts or abnormal traffic events. A shaping policy is not the right tool for campus LAN uplinks, and indiscriminate policing of real-time traffic can cause drops that damage voice and video quality. Reference topics: campus QoS, scavenger class, strict-priority queue, access uplink queuing, congestion management, worm mitigation.

Root guard is the correct feature when the design must allow switches to be attached for testing but prevent those switches from influencing the spanning-tree root placement. Cisco root guard protects the intended STP root by placing a port into a root-inconsistent state if superior BPDUs are received on a port where the root should never appear. This directly addresses the risk created by rogue or lab switches connected by end users: if a user switch advertises a better bridge priority, the production access topology is not allowed to reconverge around that unauthorized device. BPDU guard is usually used on PortFast edge ports to err-disable a port that receives any BPDU, which is excellent for strict host-only ports but less aligned with the wording that users may connect their own switches for testing. Loop guard protects root or alternate ports from losing BPDUs and accidentally forwarding. BPDU skew detection is a diagnostic feature, not the correct design control. Therefore, root guard is the appropriate protection against rogue switches affecting STP topology. Reference topics: STP root placement, root guard, superior BPDUs, campus Layer 2 protection.

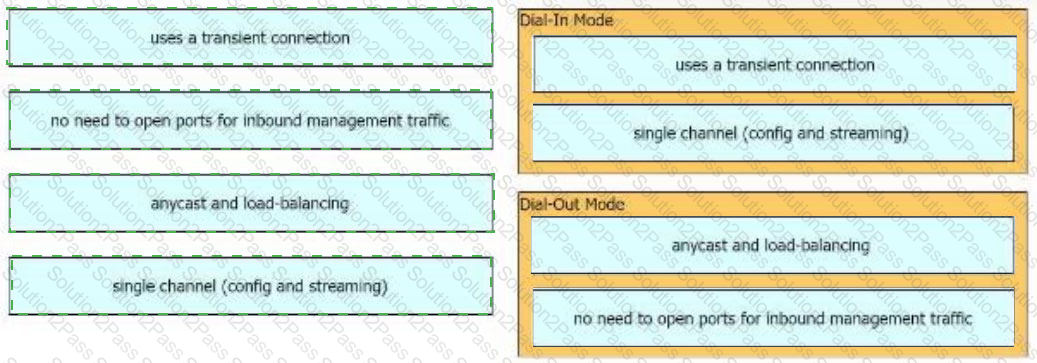

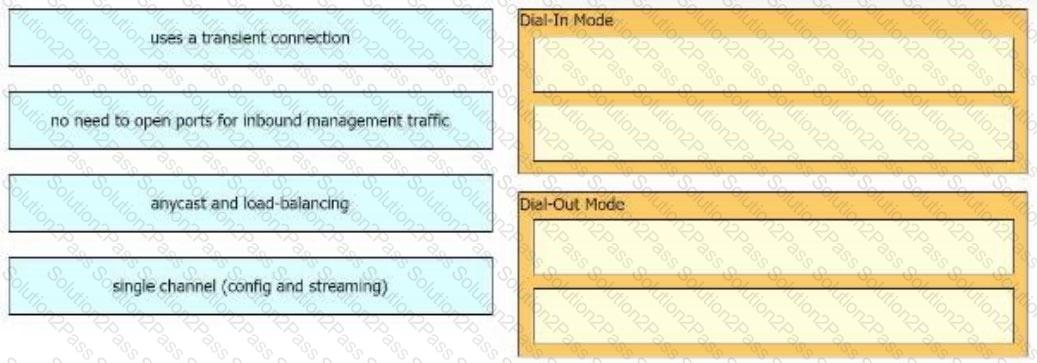

The telemetry mapping separates dial-in and dial-out behavior. In dial-in telemetry, the collector initiates the session toward the network device and subscribes to the data that it wants streamed. This model gives the collector direct control over the subscription lifecycle, but it requires the collector to reach the device and manage each session. In dial-out telemetry, the network device initiates the session toward the collector based on a configured subscription. This is useful when devices must stream telemetry to a centralized destination through firewalls or controlled management paths. Cisco model-driven telemetry can stream structured data from YANG models using subscription behavior rather than relying on repeated CLI polling. The selected drag-and-drop answer matches each consideration to the mode that owns the connection initiation and subscription handling. In design work, the architect must consider reachability direction, security policy, NAT traversal, collector scale, subscription persistence, and whether subscriptions should be configured on the device or created by the collector. Reference topics: model-driven telemetry, dial-in mode, dial-out mode, YANG subscriptions, gRPC telemetry, operational data streaming.

The primary consideration is that the participating hosts must support dual stack. The pilot is contained within a single VLAN, so the application traffic remains inside the same Layer 2 broadcast domain across the dual-site data center environment. Layer 2 switches forward Ethernet frames and do not need to understand the IPv6 header to carry IPv6 traffic inside the VLAN. Layer 3 switches need IPv6 capability only where IPv6 routing, gateways, ACLs, or services are required. For this pilot, the essential requirement is that the servers and endpoints running the IPv6 application can operate with both IPv4 and IPv6 enabled while the existing environment continues to support IPv4. Dual stack allows IPv6 testing without removing IPv4 reachability or forcing translation. Requiring every Layer 2 and Layer 3 switch in both data centers to be dual-stack overstates the design requirement. The hosts participating in the pilot are the critical dependency. Reference topics: IPv6 migration, dual stack, Layer 2 VLAN transport, data-center pilot design, IPv4 and IPv6 coexistence.
