300-620 Cisco Implementing Cisco Application Centric Infrastructure (300-620 DCACI) Free Practice Exam Questions (2025 Updated)

To securely export Cisco APIC configuration snapshots to a secure, offsite location using an encrypted tunnel and a platform-agnostic data format that provides namespace support, the following configuration set must be used:

Choose a Platform-Agnostic Data Format: Export the configuration in a data format like JSON or XML, which are platform-agnostic and support namespaces1.

Use an Encrypted Tunnel: Transfer the configuration snapshot over a secure protocol such as SFTP or SCP, which provides an encrypted tunnel for the data transfer1.

Schedule the Export: Set up a scheduled export of the configuration in the Cisco APIC to occur at regular intervals, ensuring the process is automated1.

Enable Encryption: Make sure the configuration export policy includes encryption settings. Cisco APIC supports AES-256 encryption for securing exported configuration files2.

Verify Namespace Support: Ensure that the chosen data format and the method of export support the use of namespaces, which are essential for organizing elements and attributes in XML documents1.

By following these steps and choosing Option B, the engineer can meet the requirements for securely exporting Cisco APIC configuration snapshots to an offsite location.

To migrate the gateway address out of the ACI fabric for an endpoint group (EPG), the bridge domain configuration must ensure that routing is contained within the ACI fabric and that ARP requests are managed efficiently. The correct configuration set is:

L2 Unknown Unicast: Set to Hardware Proxy. This setting allows the ACI fabric to use the spine proxy function to handle unknown unicast traffic, which helps to reduce flooding within the fabric.

Unicast Routing: Set to Disabled. Since the gateway is being migrated out of the ACI fabric, unicast routing should be disabled to prevent the ACI fabric from attempting to route traffic for the EPG.

ARP Flooding: Set to Enabled. This allows ARP requests to be flooded within the bridge domain, which is necessary when the unicast routing is disabled, to ensure that ARP requests can still be resolved.

References :=

Cisco ACI Bridge Domain Configuration Guide

Cisco ACI Best Practices Guide

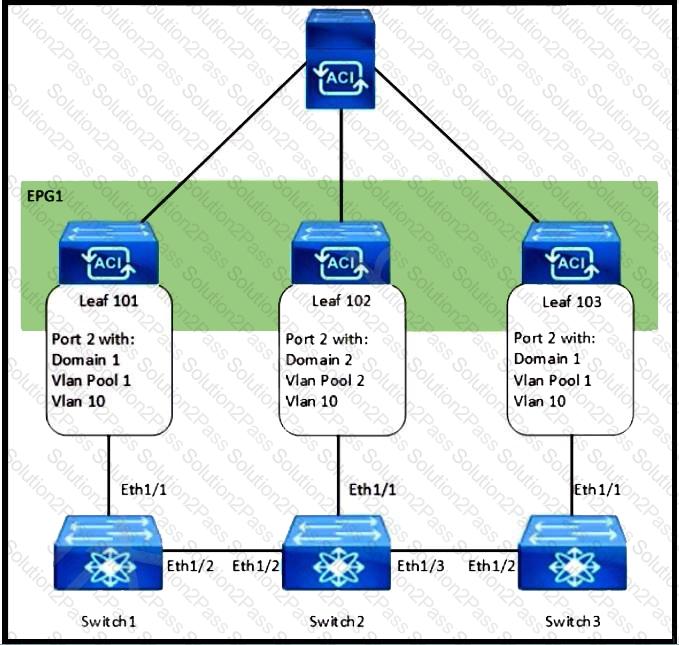

To set Layer 2 loop migration in an ACI Fabric with a Layer 2 Out configured, MCP (Misconfiguration Protocol) must be enabled on the ACI fabric56. MCP helps to prevent Layer 2 loops by detecting misconfigurations that could potentially cause loops56.

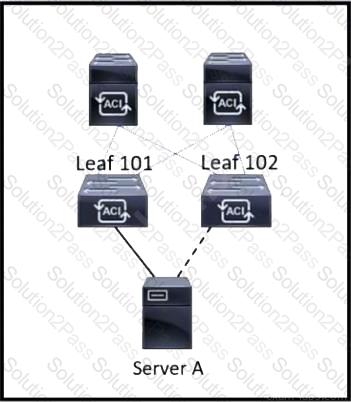

 In the scenario where Server A is connected to the Cisco ACI fabric using teamed interfaces with one active and one standby, enabling ARP flooding in the bridge domain configuration is necessary to resolve the issue that occurs when the standby interface becomes active and uses its built-in MAC address to send traffic. Enabling ARP flooding allows the fabric to learn the new MAC address without waiting for the ARP timeout, which helps to ensure that traffic continues to flow to the correct destination after a failover event1.

References :=

Discuss Cisco 300-620 Exam Topic 9 Question 71 | Pass4Success1

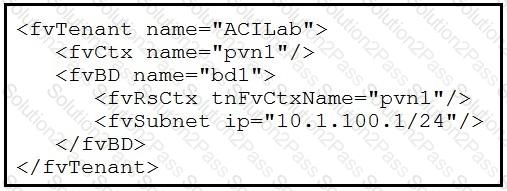

The XML configuration snippet provided in the exhibit results in the creation of two objects within the Cisco ACI environment:

Bridge Domain (Option C): This is indicated by the XML element , which defines a bridge domain with the name “bd1”.

VRF (Option E): This is shown by the XML element , which defines a Virtual Routing and Forwarding instance named “pvn1”.

These objects are essential for network segmentation and routing within the ACI fabric, where the bridge domain represents a Layer 2 broadcast domain and the VRF is used for Layer 3 routing separation.

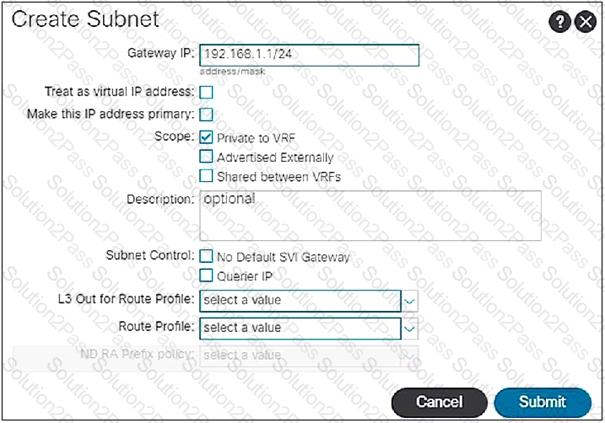

 In Cisco Application Centric Infrastructure (ACI), when a subnet is configured on a bridge domain, the gateway IP address is configured on the leaf switches where the bridge domain of the tenant is present. This configuration allows for localized routing within the fabric, providing efficient east-west traffic handling without requiring traffic to traverse up to the spine nodes unless necessary for north-south routing or policy enforcement.

https://learnduty.com/cisco-aci/aci-multi-pod-overview-and-basics/

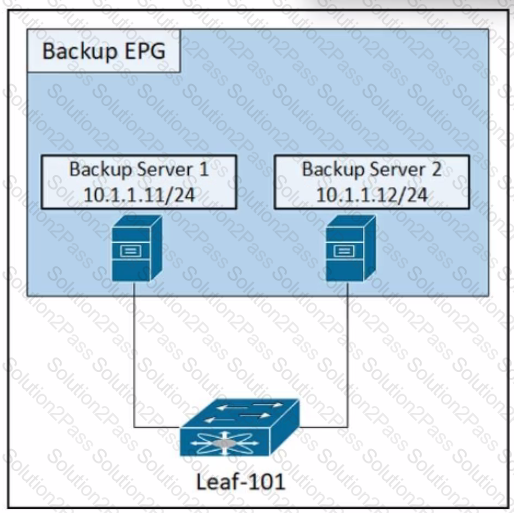

In Cisco ACI, Intra-EPG Isolation is a feature that prevents communication between endpoints within the same EPG. By default, endpoints in the same EPG can communicate freely without requiring contracts. To disable communication between two backup servers within the same EPG (e.g., in the "Backup EPG"), you need to enforce Intra-EPG Isolation.

When configuring a Multi-Pod system with the default gateway residing outside of the ACI fabric for a bridge domain, the setting that should be configured is to disable Limit IP Learning to Subnet (Option A). This allows the ACI fabric to learn IP addresses outside of the defined subnet, which is necessary when the default gateway is external.

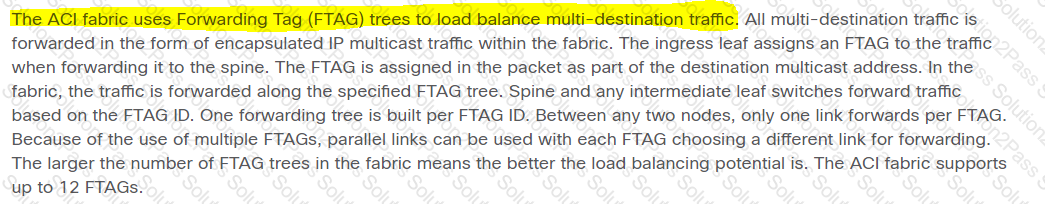

The method that the Cisco ACI fabric uses to load-balance multidestination traffic is forwarding tag trees3. This method involves assigning a forwarding tag (FTAG) to the traffic when it is forwarded within the fabric, ensuring efficient load balancing of multi-destination traffic3.

https://www.cisco.com/c/en/us/td/doc s/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010010.html

To support the addition of new ESXi hosts to the existing VMM domain, the action that should be taken is to map the leaf interface selector to the AEP that is associated with the VMM domain (Option D). This ensures that the correct policies are applied to the interfaces where the new ESXi hosts are connected.

 A bridge domain in Cisco ACI represents a Layer 2 forwarding construct345. It defines a unique Layer 2 MAC address space and can include one or more subnets. Bridge domains are associated with a VRF and can contain multiple EPGs345.

The advantage of implementing an active-active firewall cluster that is stretched across separate pods when anycast services are configured is that local traffic within a pod is load-balanced between the clustered firewalls. This means that traffic destined for the anycast IP address of the service node (firewall) will preferentially be directed to the local node within the same pod, thus optimizing traffic flows and reducing latency by avoiding unnecessary traffic tromboning to a remote pod1.

The true statement regarding ACI Multi-Pod and TEP pool is that the same TEP pool is used in all Pods. This shared TEP pool ensures consistent addressing and simplifies the management of the overlay network across multiple Pods.

The characteristic of Cisco ACI Multi-Pod that makes it unsuitable for deploying three separate data centers is that it requires all pods to share the same Cisco APIC cluster. In a Multi-Pod deployment, all the pods are part of the same fabric and are managed by a single APIC cluster, which means that they are not completely isolated from each other.

In a Cisco ACI fabric, Spanning Tree Protocol (STP) Bridge Protocol Data Units (BPDUs) that are generated by an external switch, such as Switch2 in this scenario, are indeed forwarded across the fabric. This allows externally connected switches to maintain a loop-free topology. While Cisco ACI does not participate in STP as it uses its own protocols and mechanisms for loop prevention within the fabric, it will forward STP BPDUs across End Point Groups (EPGs) on which they are received1. This ensures that the connected external switches can still use STP for their loop prevention mechanisms.

References :=

Cisco Community Discussion on STP BPDUs in ACI1

The Cisco AV Pair resolves to a managed object class. In the context of Cisco ACI, the AV Pair is used to define specific attributes for RADIUS users, which then map to managed objects within the ACI fabric3.
