To break the STP loop between switch1 and switch2 in a Cisco ACI environment, enabling BPDU filtering on the interfaces facing the MST (Multiple Spanning Tree) switches is the necessary step. BPDU filtering prevents BPDUs from being sent or received through a port, which effectively stops the STP process on those ports and breaks the loop1.

When BPDU filtering is enabled on an interface, the switch does not send any BPDUs and ignores any BPDUs it receives on that interface. This can be used to prevent unwanted STP negotiations on ports where loops are not expected to happen or where STP is not desired1.

References :=

Use of ACI Operation with L2 Switches and Spanning Tree Link Types - Cisco1

To allow IP mobility between Site1 and Site2 in a Cisco ACI Multi-Site orchestrator while meeting the disaster recovery (DR) requirements and avoiding broadcast storms, the following actions should be taken:

Disable Inter-site BUM Traffic: Disabling Broadcast, Unknown unicast, and Multicast (BUM) traffic between sites helps to avoid broadcast storms that can occur when extending Layer 2 domains across multiple sites1.

Apply the L2 Stretch feature: The Layer 2 Stretch feature allows subnets to be extended across multiple sites without the need to re-IP the application servers. This supports IP mobility and enables applications to be started at a DR site using the same IP address space1.

These actions ensure that the design supports a DR solution without requiring vMotion support, allows applications to be started at a DR site without re-IPing servers, and avoids broadcast storms between the sites.

References :=

Cisco ACI Multi-Site Architecture White Paper1

Cisco Nexus Dashboard Orchestrator Overview2

 In the scenario where Server2 information is missing from the Leaf 101 endpoint table and the COOP database of the spine, setting Layer 2 Unknown Unicast to Flood (Option B) is the correct action to meet the requirements. This setting will cause the ACI fabric to flood unicast packets destined for unknown destinations within the bridge domain. This ensures that packets from Server1 will reach Server2 even though its location isn’t known by Leaf 101 or the spine’s COOP database.https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-in frastructure/white-paper-c11-739989.html

When the client endpoint and the service node interface are in different subnets, the Adjacency Type value should be set to Routed. This setting is used to indicate that routing is required between the client endpoint and the service node interface, as they are not in the same Layer 2 broadcast domain and need Layer 3 routing to communicate.

To complete the task of configuring a Layer 3 connection to the WAN router and allowing hosts in the production VRF to access WAN subnets, the engineer should configure the Export Route Control Subnet scope for the external EPG. This setting allows the subnets associated with the external EPG to be advertised to external routers, enabling connectivity to the WAN.

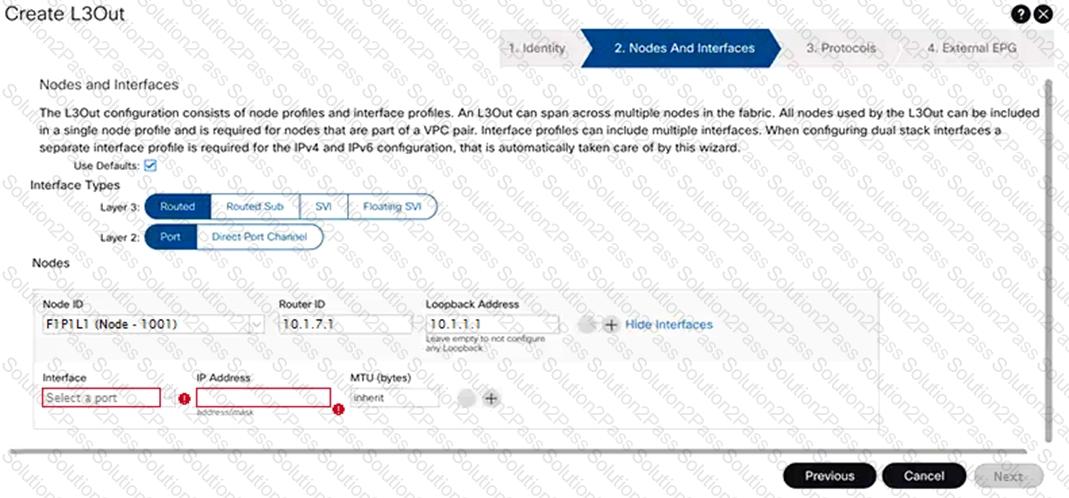

To configure an L3Out peering with the backbone network that must forward both unicast and multicast traffic, the two methods that should be used are:

Layer 3 routed port (Option A): This method involves configuring a physical port on the Cisco ACI leaf switch as a Layer 3 interface, which is suitable for routing unicast and multicast traffic.

Layer 3 routed subinterface (Option D): This method involves configuring a subinterface under a physical port, which allows for traffic segregation and routing over the same physical link, supporting both unicast and multicast traffic.

These methods ensure that the L3Out can handle the required traffic types and maintain proper routing with the backbone network.

https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centricinfrastructure/

guide-c07-743150.html#_L3Out_sStatic_rRoutes

https://www.cisco.com/ c/en/us/td/docs/switches/datacenter/aci/apic/sw/4-x/L3-configuration/Cisco-APIC-Layer-3-Networking-Configuration-Guide-401/Cisco-APIC-Layer-3-Networking-Configuration-Guide-401_chapter_010010.html

 To redirect traffic to the firewall using a one-armed policy-based redirect service insertion, the following configuration set should be used:

Configure a service graph: This involves defining the service graph template that represents the logical flow of traffic through network services.

Associate the service graph with All_Traffic_Allowed: By associating the service graph with the contract named All_Traffic_Allowed, traffic that matches the contract will be redirected through the service graph to the firewall device.

References :=

Cisco ACI Fabric Administration Guide, Release 4.2(1)

Cisco ACI Virtualization Guide, Release 4.2(1)

When extending an EPG out of the ACI fabric using static path binding, it is true that external endpoints are in the same EPG as the directly attached endpoints8. This means that traffic received on a statically bound leaf port with a specific VLAN ID is mapped to the EPG, and the same policies applied to directly attached endpoints are enforced on the external endpoints8.

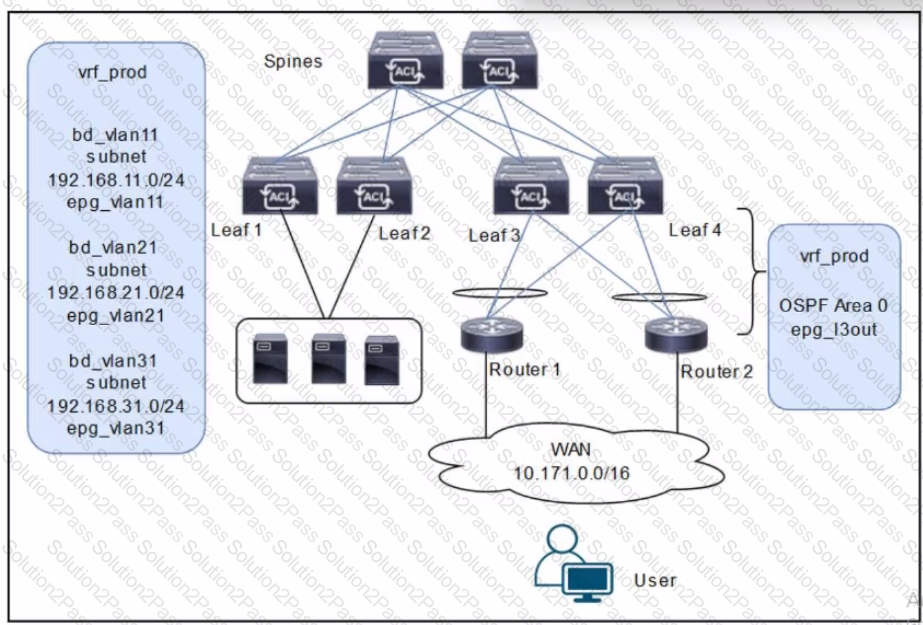

The scenario involves deploying a WAN with Cisco ACI, where Routers 1 and 2 (connected via an L3Out with OSPF Area 0) must receive specific routes (192.168.11.0/24 and 192.168.21.0/24) from the ACI fabric, and reachability to WAN users must be permitted only for servers in vrf_prod. The diagram shows three bridge domains (bd_vlan11, bd_vlan21, bd_vlan31) with their respective subnets and EPGs, all under vrf_prod, along with an L3Out (epg_l3out) for WAN connectivity.

Requirement Analysis

Routers 1 and 2 must receive only routes 192.168.11.0/24 and 192.168.21.0/24:

These subnets belong to bd_vlan11 and bd_vlan21, respectively. To advertise these routes to Routers 1 and 2 via the L3Out, they must be marked with the appropriate scope in the bridge domain configuration.

In ACI, the "Advertised Externally" scope on a subnet ensures that it is advertised to external routers via the L3Out routing protocol (OSPF in this case).

Reachability to WAN users must be permitted only for servers in vrf_prod:

This implies that only the subnets in vrf_prod (192.168.11.0/24, 192.168.21.0/24, and 192.168.31.0/24) should be accessible, but WAN users should only reach specific subnets based on policy.

The external EPG (epg_l3out) represents the WAN users (10.171.0.0/16), and its subnet scope must control inbound reachability.

The subnet 192.168.31.0/24 (bd_vlan31) should not be advertised to the WAN, as it is not listed in the routes Routers 1 and 2 should receive.

Option Evaluation

A. Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Private to VRF. Configure the subnet 192.168.31.0/24 as Advertised Externally. Configure an EPG subnet 0.0.0.0/0 as External Subnets for External EPG:

Setting 192.168.11.0/24 and 192.168.21.0/24 as "Private to VRF" means they are not advertised externally, which fails the requirement for Routers 1 and 2 to receive these routes.

Setting 192.168.31.0/24 as "Advertised Externally" incorrectly advertises this subnet to the WAN, which is not desired.

The "External Subnets for External EPG" scope on 0.0.0.0/0 allows WAN users to reach all subnets in vrf_prod, which is correct for reachability.

Conclusion: Fails the first requirement (route advertisement).

To implement the Inter-Site Network (ISN) for a Cisco ACI Multi-Site deployment, the following configuration steps are essential:

Configure OSPF on all ISN routers: OSPF (Open Shortest Path First) is a routing protocol that is used to ensure that all routers in the ISN have the necessary routing information to forward packets between sites.

Configure BIDIR-PIM on all ISN routers: BIDIR-PIM (Bidirectional Protocol Independent Multicast) is used for efficient multicast traffic forwarding across the ISN. This is particularly important for Cisco ACI Multi-Site deployments as it supports the replication of broadcast, unknown unicast, and multicast (BUM) traffic across sites.

References :=

Cisco ACI Multi-Site Configuration Guide

Cisco ACI Multi-Site Architecture White Paper

When configuring in-band management, the new construct that must be created is a bridge domain1.

To ensure that users can access the Cisco APIC GUI with a local account if the RADIUS server is unreachable, the network administrator must enable the fallback check with the default authentication domain. This allows for local authentication as a backup method when RADIUS is not available. The fallback mechanism is crucial for maintaining access to the APIC GUI in case of RADIUS server issues1.

References :=

Cisco Community Discussion on Auth Radius fallback to Local1

Cisco APIC Security Configuration Guide

ACI uses the SCP (Secure Copy Protocol) to securely save the configuration in a remote location. SCP is a network protocol that supports file transfers and relies on the Secure Shell (SSH) protocol to provide security for the transferred data.

In Cisco ACI fabric, MP-BGP (Multi-Protocol Border Gateway Protocol) is utilized for several purposes, one of which includes the propagation of L3Out (Layer 3 Out) routes within the fabric. Specifically, MP-BGP with VPNv4 address family (AF) is used in the ACI infra VRF (overlay-1 VRF) to distribute external routes from a border leaf to other leaf switches1. This allows for the efficient dissemination of routing information and ensures that all relevant leaf switches are aware of the routes necessary to reach external networks.

References :=

ACI Fabric L3Out White Paper - Cisco1

Configuring ACI Fabric BGP Route Reflectors - Cisco2

ACI Fabric - Underlying protocols - Cisco Community3

Cisco Application Centric Infrastructure Fundamentals, Release 5.3(x)4

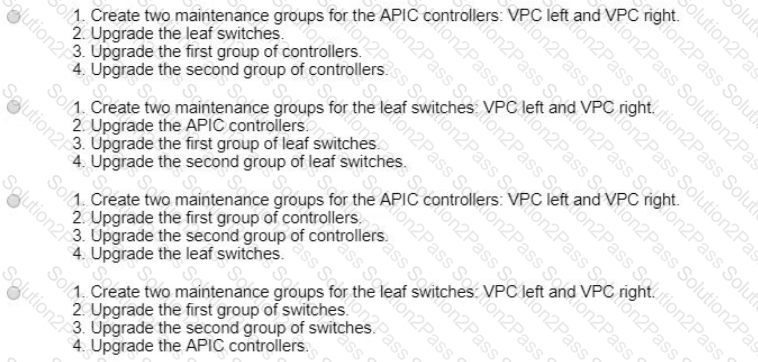

To minimize possible traffic impact during the upgrade of an ACI fabric with 3 APIC controllers and servers dual-homed to pairs of leaf switches configured in VPC mode, the fabric should be upgraded following Option A2. This option involves creating two maintenance groups for the APIC controllers, upgrading one group at a time, and then proceeding with the leaf switches2. This staged approach helps ensure that not all paths are affected simultaneously, thereby reducing the potential for traffic disruption2.

The two protocols used for fabric discovery in Cisco ACI are LLDP (Link Layer Discovery Protocol) and ISIS (Intermediate System to Intermediate System). LLDP is used for neighbor discovery on the data link layer, while ISIS is a routing protocol used for reachability between the TEP IPs (VTEPs) within the ACI fabric23.
