350-401 Cisco Implementing Cisco Enterprise Network Core Technologies (350-401 ENCOR) Free Practice Exam Questions (2026 Updated)

Solution:

Copy run start

Verification:

OR

Solution:

Copy run start

Copy run start

Copy run start

Verification:-

OR

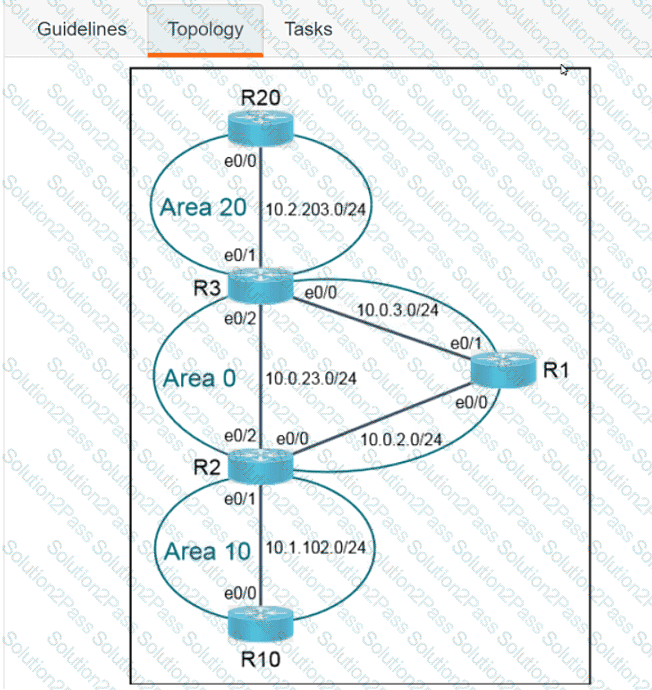

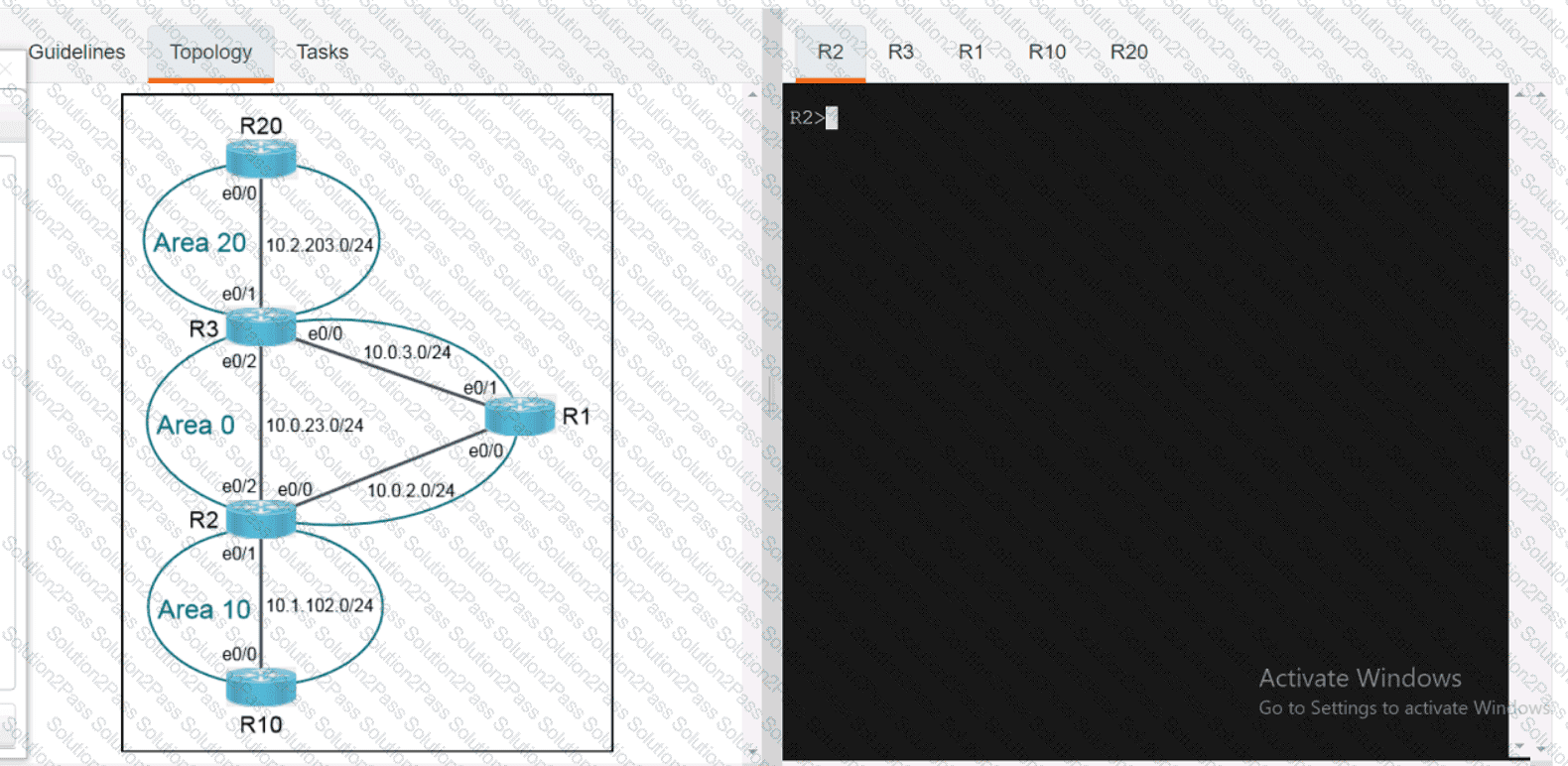

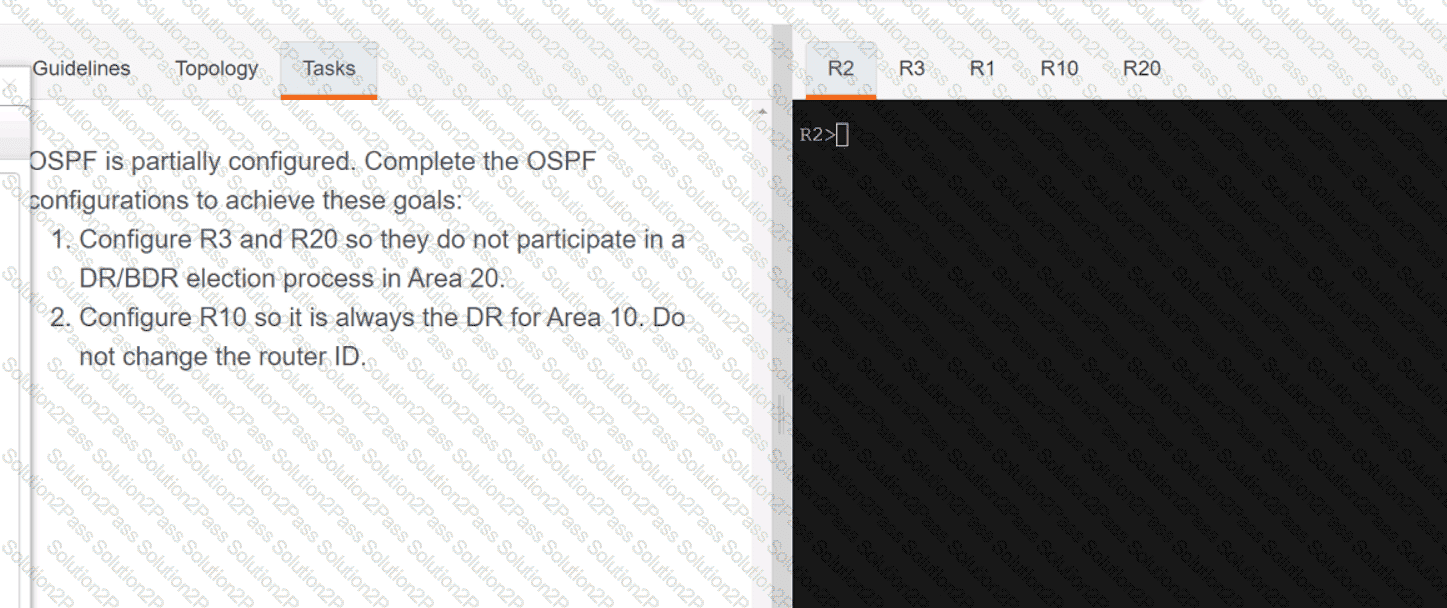

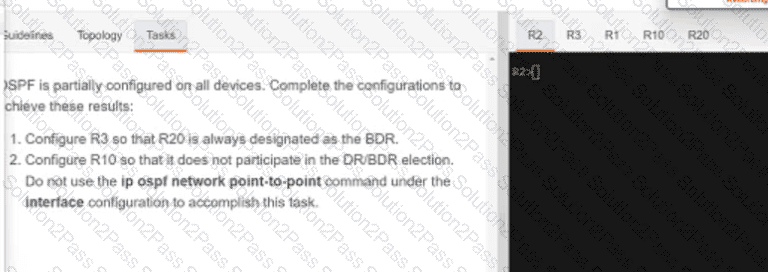

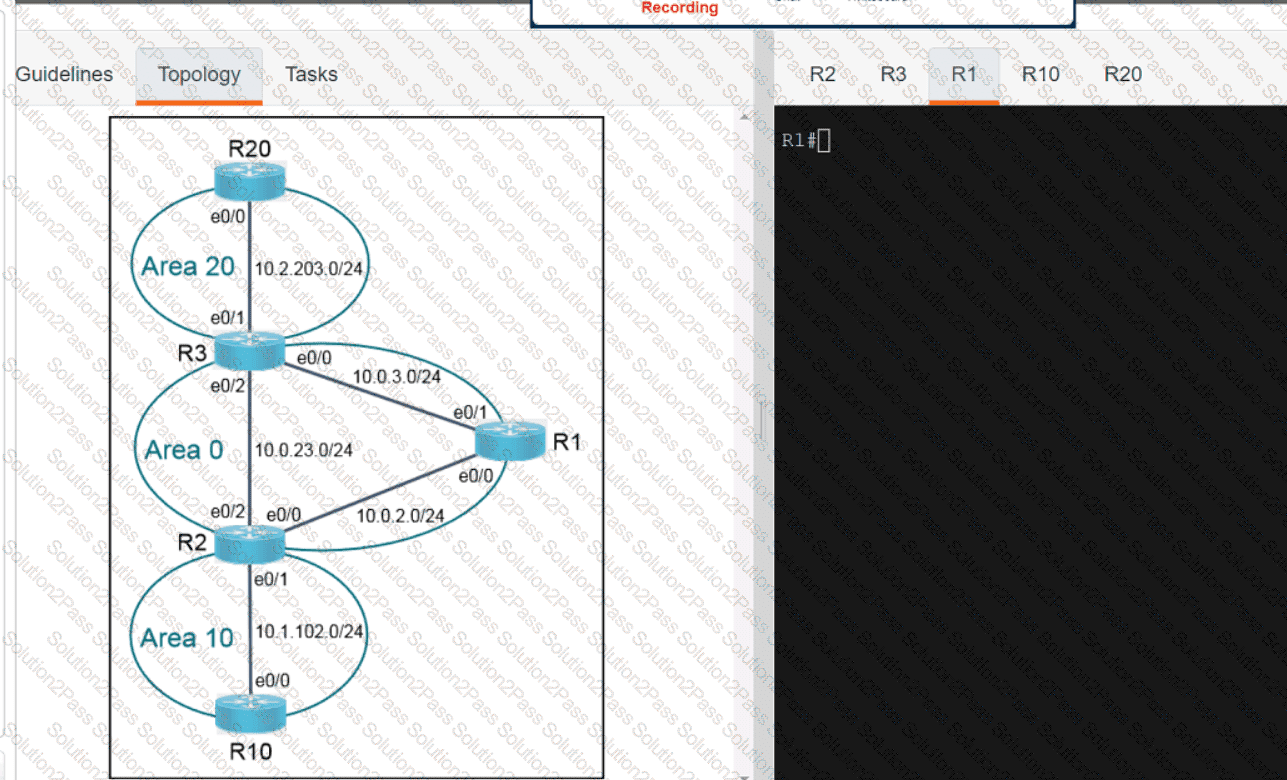

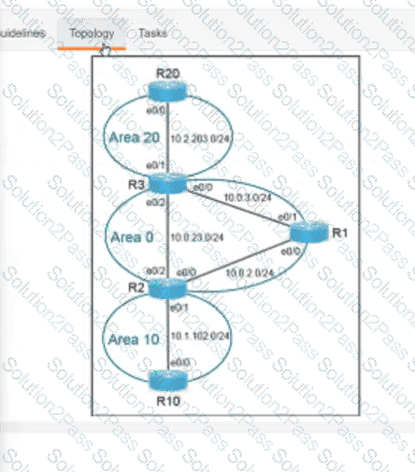

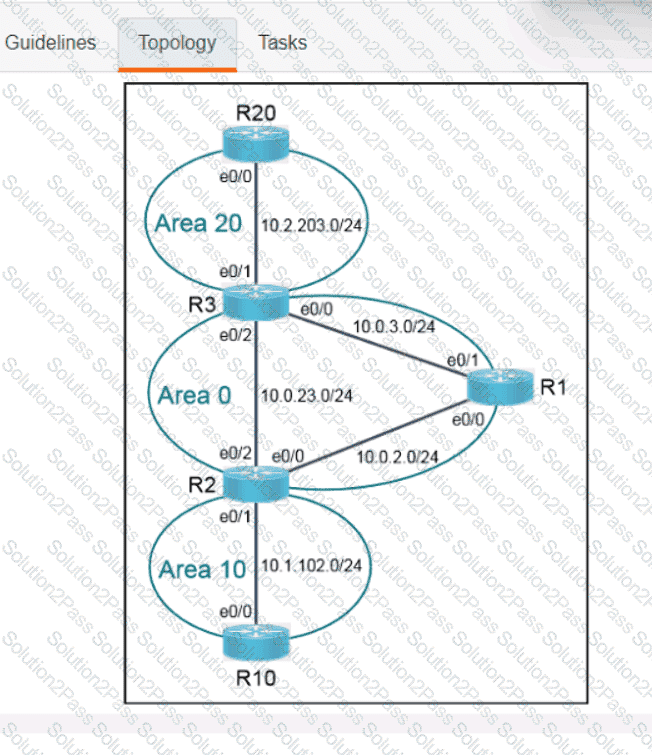

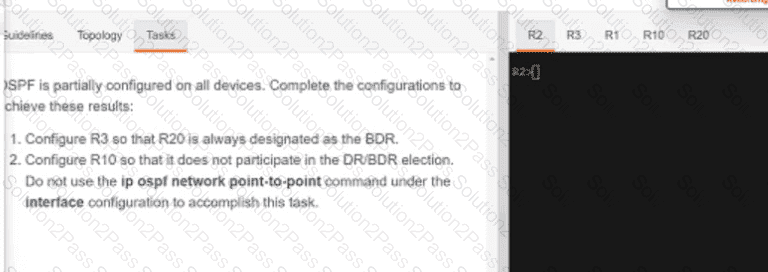

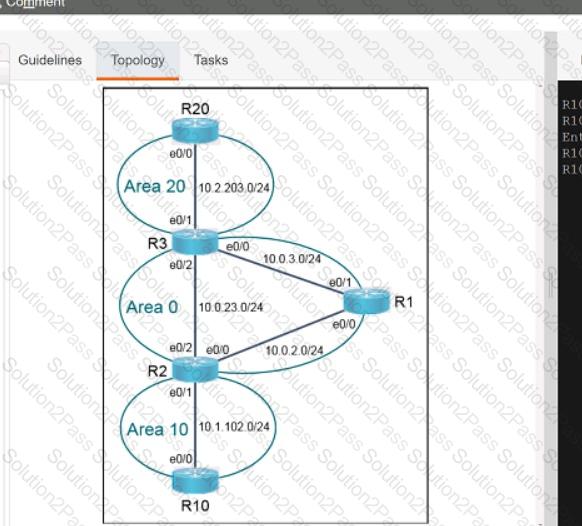

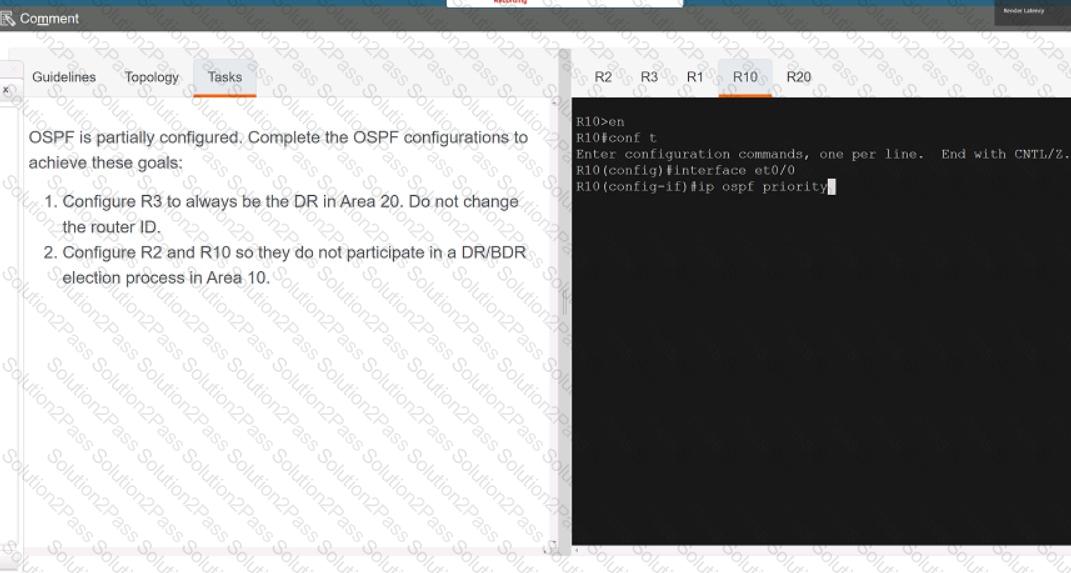

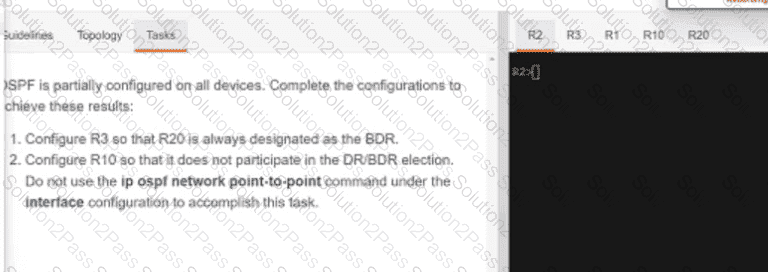

Solution:

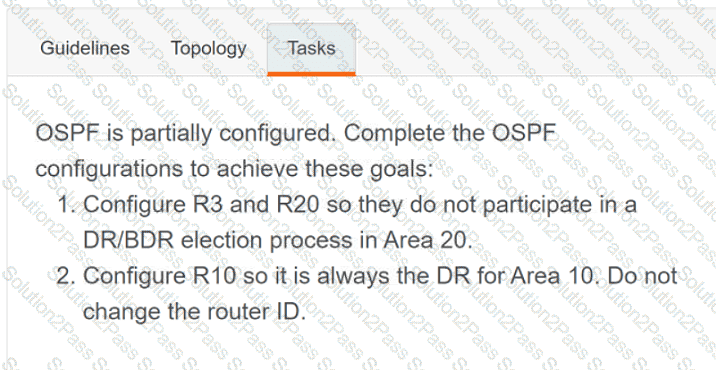

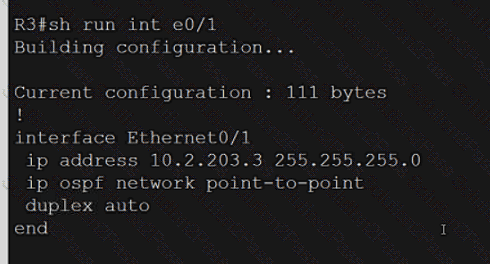

R3

Config#int et0/1

config-if#ip ospf priority 255

wr

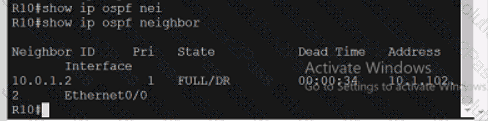

R20

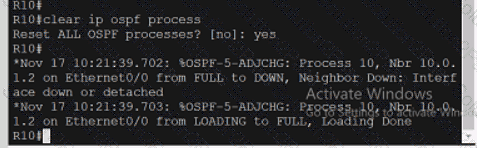

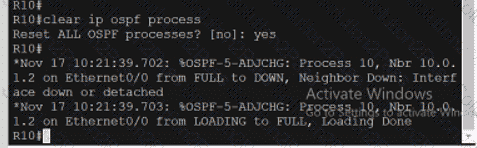

clear ip ospf process

yes

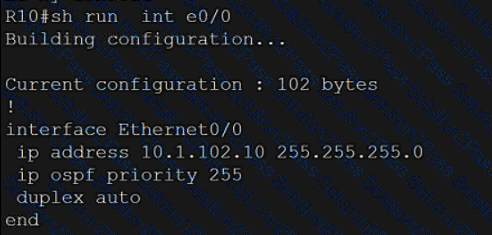

R10

int et0/0

ip ospf priority 0

wr

R2

clear ip ospf process

yes

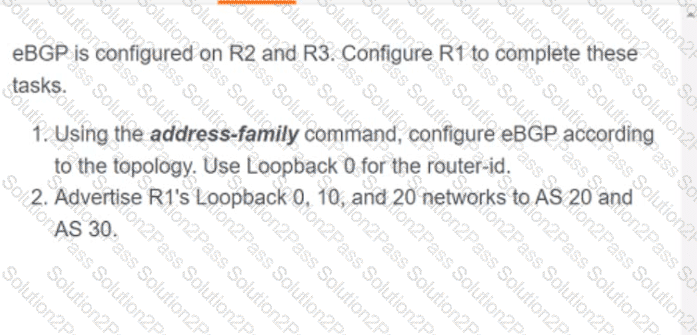

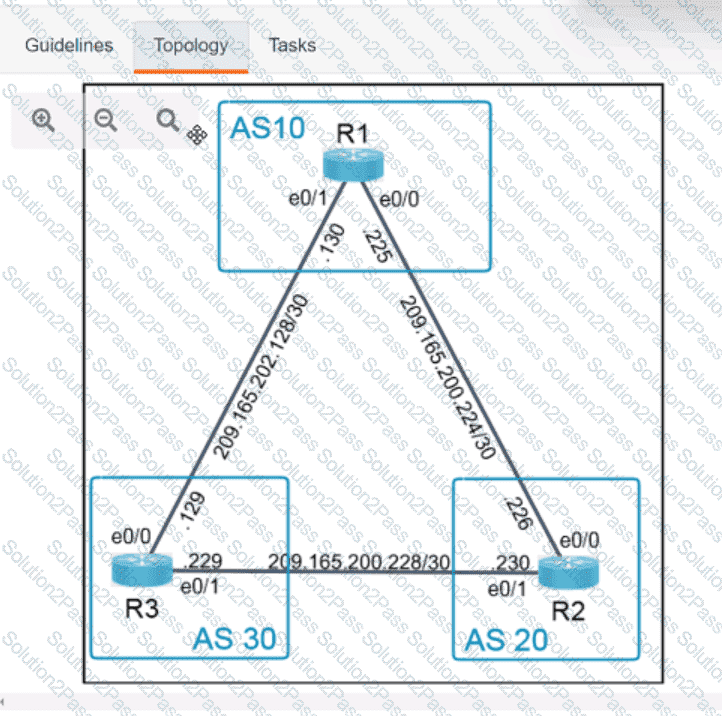

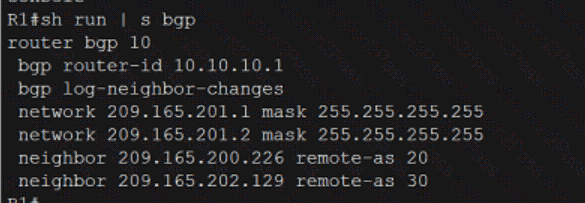

Solution:

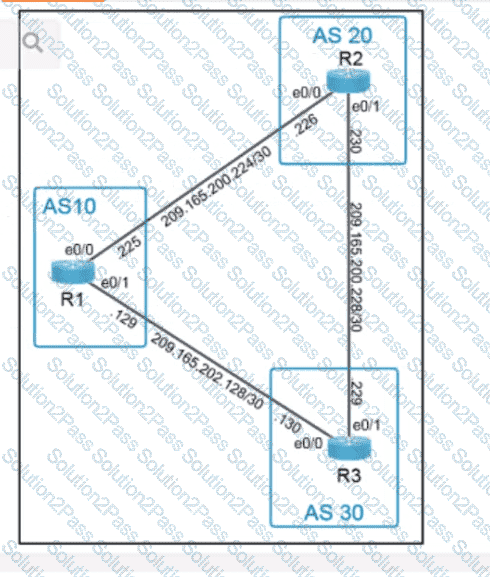

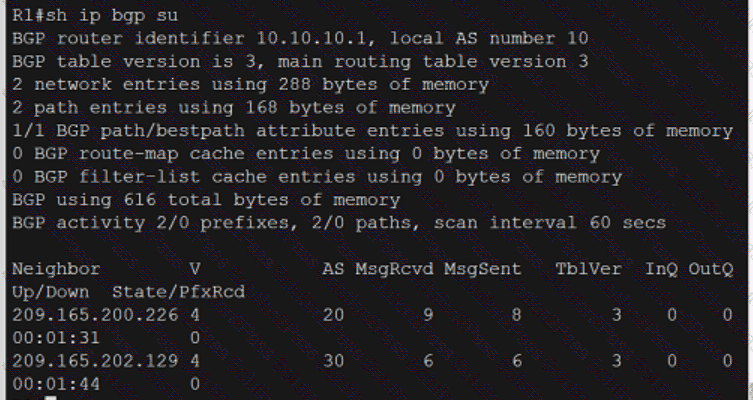

router bgp 10

bgp router-id 10.1.1.111

no bgp defa ipv4-unicast

nei 209.165.200.226 remote-as 20

nei 209.165.202.130 remote-as 30

address-family ipv4

neigh 209.165.200.226 activate

neigh 209.165.202.130 activate

network 10.1.1.10 mask 255.255.255.255

network 209.165.201.10 mask 255.255.255.255

network 209.165.201.20 mask 255.255.255.255

wr

Solution:-

Copy run start

Solution:

R2

R3

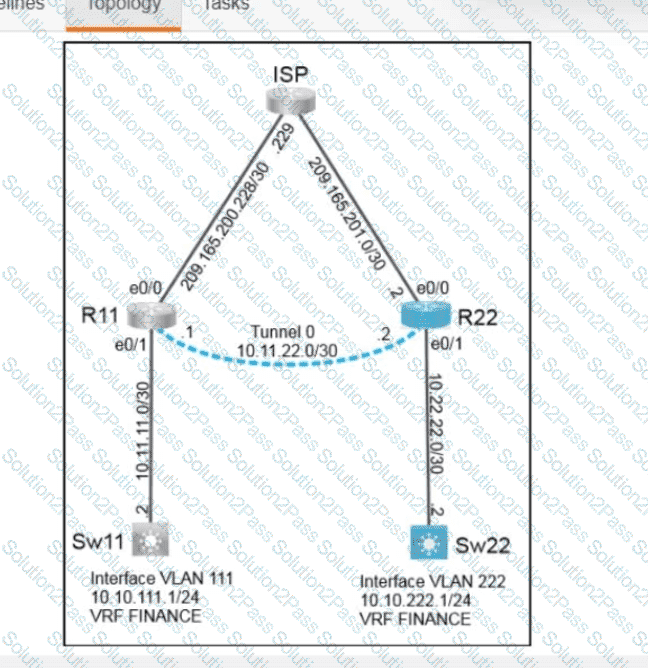

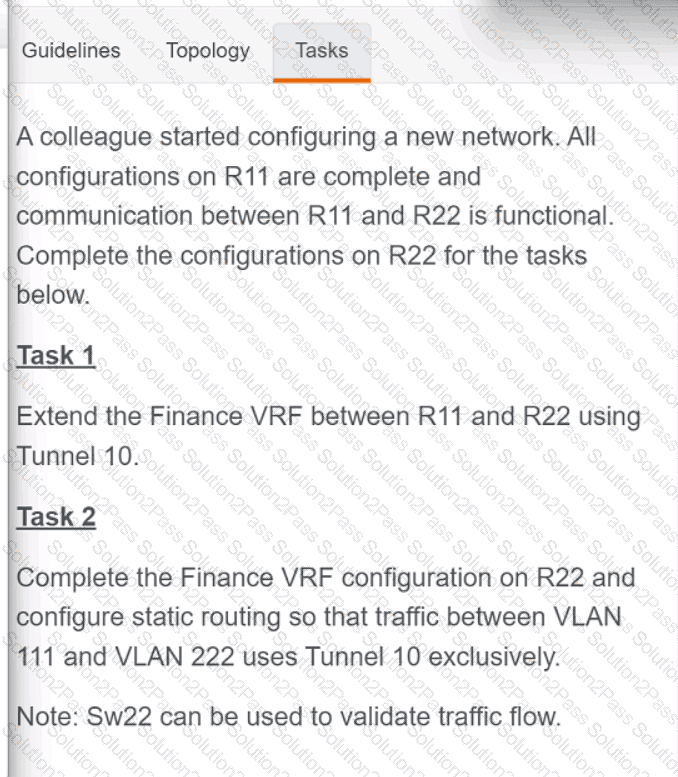

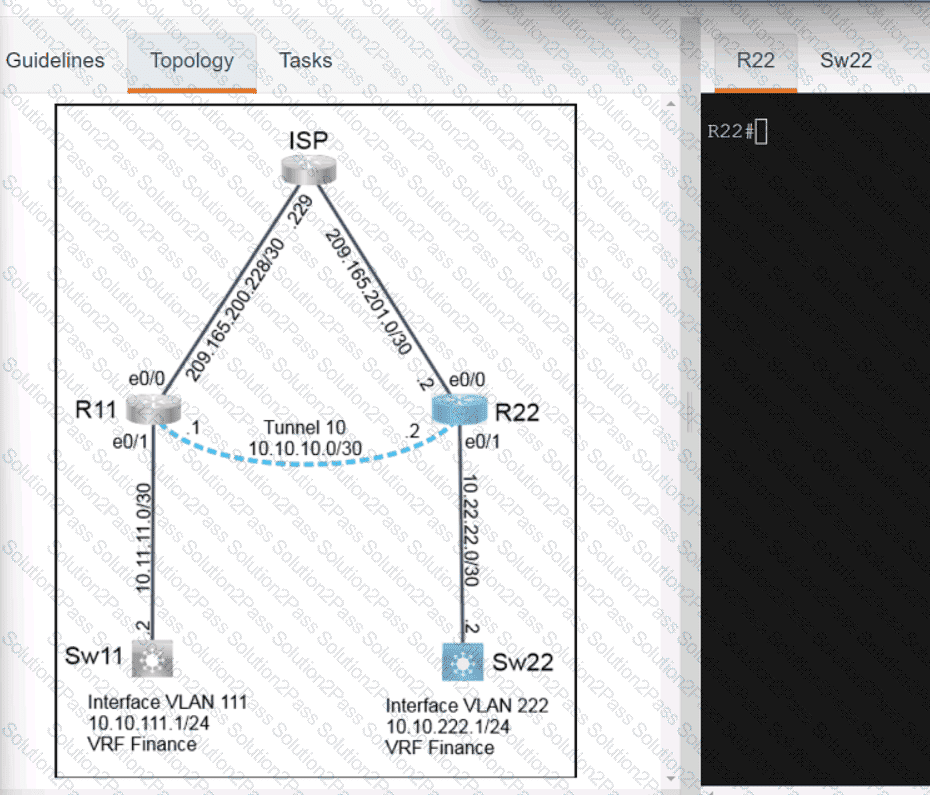

Solution:

R22

int tun0

vrf forwarding FINANCE

ip add 10.10.10.2 255.255.255.0

tunn source e0/0

tunnel dest 209.165.200.230

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

int et0/1

vrf forwarding FINANCE

ip address 10.22.22.1 255.255.255.252

wr

Verification:-

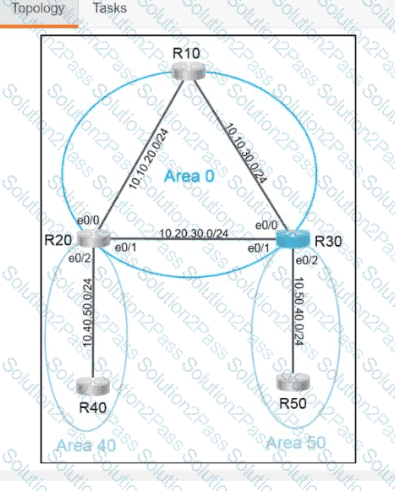

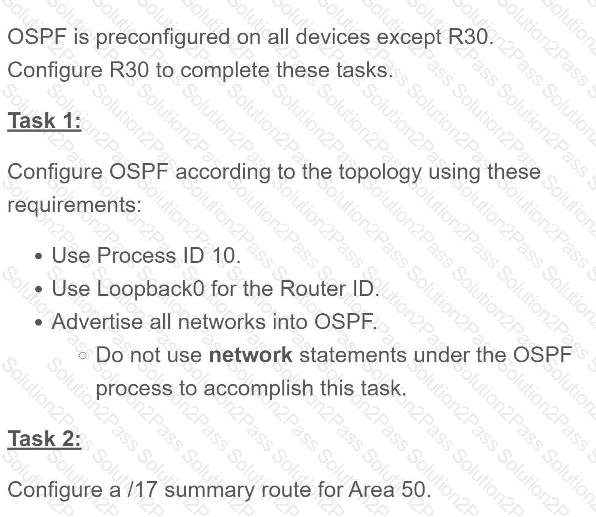

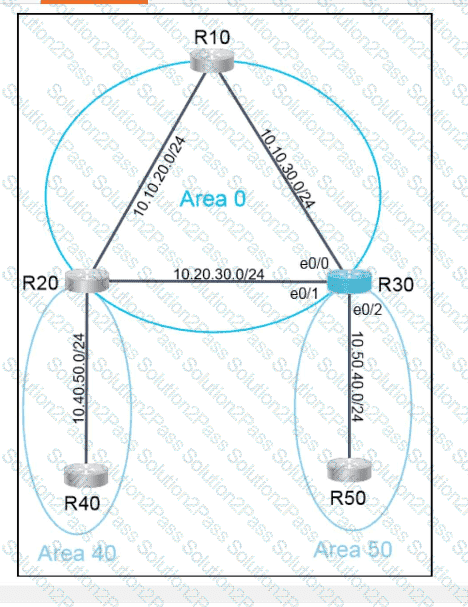

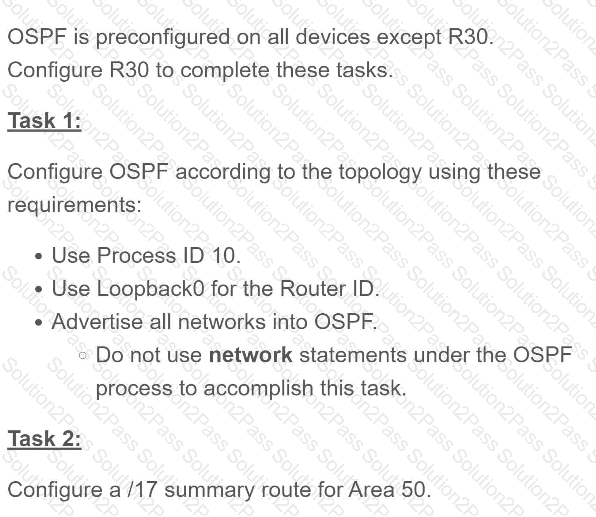

Solution:

R30

Config t

router ospf 10

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 10 a 0

exit

int et0/2

ip ospf 10 a 50

exit

router ospf 10

area 50 range 10.10.0.0 255.255.128.0

area 50 range 10.50.0.0 255.255.128.0

end

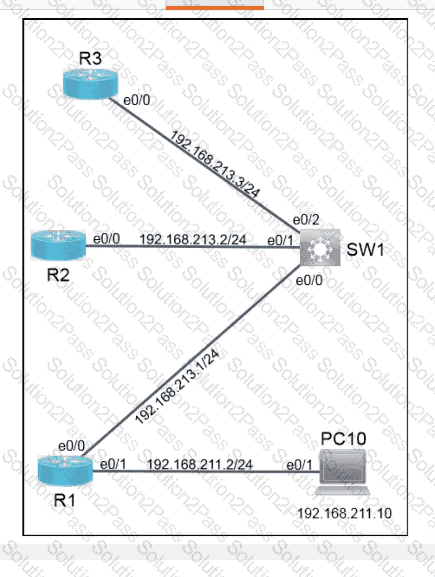

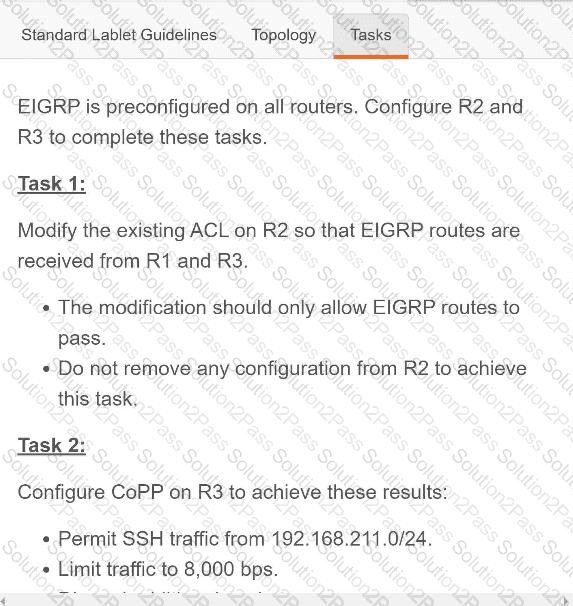

Solution:

R2

show ip access-list

config t

ip access-list extended 151

5 permit eigrp any any

wr

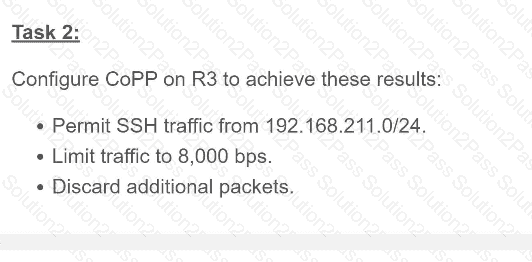

R3

config t

ip access-list extended 100

permit tcp 192.168.211.0 0.0.0.255 any eq 22

class-map match-any SSH

match access-group 100

policy-map CoPP

class SSH

police 8000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

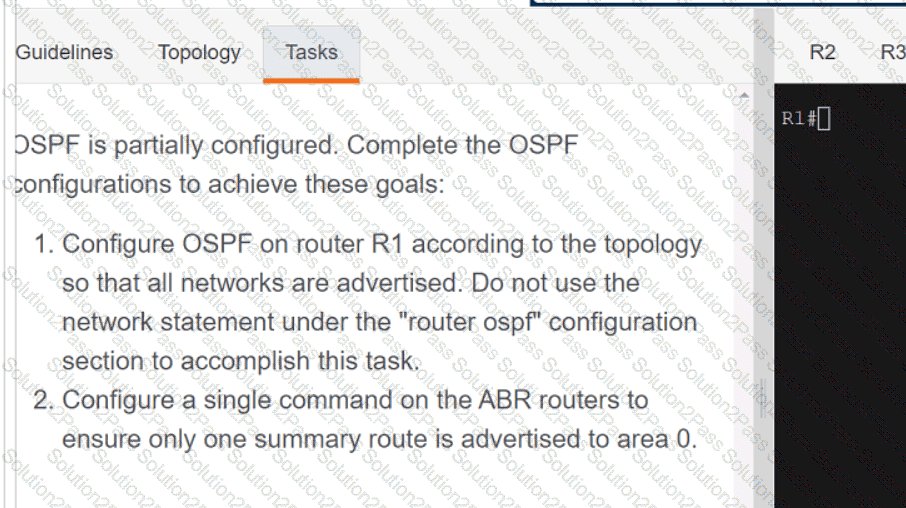

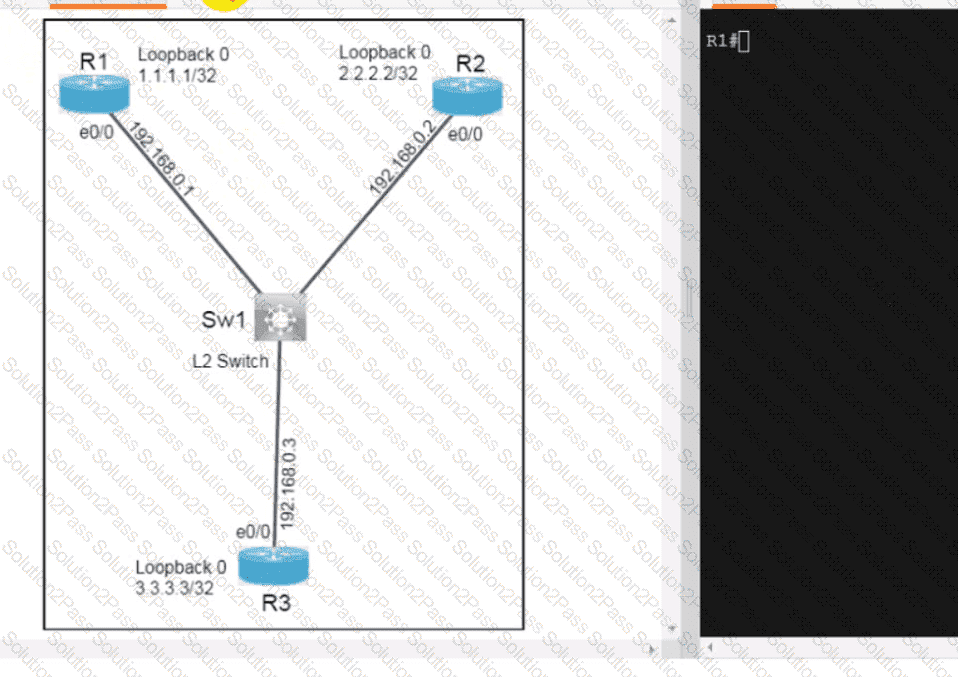

Solution:

R1

en

Conf t

Router ospf 10

Router-id 10.x.x.x – lo0 address

Int range lo0, e0/0-1

Ip ospf 10 area 0

Exit

wr

R2

Router ospf 10

Area 10 range 10.1.0.0 255.255.0.0

exit

wr

R3

Router ospf 10

Area 10 range 10.2.0.0 255.255.0.0

Exit

Wr

OR

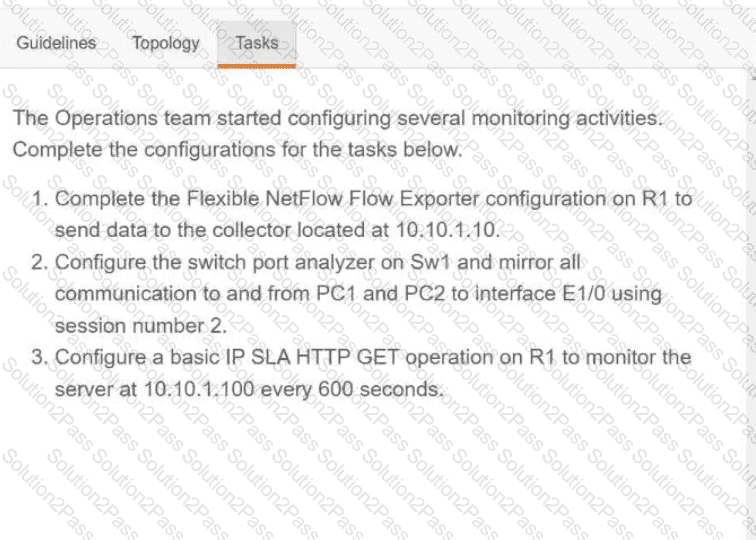

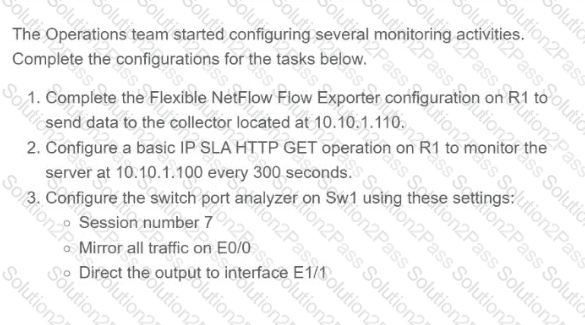

Solution:

R1

Config t

Flow exporter Export-NetFlowENCOR

destination 10.10.1.110

transport udp 2055

exit

flow moni Monitor-NetFlowENCOR

exit

ip sla 1

http gethttp://10.10.1.100

frequ 300

exit

ip sla schedule 1 life forever start-time now

wr

SW1

Config t

Monitor session 7 source interface e0/0

Monitor session 7 destination interface e1/1

End

Wr

Solution: -

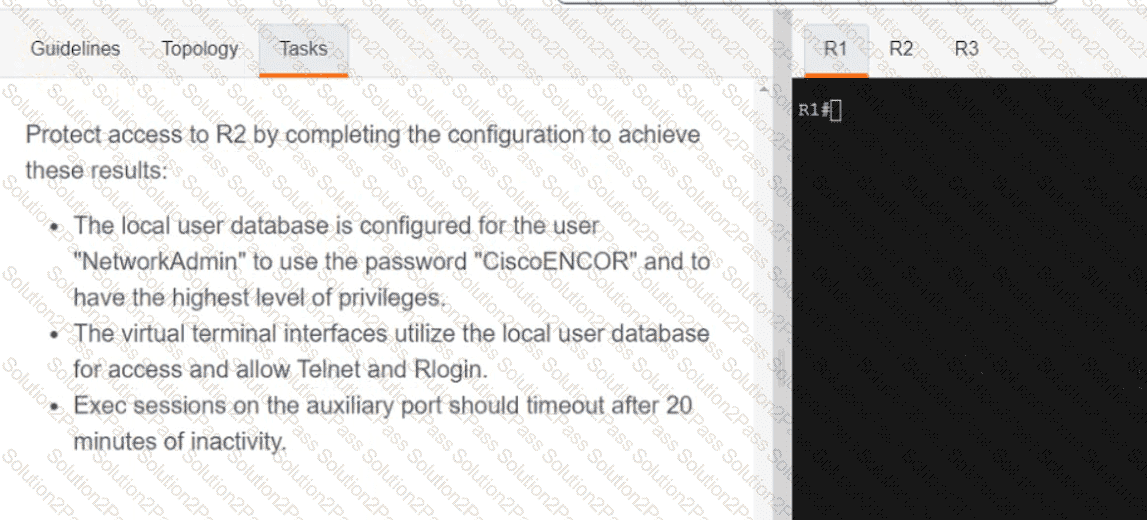

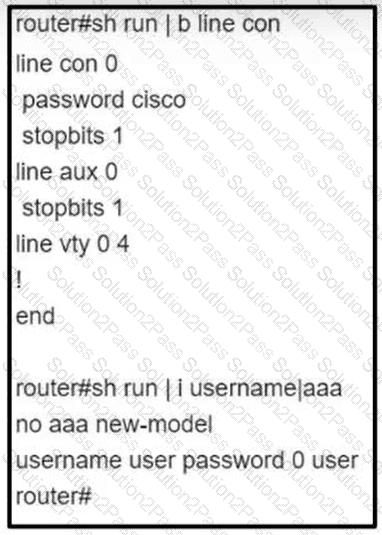

Solution:

R2

config t

username NetworkAdmin privilege 15 password CiscoENCOR

line vty 0 4

login local

transport input telnet rlogin

exec-timepit 20

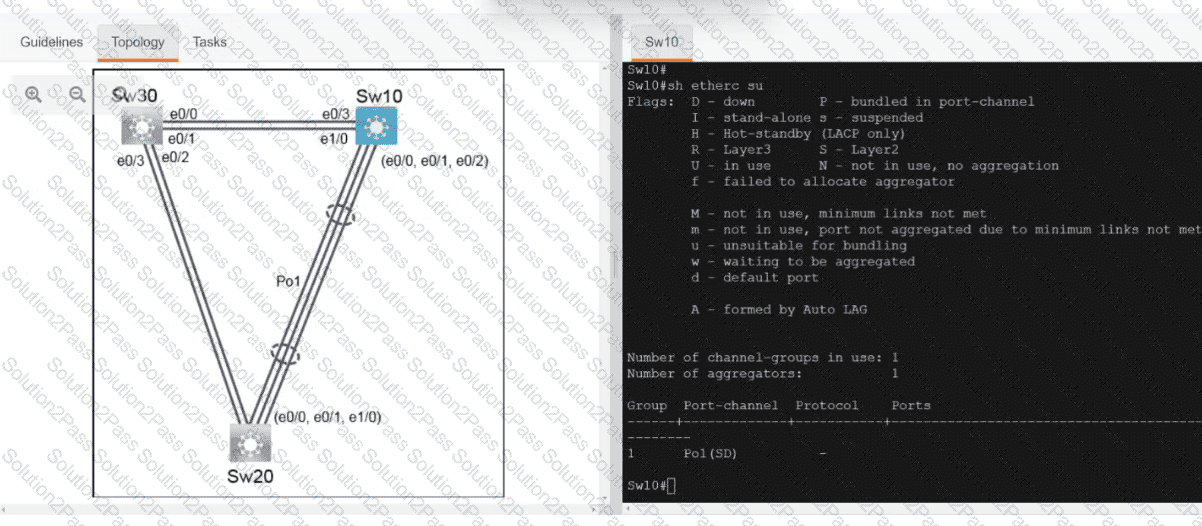

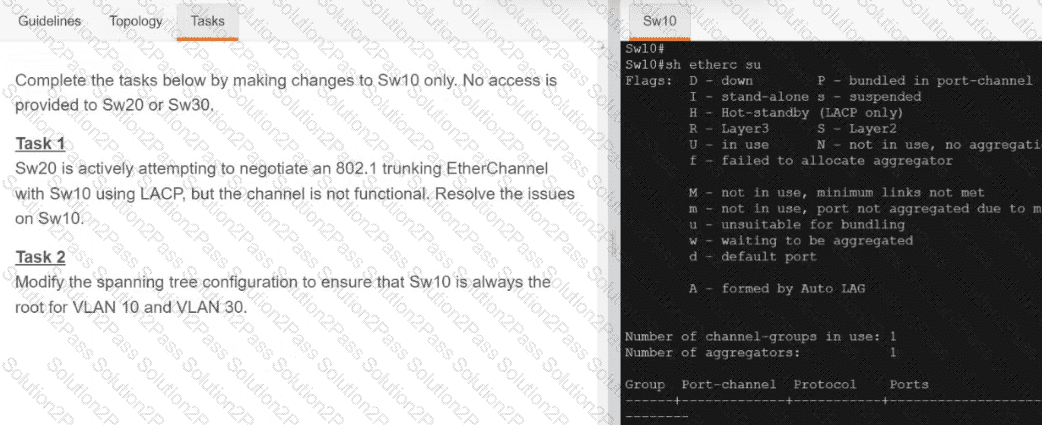

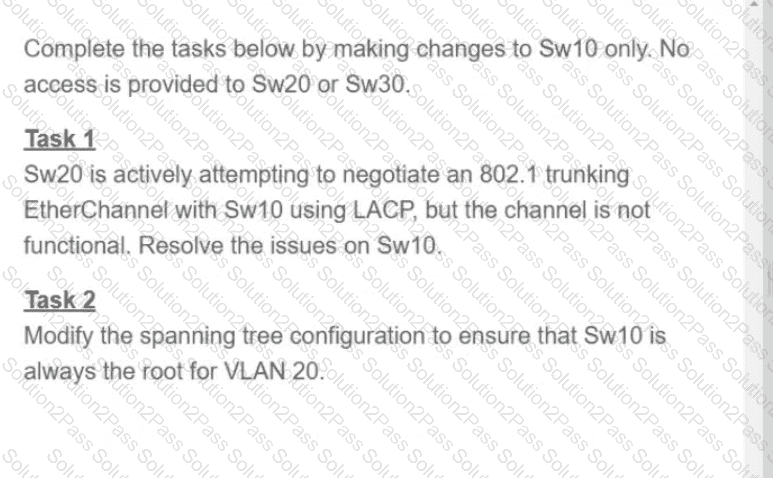

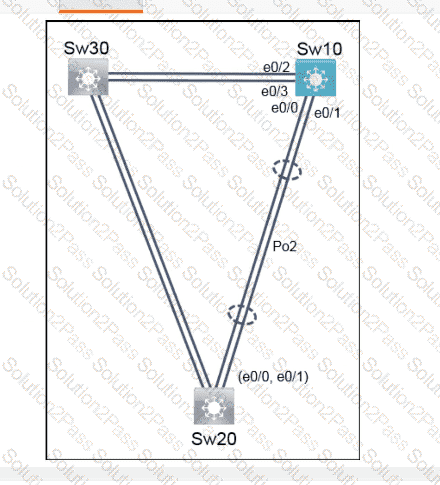

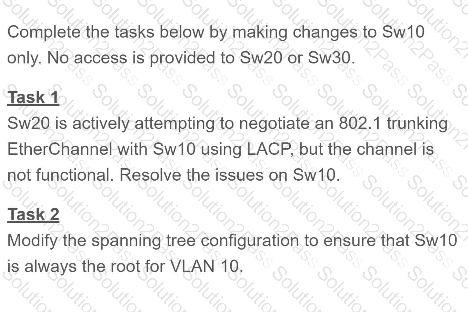

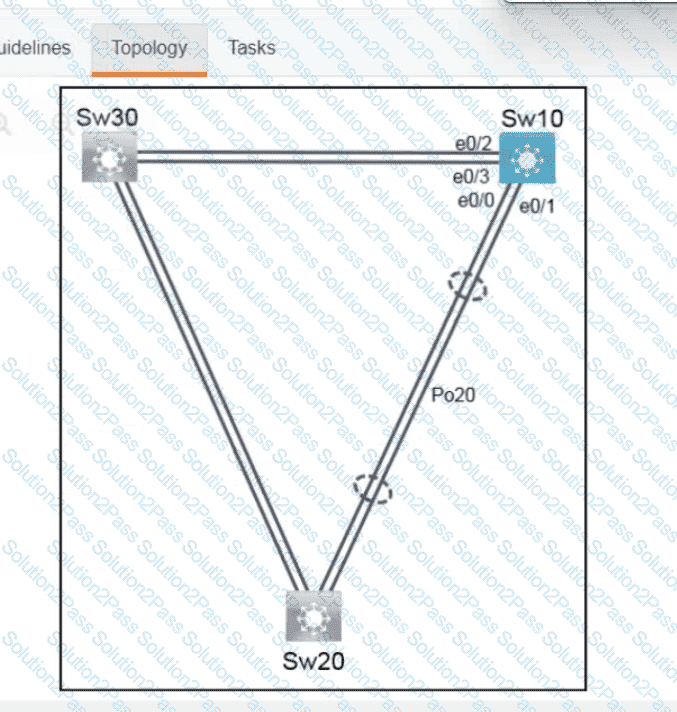

Solution:

Sw10

config t

no int po20

int et0/0

channel-group 20 mode active

no shut

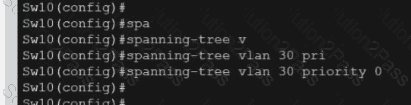

spanning-tree vlan 20 pri 0

wr

Verification:-

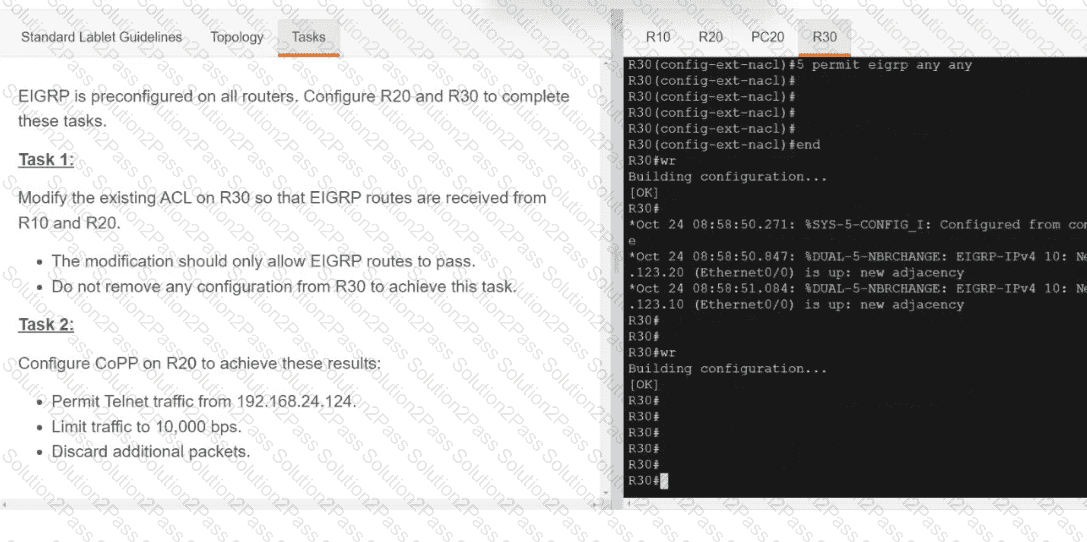

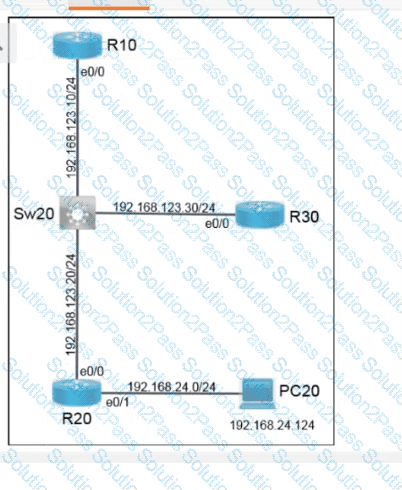

Solution:

R30

show ip access-list

config t

ip access-list extended 120

5 permit eigrp any any

wr

R20

config t

ip access-list extended 100

permit tcp 192.168.25.0 0.0.0.255 any eq 23

class-map match-any TELNET

match access-group 100

policy-map CoPP

class TELNET

police 10000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

wr

Solution:

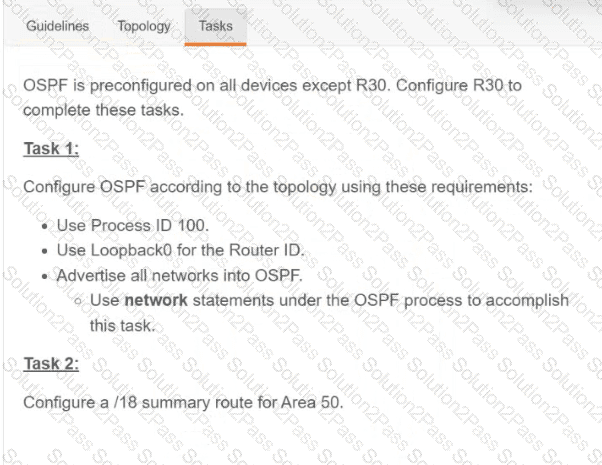

R30

Config t

router ospf 100

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 100 a 0

exit

int et0/2

ip ospf 100 a 50

exit

router ospf 30

area 50 range 10.10.0.0 255.255.192.0

area 50 range 10.50.0.0 255.255.192.0

end

wr

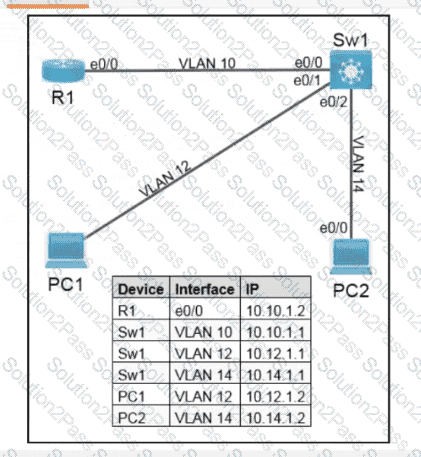

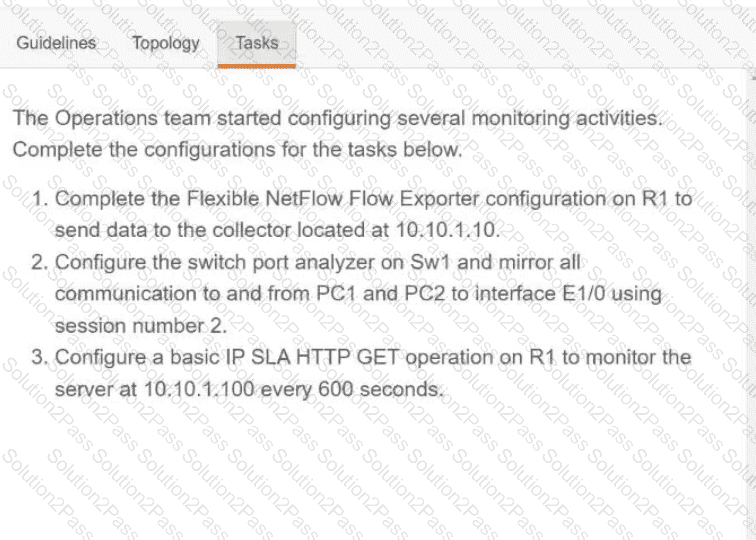

Solution:

R1

config t

flow record NetFlow-Record

match ipv4 source address

match ipv4 destination address

collect country bytes

flow exporter NetFlow-Exporter

destination 10.10.1.10

transport udp 9996

flow monitor NetFlow-Monitor

record NetFlow-Record

exporter NetFlow-Exporter

exit

int et0/0

ip flow monitor NetFlow-Monitor input

ip sla 1

http get http://10.10.1.100

frequency 600

exit

ip sla schedule 1 start-time now

wr

Sw1

config t

monitor session 2 source int e0/0

monitor session 2 source int et0/2

monitor session 2 destination interface e1/0

wr

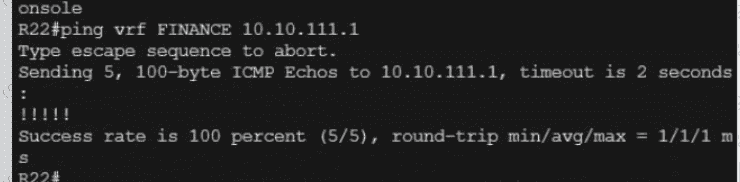

Solution:

R22

config t

int tunn0

vrf forwarding FINANCE

ip add 10.11.22.2 255.255.255.0

tunn so e0/0

tunn dest 209.165.200.230

no shut

int et0/1

vrf forward FINANCE

ip add 10.22.22.1 255.255.255.252

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

wr
