The Cisco Catalyst Center Intent API is a northbound API that allows external systems, applications, and automation workflows to interact with Catalyst Center at an abstracted intent level. It is not primarily a device-by-device command interface. The purpose of an intent-based platform is to let administrators or applications express the desired business or network outcome, while the controller translates that intent into the required operational changes, workflows, and device-level configurations. That makes “northbound API” and “business outcome oriented” the correct selections. “Procedural” is incorrect because procedural automation describes step-by-step instructions, while an intent API focuses on the desired result. “Device-oriented” is also wrong because device-level control is normally handled through southbound mechanisms or lower-level APIs and protocols. “Southbound API” is incorrect because southbound communication is controller-to-device communication, while the Intent API is used above the controller by applications and integrations. The ENCOR automation concept is that Catalyst Center exposes intent-based RESTful northbound APIs for network discovery, assurance, provisioning, and policy workflows. References/topics: ENCOR Automation, Cisco Catalyst Center, Intent API, northbound APIs, intent-based networking, controller abstraction.

Solution:

R1

config t

flow record NetFlow-Record

match ipv4 source address

match ipv4 destination address

collect country bytes

flow exporter NetFlow-Exporter

destination 10.10.1.10

transport udp 9996

flow monitor NetFlow-Monitor

record NetFlow-Record

exporter NetFlow-Exporter

exit

int et0/0

ip flow monitor NetFlow-Monitor input

ip sla 1

http get http://10.10.1.100

frequency 600

exit

ip sla schedule 1 start-time now

wr

Sw1

config t

monitor session 2 source int e0/0

monitor session 2 source int et0/2

monitor session 2 destination interface e1/0

wr

Solution:

R1

Config t

Flow exporter Export-NetFlowENCOR

destination 10.10.1.110

transport udp 2055

exit

flow moni Monitor-NetFlowENCOR

exit

ip sla 1

http gethttp://10.10.1.100

frequ 300

exit

ip sla schedule 1 life forever start-time now

wr

SW1

Config t

Monitor session 7 source interface e0/0

Monitor session 7 destination interface e1/1

End

Wr

Solution:

R22

int tun0

vrf forwarding FINANCE

ip add 10.10.10.2 255.255.255.0

tunn source e0/0

tunnel dest 209.165.200.230

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

int et0/1

vrf forwarding FINANCE

ip address 10.22.22.1 255.255.255.252

wr

Verification:-

Solution: -

Solution:

R30

Config t

router ospf 100

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 100 a 0

exit

int et0/2

ip ospf 100 a 50

exit

router ospf 30

area 50 range 10.10.0.0 255.255.192.0

area 50 range 10.50.0.0 255.255.192.0

end

wr

Solution:

R30

Config t

router ospf 10

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 10 a 0

exit

int et0/2

ip ospf 10 a 50

exit

router ospf 10

area 50 range 10.10.0.0 255.255.128.0

area 50 range 10.50.0.0 255.255.128.0

end

Solution:

Solution on R1:

R1# copy run start

Verification:

OR

Solution:

R1

Config t

Int et0/0

Ip flow monitor Monitor-R1Flow input

Ip flow monitor Monitor-R1Flow output

Exit

Ip sla 1

Icmp-echo 10.12.1.2

Freq 300

Ip sla schedule 1 life foreve start-time now

Sw1

Config t

Monitor session 12 source vlan 12

Monitor session 12 destination interface et1/3

Solution:

R1

config

flow exporter Export-NetFlowENCOR

transport udp 2055

ip sla schedule 100 life forever start-time now

wr

Sw1

monitor session 11 source interface e0/2

monitor session 11 destination interface et1/1

wr

OR

Solution:

R30

show ip access-list

config t

ip access-list extended 120

5 permit eigrp any any

wr

R20

config t

ip access-list extended 100

permit tcp 192.168.25.0 0.0.0.255 any eq 23

class-map match-any TELNET

match access-group 100

policy-map CoPP

class TELNET

police 10000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

wr

Solution:

Copy run start

Verification:

OR

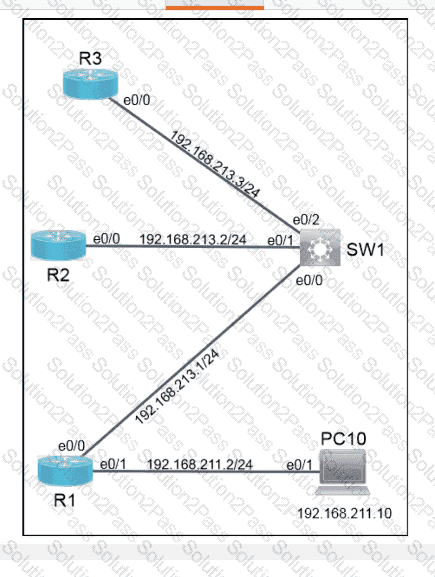

Solution:

R2

show ip access-list

config t

ip access-list extended 151

5 permit eigrp any any

wr

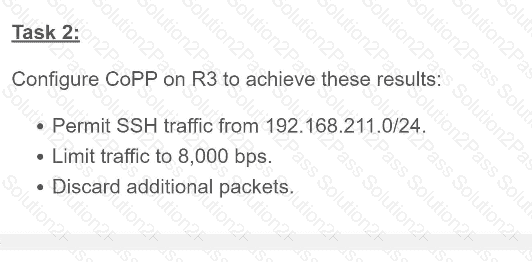

R3

config t

ip access-list extended 100

permit tcp 192.168.211.0 0.0.0.255 any eq 22

class-map match-any SSH

match access-group 100

policy-map CoPP

class SSH

police 8000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

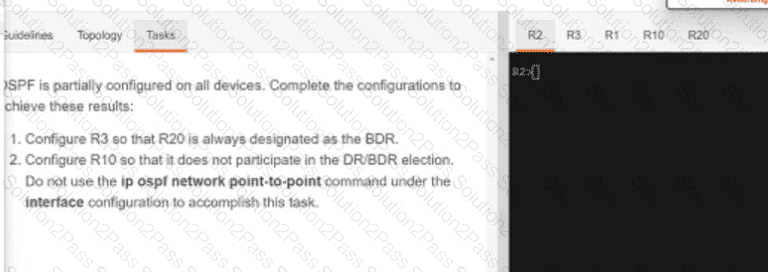

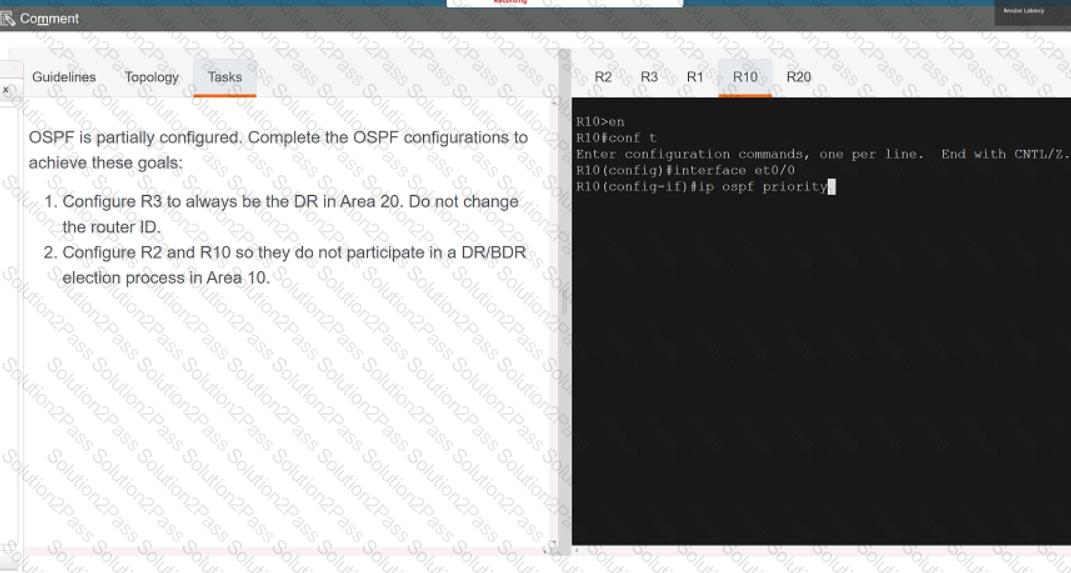

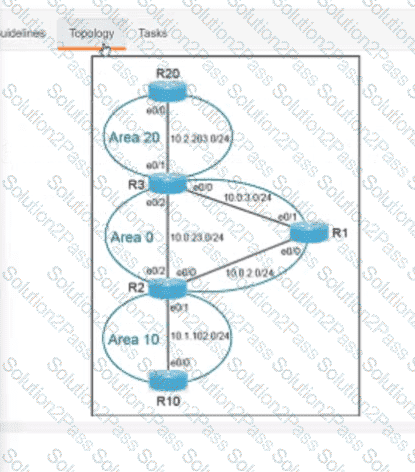

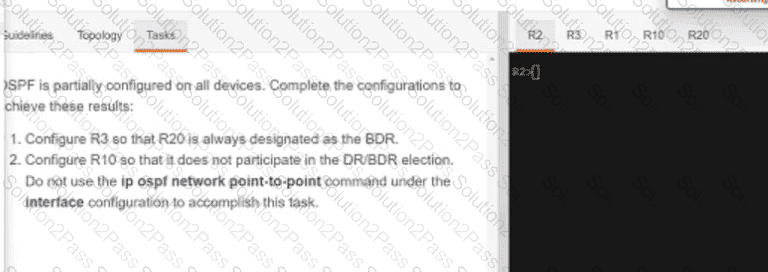

Solution:

R3

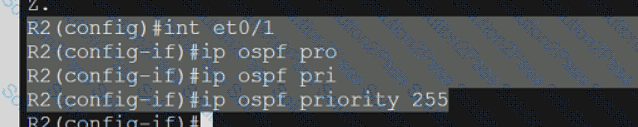

Int e0/1

Ip ospf priority 255

End

Copy run start

R2

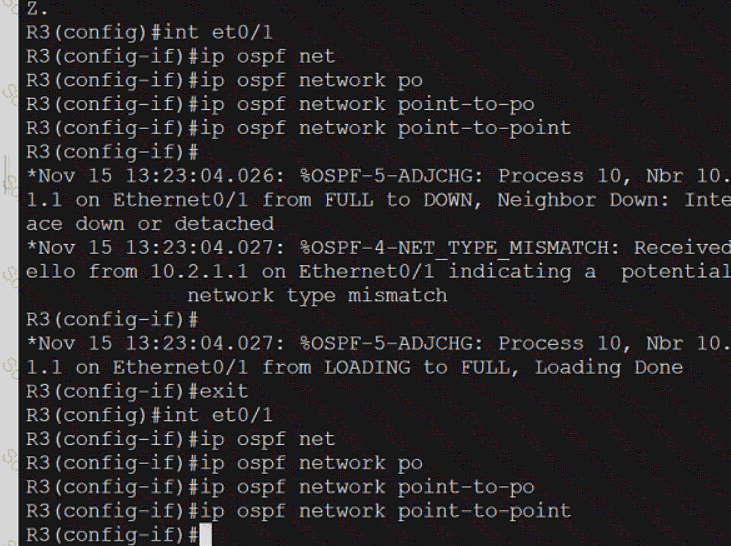

Int e0/1

Ip ospf network point-to-point

End

Copy run start

R10

Int e0/0

Ip ospf network point-to-point

End

Copy run start

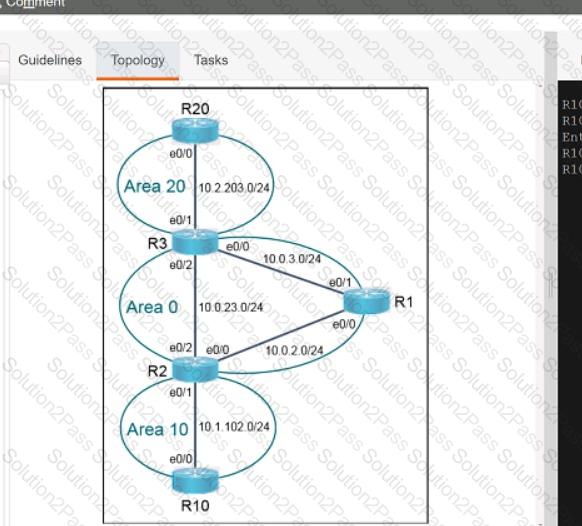

Solution:

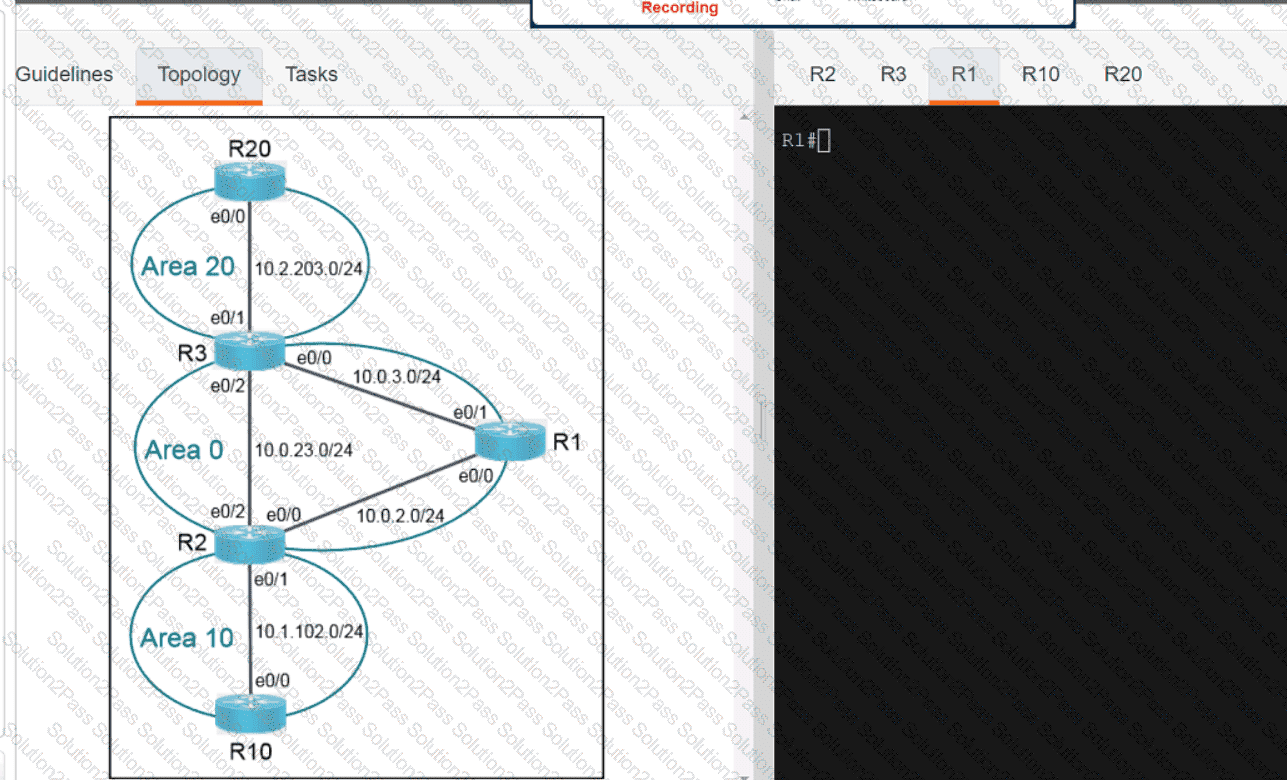

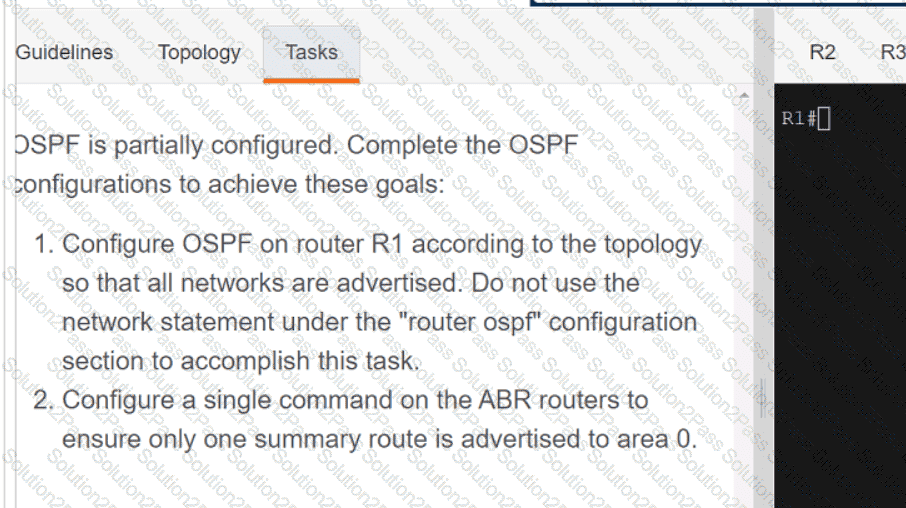

R1

en

Conf t

Router ospf 10

Router-id 10.x.x.x – lo0 address

Int range lo0, e0/0-1

Ip ospf 10 area 0

Exit

wr

R2

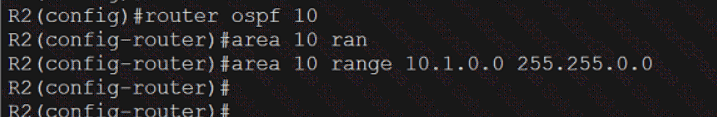

Router ospf 10

Area 10 range 10.1.0.0 255.255.0.0

exit

wr

R3

Router ospf 10

Area 10 range 10.2.0.0 255.255.0.0

Exit

Wr

OR

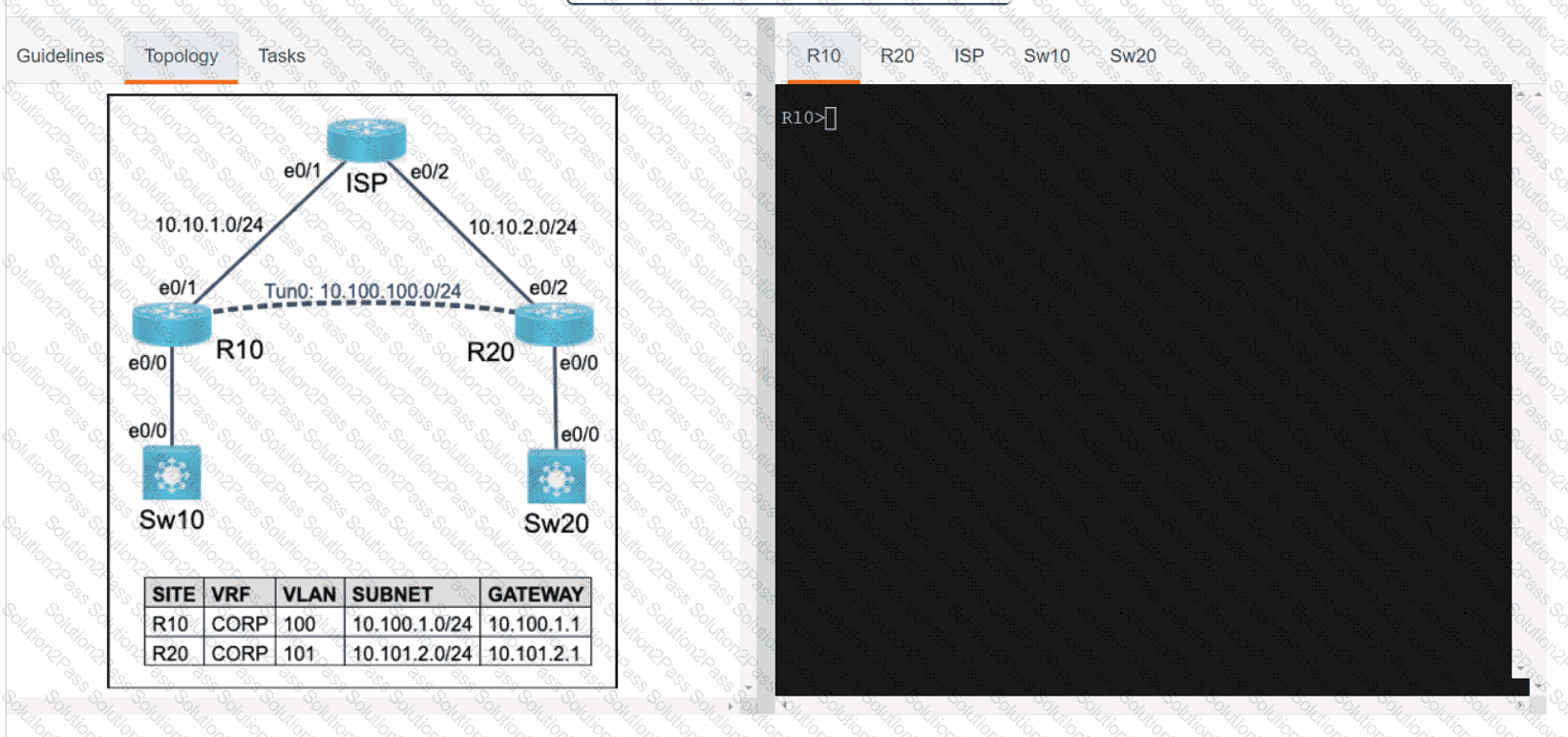

Solution:

R10

Copy run start

R20

Copy run start

Verification:

Solution:

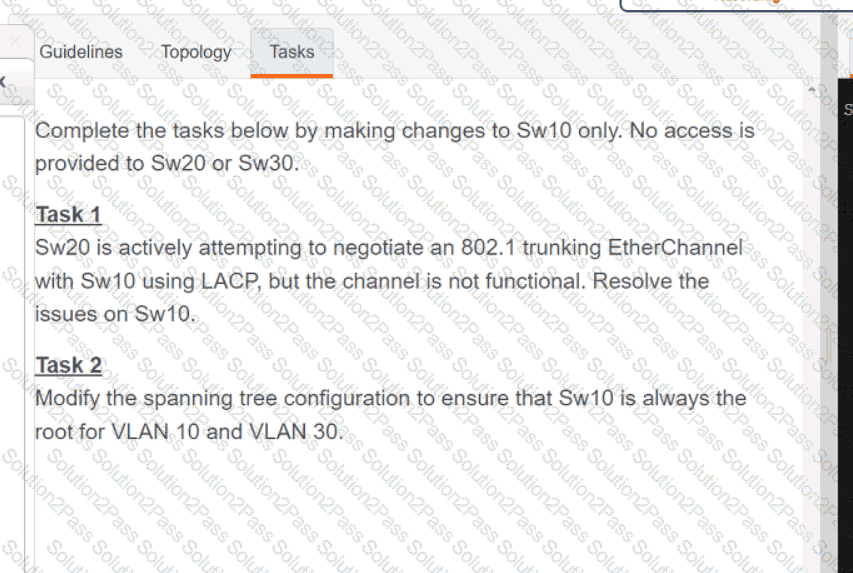

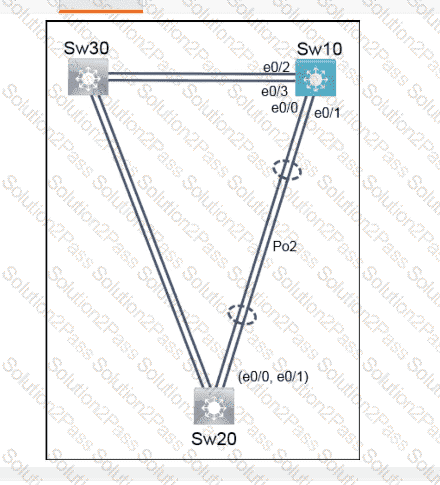

Sw10

config t

no int po2

int et0/0

channel-group 2 mode active

no shut

spanning-tree vlan 10a pri 0

wr

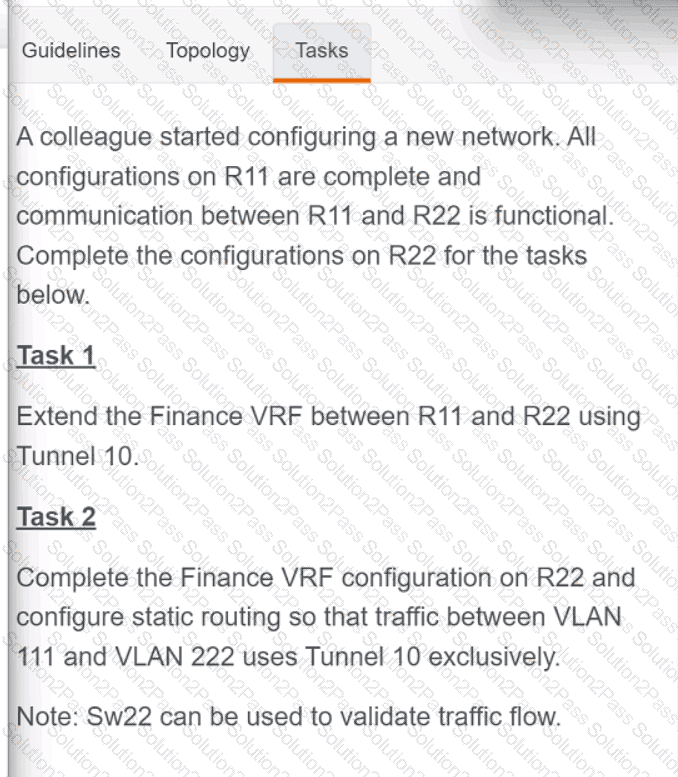

Solution:

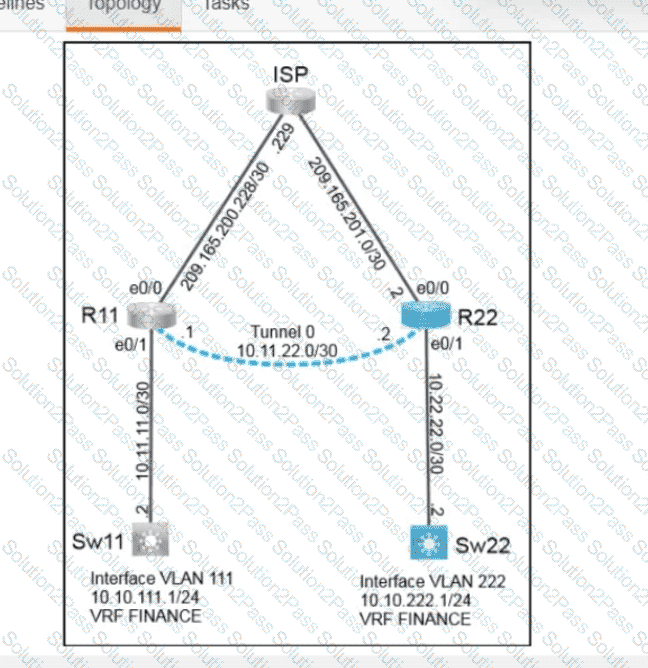

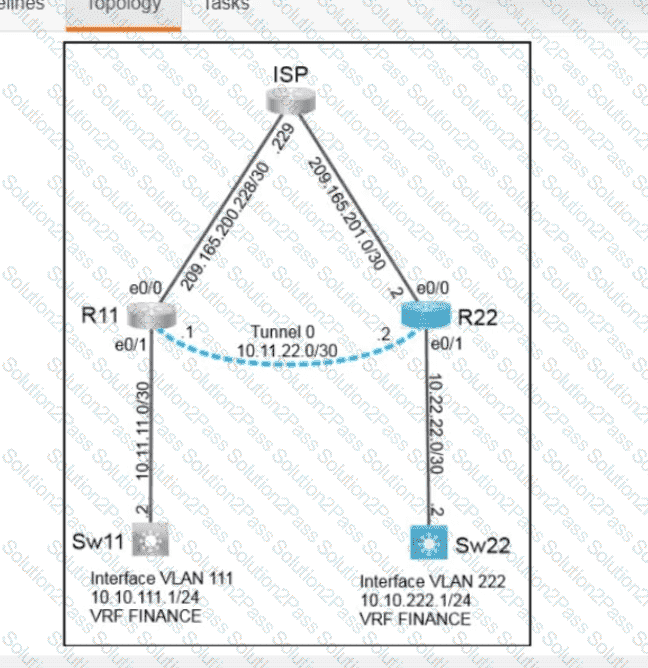

R22

config t

int tunn0

vrf forwarding FINANCE

ip add 10.11.22.2 255.255.255.0

tunn so e0/0

tunn dest 209.165.200.230

no shut

int et0/1

vrf forward FINANCE

ip add 10.22.22.1 255.255.255.252

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

wr
