D-PE-OE-23 EMC Dell PowerEdge Operate 2023 Free Practice Exam Questions (2025 Updated)

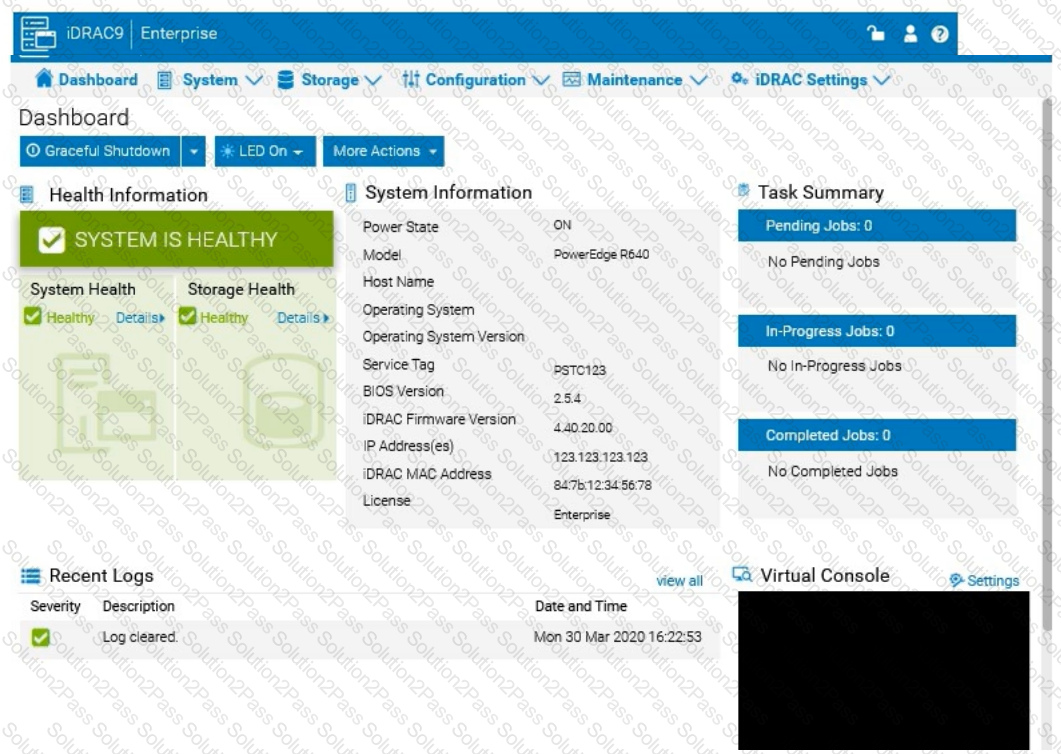

To prevent unwanted configuration changes in the iDRAC UI, you can adjust user roles, permissions, or enable specific security settings to restrict access for junior IT staff. Here are the steps to secure the iDRAC configuration:

Step-by-Step Guide:

Access User Settings:

In the iDRAC interface, navigate to iDRAC Settings from the main menu.

Choose User Authentication or Users to manage user accounts and permissions.

Adjust User Roles and Permissions:

Identify the accounts associated with junior IT staff.

For each user account, adjust the role to Read-Only if you want them to have view-only access without making configuration changes.

Alternatively, set their permissions to exclude configuration changes. This may involve assigning a custom role with limited access based on your needs.

Enable Configuration Lock (if available):

Some versions of iDRAC offer a Configuration Lock feature, which prevents any configuration changes until the lock is removed by an administrator.

Navigate to Configuration > System Security or User Authentication, depending on the version, and enable the Configuration Lock option.

Set Up Two-Factor Authentication (Optional):

For added security, enable Two-Factor Authentication under iDRAC Settings > Network or Security settings. This step ensures only authorized users can access and make changes to the iDRAC UI.

Save and Apply Security Changes:

After setting up the desired restrictions and permissions, save the settings to apply the changes.

Verify that junior IT staff accounts now have restricted access and cannot make configuration changes.

Log Out and Test the Changes:

Log out of the administrator account and log in with a junior IT staff account to confirm that the permissions are set correctly.

Ensure that configuration changes are disabled and that the user can only view the iDRAC interface as per the restrictions.

By following these steps, you can restrict junior IT staff from making any configuration changes within the iDRAC interface, thus preventing accidental or unauthorized modifications.

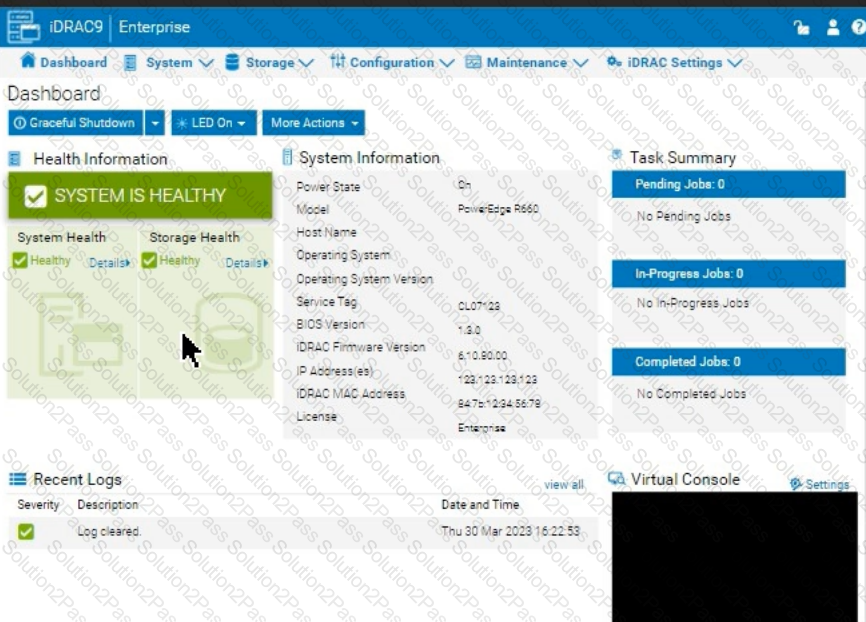

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power Supply Configuration.

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0. In this configuration, there will be no redundancy, and both power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU. Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without automatic failover to another power supply.

 Launch the Simulator:

Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

 Navigate to System Information:

In the top menu bar, select the "Configuration" tab.

From the options that appear, choose "Storage". This section will display details and configurations for the storage controllers installed on the server.

 Check the H965i Storage Controller:

Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

Look for the field labeled "Cache Memory Size". This will provide the cache memory size value for the controller.

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here's how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A. Under voltage fault detection on power supply 1: Indicates a voltage issue was detected on PSU1.

B. Power supply 2 has failed: Indicates PSU2 has completely failed.

C. Under voltage fault detected on power supply 2: Indicates a voltage issue was detected on PSU2.

D. Power supply 1 has failed: Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue, the most likely scenario involves a failure or under-voltage detection.

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it’s a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

To create and save a server configuration profile with specific components in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access Configuration Profiles:

Go to the "Configuration" tab on the top menu bar.

From the dropdown options, select "Server Configuration Profile."

Create a New Profile:

Within the Server Configuration Profile section, choose the option to Create a New Profile.

You will likely see options to specify which components to include in the configuration profile.

Select Components:

When prompted, select only the components required for the configuration:

NIC: Network Interface Card settings.

RAID: Storage controller and RAID configuration.

iDRAC: iDRAC management settings.

Ensure that other components are not selected to meet the requirement.

Save the Configuration:

Enter the file name "PE-server" for the profile.

Choose the option to Save or Export the configuration profile. This should save the configuration to the specified name, typically on the server or local storage available through iDRAC.

Verify the Profile Creation:

After saving, verify that the profile appears in the list of server configuration profiles with the name "PE-server."

Confirm that it includes only the selected components.

By following these steps, you should successfully create and save the configuration profile with the specified components.

Understanding the iDRAC Direct USB Port and Its Default IP Address

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Overview of iDRAC Direct USB Port

The Integrated Dell Remote Access Controller (iDRAC) provides remote management capabilities for Dell PowerEdge servers. The iDRAC Direct USB port allows administrators to connect directly to the iDRAC interface using a USB cable, facilitating quick and secure server management without needing network access.

Default IP Address for iDRAC Direct USB Port

When an administrator connects to the iDRAC Direct USB port, the connection is assigned a default IP address to establish communication between the server and the management station. The default IP address is crucial for accessing the iDRAC web interface via a browser.

The default IP address for the iDRAC Direct USB connection is 169.254.0.3.

Explanation of Options

Option A: 169.254.0.3

Correct Answer: This is the default IP address assigned to the iDRAC Direct USB port for direct management access.

Option B: 169.254.0.4

Incorrect: This IP address is not the default for the iDRAC Direct USB port.

Option C: 192.168.1.20

Incorrect: While this is a common private IP address, it is not used by default for iDRAC Direct USB connections.

Option D: 192.168.0.20

Incorrect: Similar to Option C, this is a private IP address but not associated with the iDRAC Direct USB port.

Dell Operate References

Server Management and Configuration Tools (14%): Understanding different connection methods to iDRAC is essential.

Define the function of the iDRAC, login procedures, licensing, and connection methods: Knowledge of default IP addresses and connection protocols is crucial for effective server management.

Conclusion

Knowing the default IP address for the iDRAC Direct USB port allows administrators to establish a direct connection efficiently, ensuring quick access for configuration and troubleshooting tasks.

Understanding iDRAC Direct and At-the-Box Management Tools

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

What is iDRAC Direct?

iDRAC Direct is a feature that allows administrators to connect directly to the iDRAC interface using a USB connection.

Purpose: Provides at-the-box management capabilities without the need for network access.

Connection: Utilizes a Micro USB port on the server connected to a management station (laptop/PC).

Advanced Server Management Tools Provided with iDRAC Direct

Web Services Management (WSMAN)

Explanation: WSMAN is a standardized protocol that allows for remote management of systems using web services.

Usage with iDRAC Direct: Administrators can execute management tasks via WSMAN over the USB connection provided by iDRAC Direct.

Benefits:

Platform-independent management.

Allows for scripting and automation.

Remote Access Controller Admin (RACADM)

Explanation: RACADM is a command-line utility used to manage the iDRAC and perform various administrative tasks.

Usage with iDRAC Direct: RACADM commands can be executed directly through the USB connection, enabling configuration and monitoring of the server.

Benefits:

Efficient management in environments with limited bandwidth.

Supports scripting for automation.

iDRAC RESTful API

Explanation: The iDRAC RESTful API is a programmatic interface that allows for the management of server hardware using RESTful web services.

Usage with iDRAC Direct: Provides a secure and efficient way to perform management tasks over the USB connection.

Benefits:

Modern API interface compatible with a wide range of programming languages.

Enables integration with automation tools and scripts.

Explanation of Options

Option A: Web Services Management (WSMAN)

Correct Answer: WSMAN is supported over iDRAC Direct for at-the-box management.

Option B: Remote Access Controller Admin (RACADM)

Correct Answer: RACADM commands can be executed via iDRAC Direct.

Option C: Intelligent Platform Management Interface Tool (IPMITool)

Incorrect: While IPMI is a management interface, the IPMITool is not provided specifically with iDRAC Direct for at-the-box management.

Option D: iDRAC Web Interface

Incorrect: The iDRAC Web Interface typically requires network access and is not directly provided over the iDRAC Direct USB connection for at-the-box management.

Option E: iDRAC RESTful API

Correct Answer: The RESTful API is accessible via iDRAC Direct for advanced management.

Dell Operate References

Server Management and Configuration Tools (14%)

Emphasizes understanding various management tools available with iDRAC Direct.

Define the function of the iDRAC, login procedures, licensing, and connection methods

Highlights the use of different interfaces and protocols for server management.

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

Focuses on different tools and their applications in server management.

Conclusion

The three tools provided with iDRAC Direct for advanced server management and at-the-box servicing are:

Web Services Management (WSMAN)

Remote Access Controller Admin (RACADM)

iDRAC RESTful API

These tools enable administrators to perform comprehensive management tasks directly at the server without the need for network connectivity.

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

What is iDRAC?

The Integrated Dell Remote Access Controller (iDRAC) is a management solution built into Dell PowerEdge servers. It provides comprehensive, remote management capabilities, including system monitoring, configuration, and maintenance.

Default IP Address for iDRAC:

The default IPv4 IP address for iDRAC is: 192.168.0.120

Subnet Mask: 255.255.255.0

Default Gateway: Not set by default

Explanation of Options:

Option A: 192.168.1.120

Incorrect: This IP address is not the default for iDRAC.

Option B: 10.1.2.1

Incorrect: Not associated with iDRAC's default settings.

Option C: 10.1.1.1

Incorrect: Also not the default iDRAC IP address.

Option D: 192.168.0.120

Correct: This is the default IP address assigned to iDRAC interfaces.

Accessing iDRAC Using the Default IP:

Network Configuration:

Ensure your management station (laptop/PC) is configured with an IP address in the 192.168.0.x subnet, excluding 192.168.0.120.

Connecting to iDRAC:

Open a web browser and navigate to https://192.168.0.120

Accept any security warnings related to self-signed certificates.

Default Credentials:

Username: root

Password: calvin

Note: For security reasons, newer servers may require you to set a unique password upon initial setup.

Dell Operate References:

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods: Knowing the default IP address is essential for initial access and configuration of the iDRAC.

System Administration (18%)

Verify health status and iDRAC license: Initial access to the iDRAC is necessary to verify system health and configure licensing options.

Conclusion:

The default IP address for the iDRAC on Dell PowerEdge servers is 192.168.0.120. This address is used for initial setup and can be changed during configuration to integrate with your network environment.

Identifying the AMD-Powered Server that Supports Dual CPU, 16G, and iDRAC Express

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Server Components (26%)

Define the different processor, memory options, and memory configurations

Understanding the Server Models

Option A: R7625

Features:

Processor: AMD EPYC processors

CPU Support: Dual-socket (supports two CPUs)

Generation: 16th Generation (16G)

Management: Comes with iDRAC9, supporting iDRAC Express

Analysis:

Meets all the specified criteria:

AMD-powered

Supports dual CPUs

Is a 16G server

Supports iDRAC Express

Conclusion: Correct Answer

Explanation of Other Options

Option B: R7525

Features:

Processor: AMD EPYC processors

CPU Support: Dual-socket

Generation: 15th Generation (15G)

Management: Supports iDRAC9

Analysis:

Does not meet the 16G requirement (it's a 15G server)

Option C: R960

Features:

Processor: Typically Intel Xeon processors

CPU Support: Quad-socket (supports up to four CPUs)

Generation: 14th or 15th Generation

Analysis:

Not AMD-powered

Does not meet the dual CPU and 16G requirements

Option D: R6615

Features:

Processor: AMD EPYC processors

CPU Support: Single-socket (supports one CPU)

Generation: 16th Generation (16G)

Analysis:

Does not support dual CPUs (only supports a single CPU)

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications: Knowing the specifications of each server model is crucial for matching customer requirements.

Server Components (26%)

Define the different processor, memory options, and memory configurations: Understanding CPU support and generation compatibility.

Conclusion

The Dell PowerEdge R7625 is the AMD-powered server that supports dual CPUs, is part of the 16th Generation, and comes with iDRAC Express. It aligns perfectly with the specified requirements.

Identifying Servers Designed for HPC, AI, and VDI Solutions with Highest GPU Density

Server Portfolio and Features (10%)

Identify server features and specifications

Position the server in the market landscape

Understanding the Requirements

High-Performance Computing (HPC), Artificial Intelligence (AI), and Virtual Desktop Infrastructure (VDI) workloads require servers with:

High GPU Density: Ability to support multiple GPUs for intensive computational tasks.

Optimized Performance: Enhanced CPU capabilities, memory bandwidth, and storage options.

Evaluation of Options

Option A: XR11

Explanation: The PowerEdge XR11 is a ruggedized, single-socket server designed for edge computing and harsh environments. It has limited GPU support.

Conclusion: Not suitable for highest GPU density.

Option B: XE9680

Explanation: The PowerEdge XE9680 is a high-performance server designed specifically for HPC and AI workloads.

Features:

Supports up to 8 double-width GPUs, offering the highest GPU density.

Ideal for AI training, deep learning, and complex simulations.

Conclusion: Correct Answer.

Option C: R660xs

Explanation: The PowerEdge R660xs is a 1U, dual-socket server optimized for scalability and density but with limited GPU support.

Conclusion: Not designed for maximum GPU density.

Option D: R7615

Explanation: The PowerEdge R7615 is a 2U, single-socket server with support for GPUs but not the highest GPU density.

Conclusion: Not the best fit for this requirement.

Option E: XE8640

Explanation: The PowerEdge XE8640 is engineered for performance-intensive workloads.

Features:

Supports up to 4 double-width GPUs.

Optimized for HPC, AI, and VDI applications requiring high GPU density.

Conclusion: Correct Answer.

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications: Recognizing which server models offer the necessary GPU density for specific workloads.

Server Components (26%)

Explain how expansion cards are connected and the features of the GPU: Understanding GPU integration and its impact on server performance.

Conclusion

The PowerEdge XE9680 and XE8640 are designed to provide the highest GPU density for HPC, AI, and VDI solutions. They support multiple high-performance GPUs, making them ideal for compute-intensive tasks.

Understanding the Black Strap on the Power Supply Handle

Server Components (26%)

Identify power options and redundancy features, thermal features, and liquid cooling

Explanation of Power Supply Straps

Dell PowerEdge servers often use black straps on power supply units (PSUs) to indicate certain attributes of the PSU. The color of the strap can help identify specific features or categories of the power supply.

What Does "NAF" Mean?

NAF stands for Non-Redundant, Auto Failover.

This indicates that the PSU is part of a non-redundant configuration, but it is capable of automatic failover in the case of power loss.

This is typical in systems with multiple PSUs, where each PSU can take over if the other fails.

Why Not Other Options?

Option A: PSU

The strap does not indicate that the device is just a PSU; rather, it indicates a specific feature of the PSU.

Option C: RAF

RAF stands for Redundant Auto Failover, which is not the correct feature indicated by the black strap.

Option D: Spare PSU

The strap does not indicate that the PSU is a spare unit.

Conclusion

The black strap on the power supply handle indicates that the PSU is NAF (Non-Redundant, Auto Failover). This means it is part of a non-redundant system but capable of automatic failover.

Permanently Deleting Data on Self-Encrypting Drives (SEDs) in a Dell PowerEdge Server

Server Components (26%)

Define storage options, Drives, PERC, IDSDM, and BOSS

Analyze server security features

Understanding Self-Encrypting Drives (SEDs)

SEDs are hard drives or SSDs that automatically encrypt all data written to them using a built-in encryption engine.

Benefits:

Enhanced data security.

Protection of data at rest.

Simplified disposal or repurposing processes through secure key management.

Methods to Permanently Delete Data on SEDs

Secure Erase:

Explanation:

Secure Erase is a process that performs a cryptographic erase by deleting the encryption keys stored within the drive.

Once the encryption key is erased, all data on the drive becomes unrecoverable, as it cannot be decrypted.

Advantages:

Fast and efficient method to render data inaccessible.

Complies with data sanitization standards and regulations.

Implementation:

Can be initiated via the drive's firmware commands.

Dell provides tools within the iDRAC or BIOS to perform Secure Erase operations on SEDs.

Explanation of Options

Option A: Remove RAID configuration

Explanation:

Deleting the RAID configuration removes the logical drive mappings but does not erase the actual data stored on the physical drives.

Data can potentially be recovered using data recovery tools.

Conclusion: Does not securely delete data.

Option B: NVRAM Clear

Explanation:

Clearing NVRAM resets BIOS settings to default.

Does not affect data stored on drives.

Conclusion: Ineffective for deleting drive data.

Option C: Format and Reinstall

Explanation:

Formatting the drives and reinstalling the operating system overwrites some data areas.

Does not guarantee that all data is overwritten.

Data recovery techniques can potentially retrieve residual data.

Conclusion: Not a secure method for data deletion on SEDs.

Option D: Secure Erase

Explanation:

Performs a cryptographic erase by deleting the encryption keys.

Ensures that data cannot be recovered.

Conclusion: Correct Answer.

Dell Operate References

Server Components (26%)

Define storage options, Drives: Understanding the types of drives used and their management.

Analyze server security features: Knowledge of data protection and sanitization methods is crucial for maintaining data security.

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST: While not directly related, understanding system configurations assists in performing operations like Secure Erase.

Conclusion

To permanently delete data on SEDs in a Dell PowerEdge server, Secure Erase should be performed. This method ensures that the encryption keys are destroyed, rendering all data on the drives inaccessible and irrecoverable.
