To safely power off a node in a Dell EMC PowerScale cluster, use the shutdown command with the appropriate options.

Command Details:

shutdown -p now:

shutdown: Initiates a system shutdown.

-p: Powers off the system after shutdown.

now: Executes the command immediately.

Why Other Options Are Incorrect:

Option A (isi status -q):Displays cluster status; doesn't control power.

Option B (isi status -h):Invalid option; isi status doesn't power off nodes.

Option D (shutdown -h now):Halts the system but may not power it off.

Dell PowerScale References:

Dell EMC PowerScale OneFS Administration Guide:

Shutting Down Nodes Section:

Recommends using shutdown -p now for powering off nodes.

Safety Precautions:

Advises to notify users and ensure no critical processes are running.

Best Practices:

Verify that the node is not hosting critical services before shutdown.

Inform cluster administrators of maintenance activities.

When a client plans to reconnect to a cluster automatically without interruption, they can useParallel upgradesandRolling upgradesto complete the upgrade while file services remain available.

Rolling Upgrades:

Definition:

A rolling upgrade updates one node at a time while the rest of the cluster continues to serve data.

Minimizes service disruption by ensuring that clients can continue accessing data during the upgrade.

Process:

Nodes are sequentially taken out of service, upgraded, and then returned to the cluster.

The OneFS operating system ensures data availability through redundant data paths.

Benefits:

Provides high availability.

Ideal for environments where uptime is critical.

To ensure that their data is encrypted, a customer should useSelf-Encrypting Drives (SEDs). SEDs provide hardware-based encryption, securing data at rest without impacting performance.

What are Self-Encrypting Drives (SEDs):

Definition:

SEDs are storage devices that automatically and continuously encrypt the data written to them.

Hardware-Based Encryption:

Encryption and decryption are performed by a dedicated processor on the drive, ensuring minimal impact on I/O performance.

Benefits of Using SEDs:

Data Protection:

Provides encryption for data at rest, safeguarding against unauthorized access if drives are removed or lost.

Regulatory Compliance:

Helps meet compliance requirements for data security standards like HIPAA, GDPR, and others.

Transparent Operation:

Encryption is seamless to the operating system and applications, requiring no changes to existing processes.

Why Other Options Are Less Suitable:

A. NVMe:

NVMe is an interface protocol for accessing non-volatile memory, not a type of encryption.

NVMe drives can be SEDs, but NVMe alone does not imply encryption.

B. SSD:

Solid-State Drives (SSDs) are storage devices that use flash memory.

While SSDs offer performance benefits, they do not inherently provide encryption unless they are SEDs.

D. Hard drive:

A generic term for storage drives, typically referring to Hard Disk Drives (HDDs).

Like SSDs, HDDs do not provide encryption unless they are specifically designed as SEDs.

Implementing SEDs in Dell PowerScale:

Supported Models:

Dell PowerScale supports SEDs in various node types, including both HDDs and SSDs.

Encryption Management:

Managed through OneFS, which provides tools to configure and monitor encryption settings.

Key Management:

OneFS uses an embedded key manager or can integrate with external key management systems for enhanced security.

Activation and Management:

Enabling Encryption:

Encryption must be enabled in OneFS to activate the SEDs' encryption capabilities.

Commands:

Use isi security settings modify --enable-encryption to enable encryption.

Monitoring:

The isi encryption status command displays the status of encryption on the cluster.

Dell PowerScale References:

Dell EMC PowerScale OneFS Security Configuration Guide:

Details on configuring and managing encryption in OneFS.

Dell EMC PowerScale OneFS Security Configuration Guide

Dell EMC PowerScale Hardware Specification Sheets:

Lists available drive options, including SEDs.

Dell EMC PowerScale Hardware Specifications

Knowledge Base Articles:

Article ID 000023456:"Implementing Self-Encrypting Drives on Dell PowerScale"

Article ID 000078901:"Best Practices for Data Encryption with SEDs"

Before performing any maintenance activities on a Dell PowerScale platform, it is crucial to consultDell SolVe Online. This tool provides comprehensive, step-by-step procedures, best practices, and necessary precautions for servicing Dell EMC equipment.

Dell SolVe Online Overview:

Service and Procedures Resource:

An online platform offering detailed service procedures for Dell EMC products.

Customized Instructions:

Generates procedure guides tailored to specific tasks and equipment models.

Safety and Compliance:

Includes safety warnings and regulatory compliance information.

Importance in Maintenance Activities:

Accurate Procedures:

Ensures that maintenance tasks are performed correctly, reducing the risk of errors.

Updated Information:

Provides the latest procedures reflecting current best practices and product updates.

Resource for Technicians:

Essential for both Dell EMC technicians and customers performing self-maintenance.

Using Dell SolVe Online:

Accessing the Tool:

Available at the Dell support website (requires login credentials).

Selecting the Product:

Choose the specific PowerScale model to get relevant procedures.

Generating Procedures:

Select the desired maintenance activity to receive a detailed guide.

Why Other Options Are Less Suitable:

B. Dell Technical Support:

While valuable, it's more reactive and may not provide step-by-step procedures without direct engagement.

C. Dell iDRAC Service Module:

Used for system management and monitoring, not for procedural guidance.

D. OneFS Logs and Error Messages:

Useful for troubleshooting but do not provide maintenance procedures.

Dell PowerScale References:

Dell SolVe Online Portal:

The primary resource for service procedures.

Dell EMC PowerScale Maintenance Guides:

Referenced within SolVe Online procedures.

Support Documentation:

Accessible through Dell's support site, often linked within SolVe Online.

When performing drive replacements on a Dell EMC PowerScale Gen 6 node, it's crucial to adhere to specific time constraints to prevent unintended system behaviors.

Maximum Time Before Automatic SmartFail:

15 Minutes:If a drive sled is removed from its slot for more than 15 minutes, OneFS will automatically initiate a SmartFail process for all drives in that sled.

This time limit ensures data integrity by triggering data protection mechanisms if a drive is presumed lost.

Procedure Details:

Drive Sled Removal:

Carefully remove the sled containing the target drive.

Ensure that you have the replacement drive ready to minimize downtime.

Time Management:

Keep the sled out of the chassis forno more than 15 minutes.

Plan the replacement procedure to stay well within this time frame.

Consequences of Exceeding Time Limit:

Exceeding 15 minutes causes the system to treat the drives as failed.

The SmartFail process begins, impacting system performance and prolonging maintenance.

Dell PowerScale References:

Dell EMC PowerScale Hardware Replacement Guide:

Section on Drive Replacement Procedures:

Specifies the 15-minute time limit for drive sled removal.

Emphasizes the importance of adhering to this limit to prevent unintended SmartFails.

Best Practices:

Preparation:

Have all necessary tools and replacement drives ready before starting.

Monitoring:

Use a timer to ensure the sled is reinserted within the allotted time.

Post-Replacement:

Verify the new drive is recognized and the cluster health is optimal.

In Dell EMC PowerScale systems that use InfiniBand for back-end networking, the cabling standards are specific to ensure optimal performance and compatibility.

InfiniBand Cable Support:

QSFP to QSFP Cabling Only:

QSFP (Quad Small Form-factor Pluggable):

A compact, hot-pluggable transceiver used for high-speed InfiniBand networking.

Standard for PowerScale:

PowerScale systems utilizing InfiniBand support QSFP to QSFP cables exclusively.

Ensures high-bandwidth, low-latency communication between nodes.

Why Option A is Correct:

Exclusive Support:

QSFP to QSFP is the only supported cabling method for InfiniBand in these systems.

Compatibility and Performance:

Using QSFP to QSFP cables guarantees compatibility with node interfaces and optimal network performance.

Why Other Options Are Incorrect:

Option B (QSFP to QSFP or QSFP to CX4):

QSFP to CX4 is not supported; CX4 is an older connector type not compatible with current PowerScale InfiniBand configurations.

Option C (QSFP to CX4 only):

Incorrect, as QSFP to CX4 cabling is not used in PowerScale systems for InfiniBand.

Option D (Supports front-end customer external traffic):

InfiniBand is used for internal back-end networking, not for front-end external customer traffic, which uses Ethernet connections.

Dell PowerScale References:

Dell EMC PowerScale Networking Guide:

Back-End Network Cabling Section:

Specifies the use of QSFP to QSFP cables for InfiniBand connectivity.

Supported Cable Types:

Lists the approved cables and transceivers for InfiniBand networks.

Hardware Installation Guides:

Provide detailed instructions and diagrams for cabling using QSFP to QSFP connections.

Best Practices:

Use Certified Cables:

Always use Dell EMC-approved QSFP to QSFP cables to ensure reliability.

Proper Installation:

Follow the recommended procedures for connecting and securing InfiniBand cables.

Cable Management:

Organize cables to prevent strain and maintain proper airflow.

Additional Notes:

InfiniBand Usage:

Provides high-speed communication between nodes for data replication and cluster operations.

Transition to Ethernet:

Newer PowerScale models may use Ethernet back-end networking instead of InfiniBand.

For serial console connections to a Gen 5 node, specific terminal settings are required.

Required Settings:

Transfer Rate (Baud Rate):115,200 bps

Data Bits:8

Parity:None

Stop Bits:1

Flow Control:Hardware

Dell PowerScale References:

Dell EMC PowerScale Hardware Installation Guide:

Serial Connection Settings:

Provides the exact settings for terminal emulation software.

Recommends these settings for successful communication.

Best Practices:

Use reliable terminal software (e.g., PuTTY).

Verify cable connections and adapter compatibility.

Updating the install base record is crucial for support and warranty purposes.

Reasons:

Accurate Records:

Reflects the current configuration of the cluster.

Support Entitlement:

Ensures timely support services when needed.

Dell PowerScale References:

Dell EMC Support Policies:

Emphasize the importance of maintaining up-to-date asset information.

Best Practices:

Document all changes made to the cluster.

Notify Dell EMC support or use the appropriate channels to update records.

Dell EMC PowerScale Gen 6 nodes are available in different form factors to meet various storage and performance needs.

Gen 6 Node Form Factors:

2U Chassis:

Models like the F800 and H500.

Designed for high performance with moderate capacity.

4U Chassis:

Models like the A2000.

Offer high-density storage options.

Clarifications:

Option A:Incorrect, as Gen 6 nodes come in both 2U and 4U chassis.

Option B:Incorrect, Gen 6.5 F200 nodes come in a 1U chassis.

Option D:Incorrect, F600 nodes can be added individually, not only as pairs.

Dell PowerScale References:

Dell EMC PowerScale Technical Specifications:

Lists models with their corresponding chassis sizes.

Provides detailed hardware descriptions.

Best Practices:

Plan rack space according to the chassis size of the nodes being deployed.

Consider power and cooling requirements based on node specifications.

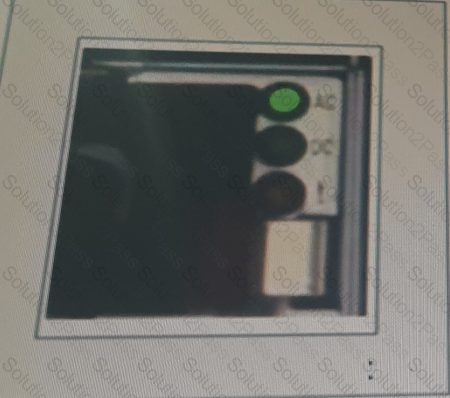

In the exhibit, the status indicators show:

AC (Alternating Current):A green light indicating the PowerScale system is receiving power from the AC input, which means it is powered on.

DC (Direct Current):The absence of a lit DC indicator means that the system is not currently converting AC power to DC power, but this does not indicate an issue with functionality based on this view.

Given that the AC light is green, the system is powered and functioning as expected. Therefore, the system is "On and healthy" based on the AC input, makingB. On and healthythe correct answer.

When it comes to the Dell PowerScale F200 node, customers are allowed to replace certain components classified as Customer Replaceable Units (CRUs). The components that customers can replace on the F200 node include:

A. System Battery

B. Network Interface Card (NIC)

D. DIMM (Memory Modules)

Customer Replaceable Units (CRUs):

CRUs are components that customers can replace themselves without the need for a Dell technician.

Replacing CRUs allows for quicker resolution of hardware issues and reduces system downtime.

Components Customers Can Replace on F200:

System Battery:

The system battery, often a CMOS battery, maintains the system's BIOS settings when the node is powered off.

It's a CRU because it's easily accessible and can be replaced without specialized tools or training.

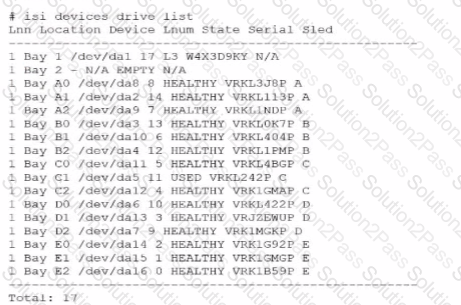

In the output of the isi devices drive list command shown in the exhibit, the drive in location C1 is marked as "USED," with the serial number VRKL242P. This indicates that the drive has been replaced but has not yet been initialized or formatted for use within the PowerScale cluster.

To make the drive usable, it must be formatted. The correct procedure to follow is to use the isi devices drive format command, specifying the drive location (C1 in this case). This will prepare the drive for use in the cluster, ensuring that it is recognized and available for OneFS to start writing data to it.

Steps to format the drive:

Log in to the OneFS cluster using an SSH session with an account that has the necessary privileges.

Run the following command to format the new drive:

bash

Copy code

isi devices drive format C1

This command will format the drive located at C1, making it available for use in the cluster.

After the format is complete, verify that the drive is now in a HEALTHY state by running:

isi devices drive list

This should display the new status of the drive as HEALTHY, indicating that it has been successfully formatted and is ready for data operations.

This process is outlined in Dell’s PowerScale Administration Guide and ensures the correct initialization of new or replaced drives​.

To meet SEC 17a-4(f) regulations, the platform engineer mustreboot the node into SmartLock Compliance modebefore creating the cluster.

Understanding SEC 17a-4(f) Requirements:

SEC 17a-4(f):

A regulation that requires electronic records to be stored in a non-rewriteable, non-erasable format (WORM - Write Once Read Many).

Compliance Necessity:

Financial institutions must comply to ensure data integrity and regulatory adherence.

Dell PowerScale SmartLock Compliance Mode:

SmartLock Compliance Mode:

Provides WORM storage capabilities that meet SEC 17a-4(f) requirements.

Once enabled, it cannot be disabled, ensuring data remains immutable.

Activation Process:

Nodes must be booted into Compliance modebeforecluster creation.

Requires selecting the Compliance mode boot option during node initialization.

Required Action:

Reboot into SmartLock Compliance Mode:

Power on Node 1 and access the boot menu.

Select the option to boot into SmartLock Compliance mode.

Proceed with cluster creation in this mode.

Why Other Options Are Less Suitable:

Option A (Create a cluster):

Creating the cluster without first booting into Compliance mode would not meet SEC 17a-4(f) requirements.

Option C (Activate the Enterprise Security mode license):

Enterprise Security mode enhances security features but does not specifically enable WORM storage.

Option D (Call Dell Tech Support to configure the cluster manually):

While Dell Support can assist, the engineer must still reboot into Compliance mode as per procedure.

Important Considerations:

Irreversible Setting:

Once in Compliance mode, the cluster cannot revert to a standard mode.

Data Handling:

All data stored will be subject to WORM policies.

Planning:

Ensure that Compliance mode is necessary before proceeding, as it affects the entire cluster.

Dell PowerScale References:

Dell EMC PowerScale OneFS SmartLock Administration Guide:

Provides detailed instructions on enabling Compliance mode.

Dell EMC PowerScale OneFS SmartLock Guide

Dell EMC PowerScale OneFS Security Configuration Guide:

Discusses regulatory compliance features.

Dell EMC PowerScale OneFS Security Guide

Knowledge Base Articles:

Article ID 000123008:"Configuring SmartLock Compliance Mode for SEC 17a-4(f) Compliance"

Article ID 000123009:"Steps to Enable Compliance Mode on PowerScale Clusters"

When expanding a Dell EMC PowerScale Gen 5 cluster with Gen 6 nodes, such as the H500, certain requirements and considerations must be taken into account.

Key Points:

Minimum Node Requirement:

A minimum of three Gen 6 nodes is required to add to an existing Gen 5 cluster.

This is necessary to form a separate node pool within the cluster that maintains compatibility and optimal performance.

Compatibility Considerations:

Gen 6 nodes can be added to a Gen 5 cluster, but they must be added in groups of at least three nodes.

This ensures that the new nodes can participate fully in the cluster's operations and data protection schemes.

Node Pools:

The cluster will have separate node pools for Gen 5 and Gen 6 nodes.

Data can be moved or balanced between node pools according to policies and performance requirements.

Dell PowerScale References:

Dell EMC PowerScale OneFS Administration Guide:

Chapter on Cluster Expansion:

Discusses adding new nodes to an existing cluster and the requirements for different generations.

States the minimum number of nodes required when adding Gen 6 nodes to a Gen 5 cluster.

Dell EMC PowerScale Best Practices Guide:

Node Compatibility and Mixing:

Provides guidelines on mixing node generations within a cluster.

Recommends adding at least three nodes of the new generation.

Considerations:

Option Bis incorrect because back-end support is available.

Option Cis incorrect because Gen 6 nodes can be added to a Gen 5 cluster.

Option Dis incorrect because the minimum required is three, not four.

The platform engineer should inform the customer thathybrid node SSDs in identical sled locations can be used for either cache or primary storage.

Understanding Dell PowerScale H600 Nodes:

Hybrid Nodes:

H600 nodes are hybrid, combining HDDs for capacity and SSDs for performance.

Drive Sleds:

Nodes have sleds (drive bays) where drives are installed.

SSDs and HDDs are populated in specific sled locations.

Using SSDs for Cache or Primary Storage:

Flexibility:

SSDs in hybrid nodes can serve as either L3 cache or as a tier for primary storage.

Identical Sled Locations:

For consistency and performance optimization, SSDs should be installed in identical sled positions across all nodes in the pool.

Configuration:

Administrators can configure the usage of SSDs through SmartPools and data storage policies.

Benefits of Using SSDs for Primary Storage:

Performance Improvement:

Storing hot or frequently accessed data on SSDs enhances read/write speeds.

Data Tiering:

OneFS can automatically move data between SSDs and HDDs based on access patterns.

Why Other Options Are Less Suitable:

Option A (Cache expansion requires a Dell Professional Services engagement):

While professional services can assist, customers can add SSDs and configure caching without mandatory professional services.

Option C (Only F series nodes can use SSDs for primary storage):

Incorrect; hybrid nodes can also use SSDs for primary storage via SmartPools.

Option D (Each sled must have an equal number of SSDs):

Not strictly required; however, best practices recommend balanced configurations for performance consistency.

Best Practices:

Balanced Configuration:

Install SSDs uniformly across nodes to maintain consistent performance.

Consult Documentation:

Review hardware guides and configuration manuals for specific instructions.

Dell PowerScale References:

Dell EMC PowerScale OneFS SmartPools Administration Guide:

Details on configuring SSDs for primary storage and caching.

Dell EMC PowerScale OneFS SmartPools Guide

Dell EMC PowerScale H600 Hardware Guide:

Provides information on drive sled configurations and SSD usage.

Dell EMC PowerScale H600 Hardware Guide

Knowledge Base Articles:

Article ID 000123010:"Using SSDs in Hybrid Nodes for Primary Storage"

Article ID 000123011:"Configuring SSDs in Dell PowerScale Hybrid Nodes"

During installation planning for a Dell PowerScale cluster, verifyingIP addressesis a critical detail that must be addressed.

Importance of IP Addresses in Installation Planning:

Network Configuration:

PowerScale clusters rely heavily on network connectivity for data access, management, and cluster operations.

Proper IP addressing ensures that nodes can communicate with each other and with clients.

Cluster Communication:

Nodes use internal networks (backend) and external networks (frontend) requiring accurate IP configurations.

SmartConnect Zones:

IP addresses are essential for configuring SmartConnect, which provides load balancing and failover for client connections.

Components Requiring IP Address Verification:

Node Interfaces:

Each node may have multiple network interfaces that need IP addresses.

Management Interfaces:

IP addresses for management access, such as iDRAC and OneFS web administration.

Subnet and VLAN Configurations:

Ensuring correct subnet masks and VLAN IDs are associated with the IP addresses.

DNS and NTP Servers:

IP addresses of external services that the cluster will interact with.

Consequences of Incorrect IP Address Planning:

Communication Failures:

Nodes may fail to join the cluster if they cannot communicate due to IP conflicts or misconfigurations.

Client Access Issues:

Clients may be unable to access data if IP addresses are not correctly assigned or mapped.

Security Risks:

Incorrect IP configurations can expose the cluster to unauthorized access or network vulnerabilities.

Why Other Options Are Less Critical at Installation Planning Stage:

B. SyncIQ license:

SyncIQ is used for replication between clusters.

While important for data protection, the license can be applied after initial installation.

Not critical for the initial setup unless replication is required immediately.

C. Switch OS version:

While network switch compatibility is important, the specific OS version is usually less critical unless known issues exist.

Ensuring switches support required features (e.g., LACP, VLAN tagging) is important, but OS version verification is often part of network planning, not specifically installation planning.

D. Node serial numbers:

Serial numbers are used for support and warranty purposes.

While they should be documented, they do not impact the installation process directly.

Best Practices for IP Address Planning:

Create an IP Address Scheme:

Document all required IP addresses, subnets, and VLANs.

Reserve IP Addresses:

Ensure that all necessary IP addresses are reserved in DHCP servers or excluded from DHCP pools if using static IPs.

Verify Network Connectivity:

Test network connections and IP addresses before installation.

Dell PowerScale References:

Dell EMC PowerScale Networking Guidelines:

Provides detailed information on network planning and IP address configuration.

Dell EMC PowerScale Network Design Considerations

Dell EMC PowerScale Installation Checklist:

Outlines the necessary steps and considerations for installation planning, highlighting the importance of IP addresses.

Dell EMC PowerScale Installation Checklist

Knowledge Base Articles:

Article ID 000456789:"Network Planning for PowerScale Cluster Installation"

Article ID 000456790:"Common Networking Pitfalls During PowerScale Installation"

On a Dell PowerScale F600 node, therNDC slot(redundant Network Daughter Card slot) provides management functionality. The rNDC slot hosts the network interface used for node management tasks, including cluster administration and monitoring.

Understanding the F600 Node Architecture:

All-Flash Storage:

The F600 is an all-flash node designed for high performance.

Network Connectivity:

Equipped with various network interface options for data and management traffic.

Role of the rNDC Slot:

Management Port Location:

The rNDC slot houses the management network interfaces.

Dedicated Management Functionality:

Separates management traffic from data traffic to enhance security and performance.

Redundancy Features:

Provides failover capabilities to ensure continuous management access.

Why PCIe Slots Are Less Suitable:

PCIe Slot 1, 2, and 3:

Typically used for data network interfaces or additional hardware components.

Not designated for primary management interfaces.

Management Interface Specificity:

Management ports are specifically assigned to the rNDC slot to standardize configurations across nodes.

Benefits of Using the rNDC Slot for Management:

Simplified Network Design:

Clear separation of management and data networks.

Enhanced Security:

Management interfaces can be placed on a secure network segment.

Consistency Across Clusters:

Facilitates easier administration and support.

Physical Identification:

Location on the Node:

The rNDC slot is located on the back of the F600 node and is typically labeled for easy identification.

Port Types:

May include Ethernet ports designated for management tasks.

Dell PowerScale References:

Dell EMC PowerScale F600 Hardware Overview:

Details the node's hardware components, including the rNDC slot.

Dell EMC PowerScale Networking Guide:

Discusses network configurations and the role of management interfaces.

Hardware Installation Manuals:

Provide diagrams and instructions that identify the rNDC slot as the management port location.

The isi_upgrade_logs -s command is used to view thecurrent upgrade stateof a Dell PowerScale cluster during an upgrade process. This command provides real-time status information about the upgrade's progress.

Understanding isi_upgrade_logs:

A utility in OneFS that displays logs and status information related to cluster upgrades.

Helps administrators monitor and troubleshoot the upgrade process.

Using the -s Option:

The -s flag stands for "status."

When used with isi_upgrade_logs, it displays the current state of the upgrade, including which nodes have been upgraded, which are pending, and any ongoing activities.

Information Provided by the Command:

Upgrade Phases:

Shows which phase the upgrade is in (e.g., pre-checks, package installation, post-checks).

Node Status:

Indicates the status of each node (e.g., upgraded, in progress, pending).

Overall Progress:

Provides percentage completion and estimated time remaining.

Why Other Options Are Less Suitable:

A. Post upgrade errors:

While isi_upgrade_logs can display errors, the -s option specifically shows the current state, not post-upgrade errors.

C. Active upgrade errors:

Error logs can be viewed using different options, such as isi_upgrade_logs -e, but -s focuses on status, not errors.

D. Upgrade assessment results:

Upgrade assessments are performed prior to the upgrade using tools like isi upgrade cluster assess.

Results are not viewed with isi_upgrade_logs -s.

Monitoring Upgrade Progress:

Regular Checks:

Administrators should regularly run isi_upgrade_logs -s during an upgrade to monitor progress and identify any issues early.

Example Output:

The command outputs a table or list detailing the status of each node and the overall upgrade progress.

Dell PowerScale References:

Dell EMC PowerScale OneFS Upgrade Planning and Process Guide:

Provides detailed instructions on performing upgrades and monitoring their progress.

Dell EMC PowerScale OneFS Upgrade Guide

OneFS CLI Administration Guide:

Contains information on isi_upgrade_logs and other upgrade-related commands.

Dell EMC PowerScale OneFS CLI Guide

Knowledge Base Articles:

Article ID 000034567:"Monitoring Cluster Upgrades Using isi_upgrade_logs"

Article ID 000089012:"Interpreting Upgrade Status and Logs in OneFS"

When installing Dell EMC PowerScale Gen 6 nodes in a customer-provided rack, it is crucial for the platform engineer to ensure that the rack meets all safety and installation requirements. One of the most critical pre-checks is verifying that the rack has a full earth ground and is properly bolted to the floor.

Key Points:

Full Earth Ground:

Ensures electrical safety by providing a path for fault currents.

Protects equipment and personnel from electrical hazards.

Reduces the risk of electrical interference affecting the equipment.

Properly Bolted to the Floor:

Provides physical stability to prevent the rack from tipping over.

Essential for seismic compliance in areas prone to earthquakes.

Prevents movement due to vibrations from equipment operation or external factors.

Why This is Important:

Safety Compliance:

Adhering to safety standards is mandatory to prevent accidents.

Electrical grounding is a fundamental requirement for data center equipment installations.

Equipment Protection:

Proper grounding and securing the rack protect sensitive equipment from damage.

Minimizes downtime caused by electrical faults or physical disturbances.

Why Other Options Are Less Critical:

Option A (PDUs on Opposite Sides):

While distributing PDUs can aid in power redundancy and cable management, it is not as critical as grounding and securing the rack.

Option B (Rack Leveling):

Leveling the rack is important for equipment alignment but is a standard step during installation rather than a pre-check.

Option D (Minimum of Two PDUs):

Having multiple PDUs provides redundancy but depends on the power requirements and design of the system.

Dell PowerScale References:

Dell EMC PowerScale Site Preparation and Planning Guide:

Section on Rack Requirements:

Emphasizes that customer-provided racks must be properly grounded and secured.

States that racks should be bolted to the floor to prevent tipping.

Safety Precautions:

Details the importance of electrical grounding for safety and equipment protection.

Best Practices:

Before Installation:

Verify that the rack complies with all local electrical codes and regulations.

Ensure that a qualified electrician has installed the grounding system.

During Installation:

Check that all grounding connections are secure.

Confirm that the rack is level and stable after bolting it to the floor.

After Installation:

Perform an electrical continuity test to verify proper grounding.

Document the installation for future reference and compliance audits.
