The base enclosure is a component that is typically only replaceable by qualified personnel. This is because the base enclosure of a Dell PowerStore system contains critical components and connections that require specialized knowledge and tools to handle properly. Replacing a base enclosure involves understanding the system’s architecture, safely disconnecting and reconnecting various components, and ensuring that the system is not compromised during the process.

The memory module, embedded I/O module, and power supply are designed to be more accessible for replacement and may fall under the category of customer-replaceable units (CRUs) or field-replaceable units (FRUs), depending on the specific model and configuration of the PowerStore system1.

For detailed procedures on replacing the base enclosure or any other components, it is recommended to refer to the official Dell PowerStore Installation and Service Guide.This guide provides step-by-step instructions and safety precautions for qualified personnel to follow when performing hardware replacements1. It is crucial to adhere to these guidelines to maintain system integrity and ensure that the storage system continues to operate effectively after the replacement.

The account credentials needed to run diagnostic commands on Dell PowerStore Maintenance are for theserviceaccount.

The service account is specifically designed for performing specialized service functions, including running diagnostic commands1.

To run service commands, you would typically:

Enable SSH in PowerStore Manager under Settings.

Use an SSH client to connect to the management IP.

Log in using the username and password for the service account2.

The service account has the necessary permissions to execute service scripts and commands that are used for diagnostics and troubleshooting3.

It is important to note that the service account password should be changed from the default during the initial configuration of the appliance for security purposes1.

For more detailed information on using the service account for diagnostics and other service tasks, refer to the Dell PowerStore Service Scripts Guide or contact Dell Support.

The Dell EMC PowerStore equipment in the rack requires additional stabilitywhen shipping the system.

When preparing Dell EMC PowerStore equipment for shipping, it is crucial to ensure that the system is stable and secure to prevent any damage during transit.

Additional stability measures might include securing the equipment within the rack using appropriate brackets, using pallets designed for shipping heavy equipment, and ensuring that the rack is properly balanced.

The need for additional stability is not typically associated with environmental conditions such as humidity or temperature but is a standard precaution during the physical movement of the system to safeguard against vibrations, shocks, and impacts that can occur during shipping1.

For detailed procedures and best practices regarding the shipping and handling of Dell EMC PowerStore equipment, it is recommended to consult the official Dell EMC PowerStore documentation or contact Dell EMC support.

A Dell EMC PowerStore node can tolerate one fan module failure.The system is designed with redundancy to ensure that if a single fan module fails, the remaining fan modules can compensate for the loss and maintain proper cooling to prevent overheating1. The system will increase the speed of the remaining fans to ensure continued cooling.

When a fan module failure occurs, the system will generate an alert to notify the administrator of the fault. The administrator should then take the following steps:

Acknowledge the alert in the PowerStore Manager.

Plan for the replacement of the faulted fan module as soon as possible to restore full redundancy.

Follow the replacement procedures as outlined in the Dell PowerStore Installation and Service Guide1.

It is important to address fan module failures promptly to ensure the long-term health and performance of the PowerStore system. The increased fan speed is a temporary measure to maintain operations until the faulted fan module can be replaced.

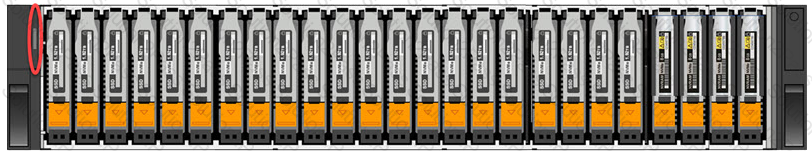

When the circled LED on the base enclosure of a Dell PowerStore system is illuminated amber, it typically indicates a fault within the base enclosure. This could be related to various issues such as power supply problems, cooling system malfunctions, or other operational faults that may affect the enclosure’s performance.

In Dell PowerStore systems, LED indicators are used to communicate the status of the system’s hardware components. An amber LED specifically suggests that there is a problem that needs to be addressed. The steps to investigate and resolve the issue usually include:

Checking the PowerStore Manager for alerts or messages that provide more details about the fault.

Inspecting the physical hardware to identify any visible signs of damage or failure.

Consulting the Dell PowerStore Hardware Guide for information on LED indicators and their meanings.

Following the recommended actions provided in the guide, which may include checking power connections, ensuring proper airflow, or other hardware checks.

If necessary, contacting Dell Support for further assistance, providing them with the details of the fault LED and any other relevant information observed.

It’s important to address any faults indicated by an amber LED promptly to maintain the integrity and reliability of the storage system. The Dell PowerStore documentation provides comprehensive information on LED indicators and troubleshooting steps to help resolve such issues effectively.

A screenshot of a computer Description automatically generated

When the node B embedded module fault LED on a Dell EMC PowerStore system is blinking blue and amber alternating at one-second intervals, it indicates that the node is in service mode1. Service mode is a state where the node is not in normal operation and may be undergoing maintenance or diagnostics.

In service mode, the node is typically isolated from normal storage operations to allow for troubleshooting, hardware replacement, or software updates without affecting the rest of the system. The alternating blue and amber LED is a visual indicator used by technicians to identify the current state of the node.

To return the node to normal operation, the service task must be completed, and the node must be taken out of service mode using the appropriate commands through the system’s management interface.For detailed procedures on managing nodes in service mode, refer to the Dell EMC PowerStore Service Manual or contact Dell EMC Support for guidance2.

External hosts connect to the Dell EMC PowerStore cluster for data access through theStoragenetwork.

The Storage network is designed to handle the data traffic between the PowerStore system and the external hosts.

For optimal performance and availability, it is recommended to configure dual redundant fabrics in Fibre Channel configurations, ensuring that each PowerStore node and each external host have connectivity on each of the fabrics12.

This setup minimizes the number of hops between the host and PowerStore, which is crucial for maintaining high-speed data access and reducing latency12.

The Management network, on the other hand, is used for managing and configuring the PowerStore system, not for data access3.

The Service network is typically used for service tasks and is not intended for regular data access by external hosts3.

The Internal network is used for communication within the PowerStore cluster itself and is not accessible by external hosts.

For more detailed information on network considerations and best practices for Dell EMC PowerStore, you can refer to the Dell PowerStore: Best Practices Guide4.

When a critical alert related to data integrity is present in Dell EMC PowerStore Manager, the most helpful action for troubleshooting the problem is to select the “Gather Support Materials” option from the Service and Support section.This action facilitates the collection of logs, system information, and other relevant data that can be used by Dell EMC support to diagnose and resolve the issue1.

The process typically involves:

Accessing the alert details slide-out panel within the PowerStore Manager.

Reviewing the critical alert to understand the nature of the data integrity issue.

Selecting the “Gather Support Materials” option, which may include system logs, configuration files, and other diagnostic information.

Following the prompts to collect and package the support materials.

Sending the gathered materials to Dell EMC support for further analysis and assistance.

This proactive step is crucial in expediting the support process and ensuring that the Dell EMC support team has all the necessary information to address the data integrity alert effectively.It is recommended to perform this action as soon as the critical alert is noticed to prevent any potential data loss or system downtime2.

For more detailed instructions on how to gather support materials and manage alerts, administrators should refer to the Dell PowerStore Manager Overview documentation and the PowerStore Alerts knowledge base articles provided by Dell12. These resources offer comprehensive guidance on maintaining and troubleshooting the PowerStore system.

The LED combination that shows a connected and working node ispower LED: steady green fault LED: off.

The power LED on a Dell EMC PowerStore node indicates the power status of the node.

A steady green power LED typically signifies that the node is powered on and operating normally1.

The absence of the fault LED being lit (fault LED: off) indicates that there are no current faults detected with the node1.

This combination of a steady green power LED and no fault LED is the normal operating state for a node and suggests that it is connected and functioning properly1.

For more detailed information on the LED states and what they represent, you can refer to the Dell PowerStore Hardware Information Guide or the Dell Support Knowledge Base1.

The Pre-Upgrade Health Check (PUHC) results for a Dell EMC PowerStore system can be viewed in the details of Appliances and Nodes within the PowerStore Manager (UI).The PUHC is designed to validate the health of the cluster before a software upgrade and is more thorough than the continuous background checks performed by the alert mechanism of PowerStore1.

To view the PUHC health check results, follow these steps:

Log in to the PowerStore Manager using a supported web browser.

Navigate to the ‘Settings’ menu and select ‘Upgrades’.

Within the ‘Upgrades’ section, you can view the status and results of the PUHC.

Click on the details of a specific appliance or node to see the health check results, including any warnings or actions required.

It is important to address any issues highlighted by the PUHC before proceeding with a software upgrade to ensure a successful update process.For more detailed instructions on running and interpreting the PUHC, refer to the Dell Support Knowledge Base Article1. This resource provides comprehensive guidance on using the PUHC and System Checks to prepare for a Non-Disruptive Upgrade (NDU).

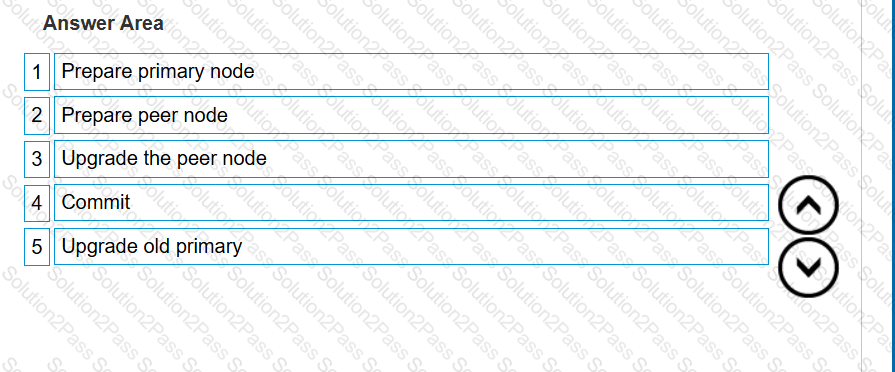

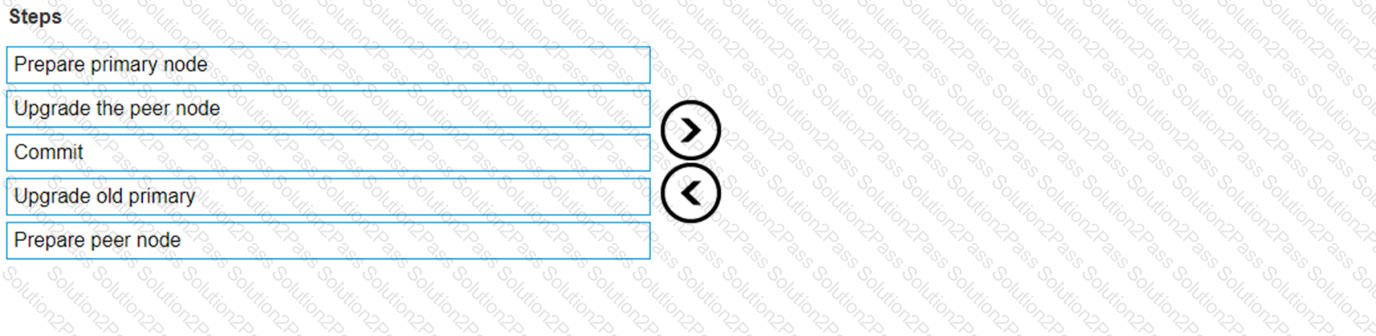

When shipping the system, additional stability is necessary to ensure that the equipment remains secure and undamaged during transportation. Proper stabilization prevents any potential movement or impact that could harm the delicate components of the system.

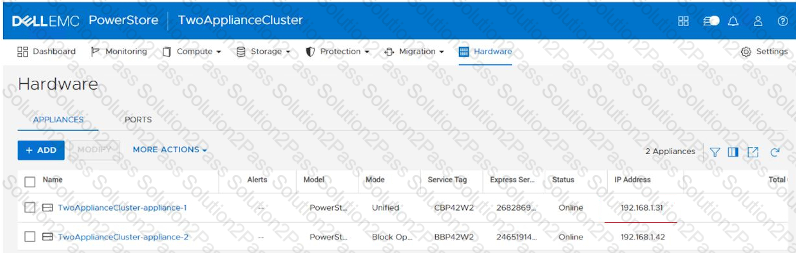

In the Dell EMC PowerStore system, the primary appliance is typically indicated by the ‘Mode’ column within the system’s user interface. The ‘Mode’ column shows the operational mode of the appliance, which can include states such as ‘Primary’, ‘Secondary’, or ‘Standby’.The primary appliance is the one that is actively servicing workloads and managing operations within the PowerStore cluster1.

The ‘Service Tag’ column represents the unique identifier for each physical appliance, the ‘Model’ column indicates the specific model of the appliance, and the ‘IP Address’ column shows the network address assigned to the appliance. While these columns provide important information, they do not indicate the role of the appliance within the cluster.

For more detailed information on identifying the primary appliance and understanding the role of each appliance in a PowerStore cluster, users can refer to the Dell PowerStore Clustering and High Availability documentation1. This documentation provides insights into the clustering architecture of PowerStore and how the primary appliance is determined during the initial configuration process.

To return a node from service mode to normal mode in a Dell EMC PowerStore system, the svc_rescue_state clear command should be used.This command clears the service mode state of the node and prepares it to return to normal operational mode1.

Here are the steps to perform this action:

Log in to the appliance from an SSH client.

Run the svc_rescue_state clear command to clear the boot mode.

Then, run the svc_node reboot command to reboot the node and return it to normal mode.

After the reboot, you can verify that the node has returned to normal mode by running the svc_rescue_state list command again.

It is important to follow these steps carefully to ensure that the node transitions back to normal mode without any issues.For more detailed instructions or if you encounter any problemsduring this process, refer to the Dell EMC PowerStore Service Scripts Guide or contact Dell EMC Support for assistance1.

The maximum number of expansion enclosures that a single Dell EMC PowerStore 9000T appliance supports isthree.This is consistent with the design and specifications provided by Dell for the PowerStore series, which allows for scalability within the storage environment1.

The expansion enclosures are used to increase the storage capacity of the PowerStore system beyond what is available in the base enclosure. Each expansion enclosure connects to the base appliance and adds additional drive slots for storage expansion.

For detailed information on the configuration and limitations of expansion enclosures for the PowerStore 9000T model, administrators should refer to the official Dell PowerStore Hardware Information Guide and the Dell PowerStore Technical Primer.These documents provide comprehensive guidelines on the physical and logical expansion capabilities of the PowerStore systems23. Adhering to these specifications is crucial to ensure proper system performance and to avoid unsupported configurations.

Configuring the Top of Rack (ToR) data switches for a Dell EMC PowerStore T involves several steps to ensure proper network setup and connectivity. One of the essential steps is to configure a port for the discovery laptop. This step is necessary for the initial discovery and configuration of the PowerStore appliances.

The process typically includes:

Identifying an unused port on the ToR switch that will be dedicated to the discovery laptop.

Configuring the identified port with the appropriate VLAN settings that match the network design of the PowerStore environment.

Ensuring that the port has the correct speed and duplex settings to communicate effectively with the discovery laptop.

Connecting the discovery laptop to the configured port to begin the discovery process of the PowerStore appliances.

This step is crucial as the discovery laptop is used to run the PowerStore Discovery Utility, which helps in identifying PowerStore appliances on the network and assists with the initial configuration1.For detailed instructions on configuring ToR switches and other networkingcomponents for PowerStore T, refer to the Dell PowerStore Networking Guide for PowerStore T Models2.
