D-XTR-DS-A-24 EMC Dell XtremIO Design Achievement Free Practice Exam Questions (2025 Updated)

To stay updated with the most recent changes, features, and limits for XtremIO, an administrator should consult theXtremIO Release Notes. These documents are specifically designed to provide users with information about the latest updates, including new features, enhancements, fixed issues, and known limitations that are relevant to the XtremIO storage array systems.

References:

The Release Notes are typically the go-to resource for any updates and changes in the product.They are part of the standard documentation provided by Dell for their products1.

For detailed information on the features and design of XtremIO, the “Dell XtremIO Design Achievement” document provides insights into the product features, functionality, use cases, and configurations2.

=========================

TheSCSI DIFFinstruction is used to build a bitmap of the changes between the first snapshot and subsequent snapshots when RecoverPoint is used with XtremIO1.

The DIFF protocol is a vendor-specific SCSI command which RecoverPoint uses to query XtremIO in order to obtain a bitmap of changes between two snapshot sets1.RecoverPoint uses the output of the DIFF command to read the actual data and transfer it to the target side1.

The other options provided are not typically used for this purpose:

SCSI DELTAis not a recognized SCSI command2.

SCSI TRANSFERis not a recognized SCSI command3.

SCSI UPDATEis not a recognized SCSI command4.

Therefore, the verified answer is A.SCSI DIFF, as it is the SCSI instruction used to build a bitmap of the changes between the first snapshot and subsequent snapshots when RecoverPoint is used with XtremIO1.

A typical I/O transfer involves several components that work together to ensure data is correctly sent and received. These components include:

Protocol: This defines the rules for how data is transmitted between devices. It ensures that the sender and receiver are using a common language and standards.

Header: The header contains metadata about the data being transferred, such as source and destination addresses, error checking codes, and sequencing information.

Data: This is the actual payload or information that is being transferred.

Handshaking: This part of the process involves the exchange of control messages before the actual data transfer begins. It establishes the parameters of the communication channel and confirms that both sender and receiver are ready for the transfer.

These components are essential for the successful completion of an I/O transfer, ensuring that data is accurately and reliably transmitted from one point to another.

References:

The Dell XtremIO Design documents provide a detailed understanding of the product features, functionality, use cases, and configurations, which includes the I/O transfer process as a fundamental aspect of storage array operations1.

Additional resources on I/O transfer processes can be found in the support documentation for the XtremIO Family on Dell’s official website2.

=========================

A response code of 400 in the context of RESTful API operations generally indicates that the request made by the client was malformed or contains a syntax error. This means that the data stream sent by the client to the server did not follow the rules as defined by the API specification.It could be due to various reasons such as incorrect request format, missing required parameters, or invalid parameter values1.

In the case of the Dell XtremIO environment, if a customer receives a 400 response code when attempting to create a volume via the RESTful API, it is likely due to a syntax error in the API command.The customer should review the API request to ensure that it conforms to the expected format and includes all necessary information as per the XtremIO API documentation2.

References:

Community discussions on the Dell Technologies website where similar issues have been addressed and the cause of the 400 error was identified as a syntax error in the RESTful API command2.

General information about the meaning of a 400 Bad Request error in REST APIs, which supports the conclusion that a syntax error is the cause1.

=========================

MPIO (MultiPath I/O) is required for Fast I/O Failure for the AIX operating system as it helps in managing multiple paths for redundancy and failover.

The Fill phase in the PoC Toolkit should involve scattering writes across the entire storage system to simulate ordinary use and to ensure that the array is adequately prepared for the real-world workload.

In an XtremIO cluster that is encrypted, the encryption key is generated within the Self-Encrypting Drives (SEDs). The SEDs are responsible for encrypting and decrypting the data at rest without any performance overhead. The encryption process is transparent to the user and is managed within the drive itself. The keys are generated and stored securely within the SEDs to ensure that data cannot be accessed without proper authorization.

References:

Dell EMC Data Domain Encryption - Frequently Asked Questions1.

Policy Files and Default Encryption Keys in Dell Encryption2.

=========================

An XtremIO cluster’s ability to support snapshots and volumes scales with the number of X-Bricks in the cluster.According to the documentation, an XtremIO X2 cluster can support up to 32K objects (root volumes + snapshots) per cluster1. Therefore, with the expansion from two to four X2 X-Bricks, the cluster would be able to support up to 32,768 snapshots and volumes.

References:

The Dell EMC XtremIO X2: Next-Generation All-Flash Array document states the infrastructural scale supporting up to 32K objects per cluster1.

Additional information on the scalability and performance of XtremIO X2 clusters can be found in the Introduction to XtremIO X2 Storage Array document2.

=========================

XtremIO XVC (XtremIO Virtual Copies) allows for efficient snapshot management and operations, including the refresh of volumes. One of the key features of XVC is that it enables the refresh of a production volume from a snapshot without requiring the volume to be unmounted from the host. This capability is designed to minimize disruption and maintain continuous availability of data to applications during refresh operations.The refresh operation is handled within the XtremIO storage array, and the production volume remains accessible to the host during this process1.

References:

The Dell XtremIO Design Achievement document provides information on the capabilities and features of XtremIO X2 systems, including XVC operations1.

Additional details on XVC refresh operations can be found in the support documentation for the XtremIO Family on Dell’s official website2.

=========================

For ESXi disks provisioned by XtremIO, the recommended disk format is ‘Eager Zeroed Thick’. This format is preferred because it allocates all the space required for the disk at the time of creation and zeroes out any previous data on the physical media. Compared to other formats, ‘Eager Zeroed Thick’ provides better performance due to the pre-zeroing of the disk space, which helps in avoiding any latency that might occur during write operations as there is no need to zero out blocks before writing new data.

References:

While the specific Dell XtremIO Design document was not available, the general best practice for high-performance storage solutions like XtremIO is to use ‘Eager Zeroed Thick’ provisioning for VMs running on VMware ESXi to ensure optimal performance1.

Additional information on disk provisioning and best practices can be found in VMware’s official documentation and Dell EMC’s storage configuration guides2.

=========================

The Oracle Redo Log block size is recommended to be set to 8 kB.This is based on the best practices for Oracle 19c Database, where it was found that increasing the size of the Oracle redo logs can improve database performance12. However, it’s important to note that not every workload will show significant performance increase when increasing the size of the redo logs. Customers should evaluate the AWR to determine if the redo logs have an associated high number and duration of wait times.If the redo logs show a possible bottleneck, then increasing the size of the redo logs could improve performance2.

For a customer who wants to design an XtremIO solution for an Oracle RAC application environment, maintains two data centers, and requires replication to a third site for disaster recovery purposes, the recommended Dell EMC technology isMetroPoint1.

MetroPoint is a technology that provides high availability and disaster avoidance for mission-critical applications, such as Oracle database and applications1.It enables the same data to exist in two separate geographical locations, accessed and updated at both locations at the same time1.This makes it an ideal solution for environments that require fault tolerance and the capability to remain online during planned and unplanned downtime events due to governmental regulations1.

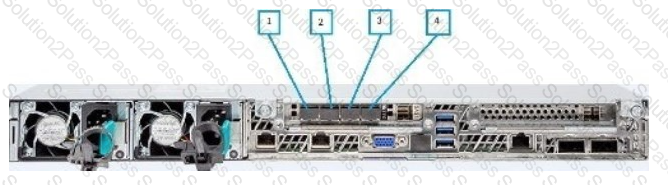

To maximize the connectivity between Storage Controllers and Fibre Channel switches, all available ports should be utilized. This ensures redundancy and maximizes throughput. The exhibit provided shows a Storage Controller with four ports labeled 1, 2, 3, and 4. Without specific design documents, the general best practice is to use all available ports for suchconnections, assuming the ports are configured for Fibre Channel traffic and the infrastructure supports it.

References:

General best practices for Fibre Channel connectivity and port usage are discussed in various Dell EMC documents, such as the “Introduction to XtremIO X2 Storage Array” and “Configuring Fibre Channel Storage Arrays” documents12.

Specific port configurations and their usage would be detailed in the Dell XtremIO Design documents, which would provide definitive guidance on which ports to use for connecting to Fibre Channel switches.

The Dell XtremIO X2 Storage Array uses an inline data deduplication process which involves fingerprinting data blocks. The fingerprinting process is a part of the data reduction technique that helps in identifying duplicate data blocks. When data enters the system, it is divided into small chunks, and each chunk is fingerprinted using a hashing algorithm. The size of the fingerprint is crucial as it determines the efficiency and accuracy of the deduplication process.

The specific bit size of the fingerprint created by the algorithm used by XtremIO is256 bits.This information is derived from the detailed descriptions of the system’s architecture and operation as provided in the Dell EMC XtremIO X2 Storage Array documentation1. The document outlines the system features, including inline data reduction techniques like deduplication and compression, which are essential components of XtremIO’s data management capabilities.

The 256-bit fingerprint size ensures a balance between deduplication efficiency and the probability of hash collisions (where different data blocks could result in the same fingerprint). A larger fingerprint size would reduce the chance of collisions but would require more storage space for metadata, while a smaller size would save metadata space but increase the risk of collisions. Therefore, the 256-bit size is a strategic choice for the XtremIO system’s deduplication process.

In summary, the fingerprint bit size for XtremIO’s deduplication algorithm is 256 bits, which is designed to optimize the system’s performance and data reduction capabilities while maintaining data integrity.

When designing a Virtual Desktop Infrastructure (VDI) solution, it’s important to consider the best practices for performance and efficiency.

Option OB, “Align data on 4 kB boundariesAllocate multiple XtremIO LUNs to each host”, is a recommended best practice for VDI environments12.This is because aligning data on 4 kB boundaries can help to optimize the performance of the storage system12.The XtremIO storage array uses a 4 kB data block size, so aligning data on 4 kB boundaries can help to ensure that data is efficiently stored and retrieved12.

Allocating multiple XtremIO LUNs to each host can also help to distribute the I/O load more evenly across the storage system, which can improve performance12.This is particularly important in VDI environments, where there can be a high level of concurrent I/O activity12.

The other options, while they may be part of the overall process, are not specifically recommended for VDI environments:

Option OA, “Align data on 8 kB boundariesPut all VDI-related data on one large LUN”, is not recommended because aligning data on 8 kB boundaries does not match the 4 kB data block size used by the XtremIO storage array12.Also, putting all VDI-related data on one large LUN can lead to performance issues due to the high level of concurrent I/O activity in VDI environments12.

Option OC, “Align data on 4 kB boundariesPut persona and user data on XtremIO LUNs”, is not recommended because persona and user data typically do not require the high performance provided by XtremIO LUNs12.

Option OD, “Align data on 8 kB boundariesPut the master VM image on an XtremIO LUN”, is not recommended because aligning data on 8 kB boundaries does not match the 4 kB data block size used by the XtremIO storage array12.

Therefore, the verified answer isB.Align data on 4 kB boundariesAllocate multiple XtremIO LUNs to each host, as it provides the most suitable solution for VDI environments according to the Dell XtremIO Design Achievement document12.

When entering a generic workload into the XtremIO Sizing Tool, the required values are IOPs, I/O size, and bandwidth. These parameters are essential for accurately sizing the storage system to ensure it can handle the expected workload. IOPs (Input/Output Operations Per Second) measure the number of read/write operations the storage system can perform in a second. I/O size refers to the size of each read/write operation, and bandwidth is the total amount of data that can be transferred in a given time frame.

References:

The XtremIO Performance Documents discuss different workload testing parameters, including I/O size and limits, which are relevant to sizing the array1.

The Dell XtremIO Design Achievement document outlines the critical components and best practices for designing solutions with XtremIO and X2 storage systems, which would include considerations for workload sizing2.

=========================
