When configuring Linux hosts to support XtremIO storage, it is recommended to set the LUN queue depth to 64. This setting helps to optimize the performance of the host when communicating with the XtremIO storage system.

Access Host Configuration: Log into the Linux host that will be connected to the XtremIO storage.

Modify HBA Parameters: Locate the HBA (Host Bus Adapter) parameters within the host’s configuration files.

Set Queue Depth: Adjust the queue depth parameter for the HBA to 64. This can typically be done by editing the options.conf file or similar, depending on the HBA driver in use.

Apply Changes: Save the changes and reload the HBA driver or reboot the host to apply the new configuration.

Verify Configuration: Confirm that the new queue depth setting is active and functioning as expected.

After creating volumes on an XtremIO system, the steps required to provision these volumes to the servers involve host configuration, establishing SAN connectivity, setting up an Initiator group, and mapping the volumes.

Host Configuration: Configure the host’s HBA (Host Bus Adapter) to ensure it can connect to the SAN (Storage Area Network). This involves setting the correct parameters such as data transfer rates and queue depths.

SAN Connectivity: Establish connectivity between the host and the SAN. This includes zoning in a Fibre Channel network or setting up the appropriate network configurations for iSCSI.

Initiator Group: Create an Initiator group within the XtremIO system. This group will contain the identifiers (WWPN for Fibre Channel or IQN for iSCSI) of the host’s HBA.

Volumes Mapping: Map the volumes to the host by creating a LUN (Logical Unit Number) mapping that associates the volumes with the Initiator group. This allows the host to see and access the volumes.

These steps ensure that the XtremIO volumes are correctly provisioned and accessible to the servers1. It’s important to follow the specific procedures outlined in the official Dell XtremIO Deploy Achievement documentation to ensure proper configuration and to avoid any potential issues during the provisioning process.

Before presenting XtremIO volumes to a new Linux host, it is recommended to disable the I/O elevators. This step is crucial for optimizing performance and ensuring that the storage system works efficiently with the host’s operating system.

The I/O elevator is a Linux kernel feature that controls the order in which I/O operations are submitted to storage devices. It’s designed to optimize the way the Linux kernel handles write and read requests. However, in the context of high-performance storage systems like XtremIO, the default I/O scheduling might not be optimal. Disabling the I/O elevators allows the XtremIO storage system to manage the I/O requests more efficiently, leveraging its built-in capabilities for performance optimization.

This information is corroborated by the Official Dell XtremIO Deploy Achievement document, which outlines the best practices for configuring XtremIO systems in various environments, including Linux hosts1.

When an XtremIO X2 array is delivered, the cable shown in the exhibit should be connected to the middle USB ports in both X3-SC1 and X3-SC2. This is based on the standard configuration and setup for XtremIO X2 arrays as per the Dell XtremIO Deploy Achievement document. The middle USB ports are typically used for specific functions such as connecting to a management network or interfacing with other devices that are part of the storage array infrastructure.

The process for connecting the cable is as follows:

Identify the Correct Ports: Locate the middle USB ports on both X3-SC1 and X3-SC2. These ports are usually marked and differentiated from other USB ports by their position or labeling.

Connect the Cable: Insert the USB connector end of the cable into the middle USB port on X3-SC1 and then connect the other end to the corresponding port on X3-SC2. Ensure that the connection is secure and that the cable is not obstructing any other components or airflow.

Verify the Connection: Once connected, verify that the cable is recognized by the system. This can typically be done through the XtremIO Management Server (XMS) interface or by checking the system’s hardware configuration.

Check for Functionality: Ensure that the connected cable functions as intended. This may involve transferring data or accessing the management network, depending on the specific use case for the cable.

Reference Official Documentation: For detailed instructions and best practices, always refer to the official Dell XtremIO Deploy Achievement document1. This document provides comprehensive guidance on all aspects of setting up and managing XtremIO X2 arrays, including cable connections.

By following these steps and referring to the official documentation, you can ensure that the cable is connected correctly and that the XtremIO X2 array is set up for optimal performance and management.

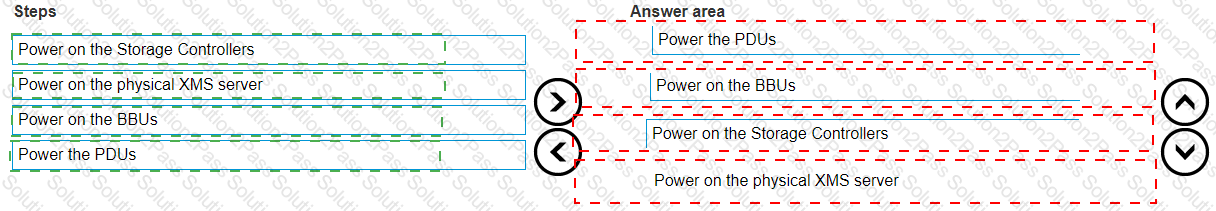

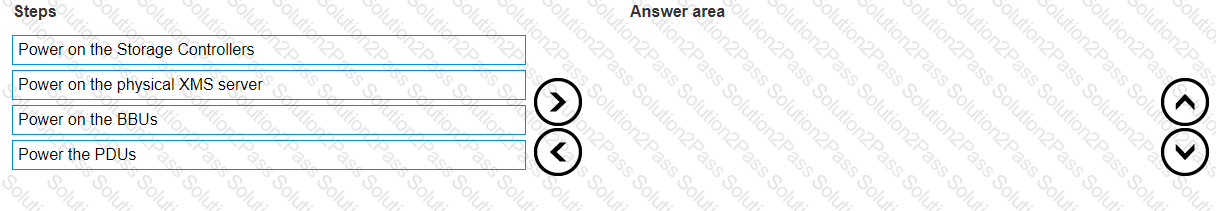

 Power the PDUs

 Power on the BBUs

 Power on the Storage Controllers

 Power on the physical XMS Server

Power the PDUs: The Power Distribution Units (PDUs) need to be powered first as they supply power to all the other components.

Power on the BBUs: The Battery Backup Units (BBUs) are powered on next to ensure that the system has emergency power in case of a power failure.

Power on the Storage Controllers: The storage controllers are responsible for managing the storage array, so they need to be powered on before the server.

Power on the physical XMS Server: Finally, the XMS server, which provides management and monitoring capabilities, is powered on.

References:

Dell XtremIO Deployment Services

Dell XtremIO Deployment Guide and official documentation for detailed step-by-step procedures.

For a customer with an 80 TB database that will not benefit from compression and deduplication, and with no projected future growth, the minimum recommended XtremIO X1 offering would be the one that provides at least 80 TB of raw storage capacity.

Based on the options provided:

A. 20 TB 4 X-Brick model

B. 40 TB 4 X-Brick model

C. 10 TB 8 X-Brick model

D. 20 TB 6 X-Brick model

The most suitable option that meets the requirement of providing at least 80 TB of raw storage capacity would be B. 40 TB 4 X-Brick model. This is because each X-Brick in the XtremIO X1 system contributes to the total raw storage capacity, and with a 4 X-Brick model, each X-Brick would need to provide at least 20 TB to meet the 80 TB requirement. Since the 40 TB 4 X-Brick model offers 40 TB per X-Brick, it would exceed the required capacity, ensuring that the customer’s needs are met without any shortfall.

Understanding Execution Throttle: The Execution Throttle setting controls the maximum number of concurrent I/O operations that can be sent from a host to a storage array. This setting is crucial for optimizing performance and preventing overloading of the storage array.

QLogic Fibre Channel HBAs: QLogic Host Bus Adapters (HBAs) are used for connecting servers to Fibre Channel storage networks. The recommended settings for these HBAs can significantly impact the performance and reliability of the storage network.

Best Practices for XtremIO and VMware:

According to best practices for connecting VMware clusters to XtremIO arrays, especially when using QLogic Fibre Channel HBAs, the Execution Throttle value is set to optimize performance.

The recommended value for the Execution Throttle setting for QLogic HBAs in a VMware environment connected to an XtremIO array is 65535. This value helps ensure that the host can handle a high number of I/O operations efficiently without overwhelming the storage array.

References:

Dell XtremIO Best Practices Guide for VMware

QLogic HBA Configuration and Performance Tuning Guides

Dell XtremIO Deployment Services

VMware and XtremIO Integration Documentation.

RecoverPoint offers data protection and disaster recovery for heterogeneous storage environments. However, when it comes to XtremIO-to-XtremIO replication, RecoverPoint supports homogeneous replication, meaning it can replicate data between XtremIO arrays. This ensures that the advanced data services provided by XtremIO, such as deduplication and compression, are maintained during the replication process1.

Homogeneous Replication: RecoverPoint’s homogeneous replication capability allows for consistent replication between similar storage systems, which is essential for maintaining data efficiency features.

XtremIO Integration: When integrated with XtremIO, RecoverPoint utilizes the storage array’s native capabilities to ensure efficient replication.

Data Services Continuity: By supporting homogeneous replication, RecoverPoint ensures that XtremIO’s data services like deduplication and compression are preserved during replication, optimizing storage utilization and performance1.

Disaster Recovery: This integration allows for robust disaster recovery solutions, ensuring that data is protected and can be recovered in the event of a site failure.

Scalability: While RecoverPoint can scale up with additional RecoverPoint Appliances (RPAs) in other environments, the replication between XtremIO arrays is designed to work within the XtremIO ecosystem1.

Leaving one rack unit open at the bottom of a rack containing an XtremIO X2 is a practice recommended for allowing more efficient cooling. This space acts as a buffer zone, helping to facilitate better airflow and prevent the recirculation of hot air within the rack. It is a part of thermal management strategies in data centers to optimize the cooling systems, which are crucial for maintaining the performance and longevity of the equipment1.

The Dell Best Practices Guide for Rack Enclosures emphasizes the importance of proper cooling and airflow management within rack enclosures. It suggests that efficient cooling can help reduce inefficiencies at the rack level and is essential for maintaining the necessary thermal environment for rack-mounted equipment1. While the guide does not explicitly mention leaving a rack unit open at the bottom, the principle of optimizing airflow for cooling purposes is consistent with the practice.

For an XtremIO X2 two X-Brick system installation, only two IP addresses are required because the entire system is managed through the first X-Brick. This is in line with the design of the XtremIO X2 architecture, which allows for a single management point for multiple X-Bricks. The XMS (XtremIO Management Server) manages multiple XtremIO arrays and requires an IP address for each X-Brick in the cluster1. In a two X-Brick system, the first X-Brick acts as the primary management point, and the second X-Brick is managed through it, thus only necessitating two IP addresses for management purposes2.

When deploying Connect Home using FTPS at a customer site, the TCP ports that must be open between the XtremIO Management Server (XMS) and the Dell Technologies FTP server are 989 and 990. These ports are typically used for FTPS to secure the control channel (port 989) and the data channel (port 990).

The process for configuring these ports is as follows:

Identify FTPS Requirements: Understand that FTPS requires specific ports for secure communication. Port 989 is used for the FTPS control connection, and port 990 is used for the data transfer.

Configure Firewall Settings: On the customer’s firewall, configure the settings to allow outbound connections on ports 989 and 990 to the Dell Technologies FTP server.

Verify Connectivity: After configuring the firewall, verify that the XMS can establish a connection to the Dell Technologies FTP server over these ports.

Test Connect Home Functionality: Use the Connect Home feature to ensure that the XMS can communicate securely with the Dell Technologies FTP server using FTPS.

Consult Official Documentation: For detailed instructions and best practices, refer to the official Dell XtremIO Deploy Achievement document1. This document provides comprehensive guidance on all aspects of setting up and managing XtremIO systems, including the deployment of Connect Home using FTPS.

By following these steps and referring to the official documentation, you can ensure that the necessary ports are open for the Connect Home feature to function correctly in an XtremIO deployment.

The largest size supported for each volume in a new XtremIO X2-S single X-Brick cluster, as per the Official Dell XtremIO Deploy Achievement documents, is 64 TB. This information is verified through the official documentation which outlines the capabilities and specifications of the XtremIO X2 systems. The documents provide a detailed description of the critical components, features, and implementation solutions in customer environments, which includes the storage capacity specifications for XtremIO systems1.

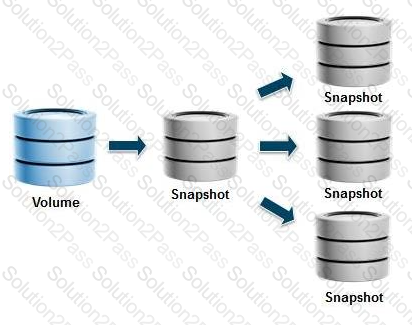

In XtremIO, snapshots are created efficiently using metadata rather than duplicating the actual data blocks. When a snapshot is made, it initially shares the same data blocks as its ancestor. When the first write occurs to a block in a snapshot, it triggers a Copy-On-First-Write (COFW) operation. This means the original data block is copied to a new location to preserve the integrity of the snapshot, ensuring that each snapshot reflects the data state at the moment of its creation.

This COFW operation ensures that the data remains consistent and unchanged for each snapshot, while allowing new writes to occur without impacting the original data or other snapshots. As a result, the first write to each snapshot impacts its ancestor by triggering a COFW operation.

References:

Dell XtremIO Deployment and Learning Course Materials

Failed Cluster Creation: When a cluster creation fails, logs need to be collected for troubleshooting.

Debug Command: Running the create-debug-info debug-info-name=initial setup command helps in collecting the necessary logs for analysis.

Log Bundle Collection: This command gathers all relevant information needed to diagnose and fix the cluster creation issue.

References:

Dell XtremIO Command Reference Guide

Dell XtremIO Troubleshooting Guide

When creating a volume on an XtremIO X2-S array, one of the options that can be selected is Tags. Tags are used to organize and manage volumes by assigning descriptive labels, making it easier to group and identify volumes based on specific criteria. References := Dell Deployment Services

Zoning: Zoning is the process of configuring which devices can communicate with each other on a storage network.

VPLEX and XtremIO: The first step in adding an XtremIO cluster to a VPLEX environment is to zone the VPLEX to the XtremIO Storage Controllers.

Initial Configuration: This step ensures that the VPLEX can recognize and communicate with the XtremIO storage, which is necessary before proceeding with other configurations.

References:

Dell XtremIO and VPLEX Integration Guide

Dell XtremIO Zoning Configuration Documentation

show-clusters-info Command: This command is used to display the status and information of an XtremIO cluster.

Healthy State: For a healthy XtremIO cluster, the state displayed is "Active and enabled".

Verification: This state indicates that the cluster is operational and all services are functioning as expected.

References:

Dell XtremIO Command Reference Guide

Dell XtremIO Troubleshooting Guide
