This statement is true . From the routing table, the entry 10.0.12.0/24 Direct ... NextHop 10.0.12.1 Interface Vlanif2 indicates that the network 10.0.12.0/24 is directly connected through Vlanif2 , and the local interface address associated with that directly connected network is 10.0.12.1 .

This conclusion is further supported by the host route 10.0.12.1/32 Direct ... 127.0.0.1 Vlanif2, which represents the local IP address of the interface itself. On Huawei devices, when an IP address is configured on an interface, the routing table commonly generates a direct route to the connected network, a host route to the interface IP itself, and sometimes a host route to the broadcast address where applicable in IPv4. Therefore, from the displayed entries, it can indeed be inferred that VLANIF 2 has the IP address 10.0.12.1/24 . HCIA-Datacom uses these routing-table characteristics to help learners identify connected interfaces, local addresses, and route origins during troubleshooting and route analysis on routers and Layer 3 switches.

============

When multiple static routes exist to the same destination prefix and all next hops are reachable, the device selects the route with the highest priority , which on Huawei devices means the lowest preference value . In this question, all four static routes point to the same destination network 20.0.0.0/30, but they have different preference values.

The route through 10.1.1.2 uses the default static route preference , which is 60 on Huawei devices. The route through 10.1.2.2 has a preference of 70 , the route through 10.1.3.2 has a preference of 50 , and the route through 10.1.4.2 has a preference of 100 . Since 50 is the lowest value among them, the route via 10.1.3.2 is preferred and installed in the routing table. Therefore, option D is correct. HCIA-Datacom emphasizes that when prefix length is identical, route preference determines which route is active. This principle is widely used in route backup design, where primary and floating backup static routes are configured using different preference values to control failover behavior.

============

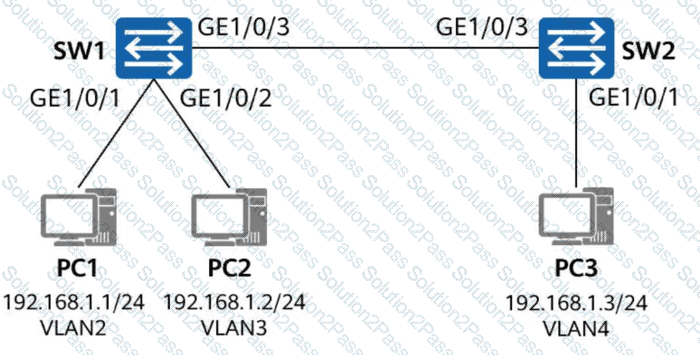

PC1 and PC2 are in different VLANs on SW1, while PC3 is in VLAN 4 on SW2. To allow traffic from VLAN 2 and VLAN 3 users to reach PC3 through the inter-switch link, SW1 must be able to send frames from PC1 and PC2 toward SW2 in a form that SW2 can place into VLAN 4.

Option B is valid because a hybrid interface on SW1 can send frames from VLAN 2 and VLAN 3 untagged , and setting the PVID to VLAN 4 allows untagged inbound frames on the peer side to be associated appropriately when matched with the SW2 configuration. Option C is also valid because configuring SW2’s GE1/0/3 as a trunk allowing VLAN 4 and setting its PVID to VLAN 4 means untagged frames arriving from SW1 are treated as belonging to VLAN 4 and can then be forwarded to PC3 through its access interface.

Option A is incomplete because only configuring SW2 does not solve the VLAN handling on SW1. Option D is incorrect because a trunk on SW1 would send VLAN 2 and VLAN 3 frames tagged, which would not match the VLAN 4-only expectation on SW2 in this scenario.

============

This statement is true . In SNMP, both Trap and Inform messages are used by managed devices to proactively report alarms or events to the Network Management System (NMS) . However, their reliability behavior is different. A Trap is sent without requiring an acknowledgment from the NMS. Once it is transmitted, the sender does not confirm whether the manager actually received it.

By contrast, an Inform Request requires the NMS to send a response confirming receipt. If the managed device does not receive the acknowledgment within the expected time, it can retransmit the Inform message. Because of this, Inform is considered more reliable than Trap, although it also introduces slightly more overhead. HCIA-Datacom highlights this difference when explaining SNMP-based monitoring and alarm reporting. In real network O & M scenarios, the choice between Trap and Inform depends on the required balance between reliability and simplicity. This question tests a very standard SNMP knowledge point: Trap is unacknowledged , while Inform is acknowledged . Understanding this distinction helps network engineers choose suitable alarm reporting mechanisms in enterprise monitoring platforms.

============

This statement is true . ARP is a Layer 2 broadcast-based protocol used to resolve an IPv4 address into a MAC address within the same broadcast domain. If two PCs are connected to the same switch but cannot learn each other’s ARP entries, one likely reason is an incorrect VLAN configuration .

For example, if PC1 and PC2 are placed in different VLANs, or if one interface is configured with the wrong access VLAN, ARP broadcast frames from one PC will not reach the other PC because VLANs separate Layer 2 broadcast domains. As a result, the ARP request will not be received by the peer, and the MAC address cannot be resolved. Other causes may also exist, such as incorrect IP addressing, port isolation, or security policies, but VLAN misconfiguration is a very common and valid cause in campus switching scenarios. HCIA-Datacom teaches that ARP communication depends on correct Layer 2 domain membership, and VLAN planning or interface configuration errors often directly affect host-to-host communication even when both hosts are physically connected to the same switch.
