Comprehensive and Detailed In-Depth Explanation:

To determine which statement is false, we need to analyze the IS-IS topology, the role of multi-topology, the IPv6 summary configuration, and the level-1-2 behavior of IS-IS routers. Let’s break it down step by step:

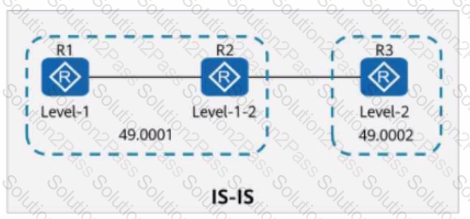

Understanding the IS-IS Topology and Levels:

IS-IS supports multiple levels: Level-1 (L1) for intra-area routing, Level-2 (L2) for inter-area routing, and Level-1-2 (L1-2) routers that can operate in both levels and connect L1 and L2 areas.

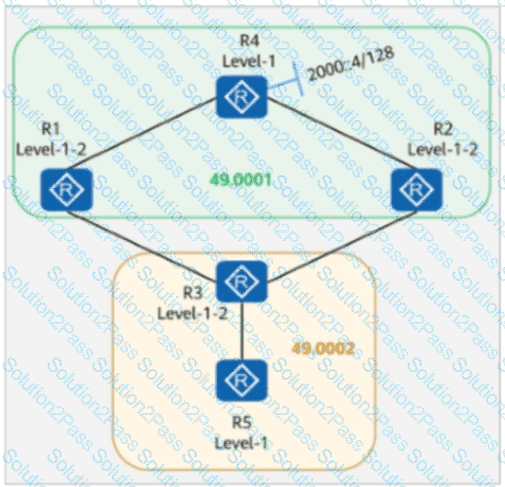

In the figure, R1 and R2 are configured as Level-1-2 routers, R3 is a Level-1-2 router, R4 is a Level-1 router, and R5 is a Level-1 router. The area borders are indicated by the system IDs (49.0001 for R4’s area and 49.0002 for R3 and R5’s area).

R4’s Loopback0 has the IPv6 address 2000::/128, which is a host route (a /128 prefix, representing a single address).

Multi-Topology IS-IS for IPv6:

Multi-topology IS-IS allows separate topologies for IPv4 and IPv6, ensuring that IPv6 routes are handled independently. Since multi-topology is enabled on all routers, IPv6 routes (like 2000::/128 on R4) are advertised and processed within the IPv6 topology.

This means that IPv6 routes, including the Loopback0 address of R4 (2000::/128), can be advertised across the IS-IS domain, subject to the level and summary configurations.

IPv6 Summary Configuration (2000::/64 level-1-2):

The command ipv6 summary 2000::/64 level-1-2 is configured in the IS-IS processes of R1 and R2. This command instructs R1 and R2 (as Level-1-2 routers) to summarize the IPv6 prefix 2000::/64 and advertise it to both Level-1 and Level-2 areas.

Summarization means that instead of advertising the more specific route (e.g., 2000::/128 from R4), R1 and R2 advertise the less specific summary route 2000::/64. This summary route covers the 2000::/128 address of R4’s Loopback0.

Since R1 and R2 are Level-1-2 routers, they can advertise this summary to both their Level-1 neighbors (like R4 and R3) and Level-2 neighbors (across areas).

Analyzing Each Statement:

A. The routing table of R1 contains the route 2000::/64.

True. R1 is a Level-1-2 router with the ipv6 summary 2000::/64 level-1-2 command configured. It advertises and installs the summary route 2000::/64 in its routing table, covering the more specific 2000::/128 from R4. Additionally, as a Level-1-2 router, R1 can learn and retain this route from its IS-IS neighbors.

B. The routing table of R2 contains the route 2000::/64.

True. Similar to R1, R2 is also a Level-1-2 router with the same summary command. It advertises and installs the 2000::/64 summary route in its routing table, covering R4’s 2000::/128.

C. The routing table of R3 contains the route 2000::/128.

False. R3 is a Level-1-2 router in area 49.0002, but it receives routes from R2 (a Level-1-2 router in area 49.0001). Because R1 and R2 are configured with the ipv6 summary 2000::/64 level-1-2 command, they advertise the summary route 2000::/64 to their neighbors, including R3. IS-IS prefers the most specific route, but the summary configuration ensures that the more specific 2000::/128 from R4 is not advertised beyond R1 and R2 unless explicitly allowed. Since R3 is in a different area and receives the summary 2000::/64 from R2, it does not have the more specific 2000::/128 route in its routing table. Therefore, this statement is false.

D. The routing table of R2 contains the route 2000::/128.

True. R2, as a Level-1-2 router, is directly connected to R4 (a Level-1 router) via the IS-IS topology. R4 advertises its Loopback0 address 2000::/128 to R2. Even though R2 is configured to summarize 2000::/64, it can still retain the more specific 2000::/128 route in its routing table because IS-IS allows routers to keep both summary and more specific routes, with the more specific route taking precedence for routing decisions.

Conclusion:

The false statement is C, as R3 does not contain the route 2000::/128 in its routing table. Instead, R3 receives the summary route 2000::/64 from R2 due to the summary configuration on R1 and R2.

References to HCIP-Datacom-Advanced Routing & Switching Technology Documents:

HCIP-Datacom-Advanced Routing & Switching Technology V1.0, Section on IS-IS: Multi-Topology IS-IS for IPv6, Level-1 and Level-2 Operations, and Route Summarization.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0, Chapter on IPv6 Routing Protocols: IS-IS Configuration and Behavior, Including Summary Address Commands and L1/L2 Interactions.

Although network maintenance includes routine maintenance and troubleshooting, experience does not exempt maintenance personnel from following standardized operating guidelines.

Huawei requires maintenance personnel to comply strictly with operating and safety regulations. Maintenance work should include impact assessment, authorization, information collection, configuration or data backup, operation recording, fault verification, and preparation of recovery measures. These requirements apply even to highly skilled engineers because an undocumented or unauthorized operation can interrupt services or make recovery more difficult.

Therefore, the first part of the statement is acceptable, but the claim that experienced personnel may disregard operation guidelines makes the complete statement false. Huawei troubleshooting principles and maintenance precautions.

Comprehensive and Detailed In-Depth Explanation:

Understanding Intra-Area-Prefix-LSA (Type 9) in OSPFv3

OSPFv3 uses the Intra-Area-Prefix-LSA (Type 9) to advertise IPv6 prefixes associated with either:

A Router-LSA (Type 1) → Describes links and interfaces.

A Network-LSA (Type 2) → Advertises multi-access networks (if a Designated Router exists).

Each router generates one Intra-Area-Prefix-LSA to advertise its own IPv6 prefixes.

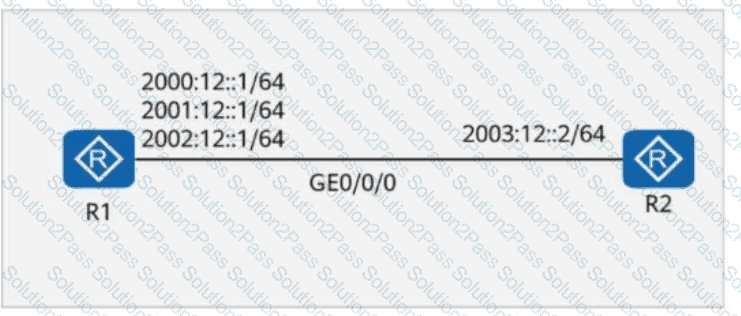

Prefix Analysis for Each Router

R1 ' s IPv6 Prefixes:

2000:12::1/64

2001:12::1/64

2002:12::1/64

2003:12::/64 (Shared link with R2)

Total Prefixes in R1’s Intra-Area-Prefix-LSA = 4

✅ R1 advertises four prefixes in its Intra-Area-Prefix-LSA.

R2 ' s IPv6 Prefixes:

2003:12::2/64 (Shared link with R1)

Total Prefixes in R2’s Intra-Area-Prefix-LSA = 1

✅ R2 advertises only one prefix in its Intra-Area-Prefix-LSA.

Checking Each Option:

✅ A. The Intra-Area-Prefix-LSA generated by R2 describes three prefixes. (❌ False, R2 only has one prefix).

✅ B. The Intra-Area-Prefix-LSA generated by R1 describes four prefixes. (✔ True, R1 has four prefixes).

✅ C. The Intra-Area-Prefix-LSA generated by R2 describes four prefixes. (❌ False, R2 only has one prefix).

✅ D. The Intra-Area-Prefix-LSA generated by R1 describes three prefixes. (❌ False, R1 has four prefixes).

Final Conclusion:

✅ B. The Intra-Area-Prefix-LSA generated by R1 describes four prefixes.

Thus, the correct answer is: B. The Intra-Area-Prefix-LSA generated by R1 describes four prefixes.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding MPLS TTL Processing

TTL (Time to Live) is an IP field that prevents routing loops by decrementing at each hop.

In an MPLS network, the TTL field can be processed in two modes:

Uniform Mode (Default Mode)

Pipe Mode (TTL is preserved in the MPLS domain)

2. TTL Processing in Pipe Mode

Pipe mode is used to prevent the MPLS backbone from affecting the TTL of an IP packet.

When an IP packet enters the MPLS domain, the original TTL is copied into the MPLS header.

Inside the MPLS network:

MPLS labels use their own TTL values, and the IP TTL is not decremented.

Each P router (transit router) decrements only the MPLS TTL, not the IP TTL.

When the packet leaves the MPLS domain (at PE2):

The original IP TTL is restored but decremented by 1 as it exits to CE2.

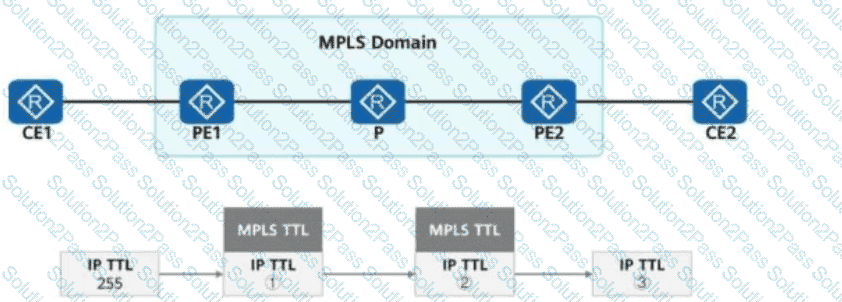

3. Analyzing the TTL Behavior in the Given Topology

Initial IP TTL from CE1 = 255

At PE1:

IP TTL remains 255 as it is copied into the MPLS label.

MPLS TTL starts at 255 (same as IP TTL).

At P Router:

MPLS TTL is decremented (255 → 254).

IP TTL remains unchanged (255) because of Pipe mode.

At PE2 (Egress Router):

IP TTL is restored and decremented by 1 (255 → 254).

Thus, the correct sequence is:

✅ IP TTL: 255 → 255 → 254

4. Evaluating the Answer Choices

Option

TTL Values

Correct?

Reasoning

A

255 → 254 → 252

❌ Incorrect

IP TTL should remain 255 inside MPLS

B

254 → 253 → 252

❌ Incorrect

IP TTL starts at 255, not 254

C

255 → 255 → 254

✅ Correct

IP TTL is preserved in pipe mode inside MPLS and decremented only at egress.

D

254 → 254 → 253

❌ Incorrect

Initial IP TTL should be 255, not 254

✅ Correct Answer: C. 255 → 255 → 254

Final Conclusion:

Pipe mode ensures that the MPLS domain does not affect the IP TTL while the packet is inside the MPLS network.

Only the egress PE (PE2) decrements the IP TTL before forwarding the packet to CE2.

Thus, the correct TTL sequence is 255 → 255 → 254.
