Click on the colored box that corresponds with the line that best represents Unicast traffic flow.

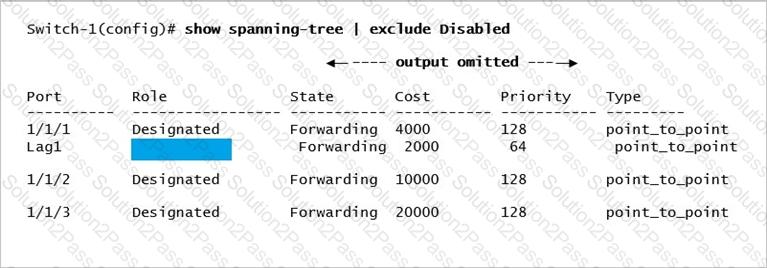

Refer to the exhibit.

Switch-1 is not the root bridge. The ports shown are all the connected pointtopoint interfaces. What Role (hidden by the blue rectangle) will be assigned to theLag 1interface?

A.

Alternate

B.

Backup

C.

Root

D.

Designated

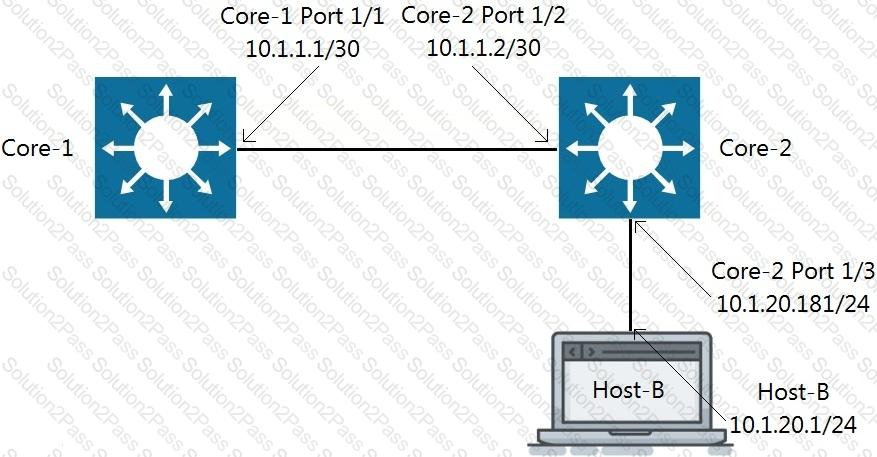

Refer to the exhibit.

Traffic is failing between Core-1 and Host-B. IP addressing has correctly been applied, and all interfaces are attached to the vrf GREEN.

Which configuration will correct the issue?

A.

Core-2(config)# ip route 0.0.0.0/0 10.1.1.1 vrf GREEN Host-B: assign the default-gateway address 10.1.20.181

B.

Core-1(config)# ip route 10.1.20.0/24 10.1.1.2 vrf GREEN Host-B: assign the default-gateway address 10.1.20.181

C.

Core-1(config)# ip route 10.1.20.0/24 10.1.1.2 vrf GREEN Host-B: assign the default-gateway address 10.1.20.1

D.

Host-B: assign the default-gateway address 10.1.20.181

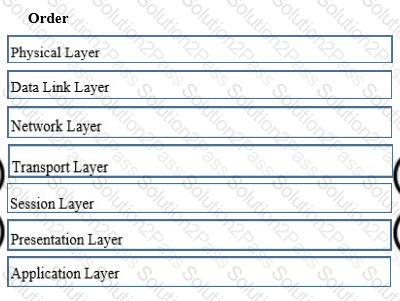

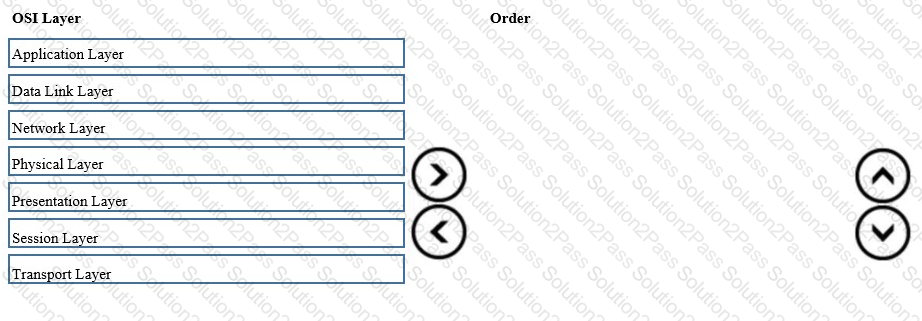

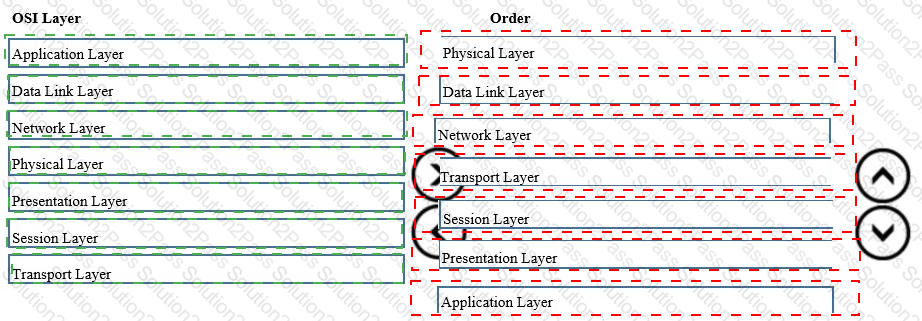

Place the OSI Layers in the correct order. Arrange them from least to greatest, starting with Layer 1 on the top, and progressing to Layer 7 on the bottom.

Which command will suppress LLDP messages from egressing on a given port while still allowing LLDP to be enabled on the switch?

A.

switch(config-if)# no lldp interface (port) transmit

B.

switch(config-if)# no lldp transmit

C.

switch(config-if)# no lldp receive

D.

switch(config)# no lldp

Which two options are considered Layer 2 protocols? (Select two.)

A.

STP

B.

802.11af

C.

RIP

D.

802.1Q

E.

IPSec

Which two statements are true regarding Checkpoints on Aruba switches? (Choose two.)

A.

Rolling back to a prior checkpoint triggers a reboot of the switch.

B.

Stacking switches using VSF or VSX will disable the Checkpoint feature.

C.

A checkpoint is a snapshot of the running-configuration and relevant metadata at the time the checkpoint was created.

D.

System-generated checkpoints are created after a configuration change and 5 minutes of inactivity.

E.

Checkpoints are available on AOS 5400R switches, as well as on all AOS-CX switches.

What are two mechanisms supported on AOS-CX 6300 switches used in Multi-active Detection to determine the status of the Primary member? (Choose two.)

A.

Management interface split detection

B.

Peer switch-based detection

C.

Loopback keepalives

D.

ARP-based

E.

BFD

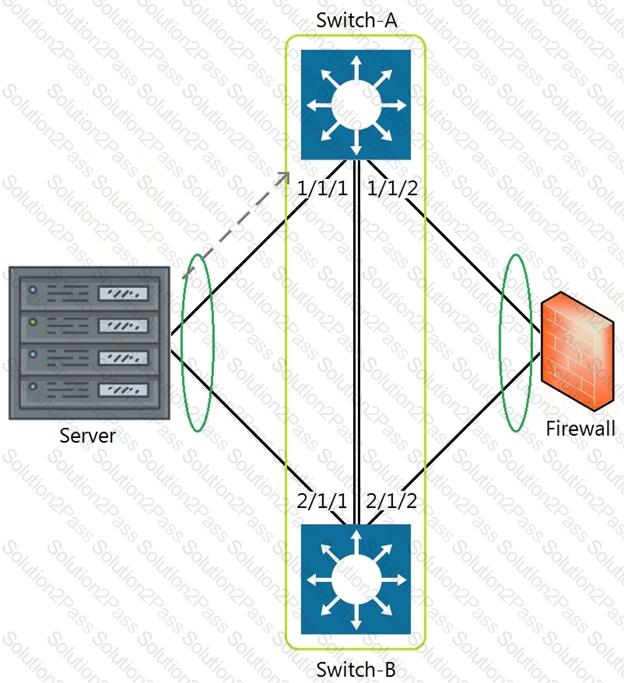

Refer to the exhibit.

The above scenario shows a packet from the Server destined for the Firewall. Switch-A and Switch-B are bundled as VSF stack. The LAG between the VSF stack and the firewall indicates a hash function to forward the packet on port 2/1/2.

Which statement is true regarding how Switch-A will forward the packet?

A.

Switch-A will forward the packet on port 1/1/2. VSF will override the typical LAG hash function used for the physical interface selection.

B.

Switch-A will drop the packet. Multi-Chassis lag to multi-chassis lag is not a supported feature of VSF.

C.

Switch-A will encapsulate the packet using GRE to forward to Switch-B in order for the packet to egress on port 2/1/2 per the hash function.

D.

Switch-A will forward the packet along the VSF link to Switch-B so that it will egress on port 2/1/2 per the hash function.

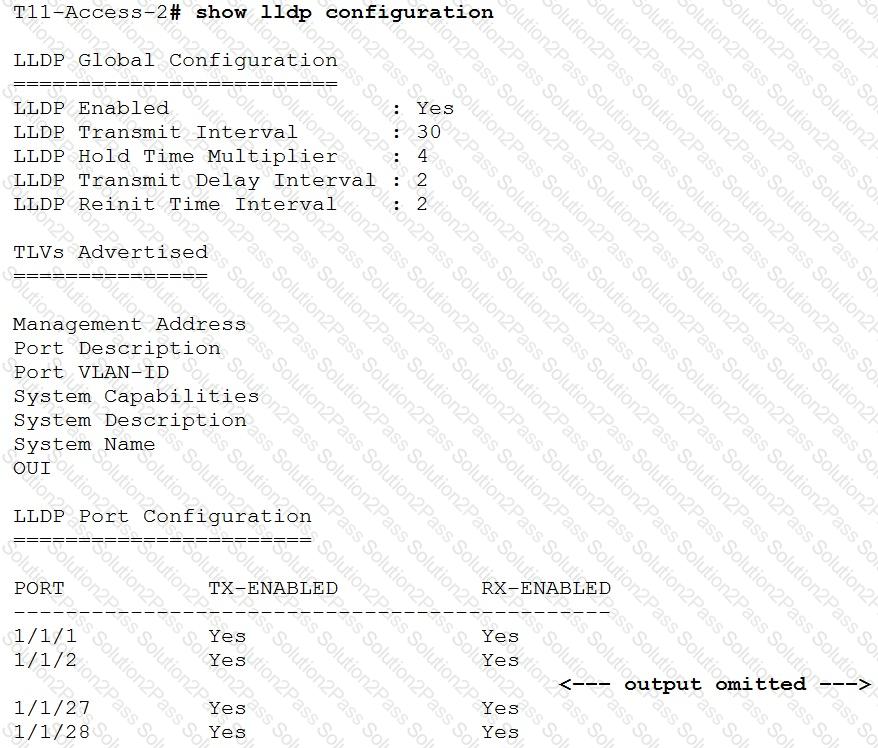

Refer to the exhibit.

What configuration is needed in order for "show LLDP configuration" to show this output?

A.

none; LLDP is enabled by default on Aruba switches

B.

configuring LLDP both globally and on the interfaces

C.

enabling LLDP on the interfaces only

D.

configuring LLDP globally only

What are two primary concerns regarding layer two loops in a redundant topology? (Choose two.)

A.

routing loops

B.

costs associated with upgrading from copper to fiber

C.

multiple frame copies leading to instability of the MAC address table

D.

security issues with a redundant loop indicating to hackers that a back-door exists

E.

broadcast storms
