HPE6-A85 HP Aruba Certified Campus Access Associate Exam Free Practice Exam Questions (2025 Updated)

In Aruba Central, during the creation of a device configuration group, users can define various types of groups to manage and apply configurations to devices centrally. Among the options, "Template group" and "Default group" are valid types. A "Template group" allows the definition of configuration settings in a template format, which can be applied to multiple devices or device groups, ensuring consistency and efficiency in configurations across the network. A "Default group" is typically a predefined group in Aruba Central that applies a basic or initial set of configurations to devices that are not assigned to any other specific group. This helps in initial provisioning and management of devices. The other options, such as "Security group," "UIgroup," and "ESP group," are not standard group types defined in Aruba Central for device configuration purposes.

The main characteristic of the 6 GHz band that is true among the given options is that in North America, the 6 GHz band offers more 80 MHz channels than there are 40 MHz channels in the 5 GHz band. This characteristic provides more spectrum availability, less interference, and higher throughput for wireless devices that support Wi-Fi 6E Wi-Fi Enhanced (Wi-Fi 6E) is an extension of Wi-Fi 6 (802.11ax) standard that operates in the newly available unlicensed frequency spectrum around 6 GHz in addition to existing bands below it. Some facts about this characteristic are:

In North America, there are up to seven non-overlapping channels available in each of three channel widths (20 MHz, 40 MHz, and 80 MHz) in the entireunlicensed portion of the new spectrum (5925–7125 MHz). This means there are up to 21 non-overlapping channels available for Wi-Fi devices in total.

In comparison, in North America, there are only nine non-overlapping channels available in each of two channel widths (20 MHz and 40 MHz) in the entire unlicensed portion of the existing spectrum below it (2400–2483 MHz and 5150–5825 MHz). This means there are only up to nine non-overlapping channels available for Wi-Fi devices in total.

Therefore, in North America, there are more than twice as many non-overlapping channels available in each channel width in the new spectrum than in the existing spectrum below it.

Specifically, there are more than twice as many non-overlapping channels available at 80 MHz width (seven) than at 40 MHz width (three) in the existing spectrum below it.

The other options are not true because:

Less RF signal is absorbed by objects in a 6 GHz WLAN: This option is false because higher frequency signals tend to be more absorbed by objects than lower frequency signals due to higher attenuation Attenuation is a general term that refers to any reduction in signal strength during transmission over distance or through an object or medium . Therefore, RF signals in a 6 GHz WLAN would be more absorbed by objects than RF signals in a lower frequency WLAN.

The 6 GHz band is fully backward compatible with existing bands: This option is false because Wi-Fi devices need to support Wi-Fi 6E standard to operate in the new spectrum around 6 GHz . Existing Wi-Fi devices that do not support Wi-Fi 6E standard cannot use this spectrum and can only operate in existing bands below it.

Low Power Devices are allowed for indoor and outdoor usage: This option is false because Low Power Indoor Devices (LPI) are only allowed for indoor usage under certain power limits and registration requirements . Outdoor usage of LPI devices is prohibited by regulatory authorities such as FCC Federal Communications Commission (FCC) is an independent agency of United States government that regulates communications by radio, television, wire, satellite, and cable across United States . However, outdoor usage of Very Low Power Devices (VLP) may be allowed under certain power limits and without registration requirements.

References: https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-6e https://www.wi-fi.org/file/wi-fi-alliance-spectrum-needs-study https://www.cisco.com/c/en/us/products/collateral/wireless/spectrum-expert-wi-fi/prod_white_paper0900aecd807395a9.html https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/82068-power-levels.html https://www.wi-fi.org/file/wi-fi-alliance-unlicensed-spectrum-in-the-us

WPA3-Personal enhances the security of wireless networks by using Simultaneous Authentication of Equals (SAE), which is a more secure replacement for the Pre-Shared Key (PSK) method used in WPA2. SAE strengthens the initial key exchange, providing better protection against offline dictionary attacks and ensuring that each session has a unique Pairwise Master Key (PMK), derived from the interaction between the client and the access point, including session-specific information like MAC addresses and nonces.

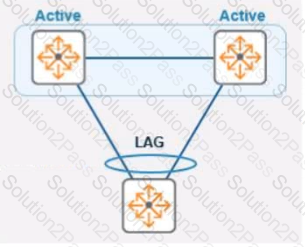

In a Virtual Switching Extension (VSX) stack, the Virtual IP (VIP) provides a single default gateway IP address for clients connected to the access switch. This VIP is a floating IP that is active on the primary VSX switch. In the event of a failure of the primary switch, the VIP will failover to the secondary switch, ensuring that client traffic can continue to be routed without disruption.

USE CASE: a) Controls the dynamic addition and removal of ports to groups Technology: 3) LACP

USE CASE: b) Tags Ethernet frames with an additional VLAN header Technology: 1) 802.1Q

USE CASE: c) Used to authenticate EAP-Capable client on a switch port Technology: 2) 802.1X

USE CASE: d) Used to identify a voice VLAN to an IP phone Technology: 4) LLDP

The following table summarizes the switching technologies and their use cases:

Technology

Use case

1) 802.1Q

802.1Q is a standard that defines how to create and manage virtual LANs (VLANs) on a network. VLANs allow network administrators to logically segment a network into different broadcast domains, improving security, performance, and manageability. 802.1Q tags Ethernet frames with an additional VLAN header that contains a VLAN identifier (VID), which indicates which VLAN the frame belongs to1.

2) 802.1X

802.1X is a standard that defines how to provide port-based network access control (PNAC) on a network. PNAC allows network administrators to authenticate and authorize devices before granting them access to network resources. 802.1X uses the Extensible Authentication Protocol (EAP) to exchange authentication messages between a supplicant (a device that wants to access the network), an authenticator (a device that controls access to the network, such as a switch), and an authentication server (a device that verifies the credentials of the supplicant, such as a RADIUS server)2.

3) LACP

LACP stands for Link Aggregation Control Protocol, which is part of the IEEE 802.3ad standard that defines how to bundle multiple physical links into a single logical link, also known as a link aggregation group (LAG) or an EtherChannel. LAGs provide increased bandwidth, load balancing, and redundancy for network connections. LACP controls the dynamic addition and removal of ports to groups, ensuring that only ports with compatible configurations can form a LAG3.

4) LLDP

LLDP stands for Link Layer Discovery Protocol, which is part of the IEEE 802.1AB standard that defines how to discover and advertise information about neighboring devices on a network. LLDP operates at Layer 2 of the OSI model and uses TLVs (type-length-value) to exchange information such as device name, port number, VLAN ID, capabilities, and power requirements. LLDP can be used to identify a voice VLAN to an IP phone by sending a TLV that contains the voice VLAN ID and priority.

References: 1 https://en.wikipedia.org/wiki/IEEE_802.1Q  2 https://en.wikipedia.org/wiki/IEEE_802.1X  3 https://en.wikipedia.org/wiki/Link_aggregation https://en.wikipedia.org/wiki/Link_Layer_Discovery_Protocol

The Address Resolution Protocol (ARP) is used to map layer-3 IP addresses to layer-2 MAC addresses. When a device on a network wants to communicate with another device, it uses ARP to find the MAC address that corresponds to the IP address it wishes to communicate with, allowing it to construct a frame for the local network.

The RADIUS message that you should look for to ensure a successful connection via 802.1X is Access-Accept. This message indicates that the RADIUS server has authenticated and authorized the supplicant (the device that wants to access the network) and has granted it access to the network resources. The Access-Accept message may also contain additional attributes such as VLAN ID, session timeout, or filter ID that specify how the authenticator (the device that controls access to the network, such as a switch) should treat the supplicant’s traffic.

The other options are not RADIUS messages because:

Authorized: This is not a RADIUS message, but a state that indicates that a port on an authenticator is allowed to pass traffic from a supplicant after successful authentication and authorization.

Success: This is not a RADIUS message, but a status that indicates that an EAP Extensible Authentication Protocol (EAP) is an authentication framework that provides support for multiple authentication methods, such as passwords, certificates, tokens, or biometrics. EAP is used in wireless networks and point-to-point connections to provide secure authentication between a supplicant (a device that wants to access the network) and an authentication server (a device that verifies the credentials of the supplicant). exchange has completed successfully between a supplicant and an authentication server.

Authenticated: This is not a RADIUS message, but a state that indicates that a port on an authenticator has received an EAP-Success message from an authentication server after successful authentication of a supplicant.

References: https://en.wikipedia.org/wiki/RADIUS#Access-Accept https://www.cisco.com/c/en/us/support/docs/security-vpn/remote-authentication-dial-user-service-radius/13838-10.html https://en.wikipedia.org/wiki/IEEE_802.1X#Port-based_network_access_control https://en.wikipedia.org/wiki/Extensible_Authentication_Protocol#EAP_exchange

To provide an LACP connection with the maximum available bandwidth, one should configure a link aggregation group (LAG) using all available ports that can be used for data transfer. Since the SFP56 portsare used for stacking, the next best option is to use the 2 SFP28 ports and as many SmartRate 5G (SR5) ports as possible on each switch, which would allow for a 16-member LAG, with 2 SFP28 and 6 SR5 ports on each switch contributing to the LAG.
