HPE6-A85 HP Aruba Certified Campus Access Associate Exam Free Practice Exam Questions (2025 Updated)

When a client roams from one access point to another, it must change the destination MAC address on its 802.11 frames to match the new access point to which it is associated. The SSID does not change since it is typically consistent across an entire WLAN, and the default gateway remains the same as long as the client stays within the same IP subnet. The association to a new access point involves updating the destination MAC address in the frames that the client sends.

The field in a Layer 3 IPv4 packet header that is used to mitigate Layer 3 route loops is Time To Live (TTL). TTL is an 8-bit field that indicates the maximum number of hops that a packet can traverse before being discarded. TTL is set by the source device and decremented by one by each router that forwards the packet. If TTL reaches zero, the packet is dropped and an ICMP Internet Control Message Protocol (ICMP) Internet Control Message Protocol (ICMP) is a network protocol that provides error reporting and diagnostic functions for IP networks. ICMP is used to send messages such as echo requests and replies (ping), destination unreachable, time exceeded, parameter problem, source quench, redirect, etc. ICMP messages are encapsulated in IP datagrams and have a specific format that contains fields such as type, code, checksum, identifier, sequence number, data, etc. ICMP messages can be verified by using commands such as ping , traceroute , debug ip icmp , etc . message is sent back to the source device. TTL is used to mitigate Layer 3 route loops because it prevents packets from circulating indefinitely in a looped network topology. TTL also helps to conserve network resources and avoid congestion caused by looped packets.

The other options are not fields in a Layer 3 IPv4 packet header because:

Checksum: Checksum is a 16-bit field that is used to verify the integrity of the IP header. Checksum is calculated by the source device and verified by the destination device based on the values of all fields in the IP header. Checksum does not mitigate Layer 3 route loops because it does not limit the number of hops that a packet can traverse.

Protocol: Protocol is an 8-bit field that indicates the type of payload carried by the IP datagram. Protocol identifies the upper-layer protocol that uses IP for datatransmission, such as TCP Transmission Control Protocol (TCP) Transmission Control Protocol (TCP) is a connection-oriented transport layer protocol that provides reliable, ordered, and error-checked delivery of data between applications on different devices . TCP uses a three-way handshake to establish a connection between two endpoints , and uses sequence numbers , acknowledgments , and windowing to ensure data delivery and flow control . TCP also uses mechanisms such as retransmission , congestion avoidance , and fast recovery to handle packet loss and congestion . TCP segments data into smaller units called segments , which are encapsulated in IP datagrams and have a specific format that contains fields such as source port , destination port , sequence number , acknowledgment number , header length , flags , window size , checksum , urgent pointer , options , data , etc . TCP segments can be verified by using commands such as telnet , ftp , ssh , debug ip tcp transactions , etc . , UDP User Datagram Protocol (UDP) User Datagram Protocol (UDP) is a connectionless transport layer protocol that provides

Only: Daisy chain plus MAD and ring are the recommended VSF topologies for Aruba switches. They provide high availability and redundancy for the VSF stack. MAD (Multiple Active Detection) is a mechanism to detect and resolve split-brain scenarios in a VSF stack.References:https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6790/GUID-D6EF042E-EEEF-49F7-B67E-4CAC41CCB24D.html

The weakness introduced into WLAN environment when WPA2-Personal is used for security is that PMK Pairwise Master Key (PMK) is a key that is derived from PSK Pre-shared Key (PSK) is a key that is shared between two parties before communication begins , which are both fixed. This means that all users who know PSK can generate PMK without any authentication process. This also means that if PSK or PMK are compromised by an attacker, they can be used to decrypt all traffic encrypted with PTK Pairwise Temporal Key (PTK) is a key that is derived from PMK, ANonce Authenticator Nonce (ANonce) is a random number generated by an authenticator (a device that controls access to network resources, such as an AP), SNonce Supplicant Nonce (SNonce) is a random number generated by supplicant (a device that wants to access network resources, such as an STA), AA Authenticator Address (AA) is MAC address of authenticator, SA Supplicant Address (SA) is MAC address of supplicant using Pseudo-Random Function (PRF). PTK consists of four subkeys: KCK Key Confirmation Key (KCK) is used for message integrity check, KEK Key Encryption Key (KEK) is used for encryption key distribution, TK Temporal Key (TK) is used for data encryption, MIC Message Integrity Code (MIC) key. .

The other options are not weaknesses because:

It uses X 509 certificates generated by a Certification Authority: This option is false because WPA2-Personal does not use X 509 certificates or Certification Authority for authentication. X 509 certificates and Certification Authority are used in WPA2-Enterprise mode, which uses 802.1X and EAP ExtensibleAuthentication Protocol (EAP) is an authentication framework that provides support for multiple authentication methods, such as passwords, certificates, tokens, or biometrics. EAP is used in wireless networks and point-to-point connections to provide secure authentication between a supplicant (a device that wants to access the network) and an authentication server (a device that verifies the credentials of the supplicant). for user authentication with a RADIUS server Remote Authentication Dial-In User Service (RADIUS) is a network protocol that provides centralized authentication, authorization, and accounting (AAA) management for users who connect and use a network service .

The Pairwise Temporal Key (PTK) is specific to each session: This option is false because PTK being specific to each session is not a weakness but a strength of WPA2-Personal. PTK being specific to each session means that it changes periodically during communication based on time or number of packets transmitted. This prevents replay attacks and increases security of data encryption.

It does not use the WPA 4-Way Handshake: This option is false because WPA2-Personal does use the WPA 4-Way Handshake for key negotiation. The WPA 4-Way Handshake is a process that allows the station and the access point to exchange ANonce and SNonce and derive PTK from PMK. The WPA 4-Way Handshake also allows the station and the access point to verify each other’s PMK and confirm the installation of PTK.

References: https://en.wikipedia.org/wiki/Wi-Fi_Protected_Access#WPA_key_hierarchy_and_management https://www.cwnp.com/wp-content/uploads/pdf/WPA2.pdf

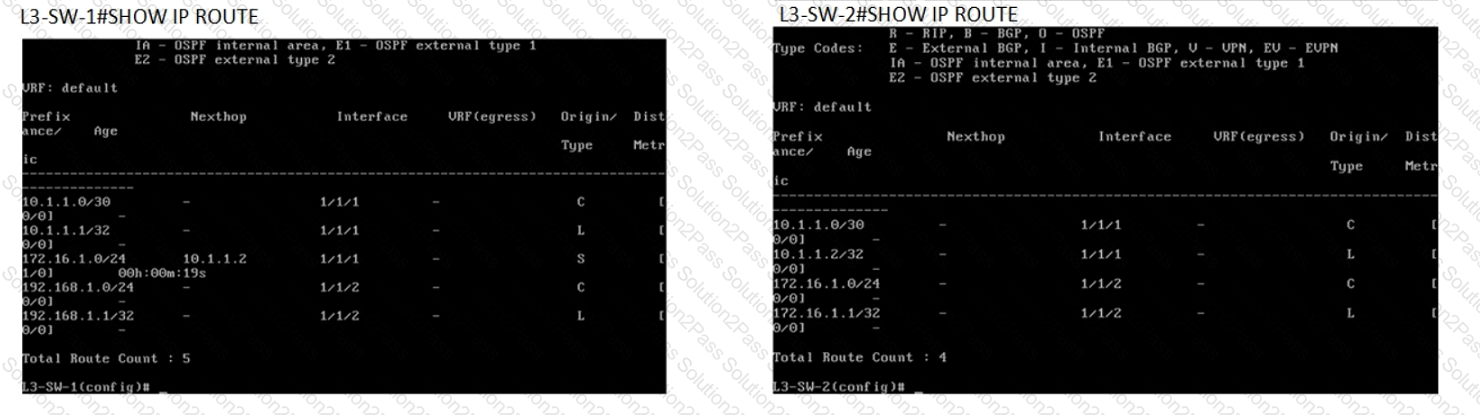

Using the provided topology and show command output, it can be determined that L3-SW-2 in the Branch Office does not have a route to reach the subnet where PC1 resides (192.168.1.0/24 in the HQ Office). L3-SW-1 in the HQ Office has a route to the Branch Office subnet (172.16.1.0/24), but without the reciprocal route on L3-SW-2, traffic from the Branch Office will not be able to reach the HQ Office subnet, hence PC1 cannot ping PC2.

The route "10.20.0.0/22, vrf default via 10.1.1.1, [110/200]" indicates that it is an OSPF route. This is evidenced by the administrative distance and metric "[110/200]" where 110 is the default administrative distance for OSPF routes.

A UXI (User Experience Insight) is a device that simulates user behavior and tests network performance from the user perspective. It can check different applications, such as HTTP, VOIP, or Office 365, and measure metrics such as latency, jitter, packet loss, and throughput.References:https://www.arubanetworks.com/products/networking/user-experience-insight/

A User Experience Insight (UXI) sensor, such as those used in Aruba networks, is designed to mimic client behavior and test the performance of various network services and applications from the user's perspective. It can simulate user activities and measure the quality of experience for different applications, including HTTP, VOIP, and cloud services like Office 365, providing valuable insights into network performance and user experience.

Profiling is a feature that allows Aruba switches to automatically identify and classify devices connected to them based on various attributes such as MAC address, DHCP options, LLDP information, etc. Profiling can be used to dynamically set the PoE priority on a switch port based on the device type and power requirements. For example, an IP camera may have a higher PoE priority than a printer or a PC. Profiling can also be used to apply other configuration settings such as VLANs, ACLs, QoS, etc. based on the device profile.References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/profiling.htm

When an Aruba AP is not receiving its configuration from Aruba Central, and other APs at the location are functioning normally, a common troubleshooting step is to disable and then re-enable the activation process on the AP. This action can trigger a provisioning refresh, prompting the AP to attempt to retrieve its configuration from Aruba Central again. This step is often effective in resolving communication or provisioning issues between the AP and the management platform.

ClientMatch is an Aruba patented technology that helps to move sticky clients—clients that stay connected to an AP even when there are better APs available—to a more appropriate AP. This technology ensures that clients are always connected to the best available AP, optimizing both the client's performance and the overall performance of the wireless network.

The advantage of Layer 2 MAC authentication is that it does not require any setup or configuration on the client device. The network devices (like switches or access points) perform the authentication automatically based on the MAC address of the device when it tries to connect to the network.

Strict queuing is the best scheduling technology for ensuring that voice traffic, which is sensitive to latency, is prioritized above other types of traffic. This method ensures that voice traffic is sent first before other queued traffic, effectively reducing the possibility of delay.

Aruba ClientMatch is a technology that continuously monitors client behavior and automatically adjusts client connections to optimize Wi-Fi performance. This includes steering clients to the least congested access point and the best radio on the WLAN, which effectively provides load balancing across different radio bands and AP radios.

 EAP-TLS is an authentication method that requires client certificates when authenticating to the network. It provides mutual authentication between the client and the server using public key cryptography and digital certificates. References:https://www.arubanetworks.com/techdocs/ClearPass/6.9/Guest/Content/CPPM_UserGuide/EAP-TLS/EAP-TLS.htm

EAP-TLS (Extensible Authentication Protocol-Transport Layer Security) is an EAP method that requires both server-side and client-side certificates for authentication. It is considered one of the most secure EAP methods because it uses a mutual authentication process where both the user and the authentication server must prove their identities to each other through the use of certificates. Implementing user and device certificates via a Group Based Policy (GPO) aligns well with EAP-TLS requirements for client-side certificates.

In the context of the OSI model, the network layer is responsible for packet forwarding including routing through intermediate routers. Hence, the network layer PDU is known as a packet.

A frame is the data link layer PDU that encapsulates the network layer PDU (packet) with a header and a trailer that contain information such as source and destination MAC addresses, frame type, error detection, etc. A frame is transmitted over a physical medium such as Ethernet, Wi-Fi, etc.References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/networking-basics.htm

When generating a Multiple Pre-Shared Key (MPSK) for headless devices using the ClearPass self-service registration page, the MAC address of the device is required. MPSK associates a unique PSK with the MAC address of a device, providing a way to authenticate devices that may not have a user interface.

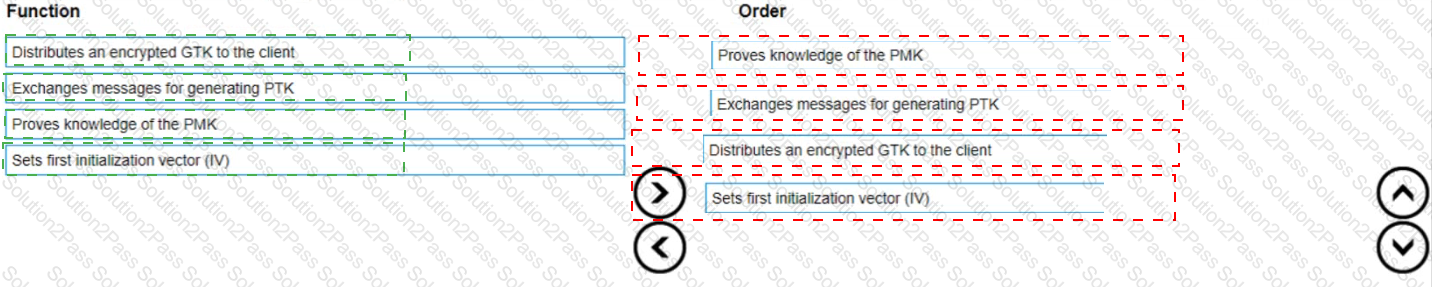

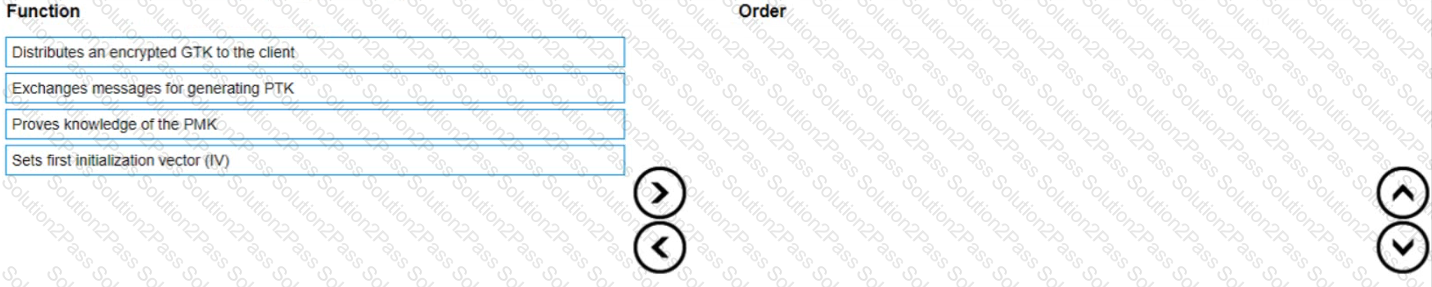

Proves knowledge of the PMK

Exchanges messages for generating PTK

Distributes an encrypted GTK to the client

Sets first initialization vector (IV)

dBm is a unit of power that measures the ratio of a given power level to 1 mW. The formula to convert dBm to mW is: P(mW) = 1mW * 10^(P(dBm)/10). Therefore, -20 dBm corresponds to 0.01 mW, as follows: P(mW) = 1mW * 10^(-20/10) = 0.01 mW References:https://www.rapidtables.com/convert/power/dBm_to_mW.html

The dBm is a logarithmic unit of power relative to 1 milliwatt (mW). -20 dBm means that the signal strength is 20 decibels lower than 1 mW. In terms of mW, this is 0.01 mW. Each 10 dB decrease represents a tenfold decrease in power. Therefore, -20 dBm is10−210−2or 0.01 mW.
