HPE7-A02 HP Aruba Certified Network Security Professional Exam Free Practice Exam Questions (2026 Updated)

To set up HPE Aruba Networking ClearPass Policy Manager (CPPM) to enforce certificate-based authentication for clients using Tunneled EAP (TEAP), you need to select an EAP-TLS-type authentication method for TEAP ' s inner method. TEAP allows for a combination of certificate-based (EAP-TLS) and password-based (EAP-MSCHAPv2) authentication. By choosing EAP-TLS as the inner method, you ensure that the clients are authenticated using their certificates, thus enforcing certificate-based authentication within the TEAP framework.

1. IDPS Mode Configuration Overview

The exhibit shows the HPE Aruba Networking Central settings for the Gateway IDS/IPS configuration:

Mode: Configured for Intrusion Prevention System (IPS), meaning that the gateway actively blocks traffic identified as threats.

Fail Strategy: Configured to Block, meaning that if the gateway cannot determine the traffic ' s nature due to a system issue, it will block the traffic.

Ruleset: The gateway uses a predefined set of intrusion detection/prevention rules (ruleset version 9861), which is updated automatically every day.

2. Traffic Evaluation in IPS Mode

In IPS mode, the gateway analyzes traffic against the active ruleset:

If traffic matches a rule in the ruleset and is deemed malicious, the gateway will drop the traffic as part of its prevention mechanism.

The ruleset defines specific conditions (e.g., signatures of known attacks, protocol anomalies) under which traffic should be blocked.

3. Explanation of Each Option

A. Its site-to-site VPN connections failing:

Incorrect:

Site-to-site VPN connection issues do not directly trigger traffic drops under IDPS settings.

IDPS is focused on detecting and preventing malicious activity, not general connectivity issues.

B. Traffic matching a rule in the active ruleset:

Correct:

In IPS mode, the gateway drops traffic that matches any predefined rules in the active ruleset.

For example, if traffic matches the signature of a known exploit or attack, it is immediately blocked.

C. Its IDPS engine failing:

Incorrect:

The fail strategy determines how the gateway behaves in the event of an IDPS engine failure.

In this case, the fail strategy is set to Block, but this applies only if the engine itself fails, not as a proactive traffic drop mechanism.

D. Traffic showing anomalous behavior:

Incorrect:

While anomalous behavior may be logged or flagged, it does not necessarily lead to traffic drops unless it matches a specific rule in the active ruleset.

Anomaly detection alone is not sufficient for IPS action without explicit rule matches.

Final Outcome:

Traffic is dropped only when it matches a rule in the active ruleset, ensuring targeted prevention of malicious activity.

References

Aruba Gateway IDS/IPS Configuration Guide.

Aruba Central Ruleset Management Documentation.

Best Practices for Configuring Fail Strategies in IPS Mode.

802.1X Authentication Workflow: Requires the root CA certificate of the issuing authority for the supplicants’ certificates. This ensures that the server can validate the client certificate during the EAP-TLS handshake.

Trusted CA Usage: In ClearPass, certificates with " Trusted CA " usage are used for validating client and server identities during secure authentication exchanges.

Option A: Incorrect. The " ClearPass Server certificate " is used for server-side identity verification and is not used to validate client certificates.

Option B: Incorrect. Database usage is unrelated to RADIUS/EAP or certificate validation.

Option C: Incorrect. While LDAP/AD integration supports certificate validation, this is not the primary purpose of Trusted CAs for 802.1X.

Option D: Correct. Trusted CAs for EAP are required to validate client certificates during the authentication process.

By uploading the root CA as a " Trusted CA with EAP usage, " the CPPM can properly authenticate the certificates presented by the supplicants during EAP-TLS negotiations.

Comprehensive Detailed Explanation

The configuration includes the command aaa authentication allow-fail-through, which specifies that if the TACACS+ server fails to respond (e.g., times out), the switch will proceed to the next authentication method in the sequence, which is local. In this scenario:

The switch first attempts to authenticate the user against the TACACS+ server.

When the TACACS+ server fails to respond, the switch falls back to local authentication.

The user netadmin is a local account configured on the switch and belongs to the operators group.

As a result, the user is successfully authenticated locally and is granted operator level access.

References

Aruba AOS-CX User Guide: Authentication fallback mechanisms.

TACACS+ fallback behavior for HPE Aruba switches.

For a ClearPass RADIUS/EAP server certificate, the certificate identity should clearly represent the ClearPass server or service name that supplicants validate during 802.1X authentication. A fully qualified domain name in the subject common name, without a wildcard, is the safest guideline because it provides a specific and predictable server identity. Wildcard identities are not preferred for EAP server identity validation because they weaken specificity and can create trust ambiguity. A private CA is acceptable in enterprise 802.1X if clients trust its root certificate. RSA versus EC is a compatibility and policy decision, not simply a way to obtain shorter keys. A SAN may include DNS names, but requiring an IP address is not the best general guideline.

===============

Internet Key Exchange (IKE)/IKEv2 plays a crucial role in an HPE Aruba Networking client-to-site VPN by helping to negotiate the IPsec Security Association (SA) automatically and securely. IKE/IKEv2 handles the authentication and key exchange processes, ensuring that both the client and the VPN gateway can establish a secure IPsec tunnel.

1.SA Negotiation: IKE/IKEv2 automates the negotiation of the Security Association, which defines the parameters for the secure IPsec tunnel.

2.Secure Authentication: It provides a secure method for authenticating the communicating parties and exchanging cryptographic keys.

3.Efficiency: Using IKE/IKEv2 simplifies the setup and maintenance of secure VPN connections, enhancing the overall security and reliability of the VPN.

The existing policy permits DHCP and DNS through class1, then drops traffic matching class2, which is traffic destined for 10.0.0.0/8. However, the requirement also says all other traffic must be permitted. To make that policy complete, a final catch-all permit class must be added after the deny rule. A class that matches “any any any” and is referenced at the end of policy1 permits all traffic that did not match the earlier DHCP/DNS or 10.0.0.0/8 rules. Changing class2 to ignore would remove the intended deny behavior. Reversing source and destination would not meet the stated destination-based requirement. Adding action permit to class1 only affects DHCP and DNS, not all other traffic.

===============

To configure access control policies for applications and resources that remote clients can access when connected to the VPN, you should configure these policies in the roles to which VIA clients are assigned after IKE (Internet Key Exchange) authentication on the VPNC. These roles define the permissions and access controls for the clients once they are authenticated, ensuring that they can only access the applications and resources allowed by their assigned roles.

1.IKE Authentication: After IKE authentication, clients are assigned specific roles that determine their access privileges.

2.Role-Based Access Control: By configuring access control policies within these roles, you can granularly control what resources and applications the remote clients can access over the VPN.

3.Security: This method ensures that access is managed securely and dynamically based on the role assigned to each client after successful authentication.

RADIUS Accounting:

RADIUS accounting enables network devices to report client session details (e.g., IP addresses, session duration, bandwidth usage) to CPPM.

Interim updates ensure CPPM receives ongoing updates about the client’s session, enabling accurate tracking.

Option Analysis:

Option A: Incorrect. Syslog logging sends general system logs, not client session details.

Option B: Incorrect. Dynamic authorization (CoA) handles session changes but does not provide usage tracking.

Option C: Correct. RADIUS accounting with interim updates tracks client IP addresses and bandwidth utilization.

Option D: Incorrect. IF-MAP interfaces are used for metadata sharing, not for RADIUS-based tracking.

The use case for the HPE Aruba Networking ClearPass OnGuard dissolvable agent is implementing a one-time compliance scan. The dissolvable agent is designed to perform a compliance check without requiring a permanent installation on the client device. This is ideal for environments where a quick, temporary assessment of the device ' s security posture is needed without the overhead of a persistent agent.

1.Dissolvable Agent: The dissolvable agent is downloaded and executed on the client device for a single session, performing the necessary compliance checks before being removed automatically.

2.One-time Compliance Scan: This method is particularly useful for guest or unmanaged devices where a temporary compliance scan is sufficient to ensure security standards are met.

3.Minimal Impact: Since the agent does not persist on the client device, it minimizes the impact on the user ' s system and does not require ongoing maintenance or updates.

The " Detect Valid SSID Misuse " event in Aruba ' s Wireless Intrusion Detection System (WIDS) indicates that a valid SSID, associated with your network, is being broadcast from an unauthorized source. This scenario often signals a potential rogue access point attempting to deceive clients into connecting to it (e.g., for credential harvesting or man-in-the-middle attacks).

1. Explanation of Each Option

A. Clients are failing to authenticate to corporate SSIDs. You should first check for misconfigured authentication settings and then investigate a possible threat:

Incorrect:

This event is not related to authentication failures by legitimate clients.

Misconfigured authentication settings would lead to events like " authentication failures " or " radius issues, " not " valid SSID misuse. "

B. Admins have likely misconfigured SSID security settings on some of the company ' s APs. You should have them check those settings:

Incorrect:

This event refers to an external device broadcasting your SSID, not misconfiguration on the company’s authorized APs.

WIDS differentiates between valid corporate APs and rogue APs.

C. Hackers are likely trying to pose as authorized APs. You should use the detecting radio information and immediately track down the device that triggered the event:

Correct:

This is the most likely cause of the " detect valid SSID misuse " event. A rogue AP broadcasting a corporate SSID could lure clients into connecting to it, exposing sensitive credentials or traffic.

Immediate action includes:

Using the radio information from the event logs to identify the rogue AP ' s location.

Physically locating and removing the rogue device.

Strengthening WIPS/WIDS policies to prevent further misuse.

D. This event might be a threat but is almost always a false positive. You should wait to see the event over several days before following up on it:

Incorrect:

While false positives are possible, " valid SSID misuse " is a critical security event that should not be ignored.

Delaying action increases the risk of successful attacks against your network.

2. Recommended Steps to Address the Event

Review Event Logs:

Gather details about the rogue AP, such as SSID, MAC address, channel, and signal strength.

Locate the Rogue Device:

Use the detecting AP ' s radio information and signal strength to triangulate the rogue AP ' s physical location.

Respond to the Threat:

Remove or disable the rogue device.

Notify the security team for further investigation.

Prevent Future Misuse:

Strengthen security policies, such as enabling client whitelists or enhancing WIPS protection.

References

Aruba WIDS/WIPS Configuration and Best Practices Guide.

Aruba Central Security Event Analysis Documentation.

Wireless Threat Management Using Aruba Networks.

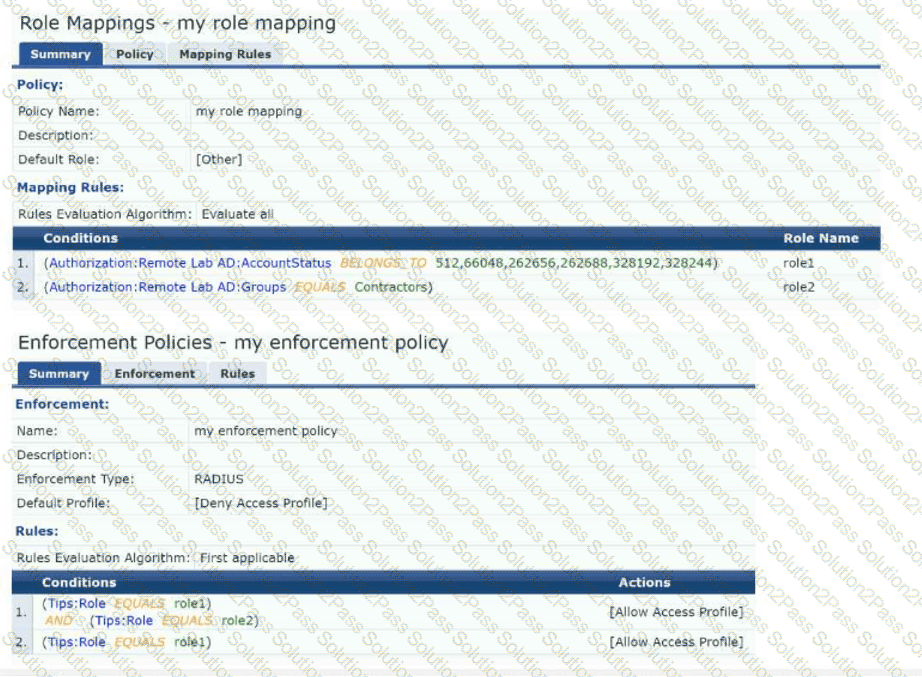

The role mapping policy is configured to Evaluate all , so a client with an enabled AD account receives role1 , and a client in the Contractors group receives role2 . A client that meets both requirements receives both roles. The enforcement policy uses First applicable , and rule 1 already checks for both conditions: Tips:Role EQUALS role1 AND Tips:Role EQUALS role2 . Therefore, the matching logic is already correct. What is missing is the correct enforcement action. To assign an AOS firewall role, CPPM must return the appropriate RADIUS enforcement profile containing the Aruba-User-Role VSA set to contractors-fullaccess . Changing only role mapping names does not assign the firewall role. Adding a separate role2-only rule would incorrectly match Contractors users whose AD account status is not enabled.

802.1X Authentication Modes:

Client Auth-Mode: Requires each connected endpoint to authenticate individually using 802.1X.

Device Auth-Mode: Allows the port to authenticate a device, such as an AP, as a whole. This mode works when the device bridges traffic (e.g., AP bridging SSID traffic).

AP Role Configuration:

Since the AP bridges traffic from multiple clients, you must configure the AP role to use device auth-mode.

Meanwhile, the ports on edge switches can remain in client auth-mode to enforce 802.1X for individual client connections.

Option Analysis:

Option A: Correct. This ensures the AP itself authenticates with device auth-mode, while edge ports remain in client auth-mode.

Option B: Incorrect. APs require device auth-mode for bridging, not client auth-mode.

Option C: Incorrect. Device auth-mode on all ports would not meet the security policy for clients.

Option D: Incorrect. Leaving all ports in device auth-mode does not meet the policy for 802.1X on edge ports.

To tunnel VoIP phone traffic from AOS-CX switches to an HPE Aruba Networking gateway, you need to configure a User-Based Tunneling (UBT) reserved VLAN on the switches. This VLAN is dedicated for tunneling purposes and ensures that the VoIP traffic is correctly identified and tunneled to the gateway where security policies can be applied.

1.UBT Configuration: Setting a UBT reserved VLAN ensures that the switch knows which VLAN to use for tunneling traffic to the gateway.

2.Traffic Tunneling: The reserved VLAN helps in segregating the VoIP traffic, ensuring it is handled securely and according to the configured policies at the gateway.

3.Policy Application: By tunneling the traffic, the gateway can apply advanced security policies to the VoIP traffic.

Installing Agents for SSE (Secure Service Edge):

Agents installed on remote users ' devices allow posture checks (e.g., antivirus status, OS version) to ensure compliance.

Based on the results of the posture checks, different permissions and security policies can be applied dynamically.

This improves the security posture of remote users before granting access to resources.

Option A: Correct. Agents enable posture checks and enforce conditional access based on compliance.

Option B: Incorrect. Admins manage SSE policies centrally, not via agents.

Option C: Incorrect. Access to private servers via SSH does not require agents; it relies on policies and tunnels.

Option D: Incorrect. Local sandboxing is generally a function of endpoint protection solutions, not SSE agents.

Rogue AP Containment Methods:

HPE Aruba Networking recommends using wireless deauthentication as the preferred method for rogue AP containment.

Deauthentication sends deauth frames to clients connected to rogue APs, causing them to disconnect. This method is effective without introducing unnecessary disruptions to the wired infrastructure.

Key Points:

Wireless Deauthentication is simple, efficient, and widely supported across client devices.

Tarpit Containment is more aggressive and may cause unintentional disruptions to legitimate clients.

Wired Containment involves blocking traffic at the switch level but is complex and may impact legitimate infrastructure traffic.

Option Analysis:

Option A: Correct. Wireless deauthentication is the recommended method as it targets rogue AP clients without excessive network impact.

Option B: Incorrect. Combining wireless tarpit and wired containment is overkill and not typically recommended.

Option C: Incorrect. Wireless tarpit can be effective but is generally not the first choice due to its aggressive nature.

Option D: Incorrect. Wired containment is more complex and reserved for specific use cases, not general recommendations.

When Wireless IDS/IPS infrastructure detection reports RTS (Request to Send) and CTS (Clear to Send) rate anomalies triggered by neighboring APs, it is often an indication of unusual, but not necessarily malicious, behavior. These anomalies can be caused by neighboring APs operating normally but under specific conditions that trigger the alerts. Before assuming a security threat, it is recommended to tune the event thresholds to better match the environment and reduce false positives. This approach helps to distinguish between normal operations and potential DoS attacks.

To support 802.1X authentication and download user roles from HPE Aruba Networking ClearPass Policy Manager (CPPM) on AOS-CX switches, you must install the root CA certificate for CPPM ' s RADIUS certificate in a Trust Anchor (TA) profile on the switches. This ensures that the switches trust the RADIUS server certificate presented by CPPM during the authentication process.

1.Root CA Certificate: Installing the root CA certificate ensures that the switch can verify the authenticity of the RADIUS server certificate provided by CPPM.

2.Trust Anchor Profile: The TA profile on the switch holds the root CA certificate, establishing a trust relationship between the switch and the CPPM RADIUS server.

3.Secure Authentication: This setup is essential for securing the 802.1X authentication process and enabling the download of user roles.

RAPIDS Ad-Hoc Detection:

The alert " Detect ad-hoc using Valid SSID " indicates that a device is broadcasting an SSID that matches a valid network SSID in ad-hoc mode. This can be an indication of an infrastructure attack or misconfiguration.

Next Steps:

Use Aruba Central floorplans or AP location data to identify the physical area where the offending device is detected.

Locate and investigate the device to determine if it is malicious or simply misconfigured.

Option Analysis:

Option A: Incorrect. While tuning thresholds is useful for reducing false positives, this step does not directly address a potential threat.

Option B: Incorrect. Faulty drivers can cause similar behavior, but this step is not immediately actionable without locating the device first.

Option C: Correct. Floorplans or AP identities help locate the threat ' s physical area for further investigation.

Option D: Incorrect. RAPIDS focuses on detecting devices via SSID and MAC, not IP addresses, making this approach less relevant.
