HP HPE6-A84 Practice Test Questions Answers

According to the AOS-CX User Guide, one way to configure the VLAN setting for the reception role is to assign a consistent name to VLAN 14, 24, or 34 on each access layer switch and reference that name in the enforcement profile VLAN settings. This way, the switches can download the role settings from CPPM and apply the correct VLAN based on the name, rather than the ID. For example, the enforcement profile VLAN settings could be:

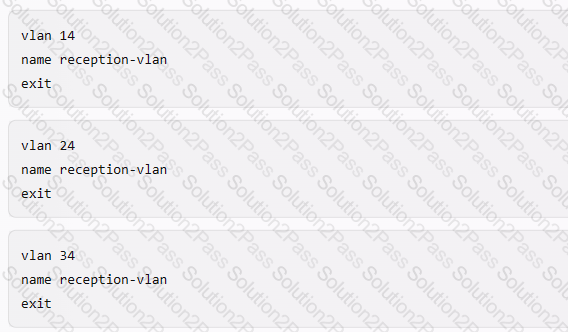

And the VLAN configuration on each switch could be:

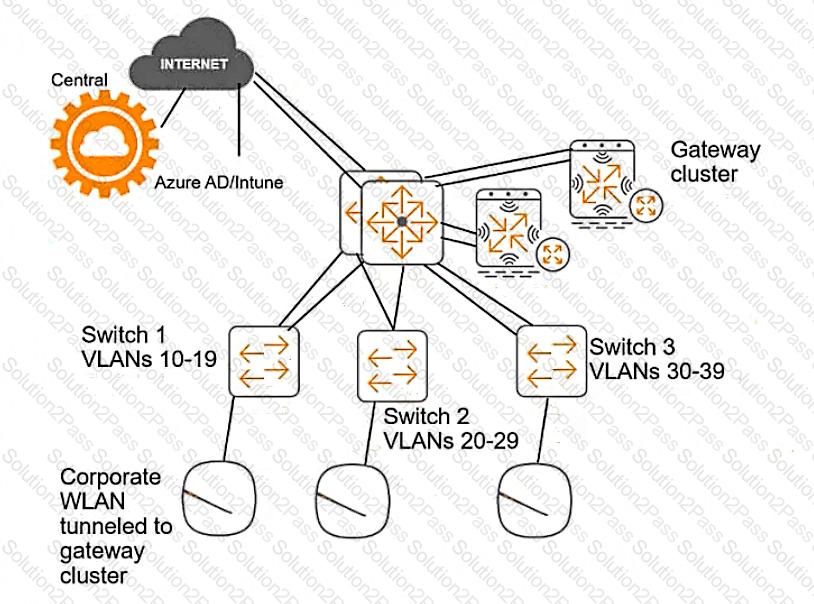

The UBT solution requires that the edge ports on the switches are configured in VLAN trunk mode, not access mode. This is because the UBT solution uses a special VLAN (VLAN 4095 by default) to encapsulate the user traffic and tunnel it to the gateway. The edge ports need to allow this VLAN as well as any other VLANs that are used for management or control traffic. Therefore, the edge ports should be configured as VLAN trunk ports and allow the necessary VLANs1

BPDU (Bridge Protocol Data Unit) is a message that is exchanged between switches to maintain the spanning tree topology and prevent loops. BPDU protection and BPDU filtering are two features that can be configured on AOS-CX switch ports to enhance security and performance.

BPDU protection is a feature that disables a port if it receives a BPDU, indicating that an unauthorized switch or device has been connected to the port. BPDU protection is typically used on edge ports, which are ports that connect to end devices such as PCs or printers, and are not expected to receive BPDUs. BPDU protection prevents rogue devices from connecting to the network and affecting the spanning tree topology.

BPDU filtering is a feature that prevents a port from sending or receiving BPDUs, effectively isolating the port from the spanning tree topology. BPDU filtering is typically used on inter-switch ports, which are ports that connect to other switches, for specialized use cases such as creating a separate spanning tree domain or reducing the overhead of BPDUs. BPDU filtering should be used with caution, as it can create loops or inconsistencies in the network.

You can find more information about how to configure BPDU protection and BPDU filtering on AOS-CX switch ports in the [Configuring Spanning Tree Protocol - Aruba] page and the [AOS-CX Switching Configuration Guide] page. The other options are not correct because they either use BPDU protection or BPDU filtering on the wrong type of ports or for the wrong purpose. For example, using BPDU protection on inter-switch ports would disable the ports if they receive BPDUs, which are expected in normal operation. Using BPDU filtering on edge ports would allow rogue devices to connect to the network and create loops or affect the spanning tree topology.

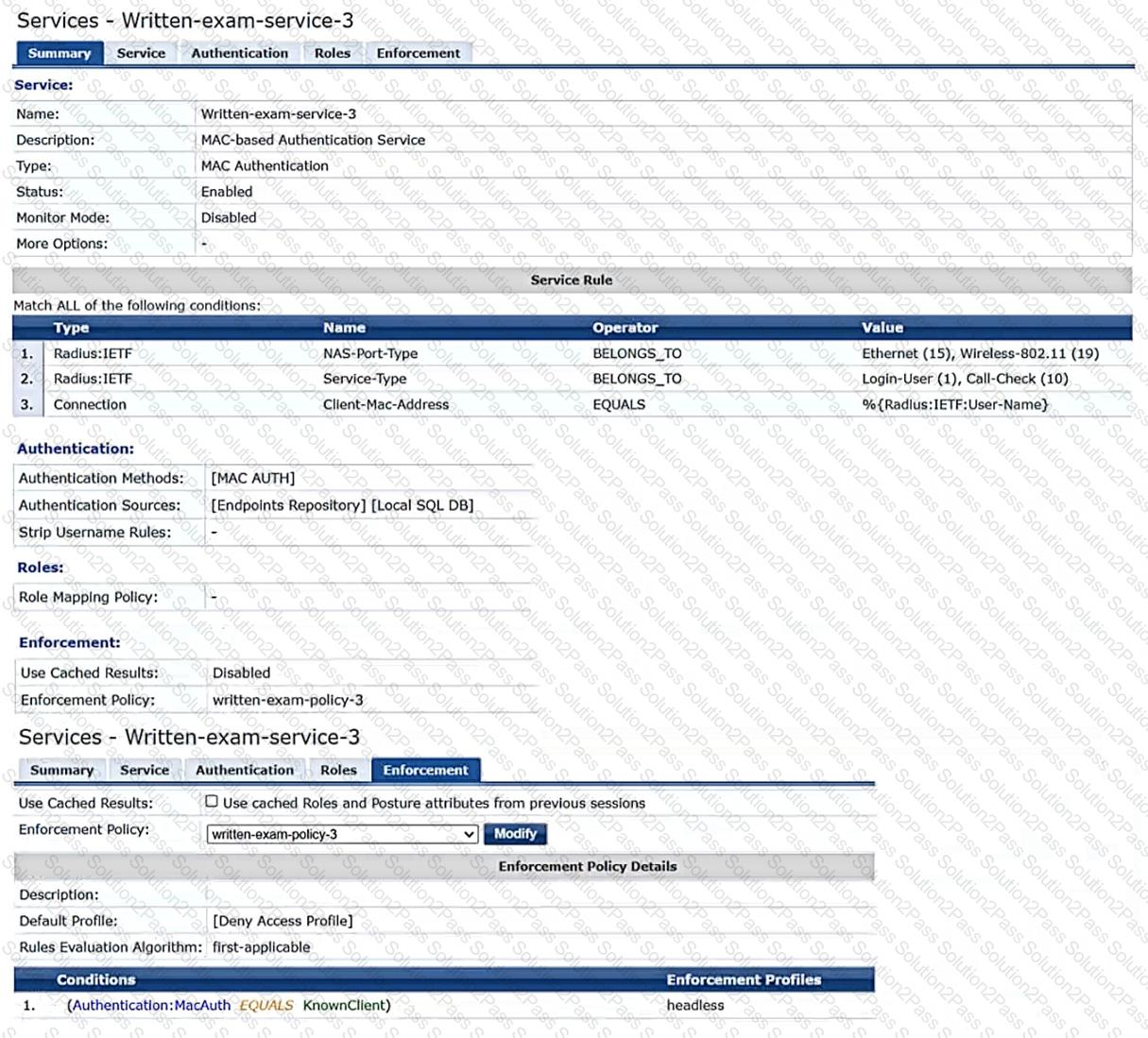

MAC Authentication Bypass (MAB) is a technique that allows non-802.1X-capable devices to bypass the 802.1X authentication process and gain network access based on their MAC addresses. However, MAB has some security drawbacks, such as the possibility of MAC address spoofing or unauthorized devices being added to the network. Therefore, it is recommended to use a custom MAC-Auth authentication method that adds an additional layer of security to MAB.

A custom MAC-Auth authentication method is a method that uses a combination of the MAC address and another attribute, such as a username, password, or certificate, to authenticate the device. This way, the device needs to provide both the MAC address and the additional attribute to gain access, making it harder for an attacker to spoof or impersonate the device. A custom MAC-Auth authentication method can be created and configured in ClearPass Policy Manager (CPPM) by following the steps in the Customizing MAC Authentication - Aruba page.

According to the Aruba Cloud Authentication and Policy Overview1, Device Insight tags are stored in the Endpoint Repository and can be used as conditions within CPPM role mapping or enforcement policy rules. The rule condition type should be Endpoint, and the attribute should be Device Insight Tags. No extra authorization source is required for services that use policies with these rules. Therefore, option D is the correct answer.

Option A is incorrect because creating an HTTP authentication source to the Central API is not necessary to use Device Insight tags as conditions. Device Insight tags are already synchronized between Central and CPPM, and can be accessed from the Endpoint Repository.

Option B is incorrect because using the Application type for the rule conditions is not applicable to Device Insight tags. The Application type is used to match attributes from the Application Authentication source, which is used to integrate with third-party applications such as Microsoft Intune or Google G Suite.

Option C is incorrect because using the Endpoints Repository type for the rule conditions is not valid for Device Insight tags. The Endpoints Repository type is used to match attributes from the Endpoints Repository source, which is different from the Endpoint type. The Endpoints Repository source contains information about endpoints that are manually added or imported into CPPM, while the Endpoint type contains information about endpoints that are dynamically discovered and profiled by CPPM or Device Insight. Adding Endpoints Repository as a secondary authentication source for services that use policies with these rules is also unnecessary and redundant.
