Detailed Explanation:

Option A is valid; the destination is defined in CIDR format (129.1.0.0/16) with a specified outgoing interface.

Option B is valid; it uses a subnet mask format and specifies a next-hop IP.

Option D is also valid with the destination and mask defined and a next-hop IP.

Option C is incorrect; the syntax reverses the destination and next-hop values.

(Reference: HCIA-Datacom Training Material, Static Routing Configuration)

A broadcast address, with all host bits set to 1, is used for broadcasting messages to all devices within a network segment. It cannot be assigned to a specific host, as its purpose is to reach every device in the subnet. Therefore, it is reserved for broadcast communication and cannot serve as an individual host address​.

Network Communication Types:

A: Downloading emails is an example of client-server communication.

B: Accessing a website involves HTTP/HTTPS communication.

C: Chatting via instant messaging involves real-time data exchange using protocols like XMPP or WebSockets.

D: Watching online videos involves streaming protocols like HTTP Live Streaming (HLS).

Conclusion:

All options represent common types of network communication between devices.

In Huawei devices, advanced ACLs use a number range from 3000 to 3999. These ACLs allow more granular control over traffic by permitting conditions based on source and destination IP addresses, protocol types, and ports, making them suitable for complex filtering requirements​.

Dynamic Routing Protocol Purpose:A dynamic routing protocol ' s primary function is to dynamically generate and maintain routing tables by learning and sharing routing information between routers in real time. This ensures efficient path selection and adaptation to network changes​​.

Analysis of Options:

Option A: " Generate an IP address " is unrelated to routing protocols; IP address assignment is handled by DHCP or manual configuration.

Option B: " Manage routers " is inaccurate, as dynamic routing protocols do not manage router hardware or administrative tasks.

Option C: " Generate a routing table " is correct because routing protocols dynamically compute and update routing tables based on network topology changes.

Option D: " Control the status of router interfaces " refers to interface management, which is not a function of dynamic routing protocols.

Correct Answer:The main function of a dynamic routing protocol is C (Generate a routing table).

To enable an FTP server on a Huawei router, the following commands are required:

Create the FTP user and set the allowed service:

local-user huawei service-type ftp

Set the FTP user ' s password:

local-user huawei password cipher huawei

Specify the root directory for FTP access:

local-user huawei ftp-directory flash:/dhcp/

Enable the FTP server function:

ftp server enable

Since all four commands are required, the correct answers are A, B, C, and D.

In OSPF, a router in the backbone area (Area 0) has a full LSDB (Link-State Database) for all routers within the OSPF domain. This comprehensive LSDB allows the backbone area to communicate effectively with other areas by providing routing information about all connected OSPF routers, facilitating inter-area routing​.

Detailed Explanation:Local Area Networks (LANs) cover a small geographic area, such as a home or office. They typically connect computers and devices within a limited area, such as a single building. In this case, both a home network and an office network of a company qualify as LANs. On the other hand, a Metropolitan Area Network (MAN) covers a city-wide area, and the Internet is a global network, so these are not LANs .

To form an EUI-64 address, the MAC address is split and FFFE is inserted in the middle, making the EUI-64 format 00E0-FCEF-FFFE-0FEC. Additionally, the 7th bit of the first byte is flipped to form the Modified EUI-64 address used in IPv6 for Stateless Address Autoconfiguration (SLAAC)​.

In IPv6, addresses with the FE80::/10 prefix are Link-Local Addresses.

Option A (Incorrect - Global unicast address): These have prefixes such as 2000::/3.

Option B (Incorrect - Multicast address): Multicast addresses start with FF00::/8.

Option C (Correct - Link-local address): FE80::/10 is reserved for Link-Local addresses, used for communication within a local link.

Option D (Incorrect - Anycast address): Anycast addresses are assigned to multiple interfaces but are not identified by a specific prefix.

Thus, the correct answer is C.

Detailed Explanation:While a switch will typically forward a unicast frame based on its MAC address table, certain scenarios like port security or VLAN restrictions may prevent the frame from being forwarded even if a MAC entry exists. (Reference: HCIA-Datacom Training Material, MAC Address Table and Frame Forwarding)

Detailed Explanation:Making a call on a landline telephone involves network communication. Though it uses a traditional telephone network (Public Switched Telephone Network, PSTN), the process of sending and receiving voice data through a wired system qualifies as network communication. The voice signals are converted into electrical signals, transmitted over the network, and then converted back into voice signals on the receiving end .

Detailed Explanation:UDP (User Datagram Protocol) is a connectionless protocol that does not provide reliability, packet sequencing, or traffic control. These features are usually managed by TCP, which is used for applications requiring reliable data transmission. UDP’s design makes it suitable for real-time applications, such as video streaming or VoIP, where speed and low latency are prioritized over reliability. (Reference: HCIA-Datacom Training Material, UDP Characteristics)

Comprehensive Explanation: The PVID (Port VLAN ID) is the VLAN to which untagged data frames are assigned on a hybrid port. In this configuration, the port hybrid untagged vlan 4 6 command indicates that VLANs 4 and 6 are untagged, and the PVID will be the lowest untagged VLAN, which is VLAN 4. Tagged frames for VLANs 2, 3, and 100 will be forwarded as tagged, but untagged traffic will belong to VLAN 4 by default.

Comprehensive Explanation: On a network consisting of multiple broadcast domains (like Ethernet links), OSPF will elect one DR (Designated Router) and one BDR (Backup Designated Router) per broadcast segment. In this topology, two Ethernet segments are formed, so two DRs will be elected​

Router Initialization:

When a router boots up, it attempts to load its configuration file from the default save directory to initialize.

If the configuration file is missing, the router defaults to preconfigured parameters to ensure basic functionality.

Default Parameters:

These parameters include IP routing, interface defaults, and system-level settings. They allow network administrators to connect and manually configure the router.

Why Other Options Are Incorrect:

B: The " initial configuration file " refers to the manually created file, which may not exist.

C: The " current configuration file " is used during runtime but does not persist through reboots if unsaved.

D: A " new configuration file " must be manually created and does not exist by default.

Python is known for clear syntax and ease of learning, but it is not highly efficient at runtime due to being an interpreted language.

Option A (Correct): Python has a vast ecosystem of third-party libraries.

Option B (Incorrect - Answer): Python is easy to learn but is not as fast as compiled languages like C or Java.

Option C (Correct): Python is widely used in O and M, AI, and data science.

Option D (Correct): Python is fully open-source.

Thus, the correct answer is B.

Comprehensive and Detailed In-Depth Explanation:

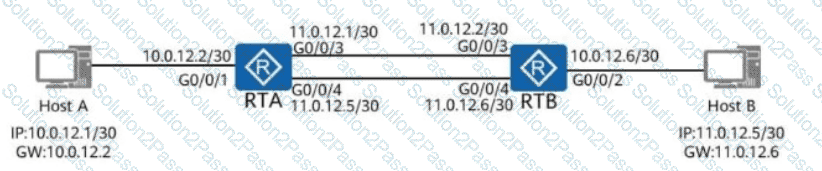

Host A (10.0.12.1/30) needs to send traffic to Host B (11.0.12.5/30) via Router A G0/0/3.

Host B (11.0.12.5/30) needs to send traffic to Host A (10.0.12.1/30) via Router B G0/0/4.

The correct static routes should specify the next-hop correctly to ensure the desired path is used.

Option D correctly ensures traffic flow through the required interfaces (G0/0/3 and G0/0/4).

DHCP (Dynamic Host Configuration Protocol) can allocate various network parameters, including:

IP address: Assigns a unique IP to each client.

Gateway address: Provides the default gateway for routing traffic.

DNS server address: Allows domain name resolution. The DHCP server does not assign an operating system, as this is outside its scope​.
