H12-811_V1.0 Huawei HCIA-Datacom V1.0 Exam Free Practice Exam Questions (2026 Updated)

Detailed Explanation:In RSTP, there are three port states: Discarding, Learning, and Forwarding. These states replace the five traditional STP states by combining them to optimize network convergence​​.

Comprehensive Explanation: Netstream is a protocol for flow-based network traffic analysis, not a method for logging into a VRP system. The valid methods for accessing the VRP system include Telnet, Web, and SSH, which are used for remote management and configuration of network devices​

The IPv4 header length is variable and is determined by the Header Length (IHL) field in the IPv4 header.

Minimum header size: 20 bytes (5 x 4B) → No options field.

Maximum header size: 60 bytes (15 x 4B) → Includes maximum options.

Option A (Incorrect - 64B): The maximum possible length of an IPv4 header is 60B, so 64B is not possible.

Option B (Correct - 20B): This is the standard IPv4 header size without options.

Option C (Correct - 60B): This is the maximum IPv4 header size with options.

Option D (Correct - 32B): This is a possible IPv4 header size with some options.

Thus, the correct answer is A (64B).

Comprehensive Explanation: To prevent unauthorized changes to the router ' s configuration, the administrator can take several steps. Configuring an ACL to restrict management access ensures that only authorized users, such as the administrator, can log in to the router. Additionally, using AAA (Authentication, Authorization, and Accounting) allows the administrator to manage user permissions and control access to the router ' s functions based on user roles. Port-security is used for limiting MAC addresses on switch ports, and login privilege levels should be set appropriately but not limited to level 0, which restricts almost all actions.

Understanding Switch Stacking:

Switch stacking allows multiple physical switches to operate as a single logical switch.

Huawei iStack technology supports stacking multiple switches.

Benefits of Stacking:

Simplified Management: Single configuration and management point.

Increased Redundancy: Failover and link aggregation improve reliability.

Scalability: More switches can be added as needed.

Conclusion:

More than two switches can be stacked, making the statement TRUE.

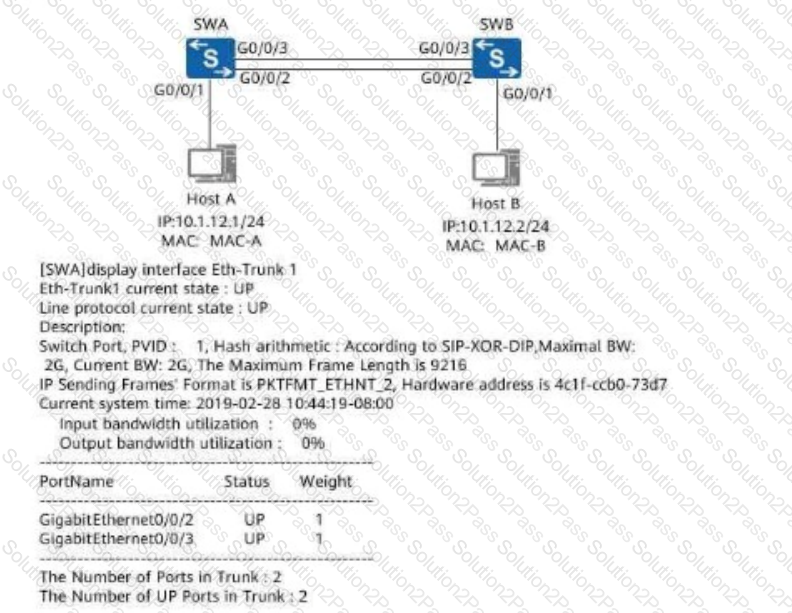

Detailed Explanation:In manual load balancing mode, all active interfaces forward traffic, distributing it evenly across links without LACP. This allows for static load balancing. Option B is incorrect because LACP (Link Aggregation Control Protocol) is not involved in manual mode. (Reference: HCIA-Datacom Training Material, Link Aggregation and Manual Load Balancing)

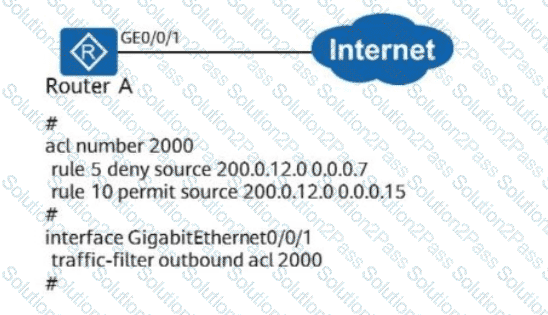

To determine which statement is incorrect, we need to analyze the ACL configuration on Router A and understand how it filters outbound traffic to the Internet. Let ' s break down the configuration step by step, referencing HCIA Datacom principles for ACL processing and traffic filtering.

1. Understanding the ACL Configuration

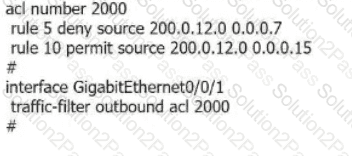

The configuration on Router A is as follows:

text

WrapCopy

acl number 2000

rule 5 deny source 200.0.12.0 0.0.0.7

rule 10 permit source 200.0.12.0 0.0.0.15

#

interface GigabitEthernet0/0/1

traffic-filter outbound acl 2000

#

ACL Number 2000: This is a basic ACL used to filter traffic based on source IP addresses.

Rule 5: deny source 200.0.12.0 0.0.0.7

The wildcard mask 0.0.0.7 translates to a subnet mask of /29 (255.255.255.248).

The IP range for 200.0.12.0 0.0.0.7 is calculated as:

Network address: 200.0.12.0

Broadcast address: 200.0.12.7

Usable host addresses: 200.0.12.1 to 200.0.12.6 (6 usable addresses in a /29 subnet).

Therefore, this rule denies traffic from any source IP in the range 200.0.12.1–200.0.12.6.

Rule 10: permit source 200.0.12.0 0.0.0.15

The wildcard mask 0.0.0.15 translates to a subnet mask of /28 (255.255.255.240).

The IP range for 200.0.12.0 0.0.0.15 is:

Network address: 200.0.12.0

Broadcast address: 200.0.12.15

Usable host addresses: 200.0.12.1 to 200.0.12.14 (14 usable addresses in a /28 subnet).

Therefore, this rule permits traffic from any source IP in the range 200.0.12.1–200.0.12.14.

Interface Configuration: The ACL 2000 is applied outbound on interface GigabitEthernet0/0/1, meaning it filters traffic leaving Router A toward the Internet.

2. ACL Processing Logic (HCIA Datacom Reference)

According to HCIA Datacom documentation (e.g., Huawei ACL fundamentals), ACLs are processed in sequential order, and the first matching rule determines the action (permit or deny). If no rule matches, the implicit deny rule at the end of the ACL blocks the traffic. In this case:

Rule 5 denies traffic from 200.0.12.1–200.0.12.6.

Rule 10 permits traffic from 200.0.12.1–200.0.12.14.

Since Rule 5 is processed before Rule 10, any IP in the overlap (i.e., 200.0.12.1–200.0.12.6) will be denied by Rule 5, even though Rule 10 would permit it.

IPs outside 200.0.12.1–200.0.12.6 but within 200.0.12.1–200.0.12.14 are permitted by Rule 10.

Any IP not matching Rule 5 or Rule 10 is implicitly denied (but no such IPs are listed in the options).

3. Evaluating Each Option

Now, let’s check each host IP address against the ACL rules to determine if they can access the Internet:

A. The host with the source IP address 200.0.12.6 cannot access the Internet.

200.0.12.6 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

B. The host with the source IP address 200.0.12.8 cannot access the Internet.

200.0.12.8 does not fall within the range 200.0.12.1–200.0.12.6 (denied by Rule 5).

It does fall within the range 200.0.12.1–200.0.12.14 (permitted by Rule 10).

Therefore, 200.0.12.8 is permitted to access the Internet, making this statement incorrect.

C. The host with the source IP address 200.0.12.2 cannot access the Internet.

200.0.12.2 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

D. The host with the source IP address 200.0.12.4 cannot access the Internet.

200.0.12.4 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

4. Conclusion

The only incorrect statement is B, as the host with the source IP address 200.0.12.8 can access the Internet because it is permitted by Rule 10 and not denied by Rule 5.

5. HCIA Datacom References

This analysis aligns with the HCIA Datacom curriculum, specifically:

ACL Fundamentals: Huawei’s documentation on basic ACLs (e.g., ACL 2000–2999 for IPv4) and their rule processing order (first match wins).

Traffic Filtering: Outbound ACL application on interfaces, as described in Huawei router configuration guides.

Wildcard Mask Calculation: Standard IP addressing and subnetting principles for determining IP ranges (e.g., /29 and /28 subnets).

These principles are detailed in the HCIA Datacom V1.0 training materials, particularly in the sections on ACL configuration, IP addressing, and interface-based traffic control.

In the provided routing table, the router’s next hop for each destination indicates whether the destination is reachable directly or indirectly. For entries where the next hop is specified, the router forwards packets accordingly through the designated interface, as confirmed in the table output. This information is used to verify the forwarding behavior for each destination​.

In the ACL (Access Control List) configuration:

Rule 5: Permits traffic from 192.168.1.1.

Rule 10: Denies traffic from 192.168.1.1.

Since ACLs are processed in sequential order, the first matching rule is applied.

Option A (Incorrect): The first rule (permit) is matched before the deny rule.

Option B (Incorrect): 192.168.1.254 is not listed in the ACL, so it does not match any rule.

Option C (Correct): 192.168.1.1 matches the first permit rule (Rule 5), so it is allowed.

Option D (Incorrect): 192.168.1.254 is not mentioned in the ACL rules, so it does not match the permit rule.

Thus, the correct answer is C.

Comprehensive Explanation: In OSPF (Open Shortest Path First), a router first synchronizes its Link-State Database (LSDB) with its neighbors by exchanging link-state information. Only after this synchronization process is complete does the router transition to the Full state. The Full state indicates that the router has fully converged with its OSPF neighbors and has a complete and up-to-date view of the network topology. Therefore, the router enters the Full state after synchronizing its LSDB, not before.

Comprehensive and Detailed In-Depth Explanation:

SNMPv2c Default Ports:

161 → Used by SNMP agents to listen for requests.

162 → Used for SNMP traps (notifications).

Statement A (False): Any router can function as an ASBR, not just ABRs. An ASBR is any router that connects OSPF to an external network, regardless of area.

Statement B (True): Area 0 is the OSPF backbone area, and all other areas must connect to it.

Statement C (True): Area partitioning reduces LSDB size by limiting the scope of LSAs within an area.

Statement D (True): Routers in the same area have the same LSDB, ensuring consistency in link-state information.

Thus, the correct answer is A (False statement).

Routing preference (administrative distance) is the first criterion used when multiple paths exist.

If multiple routes have the same preference, the router then compares the cost (metric) to choose the best path.

Lower cost values indicate better paths and are preferred by the router.

If multiple paths have the same cost, the router may perform load balancing (depending on the routing protocol).

Thus, the correct answer is A (TRUE).
