H12-821_V1.0 Huawei HCIP-Datacom-Core Technology V1.0 Free Practice Exam Questions (2026 Updated)

IS-IS uses a two-level hierarchy:

Level-1 routers operate within a single area and cannot exchange routing information with routers in other areas directly.

To reach external areas (the IS-IS backbone or other areas), Level-1 routers rely on Level-1-2 routers , which perform inter-area route redistribution.

Therefore, a Level-1 router must use a Level-1-2 router as a gateway to reach destinations outside its own area.

Comprehensive and Detailed Step-by-Step Explanation:

Analysis of the OSPF Neighbor State:

Router ID 10.0.5.5:

On interface 10.0.235.2 (GigabitEthernet0/0/1), the neighbor state is Full, indicating that adjacency is established.

The Designated Router (DR) is 10.0.235.5, which is the same as the neighbor ' s address.

Router ID 10.0.4.4:

On interface 10.0.24.2 (Serial1/0/1), the neighbor state is also Full, meaning adjacency is established.

The DR/BDR election status shows None, indicating that the interface is on a point-to-point link where DR/BDR election does not apply.

Validation of Each Option:

Option A: Correct. The DR IP address is explicitly shown as 10.0.235.5.

Option B: Correct. The neighbor state for both 10.0.5.5 and 10.0.4.4 is Full, confirming adjacency is established.

Option C: Incorrect. DR/BDR elections are irrelevant on point-to-point links like Serial1/0/1.

Option D: Correct. The Router IDs of R2 ' s neighbors are explicitly listed as 10.0.5.5 and 10.0.4.4.

In RSTP, a port in the discarding state neither forwards data frames nor learns MAC addresses. A port in the learning state does not forward data frames but starts learning MAC addresses. Therefore, options A and B are correct, while C and D are incorrect due to misunderstandings of these states ​.

In Layer 3 roaming scenarios, STAs (stations) remain on different subnets before and after roaming. To ensure that user traffic reaches the original subnet, it must be tunneled back over a CAPWAP tunnel. This technique prevents disruptions in communication and enables seamless roaming. Huawei’s Layer 3 roaming design guidelines emphasize the use of CAPWAP tunnels for user traffic forwarding ​.

Comprehensive and Detailed Step-by-Step Explanation:

Definition of the Origin Attribute:

The Origin attribute is a well-known mandatory attribute used to indicate the source of a route. It has three possible values:

i (IGP): The route was injected into BGP using the network command.

e (EGP): The route was learned from an EGP protocol (not commonly used now).

? (Incomplete): The route was redistributed into BGP from another routing protocol.

Analysis of Each Option:

Option A: Correct. When the network command is used, the Origin is set to i (IGP) .

Option B: Incorrect. Routes learned from EGP have the Origin attribute set to e (EGP) , not ? (Incomplete) .

Option C: Correct. BGP prefers routes with the Origin attribute in the order: IGP > EGP > Incomplete .

Option D: Correct. The Origin attribute is a well-known mandatory attribute.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding the AS-Path Filter:

The as-path-filter command is used in BGP to filter routes based on the AS_PATH attribute.

In this configuration:

The filter si is defined with the regular expression _65500$.

The _65500$ expression specifies that the AS_PATH must end with 65500, meaning that the route ' s last hop must have passed through AS 65500.

2. Option Analysis:

Option A: It accepts only the routes whose AS_Path contains AS 65500.

Incorrect .

The _65500$ filter specifically matches routes where AS 65500 is the last AS in the AS_PATH. A route may contain AS 65500 somewhere in the middle of the AS_PATH but will not match this filter unless it is the last AS.

Option B: It accepts only the routes originated from AS 65500.

Incorrect .

Routes that originate from AS 65500 have an AS_PATH that starts with 65500. However, the filter _65500$ only matches routes where AS 65500 is the last AS, not the first AS.

Option C: It accepts only the routes that last pass through AS 65500.

Correct .

The _65500$ filter ensures that the AS_PATH ends with 65500. This means that the route must have last passed through AS 65500 before being received by the local BGP router.

Option D: It accepts only the routes forwarded by AS 65500.

Incorrect .

While AS 65500 may forward the route, this is not what the filter _65500$ specifically checks for. It only ensures that AS 65500 is the last AS in the AS_PATH.

3. Summary:

The as-path-filter with _65500$ accepts only the routes where AS 65500 is the last AS in the AS_PATH.

In asynchronous mode, the local device sends BFD control packets at predefined intervals, and the remote device monitors the receipt of these packets to detect connectivity issues. This is one of the two operating modes in BFD, the other being demand mode ​.

The question indicates that a router performs a lookup in its FIB table for a packet and determines that the tunnel ID in the matching entry is 0, suggesting that the packet needs to be forwarded through a tunnel such as an MPLS tunnel. However, this is a misunderstanding of the FIB functionality.

FIB Table Overview The Forwarding Information Base (FIB) is used to make packet-forwarding decisions. Entries in the FIB include next-hop information, which can be directly linked to an interface or a tunnel.

If the Tunnel ID is 0 , it indicates that the packet is forwarded via a normal routing path and not through a tunnel.

For MPLS or other tunnels, the Tunnel ID would have a non-zero value pointing to the associated tunnel.

MPLS Tunnel Operation When a router forwards packets through an MPLS tunnel, a label-switched path (LSP) is set up. The FIB would reflect specific tunnel identifiers for packets that need such encapsulation.

HCIP-Datacom-Core Reference

Routing Principles and MPLS ​explain the forwarding mechanisms clearly, stating that if a packet is routed normally, the tunnel ID remains 0 .

The section on MPLS​clarifies the encapsulation process and the role of tunnel identifiers.

Hence, the claim in the question is incorrect. A Tunnel ID of 0 implies no tunneling is required, and normal IP forwarding occurs

Attributes such as community , tag , and origin can be directly referenced in the apply clause of a route-policy. However, IP-prefix is not an attribute but a prefix list used for matching, and it cannot be directly applied ​.

OSPF routers refresh and flood LSAs in the Link-State Database (LSDB) every 30 minutes by default to maintain topology consistency. OSPF does not rely on TCP; it uses its own acknowledgment mechanism. It also uses the Dijkstra algorithm, not Bellman-Ford. The flooding interval for LSU packets is shorter, typically 5 seconds ​.

 During WLAN roaming, the STA sends a Reassociation Request frame to the foreign AP to maintain connectivity. Association frames are used during initial connections, not roaming.

 APs with which a STA is associated before and after roaming can work on different channels, as roaming often occurs across channels in environments like multi-SSID or multi-channel setups.

Options C and D are false, as they contradict standard WLAN roaming procedures ​.

Comprehensive and Detailed Step-by-Step Explanation:

HSB (Hot Standby Backup) Service:

HSB is used on WLAN controllers to back up critical information in real time to a backup device, ensuring service continuity in case of failures.

Backed-Up Information:

CAPWAP Tunnel Information (A): Essential for maintaining connections between APs and controllers.

AP Entries (C): Information about connected APs is backed up.

User Data Information (D): Includes client authentication and session details.

Incorrect Option:

DHCP Address Information (B): Not part of HSB ' s responsibilities, as DHCP is handled separately.

An OSPF AS-external LSA is used to describe routes to networks that are external to the OSPF Autonomous System (AS). This external route information is typically imported into OSPF by an Autonomous System Boundary Router (ASBR) .

If the Forwarding Address field in the AS-external LSA is set to 0.0.0.0, this indicates that traffic destined for the external network should be forwarded directly to the ASBR that advertised the external route.

The specific context mentioned here relates to the Not-So-Stubby Area (NSSA) , a type of OSPF area designed to handle AS-external routes in a more controlled way. In NSSAs:

Type 7 LSAs are used to describe AS-external routes.

The ASBR within the NSSA converts the Type 7 LSA to a Type 5 LSA before advertising it to the backbone area.

Hence, the correct acronym for the described functionality is NSSA .

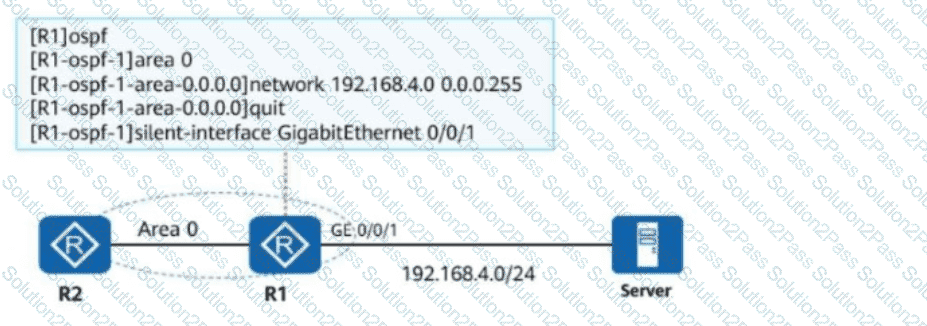

The silent-interface command disables the sending of OSPF packets, including Hello packets, on the specified interface, which prevents the establishment of OSPF neighbor relationships. However, the interface can still advertise directly connected routes through other interfaces, making Option C incorrect ​.

The provided BGP error display shows the error timestamp as 12:40:39 on March 22, 2010 . The error message confirms a mismatch in the peer AS number, as indicated in the " Incorrect remote AS " error info. This eliminates options related to other causes, and the timestamp in Option A is incorrect ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding the IGMP Group Entry:

The IGMP group entry contains key information about multicast groups on the interface:

Group Address (225.1.1.2): The multicast group address that the user has joined.

Last Reporter (10.1.6.10): The IP address of the last host that sent an IGMP Report message for this group.

Uptime: The duration since the group was first reported.

Expires: The remaining time before the group entry ages out if no further reports are received.

2. Analysis of Each Statement:

Option A: This entry can be used to construct the corresponding (S, G) entry.

Incorrect.

This is a group entry for IGMP, which contains information about the group (G) but does not include a specific source (S). (S, G) entries are created in PIM (Protocol Independent Multicast), not IGMP.

Option B: This entry is created when the device receives an IGMP Join message from a user.

Correct.

IGMP Join messages are used by hosts to signal their intent to join a multicast group. When such a message is received, the group entry is created.

Option C: Expires indicates the aging time of the IGMP group.

Correct.

The " Expires " field shows the remaining time before the group entry ages out if no further IGMP reports are received.

Option D: 225.1.1.2 is the address of the group that the user joins.

Correct.

The " Group Address " field explicitly states that 225.1.1.2 is the multicast group that the user has joined.

3. Summary:

Correct Options: B, C, D
